ROCKSOLAR Cottage Life Series II + 24V Brushless Solar DC Water Pump

Name: ROCKSOLAR Cottage Life Series II + 24V Brushless Solar DC Water Pump
Brand: ROCKSOLAR
SKU: RSSOS-2X150R24BL-COT2-001
Price: 1815.0 USD
Availability: InStock

$1,815.00 USD

~~$2,268.00 USD~~ $1,815.00 USD

Vente Épuisé

Frais d'expédition calculés à l'étape de paiement.

Enhanced Power Generation and Storage

Offers exceptional power generation with two 150W Rigid Solar Panels
High-capacity 12V 100AH LIFEPO4 Battery for efficient power storage
The Brushless Solar Water Pump is powered by 24V system, providing ample power for most off-grid irrigation and water supply needs

Optimized Energy Management

Features a 20A MPPT Solar Charge Controller for maximized charging efficiency and battery protection
Utilizes a 1000W Pure Sine Wave Inverter ensuring stable and reliable power to your devices

Read more

Variantes de produits

Quantité

Free
Local Shipping

10-year Hassle Free
Warranty

Lifetime Customer
Support

Afficher tous les détails

Description
Includes
Specifications
FAQ
Downloads
Reviews

The ROCKSOLAR Cottage Life Series II Off-Grid Solar System is the ultimate power solution for cottage owners in Canada. Designed for reliability and efficiency, this system ensures dependable off-grid power whenever you need it. This advanced solar system includes five essential components: a 12V 100AH LiFePO4 Battery, two 150W Rigid Solar Panels, a 40A MPPT Solar Charge Controller, and a 1000W Pure Sine Wave Inverter. It is engineered to provide constant power for vital devices like a mini fridge, LCD TV, wifi routers, DC brushless water pump, coffee machine (<1000W), lighting, stereo, laptop, and phone chargers. Perfect for usage throughout the summer months, the ROCKSOLAR Cottage Life Series II guarantees a consistent power source you can rely on. The 12V 100AH LiFePO4 Battery and 150W Rigid Solar Panels come with a robust 10-year warranty, while the remaining components are covered for 1 year. This off-grid solar system is also designed for future power needs, offering hassle-free upgrade services and interchangeable key components. ROCKSOLAR ensures that all components hold their value, maximizing the return on your investment. With the ROCKSOLAR Cottage Life Series II Off-Grid Solar System, you can enjoy uninterrupted power at your cottage. Experience the convenience of 24/7 power and the confidence of a dependable, long-term warranty.

Product Features

ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System:

12V 100AH capacity

Over 3500 cycle life with 100% discharge rate for ultra-long service life

Consistent power: Flat voltage curve ensures steady power output, with no dramatic drop like SLA batteries

LiFePO4 Battery Technology for reliable deep cycling

Smart Battery Management System for safety and longevity

Lightweight: Only 27 pounds for easy portability and installation

Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.

Operating temperature range for charging: 0C∽45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.

Warranty: 11-year warranty and 10+ year service life

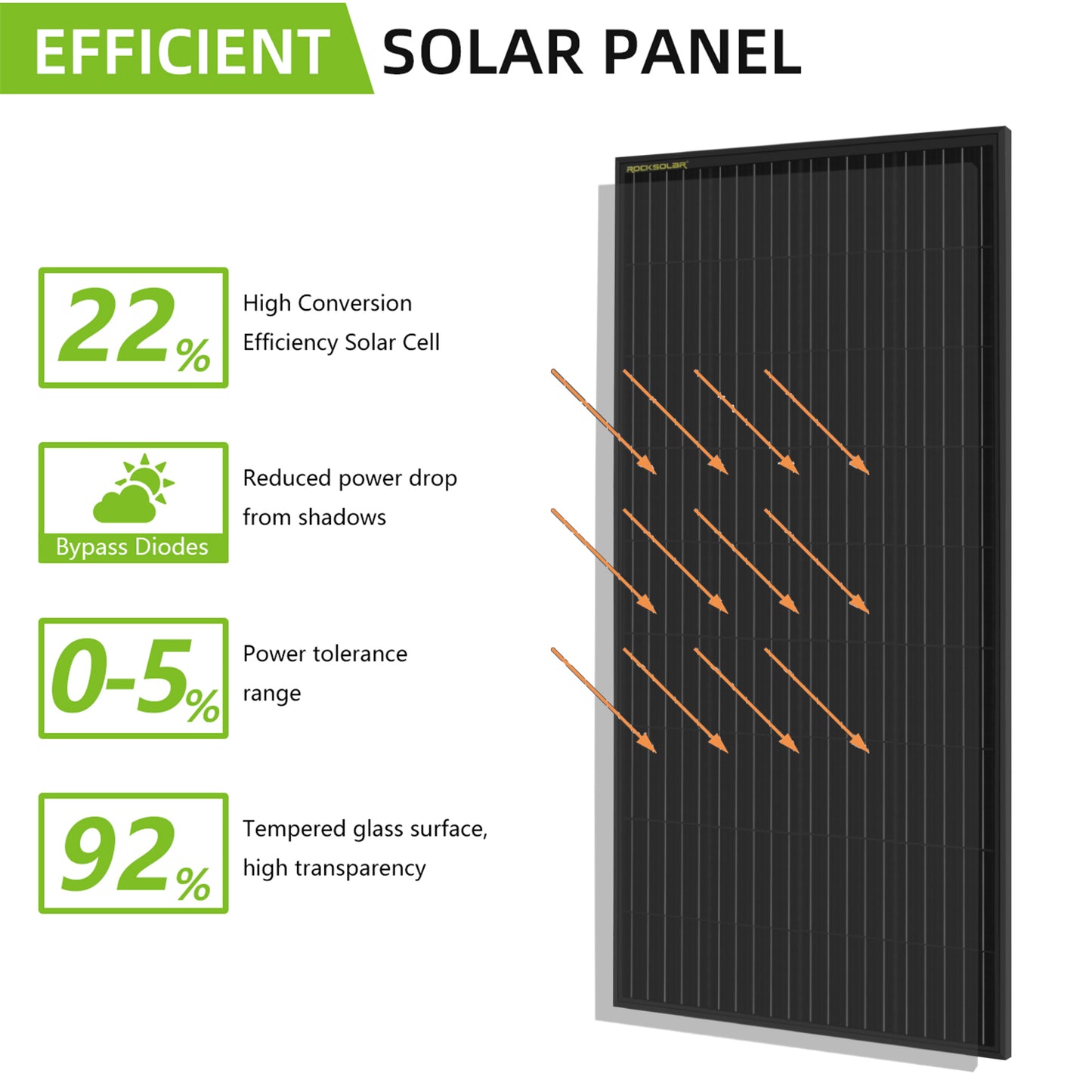

ROCKSOLAR 150W 12V Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:

150W 12V output

Rigid Monocrystalline Solar Panel

Waterproof and Corrosion-Resistant Aluminum Alloy Frame

High-Efficiency Solar Cell with 22% Conversion Efficiency

Pre-drilled holes for easy mounting and securing to any surface

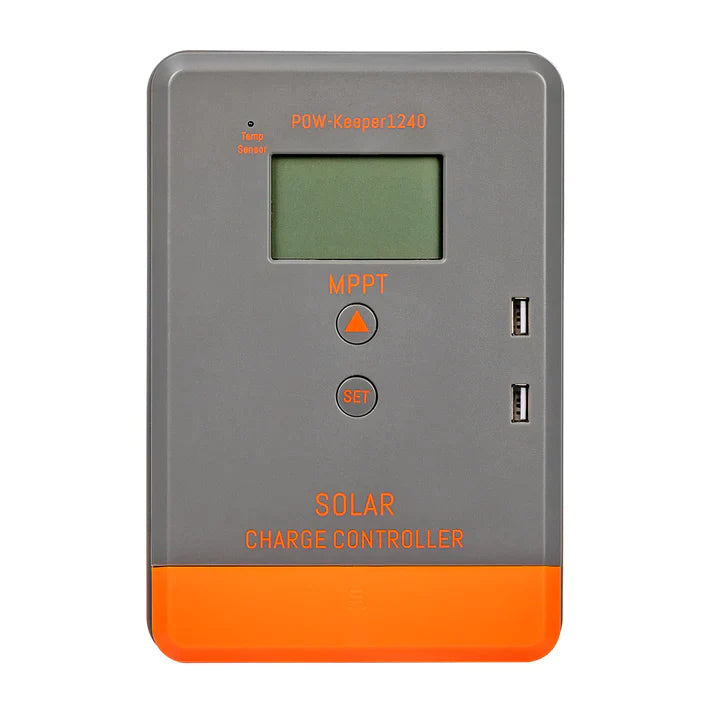

ROCKSOLAR 40A MPPT Solar Charge Controller:

40A MPPT Solar Charge Controller

Compatible with Lithium and Lead Acid batteries

The maximum open voltage of 75Vdc and MPP tracking efficiency of 99.5%

3-stage charge algorithm and 12/24V nominal system voltage

Rated charging current of 20A and battery voltage range of 8-32V

High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V

Operating temperature range of -20°C to 55°C

IP30 rated for protection

ROCKSOLAR 500W Pure Sine Wave Power Inverter:

1000W Pure Sine Wave Power Inverter

DC 12V to 110V AC Conversion

2.1A USB Charging Port

Ideal for RVs, Camping, Off-grid power solutions, and more.

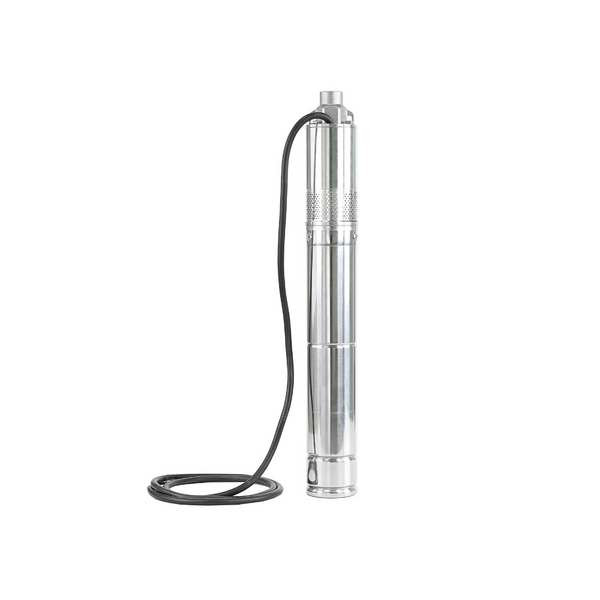

ROCKSOLAR 24V Brushless Solar DC Water Pump:

High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar power applications.

Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.

Inbuilt Controller: The pump comes with an inbuilt controller for ease of operation.

Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.

User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.

Adequate Cable Length: Comes with a 2M cable for flexible installation.

Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.

Outlet: The pump features a 1" outlet for easy connection to your water supply system.

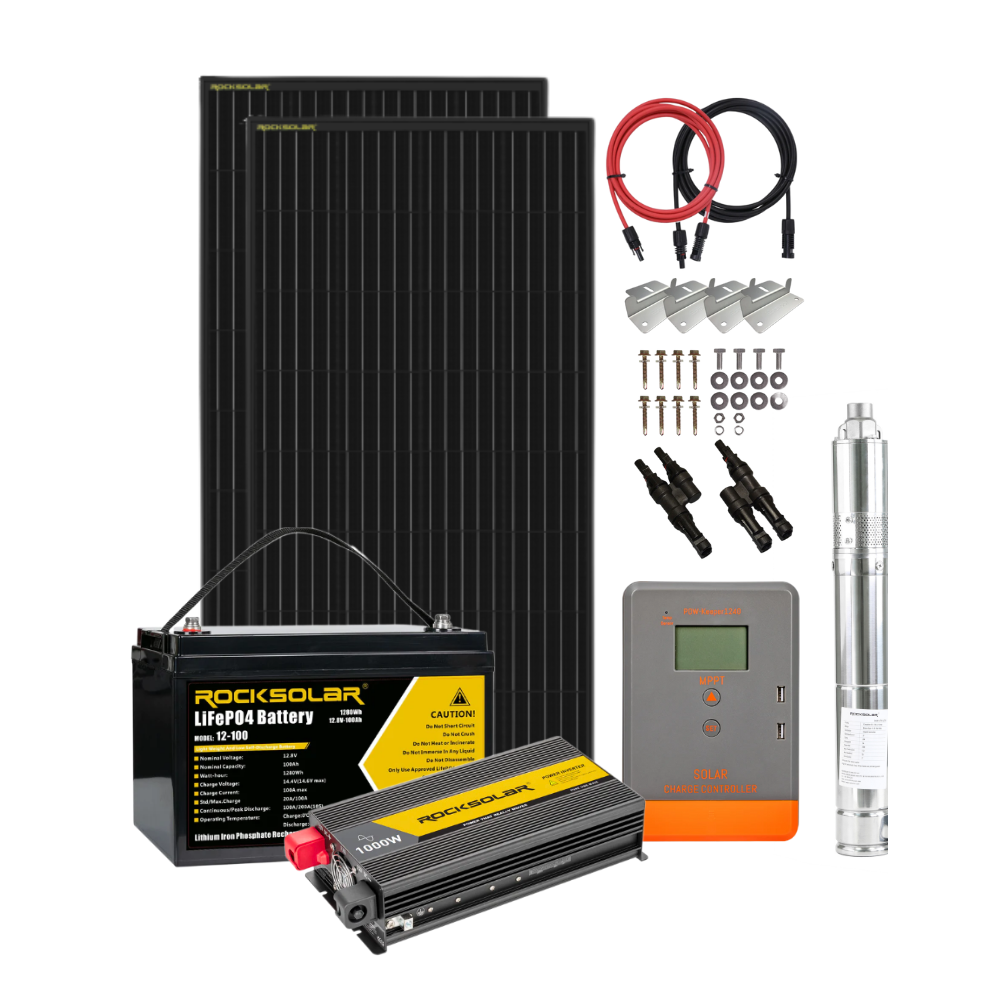

Cottage Life Series II Off Grid Solar System Includes

1x

12V 100Ah Deep Cycle LiFePO4 Battery

2x

150W 12V Rigid Monocrystalline Solar Panel

1x

1000W Pure Sine Wave Power Inverter

1x

40A MPPT Solar Charge Controller

1x

20 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black

2x

Z-Bracket Mount System (Set of 4)

1x

Y Branch Connectors for Solar Panels MMF+FFM Pair

1x

24V Brushless Solar DC Water Pump

Technical Specifications

12V 100Ah Deep Cycle LiFePO4 Battery	Details
Product Dimensions	12.99 x 6.81 x 8.66 Inches
Battery Type	Lithium Ion battery
Special Features	Deep cycle
Working Temperature	-20C -60C
Voltage	12 Volts (DC)
Item Weight	‎12.52 kg
Warranty	11 Years

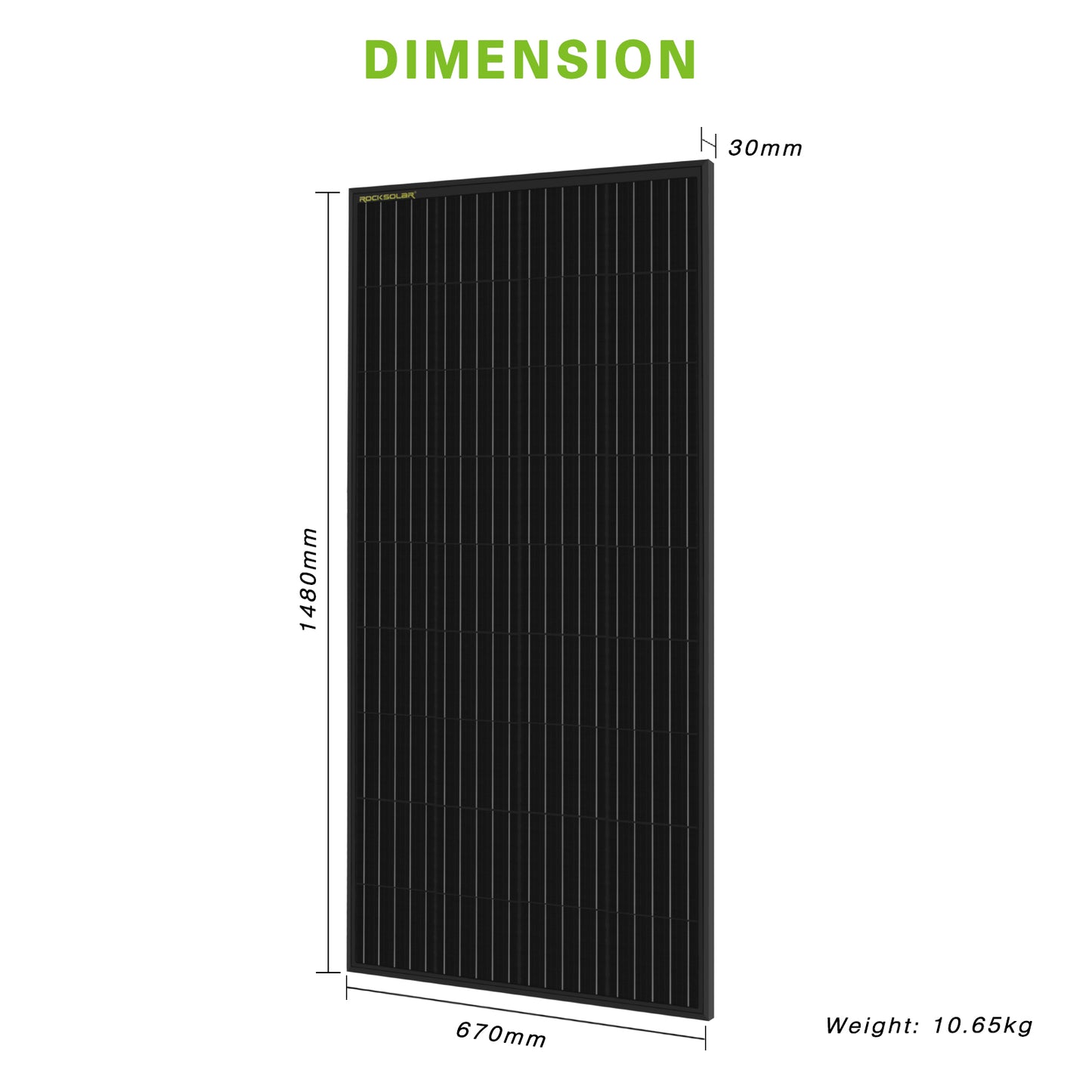

150W 12V Rigid Monocrystalline Solar Panel	Details
Rated Power	150W
Type	Mono-crystalline silicon
System Voltage	12V
Cell Efficiency	20-22%
Frame Material	Aluminum
Dimensions	112067030 mm
Weight	approx. 8.30kg
Operating Temperature	-20~70 °C

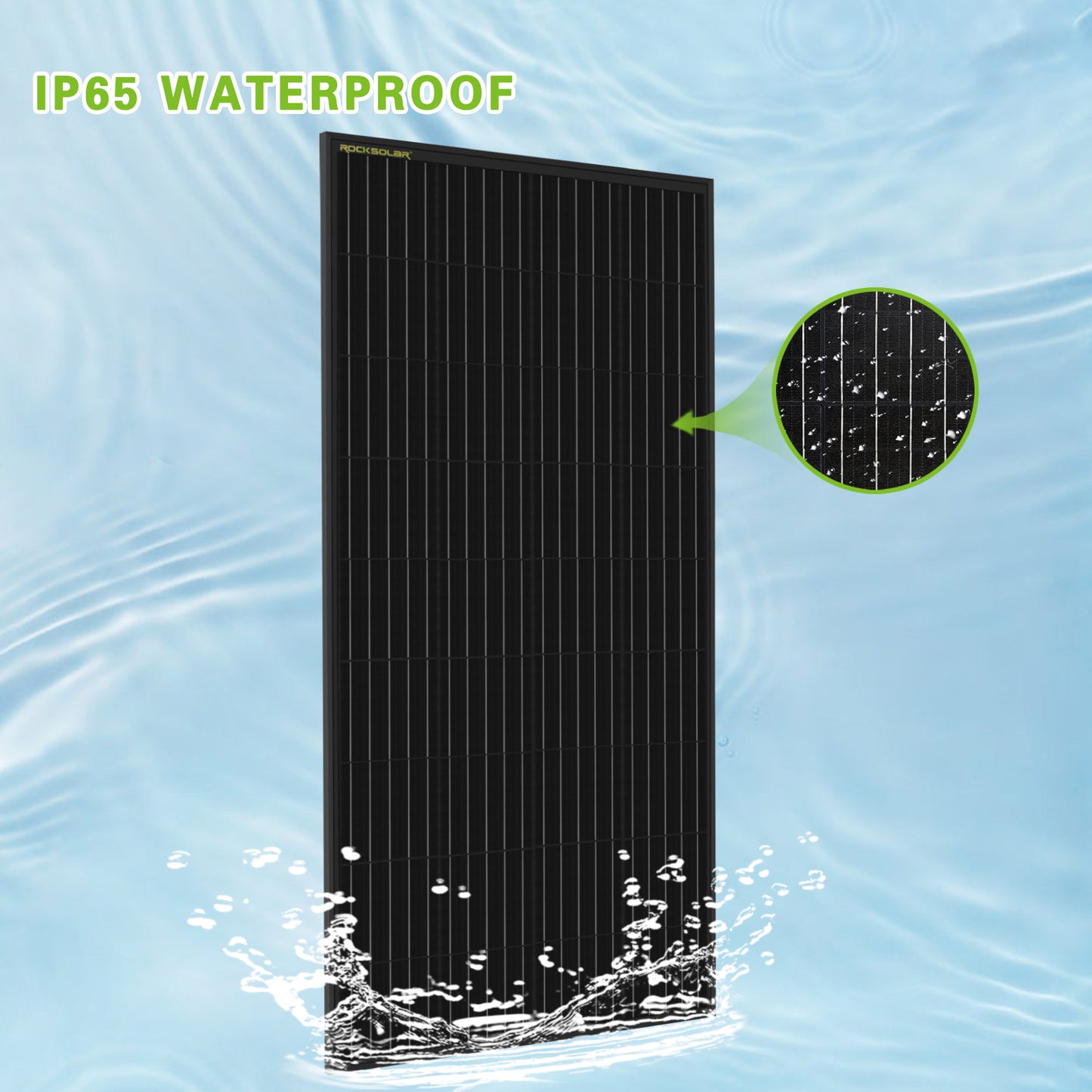

Waterproof Rating	IP65
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 Year

40A MPPT Solar Charge Controller	Details
Max Open Voltage of PV Module	75Vdc
MPP Tracking Efficiency	99.50%
Light Control Voltage	5V
Charge Algorithm	3 Stage
Battery Type	Lithium and Lead Acid Battery
Nominal System Voltage	12/24V
Rated Charging Current	40A
Battery Voltage Range	8~32V
High Voltage Disconnection	16V (24V x 2)
Duration for absorption charging	2 hours
Charge Loop Voltage Drop	≤0.29V
Self-consumption	≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage	AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging voltage	AGM: 14.4V; GEL: 14.2; FLd: 14.6V
Floating Charging voltage	AGM/ GEL/ FLd: 13.8V
Low Voltage re-connection (LVR)	AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD)	AGM/ GEL/ FLd: 10.8V
Operating Temperature Range	-20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range	-20℃~70℃
Humidity Range	≤95% No condensation
Protection Class	IP30
Dimension	12317848
Installation Hole	108*120 ∅5
Warranty	1 Year

1000W Pure Sine Wave Power Inverter	Details
Rated power	1000W
AC Voltage	120V
Frequency	60HZ
Resistive Load Continuous Output Power	1000W
Inductive Load Continuous Output Power	1000W The pump can start normally (beyond which protection may be possible without damaging the inverter)
Capacitive Load Continuous Output Power	420±20W，PF：0.6 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter)
Waveform	Pure Sine Wave
Waveform Distortion（THD)	≤5%
Voltage range	9～17Vdc; 18V～32V
Battery Voltage	12Vdc; 24Vdc
DC Current	98A（Load 1000W when entering 12Vdc; 47.9A（Load 1000W when entering 24Vdc)
No Load Loss	0.8A; 0.7A
Shutdown mode static current	1mA
Maximum efficiency	90%
Battery type	All 12V batteries
Insurance slice	40A*2
Battery Low Voltage Alarm	9.5/10/10.5/11/11.5/12/12.5V，Buzzer alarm, LED display E06
Battery Low Voltage Alarm Recovery	11Vdc
Battery Low Voltage Protection	10Vdc Peak buzzer alarm, bright red and green lights
Battery Low Voltage Protection Recovery	Recovery voltage within 30S：11/11.5/12/12.5/13/13.5/14V
Battery High Voltage Protection	17V，LED display shows E02, automatic shutdown after 30S
Battery High Voltage Protection Recovery	Recovery voltage within 30S：16.5V
Over Temperature	Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output
Output Short Circuit	Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S
Overload	Over 1600W 300ms locked after shutting off output (below 1600W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
Overload	Over 1600W 300ms locked after shutting off output (below 1600W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
USB Output Voltage	5V
USB Output Current	2.1A
Working Temperature	-20～40℃
Operating humidity	10～90%RH
Storage temperature, humidity	-30℃～70℃,10～95%RH
Weight	Net weight：2.82 kg
Size	357.6171.978 mm(LWH)
Warranty	1 Year

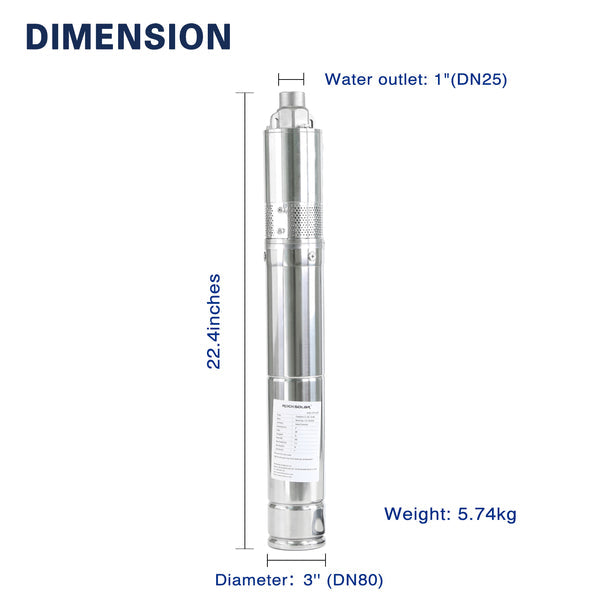

24V Brushless Solar DC Water Pump	Details
Product	Rocksolar 24V Brushless Solar DC Water Pump
Pump Model	Complete S.S. 304 + Screw
Motor	Brass Cap + S.S. 304 Body
Controller	Inbuilt Controller
Diameter(inch)	3''
Voltage(V)	24
Cable	2M
Power(W)	250
Max Flow(m3/h)	1.3
Max Head(m)	70
Outlet(inch)	1"
Warranty	5 Year

The 12V 100AH LiFePO4 Battery provides a substantial storage capacity of 1200 Watt-hours, which can comfortably power various appliances and devices in your cottage.

The Cottage Life Series II includes two 150W Rigid Solar Panels. On a sunny day, these can collectively generate up to 300 watts of power per hour, depending on the sunlight's intensity and angle.

The 40A MPPT (Maximum Power Point Tracking) Solar Charge Controller serves as an intermediary between the solar panels and the battery. It optimizes the power received from the solar panels and safely charges the battery, maximizing efficiency and prolonging battery life.

The 1000W Pure Sine Wave Inverter converts DC power from the battery into AC power, which is compatible with most household appliances. You can power devices like a mini fridge, LCD TV, wifi routers, DC brushless water pump, coffee machine (<1000W), lighting, stereo, laptop, and phone chargers.

The 12V 100AH LiFePO4 Battery and 150W Rigid Solar Panels come with an impressive 10-year warranty. The 20A MPPT Solar Charge Controller and the 1000W Pure Sine Wave Inverter are covered by a 1-year warranty.

The ROCKSOLAR 24V Brushless Solar DC Water Pump is designed to be powered by a 24V DC power source. This can be supplied by a suitable solar panel system, a 24V battery, or any other 24V DC power source.

The ROCKSOLAR 24V Brushless Solar DC Water Pump is capable of delivering a maximum flow rate of 1.3 cubic meters per hour (m3/h). This makes it suitable for a wide range of water supply needs.

No, the ROCKSOLAR 24V Brushless Solar DC Water Pump should not be used in dirty or corrosive water. Using the pump in such conditions can lead to premature wear and damage, which is not covered by the warranty.

The ROCKSOLAR 24V Brushless Solar DC Water Pump is designed for minimal maintenance. However, it is important to ensure that the pump is always submerged in water when operating, and that it has adequate water around it at all times. If the pump will not be used for a long period, it is recommended to remove it from the water.

Specific warranty information for the ROCKSOLAR 24V Brushless Solar DC Water Pump can be found in the product documentation or by contacting the manufacturer or retailer. Typically, ROCKSOLAR products come with a warranty covering manufacturing defects, but damage due to misuse or improper operation is not covered.

Download Product Manual (PDF)
