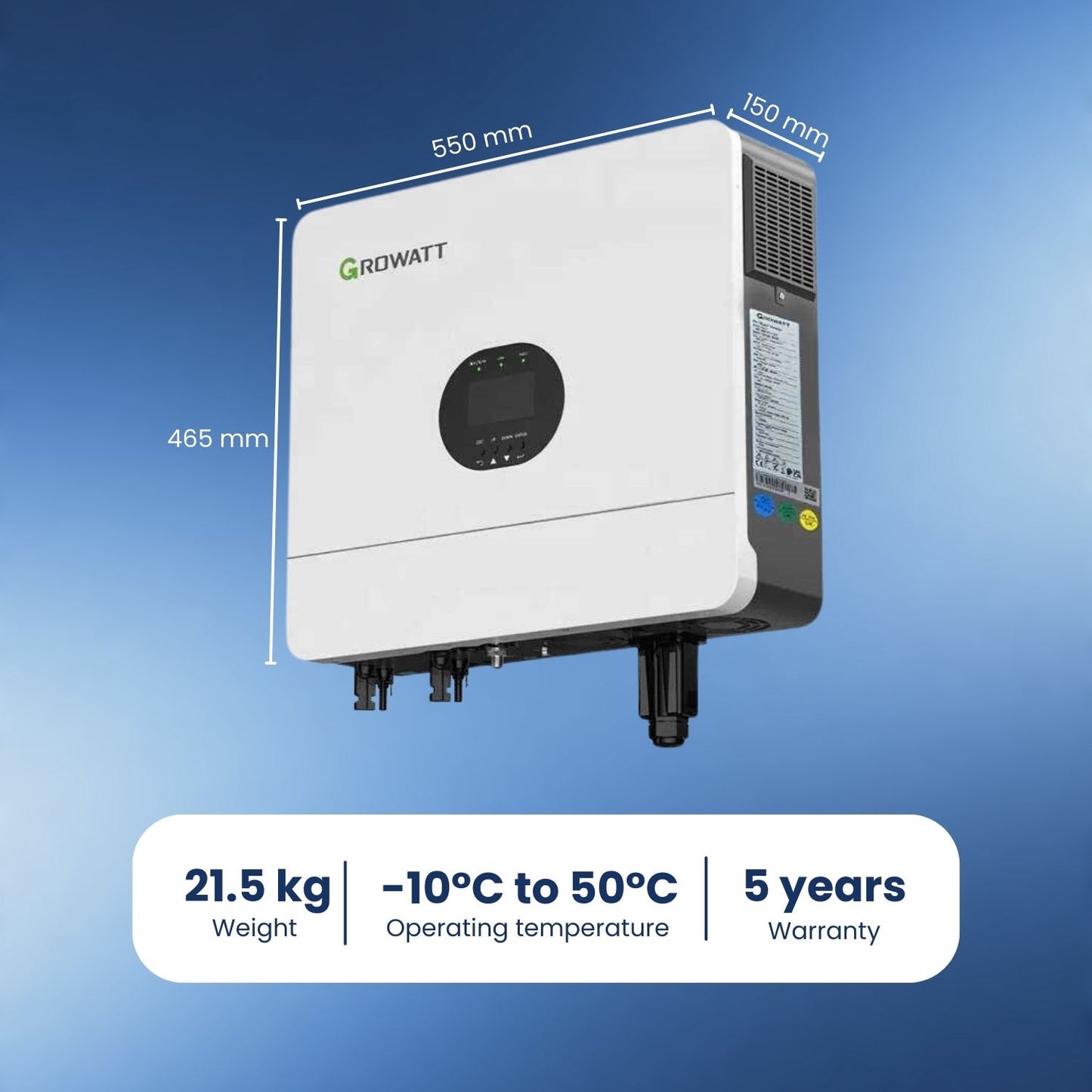

Growatt SPE12000 US 12KW Split-Phase Off-Grid Solar Inverter 120/240V
Growatt SPE12000 US 12KW Split-Phase Off-Grid Solar Inverter 120/240V
Available in stock (199)
- Description
- Includes
- Specifications
- FAQ
- Downloads
- Reviews
The Growatt SPE 12000 US is a high-efficiency split-phase off-grid inverter designed for residential and light commercial solar power systems in North America. It delivers stable 120/240V output and supports solar PV, battery storage, and generator input, making it ideal for large off-grid homes, farms, and backup power installations.
Equipped with dual MPPT solar charge controllers, the inverter supports a maximum PV input voltage of 550V DC and up to 18000W of solar input, ensuring high energy yield and efficient system performance. It is compatible with 48V lithium and lead-acid battery systems, offering flexibility in energy storage design.
With support for parallel operation of up to nine units, smart load management, fast transfer times, and built-in WiFi monitoring, the Growatt SPE 12000 US provides a scalable and reliable power solution for demanding off-grid and backup applications.
- 1x Growatt SPE 12000 US Inverter: High-power split-phase off-grid inverter with integrated solar charge controller.
- 1x Wall Mounting Bracket: For secure installation.
- 1x WiFi Monitoring Module: Enables remote system monitoring.
- 1x User Manual: Installation, operation, and safety instructions.
Technical Specifications
| Specification | Details |
|---|---|
| Rated AC Output Power | 12000W |
| AC Output Voltage | 120/240V Split Phase |
| AC Frequency | 60Hz |
| Maximum Output Current | 50A |
| Maximum PV Input Power | 18000W |
| Maximum PV Voltage | 550V DC |
| MPPT Voltage Range | 60–480V DC |
| Number of MPPTs | 2 |
| Max MPPT Input Current | 27A per MPPT |
| Battery Voltage Range | 46–60V (Lithium), 38.4–60V (Lead-acid) |
| Max Charge / Discharge Current | 280A |
| Peak Efficiency | 96.5% |
| Protection Rating | IP20 |
| Operating Temperature | -10°C to 50°C |
| Dimensions (W × H × D) | 550 × 465 × 150 mm |
| Weight | 21.5 kg |
| Certifications | UL1741, FCC |
| Warranty | 5 Years |
Yes, with 12000W output and support for parallel operation up to nine units, the inverter is ideal for high-load residential and commercial off-grid applications.
The inverter supports 48V lithium and lead-acid battery systems and communicates via CAN and RS485 protocols.
Yes, the Growatt SPE 12000 US supports generator input, including diesel generators, for battery charging and backup power.
Yes, up to nine units can be connected in parallel to expand system capacity.
Yes, built-in WiFi monitoring allows remote access to system performance and status.
