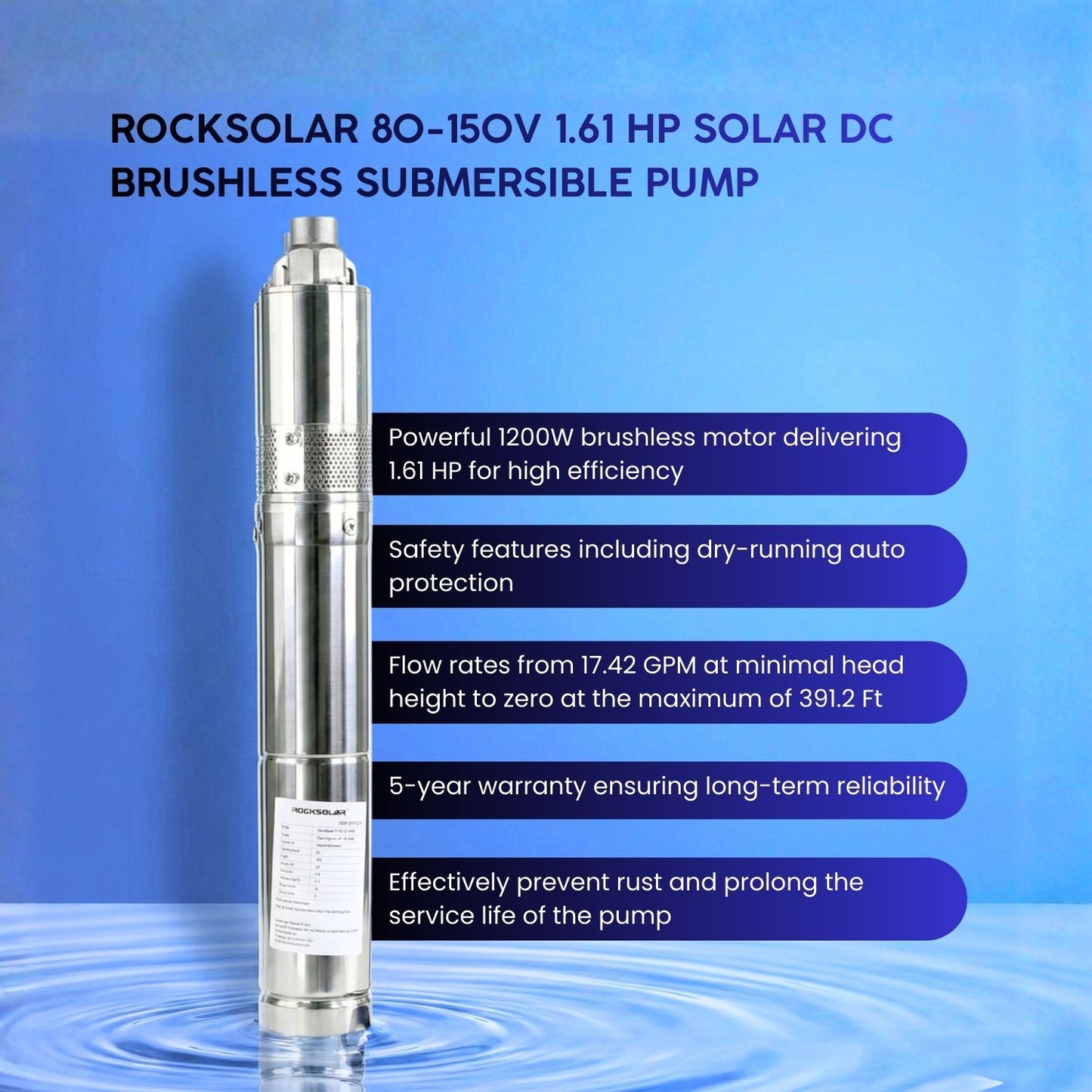

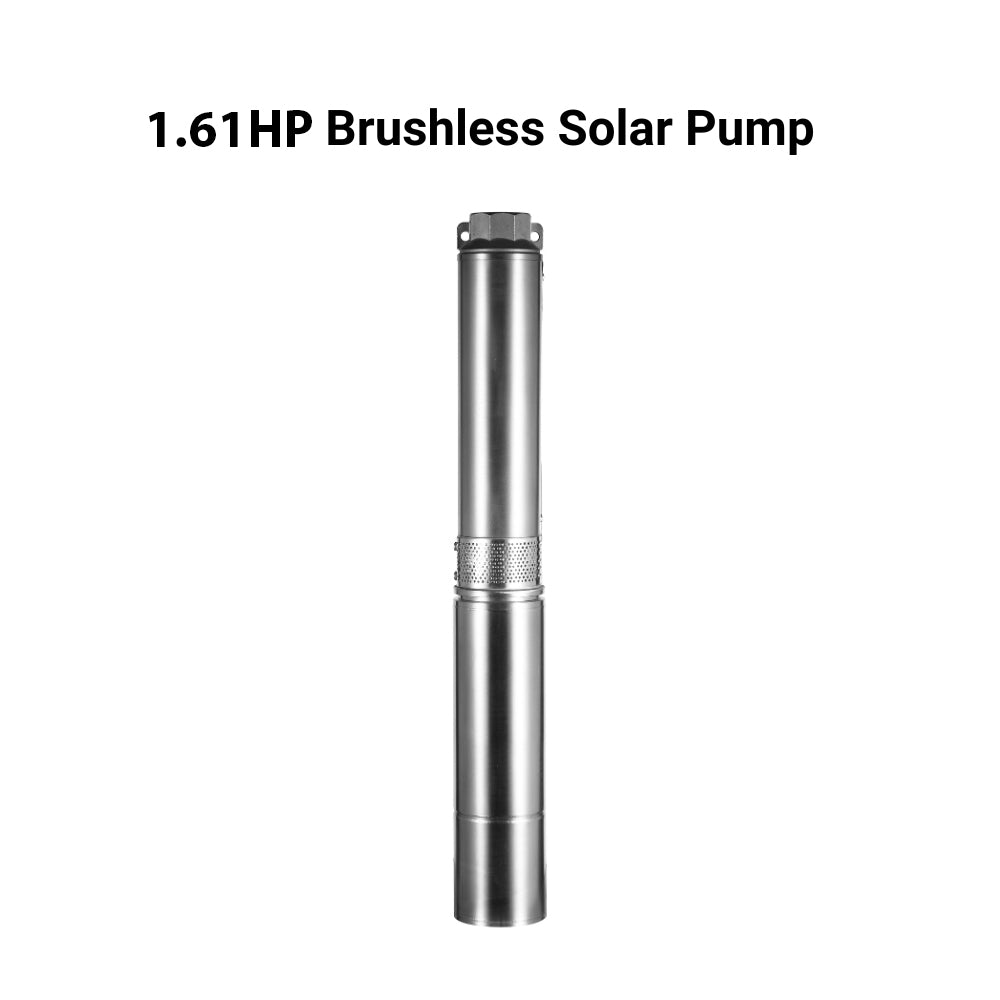

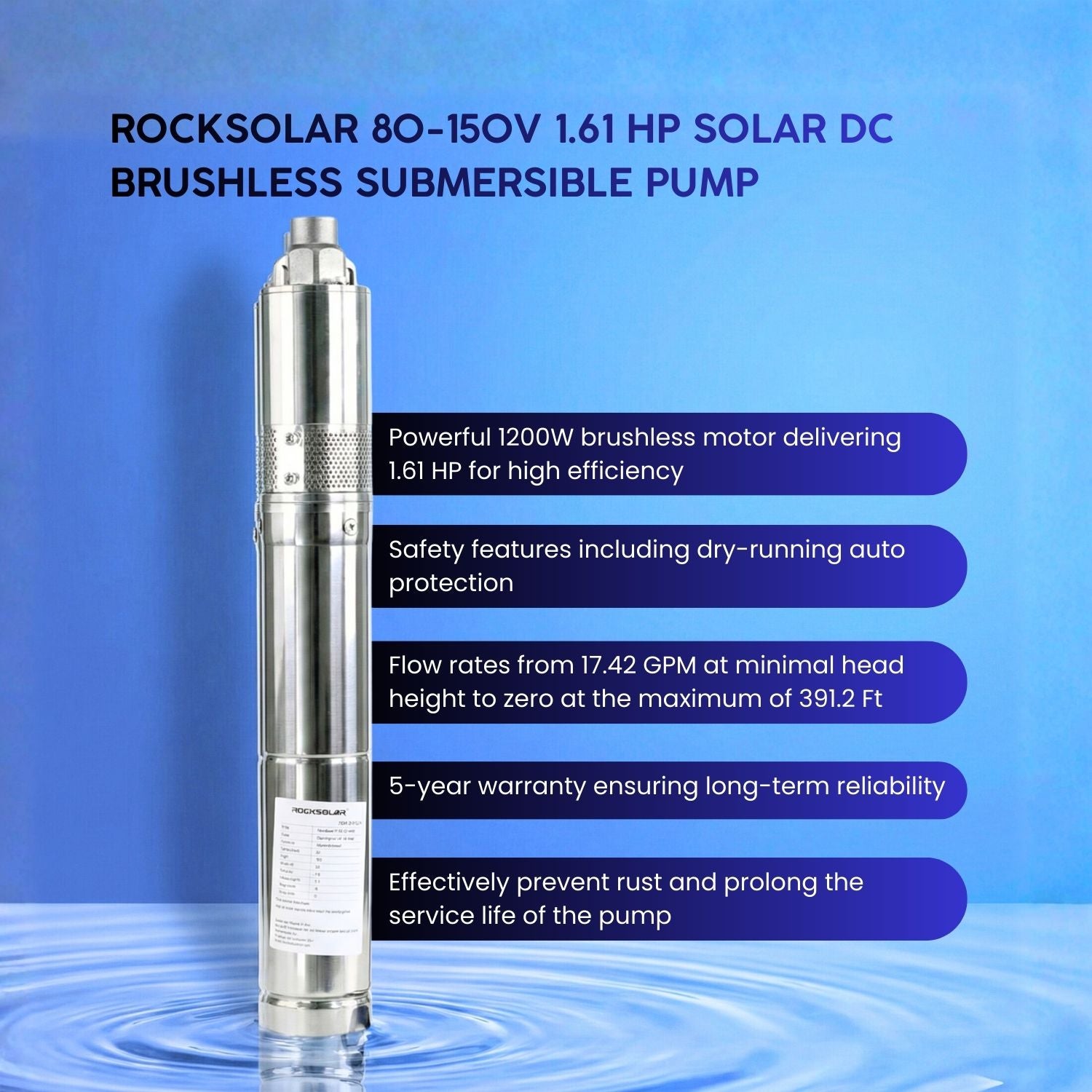

Rocksolar 80-150V 1.61 HP Solar DC Brushless Submersible Pump with Built-in Controller

Rocksolar 80-150V 1.61 HP Solar DC Brushless Submersible Pump with Built-in Controller

Regular price $1,199.99 CAD
Regular price $2,199.99 CAD Sale price $1,199.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • Powerful Motor: 1200W, 1.61 HP.
  • Voltage Flexibility: 80-150V, best at 96-130V.

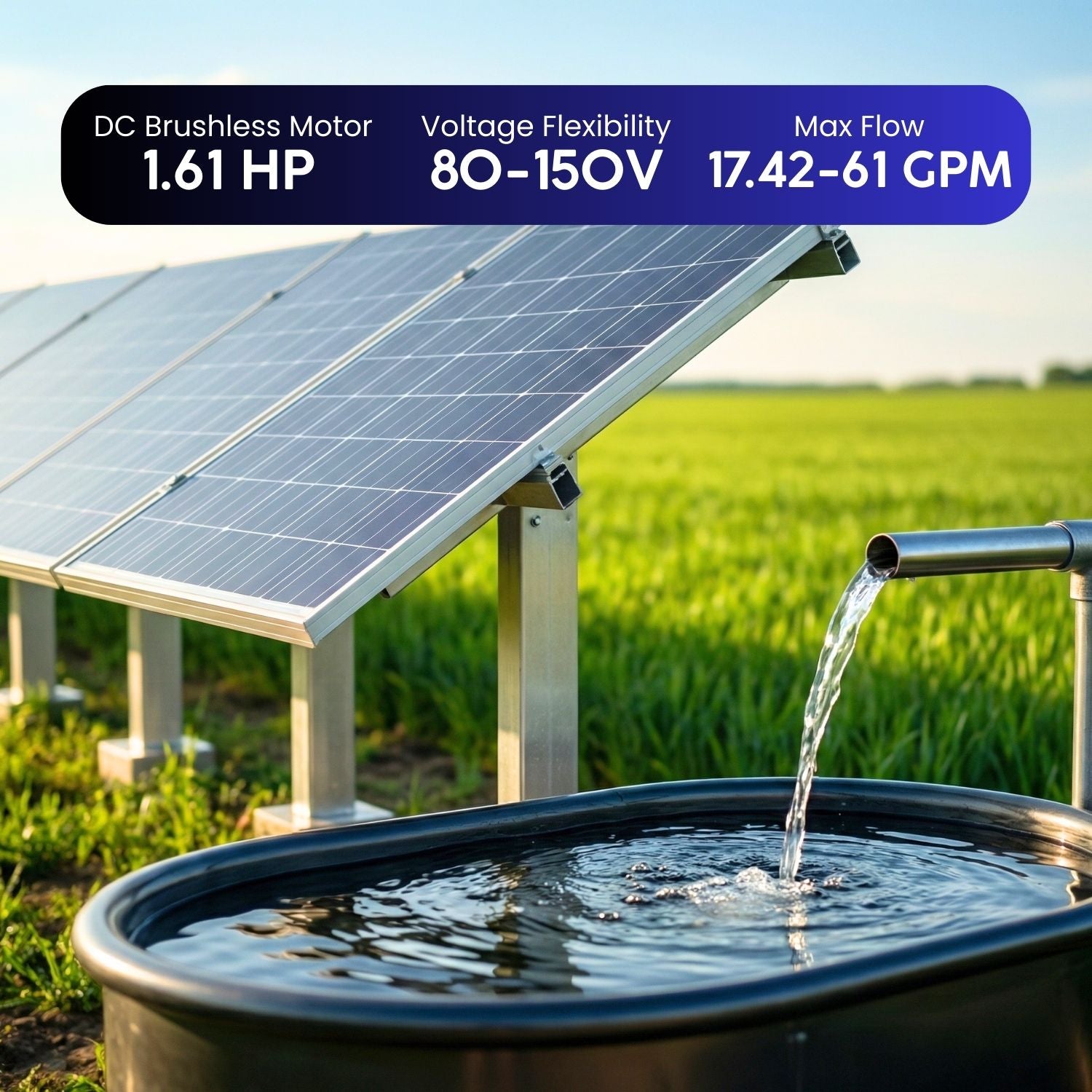

  • Solar Compatible: Ideal for four 440W solar panels.
  • Max Flow: 17.61GPM at minimum head.

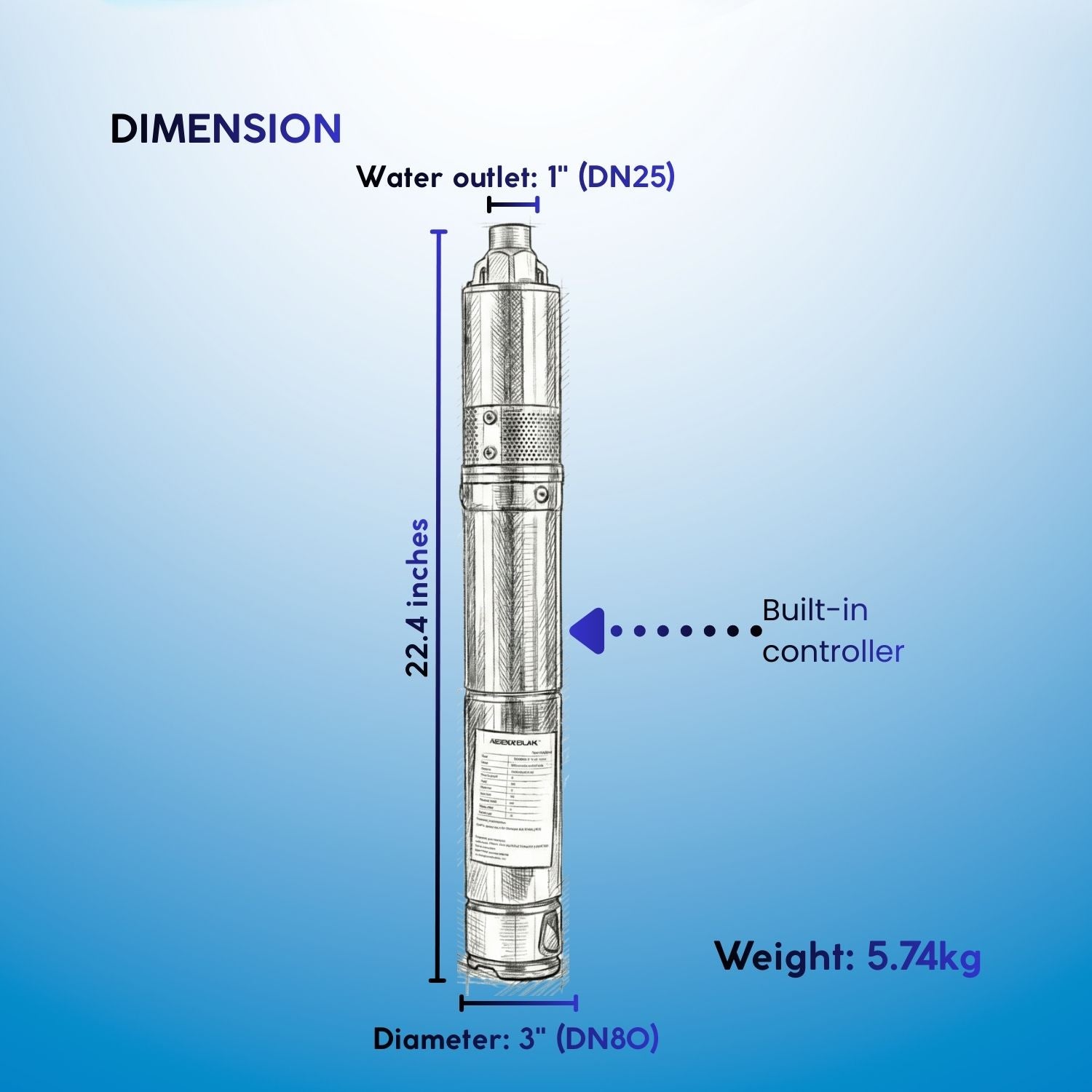

  • Dimensions: 3" diameter, 1.5" outlet.

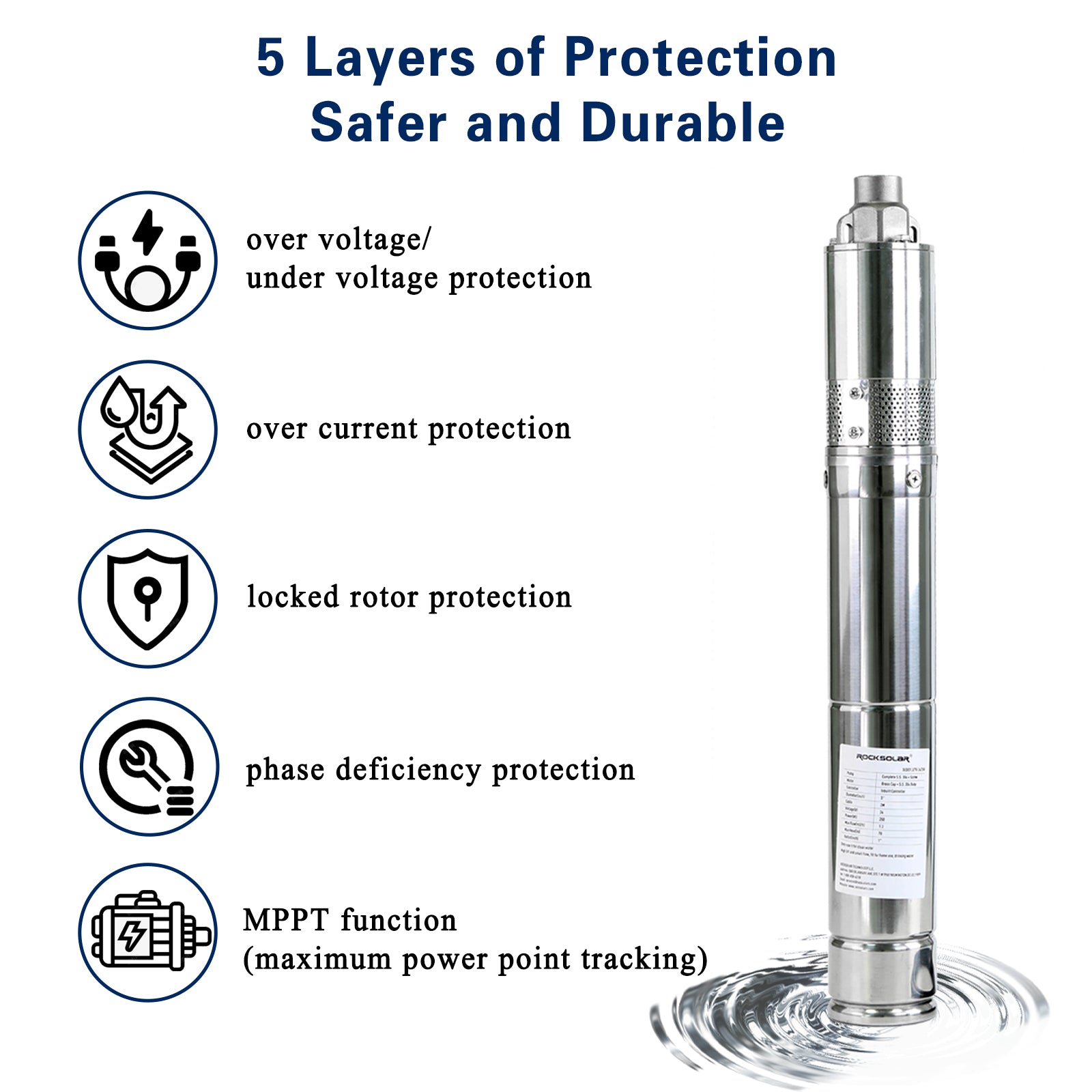

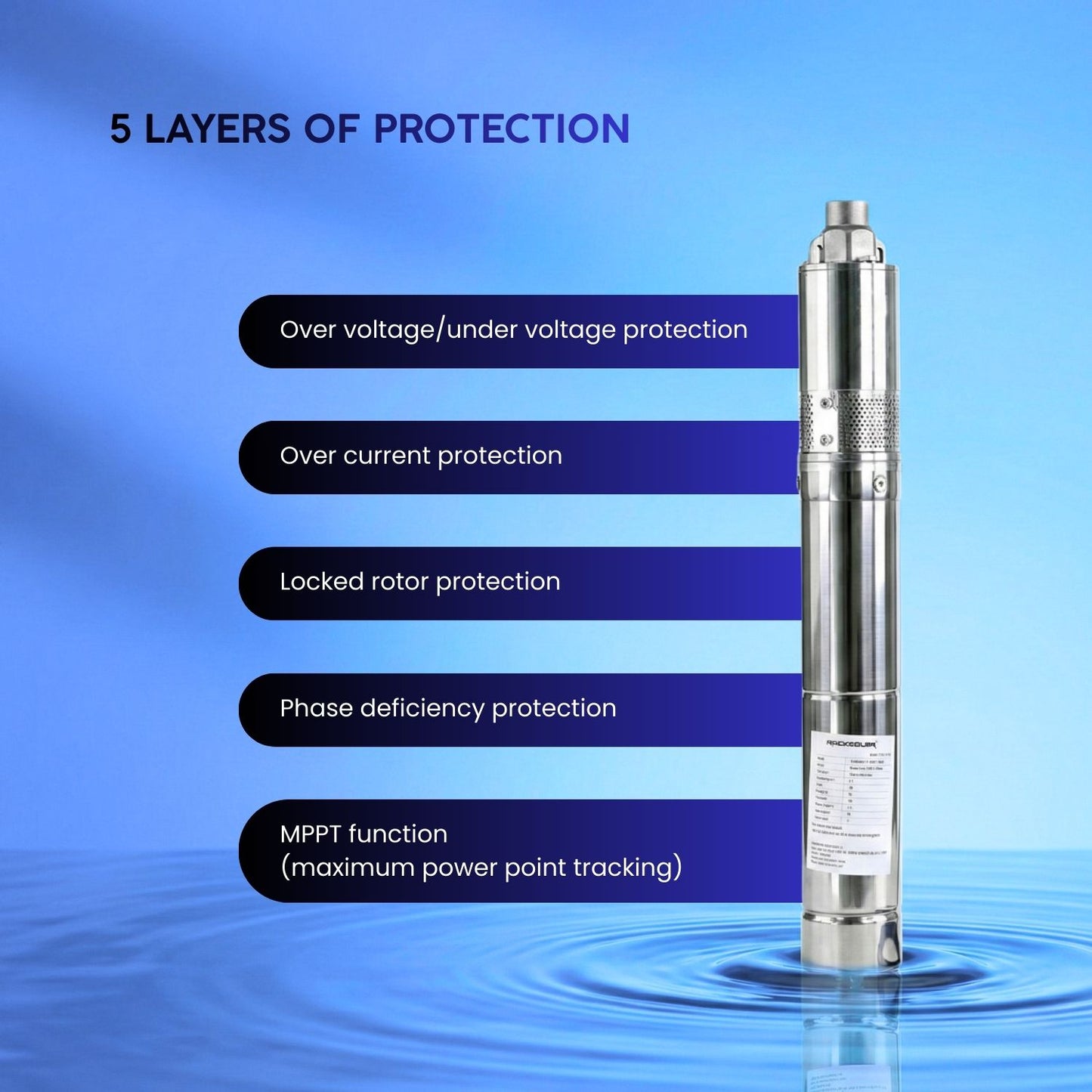

  • Safety: Dry-running auto protection.

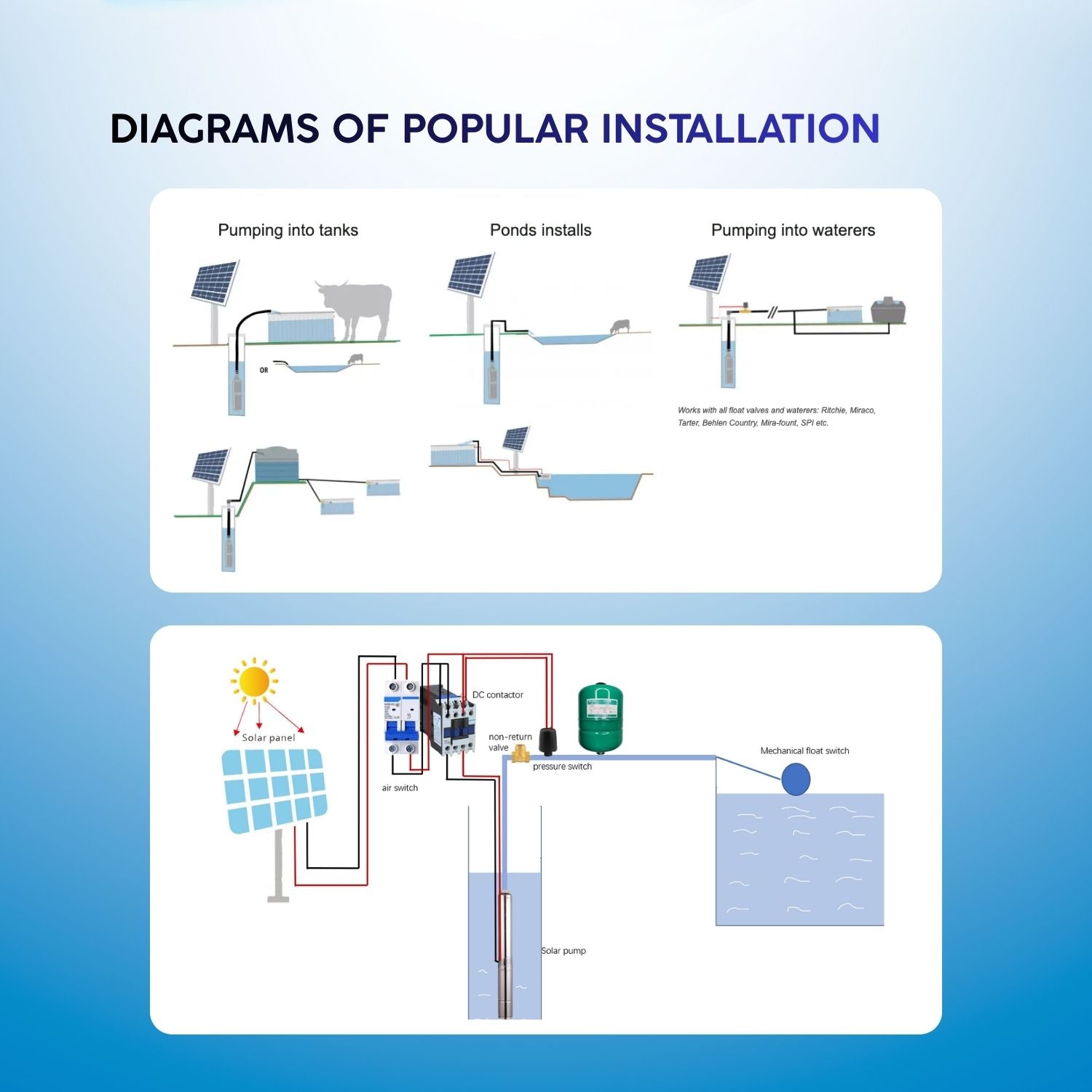

  • Working: Powered by solar panels and battery.
  • Pressure: 174PSI Max.
  • Max Depth: 393 feet/17.61GPM.
  • Easy Installation: No external controller needed.

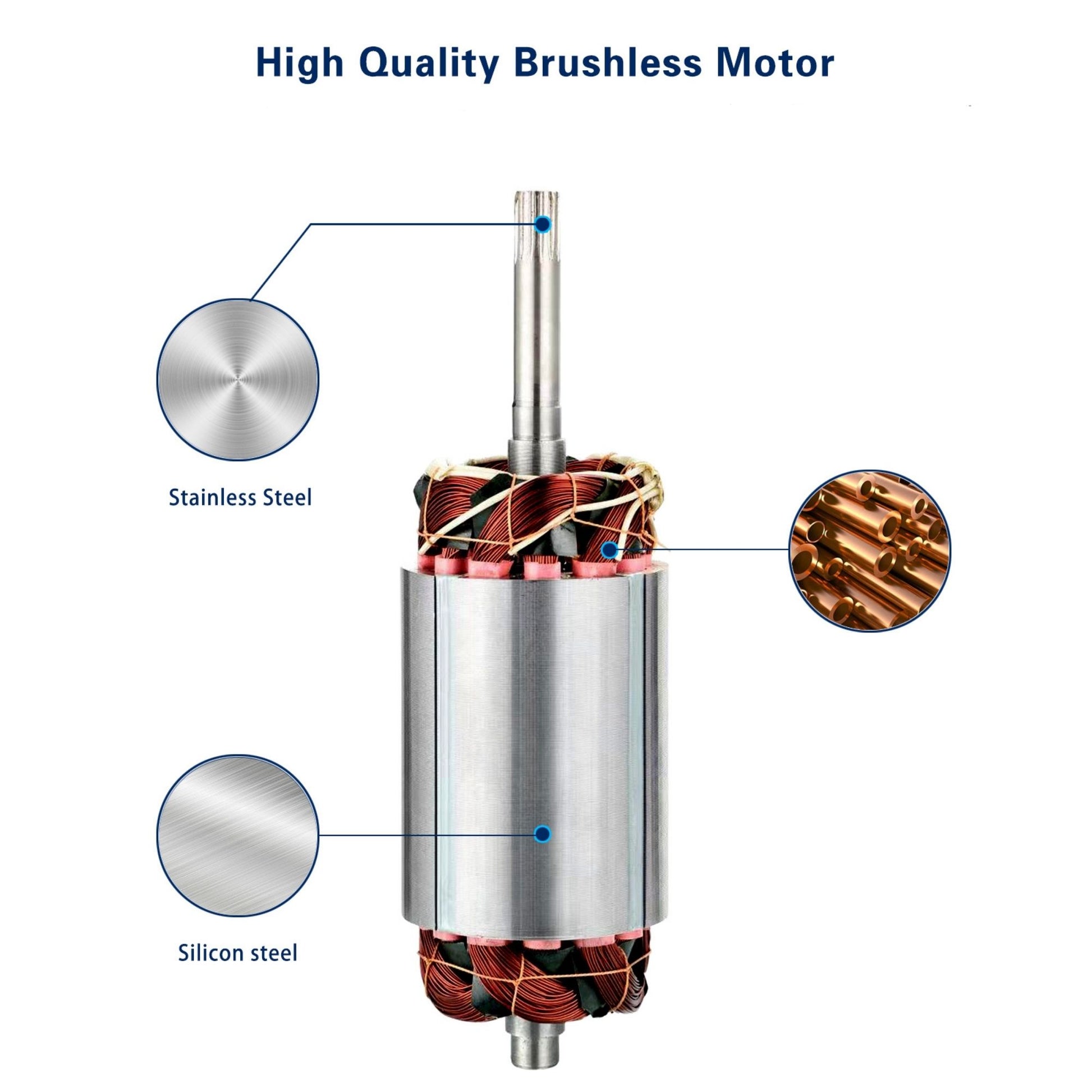

  • Motor: Brushless permanent magnetic, internal controller.
  • Standards: Franklin motor standard.

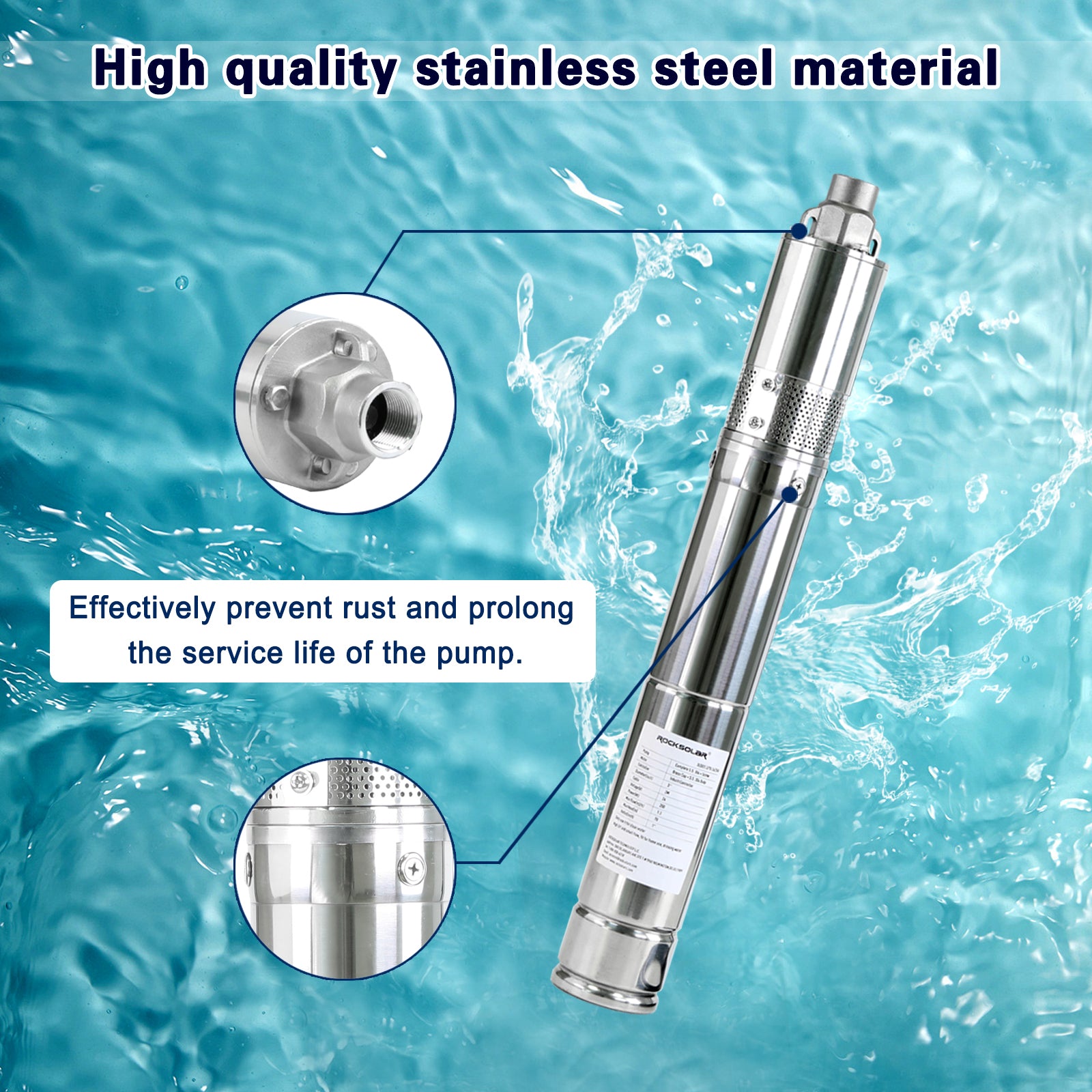

  • Material: High-quality SS304.
  • Cooling: Water-cooled.
Shipping

Free
Local Shipping

Warranty

5-years Hassle Free
Warranty

Support

Lifetime Customer
Support

View full details



  • Description

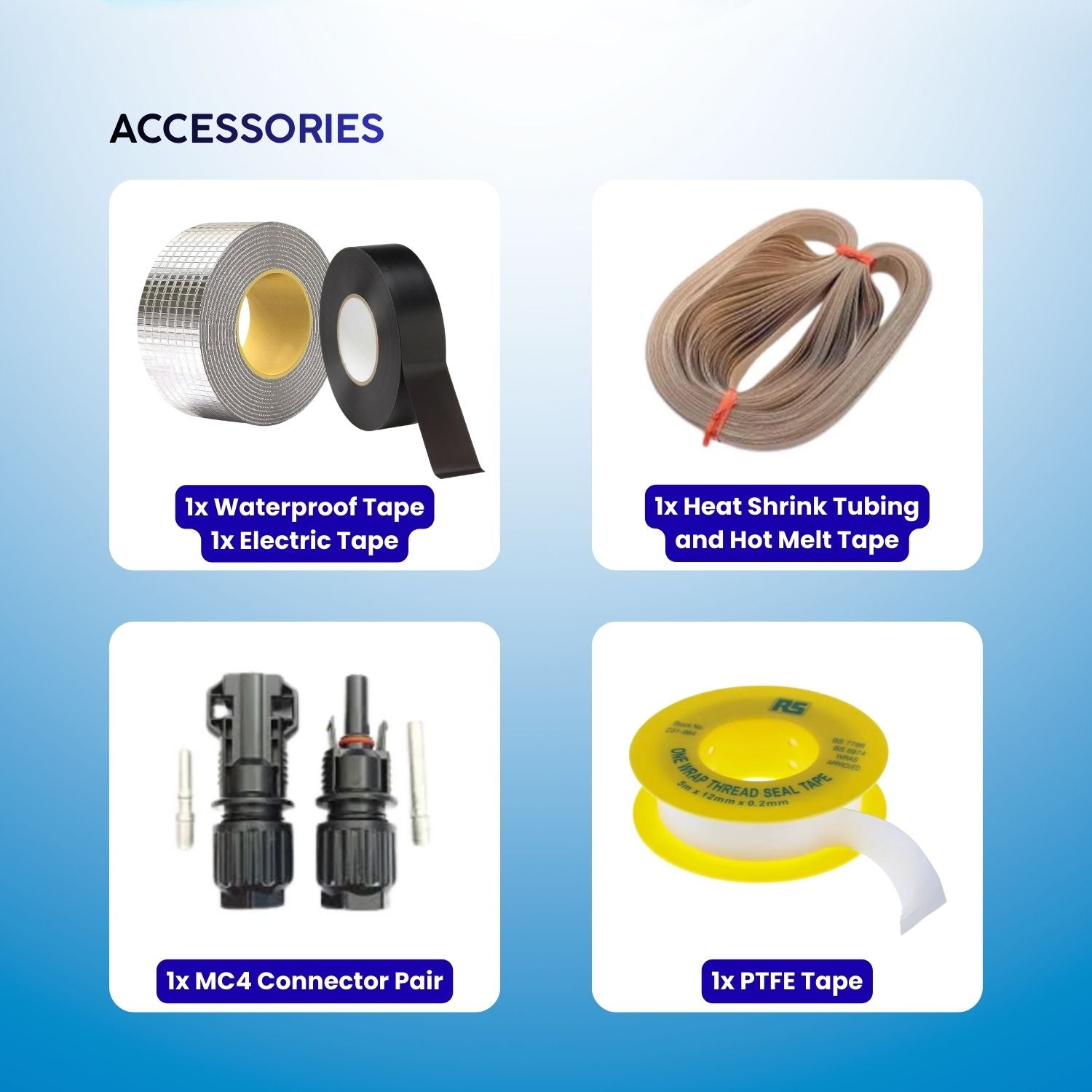

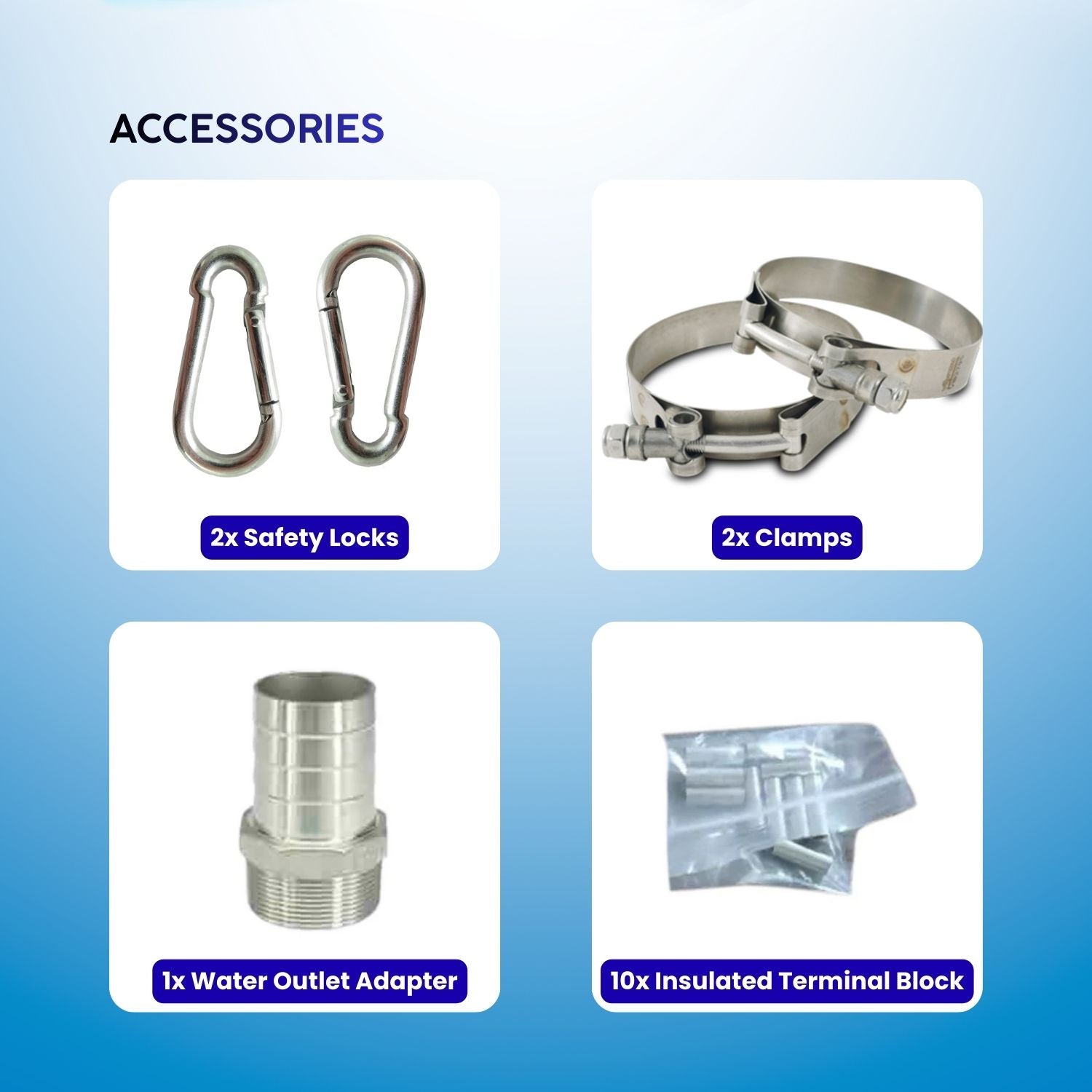

  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Experience superior water management with the Rocksolar 1.61HP Pump. Engineered for high efficiency, this pump is compatible with solar power systems, ensuring optimal performance across a range of applications from home gardening to large-scale agricultural projects. With a robust 1.61HP motor and a voltage range of 80-150V, it combines significant power with energy efficiency.

Technical Specifications

  • Power and Efficiency: 1200W motor, designed for 80-150V operation with best performance at 96-130V. Delivers 1.61 HP.
  • Solar Panel Compatibility: Suitable for a setup of four 440W solar panels, allowing for flexibility in solar configurations.

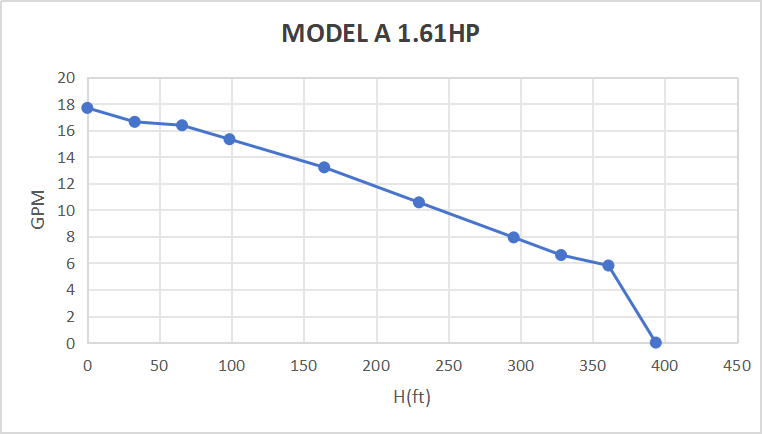

  • Performance Metrics: Flow rates from 17.61 GPM at minimal head height to zero at the maximum depth of 393 feet.
  • Design and Construction: Features a sturdy 3-inch diameter and a 1.5-inch outlet, crafted for easy integration and durability.
  • Model Specifics: Brushless permanent magnetic motor with an internal controller, ensuring long working lif
