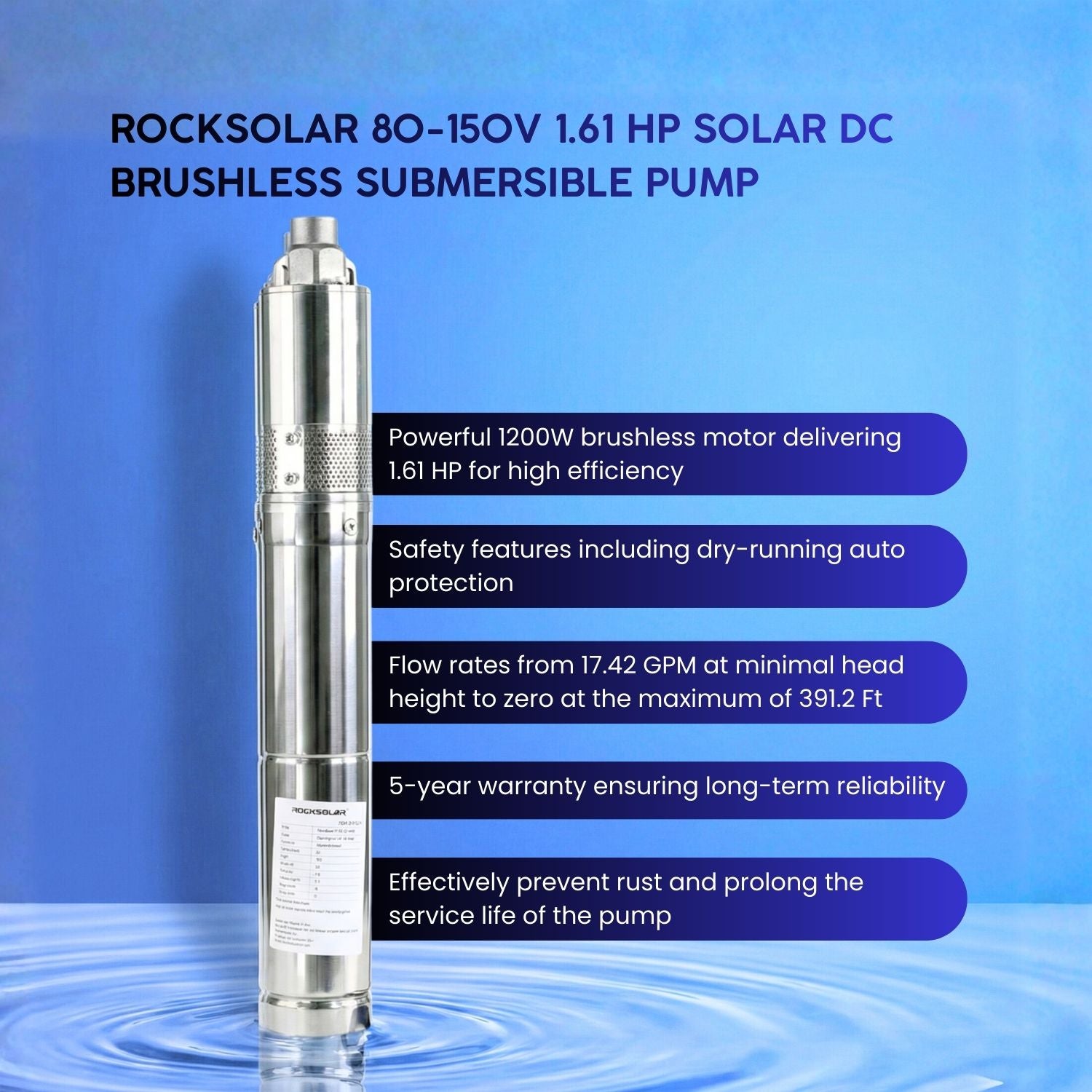

ROCKSOLAR 1.61HP Solar DC Brushless Submersible Pump (Pump Only)

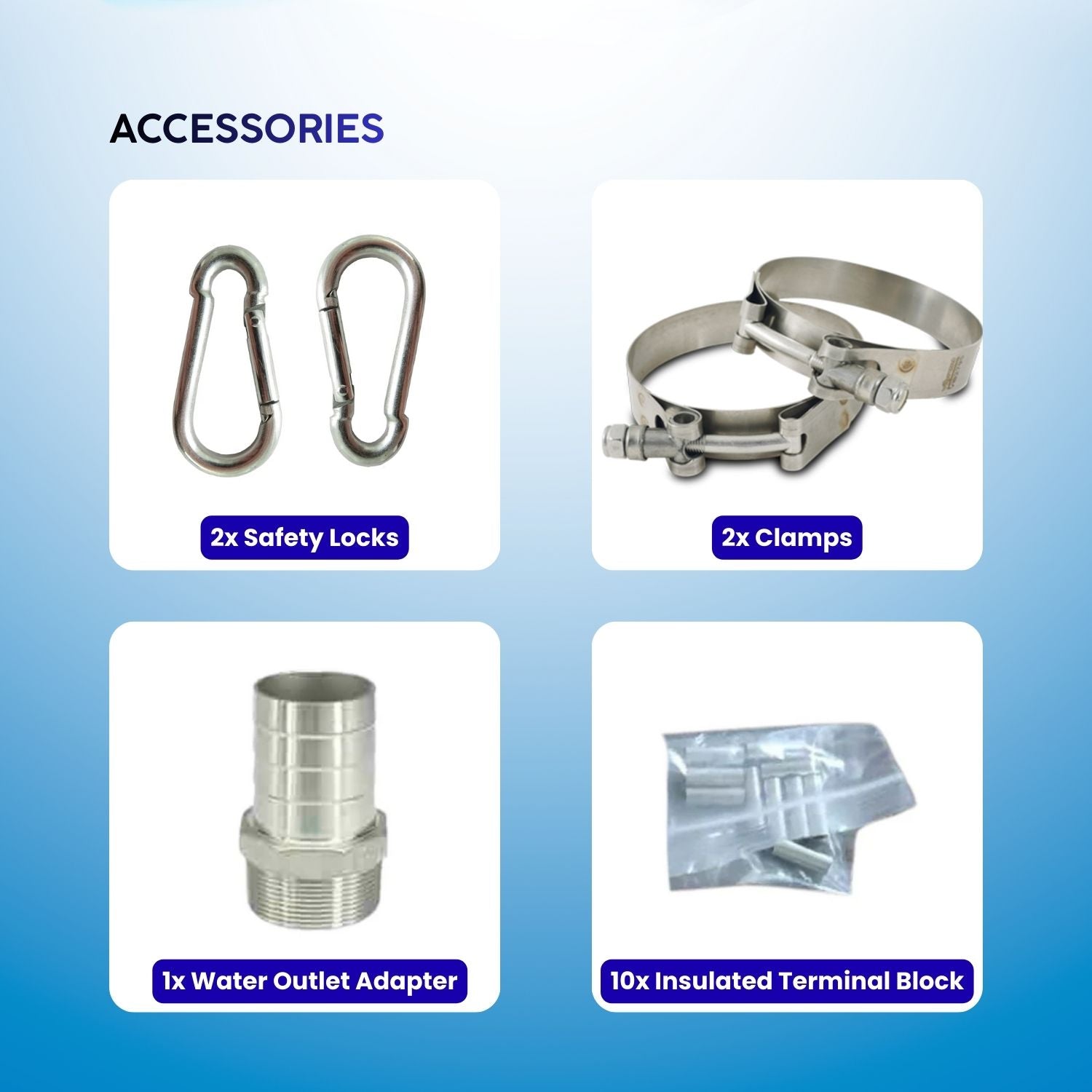

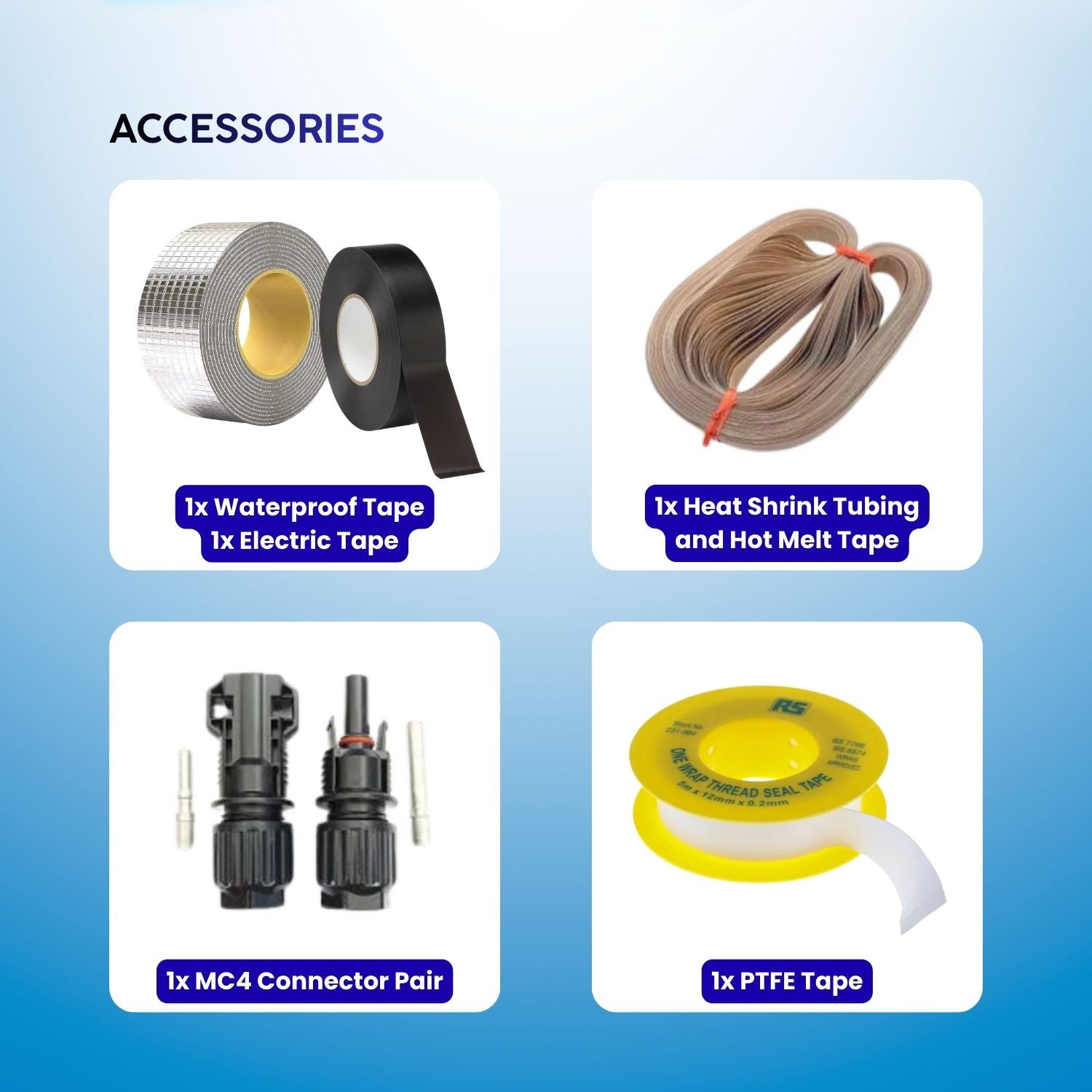

What's included: Pump + built-in controller, solar panel connectors, water intake mesh filter, mounting brackets, installation tools, user manual, warranty card — panels not included
Key specs — all models:

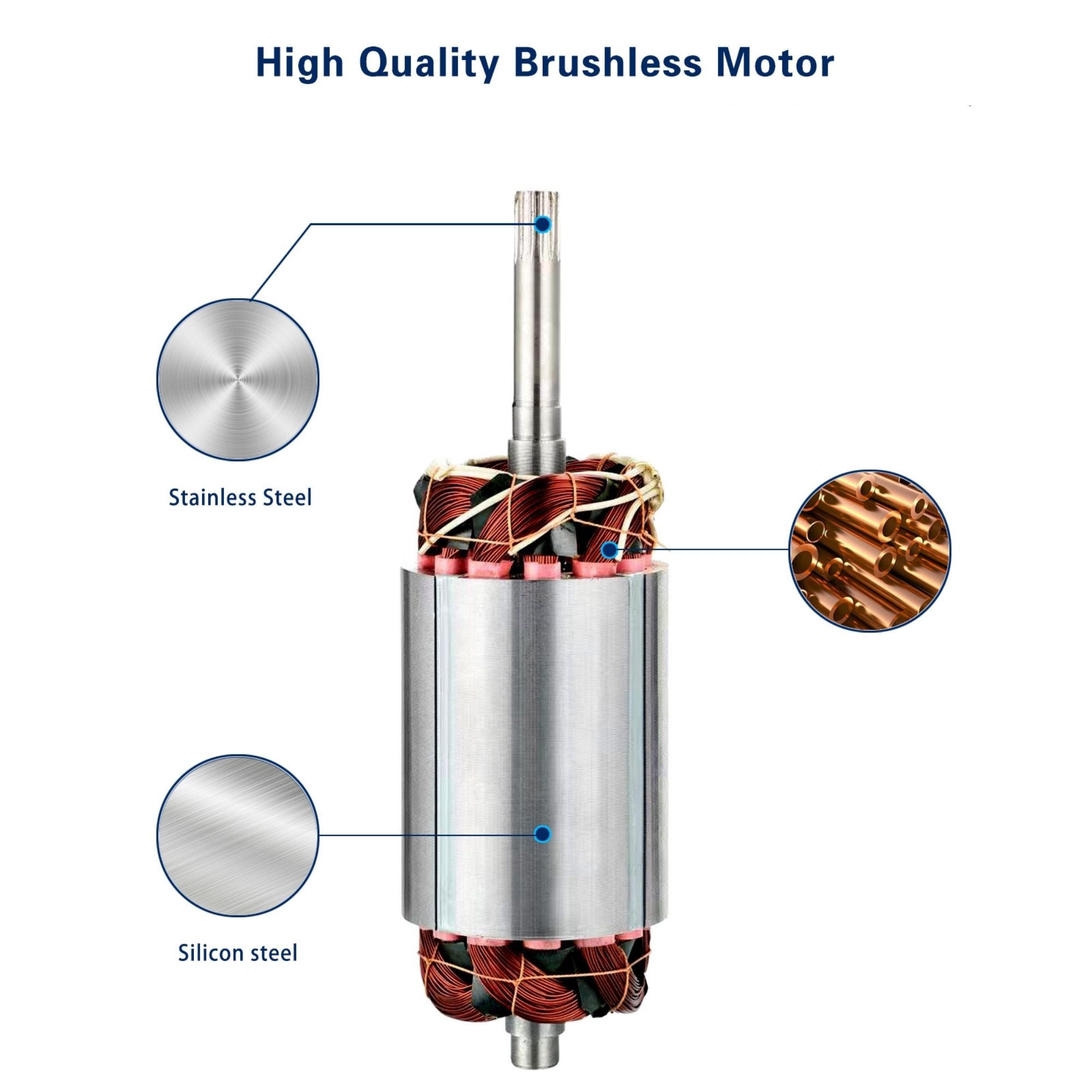

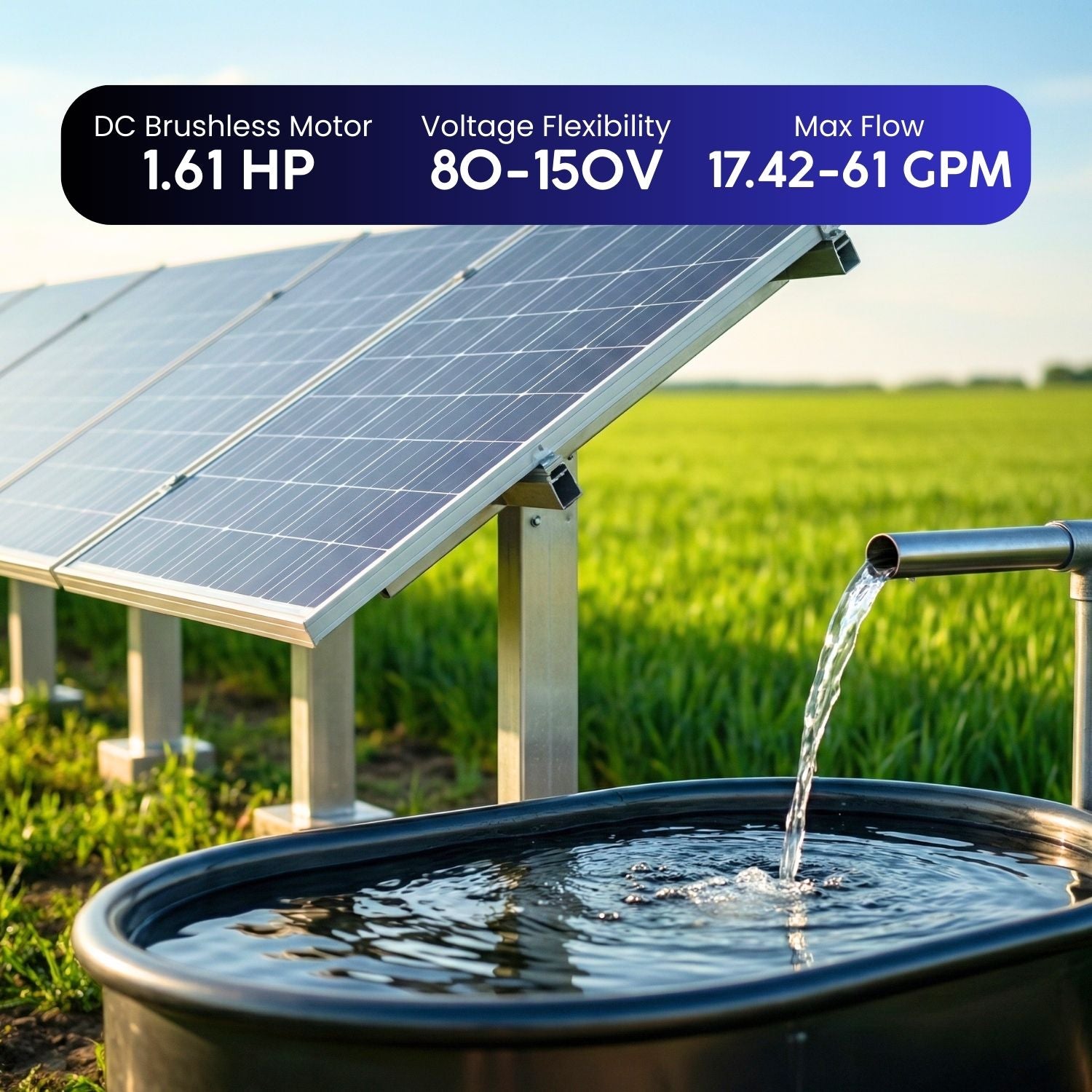

- Motor: 1.61HP DC brushless | Water-cooled | Permanent magnetic | Built-in controller
- Material: SS304 stainless steel | Pump type: impeller (centrifugal)
- Solar: 1,200W+ recommended | Battery compatible
Four models — choose by flow vs. depth priority:

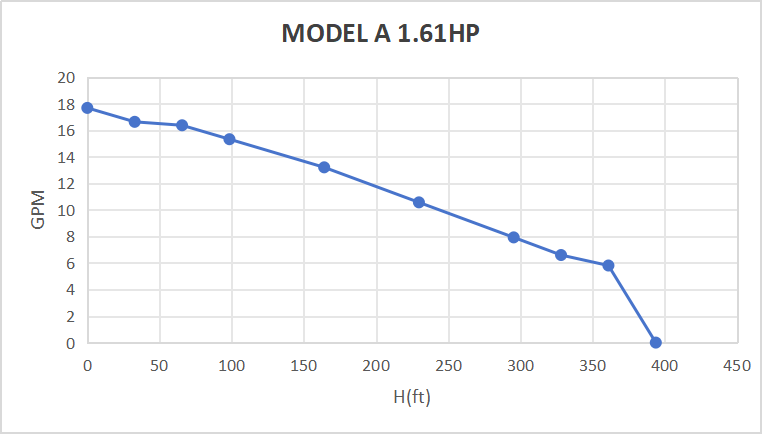

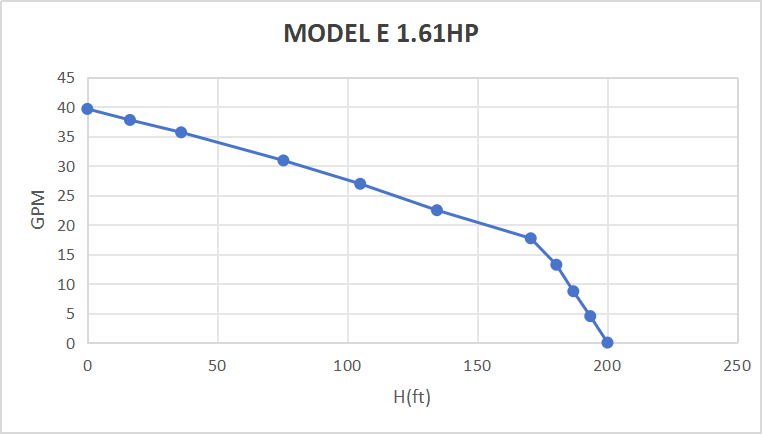

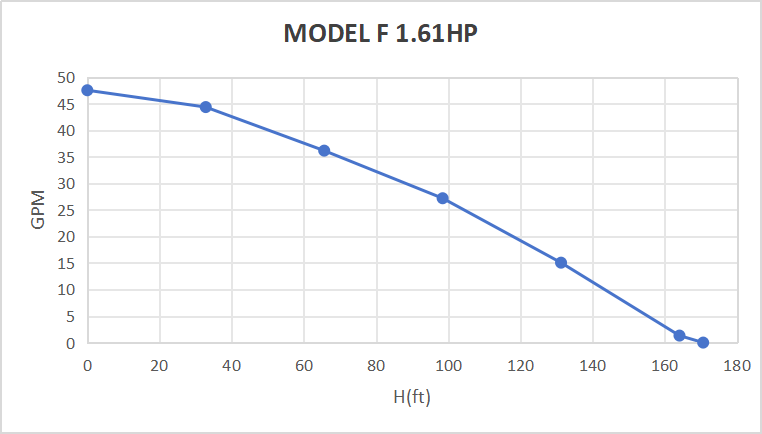

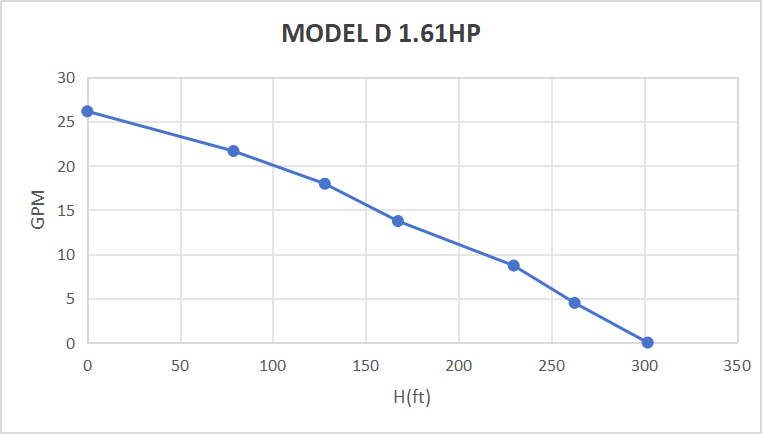

| Model A (3SPN1-14P) | Model D (4SPN3-8P) | Model E (4SPN4-4P) | Model F (4SPN6-4P) | |
|---|---|---|---|---|
| Max flow | 17.42 GPM | 25.74 GPM | 39 GPM | 46.8 GPM |
| Max head | 391.2 ft | 299.92 ft | 198.86 ft | 169.52 ft |
| Max pressure | 169.2 PSI | 129 PSI | 86 PSI | 73.3 PSI |
| Pump body | 3" | 4" | 4" | 4" |
| Outlet | 1.5" | 2" | 2" | 2" |

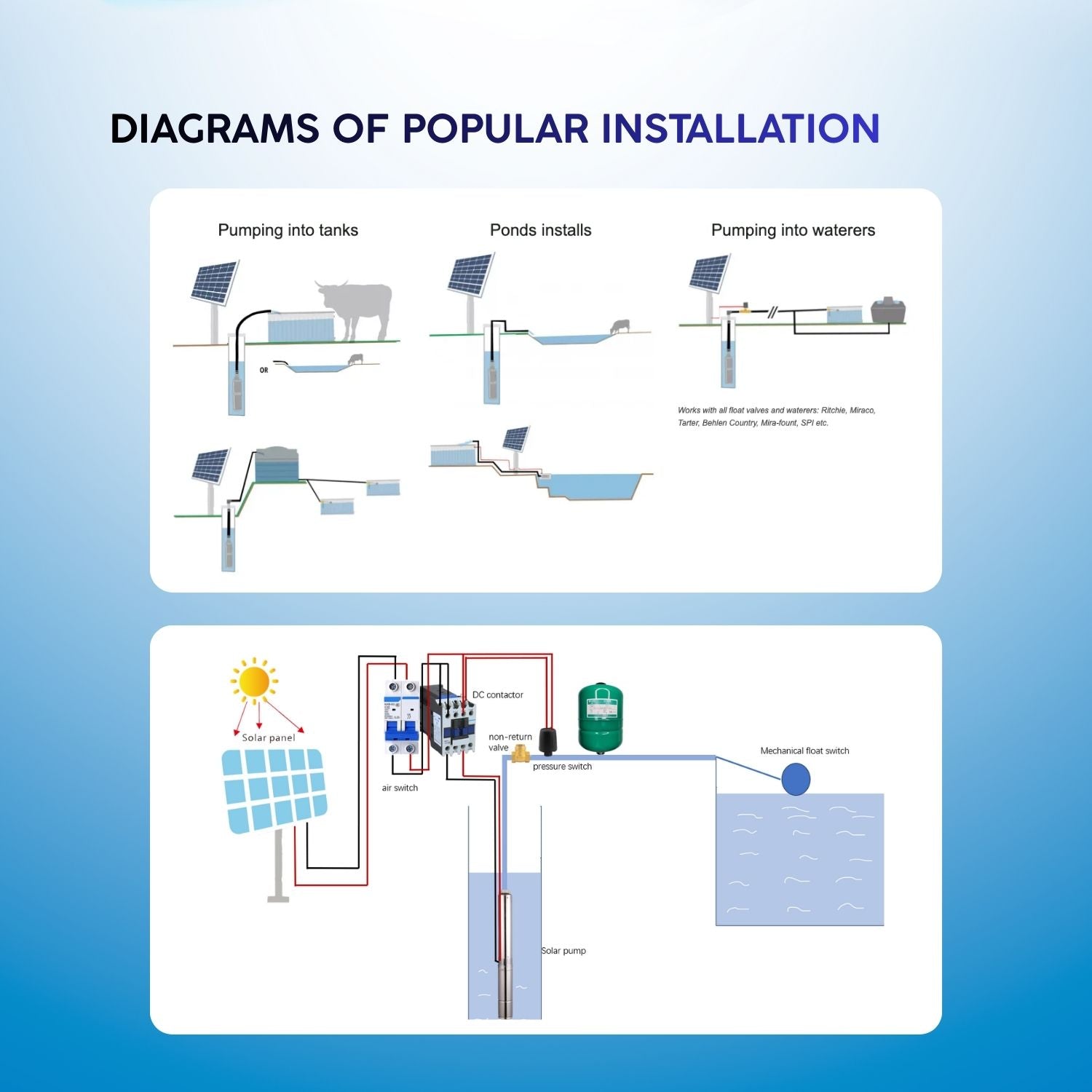

Built for: Very deep residential wells, off-grid homesteads, rural farms, greenhouse drip systems, remote properties, high-pressure household water supply
Key features:
- Model A reaches 391.2 ft — the deepest head rating across the entire submersible pump lineup
- Four model options = more granular choice between depth and flow than the 0.8HP or 1.34HP lineups
- Built-in controller — no separate controller needed; customer-confirmed easy setup in under an hour
- Quiet water-cooled motor — customers confirm reliable, low-noise operation even for greenhouse and residential use
- Proven at 250+ ft depth — customers confirm consistent delivery to elevated storage tanks at depth

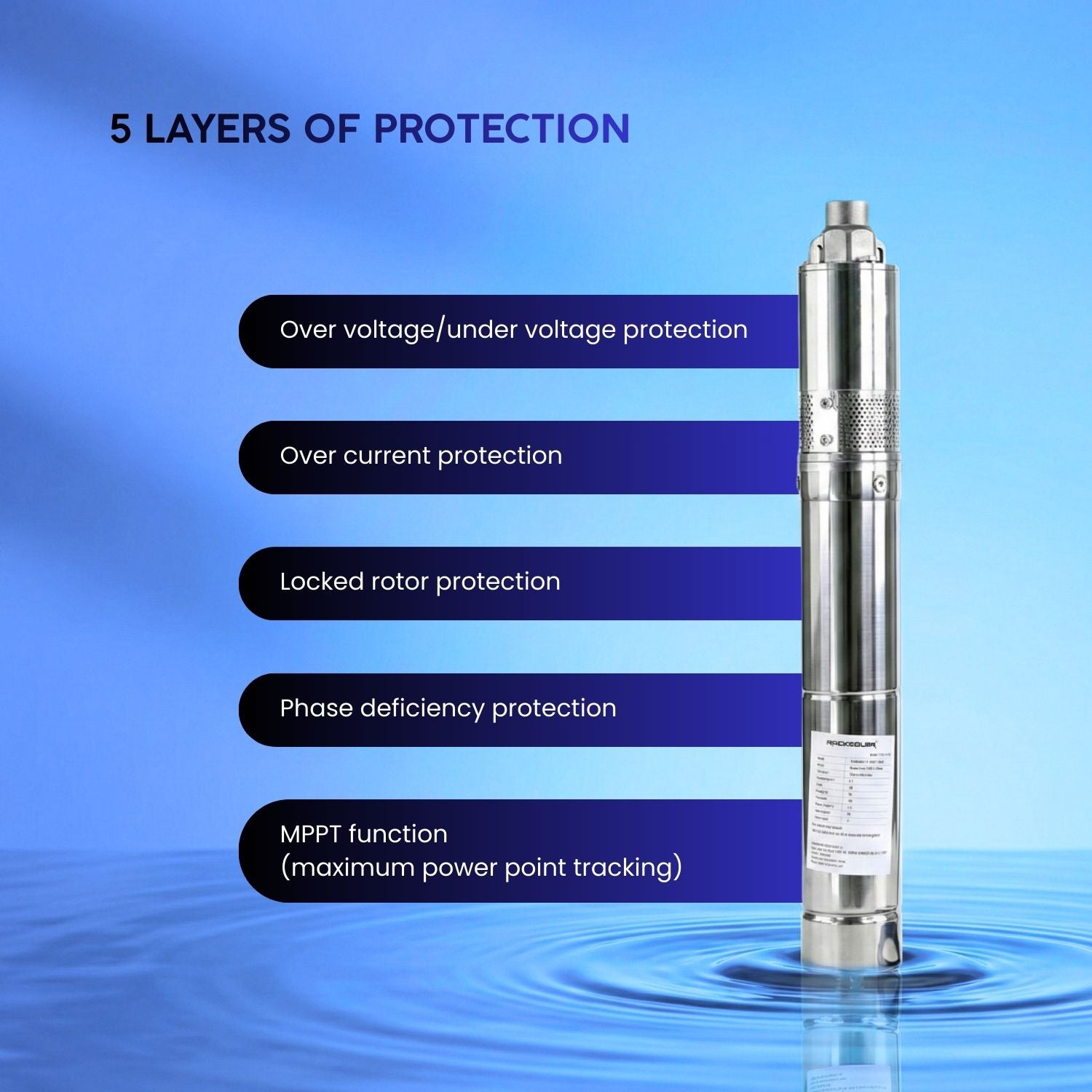

- Dry-run auto protection — shuts off if well level drops, protecting the motor
- Float switch / pressure switch compatible — automates fill and shutoff
- Maintenance-free sealed design
Warranty: 5 years
