Product Description

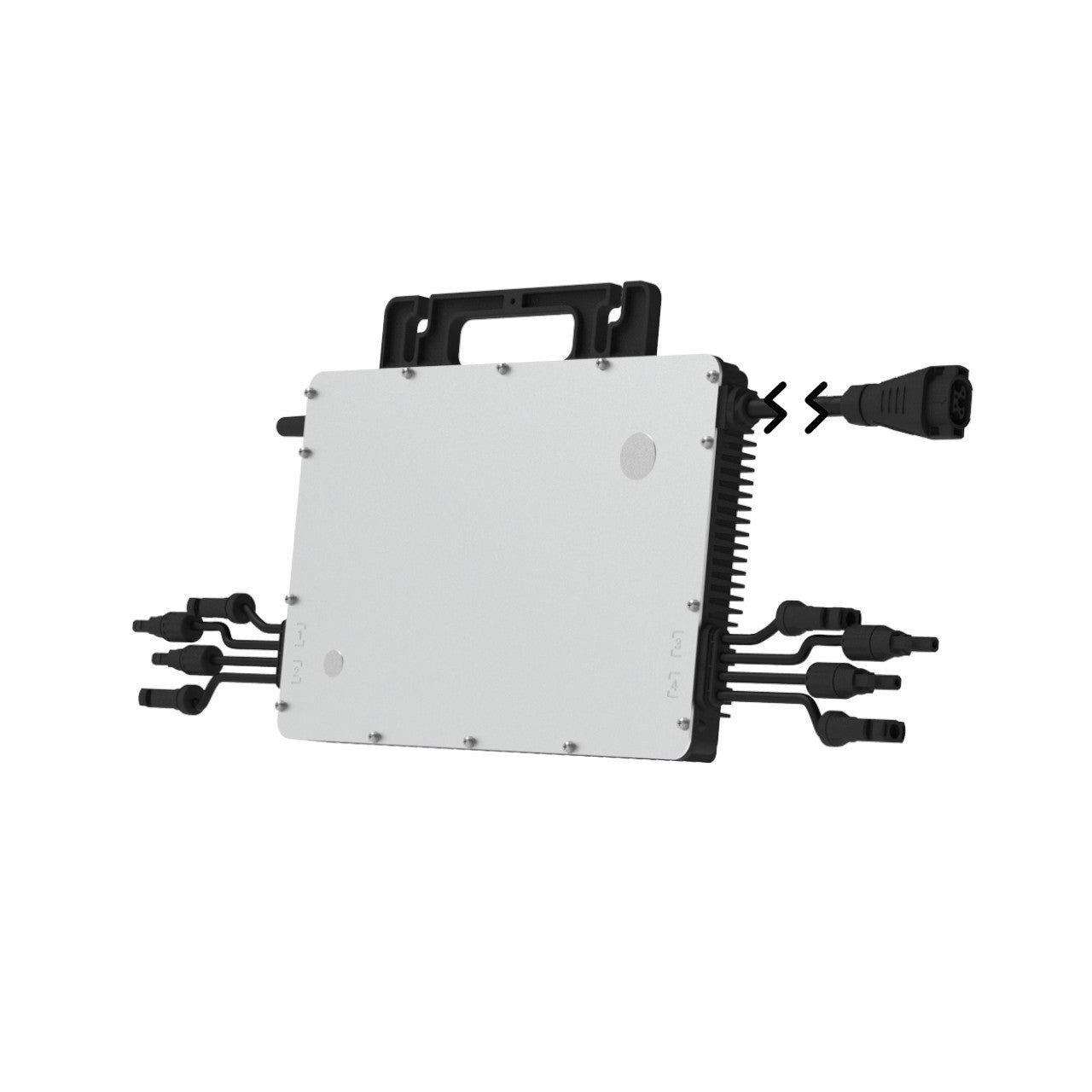

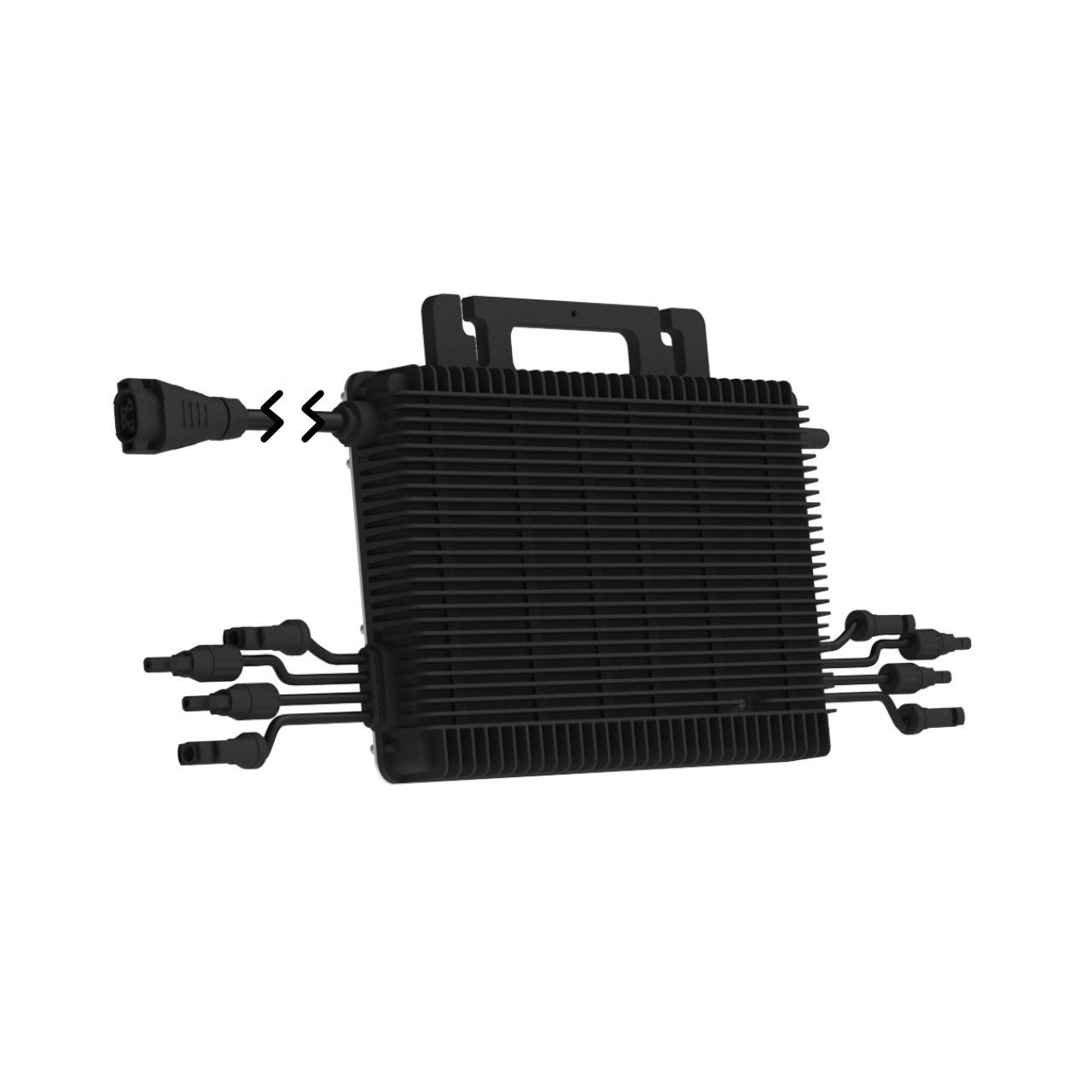

The Hoymiles HMS-2000 series microinverters are designed for high-powered solar panels and are among the top-performing 4-in-1 microinverters available. Each microinverter can connect up to four solar modules with independent MPPT and monitoring, allowing maximum energy production. With a maximum DC voltage of 65V, the HMS-2000 series is compatible with 78/156-cell modules commonly used in the Canadian climate.

The HMS-1600 microinverter is fully PV Rapid Shutdown compliant and conforms with NEC-2017 and NEC-2020 Article 690.12, as well as the Canadian CEC-2021 Section 64-218. The upgraded Sub-1G wireless communication system provides stronger and more stable connectivity with the Hoymiles DTU Pro S gateway, offering better performance than conventional 2.4GHz Zigbee solutions, especially in long-distance or commercial installations.

Features

• 1440W AC output at 6A, supporting up to four microinverters on an AWG10 trunk cable fused at 30A
• PV Rapid Shutdown compliant for enhanced rooftop system safety
• Reactive Power Control, compliant with UL 1741, IEEE 1547, UL 1741 SB, and IEEE 1547-2018 (Alberta)
• Independent MPPT and monitoring for higher energy harvest and simplified maintenance
• High 1.5:1 DC/AC ratio with maximum Isc current up to 25A per input
• 4-in-1 design lowers component count and reduces cost per watt
• Sub-1G wireless solution provides stable communication in commercial and industrial environments
