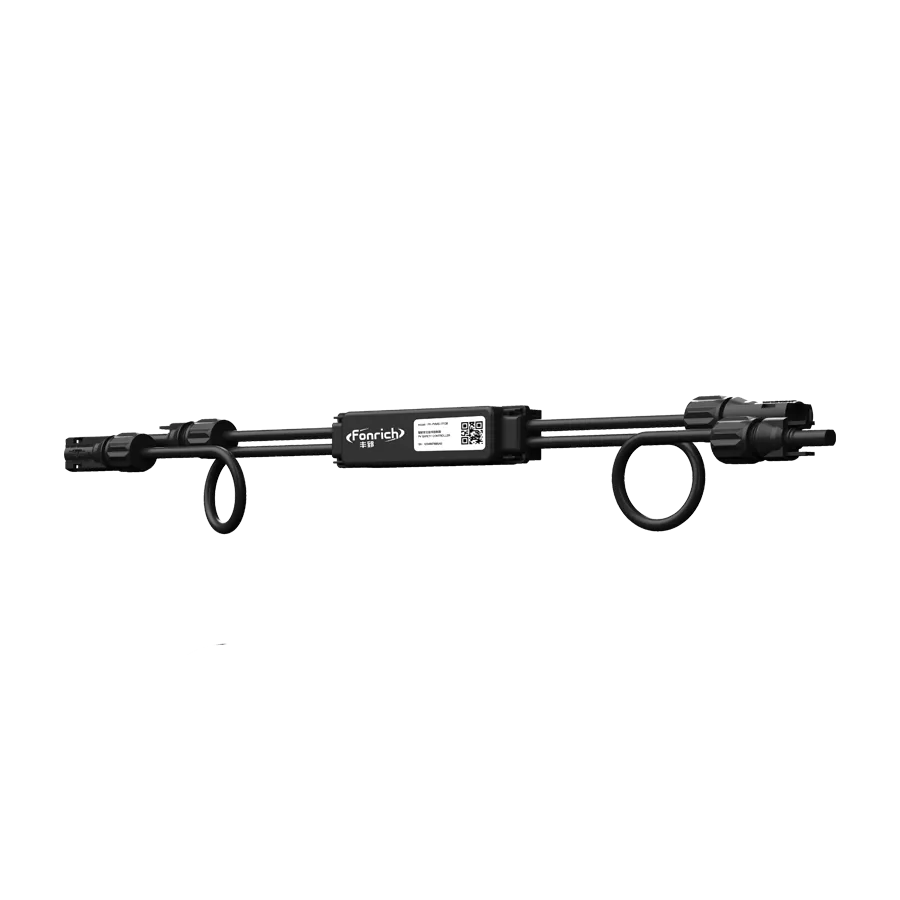

Fonrich PV Module Rapid shutdown module FR-PVMS-TFxC 60V 20A
Fonrich PV Module Rapid shutdown module FR-PVMS-TFxC 60V 20A
Regular price
$59.99 CAD
Regular price
$89.99 CAD
Sale price
$59.99 CAD
Unit price
per
Shipping calculated at checkout.
- PV Module Level Arc Fault Protection: Arc fault detection: series and parallel arc. Quickly extinguish the arc, effectively preventing fire accidents.
- PV Module Rapid Shutdown: Initiative or manually shuts off, to ensure maintenance and fire safety.
- PV Module Real-Time Monitoring: Including voltage, power, power generation, IV working point, temperature, and other data. Use snapshots to show the collective data.
- Fault Notification: Real-time push information on abnormal situations of PV panels.
- Flexible Configuration and Customize Design: Long string design to reduce construction costs.
- Bidirectional PLC Technology: 1600m super long communication distance.
Couldn't load pickup availability
- Description
- Includes
- Specifications
- Datasheet
- User Manual
- Reviews
Product Features
- PV Module Level Arc Fault Protection: Arc fault detection: series and parallel arc. Quickly extinguish the arc, effectively preventing fire accidents.
- PV Module Rapid Shutdown: Initiative or manually shuts off, to ensure maintenance and fire safety.
- PV Module Real-Time Monitoring: Including voltage, power, power generation, IV working point, temperature, and other data. Use snapshots to show the collective data.
- Fault Notification: Real-time push information on abnormal situations of PV panels.
- Flexible Configuration and Customize Design: Long string design to reduce construction costs.
- Bidirectional PLC Technology: 1600m super long communication distance.
- 1 x FR-PVMS-TFxC 60V 20A
Technical Specifications
Item | FR-PVMS-TFxB | FR-PVMS-TFxC | FR-PVMS-TFxH |
---|---|---|---|
Max input operating voltage | 60V | 60V | 80V |
Max continuous input/output current (Imax) | 16A | 20A | 16A |
Cable Size (square millimeters) | 4 | 4 | 4 |
Pollution degree | PD3 | PD3 | PD3 |
Operating ambient temperature range | -30°C ~ +70°C | -30°C ~ +70°C | -30°C ~ +70°C |
UV exposure | Yes | Yes | Yes |
Ingress protection | IP68 | IP68 | IP68 |
Communication | Power Line Carrier Communication | Power Line Carrier Communication | Power Line Carrier Communication |
Max cable loop length | 1600m | 1600m | 1600m |
Max PV modules under one PLC transceiver | 624 | 624 | 624 |
Max PV strings under one PLC transceiver | 24 | 24 | 24 |
