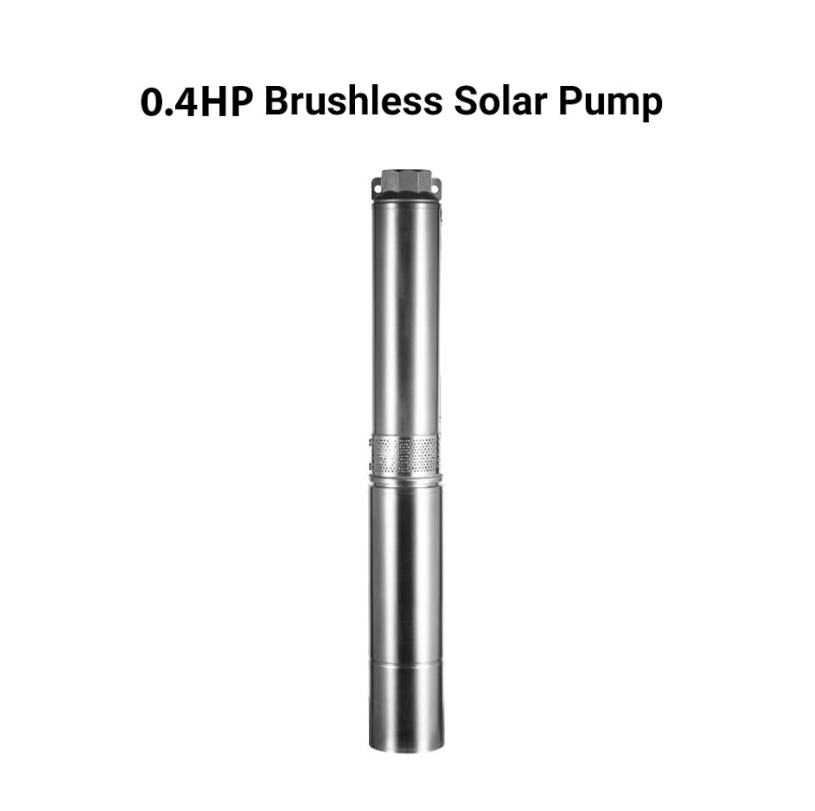

ROCKSOLAR 0.4HP Solar DC Brushless Submersible Pump

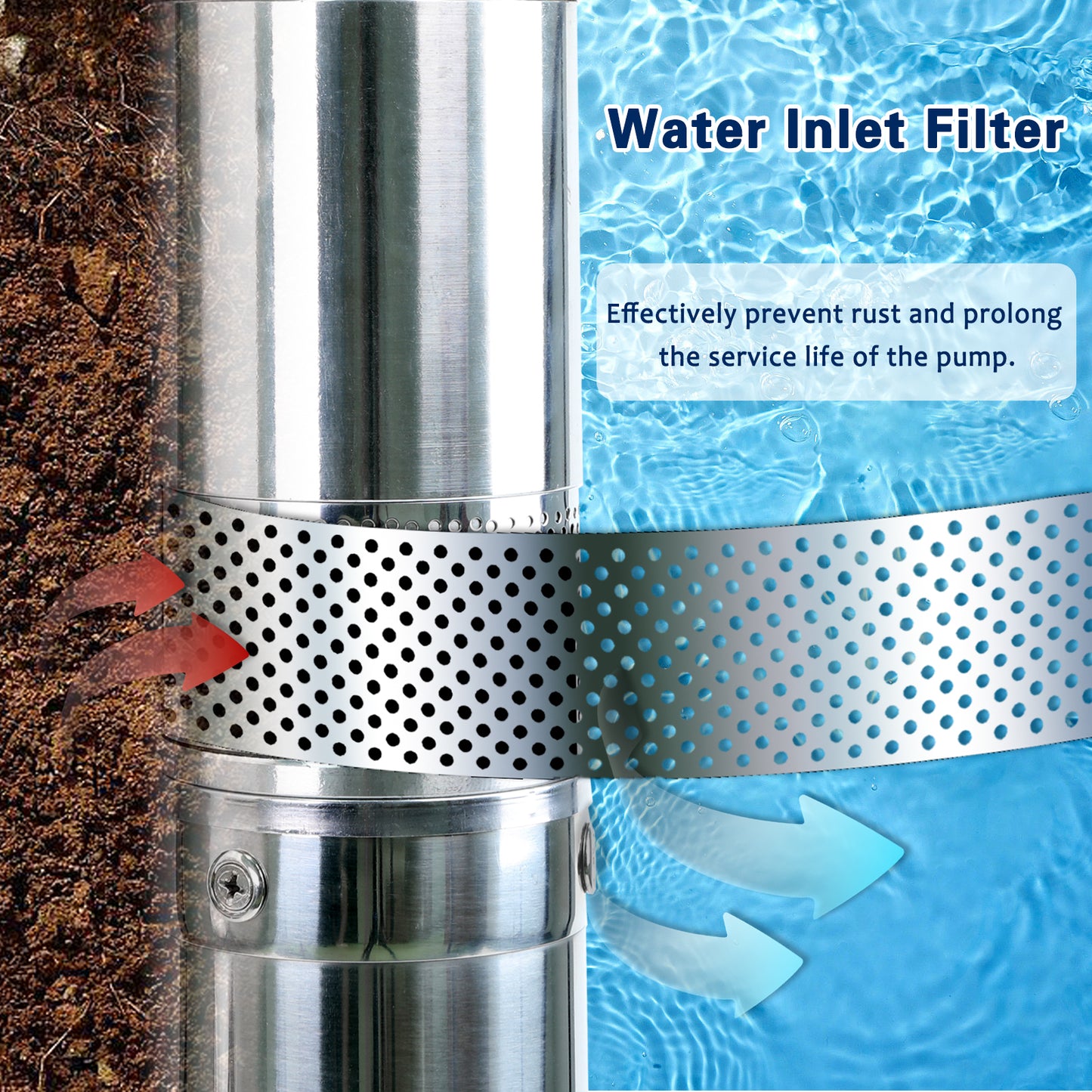

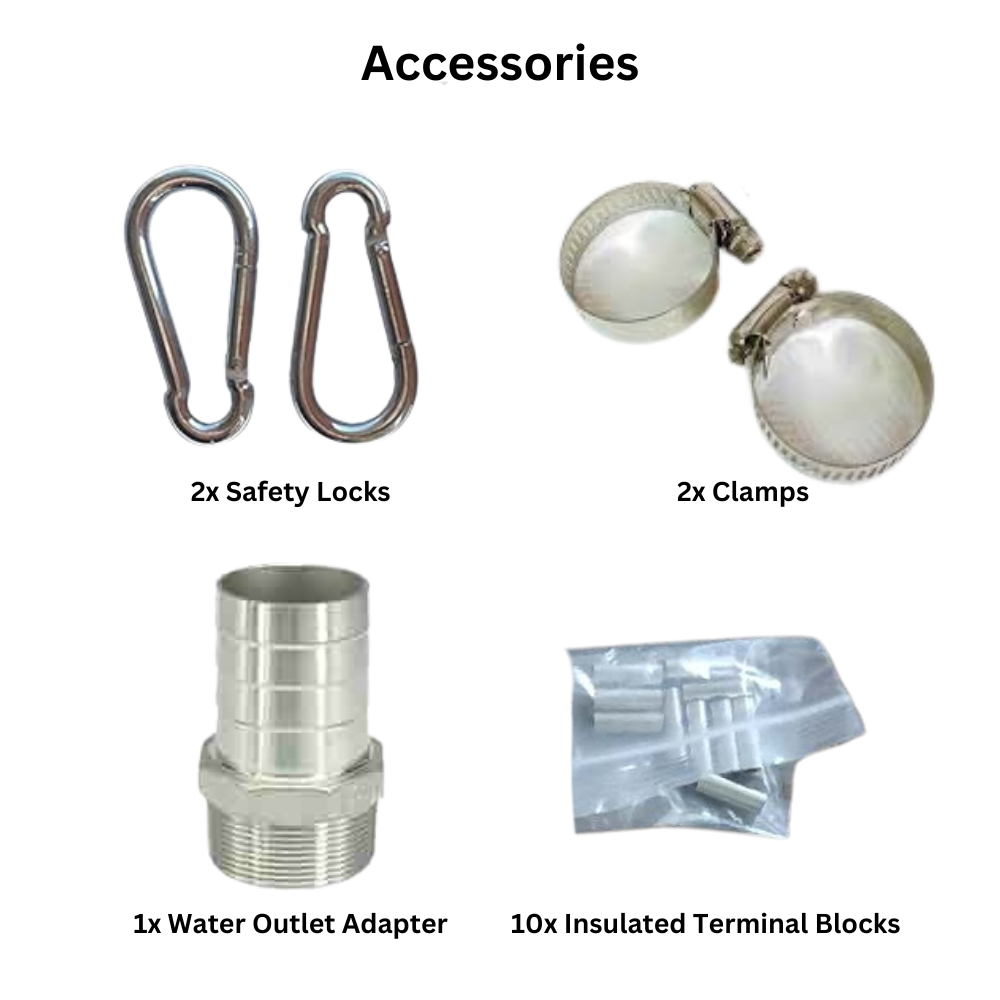

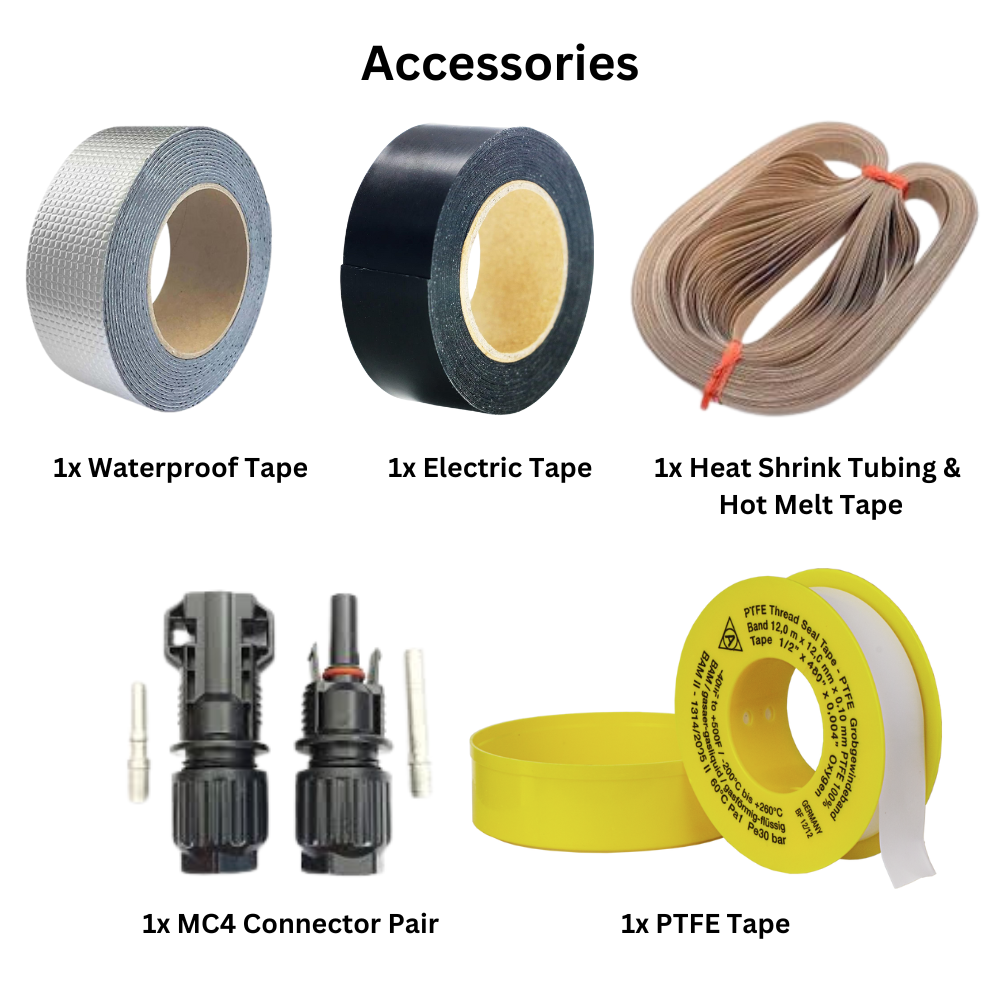

What's included: Pump + MPPT controller, water intake mesh filter, installation tools, user manual, warranty card — panels not included
Key specs — all models:

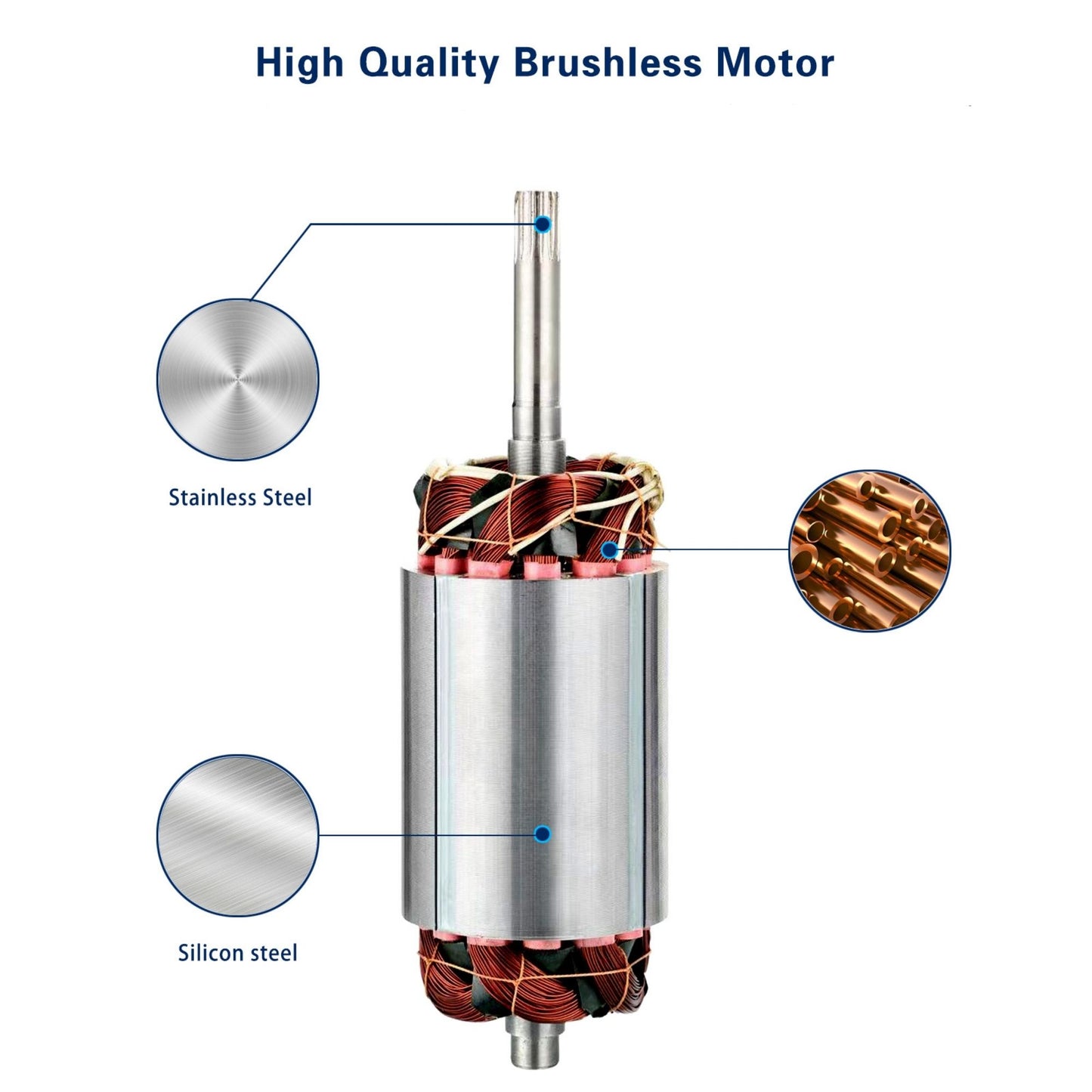

- Motor: 0.4HP DC brushless | Water-cooled | Permanent magnetic
- Input: 20–48V DC | Solar: 400W+ recommended (or battery)
- Material: SS304 stainless steel | Pump type: impeller (centrifugal)
Three models — choose by flow vs. depth priority:

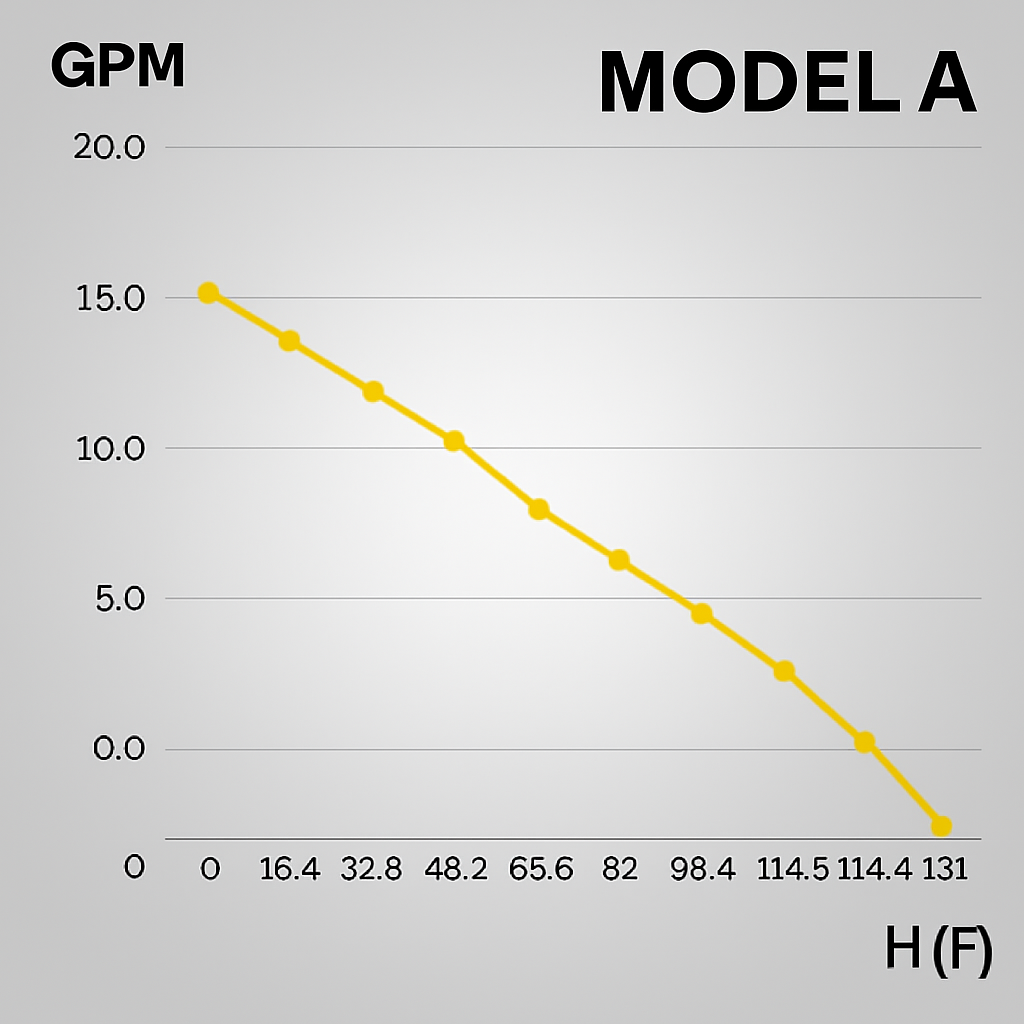

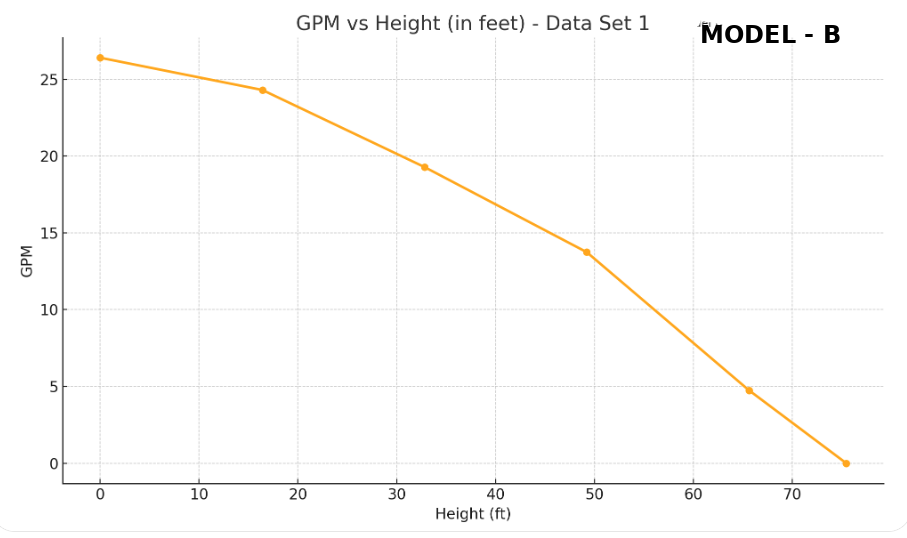

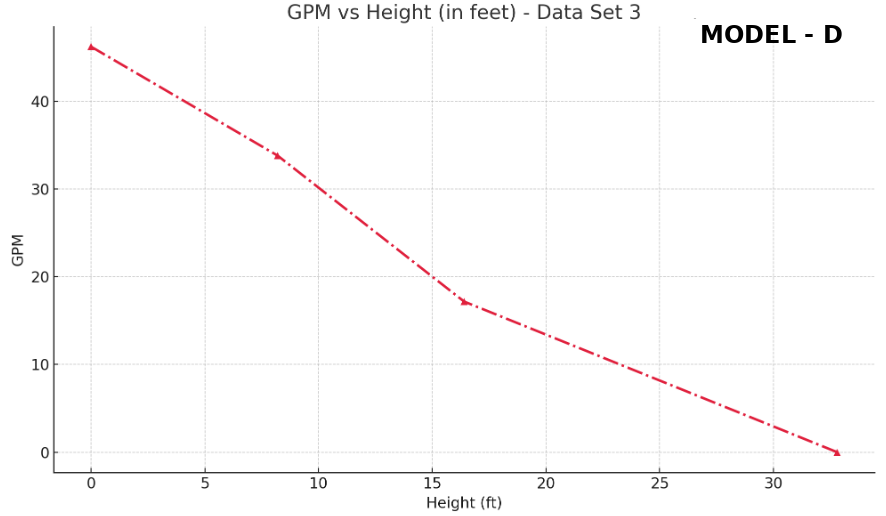

| Model A (3SPW1-5P) | Model B (3SPW3-3P) | Model D (4SPW8-1P) | |
|---|---|---|---|
| Max flow | 15.3 GPM | 26.4 GPM | 46.23 GPM |
| Max head | 130.4 ft | 74.98 ft | 32.6 ft |
| Max pressure | 58 PSI | 32.5 PSI | 14.1 PSI |
| Pump body | 3" | 3" | 4" |
| Outlet | 1.5" | 1.5" | 2" |
Built for: Wells, cisterns, ponds, livestock watering, off-grid irrigation, remote cabins, agricultural applications
Key features:
- Submersible design — drops directly into wells or cisterns, no priming required
- SS304 stainless steel — corrosion-resistant, built for permanent submersion
- Water-cooled motor — stays cool during extended operation without external components
- MPPT controller — auto-adjusts to available sunlight, stops and restarts without manual intervention
- Float switch / pressure switch compatible — automates fill and shutoff
- Dry-run auto protection — shuts off if water supply is interrupted
- Maintenance-free — no brushes to replace, sealed design
Warranty: 5 years
