ROCKSOLAR 2000W 12V RV Solar System

Name: ROCKSOLAR 2000W 12V RV Solar System
Brand: ROCKSOLAR
SKU: RSSOS-4X150R-COT3-001
Price: 2253.0 USD
Availability: InStock

Up to 50% off already applied. Use code HOLIDAY23 for an extra 15% off!

$2,253.00 USD

~~$3,154.00 USD~~ $2,253.00 USD

Sale Sold out

Shipping calculated at checkout.

Power System: 12V 200AH battery, two 200W panels, 60A controller, 2000W inverter.
Heavy-Duty Battery: 12V 200Ah LiFePO4, over 3500 cycles.
Efficient Solar Panels: Two 200W 12V, 22% efficient, durable frame.
2000W Inverter: Pure Sine Wave, steady AC output.
60A MPPT Controller: 99.5% efficiency, versatile compatibility.
Weatherproof Panels: Waterproof, corrosion-resistant.
Protected Battery: BMS for safety in various conditions.
Multiple Uses: Perfect for off-grid needs.
Warranty:11-years on Battery and 10-years on panels covered.
Simple Install: Pre-drilled panels, easy guidelines.
Upgradeable: Ready for future expansion.
Wide Temperature Range: Battery -20°C to 60°C, Controller -20°C to 55°C.

Product variants

Quantity

Free
Local Shipping

11-year Hassle Free
Warranty

Lifetime Customer
Support

View full details

Description
Includes
Specifications
FAQ
Downloads
Reviews

Experience the ultimate power solution for your outdoor adventures with the ROCKSOLAR 2000W 12V RV Solar System. This comprehensive kit includes top-of-the-line components designed to provide reliable and efficient power in any environment. The ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel features a waterproof and corrosion-resistant aluminum alloy frame, ensuring durability and longevity. Paired with the powerful ROCKSOLAR 2000W Pure Sine Wave Inverter, you can enjoy clean and stable AC power for all your electronic devices. The ROCKSOLAR 12V 200Ah Deep Cycle LiFePO4 Battery with BMS System guarantees reliable power storage, while the ROCKSOLAR 60A MPPT Solar Charge Controller maximizes solar energy utilization. With the ROCKSOLAR Z-Bracket Mount System, installation is quick and hassle-free.

Product Features

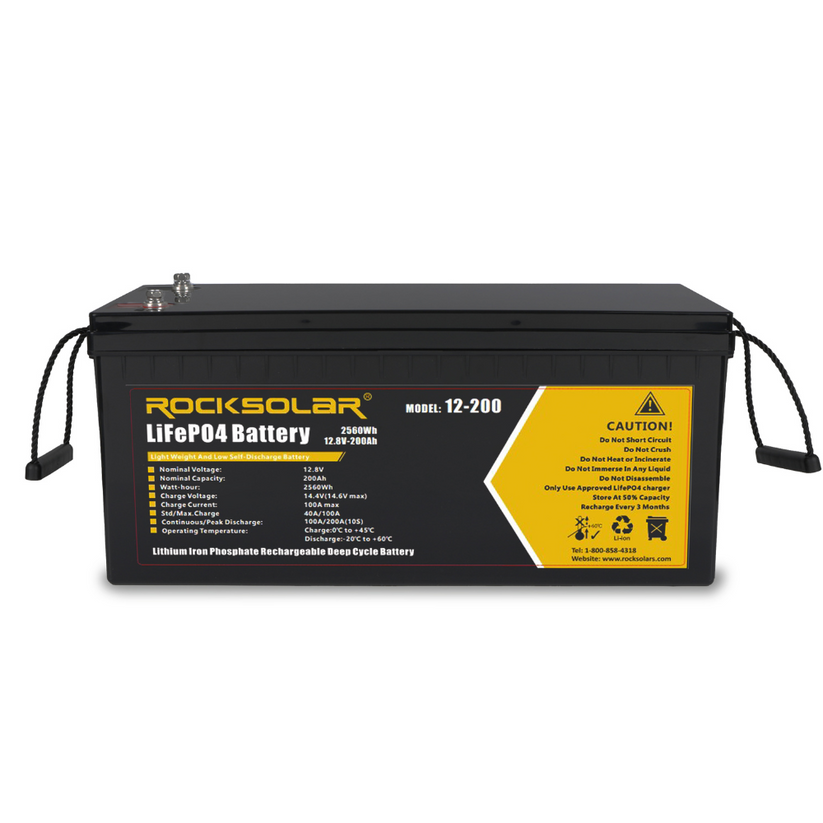

ROCKSOLAR 12V 200Ah Deep Cycle LiFePO4 Battery with BMS System:

12V 200Ah Deep Cycle LiFePO4 Battery

Advanced BMS (Battery Management System) for enhanced safety and performance

High energy density for longer battery life and extended runtimes

Fast charging capability for quick recharging of the battery

Designed for deep cycling applications, ideal for off-grid systems and RVs.

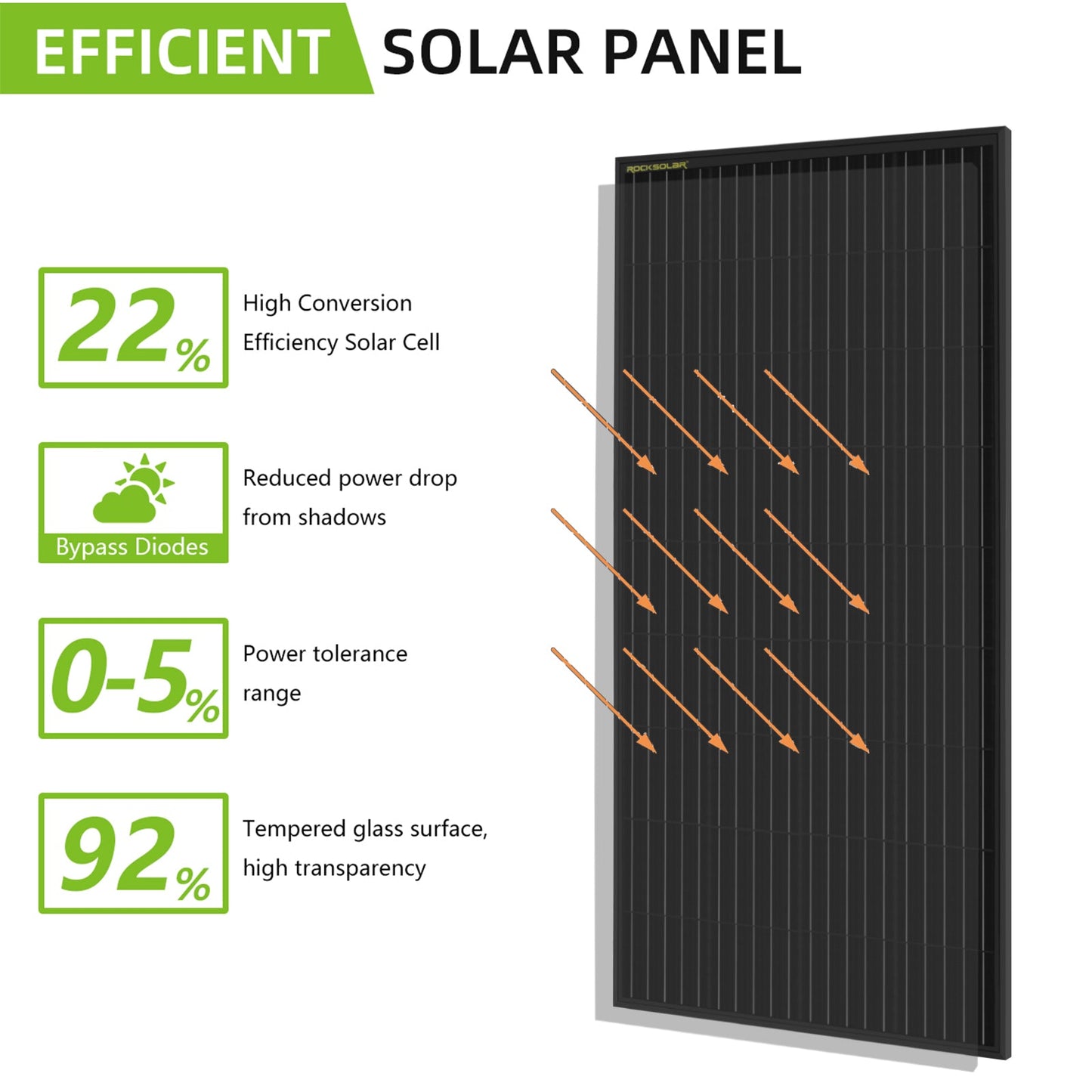

ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel - Ultra-Lightweight, Ultra-Thin:

200W 12V Rigid Monocrystalline Solar Panel (each panel)

Waterproof and corrosion-resistant aluminum alloy frame

High-efficiency solar cells for maximum power generation

Durable and reliable design for long-lasting performance

Suitable for various outdoor applications, including RVs, boats, and off-grid systems

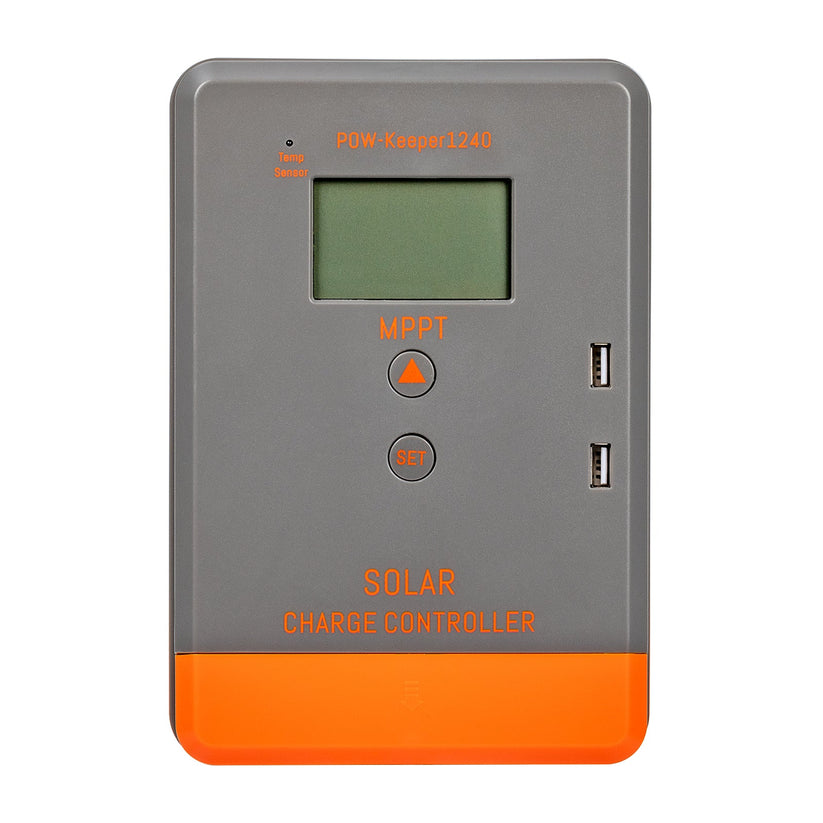

ROCKSOLAR 60A MPPT Solar Charge Controller:

60A MPPT Solar Charge Controller

Compatible with Lithium and Lead Acid batteries

Maximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%

3-stage charge algorithm and 12/24V nominal system voltage

Rated charging current of 60A and battery voltage range of 8-32V

High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V

Operating temperature range of -20°C to 55°C

IP30 rated for protection

ROCKSOLAR 12V 2000W Pure Sine Wave Power Inverter:

2000W Pure Sine Wave Power Inverter

Provides clean and stable power output for sensitive electronics

Multiple AC outlets for convenient device connection

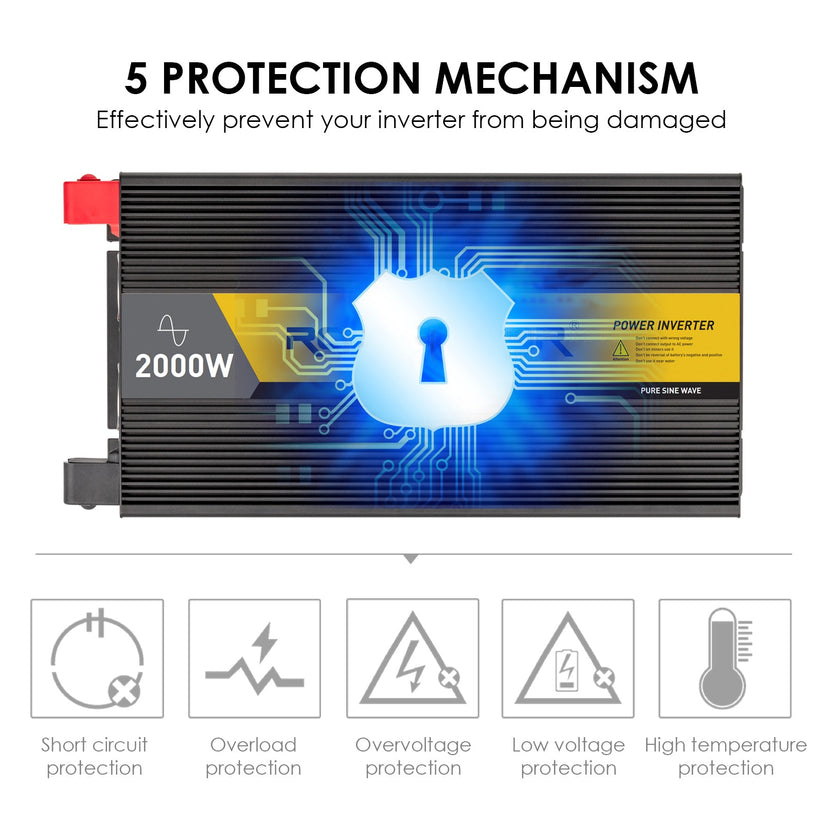

Advanced protection features to safeguard connected devices

Compact and portable design for easy installation and transportation

1 x 12V 200 Ah Deep Cycle LiFePO4 Battery
2 x 200W 12V Rigid Monocrystalline Solar Panel
1 x 2000W Pure Sine Wave Power Inverter
1 x 60A MPPT Solar Charge Controller
1 x 20 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black
1 x Y Branch Connectors for Solar Panels MMF+FFM Pair

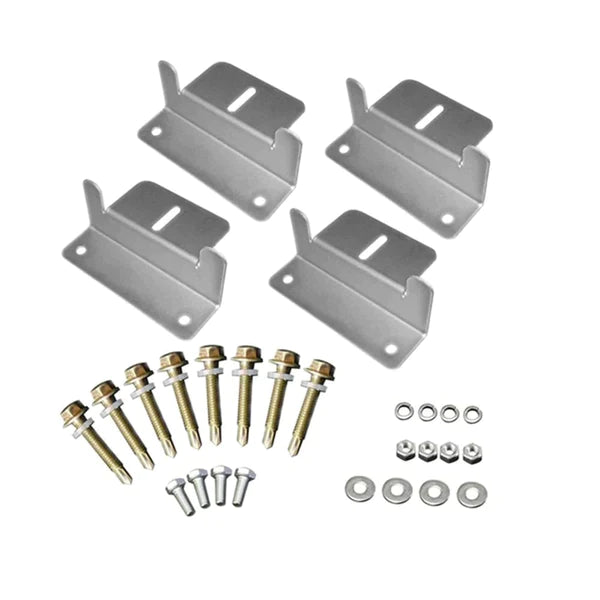

2 x Z-Bracket Mount System for Solar Panels - (Set of 4)
1 x User Manual

Technical Specifications

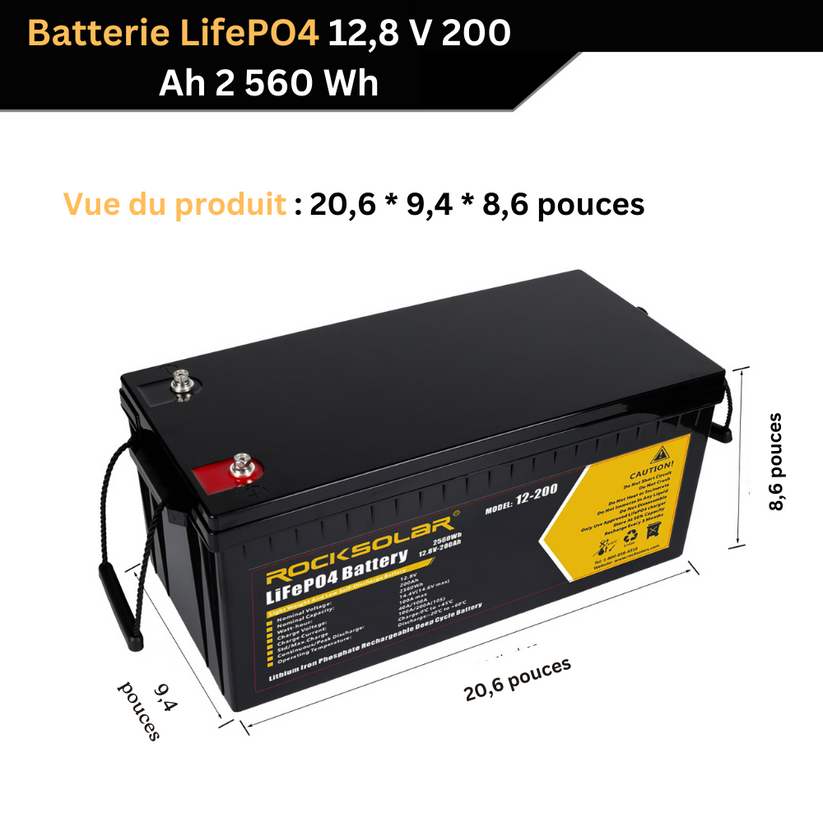

12V 200Ah Deep Cycle LiFePO4 Battery	Details
Nominal capacity	200.0Ah
Mix. capacity	195Ah
Nominal energy	2560Wh
Combination structure of battery	4S
Nominal voltage	12.8V
End of discharge voltage	10.8V
Standard charge voltage	14.6±0.2V
Float charge voltage	13.8V
Standard charge current	40A
Recommended charge current	≤100A
Allowed Max. charge current	100A
Standard discharge current	20A
Recommended discharge current	≤100A
Allowed Max. discharge current	100A
Peak discharge current	200A,10Sec
Internal Resistance	≤20mΩ
Weight	Approx. 25.0kg
Ex-factory capacity	Approx.50% SOC
Operation temperature	Discharge: -20°C~60°C; Charge: 0°C~45°C
Storage environment	≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH

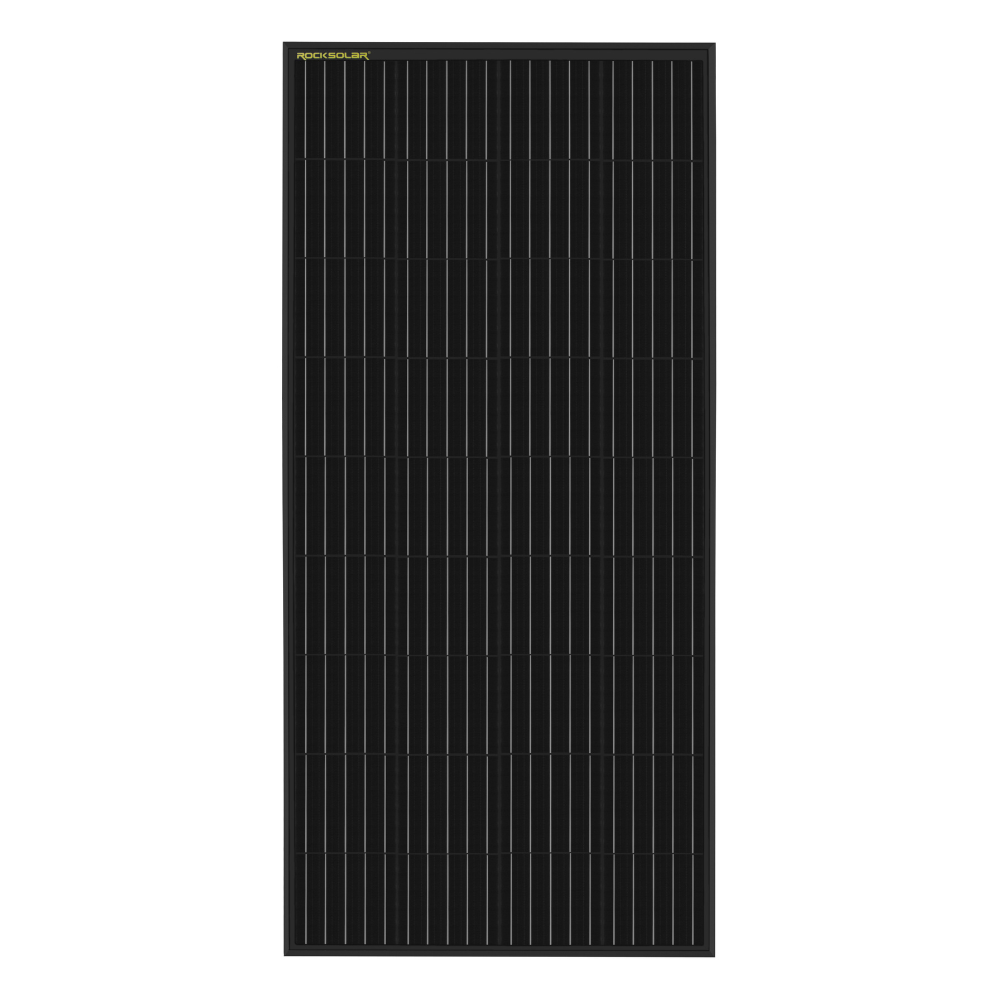

200W 12V Rigid Monocrystalline Solar Panel	Details
Rated Power	200W
Type	Mono-crystalline silicon
System Voltage	12V
Cell Efficiency	20-22%
Frame Material	Aluminum

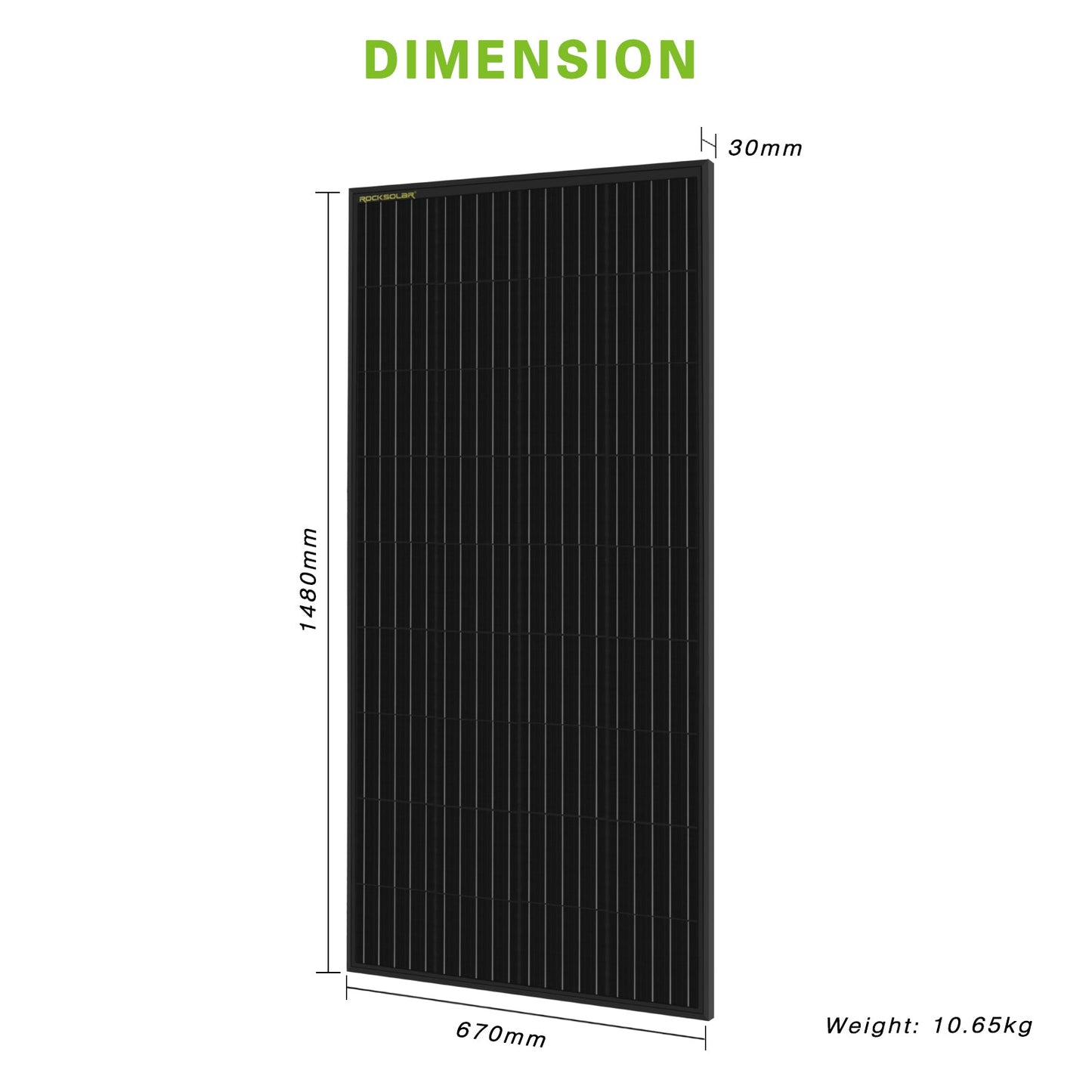

Dimensions	148067030 mm
Weight	approx. 25-30 lbs
Operating Temperature	-40°C to +85 °C

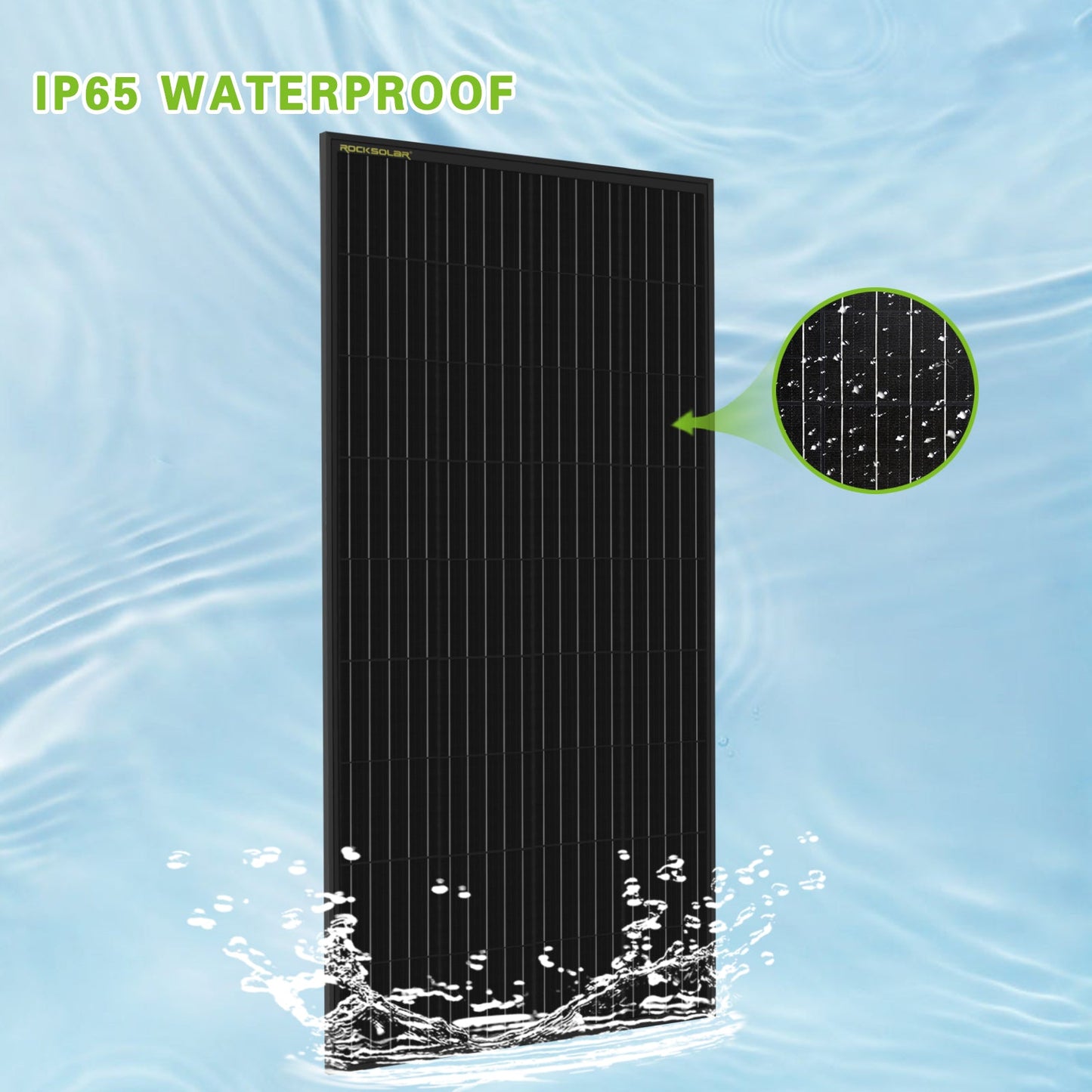

Waterproof Rating	IP65
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 Year

60A MPPT Solar Charge Controller	Details
Max Open Voltage of PV Module	100Vdc
MPP Tracking Efficiency	99.50%
Light Control Voltage	5V
Charge Algorithm	3 Stage
Battery Type	Lithium and Lead Acid Battery
Nominal System Voltage	12/24V
Rated Charging Current	60A
Battery Voltage Range	8~32V
High Voltage Disconnection	16V (24V x 2)
Duration for absorption charging	2 hours
Charge Loop Voltage Drop	≤0.29V
Self-consumption	≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage	AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging voltage	AGM: 14.4V; GEL: 14.2; FLd: 14.6V
Floating Charging voltage	AGM/ GEL/ FLd: 13.8V
Low Voltage re-connection (LVR)	AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD)	AGM/ GEL/ FLd: 10.8V
Operating Temperature Range	-20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range	-20℃~70℃
Humidity Range	≤95% No condensation
Protection Class	IP30

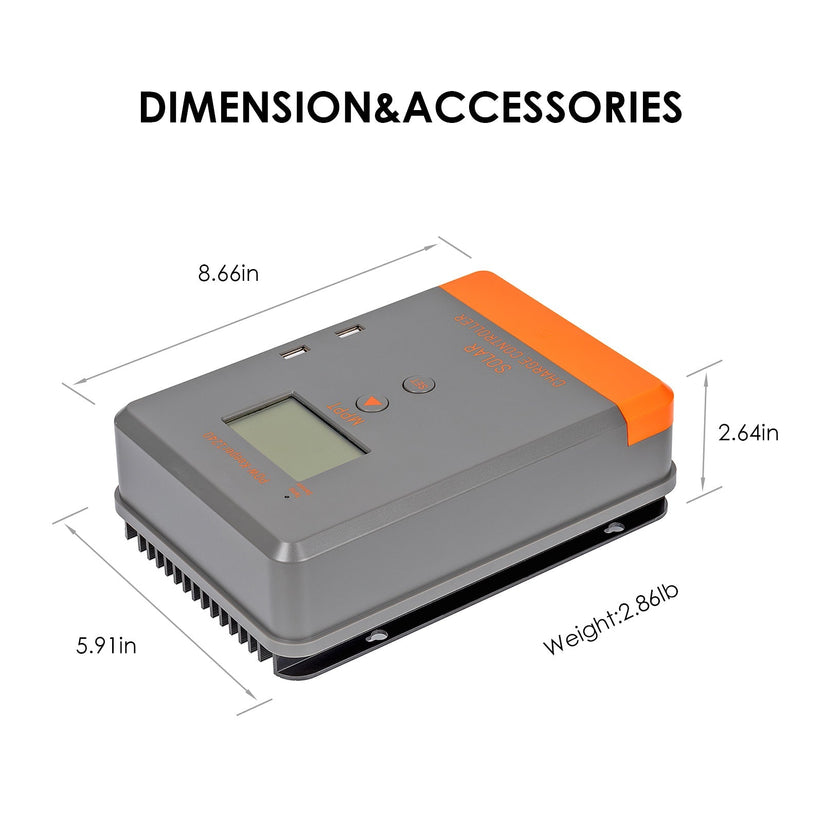

Dimension	12317848
Installation Hole	108*120 ∅5
Warranty	1 Year

12V 2000W Pure Sine Wave Power Inverter	Details
Rated power	2000W
AC Voltage	120V
Frequency	60HZ
Resistive Load Continuous Output Power	2000W
Inductive Load Continuous Output Power	1500W The pump can start normally (beyond which protection may be possible without damaging the inverter)
Capacitive Load Continuous Output Power	940±30W，PF：0.7 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter)
Waveform	Pure Sine Wave
Waveform Distortion（THD)	≤5%
Voltage range	9～17Vdc; 18V～32V
Battery Voltage	12Vdc; 24Vdc
DC Current	198.4A（Load 1000W when entering 12Vdc; 47.9A（Load 1000W when entering 24Vdc)
No Load Loss	1A; 0.6A
Shutdown mode static current	1mA
Maximum efficiency	90%
Battery type	All 12V batteries
Insurance slice	300A*2
Battery Low Voltage Alarm	9.5/10/10.5/11/11.5/12/12.5V，Buzzer alarm, LED display E06
Battery Low Voltage Alarm Recovery	10/10.5/11/11.5/12/12.5/13V
Battery Low Voltage Protection	9/9.5/10/10.5/11/11.5/12V (Set through menu)，LED display shows E01, automatic shutdown after 30S
Battery Low Voltage Protection Recovery	Recovery voltage within 30S：11/11.5/12/12.5/13/13.5/14V
Battery High Voltage Protection	17V，LED display shows E02, automatic shutdown after 30S
Battery High Voltage Protection Recovery	Recovery voltage within 30S：16.5V
Over Temperature	Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output
Output Short Circuit	Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S
Overload	Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
Overload	Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
USB Output Voltage	5V
USB Output Current	2.1A
Working Temperature	-20～40℃
Operating humidity	10～90%RH
Storage temperature, humidity	-30℃～70℃,10～95%RH
Weight	Net weight：5.01 kg

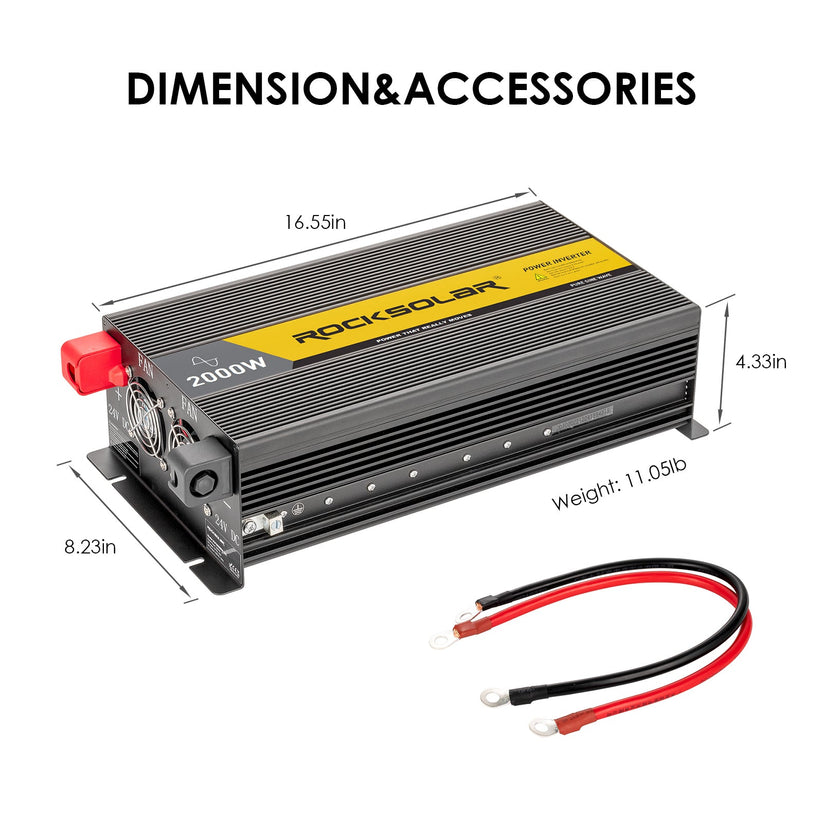

Size	420.4208.9110 mm(LWH)
Warranty	1 Year

The package includes the following components:

Two 200W 12V Rigid Monocrystalline Solar Panels with a waterproof and corrosion-resistant aluminum alloy frame
A high-performance 2000W Pure Sine Wave Inverter for reliable and clean power output
A 12V 200Ah Deep Cycle LiFePO4 Battery with BMS System for efficient power storage
A 60A MPPT Solar Charge Controller for optimized charging efficiency

The ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel features a waterproof and corrosion-resistant aluminum alloy frame, high-efficiency monocrystalline solar cells, sturdy construction for reliable performance in various weather conditions, easy installation with pre-drilled holes and included mounting brackets, and the ability to withstand heavy snow loads and high wind pressures.

The high-performance 2000W Pure Sine Wave Inverter offers clean and stable power output suitable for sensitive electronics, efficient conversion of DC power from the battery to AC power for various devices, multiple protection features to safeguard connected devices and the inverter itself, a user-friendly interface for easy monitoring and control, and a design focused on long-lasting performance and reliability.

The ROCKSOLAR 12V 200Ah Deep Cycle LiFePO4 Battery with BMS System offers high energy density and extended cycle life for reliable power storage, a built-in Battery Management System (BMS) for enhanced safety and performance, fast charging capability with low self-discharge rate, compatibility with various off-grid solar systems and applications, and a design focused on deep discharge and long-lasting performance.

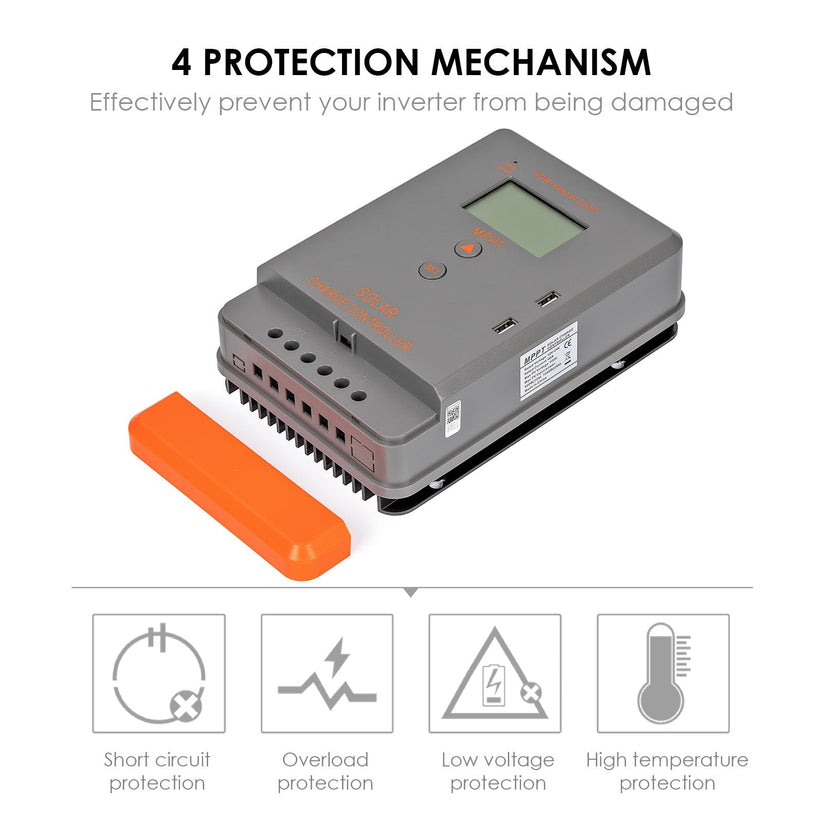

The ROCKSOLAR 60A MPPT Solar Charge Controller features Maximum Power Point Tracking (MPPT) technology for efficient solar power harvesting, advanced charging algorithms for optimal battery charging and protection, multiple protection features including overcharge, short circuit, and reverse polarity protection, a user-friendly LCD display for easy monitoring of system status and parameters, and compatibility with various battery types and solar panel configurations.

Download Product Manual (PDF)
