ROCKSOLAR 3000W 24V Off-Grid Solar Water Pump System

ROCKSOLAR 3000W 24V Off-Grid Solar Water Pump System

Regular price $5,499.99 CAD
Regular price $8,699.99 CAD Sale price $5,499.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • Complete System: 3000W pump, 24V 200Ah battery, high-efficiency solar.
  • Powerful Battery: 24V 200Ah LiFePO4, 3500+ cycles.
  • Pure Sine Inverter: Accurate 3000W AC conversion.
  • Efficient MPPT: Up to 99.5% solar harvesting efficiency.
  • Durable Pump: 24V, 1.3m³/h flow rate, brushless motor.
  • Solid Build: Components built for longevity.
  • Battery Safety: BMS for electrical protection.
  • Flexible Use: Ideal for various off-grid water needs.
  • 10-Year Warranty: Long-term coverage on battery.
  • Easy Setup: User-friendly installation process.
  • Expandable: Ready for power needs growth.
  • Wide Range: Operates in varied environmental conditions.
Shipping

Free
Local Shipping

Warranty

10-years Hassle Free
Warranty

Support

Lifetime Customer
Support

View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Harness the power of the sun with the ROCKSOLAR 3000W 24V Off-Grid Solar Water Pump System, your ultimate solution for independent water supply at the cottage. Central to this system is the high-efficiency 24V Brushless Solar DC Water Pump, designed to provide reliable water flow for a variety of needs, including irrigation, livestock, or household use. Complemented by 2x 12V 200AH LiFePO4 Batteries and a suite of 6x 150W Rigid Solar Panels, this system captures and stores solar energy efficiently using a state-of-the-art 60A MPPT Solar Charge Controller. The robust 3000W Pure Sine Wave Inverter ensures a steady conversion of solar energy to power essential appliances, sustaining your off-grid lifestyle without interruption. Thoughtfully engineered for scalability, the system allows for easy upgrades to accommodate increasing water demands or additional power needs. With a reassuring 10-year warranty on batteries and solar panels, and a 1-year warranty on supplementary components, ROCKSOLAR provides a secure and sustainable investment. Embrace the seamless integration of water management and energy independence with the ROCKSOLAR 3000W 24V Off-Grid Solar Water Pump System.

Product Features

ROCKSOLAR 12V 200Ah Deep Cycle LiFePO4 Battery with BMS System:

12V 200AH capacity (each)3500+ cycle life with 100% discharge rate for ultra-long service lifeSteady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteriesUtilizes advanced LiFePO4 Battery Technology for dependable deep cyclingSmart Battery Management System for safety and longevityLightweight: Only 55 pounds for easy portability and installationSuitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.Operating temperature range for charging: 0C∽45C, discharging: -20~-60.BMS auto-shuts off the battery outside the working temperature.
Warranty: 11-year warranty and 10+ year service life

ROCKSOLAR 150W 12V Rigid Monocrystalline Solar Panel:

150W 12V output (each)Rigid Monocrystalline Solar PanelWaterproof and Corrosion-Resistant Aluminum Alloy FrameHigh-Efficiency Solar Cell with 22% Conversion EfficiencyPre-drilled holes for easy mounting and securing to any surface

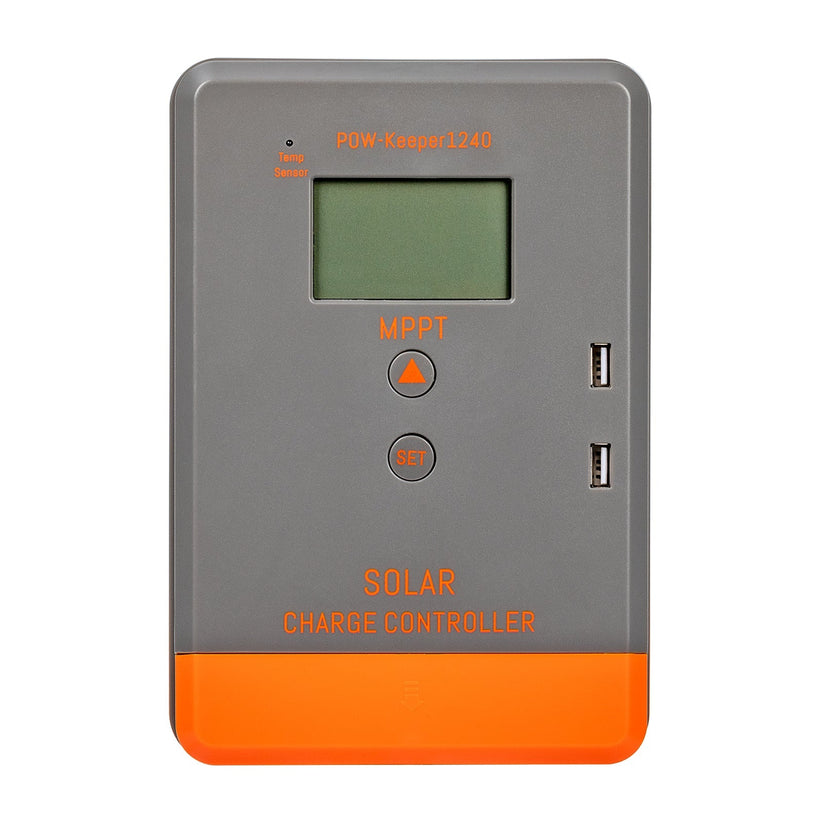

ROCKSOLAR 60A MPPT Solar Charge Controller:

60A MPPT Solar Charge ControllerCompatible with Lithium and Lead Acid batteriesMaximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%3-stage charge algorithm and 12/24V nominal system voltageRated charging current of 60A and battery voltage range of 8-32VHigh voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8VOperating temperature range of -20°C to 55°CIP30 rated for protection

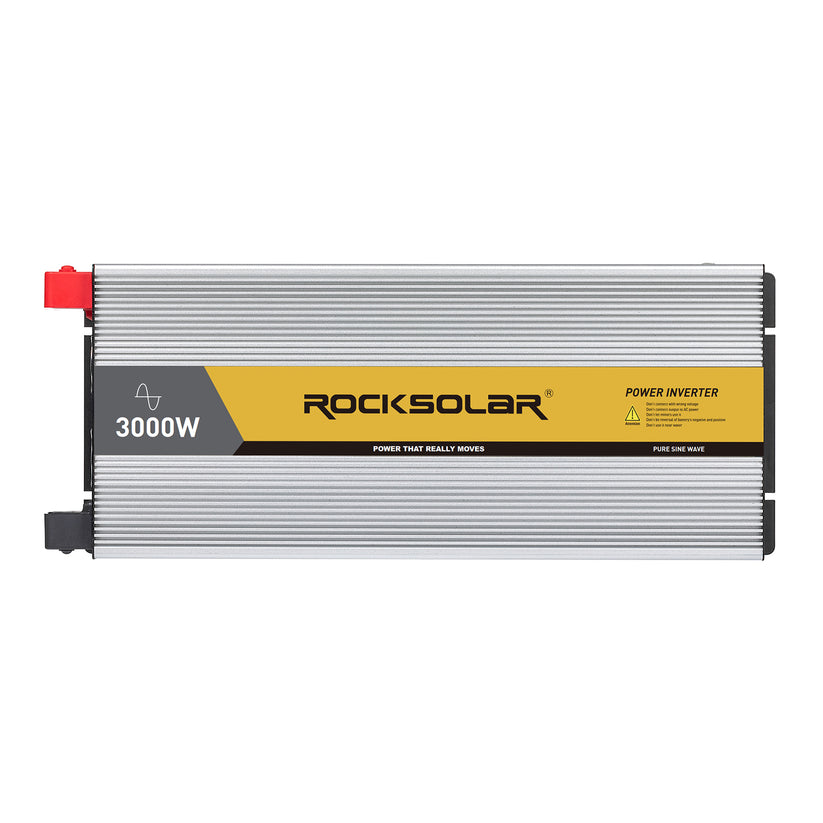

ROCKSOLAR 24V 3000W Pure Sine Wave Power Inverter:

3000W Pure Sine Wave Power InverterDC 24V to 110V AC ConversionTemperature Range: The inverter has a working temperature range of -20~40℃ and operating humidity range of 10~90%RH, making it suitable for use in a variety of environments.2.1A USB Charging PortIdeal for RVs, Camping, Off-grid power solutions, and more.Lightweight and Compact Design: With a net weight of just 5.01kg and a size of 420.4208.9110mm (LWH), the inverter is easy to transport and store.

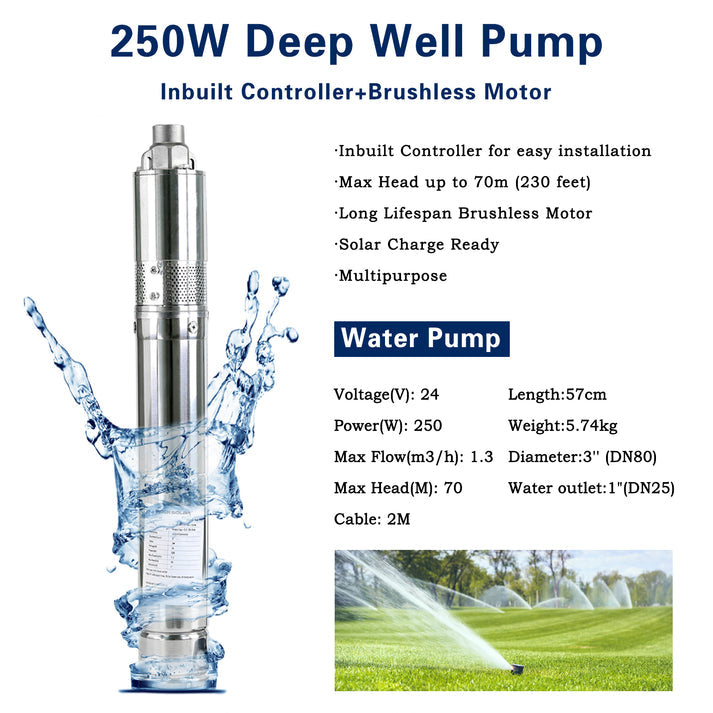

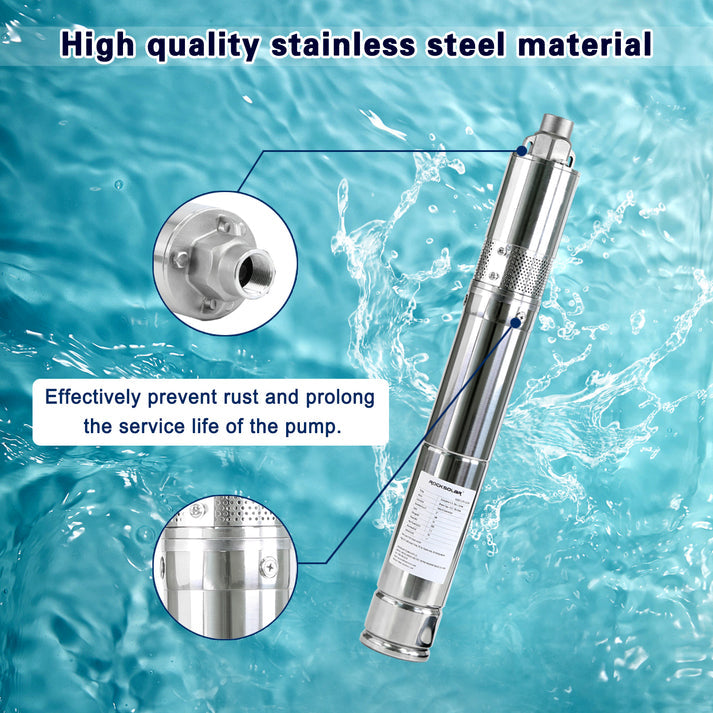

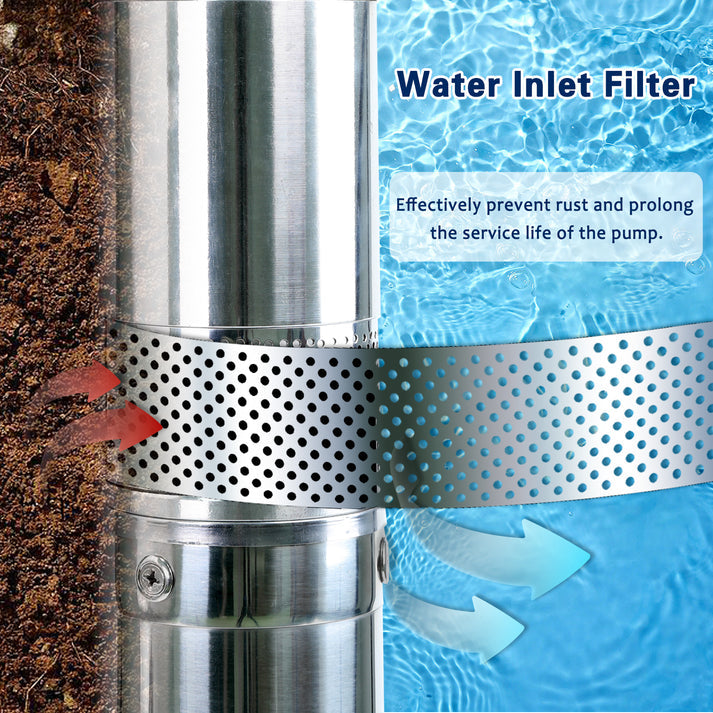

ROCKSOLAR 24V Brushless Solar DC Water Pump:

High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar power applications.Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.Inbuilt Controller: The pump comes with an inbuilt controller for easy operation.Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.Adequate Cable Length: Comes with a 2M cable for flexible installation.Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.Outlet: The pump features a 1" outlet for easy connection to your water supply system.
    • 2 x 12V 200Ah Deep Cycle LiFePO4 Battery
    • 1 x 24V Brushless Solar DC Submersible Well Pump
    • 6 x 150W 12V Rigid Monocrystalline Solar Panel
    • 1 x 24V 3000W Pure Sine Wave Power Inverter
    • 1 x 60A MPPT Solar Charge Controller

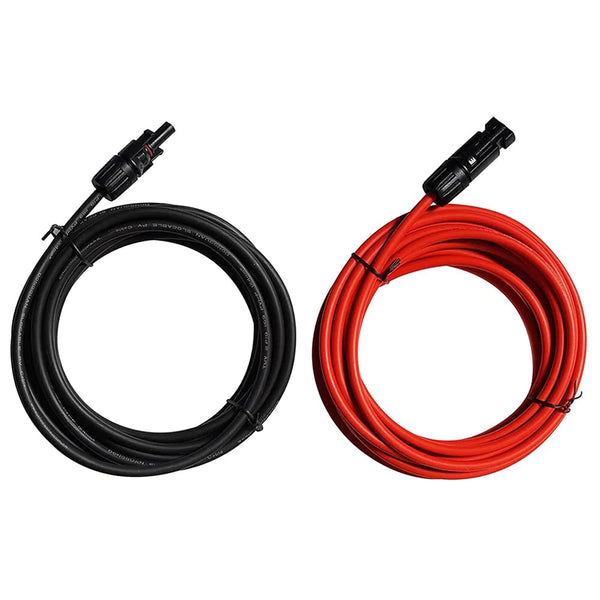

    • 1 x 20 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black

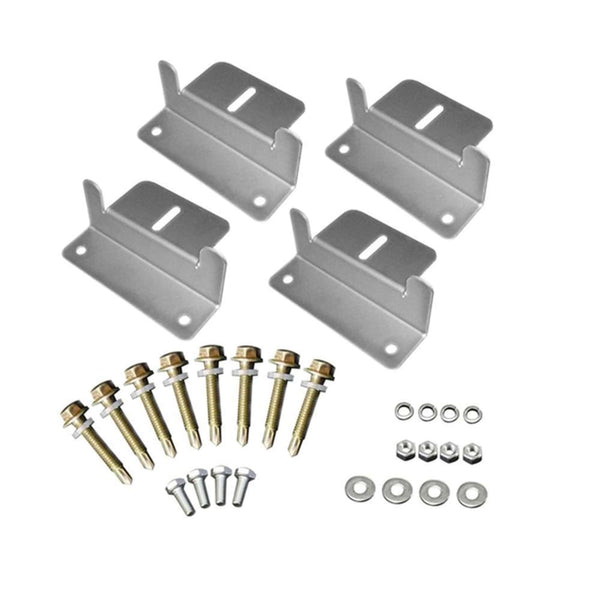

    • 6 x Z-Bracket Mount System (Set of 4)
    • 5 x Y Branch Connectors for Solar Panels MMF+FFM Pair
    • 1 x User Manual

    Technical Specifications

    12V 200Ah Deep Cycle LiFePO4 Battery with BMS System Details
    Nominal capacity 200Ah
    Mix. capacity 195Ah
    Nominal energy 2560Wh
    Combination structure of battery 4S
    Nominal voltage 12.8V
    End of discharge voltage 10.8V
    Standard charge voltage 14.6±0.2V
    Float charge voltage 13.8V
    Standard charge current 40A
    Recommended charge current ≤100A
    Allowed Max. charge current 100A
    Standard discharge current 40A
    Recommended discharge current ≤100A
    Allowed Max. discharge current 100A
    Peak discharge current 200A,10Sec
    Internal Resistance ≤20mΩ
    Weight Approx. 25kg
    Ex-factory capacity Approx.50% SOC
    Operation temperature Discharge: -20°C~60°C; Charge: 0°C~45°C
    Storage environment

    ≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH


    150W 12V Rigid Monocrystalline Solar Panel Details
    Rated Power 150W
    Type Mono-crystalline silicon
    System Voltage 12V
    Cell Efficiency 20-22%
    Frame Material Aluminum
    Dimensions 1120*670*30 mm
    Weight approx. 8.30kg
    Operating Temperature -20~70 °C
    Waterproof Rating IP65
    Front Glass High light transmittance, low-iron tempered glass
    Bypass Diodes Integrated
    Connectors MC4
    Cable Length Varies depending on the brand (approx. 3-6 ft)
    Mounting Hole Locations Pre-drilled
    Service Life 25 years or more
    Warranty 10 Year

    60A MPPT Solar Charge Controller
    Details
    Model POW-M60-PRO
    PV Input Max Open Voltage of PV Module: 100Vdc
    MPP Tracking Efficiency 99.50%
    Light Control Voltage 5V
    Charge Mode Charge Algorithm: 3 Stage
    Battery Type Lithium and Lead Acid Battery
    Low Voltage Disconnection (LVD) AGM/ GEL/ FLd: 10.8V
    Environmental Operating Temperature Range: -20℃~55℃ (To run at full rated current continuously)
    LCD Temperature Range -20℃~70℃
    Humidity Range ≤95% No condensation
    General Specification Protection Class: IP30
    Dimension 123*178*48
    Installation Hole 108*120 ∅5

    3000W Pure Sine Wave Power Inverter
    Details
    Model RSINV3000-001
    Output Rated power: 3000W
    AC Voltage 120Vac(100/110/120Vac Set through menu)
    Frequency 60Hz (50Hz/60Hz Set through menu)
    Resistive Load Continuous Output Power 1800W, 3000W
    Operating humidity 10~90%RH
    Storage temperature, humidity -30℃~70℃,10~95%RH
    Weight Net weight:5.01Kg Gross weight:

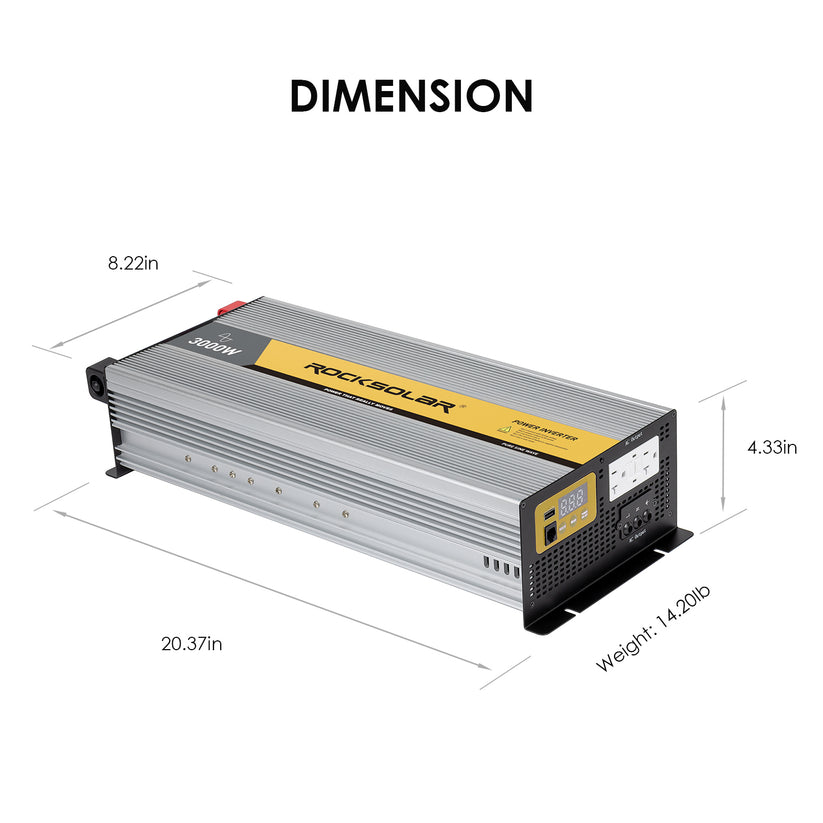

    Size 420.4*208.9*110mm (L*W*H)
    Packing mm(L*W*H)

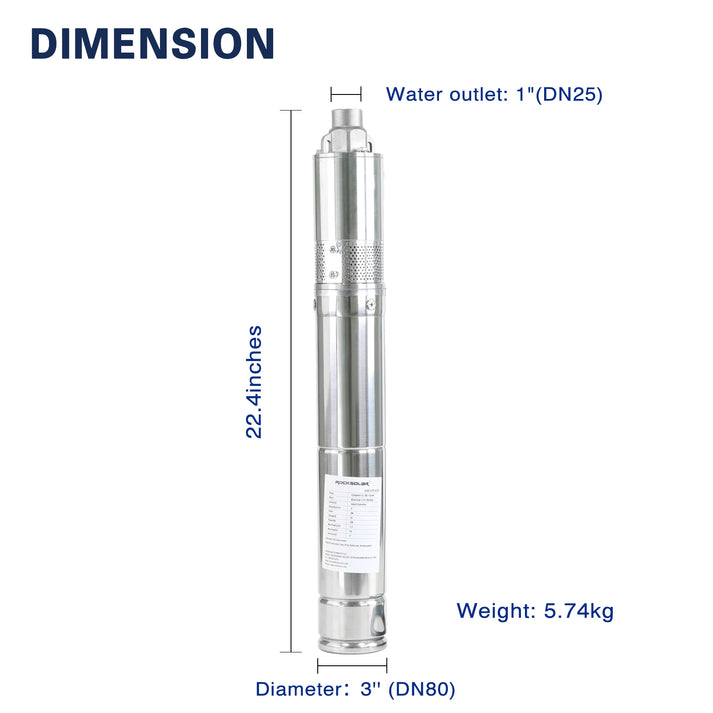

    24V Brushless Solar DC Water Pump Details
    Product Rocksolar 24V Brushless Solar DC Water Pump
    Pump Model Complete S.S. 304 + Screw
    Motor Brass Cap + S.S. 304 Body
    Controller Inbuilt Controller
    Diameter(inch) 3''
    Voltage(V) 24
    Cable 2M
    Power(W) 250
    Max Flow(m3/h) 1.3
    Max Head(m) 70
    Outlet(inch) 1"
    Warranty 5 Year


    The ROCKSOLAR 24V 200Ah Deep Cycle LiFePO4 Battery has a capacity of 200Ah, offering robust power storage for extensive off-grid applications.

    The battery can handle over 3500 cycles at a 100% depth of discharge, providing long-term reliability for your energy needs.

    Yes, the battery includes a state-of-the-art BMS (Battery Management System) for protection against overcharging, over-discharging, short-circuiting, and temperature variations.

    The battery comes with an industry-leading 11-year warranty, underscoring ROCKSOLAR's commitment to quality and customer satisfaction.

    The ROCKSOLAR 24V Brushless Solar DC Water Pump offers a maximum flow rate of 1.3m³/h, suitable for a variety of applications such as irrigation and domestic water supply.

    Yes, with a 3000W output, the inverter can manage heavy loads, making it ideal for running large appliances and tools.

    Absolutely. The inverter includes multiple safety features such as over-voltage protection, under-voltage protection, overload protection, and temperature control.

    The MPPT technology in the ROCKSOLAR Solar Charge Controller offers up to 99.5% tracking efficiency, ensuring optimal energy conversion and battery charging.

    The system is compatible with monocrystalline and polycrystalline solar panels, giving you the flexibility to choose based on availability or preference.

    The pump is constructed with durable materials and designed for long service life, typically lasting for several years with proper maintenance.

    Yes, the stainless steel construction of the water pump is safe for drinking water applications, ensuring that water quality is maintained.

    The system is designed for easy installation. It comes with clear instructions and can be set up by individuals with basic technical knowledge. For more complex setups, professional installation is recommended.

    While performance may be reduced on cloudy days, the system can still operate, particularly if paired with batteries to provide a consistent energy supply.
