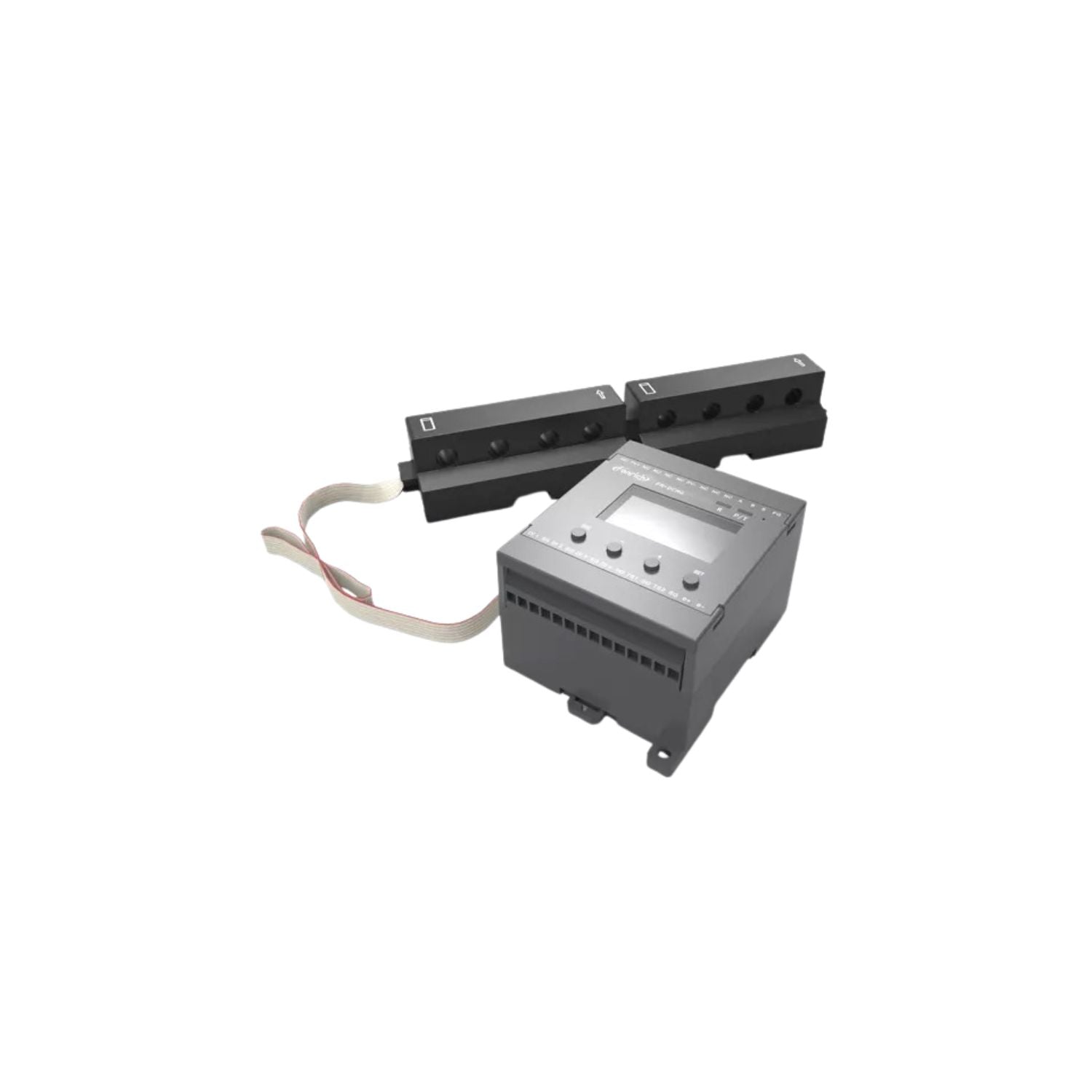

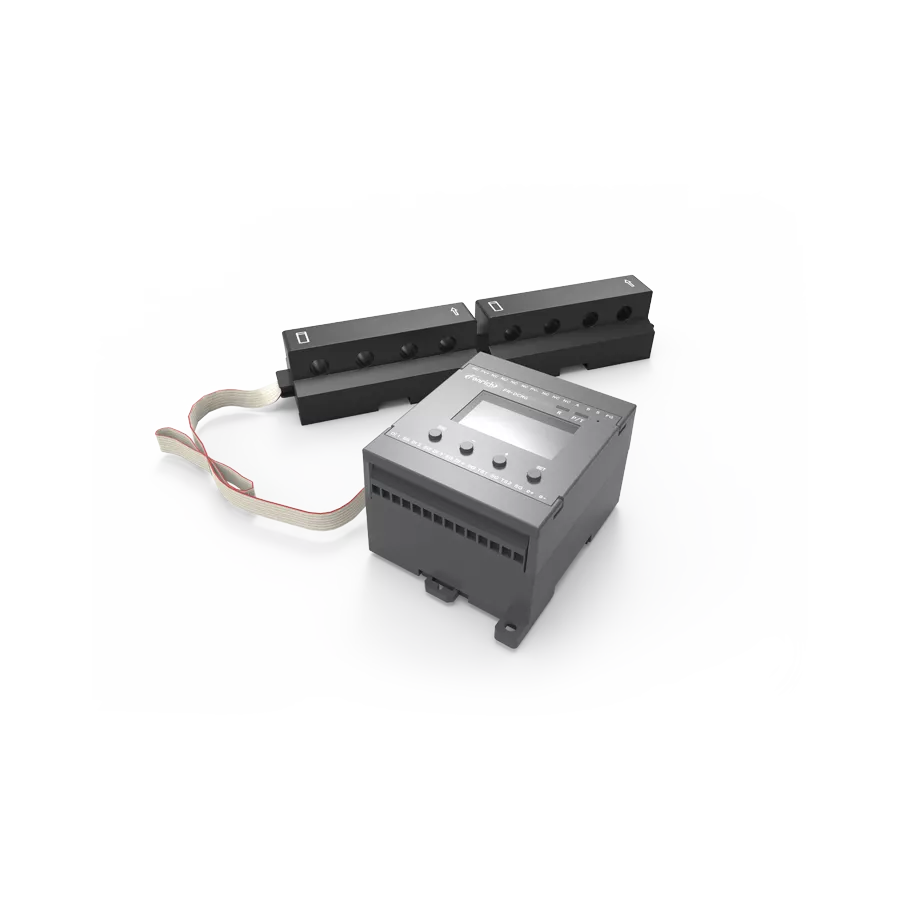

Fonrich DC System Monitor

Fonrich DC System Monitor

$0.00 CAD
$0.00 CAD
Sale Sold out
Shipping calculated at checkout.
  • Supports up to 32 channels
  • Local LED display, real-time of PV string information
  • Can view the total power generation of each string
  • RS485 or PLC communication
  • Various specifications of Hall sensor, ±20A, ±30A, ±40A, ±60A
  • Optional: Support shunt release trip
View full details



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews

Product Features

  • Support 600VDC, 1000VDC, 1200VDC, 1500VDC, 1700VDC system;
  • Support RS485 communication modes
  • Modular design, support up to 32 channels
  • Arc fault detection and protection
  • Local pixels graphic LCD display, the current of each channel be displayed in histogram
  • Abnormal alarm of each channel (Over voltage, under voltage, over current, under current, unbalanced current, etc)
  • Drive shunt trip device directly, no external circuit is required
  • Remote alarm,the state of arc alarm can be read by MODBUS
  • 1 x DC System Monitor

Technical Specifications


Model PV Voltage Power Supply Breaker Shunt Tripping Driver Communication Current Monitoring Strings Support Arc Fault (FR-DCMG-AS4A) Digital/Switch Status Monitoring Temperature Sensors
FR-DCMG-MKPD ≤1000v Directly from PV, DCDC converter integrated - Yes 24 - 2 1
FR-DCMG-MMPU ≤1500v Yes - Yes 24 - 4 2
FR-DCMG-MMPP ≤1500v Yes Yes Yes 24 Yes 4 2
FR-DCMG-MMPQ ≤1700v Yes - Yes 24 Yes 4 2
FR-DCMG-MMPS ≤1700v - Relay / Contactor Yes 24 Yes 4 2
FR-DCMG-MMPY ≤1500v Yes - Yes 32 - 4 2



Download Datasheet (PDF)
Download User Manual (PDF)
