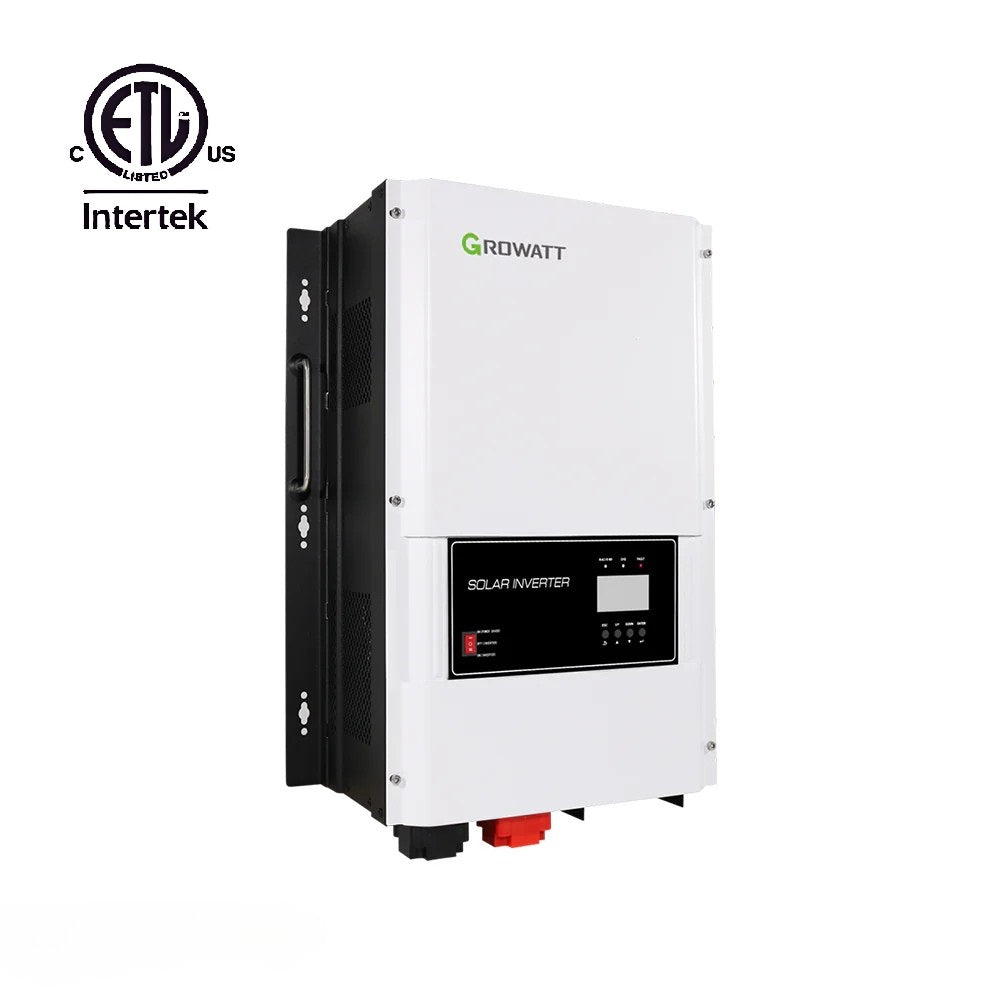

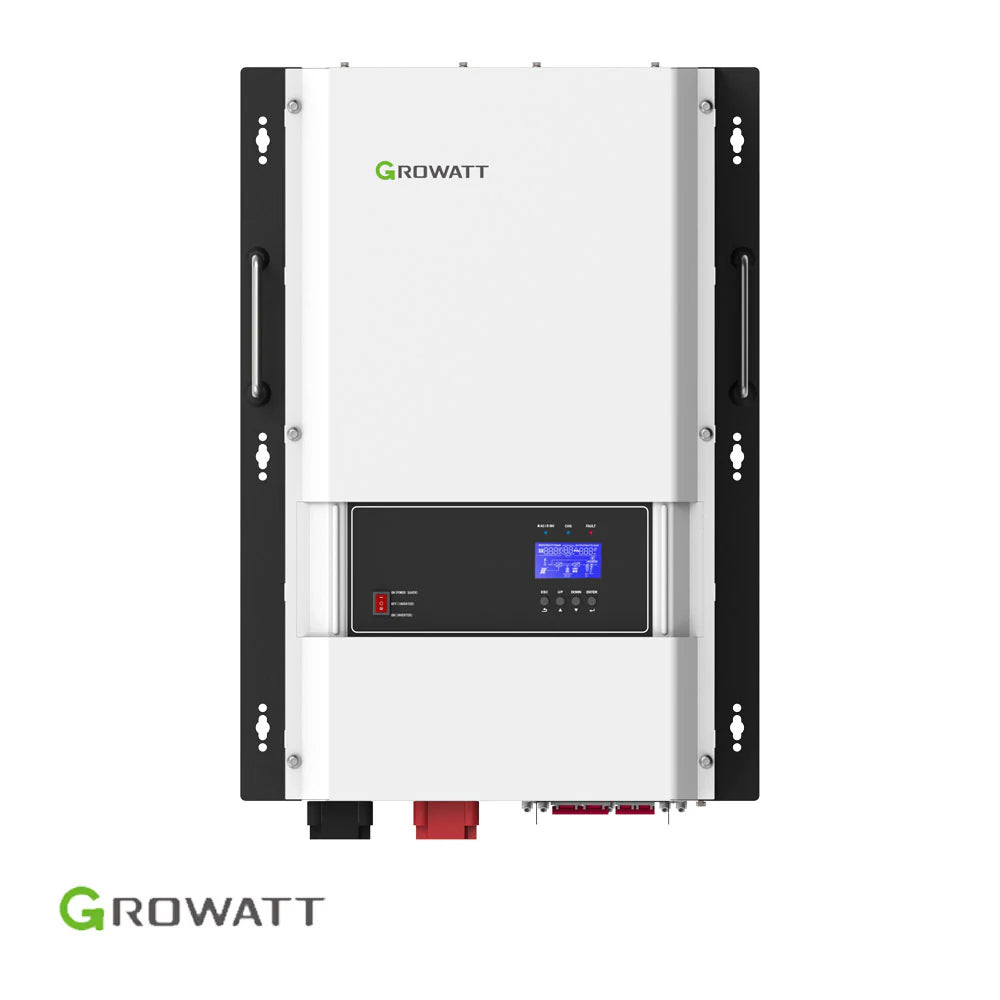

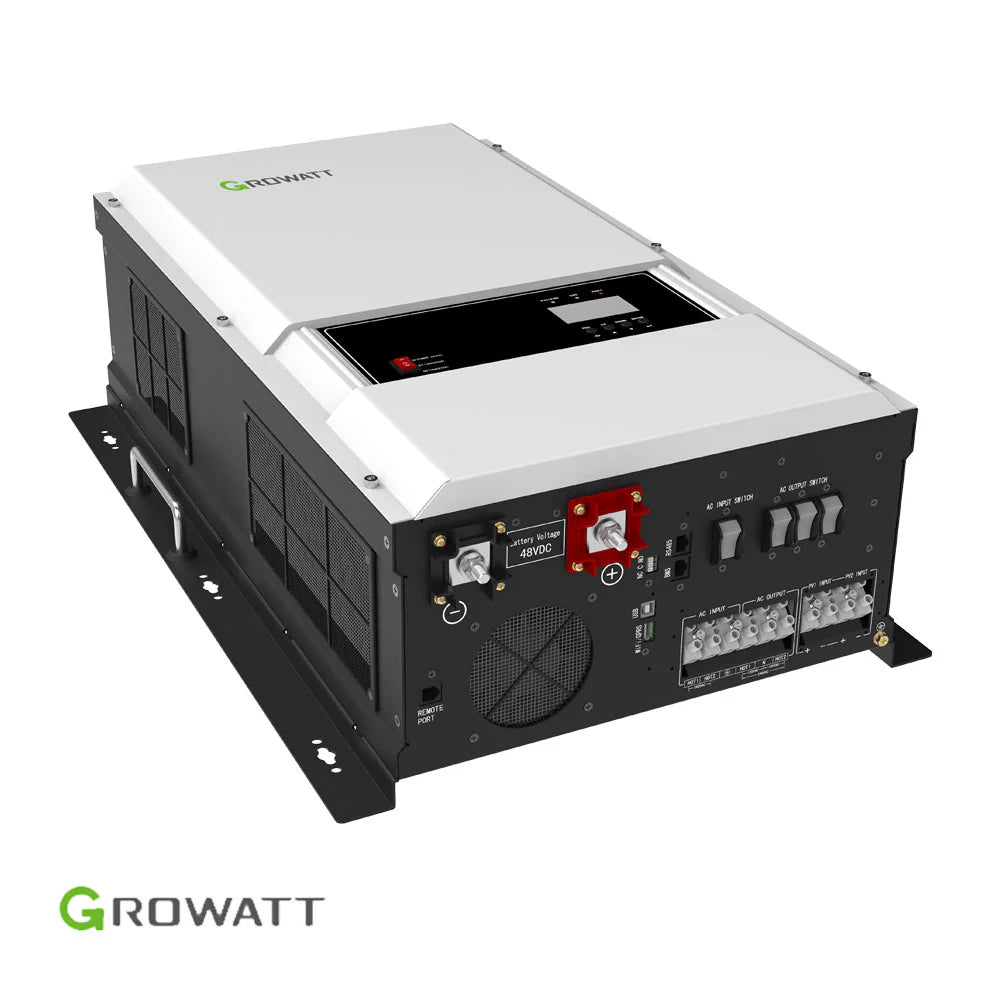

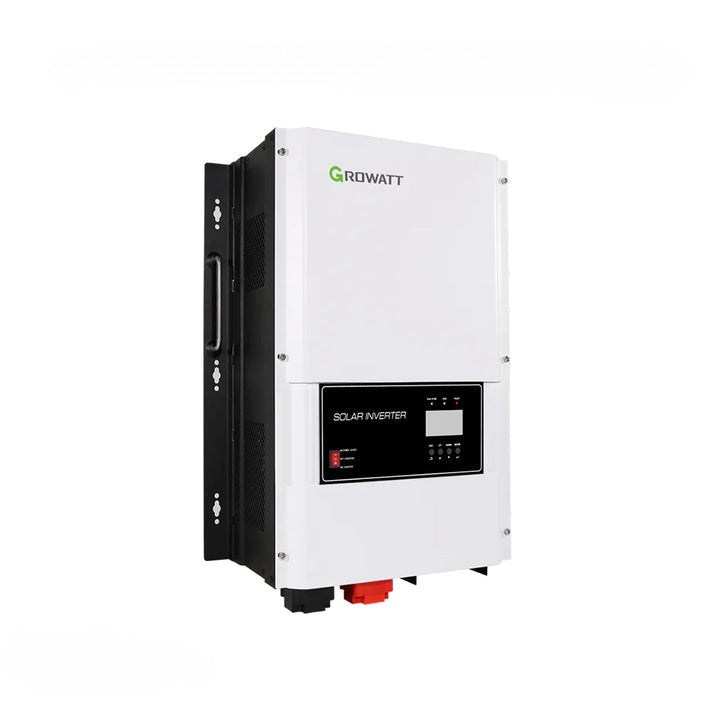

Growatt SPE 12000 US 12kW 120/240V Off-Grid Solar Inverter
Available in stock (128)
Couldn't load pickup availability
Description
Description
The Growatt SPE 12000 US is a 12kW split-phase off-grid solar inverter that supplies 120/240V power for homes, cabins, farms and workshops. It combines a pure sine wave inverter, two MPPT solar charge controllers, 48V-class battery support and utility or generator input in one unit. Its 18,000W recommended PV capacity provides room for solar generation to serve loads and charge compatible batteries.
Why choose the Growatt SPE 12kW inverter?
- 120/240V split-phase output: Delivers 12,000W of rated AC power for a mix of 120V and 240V loads within the inverter's limits.
- Dual MPPT solar charging: Two independent trackers support a maximum recommended 18,000W solar array, with up to 9,000W per tracker.
- 48V-class battery system: Supports lithium and lead-acid batteries, with CAN/RS485 communication for compatible battery management systems.
- Generator and utility support: Separate AC connections and a built-in automatic transfer function support flexible power-source management.
- Smart load function: Supports configurable smart-load operation as part of a correctly designed system.
- Expandable capacity: Supports up to nine units in parallel with batteries connected. Nine 12kW units provide up to 108kW of total rated capacity in a compatible configuration.
- Remote monitoring: Supports plug-in WiFi/4G monitoring accessories for viewing system status through the app or website.
SPE 12000 US technical specifications
| Specification | 12kW model |
|---|---|
| Rated AC output | 12,000W / 12,000VA |
| Nominal output voltage | 120V line-to-neutral / 240V line-to-line, split-phase |
| Nominal AC frequency | 60Hz in the US-series datasheet |
| Output waveform | Pure sine wave |
| Maximum AC output current | 50A at 240V |
| Maximum recommended PV power | 18,000W STC total / 9,000W per MPPT |
| MPPT trackers / strings per tracker | 2 / 2 per tracker |
| Maximum PV voltage | 550V DC |
| PV startup voltage | 120V DC |
| MPPT operating voltage range | 60-480V DC |
| Maximum PV input current per MPPT | 27A, per the SPE 12000 US user manual |
| Maximum PV short-circuit current per MPPT | 34A, per the SPE 12000 US user manual |
| Battery system | 48V class; lithium or lead-acid |
| Battery voltage range | 46-60V DC lithium / 38.4-60V DC lead-acid |
| Maximum battery charge / discharge current | 250A / 280A |
| Continuous battery charge / discharge power | 12,000W |
| Battery communication | CAN / RS485 |
| Nominal AC input voltage | 120/240V AC |
| Maximum AC input / grid passthrough current | 70A, including loads and charging |
| Transfer time | Up to 20ms single-unit / up to 30ms parallel, per datasheet |
| Peak efficiency / CEC efficiency | 96.5% / 94.5%, per datasheet |
| Battery-mode peak efficiency | 95%, per user manual |
| MPPT efficiency | 99% |
| Parallel capability | Up to 9 units; battery connection required |
| Enclosure / cooling | IP20 / DC fan |
| Operating temperature | -10 to +50 degrees C |
| Housing dimensions | 550 x 500 x 150mm, per user manual |
| Weight | 21.7kg, per user manual |
| Display / interfaces | LCD + LED / RS485, CAN and USB |
| Certification standards | UL 1741 / CSA C22.2 No. 107.1 |
| Manufacturer warranty | 5-year standard warranty |
Specifications use Growatt's SPE 6000-12000 US datasheet and the SPE 12000 US user-manual specifications. Housing dimensions and net weight follow the user manual. Confirm the supplied unit's revision before final installation design.

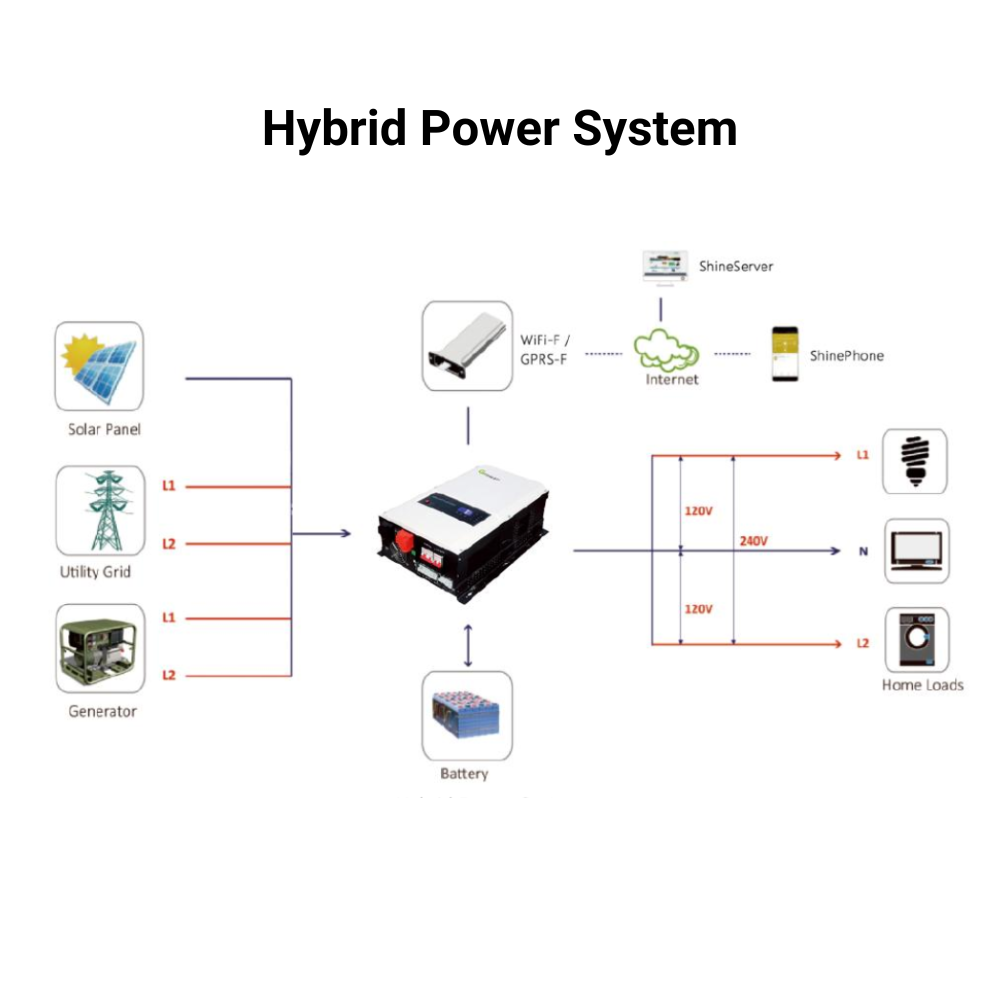

Off-grid and backup power applications
Use the SPE 12000 US as part of a matched solar and battery system for an off-grid home, rural property, cabin or workshop. Its split-phase output supports both 120V and 240V circuits, while generator or utility input can provide an additional power source. Size the connected loads and battery bank to the required continuous power and starting loads.
Installation and system expansion
The IP20 enclosure requires a dry indoor installation protected from rain and moisture. Plan for the -10 to +50 degrees C operating range and maintain the installation clearances specified in the manual.
Parallel operation supports up to nine compatible units and requires connected batteries. The system must use the appropriate parallel configuration, communication connections and electrical protection. A smart-load connection does not add to the inverter's 12kW total output capacity.
Frequently asked questions
Does one SPE 12000 US supply 120/240V power?
Yes. A single unit provides split-phase output with 120V line-to-neutral and 240V line-to-line, within its rated output and load limits.
Can I connect a generator?
Yes. The inverter supports generator input and charging. Confirm generator voltage, frequency, capacity and charging settings for the planned system.
Can it operate without batteries?
The user manual supports operation with or without batteries in supported single-unit configurations. Available power depends on the connected sources. Parallel operation requires batteries, and stored backup energy requires a battery bank.
How much solar can I connect?
The recommended PV capacity is 18,000W total, with up to 9,000W per MPPT. The array must also comply with voltage and current limits, including cold-weather open-circuit voltage. The user manual specifies 27A input and 34A short-circuit current per tracker for the 12kW model.
How does remote monitoring work?
A compatible plug-in WiFi or 4G module connects the inverter to remote monitoring. Confirm the communication accessory supplied with your order.
Need help planning your off-grid system? Contact ROCKSOLAR for battery, generator and parallel-system selection, or compare Growatt solar inverters.
