Growatt 11.4kW Whole Home Backup Power System
Growatt 11.4kW Whole Home Backup Power System
Free
Local Shipping
10-years Hassle Free
Warranty
Lifetime Customer
Support
- Description
- 11.4kW Power System 1
- 11.4kW Power System 2
- Downloads
- Reviews

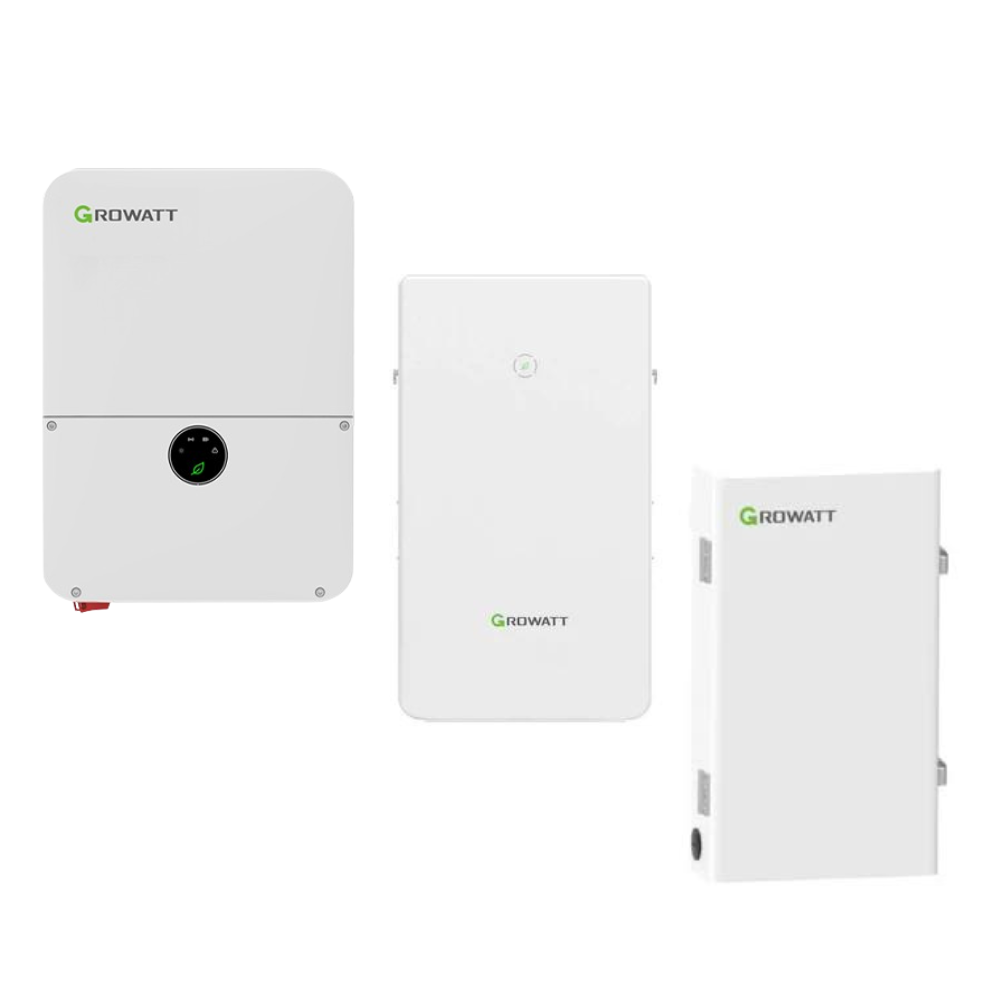

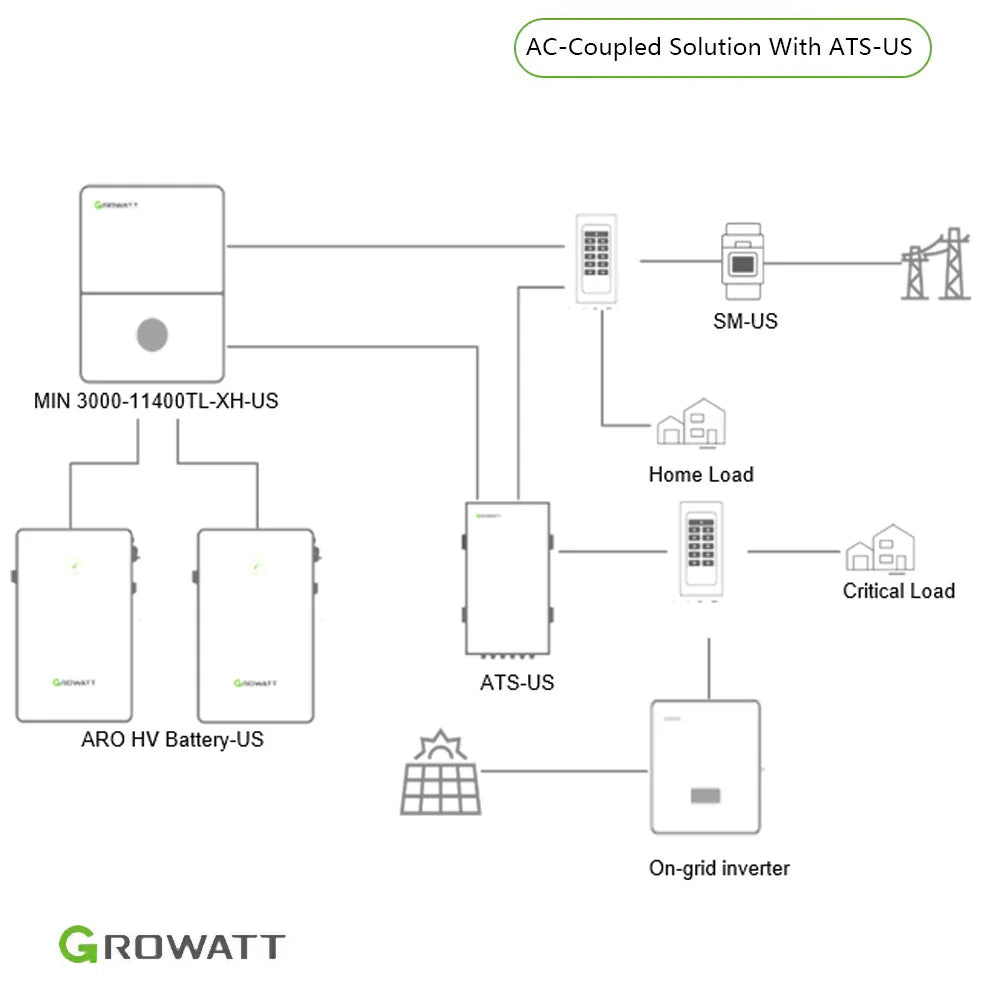

Introducing the Growatt Whole Home Backup Power System, an all-in-one solution for seamless energy storage and management. This system is designed for both off-grid and grid-tie applications, ensuring that your home remains powered and efficient, regardless of grid status. The kit includes the Growatt hybrid inverter, a high-capacity APX Battery, and the SYN200-XH-US 200A Automatic Transfer Switch with Integrated SM‐US for Whole Home Backup
Compatible with V3 Inverter
Ideal for households with daily electricity consumption. This system is particularly beneficial for homes with high-power loads such as electric vehicles and swimming pools. It maximizes self-consumption of solar energy, significantly reduces electricity bills, and ensures energy independence during power outages.
System Key Features:
- Energy Independence: Generate and store your own renewable energy to reduce reliance on the grid.
- Self-Consumption Optimization: Store excess solar energy during the day and use it during peak evening hours to lower electricity bills.
- Off-Grid Capability: Automatically switch to off-grid mode during power outages, ensuring continuous power supply.
- Flexible Energy Management: Supports multiple energy management modes including self-consumption, zero export, TOU, and off-grid.
- High Efficiency: The Growatt inverter boasts up to 98.4% efficiency with 3 MPP trackers.
- Easy Monitoring: Built-in 4G/WiFi communication for real-time monitoring via mobile app or web portal.
Growatt 11.4kW Whole Home Backup Power System 1 Includes:
- 1 x Growatt 11.4kW MIN 11400TL-XH-US Grid-Tie | Battery Storage Solar Inverter
- 2 x Growatt APX 5kWh pre-assembled high voltage battery with BMS
- 1 x Growatt SYN 200‐XH‐US‐11A 200A Automatic Transfer Switch with Integrated SM‐US for Whole Home Backup
- 1 x APX55042-P0-US Power Module

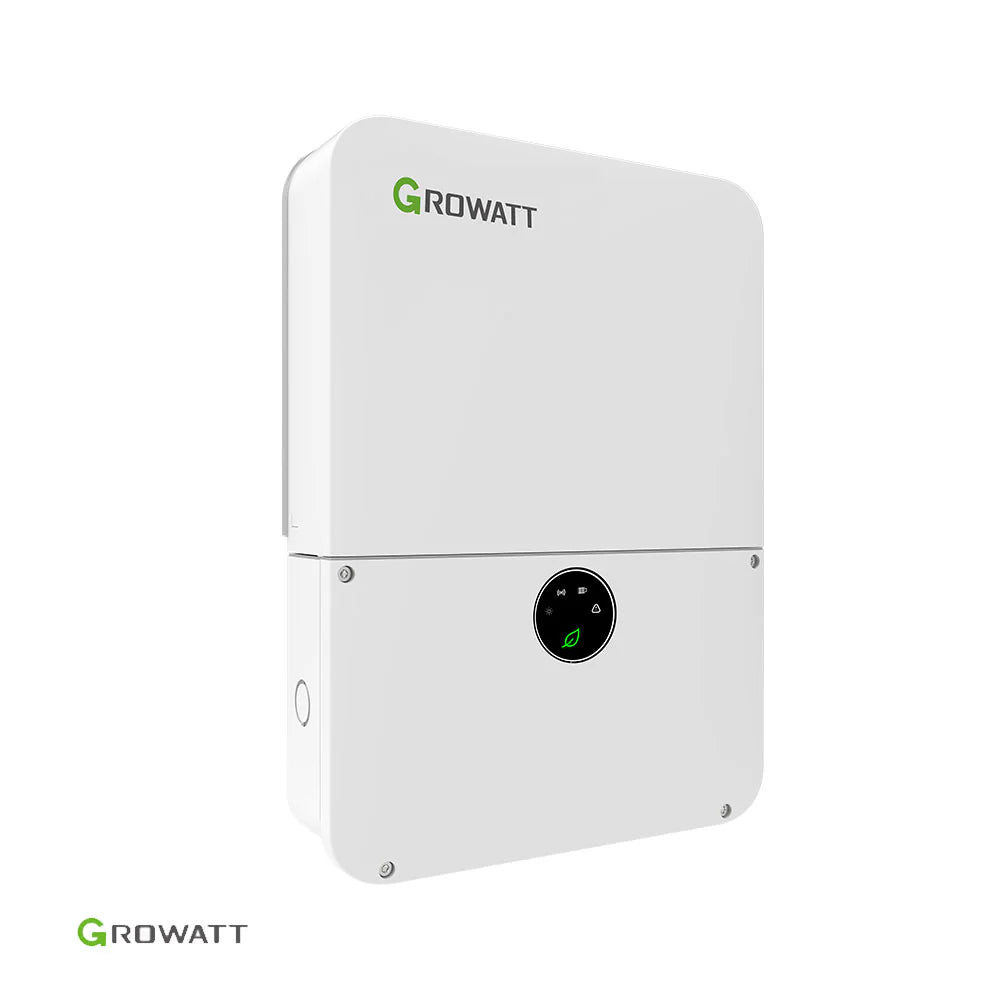

Growatt 11.4kW MIN 11400TL-XH-US Grid-Tie | Battery Storage Solar Inverter
- 98.5% Efficiency: Top-tier conversion efficiency for optimal energy use.
- Grid-Tie and Battery Support: Versatile for both grid-connected and off-grid setups.
- 4 MPPT Trackers: Enhances solar collection from multiple arrays.
- Extensive Battery Compatibility: Supports Growatt and LG high-voltage batteries.
- Remote System Monitoring: WiFi module allows easy access to system data anywhere.
- Advanced Safety Features: Equipped with RSD and AFCI for system protection.
- Regulatory Compliance: Meets UL1741, UL1741SA, and more, ensuring wide acceptance.
-
10-Year Warranty: Demonstrates Growatt's confidence in their product's durability.

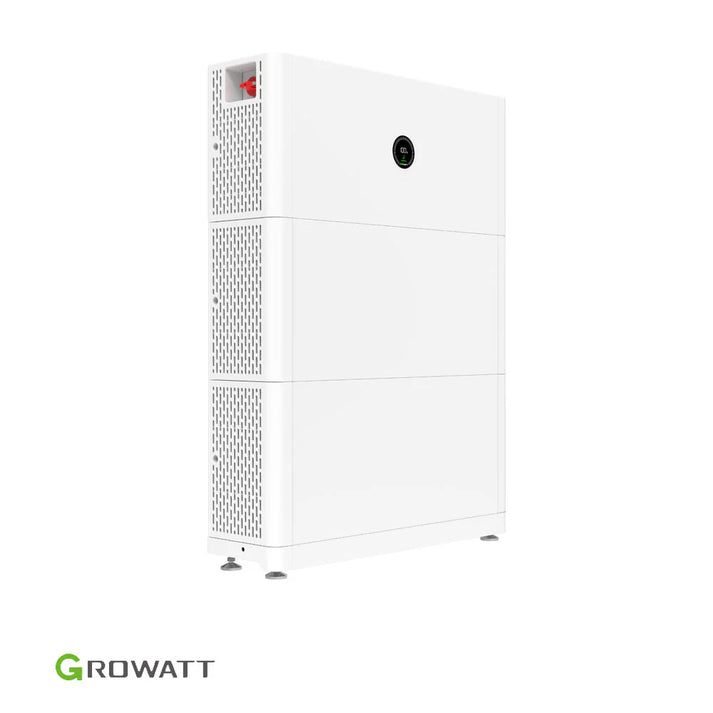

Growatt APX 10kWh High Voltage Battery:
- 10kWh Capacity: Compact, efficient energy storage.
- LFP Safety: Cobalt-free, environmentally friendly.
- Flexible Install: Wall or floor options for any space.
- IP66 Rated: Ready for all weather conditions.
- Smart BMS: Optimal performance, extended life.
- Efficient Cooling: Maintains peak operation.
- High Voltage: Superior power efficiency.
- 10-Year Warranty: Guaranteed support and reliability.C.
- Versatile Integration: Fits on-grid and off-grid setups.

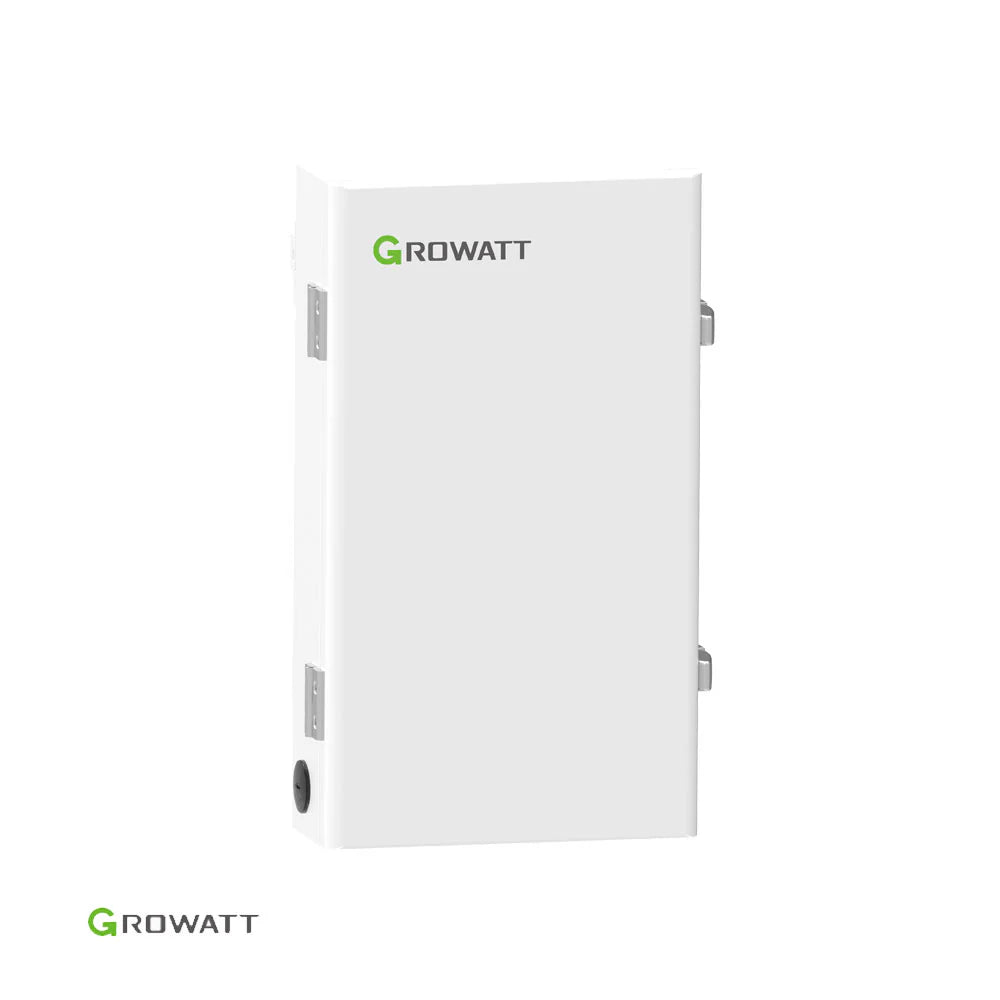

Growatt SYN 200‐XH‐US‐11A:
- 200A Automatic Transfer Switch with Integrated SM‐US for Whole Home Backup
- Compatible with V3 Inverter
With the Growatt Whole Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.
Technical Specifications
Growatt 11.4kW MIN 11400TL-XH-US Grid-Tied | Battery Storage Solar Inverter | Details |
---|---|
Manufacturer | Growatt |
Type | Grid-Tie / Battery Storage |
AC Power | 11.4kW |
Max PV Input Power | 22.8kW |
MPP Trackers | 4 |
MPPT Voltage Range | 235~500V |
Max Efficiency | 98.5% |
Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
Warranty | 10 Years |
Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
PV Input | |
Max PV Input Power | 22.8 kW |
Max Input Voltage | 600V |
Full Load Voltage Range | 235~500V |
Max Input Current per MPTT | 13.5A |
Max Short-circuit Current per MPTT | 16.9A |
MPP Trackers | 4 |
Strings per MPP Tracker | 2 |
Battery Connection | |
Battery Voltage Range | 360~550V |
Rated Battery Voltage | 400V |
I/O DC Current | 34A/34A |
I/O DC Power | 11.7kW |
AC Output (Grid) | |
Nominal Power | 11.4kW |
Max Output Current | 48A |
Nominal AC Voltage | 208/240V |
General Data | |
Dimensions (H*W*D) | 15.8*25.2*7.4 inch (400*638*187mm) |
Weight | 45.2lbs (20.5kg) |
Installation | Indoor, Outdoor, Wall-mounted |
Monitoring Module | WiFi+ LAN, 4G(Optional) |
Growatt APX 5kWh 330V-450V Battery Module (x2) | Details |
---|---|
Module | APX 5.0P-B1 |
Nominal Capacity/Energy | 100Ah/5kWh |
Rated Usable Capacity/Energy | 100Ah/4.5kWh |
Rated Voltage | 385V |
Operating Voltage | 330-450V |
Rated Current (25℃) | 7.6A |
Maximum Current (25℃) | 12.5A |
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
Operating Temperature Range | -10~50℃ |
Storage Conditions | -20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH |
Cooling | Natural cooling |
Dimensions (W/D/H) | 690/185/295mm±2mm |
Weight | 50±1kg |
Model (Power Module) | APX 55027-P0 |
B+/B- Voltage Range | 330V-450V |
BAT+/BAT- Voltage Range | 380-550V |
Temperature Range | -10~50℃ |
IP Rating | IP66 |
Warranty | 10 years |
Communication Method | CAN2.0 |
Certification & Licensing | IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3 |
Environment Requirements | RoHS |

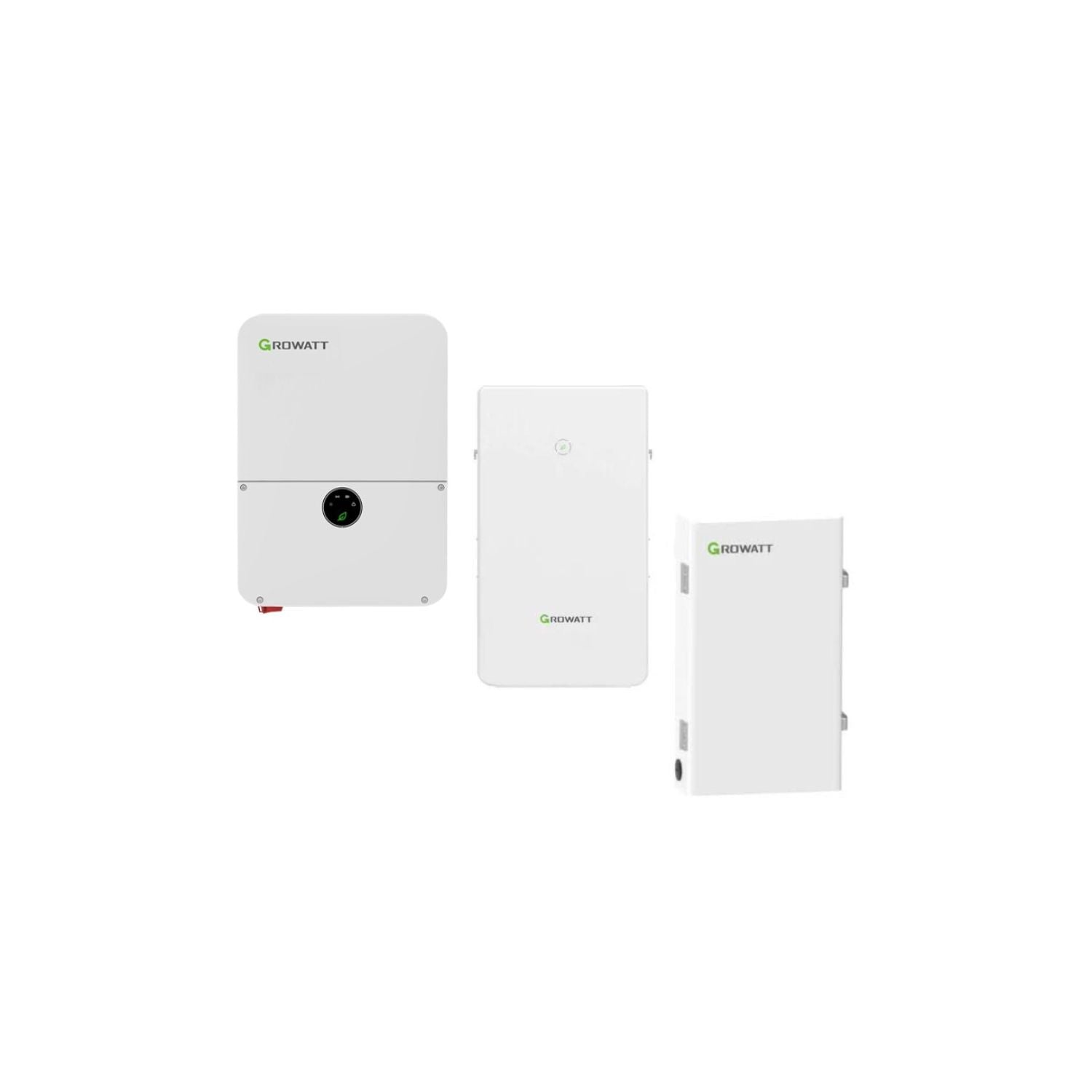

Growatt 11.4kW Whole Home Backup Power System 2 Includes:
- 1 x Growatt 11.4kW MIN 11400TL-XH-US Grid-Tie | Battery Storage Solar Inverter
- 4 x Growatt APX 5kWh pre-assembled high voltage battery with BMS
- 1 x Growatt SYN 200‐XH‐US‐11A 200A Automatic Transfer Switch with Integrated SM‐US for Whole Home Backup
- 1 x APX55042-P0-US Power Module
Growatt 11.4kW MIN 11400TL-XH-US Grid-Tie | Battery Storage Solar Inverter
- 98.5% Efficiency: Top-tier conversion efficiency for optimal energy use.
- Grid-Tie and Battery Support: Versatile for both grid-connected and off-grid setups.
- 4 MPPT Trackers: Enhances solar collection from multiple arrays.
- Extensive Battery Compatibility: Supports Growatt and LG high-voltage batteries.
- Remote System Monitoring: WiFi module allows easy access to system data anywhere.
- Advanced Safety Features: Equipped with RSD and AFCI for system protection.
- Regulatory Compliance: Meets UL1741, UL1741SA, and more, ensuring wide acceptance.
- 10-Year Warranty: Demonstrates Growatt's confidence in their product's durability
Growatt APX 20kWh High Voltage Battery:
- 20kWh Capacity: Ample storage for diverse energy demands.
- Safe & Stable: Cobalt-free LiFePO4 technology.
- Expandable: Easy scalability for growing needs.
- Weatherproof: IP66 rated protection.
- Intelligent BMS: Enhances battery efficiency and life.
- Wide Temp Range: Functional from -10°C to 50°C.
- 10-Year Warranty: Assured quality and support.
- Versatile Integration: Fits on-grid and off-grid setups.
Growatt SYN 200‐XH‐US‐11A:
- 200A Automatic Transfer Switch with Integrated SM‐US for Whole Home Backup
- Compatible with V3 Inverter
With the Growatt Whole Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.
Technical Specifications
Growatt 11.4kW MIN 11400TL-XH-US Grid-Tied | Battery Storage Solar Inverter | Details |
---|---|
Manufacturer | Growatt |
Type | Grid-Tie / Battery Storage |
AC Power | 11.4kW |
Max PV Input Power | 22.8kW |
MPP Trackers | 4 |
MPPT Voltage Range | 235~500V |
Max Efficiency | 98.5% |
Compatible Battery | Growatt ARO HV Battery / LG Prime(Gen3) Battery |
Warranty | 10 Years |
Communications | CAN2.0, RS485, SUNSPEC / APP, Website |
Certificate | UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540 |
PV Input | |
Max PV Input Power | 22.8 kW |
Max Input Voltage | 600V |
Full Load Voltage Range | 235~500V |
Max Input Current per MPTT | 13.5A |
Max Short-circuit Current per MPTT | 16.9A |
MPP Trackers | 4 |
Strings per MPP Tracker | 2 |
Battery Connection | |
Battery Voltage Range | 360~550V |
Rated Battery Voltage | 400V |
I/O DC Current | 34A/34A |
I/O DC Power | 11.7kW |
AC Output (Grid) | |
Nominal Power | 11.4kW |
Max Output Current | 48A |
Nominal AC Voltage | 208/240V |
General Data | |
Dimensions (H*W*D) | 15.8*25.2*7.4 inch (400*638*187mm) |
Weight | 45.2lbs (20.5kg) |
Installation | Indoor, Outdoor, Wall-mounted |
Monitoring Module | WiFi+ LAN, 4G(Optional) |
Growatt APX 5kWh 330V-450V Battery Module (x4) | Details |
---|---|
Module | APX 5.0P-B1 |
Nominal Capacity/Energy | 100Ah/5kWh |
Rated Usable Capacity/Energy | 100Ah/4.5kWh |
Rated Voltage | 385V |
Operating Voltage | 330-450V |
Rated Current (25℃) | 7.6A |
Maximum Current (25℃) | 12.5A |
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
Operating Temperature Range | -10~50℃ |
Storage Conditions | -20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH |
Cooling | Natural cooling |
Dimensions (W/D/H) | 690/185/295mm±2mm |
Weight | 50±1kg |
Model (Power Module) | APX 55027-P0 |
B+/B- Voltage Range | 330V-450V |
BAT+/BAT- Voltage Range | 380-550V |
Temperature Range | -10~50℃ |
IP Rating | IP66 |
Warranty | 10 years |
Communication Method | CAN2.0 |
Certification & Licensing | IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3 |
Environment Requirements | RoHS |
