Growatt 6 kW Off-Grid Solar Kit – 4500W Panels + Battery

Off-Grid Solar Power for Canadian Cabins, Cottages & Homes

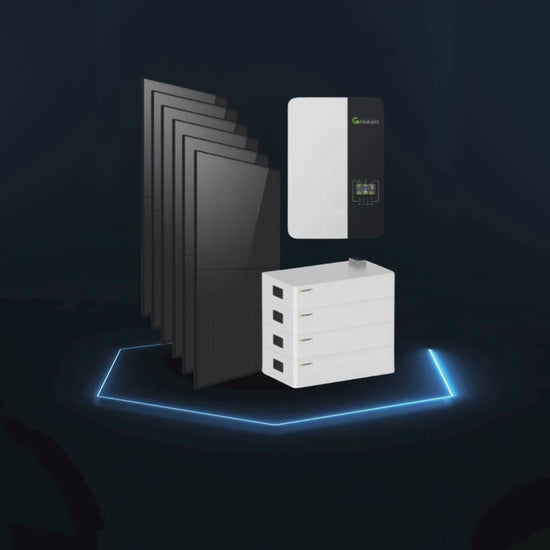

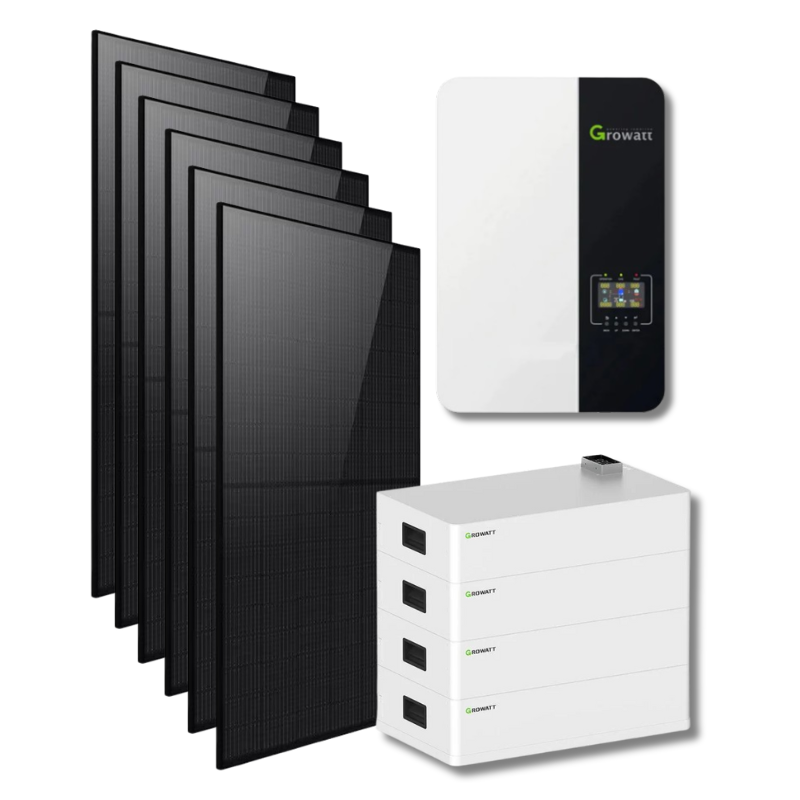

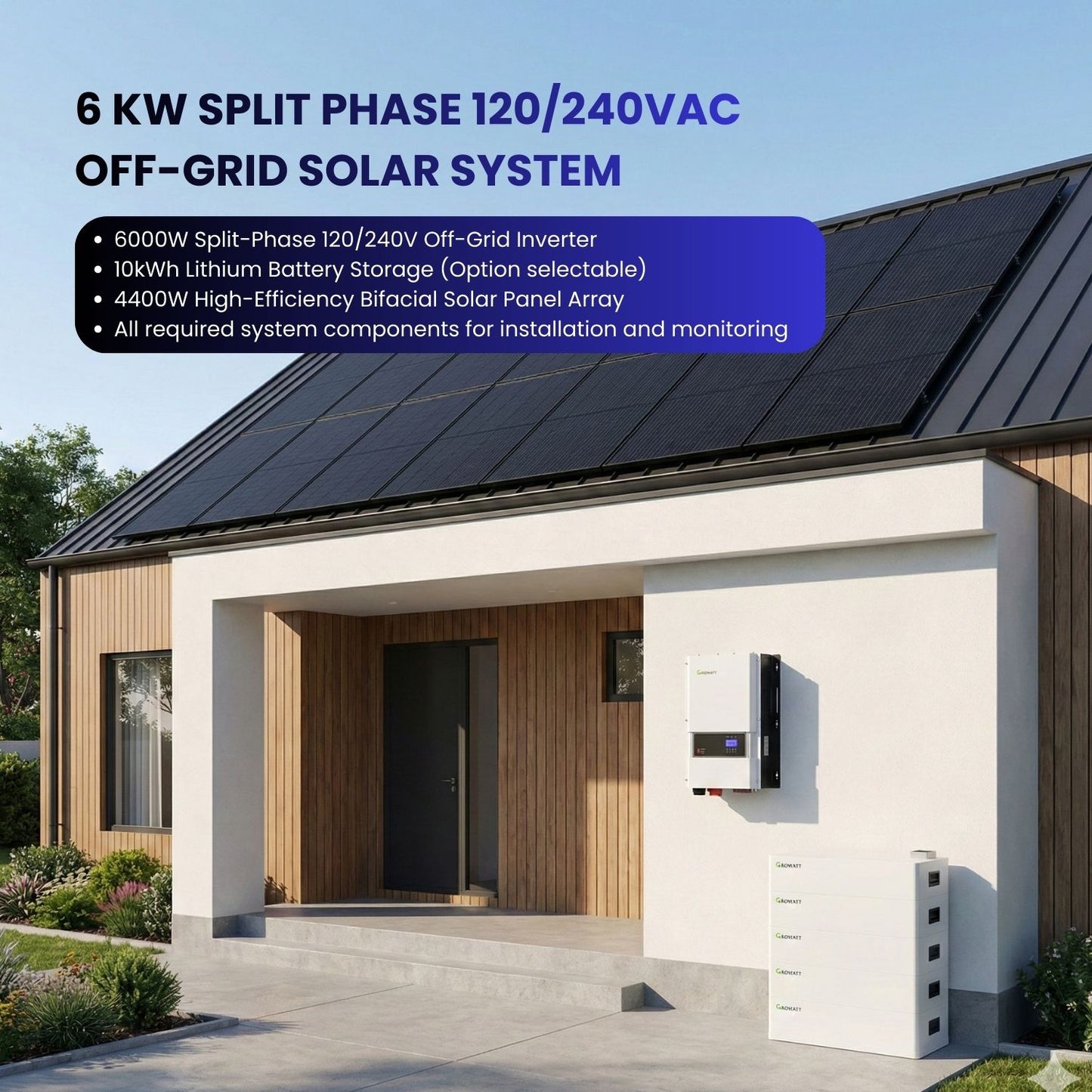

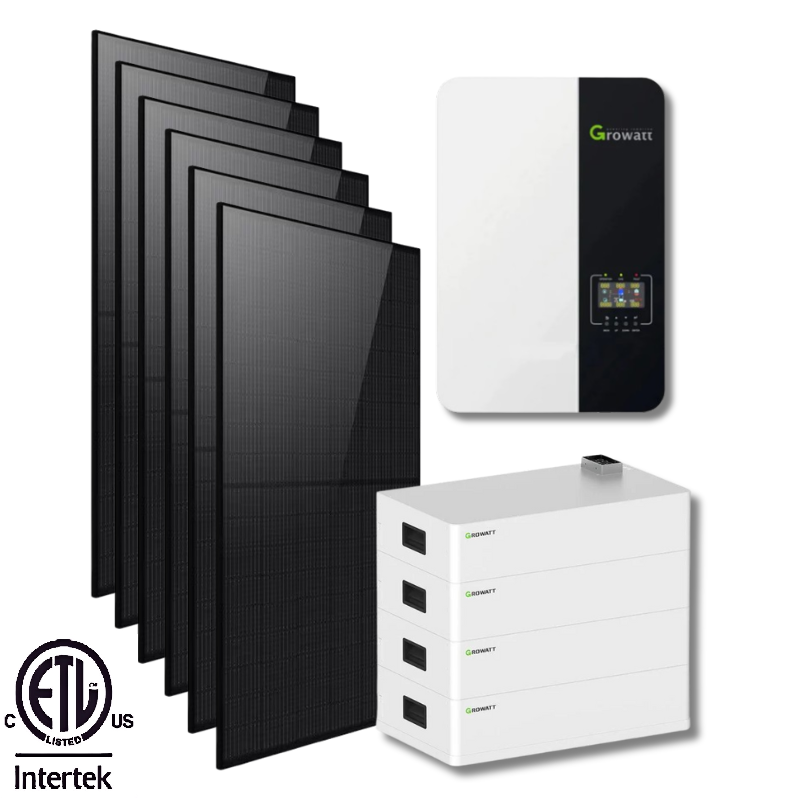

Bring solar generation and battery storage to your property with the Growatt 6 kW Off-Grid Solar Kit. This ROCKSOLAR package combines a Growatt SPE 6000US inverter, ten Canadian Solar 450 W all-black monofacial panels and your choice of Growatt ALP or GSL Energy LiFePO4 storage. Its 120/240 V split-phase output gives you flexibility to plan a system around everyday appliances and compatible 240 V equipment.

The 4,500 W array generates electricity during daylight, while the battery stores energy for evening use and periods of limited sunlight. Start with your appliance list, daily energy needs and mounting plan to choose the right configuration for your cabin, cottage or home essential-load system.

Why Choose This Growatt Solar Kit?

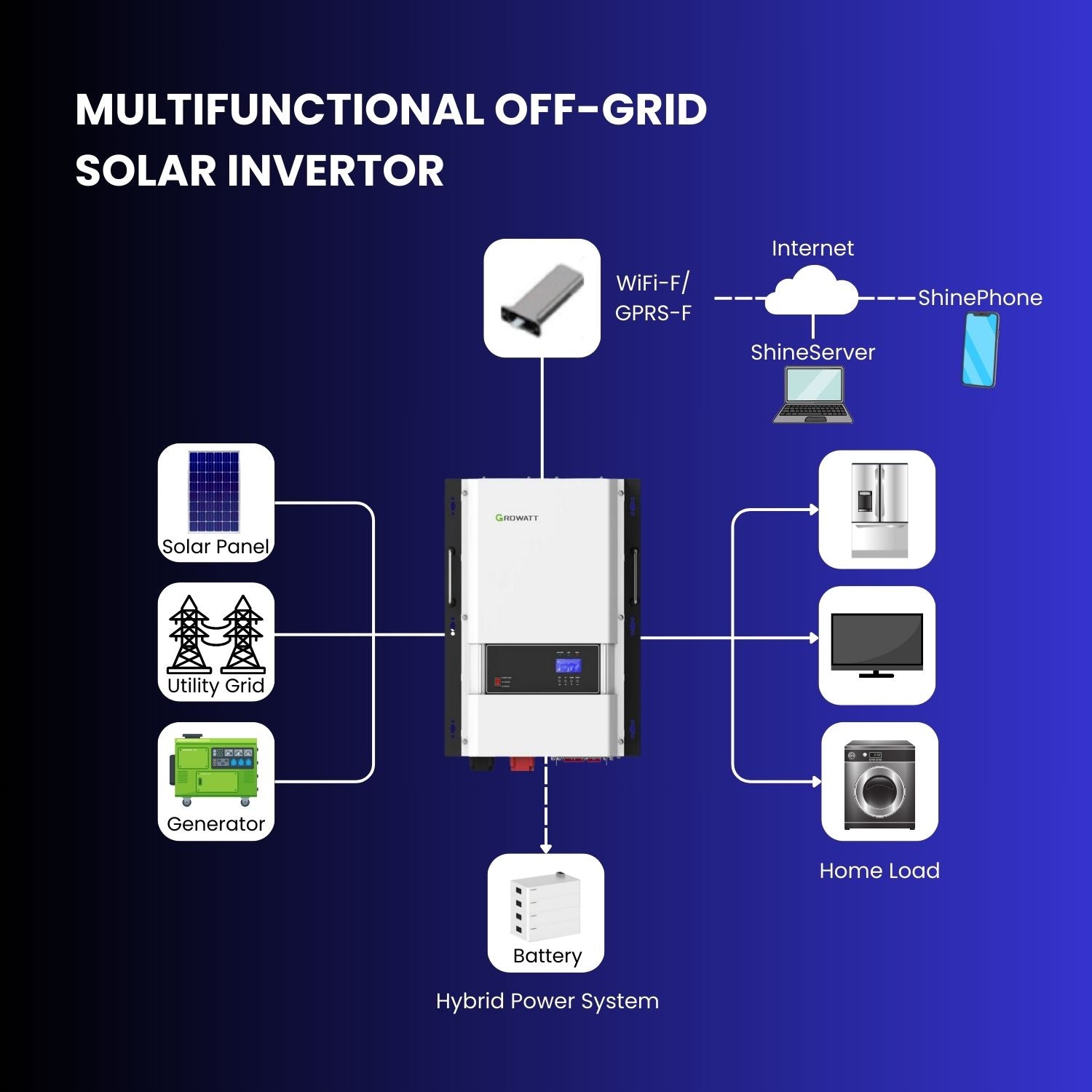

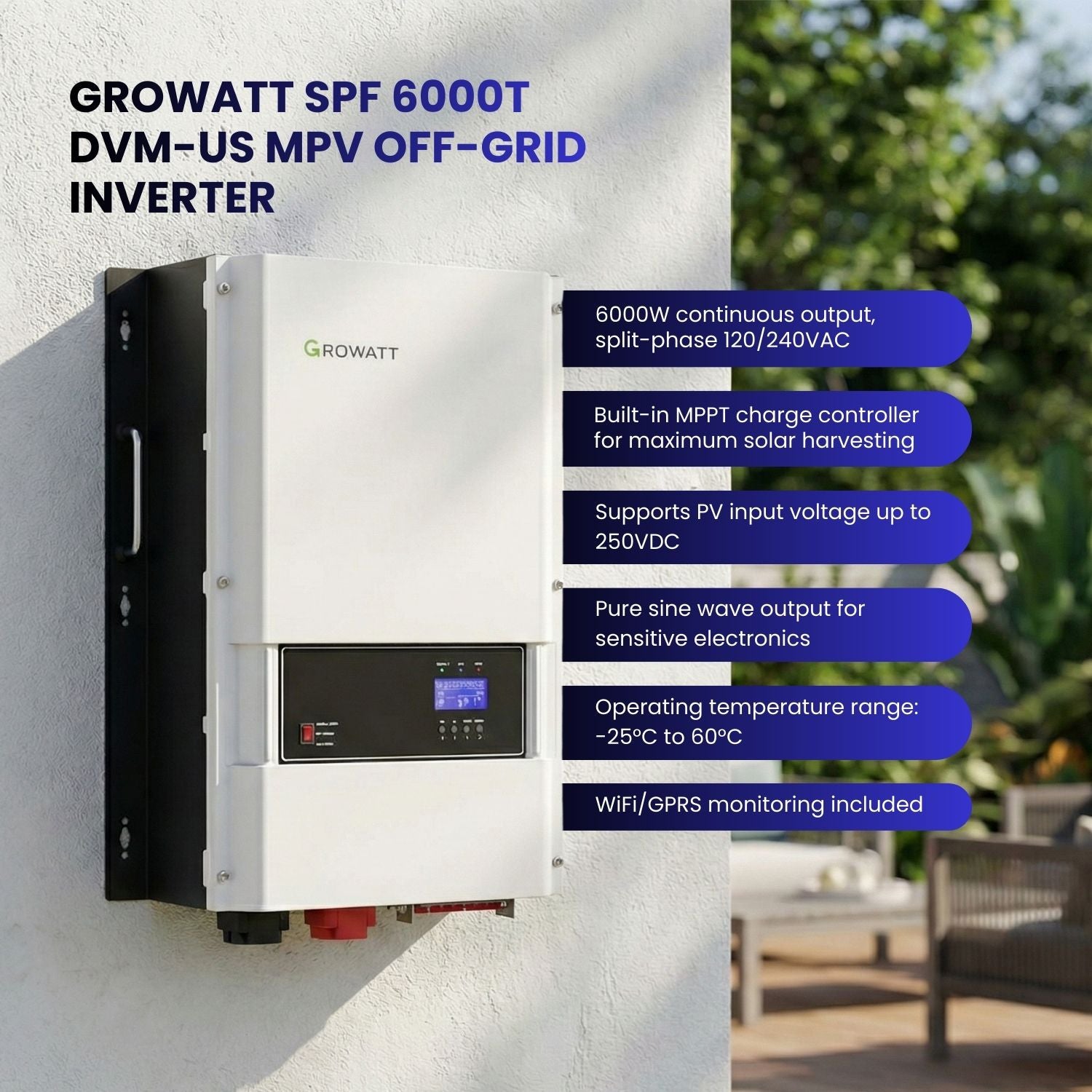

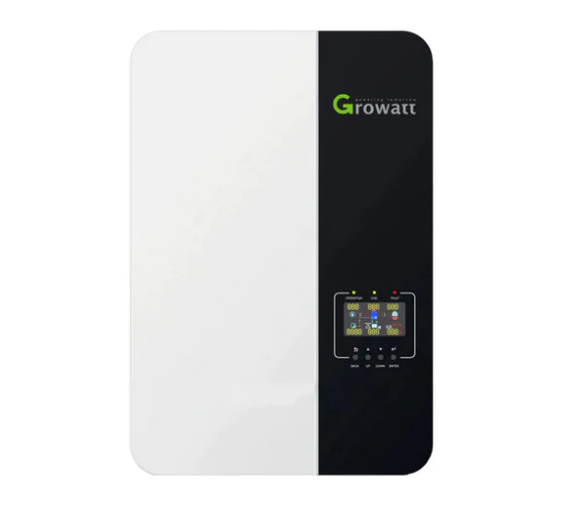

• 6 kW inverter output: Growatt SPE 6000US with 120/240 VAC split-phase output and integrated MPPT solar charging.
• 4.5 kW Canadian Solar array: Ten CS6.1-54TM-450H TOPHiKu6 modules with all-black styling and N-type TOPCon cells.
• Two battery options: Select two Growatt ALP modules with 10.24 kWh nominal storage or one GSL Energy 14.34 kWh battery.
• Wi-Fi monitoring: An included module helps you keep track of system operation.
• Alternate AC input: Utility or a compatible generator can supplement solar, subject to the inverter requirements and installation design.

Canadian Solar 450 W All-Black Panels

The ten Canadian Solar TOPHiKu6 modules provide 4,500 W of combined rated solar capacity. These are monofacial panels that generate power from the front surface. Each 450 W module has a published efficiency of 22.0%, measures 1,800 × 1,134 × 35 mm and weighs 23 kg.

The all-black front and black frame give the array a consistent appearance. Actual energy production varies with location, season, shade, panel orientation and weather. Rated array capacity does not represent continuous production or a guaranteed daily energy yield.

50 mm Hail Stress Testing

Kiwa PVEL report R9661E-2 (17 June 2024) documents 50 mm hail stress testing of two Canadian Solar CS6.1-54TM-450H BOM 1 samples. The retest used ice balls at a nominal 32.4 m/s, delivering 31.5 J at 11 impact locations per module. The samples showed an average 0.50% reduction in maximum power, no reported visual defects, passing electrical circuitry and wet-leakage insulation results meeting the referenced IEC requirements. Results apply to the tested samples and configuration; they do not guarantee protection from every hail event. See the full report in Downloads.

Choose Your Solar Battery

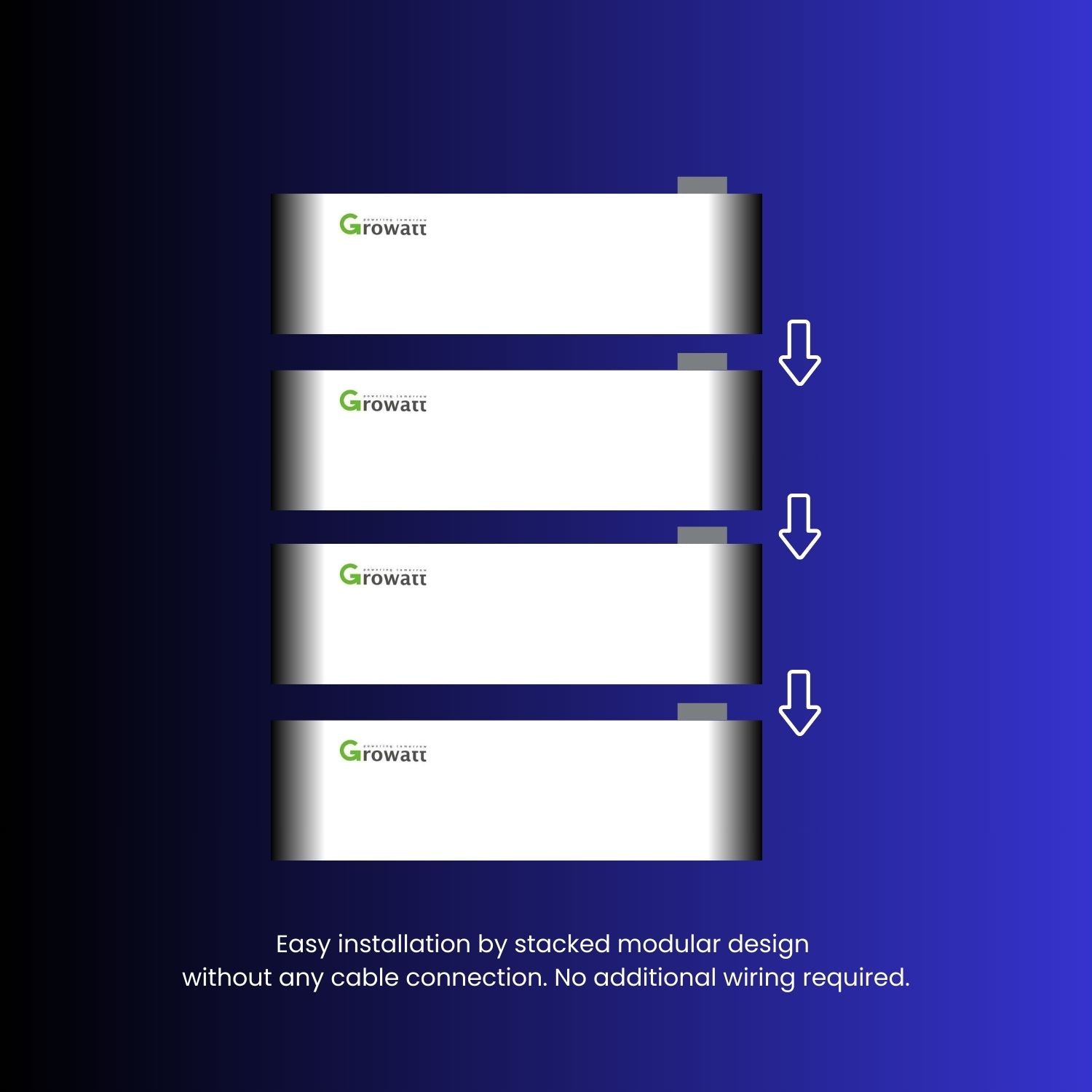

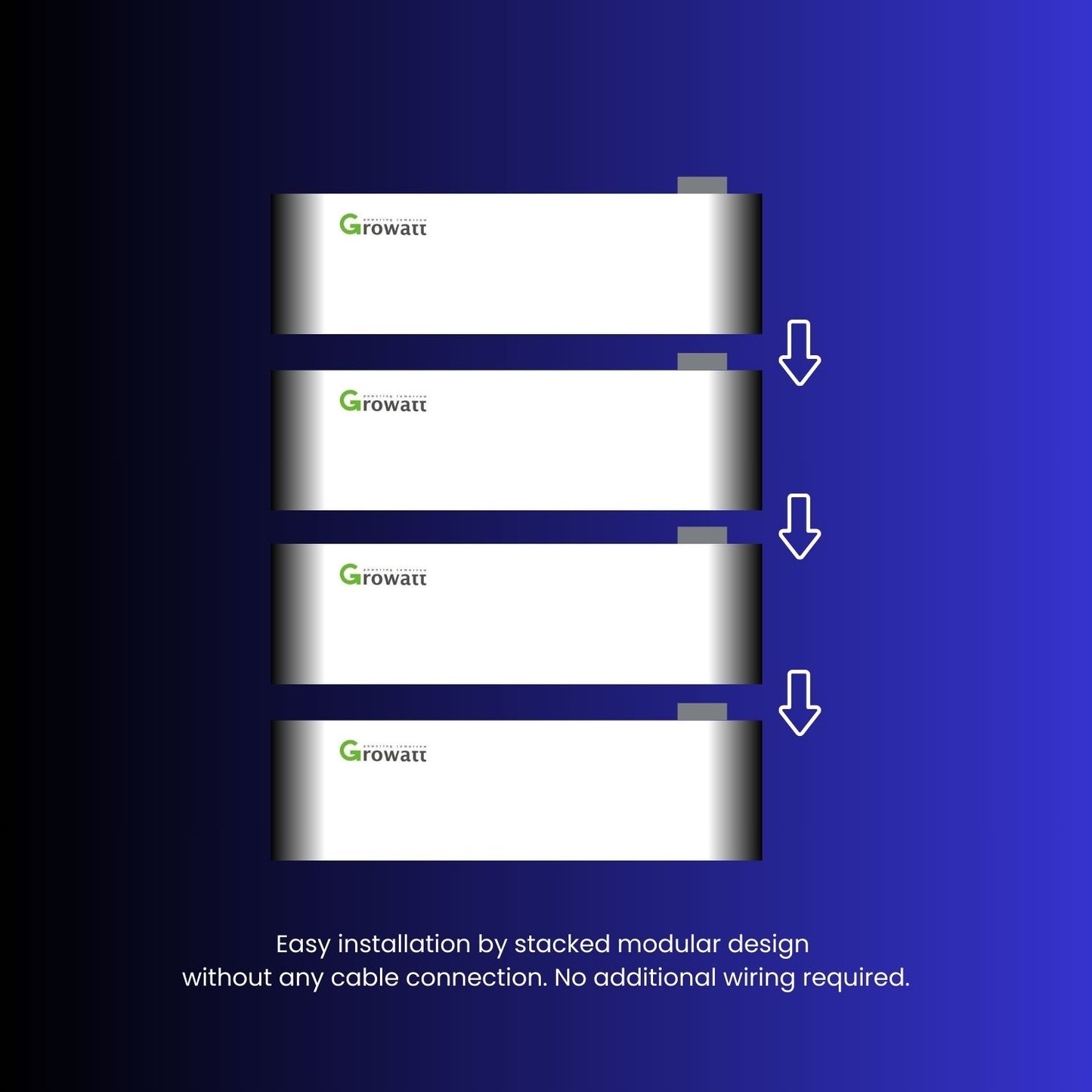

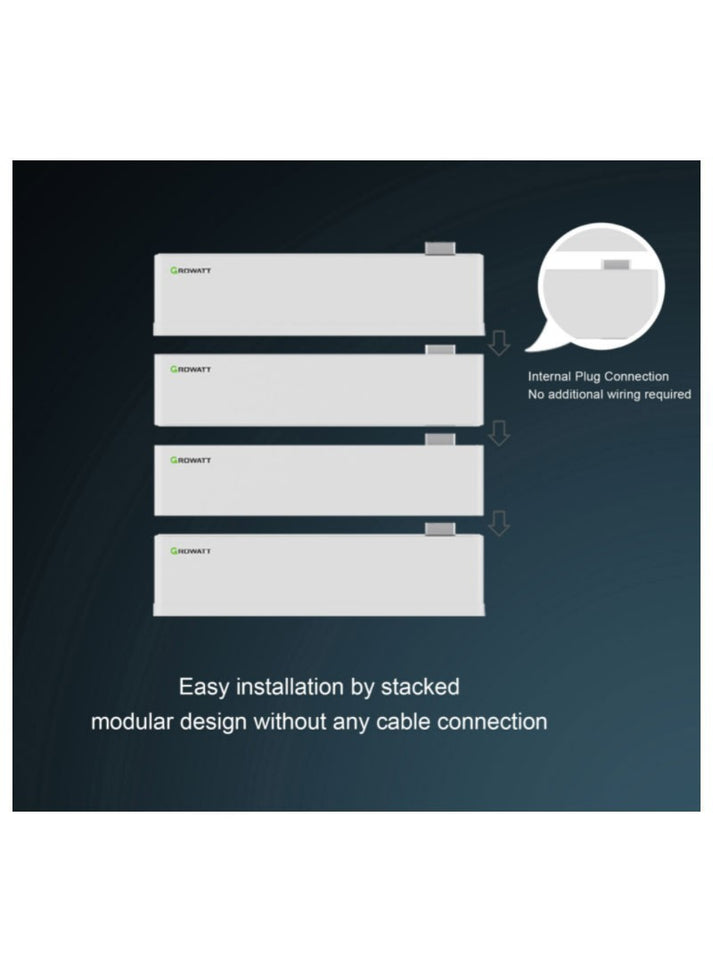

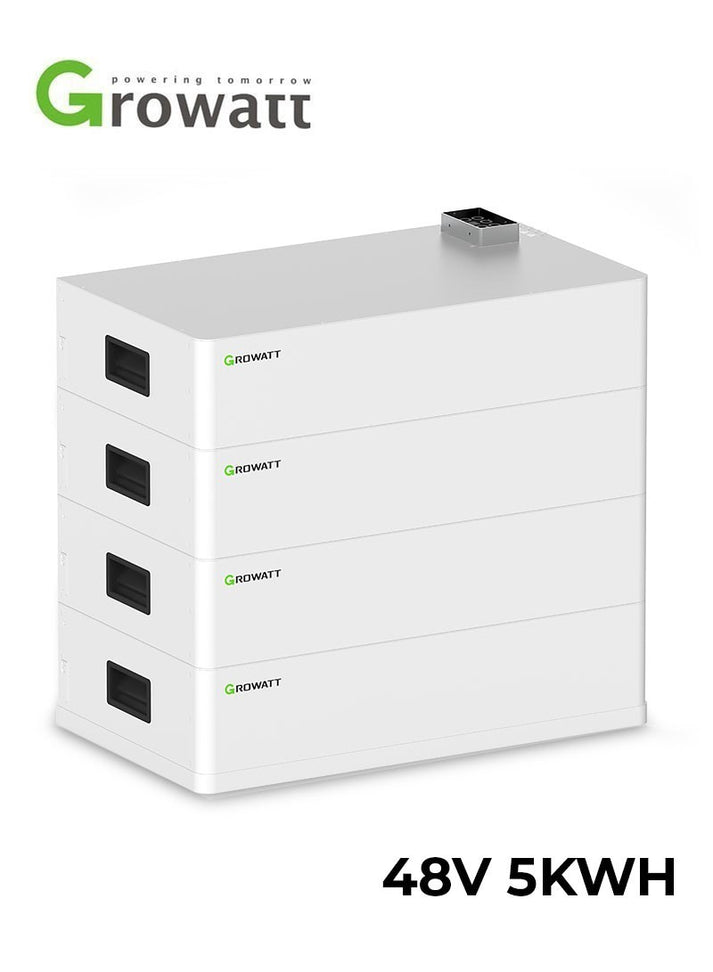

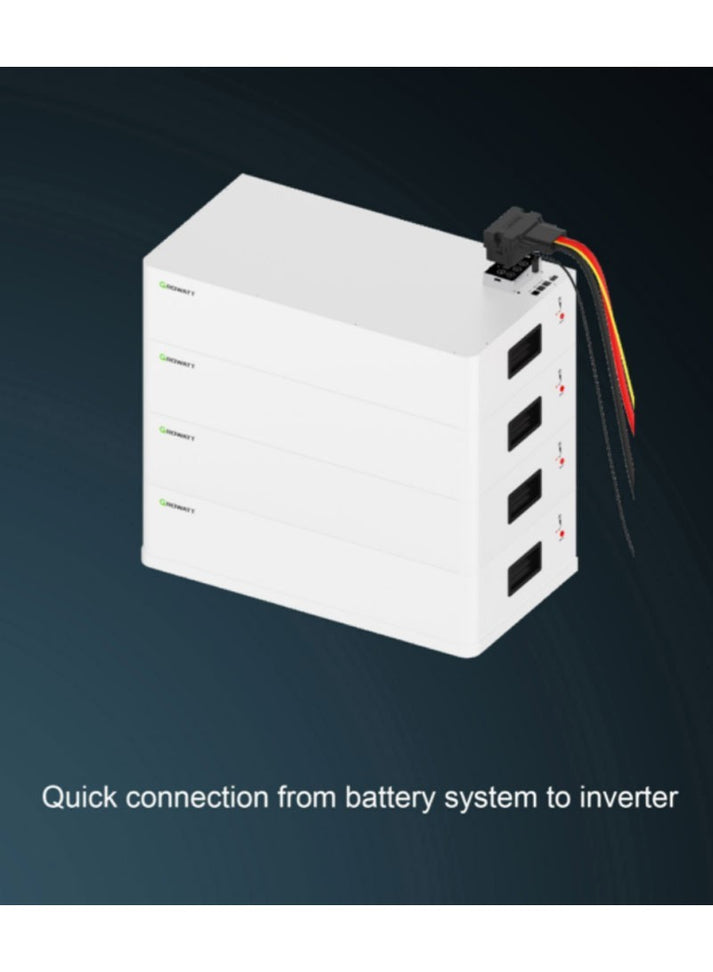

Option 1 — Growatt ALP: Two ALP 5.0L-E2 US modules provide 10.24 kWh nominal capacity and 9.2 kWh usable energy. This two-module configuration has a published maximum continuous DC discharge power of 6 kW and nominal voltage of 51.2 V. The modular design supports wall-mounted or floor installation with the appropriate mounting accessories.

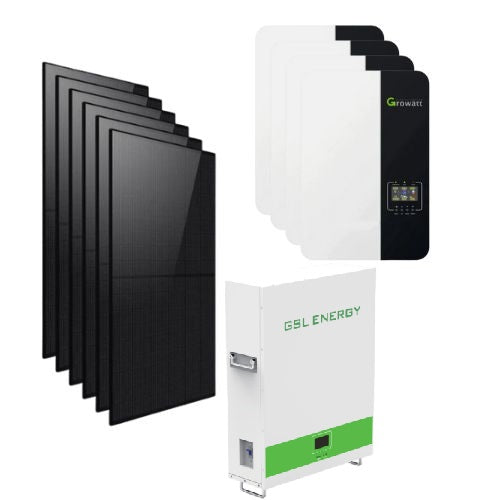

Option 2 — GSL Energy: One GSL051280A-B-GBP2 wall-mounted battery provides 14.34 kWh nominal capacity, with 13.623 kWh recommended discharge energy at 95% depth of discharge. It is rated at 51.2 V / 280 Ah, with 100 A recommended and 150 A maximum charge/discharge current. Its IP20 enclosure is intended for a suitable protected indoor location. The datasheet specifies charging from 0°C to 55°C.

Plan storage and output together: The inverter's 6 kW rating does not guarantee 6 kW of continuous battery-only AC output in every configuration. Battery limits, temperature, state of charge and conversion losses affect the power available to your loads. Both battery datasheets list a 10-year warranty, subject to the applicable manufacturer terms.

A Practical Starting Point for DIY Solar Projects

Take an active role in your installation by completing suitable preparation and mechanical work where local requirements permit and within your experience. The main components and supplied cable sets help organize the project, while the mounting solution can be selected for your property.

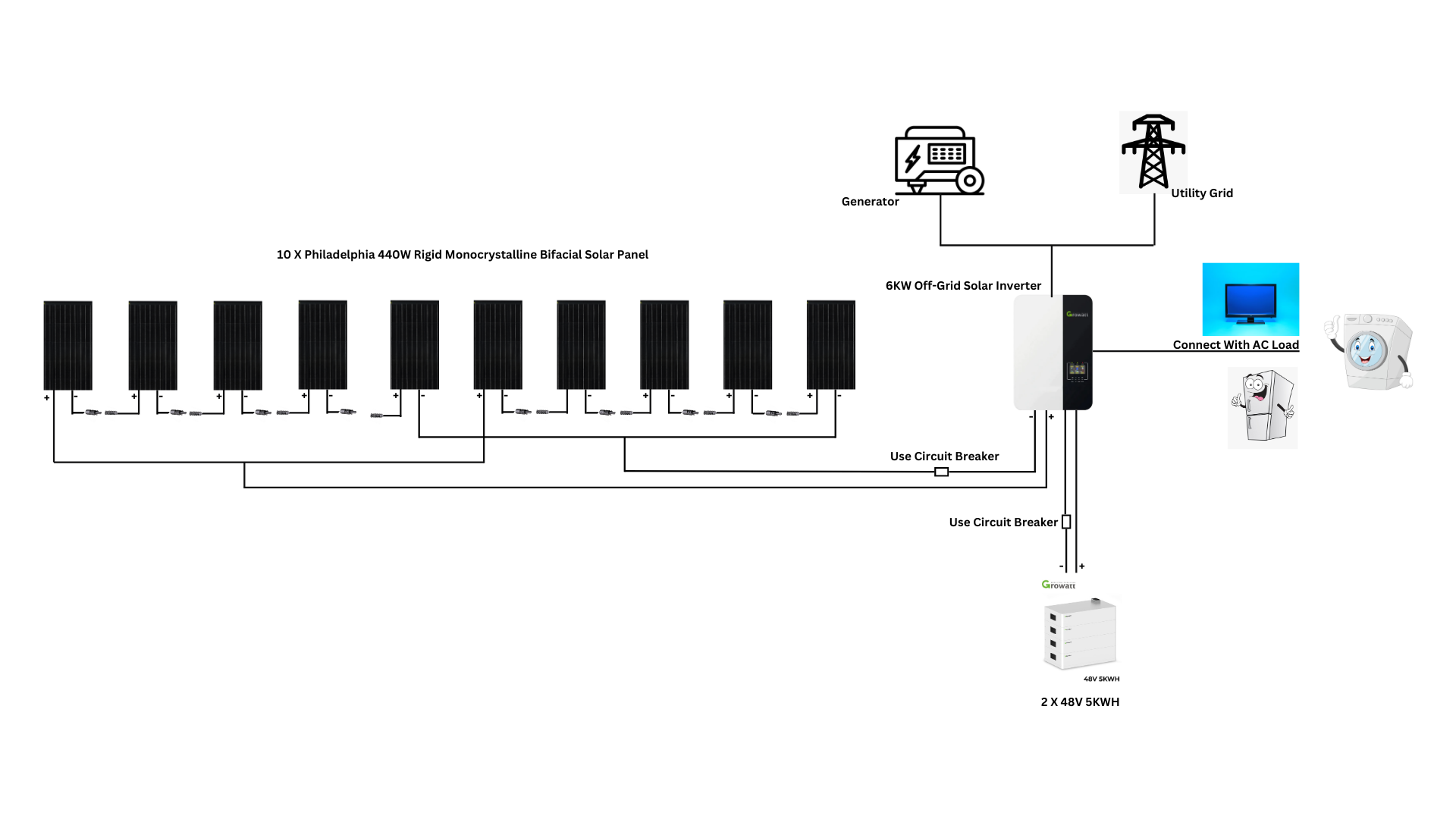

Arrange professional design review and any electrical work, permits or inspections required for your location. The final design must confirm equipment compatibility, PV string layout, cold-weather voltage, conductor sizing, protection, grounding and any required rapid shutdown. Install the inverter in a dry, well-ventilated, protected location on a suitable non-combustible mounting surface. The gallery connection graphic is conceptual and is not a construction wiring plan.

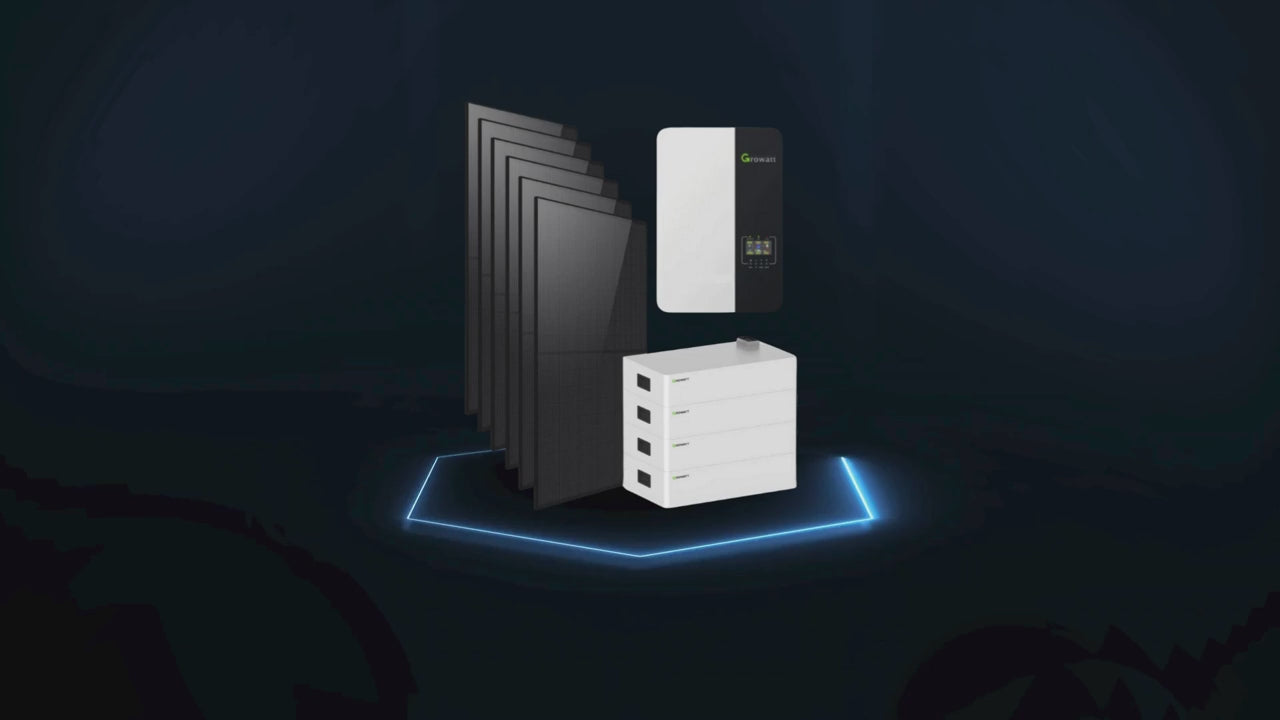

What's Included in the Package?

• 1 × Growatt SPE 6000US 6 kW off-grid storage inverter
• 10 × Canadian Solar CS6.1-54TM-450H 450 W all-black monofacial panels
• 2 × Growatt ALP 5.12 kWh battery modules or 1 × GSL Energy 14.34 kWh battery, according to your selection
• 2 × sets of 20 ft 10 AWG panel-to-inverter cables
• 1 × set of 10 ft 2 AWG battery-to-inverter cables
• 2 × 300 V / 20 A DC circuit breakers
• 1 × circuit-breaker box
• 1 × Wi-Fi monitoring module
• Inverter, battery and solar-panel documentation

Solar-panel racking is optional unless added to your order. Confirm battery mounting accessories and the final electrical accessory schedule with ROCKSOLAR. Additional site-specific disconnects, protection, rapid-shutdown equipment or installation materials may be required.
