ROCKSOLAR 500W 12V Off-Grid Solar System

ROCKSOLAR 500W 12V Off-Grid Solar System

Get extra 10% discount. Use code OFFGRID10 at checkout.
$799.99 CAD
$1,299.99 CAD $799.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • Complete Kit: Battery, panel, inverter, controller included.
  • Powerful Battery: 12V 50Ah LiFePO4 with BMS.
  • Efficient Panel: Two 50W Monocrystalline Panels, 22% efficiency.
  • Pure Sine Inverter: 500W, steady power output.
  • MPPT Controller: 20A, maximizes battery life.
  • Rugged Design: Waterproof, corrosion-resistant panel.
  • Safe Operations: Full protection with BMS.
  • Versatile: Powers various devices; ideal for off-grid.
  • Long Warranty: 10 years on battery and panel.
  • Easy Install: Z-Bracket, MC4 connectors.
  • Expandable: Designed for future upgrades.
  • Temperature Tolerant: Battery -20°C to 60°C, Controller -20°C to 55°C.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support
View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

The ROCKSOLAR 500W 12V Off-Grid Solar System is a superior off-grid power solution perfect for cottage owners in Canada. Equipped with four key components - a 12V 50Ah Deep Cycle LiFePO4 Battery with BMS System, 2X50W Rigid Solar Panel, a 20A MPPT Solar Charge Controller, and a 500W Pure Sine Wave Inverter, it is designed to provide round-the-clock power for essential devices. This system is suitable for powering a mini fridge, LCD TV, DC brushless water pump, lighting, stereo, laptop, and phone chargers. Ideal for summer usage, it offers a dependable power source. The 12V 50Ah Deep Cycle LiFePO4 Battery and the 50W Rigid Solar Panel come with a 10-year warranty, while the other components have a 1-year warranty. The system is designed for easy upgrades, with free upgrade services and exchangeable key components to expand your energy independence confidently. Invest in the ROCKSOLAR 500W 12V Off-Grid Solar System and experience 24/7 power without interruptions, all backed by a reliable long-term warranty.

Product Features

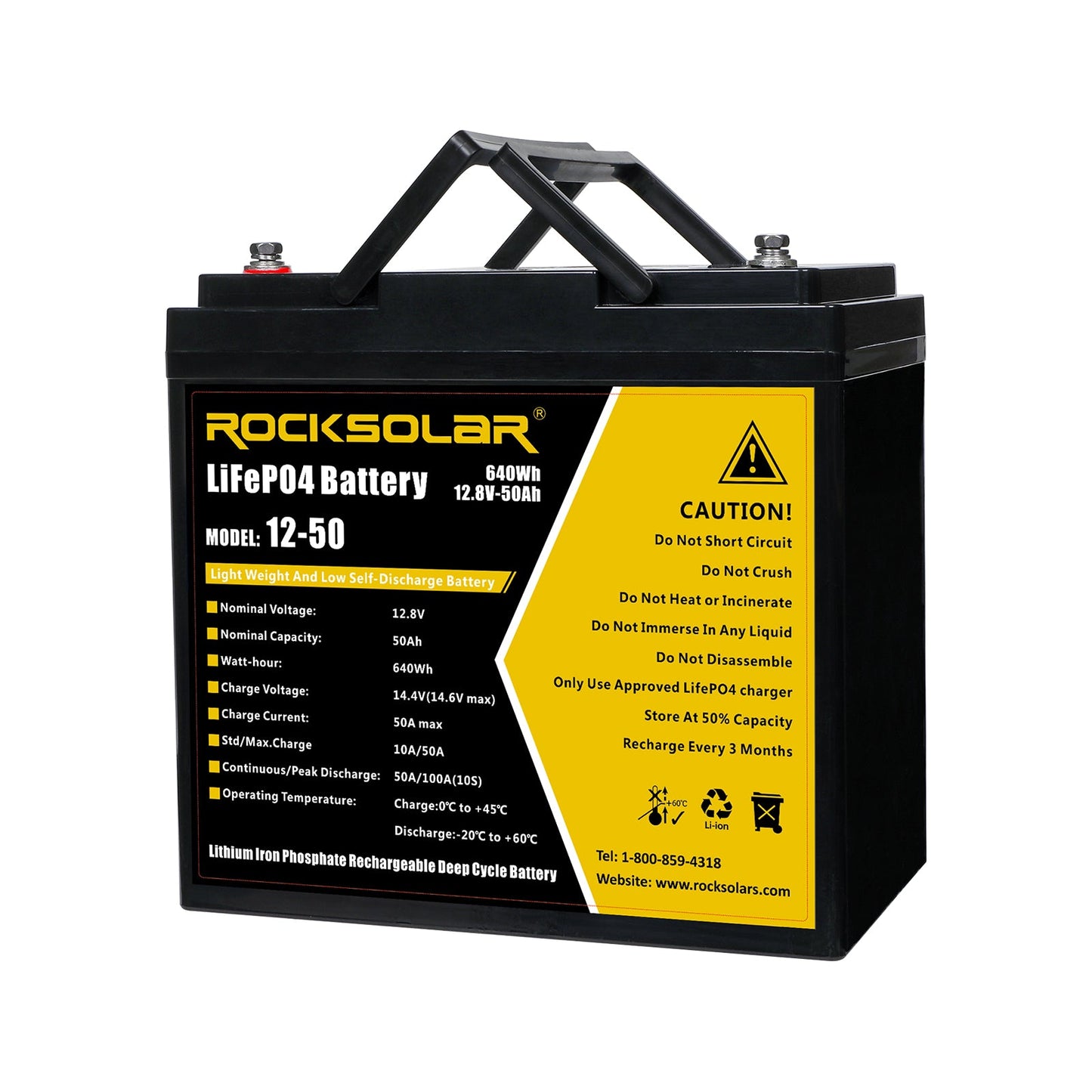

ROCKSOLAR 12V 50Ah Deep Cycle LiFePO4 Battery with BMS System:

  • 12V 50Ah capacity.
  • 3500+ cycle life and 100% discharge rate for ultra-long service life.
  • Flat voltage curve for steady power output.
  • Deep Cycle LiFePO4 Battery Technology.
  • Patented Smart Battery Management System.
  • Lightweight at only 13 pounds for easy portability and installation.
  • BMS offers protection from temperature, short circuits, over-discharge, over current, and overcharge.
  • Operating temperature range of charging: 0C∽45C, discharging: -20~-60C.
  • 11-year warranty and 10+ year service life.

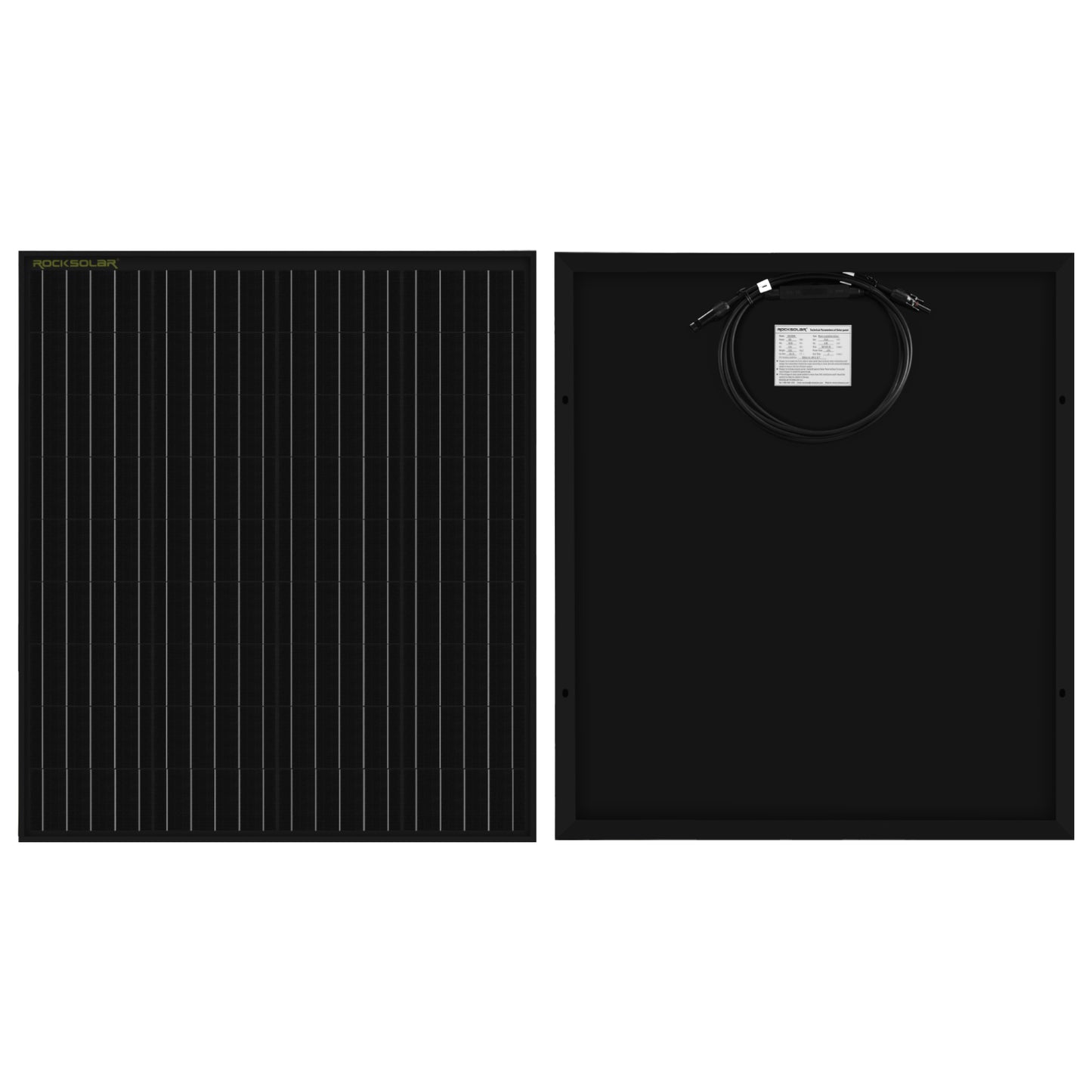

ROCKSOLAR 50W 12V Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:

  • 50W 12V output (each panel).
  • Rigid Monocrystalline Solar Panel.
  • Waterproof and Corrosion-Resistant Aluminum Alloy Frame.

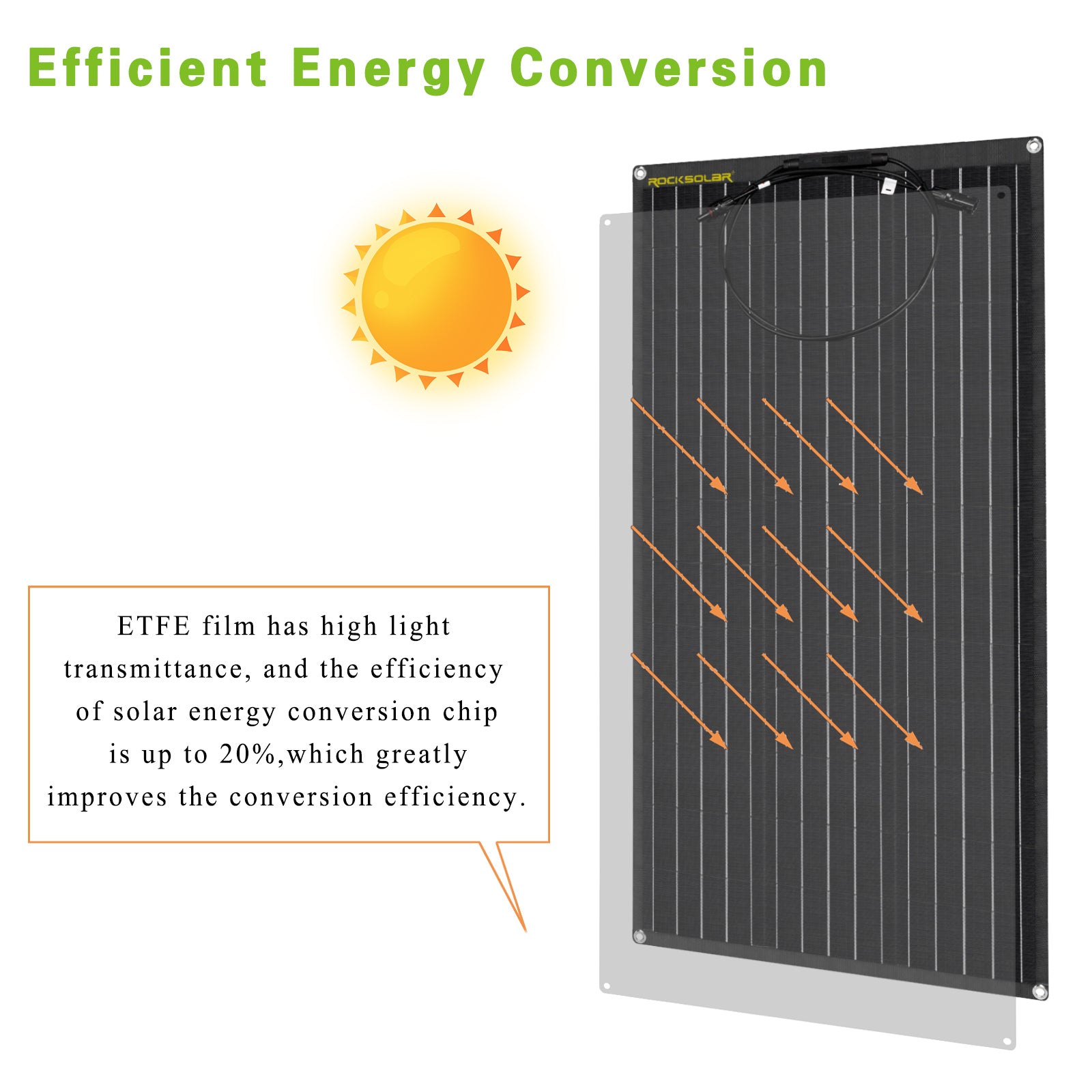

  • High-Efficiency Solar Cell with 22% Conversion Efficiency.

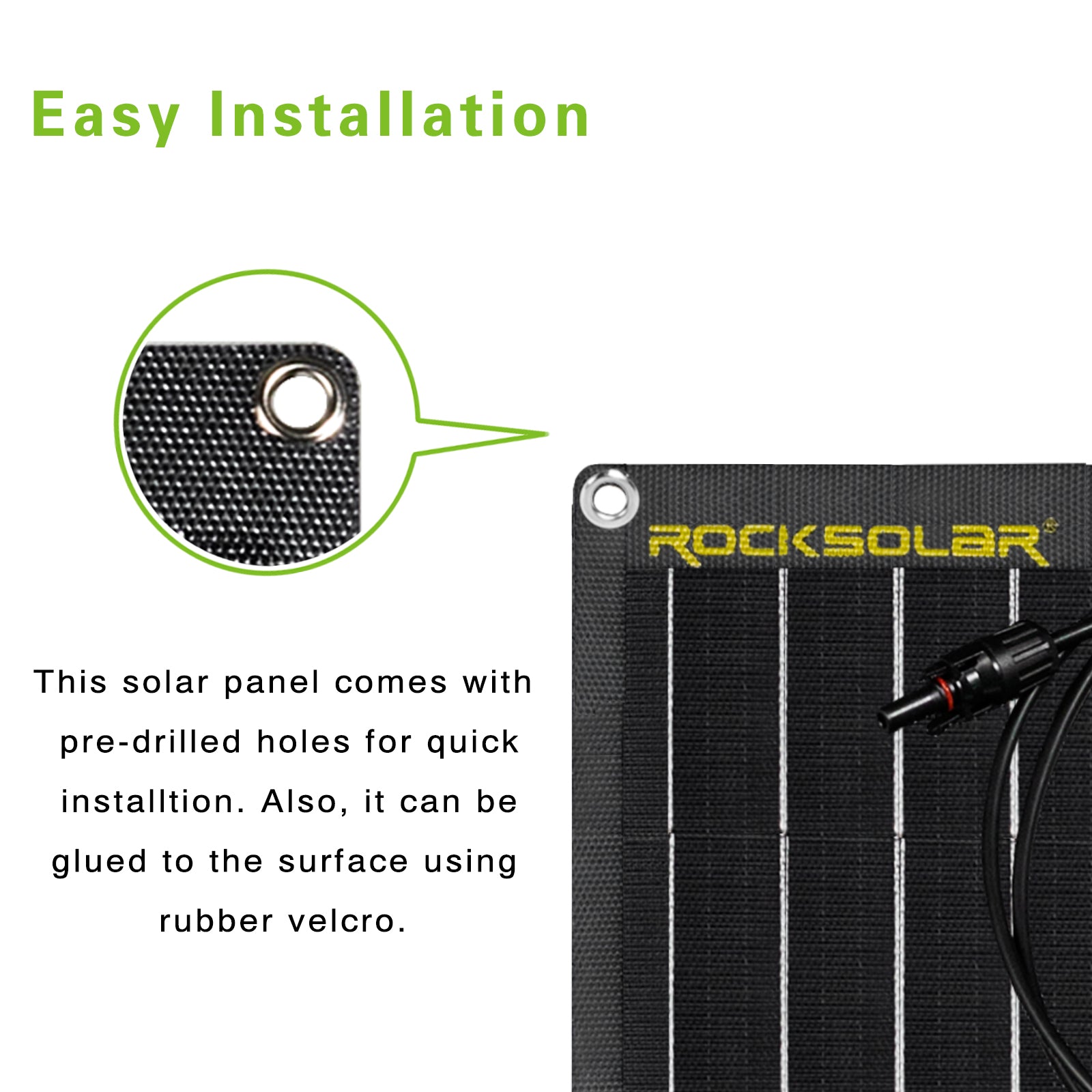

  • Pre-drilled holes for easy mounting and securing to any surface.

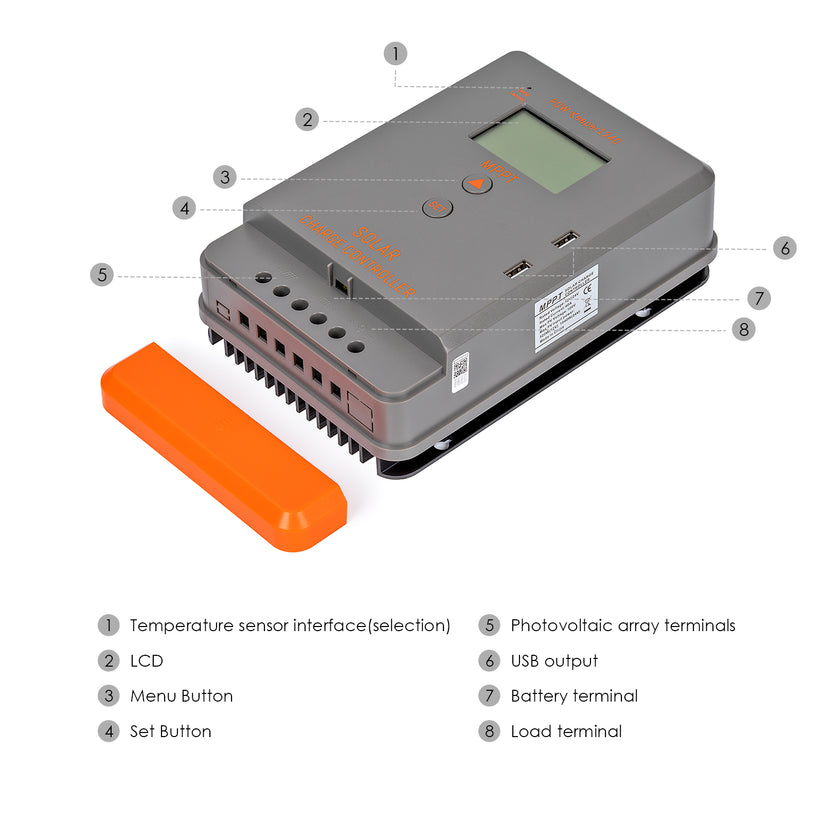

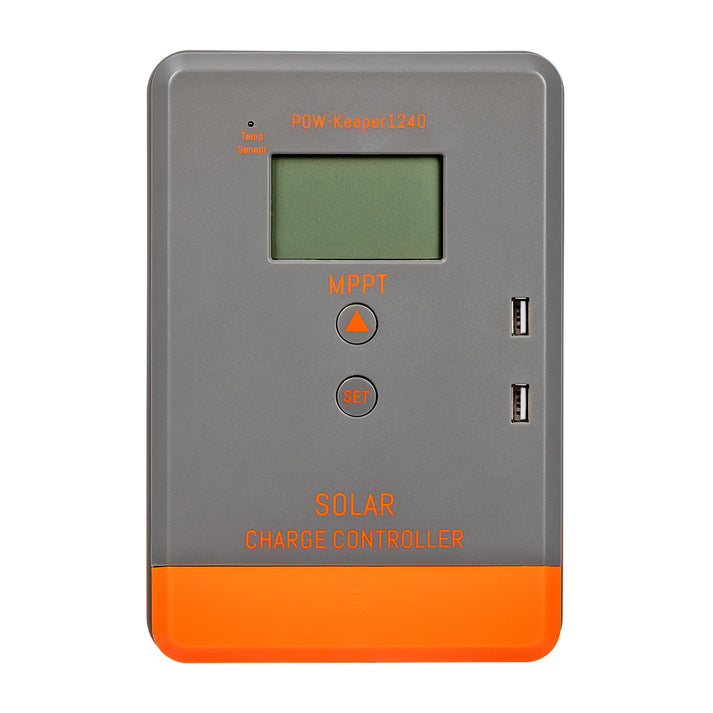

ROCKSOLAR 20A MPPT Solar Charge Controller:

  • 20A MPPT Solar Charge Controller.
  • Compatible with Lithium and Lead Acid batteries.
  • Maximum open voltage of 75Vdc and MPP tracking efficiency of 99.5%.
  • 3-stage charge algorithm and 12/24V nominal system voltage.
  • Rated charging current of 20A and battery voltage range of 8-32V.
  • High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V.
  • Operating temperature range of -20°C to 55°C.
  • IP30 rated for protection.

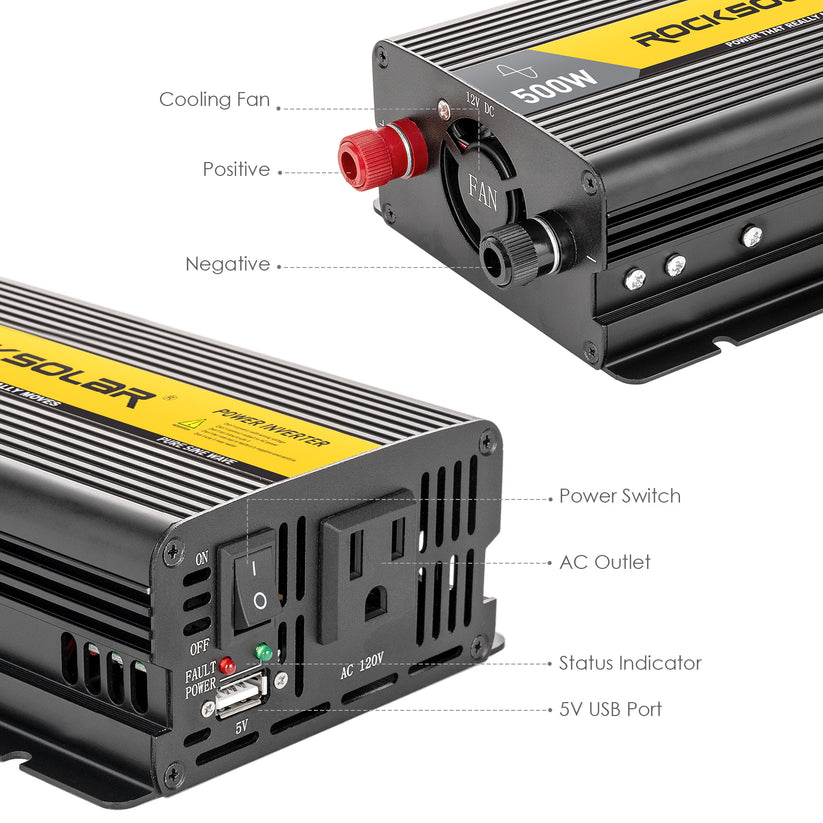

ROCKSOLAR 500W Pure Sine Wave Power Inverter:

  • 500W Pure Sine Wave Power Inverter.
  • DC 12V to 110V AC Conversion.
  • 2.1A USB Charging Port.
  • Ideal for RVs, Camping, Off-grid power solutions, and more.

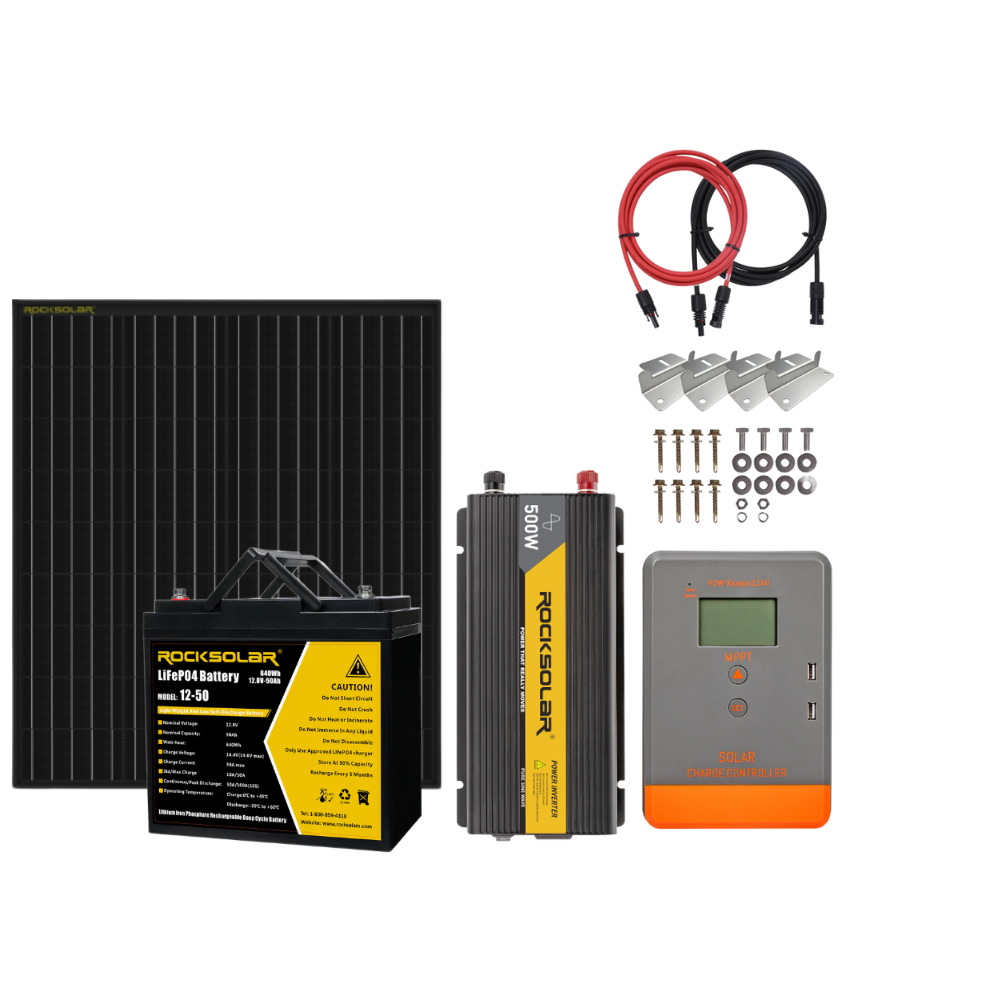

Included:
    • 1 x 12V 50Ah Deep Cycle LiFePO4 Battery
    • 2 x 50W 12V Rigid Monocrystalline Solar Panel
    • 1 x 500W Pure Sine Wave Power Inverter
    • 1 x 20A MPPT Solar Charge Controller

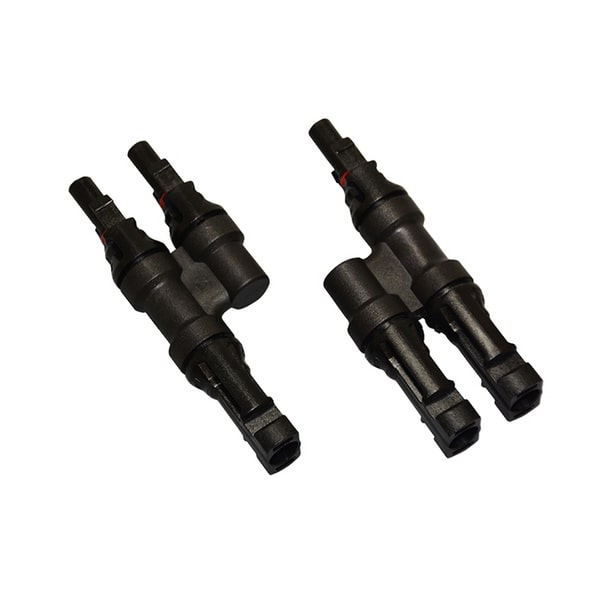

    • 1 x Y Connector
    • 1 x M8 Connector

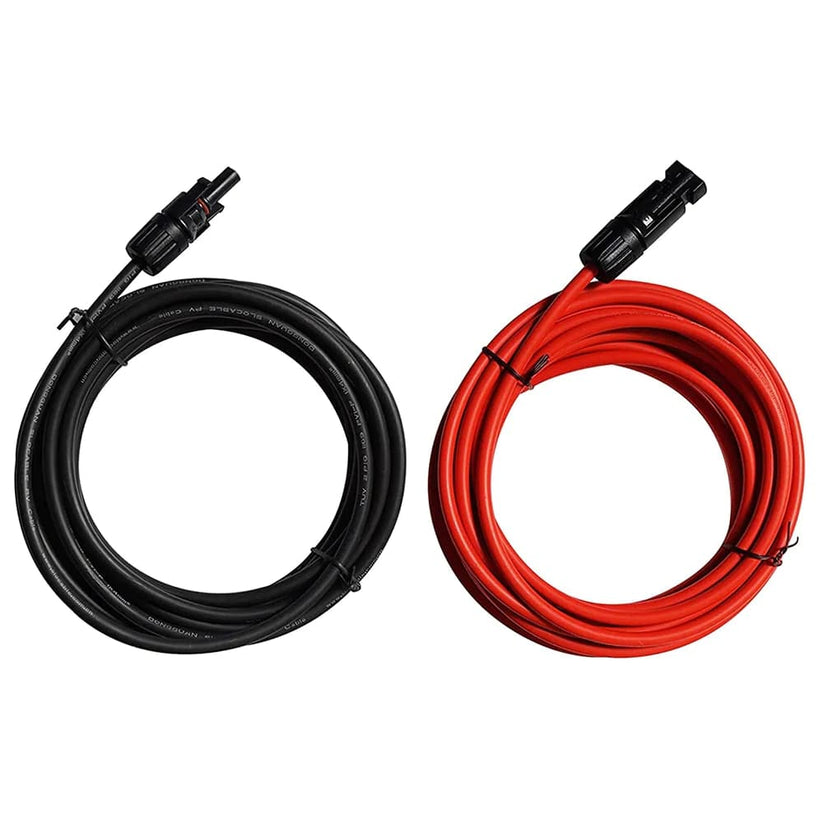

    • 1 x 10 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black

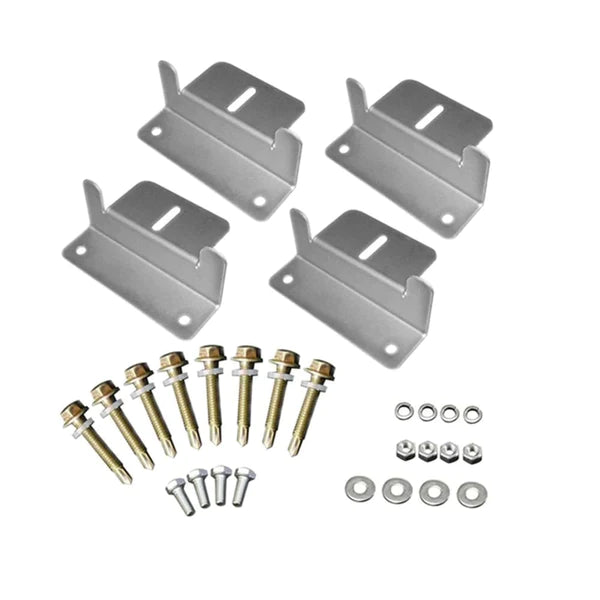

    • 2 x Z-Bracket Mount System (Set of 4)
    • 1 x User Manual

    Technical Specifications


    12V 50Ah Deep Cycle LiFePO4 Battery Details
    Product Dimensions 14.99 x 6.6 x 9.4 cm
    Battery Type Lithium Ion battery
    Special Features Deep cycle
    Working Temperature -20C -60C
    Voltage 12 Volts (DC)
    Item Weight ‎5.9 kg
    Warranty 11 Years

    50W 12V Rigid Monocrystalline Solar Panel Details
    Rated Power 50W
    Type Mono-crystalline silicon
    System Voltage 12V
    Cell Efficiency 20-22%
    Frame Material Aluminum
    Dimensions 760 x 670 x 30 mm
    Weight approx. 25-30 lbs
    Operating Temperature -40°C to +85°C
    Waterproof Rating IP65
    Front Glass High light transmittance, low-iron tempered glass
    Bypass Diodes Integrated
    Connectors MC4
    Cable Length Varies depending on the brand (approx. 3-6 ft)
    Mounting Hole Locations Pre-drilled
    Service Life 25 years or more
    Warranty 10 Year

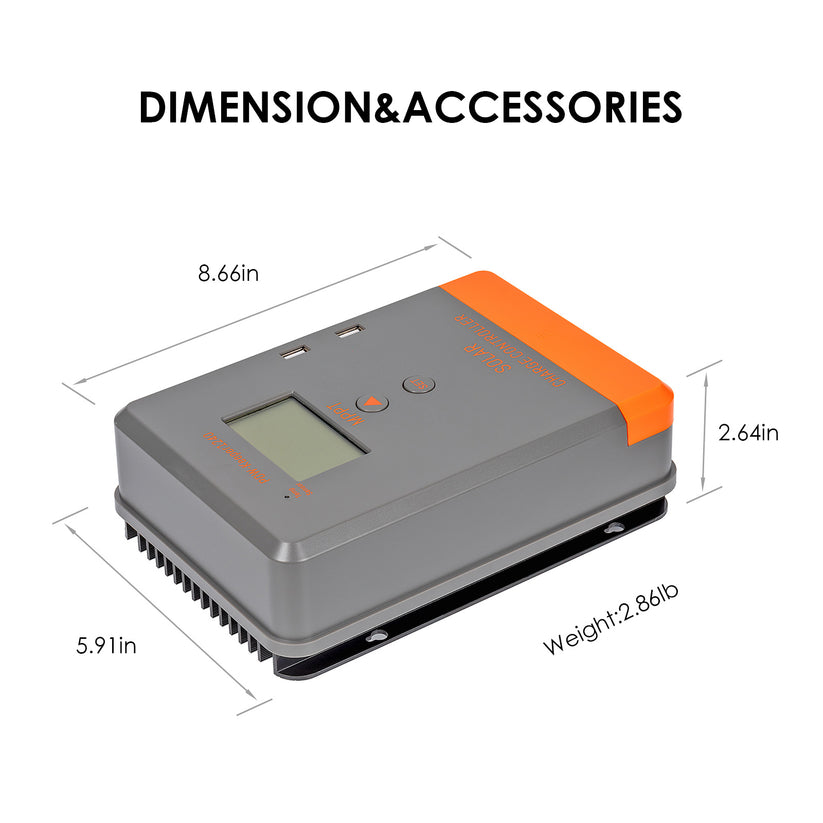

    20A MPPT Solar Charge Controller Details
    Max Open Voltage of PV Module 75Vdc
    MPP Tracking Efficiency 99.50%
    Light Control Voltage 5V
    Charge Algorithm 3 Stage
    Battery Type Lithium and Lead Acid Battery
    Nominal System Voltage 12/24V
    Rated Charging Current 20A
    Battery Voltage Range 8~32V
    High Voltage Disconnection 16V (24V x 2)
    Duration for absorption charging 2 hours
    Charge Loop Voltage Drop ≤0.29V
    Self-consumption ≤ 9.2mA 12V; ≤ 11.7mA 24V
    Equalized Charging Voltage AGM: 14.6V; GEL: No; FLd: 14.8V
    Absorption Charging voltage AGM: 14.4V; GEL: 14.2; FLd: 14.6V
    Floating Charging voltage AGM/ GEL/ FLd: 13.8V
    Low Voltage re-connection (LVR) AGM/ GEL/ FLd: 12.6V
    Low Voltage Disconnection (LVD) AGM/ GEL/ FLd: 10.8V
    Operating Temperature Range -20℃~55℃ (To run at full rated current continuously)
    LCD Temperature Range -20℃~70℃
    Humidity Range ≤95% No condensation
    Protection Class IP30
    Dimension 123*178*48
    Installation Hole 108*120 ∅5
    Warranty 1 Year

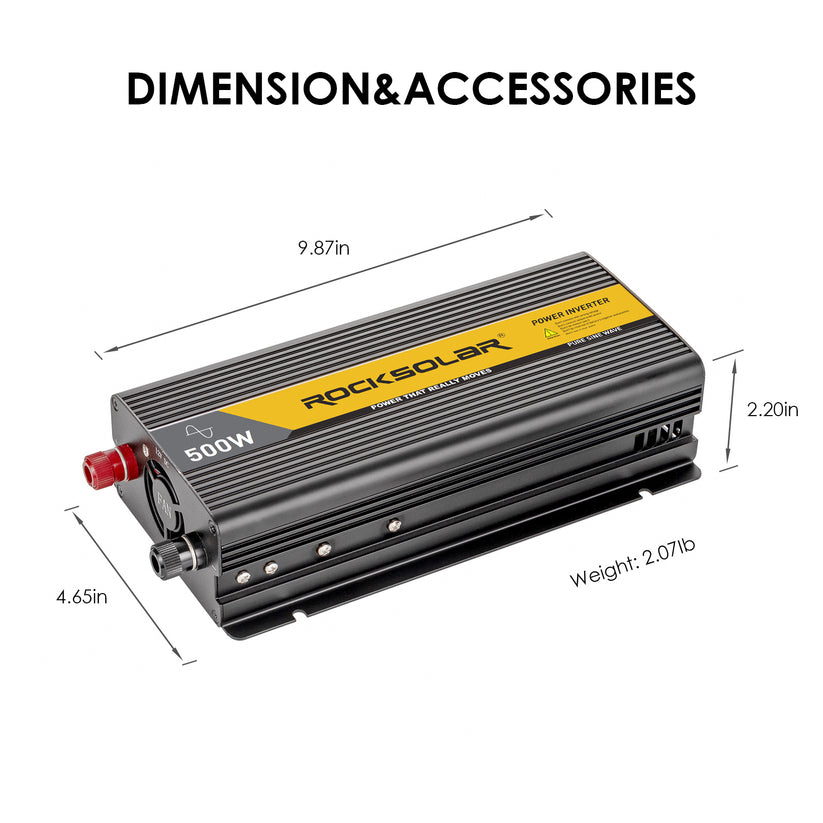

    500W Pure Sine Wave Power Inverter Details
    Rated power 500W
    AC Voltage 120V
    Frequency 60HZ
    Resistive Load Continuous Output Power 500W
    Inductive Load Continuous Output Power 450W The electric drill can start normally (beyond the protection may be possible, but the inverters will not be damaged)
    Capacitive Load Continuous Output Power 150±30W，PF：0.6（Tri-color energy saving lamp, beyond which protection may be possible, but will not cause damage to the inverter）
    Waveform Pure Sine Wave
    Waveform Distortion（THD) ≤5%
    Voltage range 10～15.5Vdc
    Battery Voltage 12Vdc
    DC Current 52.1A(500W resistive load when 12Vdc is input)
    No Load Loss ≤0.8 A(input 12Vdc)
    Shutdown mode static current 15mA
    Maximum efficiency 88%
    Battery type All 12V batteries
    Insurance slice 40A*2
    Battery Low Voltage Alarm 10.5Vdc Peak buzzer alarm
    Battery Low Voltage Alarm Recovery 11Vdc
    Battery Low Voltage Protection 10Vdc Peak buzzer alarm, bright red and green lights
    Battery Low Voltage Protection Recovery 12Vdc
    Battery High Voltage Protection 15.5Vdc Peak buzzer alarm, bright red and green lights
    Battery High Voltage Protection Recovery 15Vdc
    Over Temperature Turn off output, bright red and green indicators, buzzer alarm, temperature reduction, automatic recovery output
    Output Short Circuit Turn off output and lock, bright red and green lights, whistle alarm, remove short circuit and restart to normal output
    Overload Load 550W: 10S Turn off output, self-lock bright red and green lights, resume normal output after load reduction restart
    Overload Load 650W: 1S Turn off output, self-lock bright red and green lights, resume normal output after load reduction restart
    USB Output Voltage 5V
    USB Output Current 2.1A
    Working Temperature 0～40℃
    Operating humidity 10～90%RH
    Storage temperature, humidity -30℃～70℃,10～95%RH
    Weight Net weight：0.94Kg
    Size 250.6*118*56mm(L*W*H)
    Warranty 1 Year


    The package includes four essential components: a 12V 50Ah Deep Cycle LiFePO4 Battery with BMS System, a 50W Rigid Solar Panel, a 20A MPPT Solar Charge Controller, and a 500W Pure Sine Wave Inverter.

    The 12V 50Ah Deep Cycle LiFePO4 Battery and 50W Rigid Solar Panel come with an impressive 10-year warranty, while the 20A MPPT Solar Charge Controller and the 500W Pure Sine Wave Inverter are covered by a 1-year warranty.

    Yes, the ROCKSOLAR 500W 12V Off-Grid Solar System is designed to provide 24/7 power to operate essential devices such as a mini fridge, LCD TV, DC brushless water pump, lighting, stereo, laptop, and phone chargers.

    Absolutely, the system is designed to be easily upgraded for increased power needs in the future. ROCKSOLAR offers free upgrade services and exchangeable key components.

    Yes, this off-grid solar system is perfect for use in the summer months and offers a dependable source of power that you can count on.

    Detailed installation instructions are provided with the system. If you face any difficulty, our customer support team is ready to assist you.

    The system is designed to work in a variety of geographical conditions. However, it's recommended to assess your specific solar potential and local weather conditions for the best results.

    This system is designed to operate essential devices like a mini fridge, LCD TV, DC brushless water pump, lighting, stereo, laptop, and phone chargers. For heavier appliances, it is recommended to check the power specifications or consider upgrading the system.

    The system requires minimal maintenance. It's recommended to clean the solar panel regularly and check the system components periodically to ensure optimal performance.

    Yes, ROCKSOLAR offers excellent customer service. If you encounter any issues with your system, you can reach out to our support team for assistance.

    Download LiFePO4 Battery Manual (PDF)
    Download Rigid Solar Panel Manual (PDF)
    Download Pure Sinewave Inverter Manual (PDF)
    Download Solar Charge Controller Manual (PDF)
