ROCKSOLAR Solar Water Pump Kit – 1760W Solar + 48V 74Ah Battery+0.8 HP Pump

Harness the power of the sun with the ROCKSOLAR Solar Water Pump Kit – 1760W Solar + 48V 74Ah LiFePO4 Battery, your ultimate solution for independent water supply at the cottage. Central to this system is the high-efficiency 48V 0.8HP Brushless Solar DC Water Pump, designed to provide reliable water flow for various needs, including irrigation, livestock, or household use.

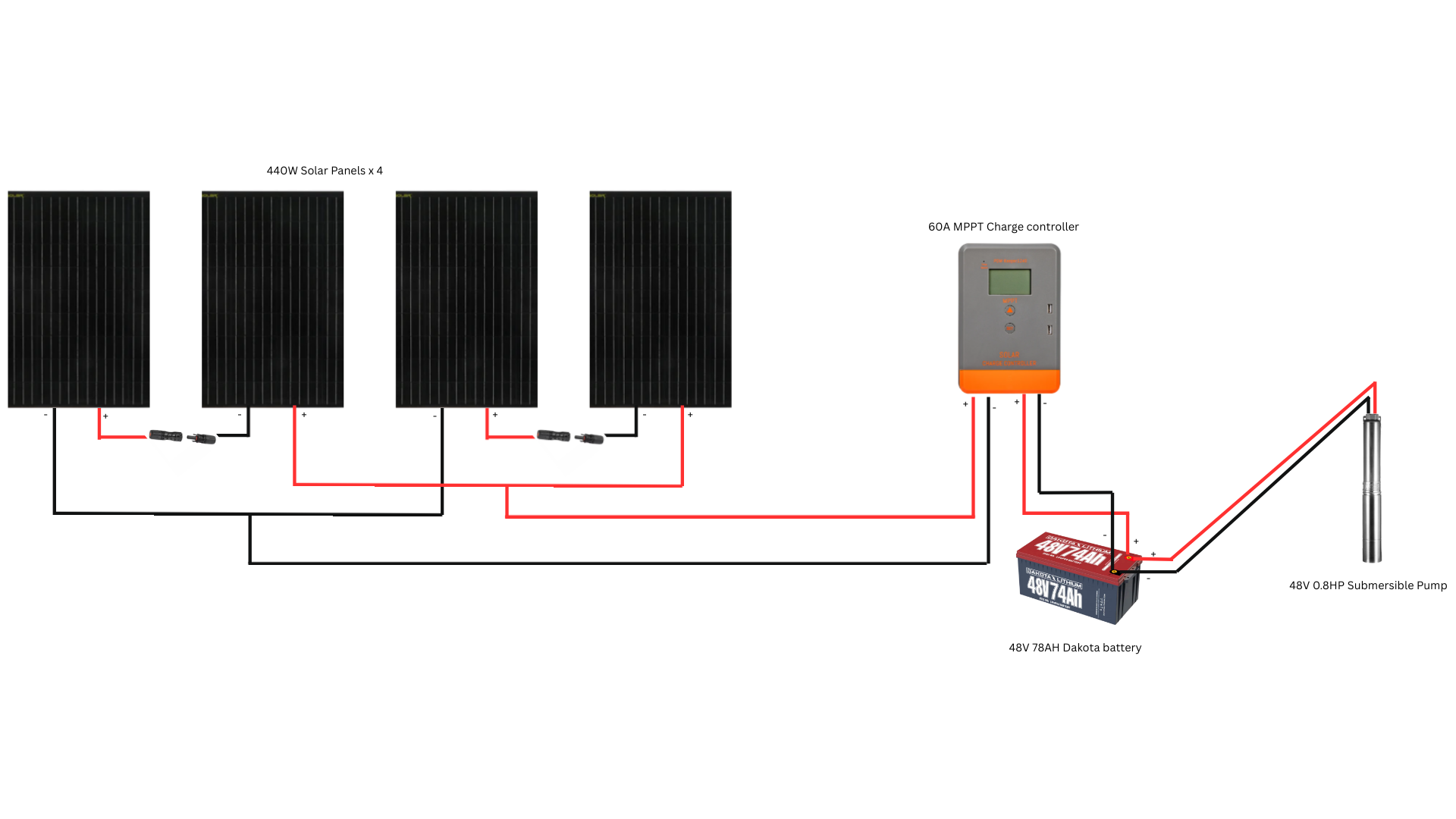

Complemented by 48V 74Ah LiFePO4 Batteries and a suite of 4x 440W Rigid Solar Panels, this system captures and stores solar energy efficiently using a 60A MPPT Solar Charge Controller. Thoughtfully engineered for scalability, the system allows easy upgrades to meet growing water or power demands.

With a 10-year warranty on batteries and 12 warranty on the solar panels and a 5-year warranty on pump, ROCKSOLAR ensures a secure and sustainable investment.

Features

ROCKSOLAR 48V 74Ah Deep Cycle LiFePO4 Battery with BMS System

• 48V 74Ah LiFePO4 capacity per battery

• 6000+ cycle life at 90% depth of discharge

• Consistent power with a flat voltage curve

• Advanced LiFePO4 technology for deep cycling

• Smart BMS for safety and long life

• Lightweight at 27 lbs for easy handling

• Operating temp: Charging 0°C–45°C / Discharging -20°C to 60°C

• BMS auto-shuts off outside safe temps

• 10-year warranty, 10+ year service life

ROCKSOLAR 440W Rigid Bi-facialMonocrystalline Solar Panel

• 440W output per panel

• Waterproof and corrosion-resistant aluminum frame

• 22.57% high-efficiency monocrystalline cells

• Pre-drilled for easy installation

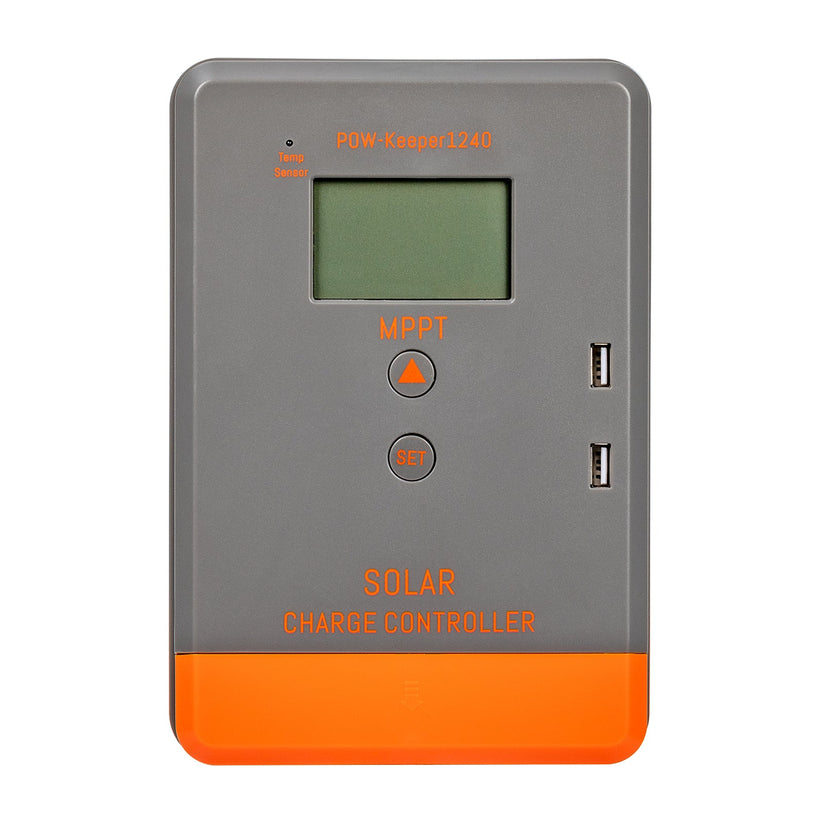

ROCKSOLAR 60A MPPT Solar Charge Controller

• Rated current: 60A

• Voltage: 12/24V system compatible

• 99.5% MPP tracking efficiency

• Open voltage max: 100Vdc

• Supports lithium and lead-acid batteries

• Operating temp: -20°C to 55°C

• IP30 protection rating

ROCKSOLAR 48V 0.8HP Brushless Solar DC Water Pump

• High-performance brushless motor for solar use

• Stainless steel (S.S. 304) body and brass motor cap

• Built-in controller for plug-and-play functionality

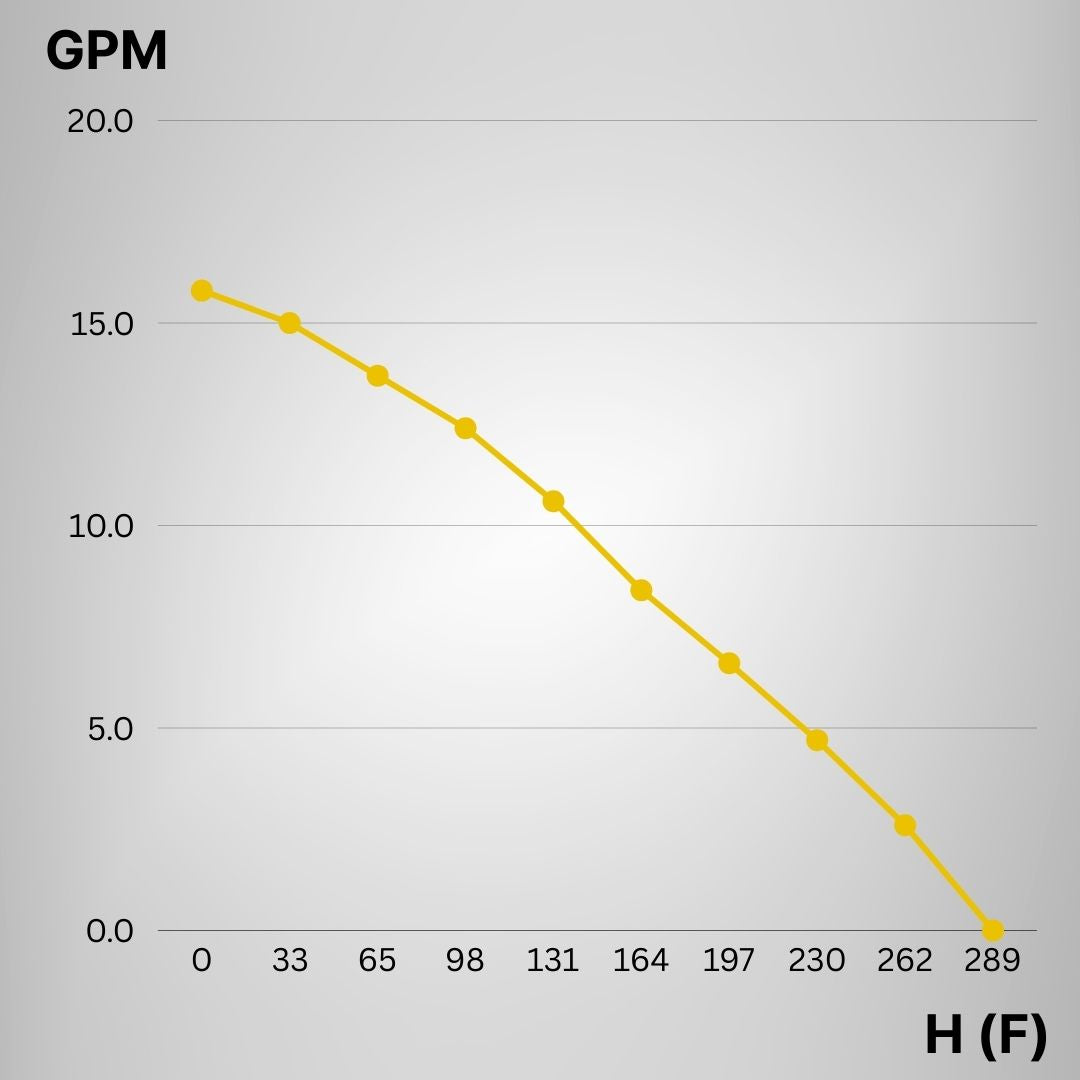

• 600W power, max flow rate: 15.85GPM, max head: 289 Ft

• Quiet, low-maintenance design

• 2-meter cable included

• Optimized for ROCKSOLAR solar panel systems

• 1" outlet connection

Package Includes

• 1 × 48V 74Ah Deep Cycle LiFePO4 Battery

• 1 × 48V 0.8HP Brushless Solar DC Submersible Well Pump

• 4 × 440W Rigid Bifacial Monocrystalline Solar Panel

• 1 × 60A MPPT Solar Charge Controller

• 4 × 10 Ft 10AWG Extension Cables with MC4 Connectors (Red + Black)

• 3 x  1.5Ft 2 AWG Battery connection cable

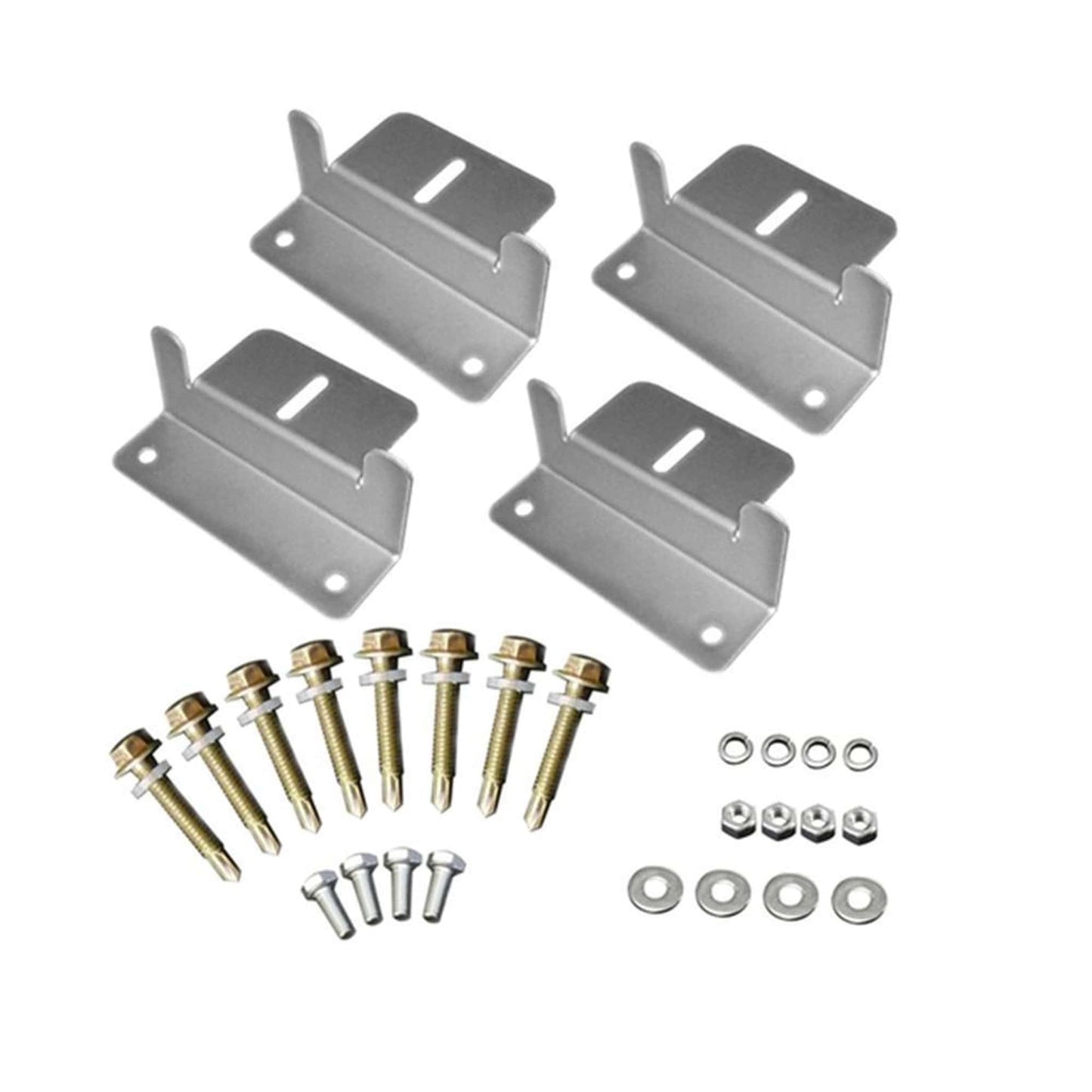

• 4× Z-Bracket Mount Systems (4 per set)

• 2 x Y Connector

• 2 String Waterproof Solar combiner box with 40A and 1000V Circuit Breaker

• 1 × User Manual

Download User Manuals

• Solar Panel Manual (PDF)

• Solar Water Pump Manual (PDF)

• LiFePO4 Battery Manual (PDF)
