ROCKSOLAR Cottage Life Series V Off Grid Solar System

Name: ROCKSOLAR Cottage Life Series V Off Grid Solar System
Brand: ROCKSOLAR
SKU: RSSOS-6X200R-COT5-001
Price: 3727.0 USD
Availability: InStock

ROCKSOLAR Cottage Life Series V Off Grid Solar System

$3,727.00 USD

~~$5,221.00 USD~~ $3,727.00 USD

Sale Sold out

Shipping calculated at checkout.

Unparalleled Power Generation

Experience impressive power with six 200W monocrystalline solar panels
Generates between 3600-4500 Wh of electricity per day, depending on sunlight availability

Outstanding Efficiency

Built-in bypass diodes diminish power drops due to shading, ensuring consistent power generation
Performs optimally even under low-light conditions

Read more

Product variants

Quantity

Free
Local Shipping

10-years Hassle Free
Warranty

Lifetime Customer
Support

View full details

Description
Includes
Specifications
FAQ
Downloads
Reviews

The ROCKSOLAR Cottage Life Series V Off-Grid Solar System offers the most comprehensive power solution yet for Canadian cottage owners. It boasts reliability and high efficiency, providing off-grid power at your convenience. The system consists of 1x 48V 50AH LiFePO4 Batteries, 6x 200W Rigid Solar Panels, a 60A MPPT Solar Charge Controller, and a potent 48V 3000W Pure Sine Wave Inverter. It is designed to power a wide array of appliances including a mini fridge, freezer, LCD TV, wifi router, coffee machine, microwave, lighting, stereo, laptop, and phone chargers, ensuring a 24/7 off-grid power supply for all your cottage needs. The ROCKSOLAR Cottage Life Series V comes with a future-focused design that allows easy upgrades for increased power needs, providing free upgrade services and exchangeable key components. ROCKSOLAR guarantees the value retention of all components, making sure your investment is worthwhile. The batteries and solar panels come with a reassuring 10-year warranty, while the other components carry a 1-year warranty. Embrace a worry-free cottage life with the ROCKSOLAR Cottage Life Series V Off-Grid Solar System.

Product Features

ROCKSOLAR 48V 50Ah Deep Cycle LiFePO4 Battery with BMS System:

48V 50AH capacity

3500+ cycle life with 100% discharge rate for ultra-long service life

Steady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteries

Utilizes advanced LiFePO4 Battery Technology for dependable deep cycling

Smart Battery Management System for safety and longevity

Lightweight: Only 24 kg for easy portability and installation

Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.

Operating temperature range for charging: 0C∽45C, discharging: -20~-60.

BMS auto-shuts off the battery outside the working temperature.

Warranty: 11-year warranty and 10+ year service life

ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel:

200W 12V output

Rigid Monocrystalline Solar Panel

Waterproof and Corrosion-Resistant Aluminum Alloy Frame

High-Efficiency Solar Cell with 22% Conversion Efficiency

Pre-drilled holes for easy mounting and securing to any surface

ROCKSOLAR 60A MPPT Solar Charge Controller:

60A MPPT Solar Charge Controller

Compatible with Lithium and Lead Acid batteries

Maximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%

3-stage charge algorithm and 12/24V nominal system voltage

Rated charging current of 60A and battery voltage range of 8-32V

High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V

Operating temperature range of -20°C to 55°C

IP30 rated for protection

ROCKSOLAR 3000W Pure Sine Wave Power Inverter:

3000W Pure Sine Wave Power Inverter

DC 48V to 110V AC Conversion

Temperature Range: The inverter has a working temperature range of -20～40℃ and operating humidity range of 10～90%RH, making it suitable for use in a variety of environments.

2.1A USB Charging Port

Ideal for RVs, Camping, Off-grid power solutions, and more.

Lightweight and Compact Design: With a net weight of just 5.01kg and a size of 420.4208.9110mm (LWH), the inverter is easy to transport and store.

Cottage Life Series V Off Grid Solar System Includes

1x

48V 50Ah Deep Cycle LiFePO4 Battery

6x

200W 12V Rigid Monocrystalline Solar Panel

1x

48V 3000W Pure Sine Wave Power Inverter

1x

60A MPPT Solar Charge Controller

1x

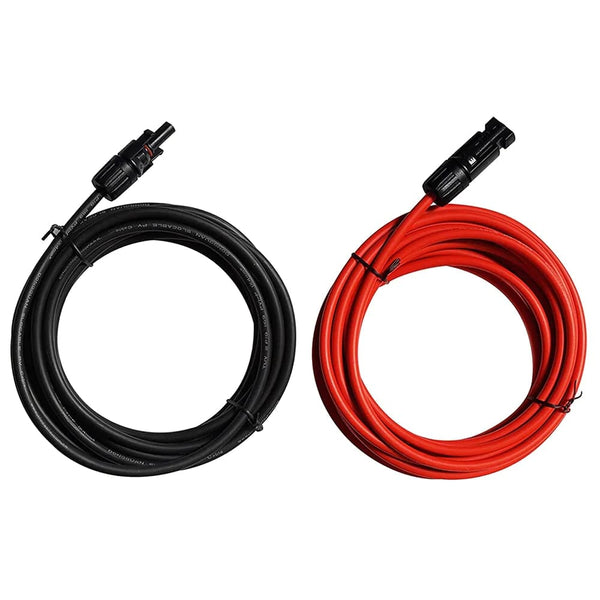

20 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black

6x

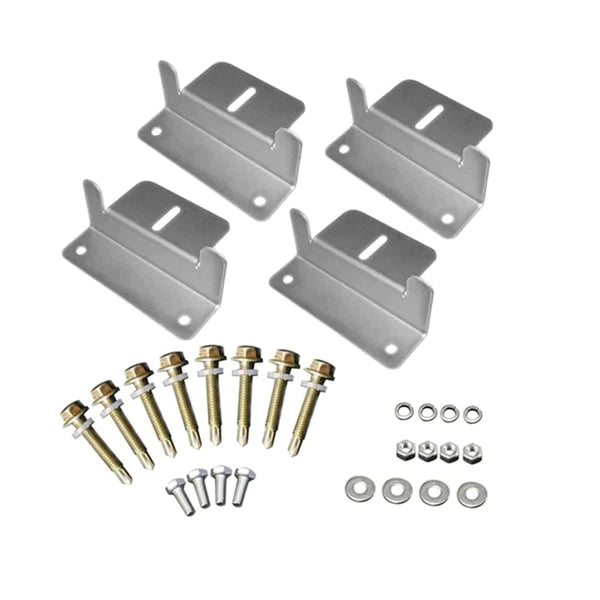

Z-Bracket Mount System (Set of 4)

5x

Y Branch Connectors for Solar Panels MMF+FFM Pair

Technical Specifications

48V 50Ah Deep Cycle LiFePO4 Battery with BMS System	Details
Nominal capacity	50Ah
Mix. capacity	49Ah
Nominal energy	2560Wh
Combination structure of battery	16S
Nominal voltage	51.2V
End of discharge voltage	43.2V
Standard charge voltage	58.4±0.2V
Float charge voltage	55.2V
Standard charge current	10A
Recommended charge current	≤25A
Allowed Max. charge current	50A
Standard discharge current	10A
Recommended discharge current	≤50A
Allowed Max. discharge current	50A
Peak discharge current	100A,10Sec
Internal Resistance	≤80mΩ
Weight	Approx. 24kg
Ex-factory capacity	Approx.50% SOC
Operation temperature	Discharge: -20°C~60°C; Charge: 0°C~45°C
Storage environment	≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH

200W 12V Rigid Solar Panel	Details
Panel Type	Monocrystalline
Power Output	200W
System Voltage	12V
Cell Efficiency	20-22%
Frame Material	Aluminum

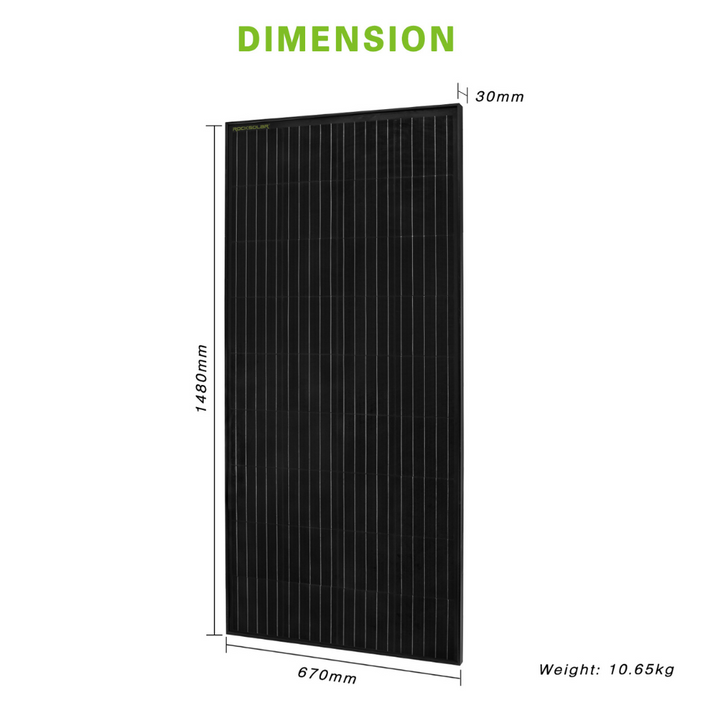

Dimensions	1480mm x 670mm
Weight	approx. 25-30 lbs
Operating Temperature	-40°C to +85°C
Waterproof Rating	IP65
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 years

60A MPPT Solar Charge Controller	Details
Model	POW-M60-PRO
PV Input	Max Open Voltage of PV Module: 100Vdc
MPP Tracking Efficiency	99.50%
Light Control Voltage	5V
Charge Mode	Charge Algorithm: 3 Stage
Battery Type	Lithium and Lead Acid Battery
Low Voltage Disconnection (LVD)	AGM/ GEL/ FLd: 10.8V
Environmental	Operating Temperature Range: -20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range	-20℃~70℃
Humidity Range	≤95% No condensation
General Specification	Protection Class: IP30
Dimension	12317848
Installation Hole	108*120 ∅5

3000W Pure Sine Wave Power Inverter	Details
Model	RSINV3000-001
Output	Rated power: 3000W
AC Voltage	120Vac(100/110/120Vac Set through menu)
Frequency	60Hz (50Hz/60Hz Set through menu)
Resistive Load Continuous Output Power	1800W, 3000W
Operating humidity	10～90%RH
Storage temperature, humidity	-30℃～70℃,10～95%RH
Weight	Net weight:5.01Kg Gross weight:
Size	420.4208.9110mm (LWH)
Packing	mm(LWH)

The Cottage Life Series V kit includes 1x 48V 50AH LiFePO4 Batteries, 6x 200W Rigid Solar Panels, a 60A MPPT Solar Charge Controller, and a 48V 3000W Pure Sine Wave Inverter.

The system is capable of powering a wide range of appliances including a mini fridge, freezer, LCD TV, wifi router, coffee machine, microwave, lighting, stereo, laptop, and phone chargers.

Yes, the system is designed to be easily upgraded for increased power needs in the future. With free upgrade services and exchangeable key components, you can expand your energy independence with confidence.

The system comes with a 10-year warranty on the batteries and solar panels and a 1-year warranty on other components.

The power generation of the system largely depends on sunlight availability and other environmental factors. However, with its 6x 200W Rigid Solar Panels, it's designed to offer a significant amount of power for your off-grid needs.

Download Product Manual (PDF)
