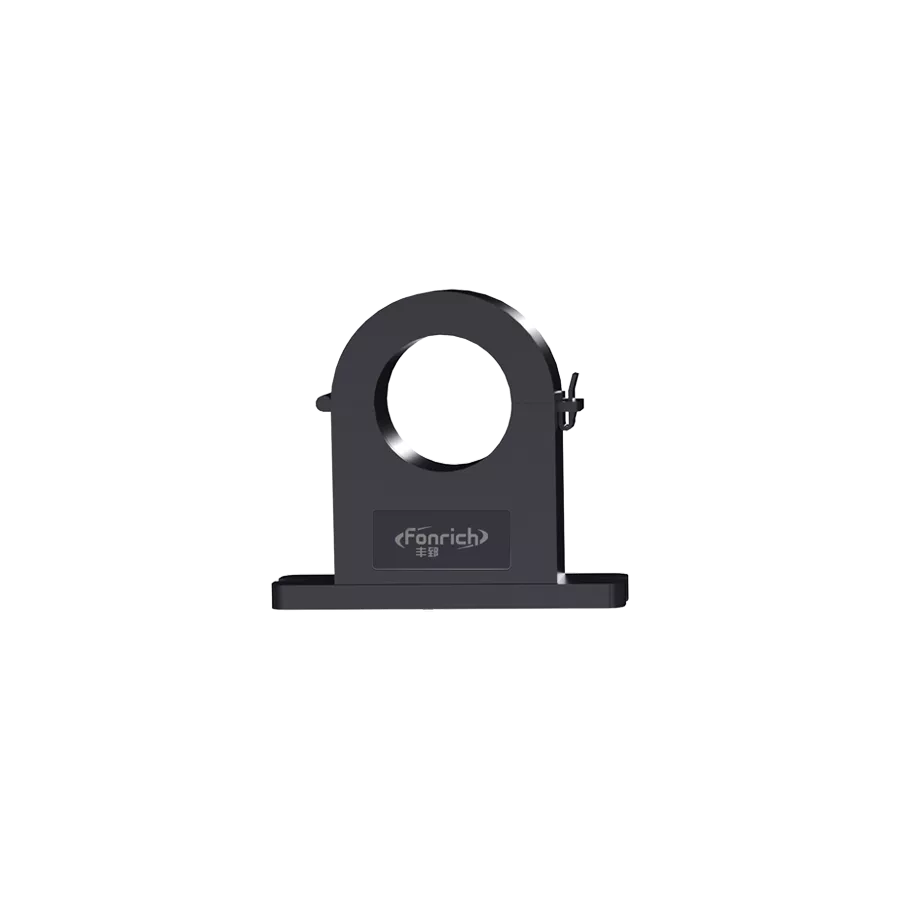

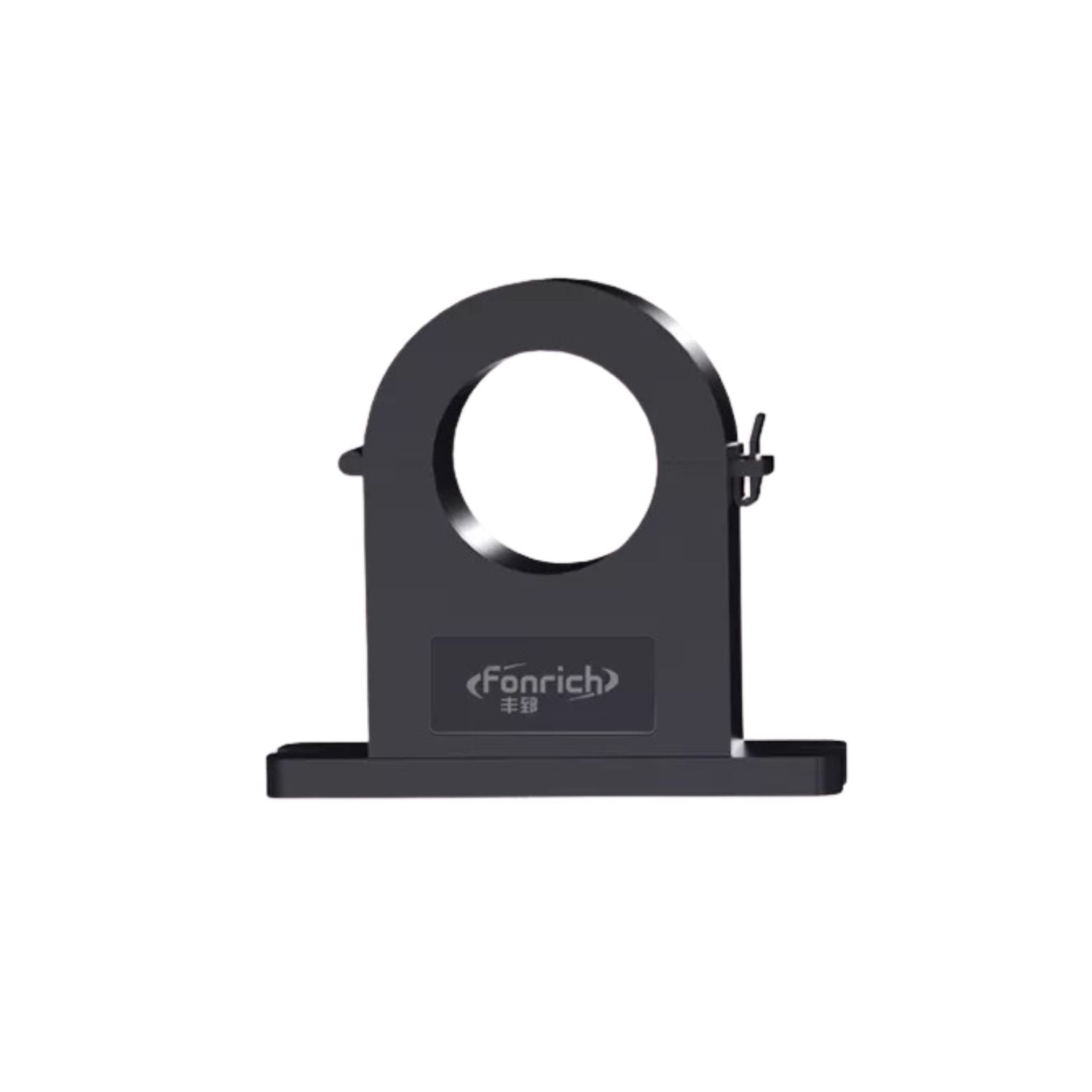

Fonrich Smart PV PLC Transceiver

Fonrich Smart PV PLC Transceiver

$179.99 CAD
$229.99 CAD $179.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • PV Module Rapid Shutdown: Meeting NEC 2017, 2020 & 2023 (690.12) requirements.
  • Bidirectional PLC Communication: With smart PV safety protection device.
  • Modbus RS485 Port: To connect with monitor.
  • Non-electrical Contact: With PV cable, safely and easily installation.
  • Max Support: 24 PV strings and 624 PV modules.
View full details



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews

The Smart PV Monitor and Gateway connects to transceiver modules via RS485, provides real-time PV voltage data, and sends information to a cloud platform for remote monitoring via the Fonrich SafeSolar app or web interface.

Product Features

  • PV module rapid shutdown meeting NEC 2017,2020 & 2023(690.12) requirements
  • Bidirectional PLC communication with smart Pv safety protection device
  • Modbus RS485 port to connect with monitor
  • Non electrical contact with PV cable,safely and easily installation
  • Max support 24 PV strings, and 624 PV modules
  • 1 x Smart PV PLC Transceiver

Technical Specifications


Item Specification Unit
Range of power supply voltage 15 ~ 24 Vdc
Max power consumption 3 W
Pollution degree PD3 -
Operating ambient temperature range -40 ~ 70 °C
Relative humidity range 4~100 %
Ingress protection IP67 -
Max PV modules under one PLC transceiver 624 -
Max PV strings under one PLC transceiver 24 -
Max cable loop length each string 1600 m
RS485 speed 4800, 9600, 19200, 38400 bps
Data format 8N1 -



Download Datasheet (PDF)
Download User Manual (PDF)
