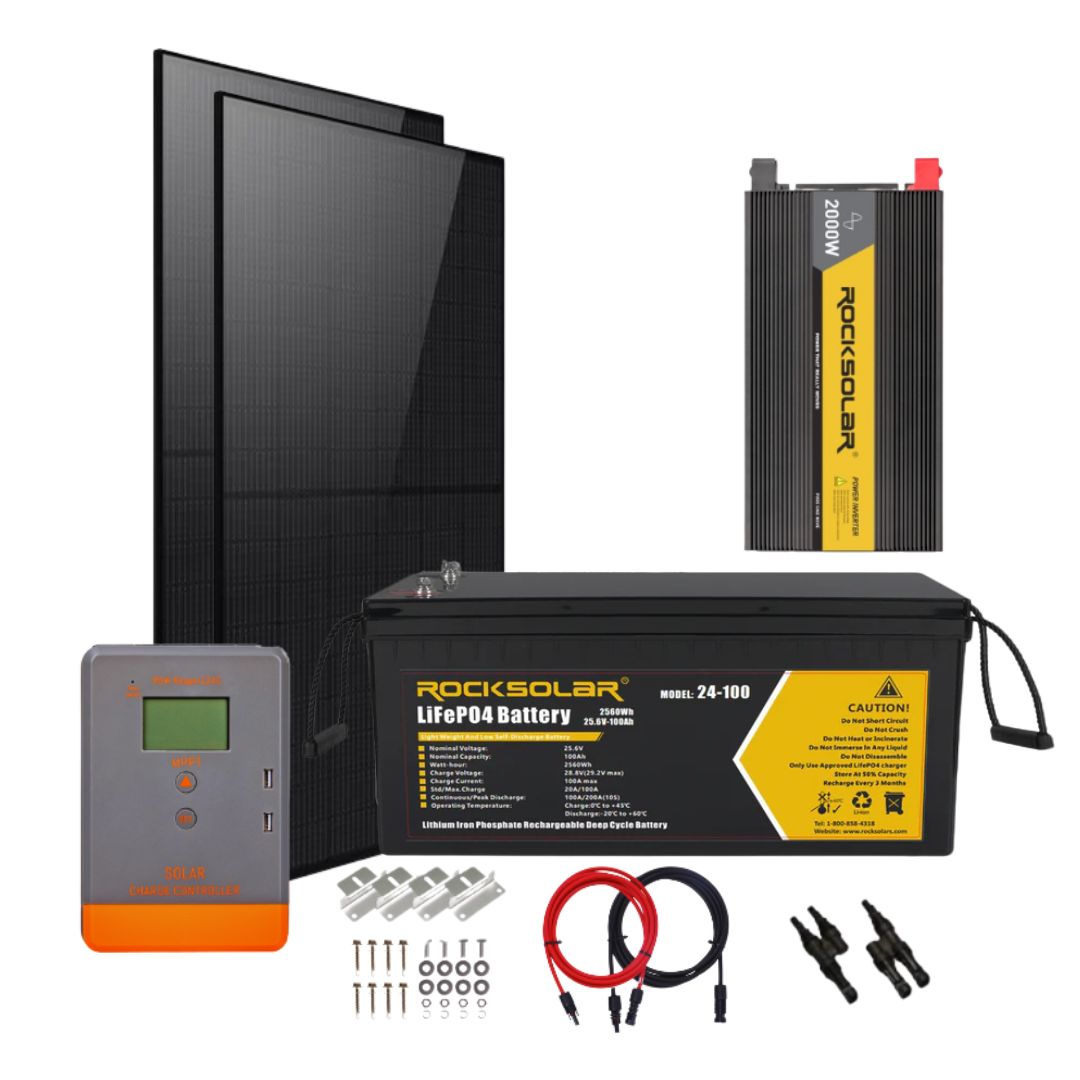

ROCKSOLAR Cottage Life Series III Off Grid Solar System
ROCKSOLAR Cottage Life Series III Off Grid Solar System
The ROCKSOLAR Cottage Life Series III Off Grid Solar System is the perfect solution for cottage owners in Canada who are looking for a reliable and sustainable source of power. This comprehensive power system includes 8 components, including 2x 12V 100AH LiFePO4 Batteries, 4x 150W Rigid Solar Panels, a 30A MPPT Solar Charge Controller, a powerful 2000W Pure Sine Wave Inverter, and a free DC Brushless Water Pump (up to 150 feet range). The ROCKSOLAR Cottage Life Series III Off-Grid Solar System is designed to be easily upgraded for increased power needs in the future. With free upgrade services and exchangeable key components, you can expand your energy independence with confidence. Plus, ROCKSOLAR ensures that all components retain their value, so you can get the most out of your investment. With the ability to operate a wide range of appliances including a mini fridge, freezer, LCD TV, wifi router, coffee machine, microwave, lighting, stereo, laptop, and phone chargers, this system provides 24/7 off-grid power supply for all your needs. Enjoy peace of mind with a 10-year warranty on the batteries and solar panels and a 1-year warranty on the other components.
Read moreCouldn't load pickup availability
Free
Local Shipping
10-year Hassle Free
Warranty
Lifetime Customer
Support
- What's Included?
- Features
- Tech Specs
- FAQs
- Reviews
- PDF Download
Cottage Life Series III - (150W 12V Rigid Monocrystalline Solar Panel)
Cottage Life Series III - (100W 12V Rigid Monocrystalline Solar Panel)
Cottage Life Series III - (100W 12V Flexible Monocrystalline Solar Panel)
ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System:
- 12V 100Ah capacity
- Service life: 3500+ cycle life and 100% discharge rate for ultra-long service life
- Consistent power: Flat voltage curve ensures steady power output, with no dramatic drop in output like SLA batteries
- Deep Cycle LiFePO4 Battery Technology
- Patented Smart Battery Management System
- Lightweight: Only 27 pounds for easy portability and installation
- Ideal for harsh environments: Patented BMS offers protection from temperature, short circuits, over-discharge, over current, and overcharge, as well as battery cell balancing.
-
Operating temperature range of charging: 0C∽45C, discharging: -20~-60.
BMS auto-shuts off the battery outside the working temperature.
ROCKSOLAR 150W 12V Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:
- 150W 12V Rigid Monocrystalline Solar Panel
- Corrosion-Resistant Aluminum Alloy Frame
- High-efficiency monocrystalline solar cell with 22% conversion efficiency
- Available in various power levels (50W, 100W, and 150W)
- Suitable for producing a solar charge anywhere

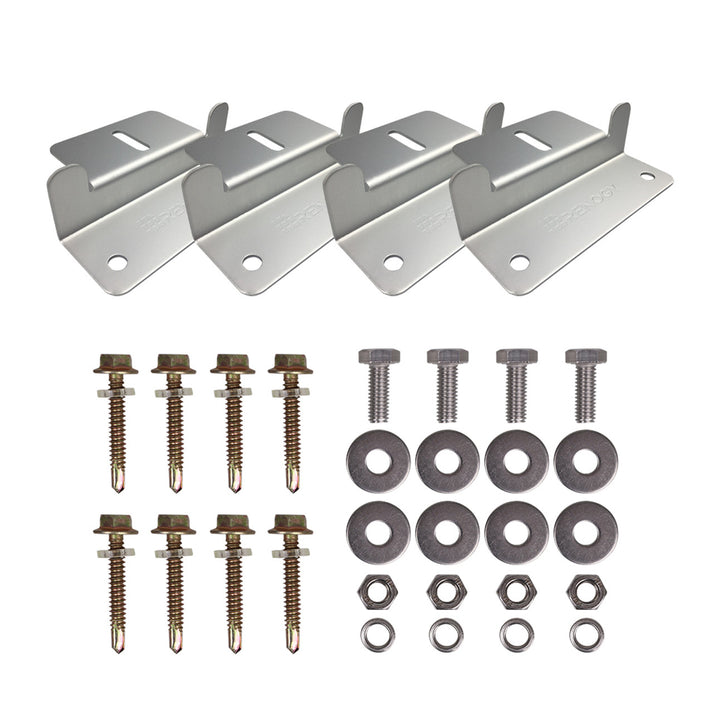

- Pre-drilled holes for quick and easy mounting to any surface
ROCKSOLAR 2000W Pure Sine Wave Power Inverter DC 24V to 110V AC Converter With Digital Display & 2.1A USB Charging Port:
- 2000W Pure Sine Wave Power Inverter
- DC 24V to 110V AC Converter
- Digital Display
- 2.1A USB Charging Port
- Automatic overheat protection fan
- Perfect for off-grid setup
ROCKSOLAR 30A MPPT Solar Charge Controller:
- Supports both Lithium and Lead Acid batteries
- Maximum PV module open voltage of 55Vdc
- MPP tracking efficiency of 99.5%
- Light control voltage of 5V
- 3-stage charge algorithm
- 12/24V nominal system voltage
- Rated charging current of 20A
ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System:
|
Manufacturer |
ROCKSOLAR |
|
Place of Business |
ROCKSOLAR TECHNOLOGY Canada, 1-800-858-4318, Waterloo, ON, Canada |
|
Brand |
ROCKSOLAR |
|
Model |
12V 100Ah Deep Cycle LiFePO4 Battery |
|
Product Dimensions |
14.99 x 6.6 x 9.4 cm; 12.52 Kilograms |
|
Item model number |
RSLIPO12-100AH |
|
Batteries |
1 Lithium Ion battery (included) |
|
Is Discontinued By Manufacturer |
No |
|
Manufacturer part number |
RSLIPO12-100AH |
|
Special features |
temperature, short circuit, over-discharge, over-current & overcharge protection, lightweight, quick charge, Wide working temperature range: -20C- 60C, Deep Cycle, Marine battery for trolling motor |
|
Voltage |
12 Volts (DC) |
|
Item Weight |
12.5 kg |
|
Country of origin |
China |
ROCKSOLAR 10A Solar Charge Controller:
|
Model |
POW-Keeper1220 |
|
PV Input |
|
|
Max Open Voltage of PV Module |
55Vdc |
|
MPP Tracking Efficiency |
99.50% |
|
Light Control Voltage |
5V |
|
Charge Mode |
|
|
Charge Algorithm |
3 Stage |
|
Battery Type |
Lithium and Lead Acid Battery |
|
Nominal System Voltage |
12/24V |
|
Rated Charging Current |
20A |
|
Battery Voltage Range |
8~32V |
|
High Voltage Disconnection |
16V (24V x 2) |
|
Duration for absorption charging |
2 hours |
|
Charge Loop Voltage Drop |
≤0.29V |
|
Self-consumption |
≤ 9.2mA 12V; ≤ 11.7mA 24V |
|
Equalized Charging Voltage |
AGM: 14.6V; GEL: No; FLd: 14.8V |
|
Absorption Charging voltage |
AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
|
Floating Charging voltage |
AGM/ GEL/ FLd: 13.8V |
|
Low Voltage re-connection (LVR) |
AGM/ GEL/ FLd: 12.6V |
|
Low Voltage Disconnection (LVD) |
AGM/ GEL/ FLd: 10.8V |
|
Environmental |
|
|
Operating Temperature Range |
-20℃~55℃ (To run at full rated current continuously) |
|
LCD Temperature Range |
-20℃~70℃ |
|
Humidity Range |
≤95% No condensation |
|
General Specification |
|
|
Protection Class |
IP30 |
|
Dimension |
123*178*48 |
|
Installation Hole |
108*120 ∅5 |
ROCKSOLAR 2000W Pure Sine Wave Power Inverter DC 24V to 110V AC Converter With Digital Display & 2.1A USB Charging Port:
|
Model |
RSINV2000-001 |
|||
|
Output |
Rated power |
2000W |
||
|
AC Voltage |
120Vac(100/110/120Vac Set through menu) |
|||
|
Frequency |
60Hz (50Hz/60Hz Set through menu) |
|||
|
Resistive Load Continuous Output Power |
1800W |
2000W |
||
|
Inductive Load Continuous Output Power |
1500W The pump can start normally (beyond which protection may be possible without damaging the inverter) |
|||
|
Capacitive Load Continuous Output Power |
940±30W，PF：0.7 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter) |
|||
|
Wave form |
Pure Sine Wave |
|||
|
Waveform distortion（THD） |
≤5% |
|||
|
Input |
Battery Voltage |
12Vdc |
24Vdc |
|
|
Voltage range |
9～17Vdc |
18V～32V |
||
|
DC Current |
198.4A（Load 2000W when entering 12Vdc） |
95.8A（（Load 2000W when entering 24Vdc）） |
||
|
No Load Loss |
1A |
0.6A |
||
|
Shutdown mode static current |
1mA |
|||
|
Maximum efficiency |
90% |
91% |
||
|
Battery type |
Lead acid battery |
Lead acid battery |
||
|
Battery Input Protection |
Insurance slice |
300A*1 |
150A*1 |
|
|
Battery Low Voltage Alarm |
9.5/10/10.5/11/11.5/12/12.5V，Buzzer alarm, LED display E06 |
19/20/21/22/23/24/25V，Buzzer alarm, LED display E06 |
||
|
Battery Low Voltage Alarm Recovery |
10/10.5/11/11.5/12/12.5/13V |
20/21/22/23/24/25/26V |
||
|
Battery Low Voltage Protection |
9/9.5/10/10.5/11/11.5/12V (Set through menu)，LED display shows E01, automatic shutdown after 30S |
18/19/20/21/22/23/24V(Set through menu)，LED display shows E01, automatic shutdown after 30S |
||
|
Battery Low Voltage Protection Recovery |
Recovery voltage within 30S：11/11.5/12/12.5/13/13.5/14V |
Recovery voltage within 30S： 22/23/24/25/26/27/28V |
||
|
Battery High Voltage Protection |
17V，LED display shows E02, automatic shutdown after 30S |
32V，LED display shows E02, automatic shutdown after 30S |
||
|
Battery High Voltage Protection Recovery |
Recovery voltage within 30S：16.5V |
Recovery voltage within 30S 31V |
||
|
Output protection |
High temperature alarm |
Buzzer alarm, LED display E07 |
||
|
Over temperature |
Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output |
|||
|
Output Short Circuit |
Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S |
|||
|
Power Alarm |
<11.4V，1900±200W 11.4<V<11.8时2000±200W >11.8V，2100±200W Buzzer alarm, LED display E08 |
<22.8V，1900±200W 22.8<V<23.6时2000±200W >23.6V，2100±200W Buzzer alarm, LED display E08 |
||
|
Power Alarm Recovery |
<11.4V，1700±200W 11.4<V<11.8时1900±200W >11.8V，2000±200W |
<22.8V，1700±200W 22.8<V<23.6时1900±200W >23.6V，2000±200W |
||
|
Overpower protection |
<11.4V，2100±200W 11.4<V<11.8时2200±200W >11.8V，2300±200W |
<22.8V，2100±200W 22.8<V<23.6时2200±200W >23.6V，2300±200W |
||
|
Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S |
Over 3000W 300ms locked after shutting off output (below 3000W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S |
|||
|
USB |
Dual USB output voltage |
5V |
||
|
Dual USB output current |
2.1A |
|||
|
Environment |
working temperature |
-20～40℃ |
||
|
Operating humidity |
10～90%RH |
|||
|
Storage temperature, humidity |
-30℃～70℃,10～95%RH |
|||
|
Other |
Weight |
Net weight:5.01Kg Gross weight: |
||
|
Size |
420.4*208.9*110mm L*W*H) |
|||
|
Packing |
mm(L*W*H) |
|||
ROCKSOLAR 30A MPPT Solar Charge Controller:
|
Model |
POW-Keeper1330 |
|
PV Input |
|
|
Max Open Voltage of PV Module |
55Vdc |
|
MPP Tracking Efficiency |
99.50% |
|
Light Control Voltage |
5V |
|
Charge Mode |
|
|
Charge Algorithm |
3 Stage |
|
Battery Type |
Lithium and Lead Acid Battery |
|
Nominal System Voltage |
12/24V |
|
Rated Charging Current |
30A |
|
Battery Voltage Range |
8~32V |
|
High Voltage Disconnection |
16V (24V x 2) |
|
Duration for absorption charging |
2 hours |
|
Charge Loop Voltage Drop |
≤0.29V |
|
Self-consumption |
≤ 9.2mA 12V; ≤ 11.7mA 24V |
|
Equalized Charging Voltage |
AGM: 14.6V; GEL: No; FLd: 14.8V |
|
Absorption Charging voltage |
AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
|
Floating Charging voltage |
AGM/ GEL/ FLd: 13.8V |
|
Low Voltage re-connection (LVR) |
AGM/ GEL/ FLd: 12.6V |
|
Low Voltage Disconnection (LVD) |
AGM/ GEL/ FLd: 10.8V |
|
Environmental |
|
|
Operating Temperature Range |
-20℃~55℃ (To run at full rated current continuously) |
|
LCD Temperature Range |
-20℃~70℃ |
|
Humidity Range |
≤95% No condensation |
|
General Specification |
|
|
Protection Class |
IP30 |
|
Dimension |
123*178*48 |
|
Installation Hole |
108*120 ∅5 |
The ROCKSOLAR Standard Solar Off-grid System is a set of solar-powered equipment that includes a 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System, a 150W 12V Rigid Monocrystalline Solar Panel, and a 2000W Pure Sine Wave Power Inverter.
The LiFePO4 battery has a capacity of 100 amp hours.
The LiFePO4 battery provides consistent power output and has a flat voltage curve, which results in a steady power output as the battery discharges.
The LiFePO4 battery provides a steady power output throughout its discharge, whereas similar-sized SLA batteries have a dramatically dropping power output.
The LiFePO4 battery weighs 27 Lbs.
The ROCKSOLAR Standard Solar Off-grid System includes a 150W 12V Rigid Monocrystalline Solar Panel.
The monocrystalline solar cell in the solar panel has a conversion efficiency of 22%.
Yes, various power levels of the solar panel are available, including 50W, 100W, and 150W.
Yes, the solar panel comes with pre-drilled holes on the back for quick and easy mounting on any surface.
The 2000W Pure Sine Wave Power Inverter has a DC 24V to 110V AC Converter, Digital Display, 2.1A USB Charging Port, and an automatic overheat protection fan. It is designed for off-grid setups.
The controller supports both Lithium and Lead Acid batteries.
The maximum open voltage of the PV module is 55Vdc.
The MPP tracking efficiency is 99.5%.
