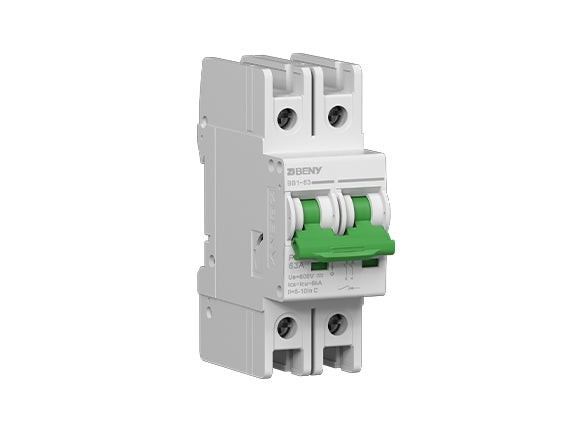

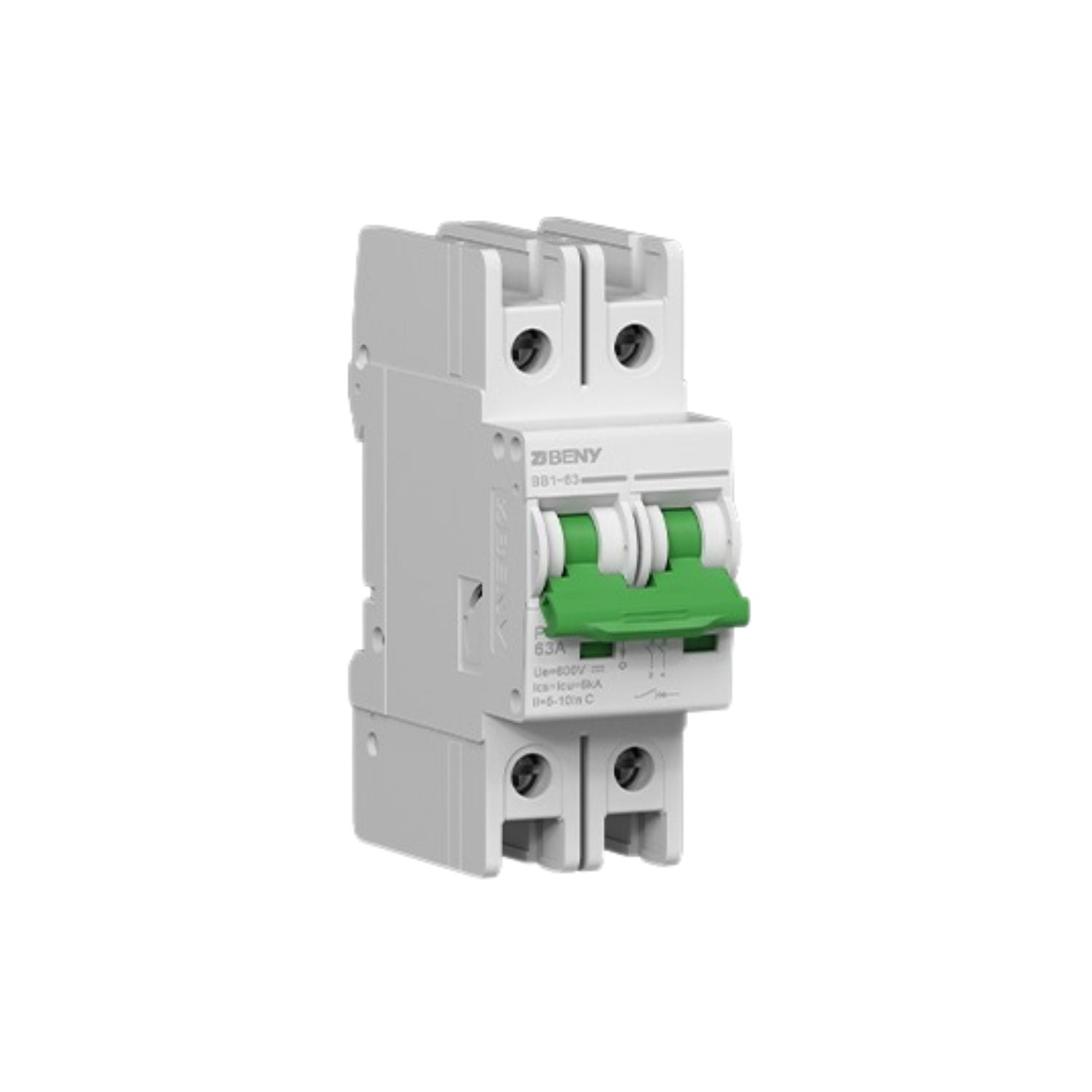

ZJ Beny DC Mini Circuit Breaker 600V 20A
ZJ Beny DC Mini Circuit Breaker 600V 20A
Prix habituel
$39.99 CAD
Prix habituel
$69.99 CAD
Prix soldé
$39.99 CAD
Prix unitaire
par
Frais d'expédition calculés à l'étape de paiement.
- Non-polarity
- High Short-Circuit / Breaking Capacity
- Overload, Short Circuit, Unfrequent Operation and Anti-reflux Protection
- p to 600V 20A
- Comply with: UL 489B
- Breaking Capacity: 5kA
Impossible de charger la disponibilité du service de retrait
- Description
- Applications
- Specifications
- Datasheet
- Reviews
ZJ BENY BDM series PV DC miniature circuit breakers (MCB) can be used in solar DC circuits up to 600VDC. Applications in solar DC Circuits, battery energy storage & UPS. ARC flash barrier design keeps solar equipment safe & reliable. For DC circuit over-current protection.
Features:
- All sides IP40, Connection Terminal IP20
- AS60947.2 and IEC 60947-2 standard
- Protection functions; Overload, short circuit, unfrequented operation
- High short circuit / breaking capacity
- Rated voltage up to 600V DC
- Tested to extreme conditions -40 - +70 degrees Celsius
- A range of current sizes available
- Marine
- RV's
- Caravans
- Off-Grid Systems
- Tiny Houses
- Cabins
Electrical Characteristics | Details |
---|---|
Type | BBI-63 |
Comply with | UL 489B |
Pole | 2P |
Rated Working Voltage (Ue) | 600V DC |
Conventional thermal current (Ith) | 50A |
Rated Current (In) | 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A |
Rated Insulated Voltage (Ui) | 1200V DC |
Rated Impulsed Voltage (Uimp) | 6kV |
Ultimate Breaking Capacity (Ics) | 5kA |
Tripping Type | Thermal Magnetic Type |
