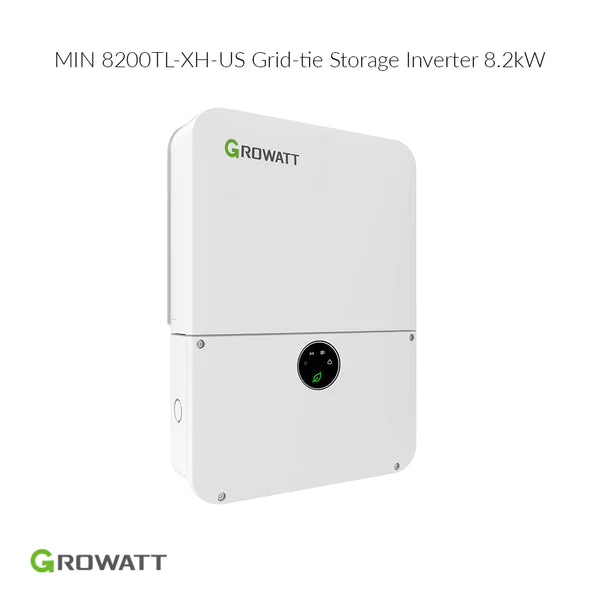

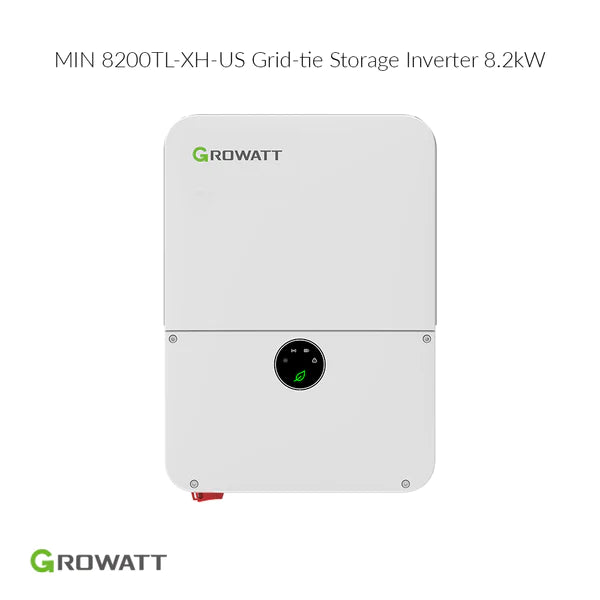

Growatt 8.2kW MIN 8200TL-XH-US Grid-Tie Inverter | Battery Storage Solar Inverter

Growatt 8.2kW MIN 8200TL-XH-US Grid-Tie Inverter | Battery Storage Solar Inverter

Prix habituel $3,599.99 CAD
Prix habituel $4,599.99 CAD Prix soldé $3,599.99 CAD
Vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
  • 98.3% Efficiency: Maximizes solar conversion.
  • Dual Function: Grid-tie and battery storage, with off-grid support.
  • 4 MPPT Trackers: Optimizes solar energy capture.
  • Flexible Compatibility: Works with Growatt and LG batteries.
  • Remote Monitoring: Easy tracking via WiFi.
  • Safety Features: Includes RSD and AFCI protection.
  • Compliant: Meets UL and CA Rule21 standards.
  • 10-Year Warranty: Ensures long-term reliability.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support



Afficher tous les détails



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Growatt 8.2kW MIN 8200TL-XH-US Grid-Tie | Battery Storage Solar Inverter

The Growatt 8.2kW MIN 8200TL-XH-US is an advanced grid-tie inverter with multifunctional capabilities for both grid-tie and battery storage systems. Designed specifically for residential energy storage systems, this model also supports off-grid and solar systems when paired with Growatt ATS (Auto Transfer Switch). With its plug-and-play WiFi module, monitoring your power system's status online via mobile phone or website portal has never been easier.

  • Leading Functions: Offers whole home backup, dark start operation, and supports RSD, AFCI, and RGM meter for comprehensive control and safety.
  • High Yields: With a DC/AC Ratio up to 2.0 and maximum efficiency of 98.3%, it maximizes energy production and savings.
  • System Compatibility: Adaptable for both DC Coupled and AC Coupled systems, it caters to self-consumption, Zero Export, TOU, and Off-Grid applications while complying with UL1741SA/SB, CA Rule 21 & HECO standards.
  • Versatile Battery Compatibility: Works seamlessly with Growatt ARO HV Battery / LG Prime(Gen3) Battery, offering flexibility in energy storage options.
  • Advanced Monitoring and Communications: Integrated CAN2.0, RS485, SUNSPEC communications alongside APP and website connectivity ensure easy system management.
  • Robust Warranty and Certifications: Backed by a 10-year warranty and certified under UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, making it a reliable choice for your home.

The Growatt MIN 8200TL-XH-US Solar Inverter stands as a testament to Growatt's innovation and commitment to renewable energy, offering homeowners a powerful, efficient, and reliable solution for harnessing solar power, enhancing energy independence, and reducing environmental impact.

  • 1x MIN 8200TL-XH-US Inverter: A high-efficiency inverter supporting DC/AC coupled systems, backup power, and multiple energy modes.
  • 1x User Manual: Instructions for installation, setup, and operation.
  • Optional Communication Module: For remote system monitoring and management.
  • 1x AC Connection Cable: Connects the inverter to AC power.
  • 1x PV Connection Kit: For safe solar panel integration.
  • 1x Battery Cable: Links the inverter to battery storage.
  • Mounting Hardware: Includes brackets and screws for installation.
  • 1x Warranty Documentation: Covers warranty terms and support information.

Technical Specifications


Specification Details
Manufacturer Growatt
Type Grid-Tie / Battery Ready
AC Power 8.2kW
Max PV Input Power 16.4kW
MPP Trackers 4
MPPT Voltage Range 170~500V
Max Efficiency 98.3%
Compatible Battery Growatt ARO HV Battery / LG Prime(Gen3) Battery
Warranty 10 Years
Communications CAN2.0, RS485, SUNSPEC / APP, Website
Certificate UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540
PV Input
Max PV Input Power 16.4 kW
Max Input Voltage 600V
Full Load Voltage Range 170~500V
Max Input Current per MPTT 13.5A
Max Short-circuit Current per MPTT 16.9A
MPP Trackers 4
Strings per MPP Tracker 2
Battery Connection
Battery Voltage Range 360~550V
Rated Battery Voltage 400V
I/O DC Current 24A/24A
I/O DC Power 8.5kW
AC Output (Grid)
Nominal Power 8.2kW
Max Output Current 35A
Nominal AC Voltage 208/240V
General Data
Dimensions (H*W*D) 15.8*25.2*7.4 inch (400*638*187mm)
Weight 45.2lbs (20.5kg)
Installation Indoor, Outdoor, Wall-mounted
Monitoring Module WiFi+ LAN, 4G(Optional)


This inverter operates at a maximum efficiency of 98.3%, ensuring that a significant portion of the solar energy collected is converted into usable power for your home.

Yes, while it is designed primarily for grid-tie and battery storage systems, it can also support off-grid operations when paired with Growatt ATS (Auto Transfer Switch) and appropriate storage batteries.

Indeed, it is equipped with four MPPT trackers, allowing it to efficiently manage multiple PV arrays for optimal solar energy harvest.

The Growatt 8.2kW inverter supports battery storage solutions and is compatible with Growatt ARO HV Battery / LG Prime(Gen3) Battery, offering flexibility in energy storage options.

Yes, the inverter includes a WiFi module for convenient plug-and-play online monitoring, allowing you to oversee your power system's status via a mobile app or web portal.

The inverter comes with a 10-year warranty, highlighting Growatt's commitment to durability and customer satisfaction.

The Growatt MIN 8200TL-XH-US includes safety features like Rapid Shutdown (RSD), Arc Fault Circuit Interrupter (AFCI), and is equipped to support RGM meters, providing multiple layers of protection for your solar energy system.

Yes, it complies with several industry standards including UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, and is UL9540 compliant, ensuring broad acceptance in various installations.
