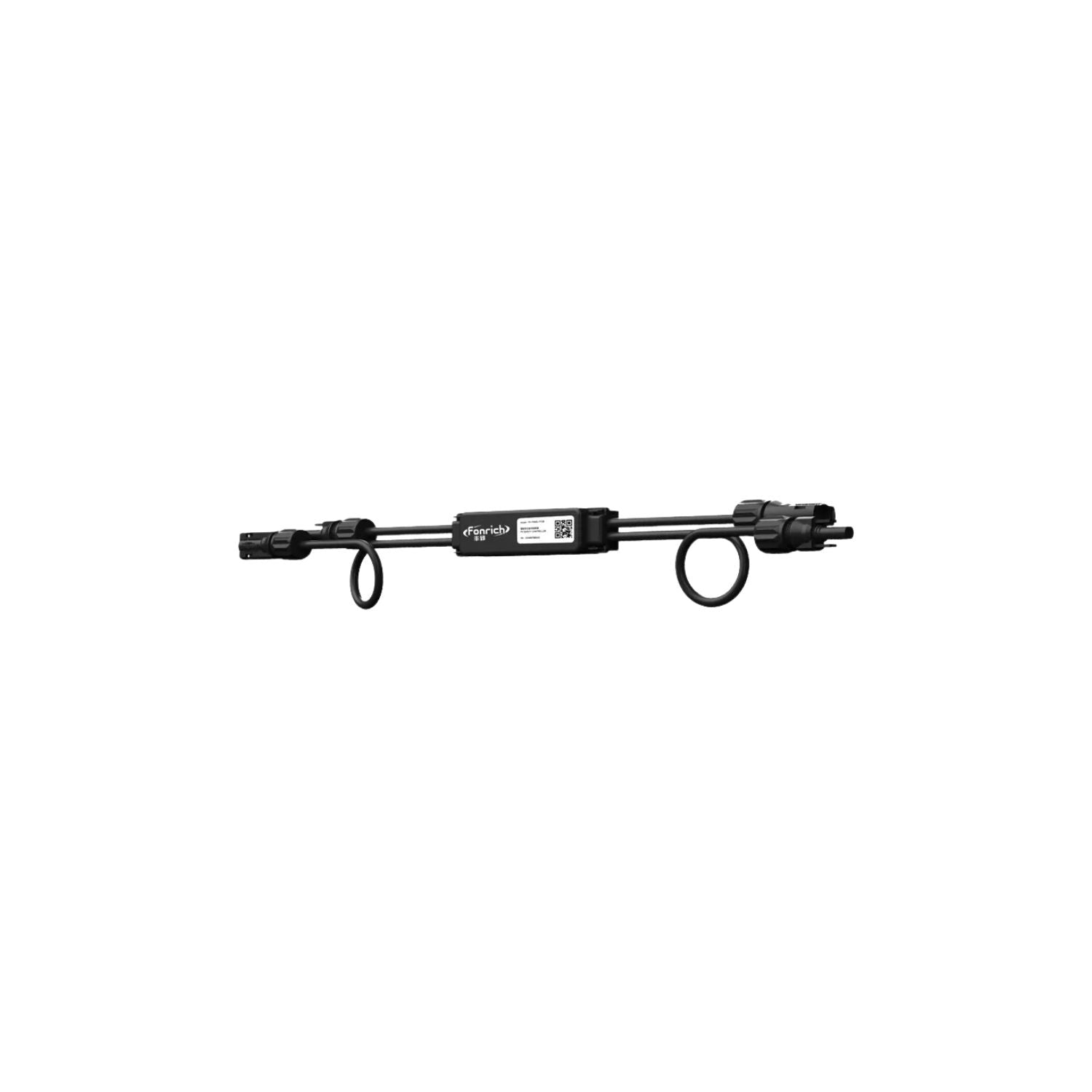

Fonrich PV Module Rapid shutdown module FR-PVMS-TFxC 60V 20A

Name: Fonrich PV Module Rapid shutdown module FR-PVMS-TFxC 60V 20A
Brand: ROCKSOLAR CANADA
Price: 59.99 CAD
Availability: InStock

$59.99 CAD

~~$89.99 CAD~~ $59.99 CAD

Vente Épuisé

Frais d'expédition calculés à l'étape de paiement.

PV Module Level Arc Fault Protection: Arc fault detection: series and parallel arc. Quickly extinguish the arc, effectively preventing fire accidents.
PV Module Rapid Shutdown: Initiative or manually shuts off, to ensure maintenance and fire safety.
PV Module Real-Time Monitoring: Including voltage, power, power generation, IV working point, temperature, and other data. Use snapshots to show the collective data.
Fault Notification: Real-time push information on abnormal situations of PV panels.
Flexible Configuration and Customize Design: Long string design to reduce construction costs.
Bidirectional PLC Technology: 1600m super long communication distance.

Variantes de produits

Quantité

Product Features

PV Module Level Arc Fault Protection: Arc fault detection: series and parallel arc. Quickly extinguish the arc, effectively preventing fire accidents.
PV Module Rapid Shutdown: Initiative or manually shuts off, to ensure maintenance and fire safety.
PV Module Real-Time Monitoring: Including voltage, power, power generation, IV working point, temperature, and other data. Use snapshots to show the collective data.
Fault Notification: Real-time push information on abnormal situations of PV panels.
Flexible Configuration and Customize Design: Long string design to reduce construction costs.
Bidirectional PLC Technology: 1600m super long communication distance.

Item	FR-PVMS-TFxB	FR-PVMS-TFxC	FR-PVMS-TFxH
Max input operating voltage	60V	60V	80V
Max continuous input/output current (Imax)	16A	20A	16A
Cable Size (square millimeters)	4	4	4
Pollution degree	PD3	PD3	PD3
Operating ambient temperature range	-30°C ~ +70°C	-30°C ~ +70°C	-30°C ~ +70°C
UV exposure	Yes	Yes	Yes
Ingress protection	IP68	IP68	IP68
Communication	Power Line Carrier Communication	Power Line Carrier Communication	Power Line Carrier Communication
Max cable loop length	1600m	1600m	1600m
Max PV modules under one PLC transceiver	624	624	624
Max PV strings under one PLC transceiver	24	24	24
