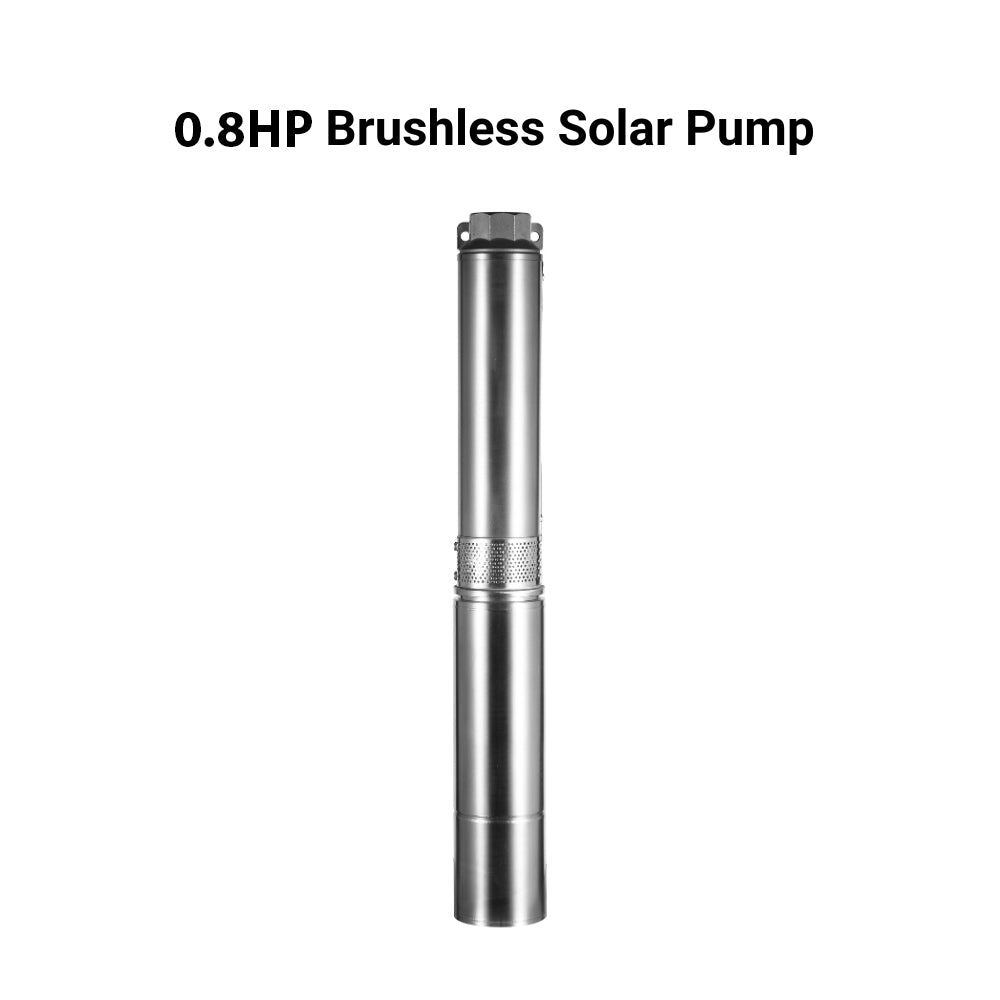

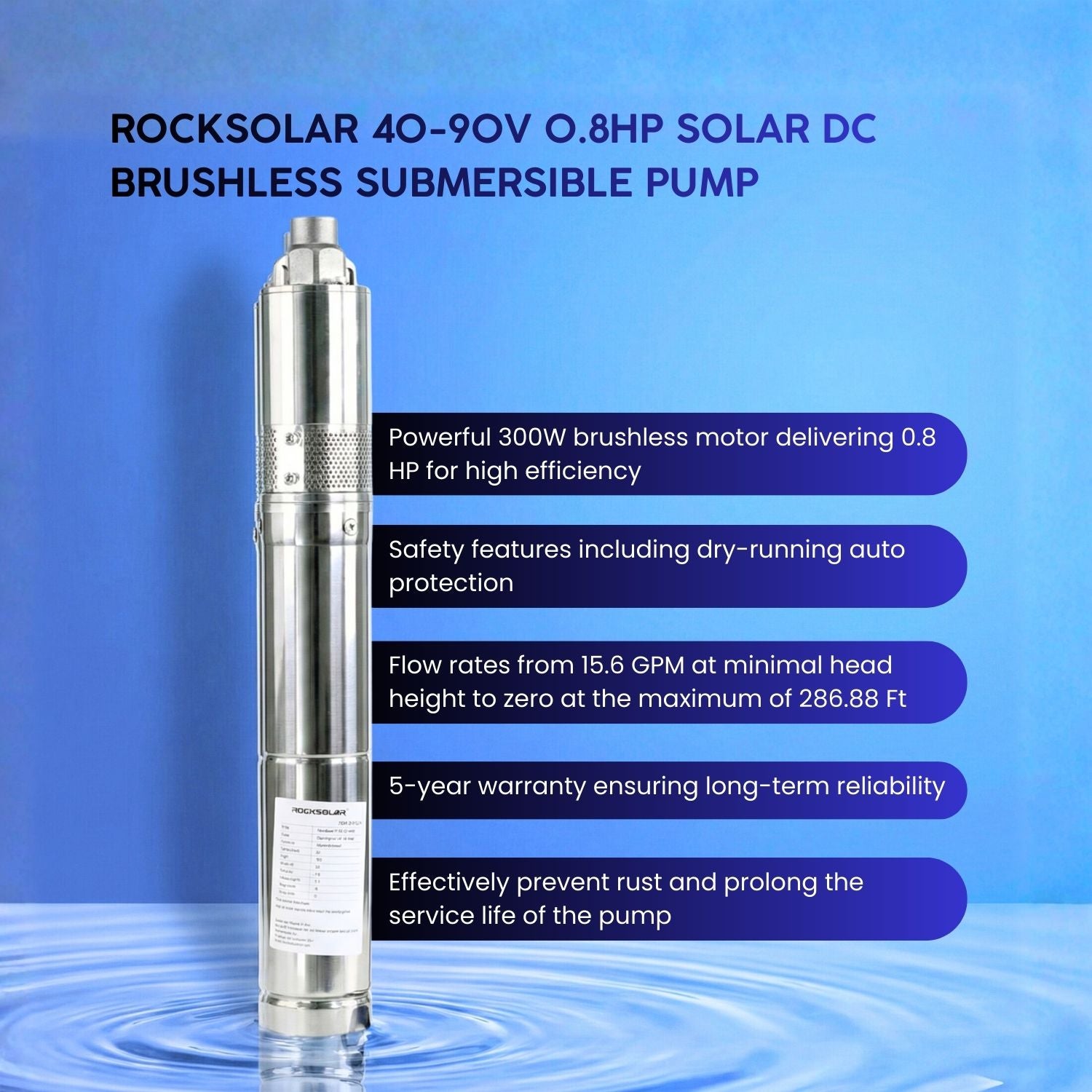

Rocksolar 40-96V 0.8HPSolar DC Brushless submersible Pump with Built in Controller

Rocksolar 40-96V 0.8HPSolar DC Brushless submersible Pump with Built in Controller

$759.99 CAD
$1,499.99 CAD $759.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • Powerful Motor: 600W, 0.8 HP for superior performance.
  • Voltage Flexibility: 40-90V, optimal at 60-76V.
  • Solar Compatible: Supports two 440W panels.
  • Max Flow: 15.85GPM at minimum head.
  • Dimensions: 3" diameter, 1.5" outlet.

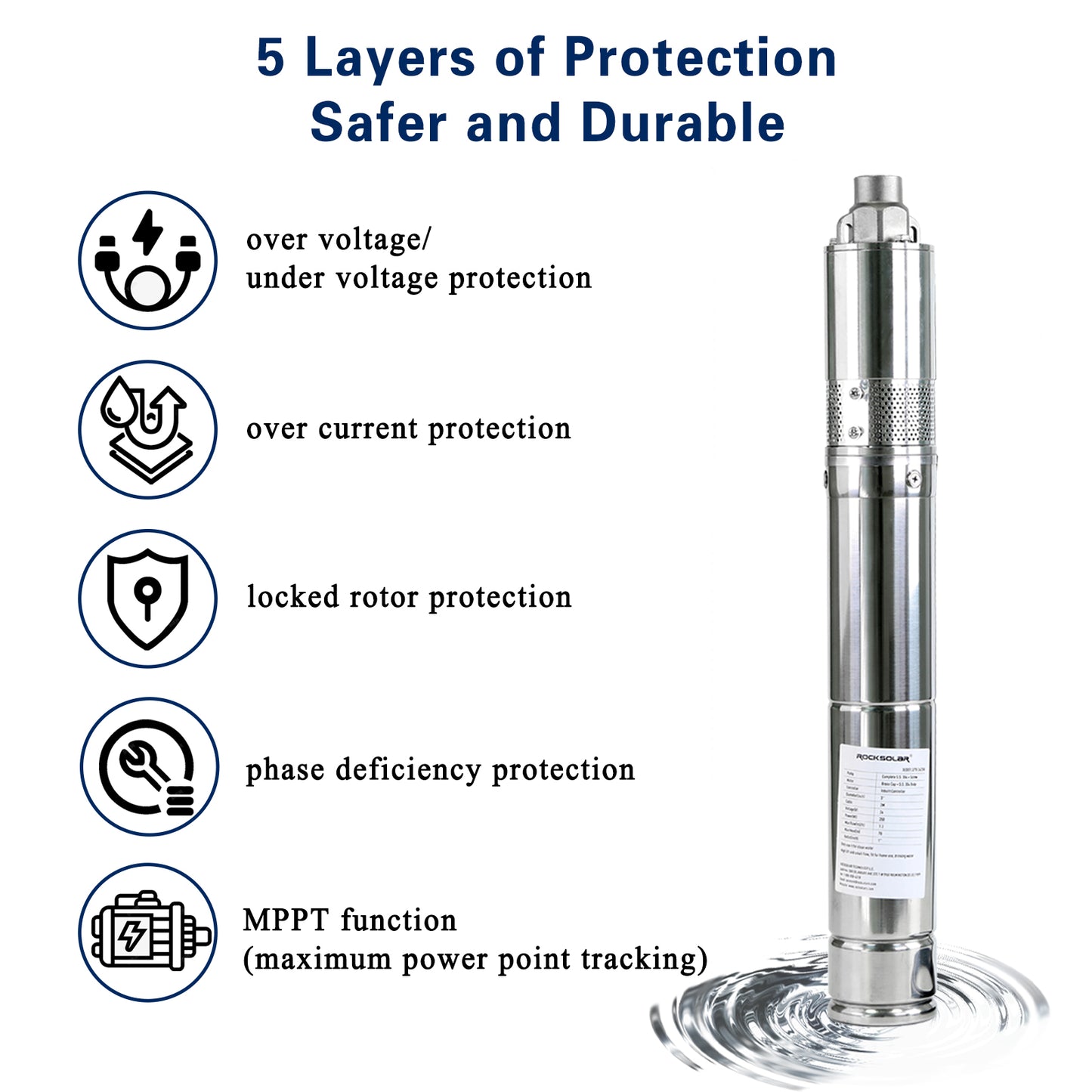

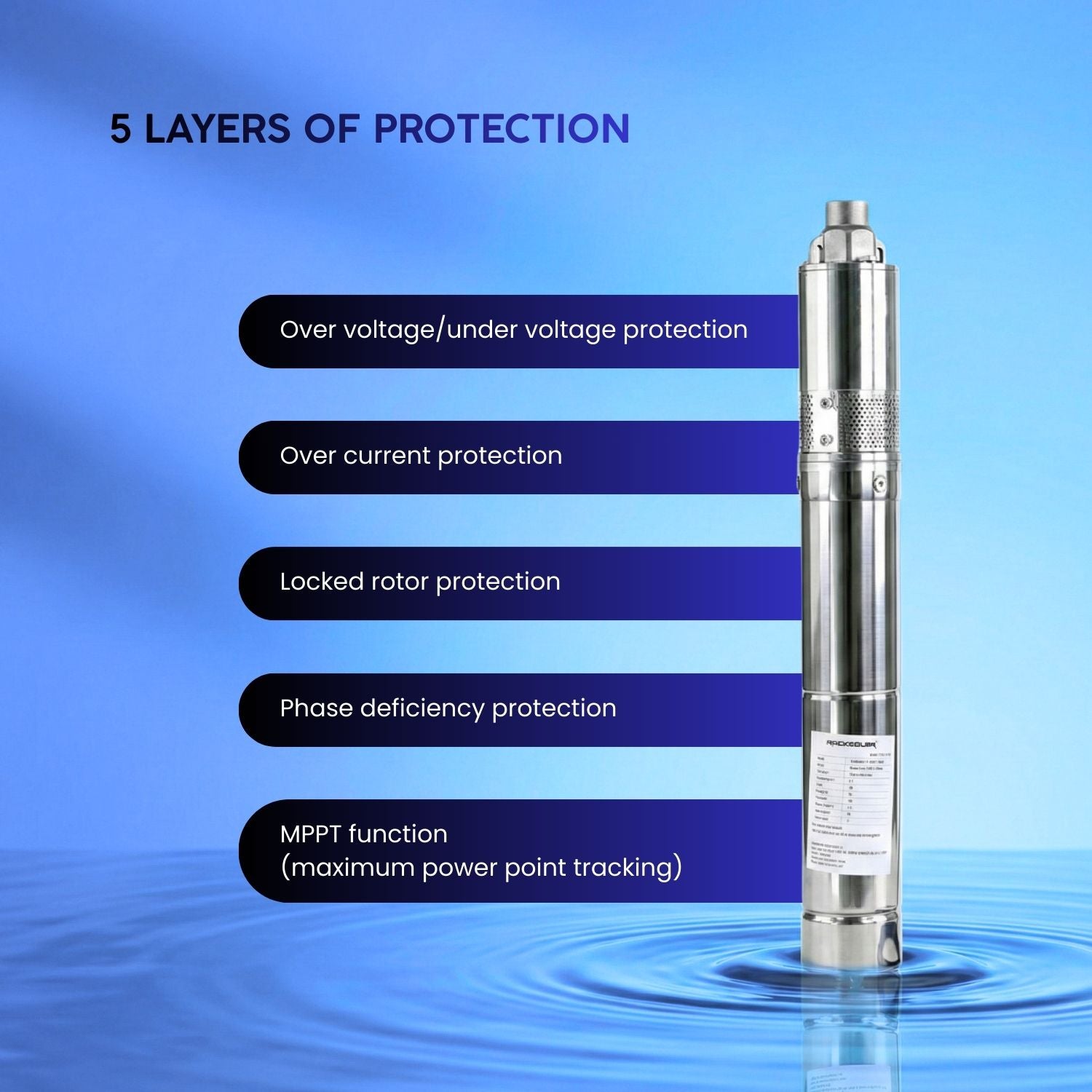

  • Safety: Features dry-running auto protection.
  • Working: Can be powered by solar panels and battery.
  • Pressure: 127.6PSI Max.
  • Max Depth: 289 feet/15.85 GPM.
Shipping

Free
Local Shipping

Warranty

25-years Hassle Free
Warranty

Support

Lifetime Customer
Support
View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Experience superior water management with the Rocksolar 0.8HP Pump. Engineered for high efficiency, this pump is compatible with solar power systems, ensuring optimal performance across a range of applications from home gardening to agricultural irrigation. With a robust 0.8HP motor and a voltage range of 40-96V, it combines power with energy efficiency.

Technical Specifications

  • Power and Efficiency: 0.8HP motor, designed for 40-96V operation with best performance at 60-76V. Delivers 0.8 HP.
  • Solar Panel Compatibility: 2X440W panels for flexible solar configurations.
  • Performance Metrics: Flow rates from 15.85 GPM at minimal head height to zero at the maximum depth of 289 feet.

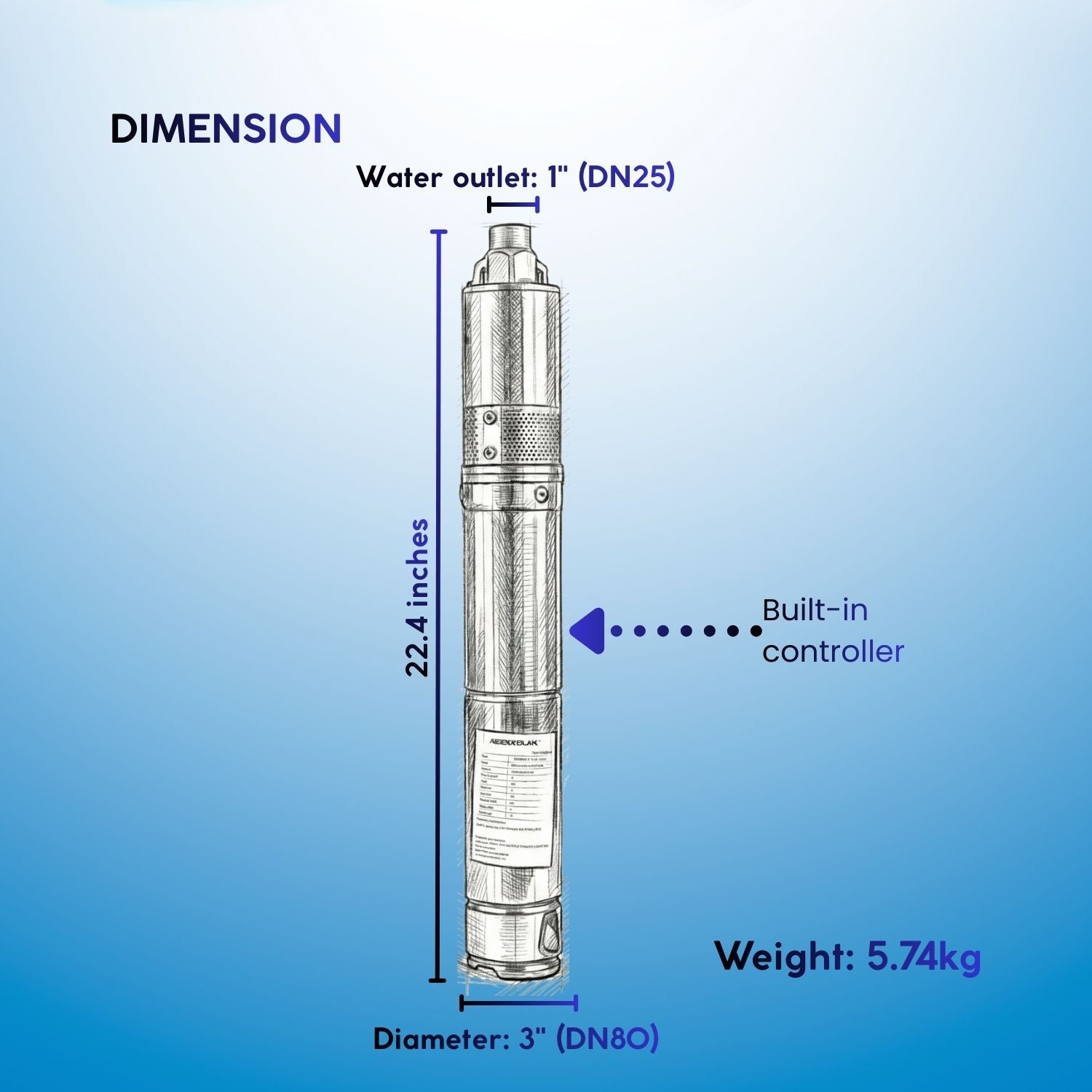

  • Design and Construction: Features a sturdy 3-inch diameter and a 1.5-inch outlet, crafted for easy integration and durability.

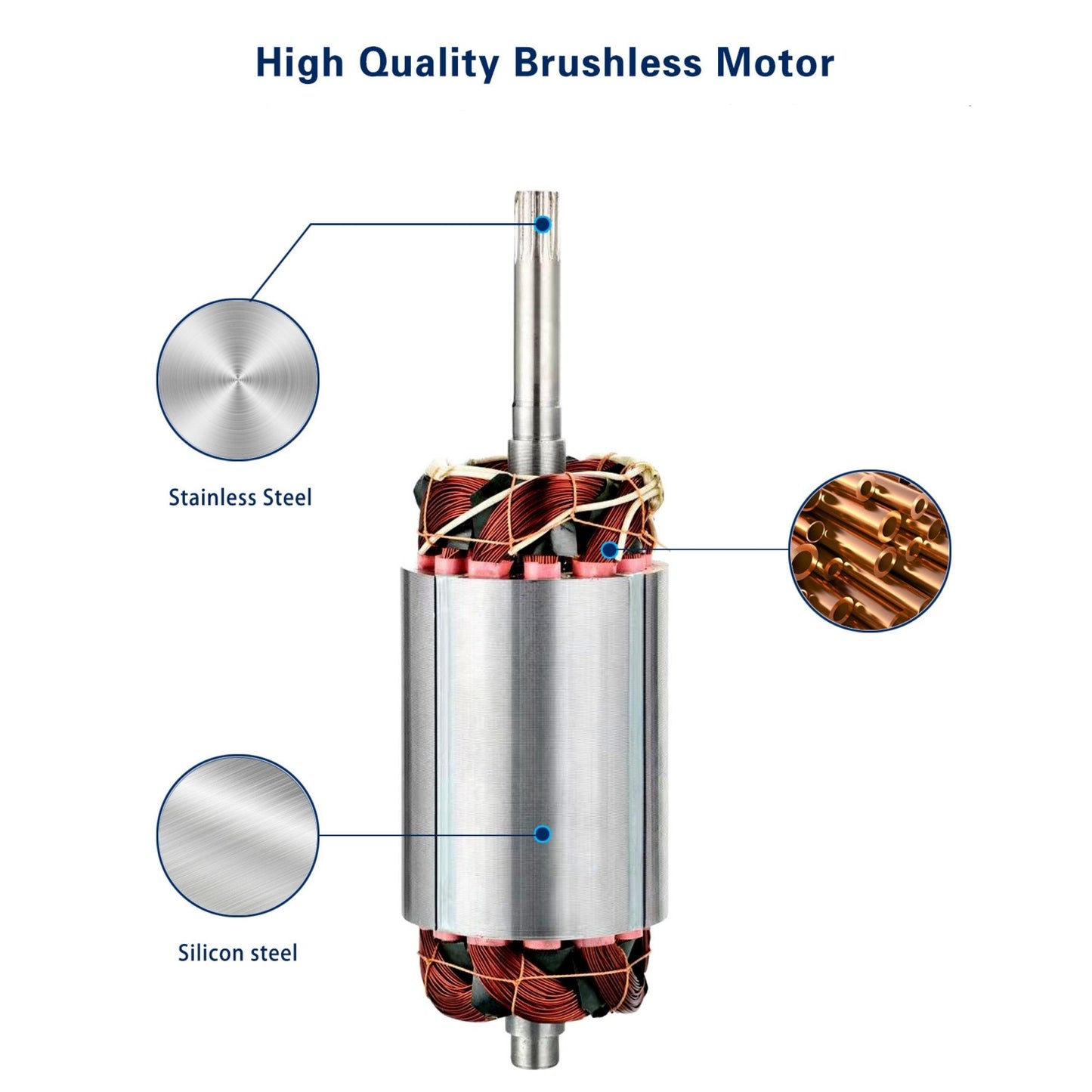

  • Model Specifics: Brushless permanent magnetic motor with an internal controller, ensuring long working life and high efficiency.
  • Safety and Standards: Dry-running auto protection and Franklin motor standard for reliability.
  • Material and Cooling: High-quality SS304 material and water-cooled motor for enhanced durability.
  • Additional Features: Can be powered by both solar panel and battery, with easy installation and no need for an external controller.

The Rocksolar 0.8HP Pump not only offers significant operational flexibility but also stands out with its compatibility with both existing and new solar installations. Whether for daily operation or emergency use, this pump is your dependable choice for efficient and renewable water pumping solutions.


      • Rocksolar 0.8HP Brushless Solar Pump: The main unit featuring a high-efficiency brushless motor and an in-built controller for easy operation.
      • Solar Panel Connectors: Connectors to facilitate easy and secure connection to solar panels.

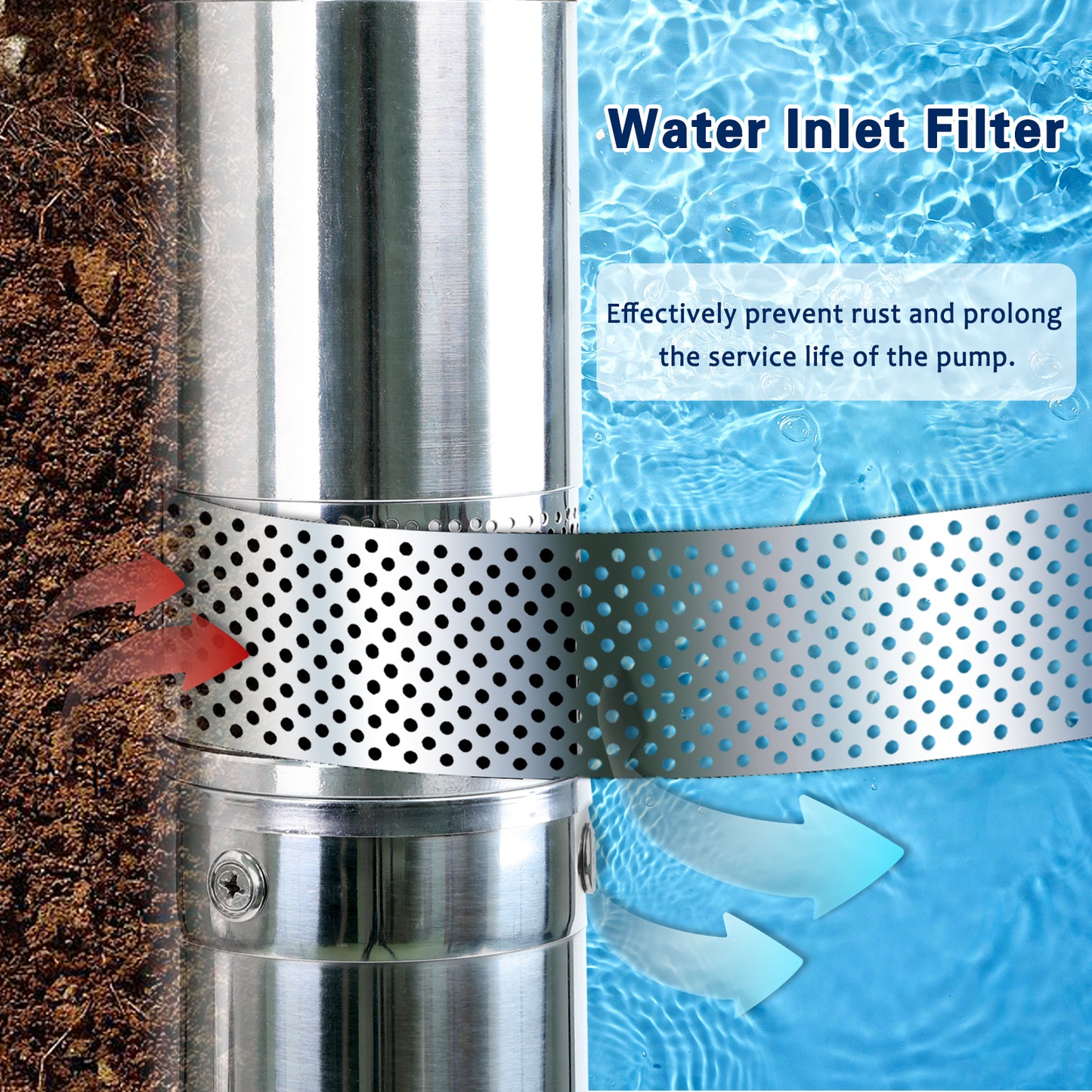

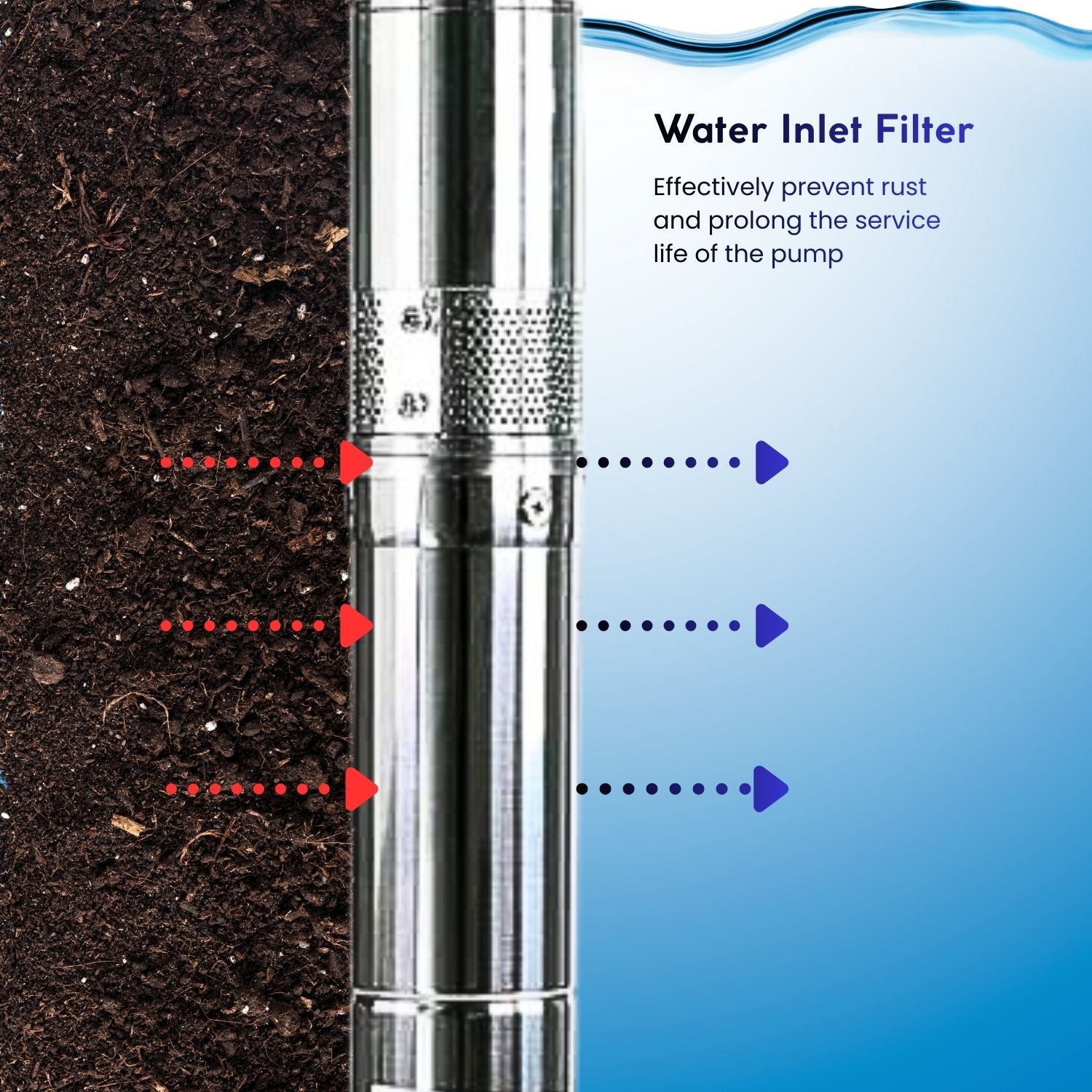

      • Water Intake Mesh Filter: Helps in filtering out debris and protecting the pump’s internal components.
      • Mounting Brackets: For securing the pump in place, ensuring stable installation.
      • User Manual: Detailed instructions on installation, operation, and maintenance.
      • Warranty Card: Information on warranty terms and conditions to ensure peace of mind.
      • Set of Installation Tools: Basic tools required for the initial setup and installation.

    Specification Details
    Model Rocksolar 0.8HP Brushless Solar Pump with In-Built Controller
    Power and Motor 0.8 HP
    Voltage Range 40-90V, Best at 60-76V
    Solar Panel Compatibility Can be paired with two 440W solar panels
    Max Flow Rate 15.85 GPM at 0 meters head
    Max Head 289 Ft
    Pump Diameter 3 inches
    Pump Outlet 1.5 inches

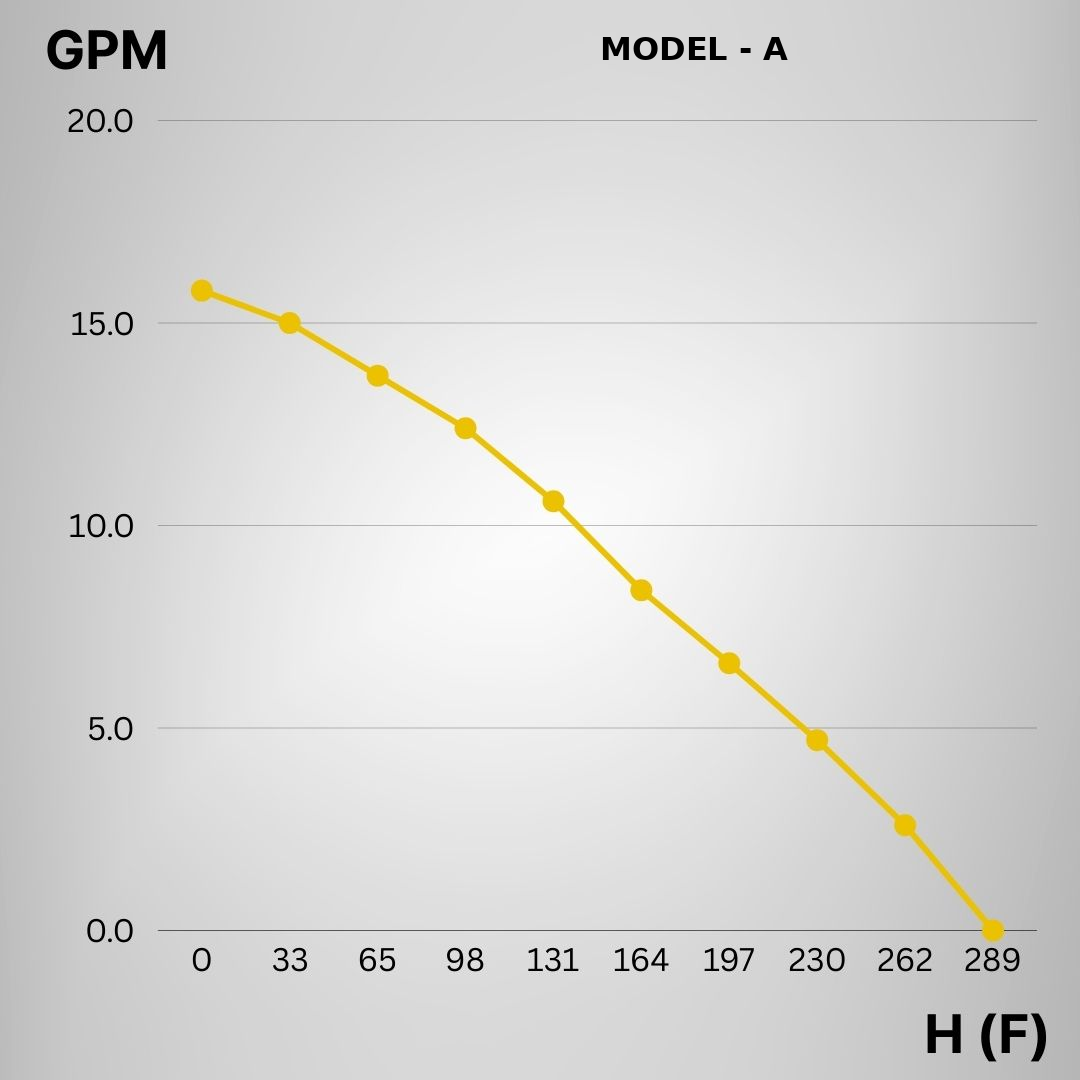

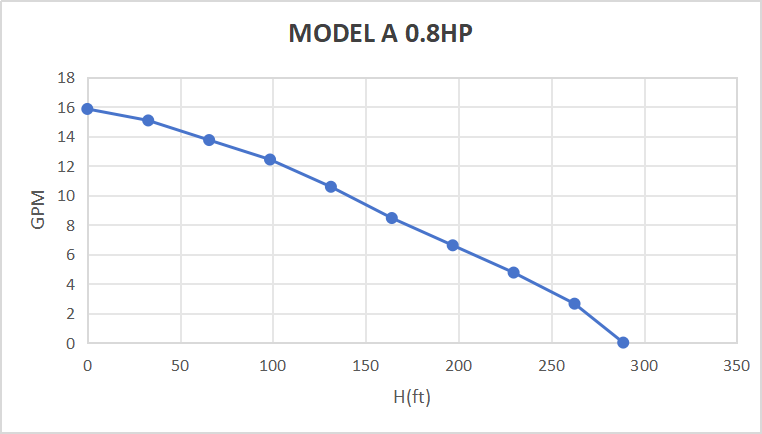

    GPM 15.85,15.06,13.74,12.42,10.57,8.45,6.60,4.75,2.64,0
    Height(F) 0,33,65,98,131,164,197,230,262,289


    The Rocksolar 0.8HP Solar Pump is designed to be powered by solar panels, with optimal performance using two 440W panels. It can also operate within a voltage range of 40-90V, best at 60-76V.

    The maximum flow rate of the Rocksolar 0.8HP Pump is 15.85 GPM at a head height of 0 meters, decreasing as the head height increases, up to a maximum of 289 Ft.

    Yes, the Rocksolar 0.8HP Pump is capable of reaching a maximum head of 289 Ft, making it suitable for deep well water pumping applications.

    Yes, the Rocksolar 0.8HP Pump is built with a robust stainless steel construction and a water-cooled motor, making it durable and reliable for long-term use in outdoor environments.

    Yes, the Rocksolar 0.8HP Pump comes with a standard 5 year warranty.

    Download Product Manual (PDF)
    Download Solar Pump Manual (PDF)
