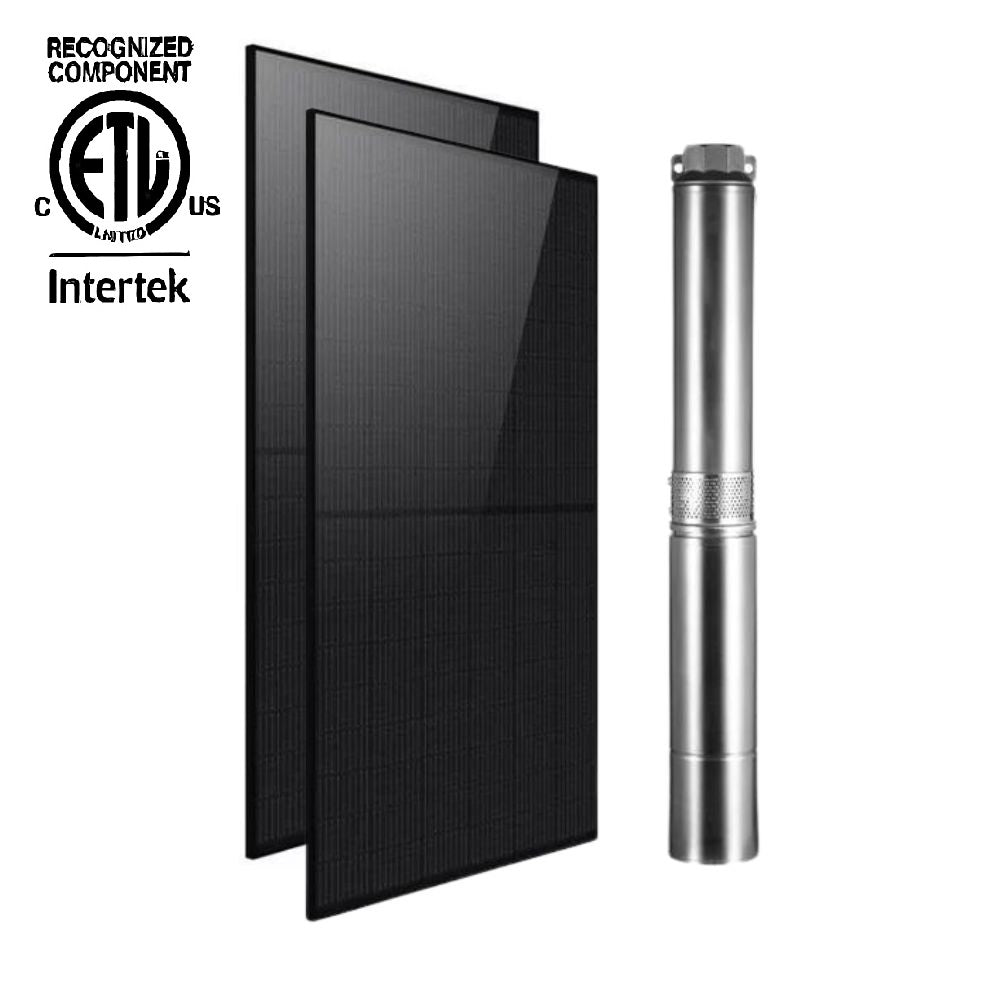

ROCKSOLAR 0.8HP Solar-Powered Submersible Pump Kit

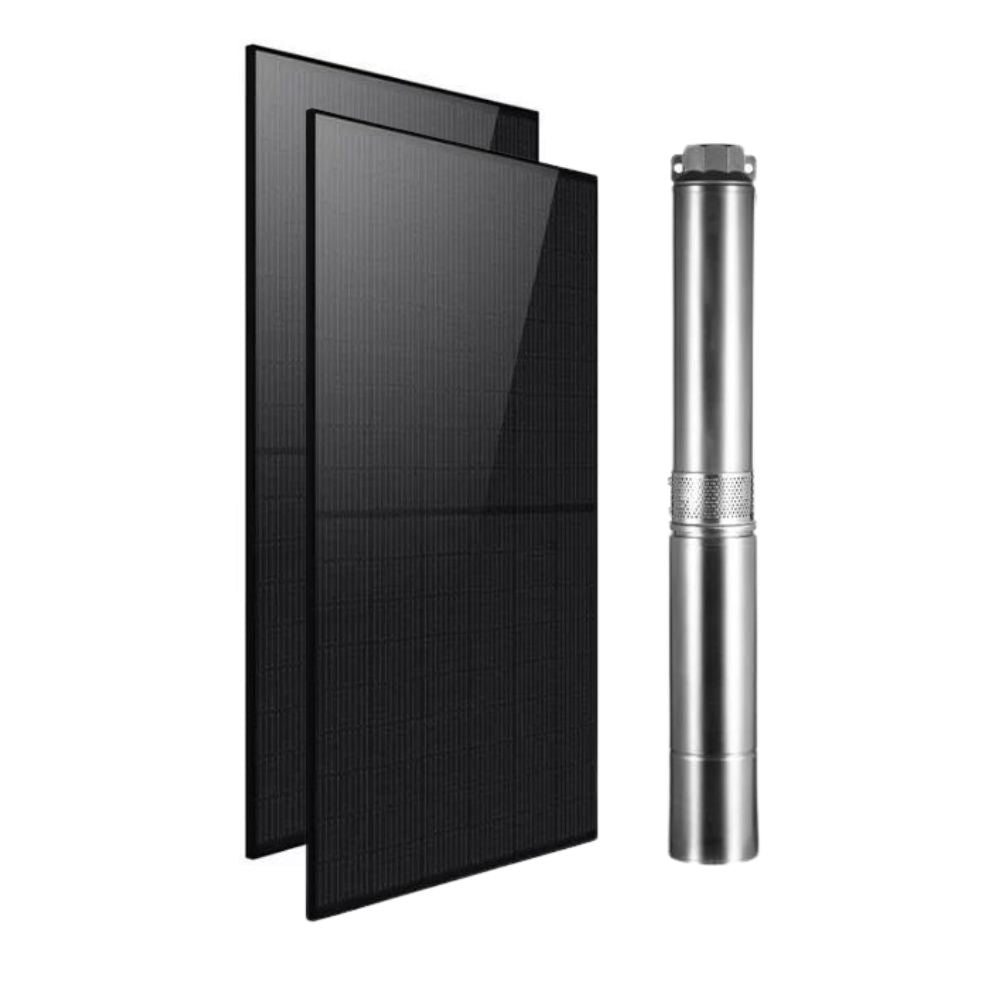

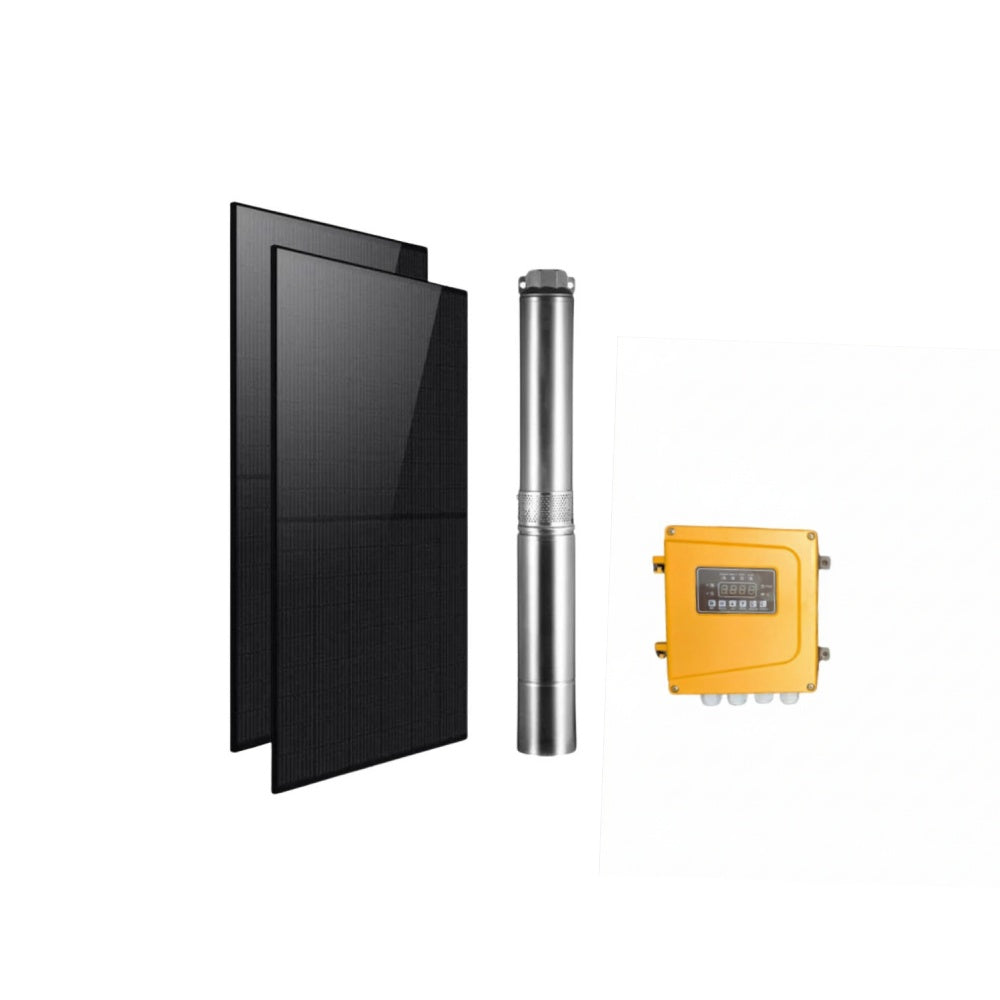

What's included:

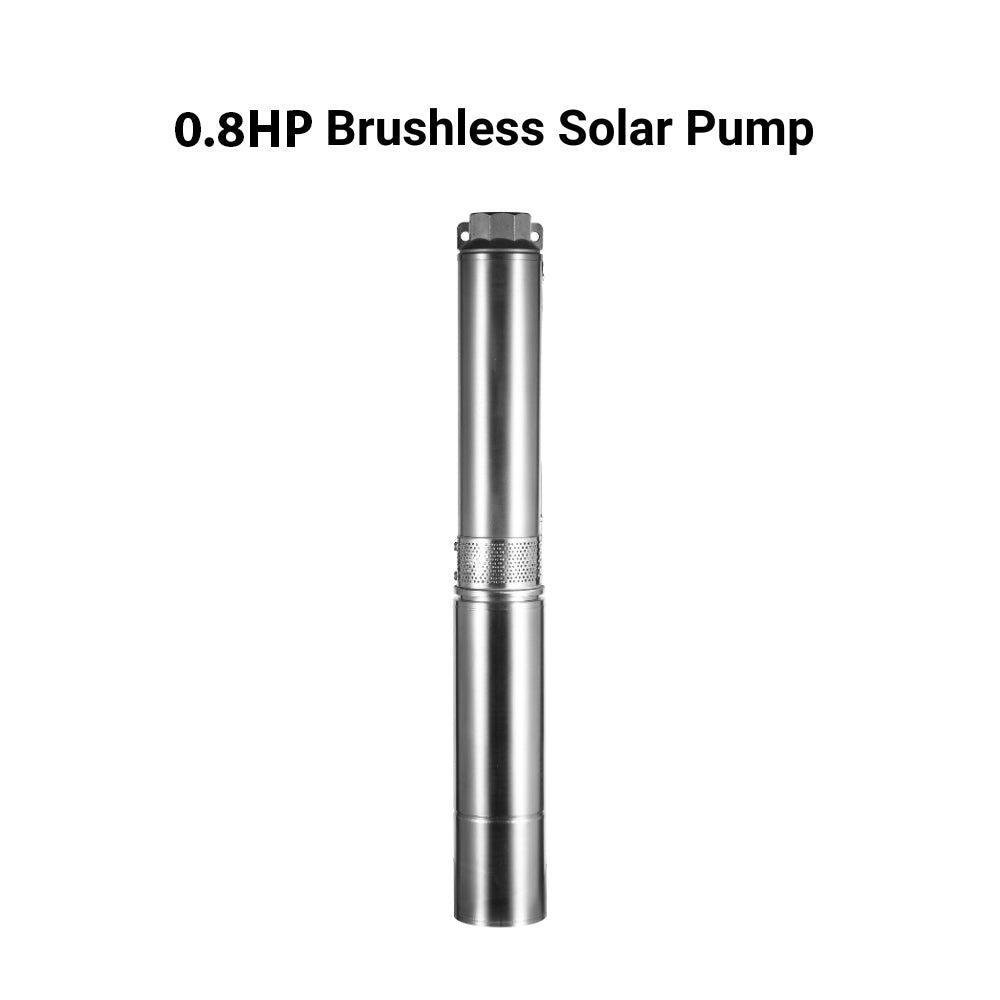

- 1 × 0.8HP 40–96V DC brushless submersible pump + built-in controller
- 2 × 450W rigid monocrystalline bifacial solar panels (880W array)
- 10 ft 10 AWG PV cable
- 1 × 2 String Water proof PV Combiner Box with 32A 500V Circuit Breaker and surge protector
- 2 × Z-bracket solar panel mounting sets (optional)
- User manuals + warranty card
Key specs — all models:

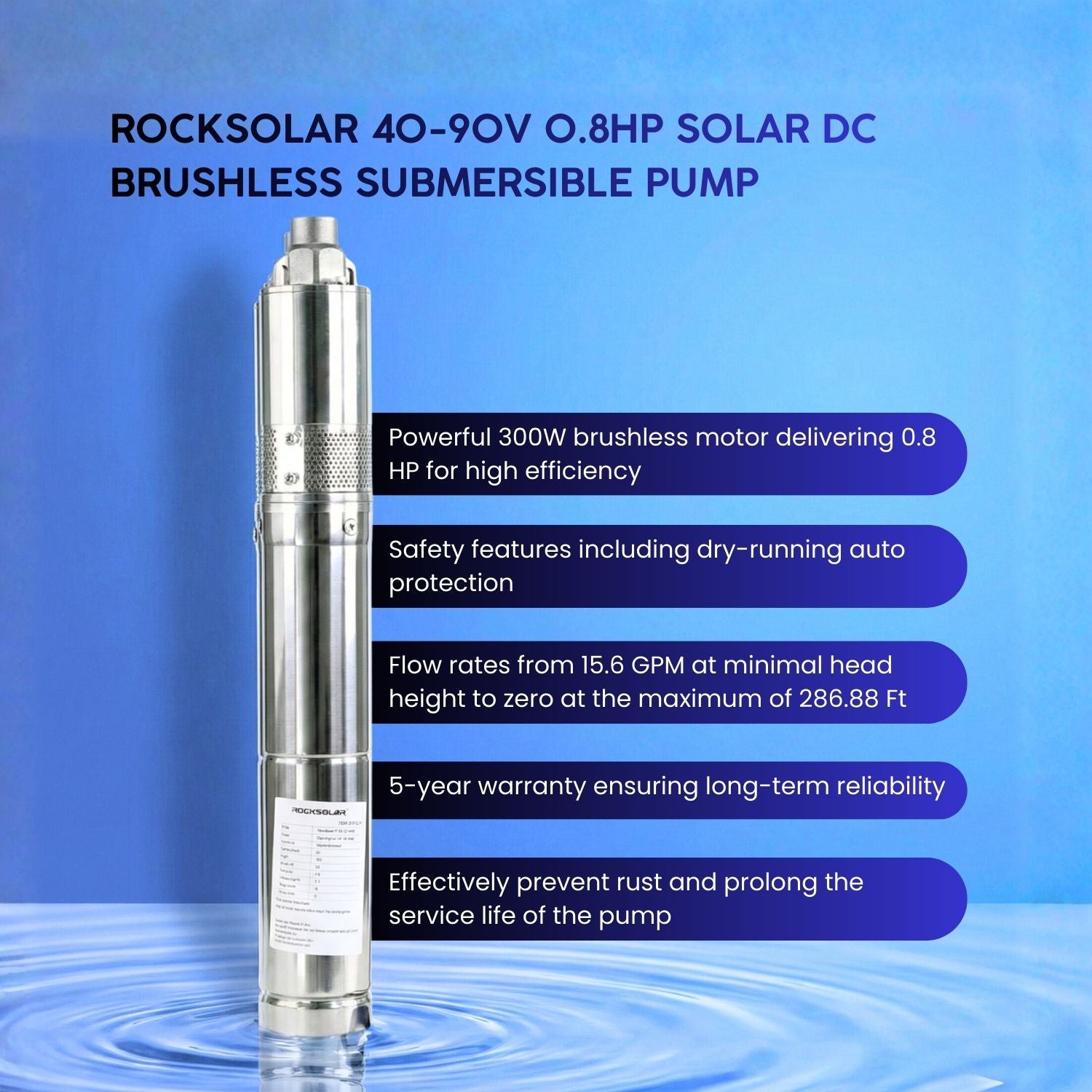

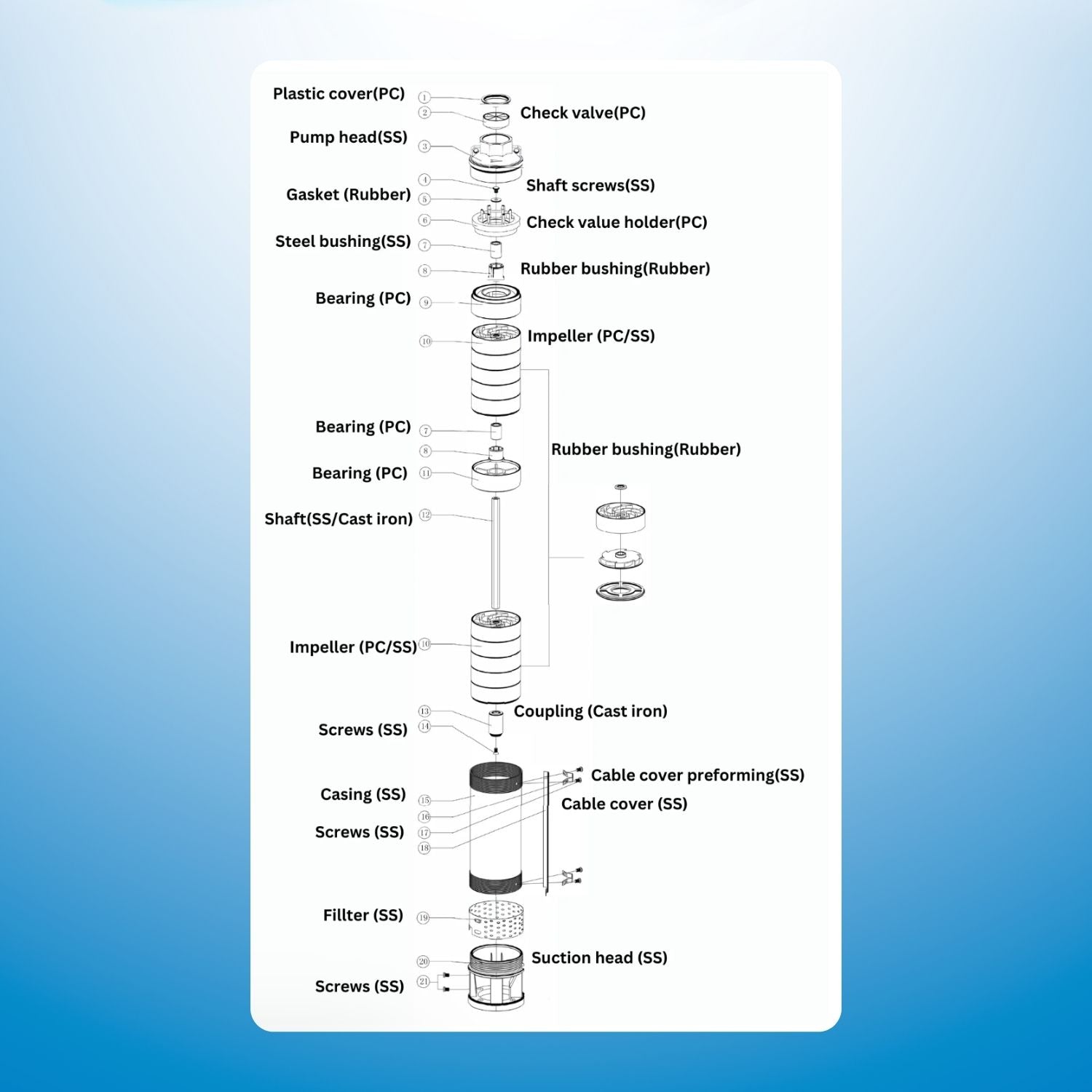

- Motor: 0.8HP DC brushless | Water-cooled | Permanent magnetic | Built-in controller
- Input: 40–96V DC | Solar: 2 × 440W bifacial panels included (880W)

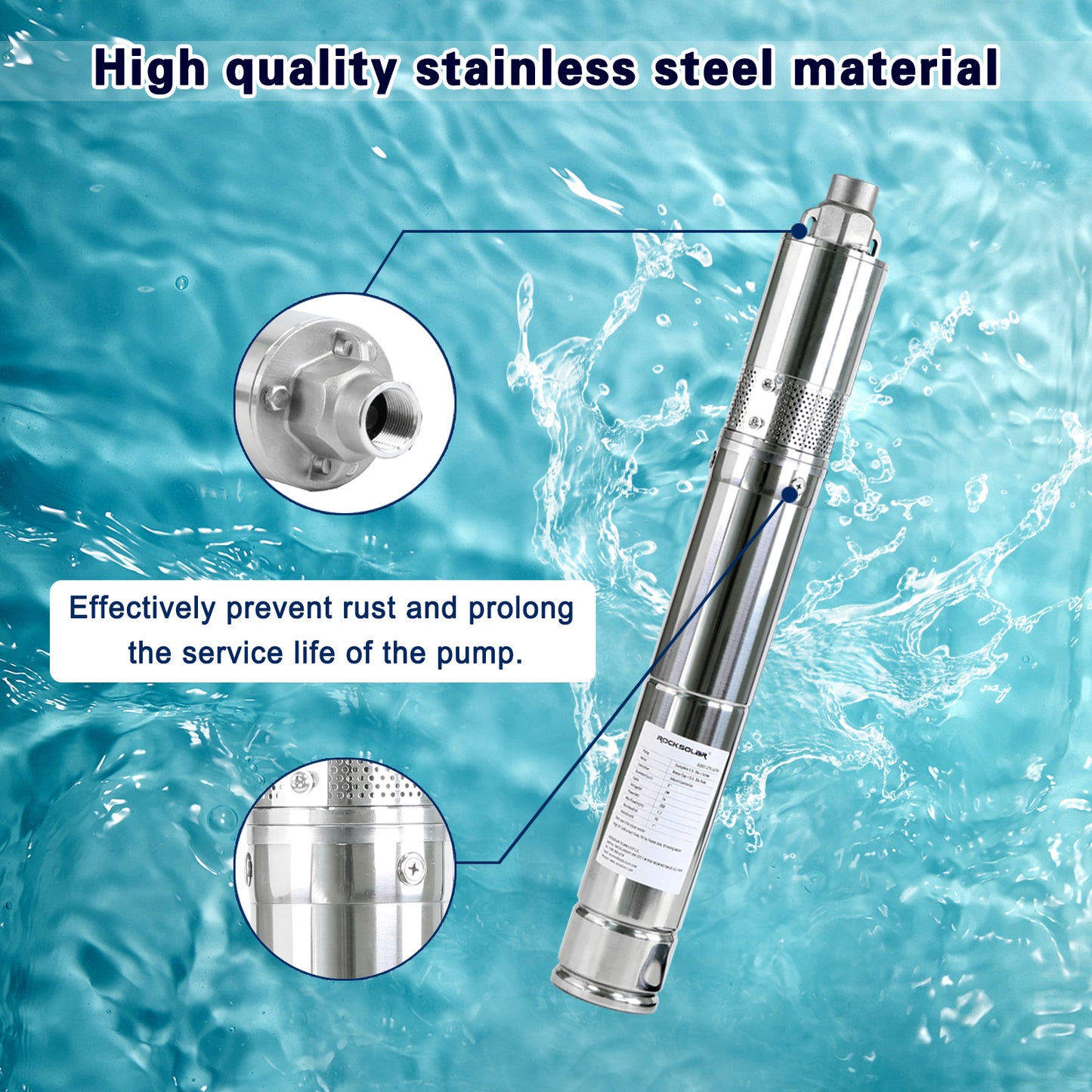

- Material: SS304 stainless steel | Pump type: impeller (centrifugal)
- Works in cloudy conditions | Battery-addable for extended operation
Three kit models — choose by flow vs. depth priority:

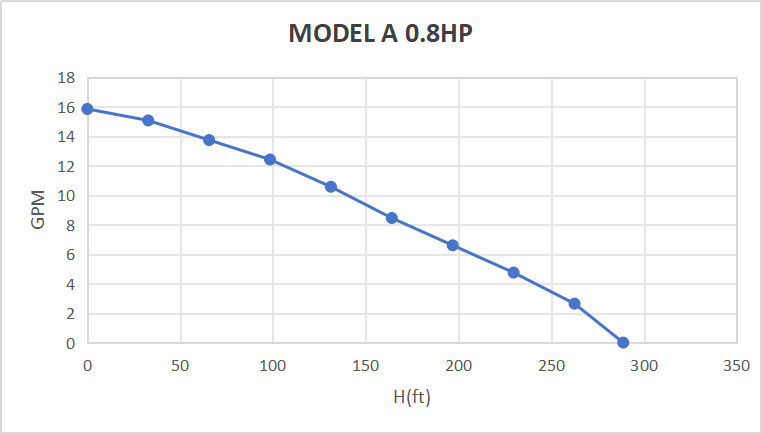

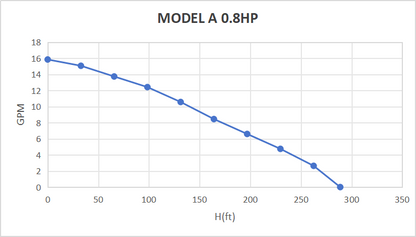

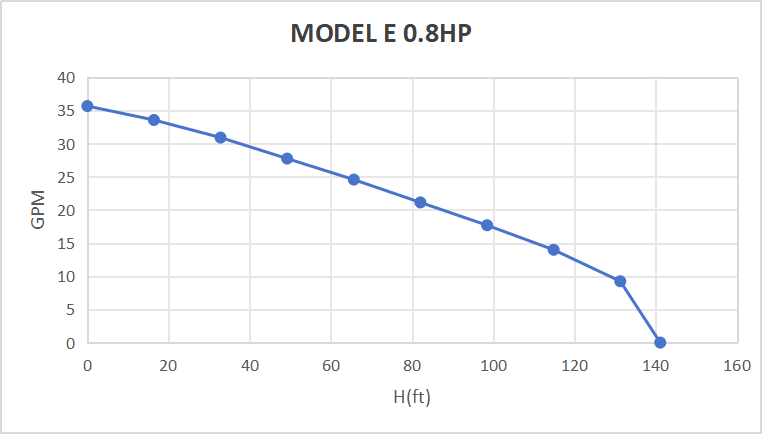

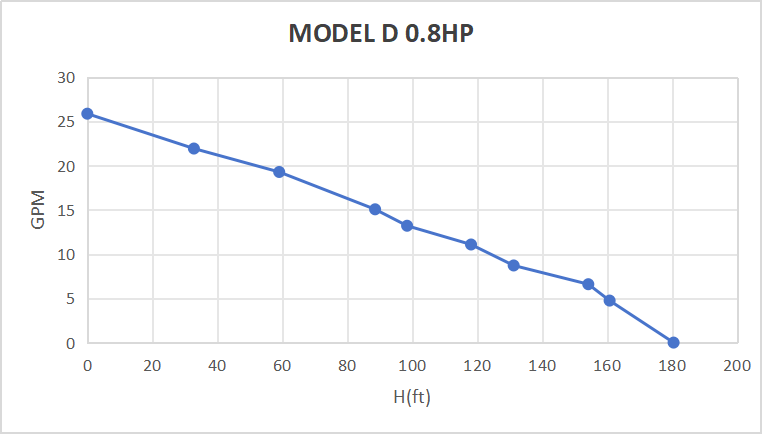

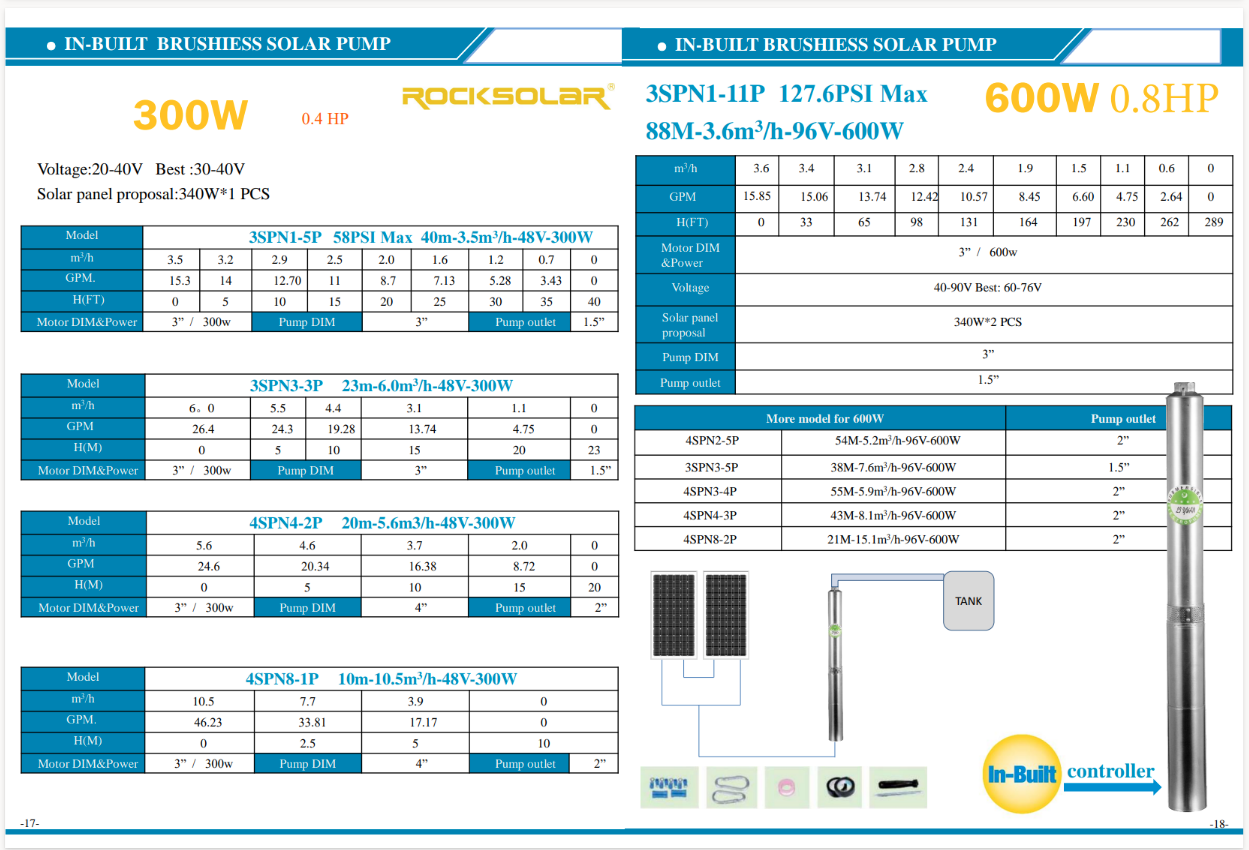

| Model A (3SPN1-11P) | Model D (4SPN3-4P) | Model E (4SPN4-3P) | |
|---|---|---|---|
| Max flow | 15.6 GPM | 25.48 GPM | 35.1 GPM |
| Max head | 289.88 ft | 179.3 ft | 140.18 ft |
| Max pressure | 127.6 PSI | 77.63 PSI | 60.70 PSI |
| Pump body | 3" | 4" | 4" |
| Outlet | 1.5" | 2" | 2" |
Built for: Deep wells, livestock watering (proven for 40–100+ head of cattle), agricultural irrigation, remote farms, off-grid properties, ponds, remote water wells
Key features:
- 880W solar array included — two 440W bifacial panels, ready to power the pump on arrival
- Built-in controller — no separate controller needed, cleaner and simpler installation
- Works even in cloudy conditions — controller manages reduced solar input efficiently
- Battery-addable — extend operation beyond daylight hours
- Float switch / pressure switch compatible — automates tank fill and shutoff

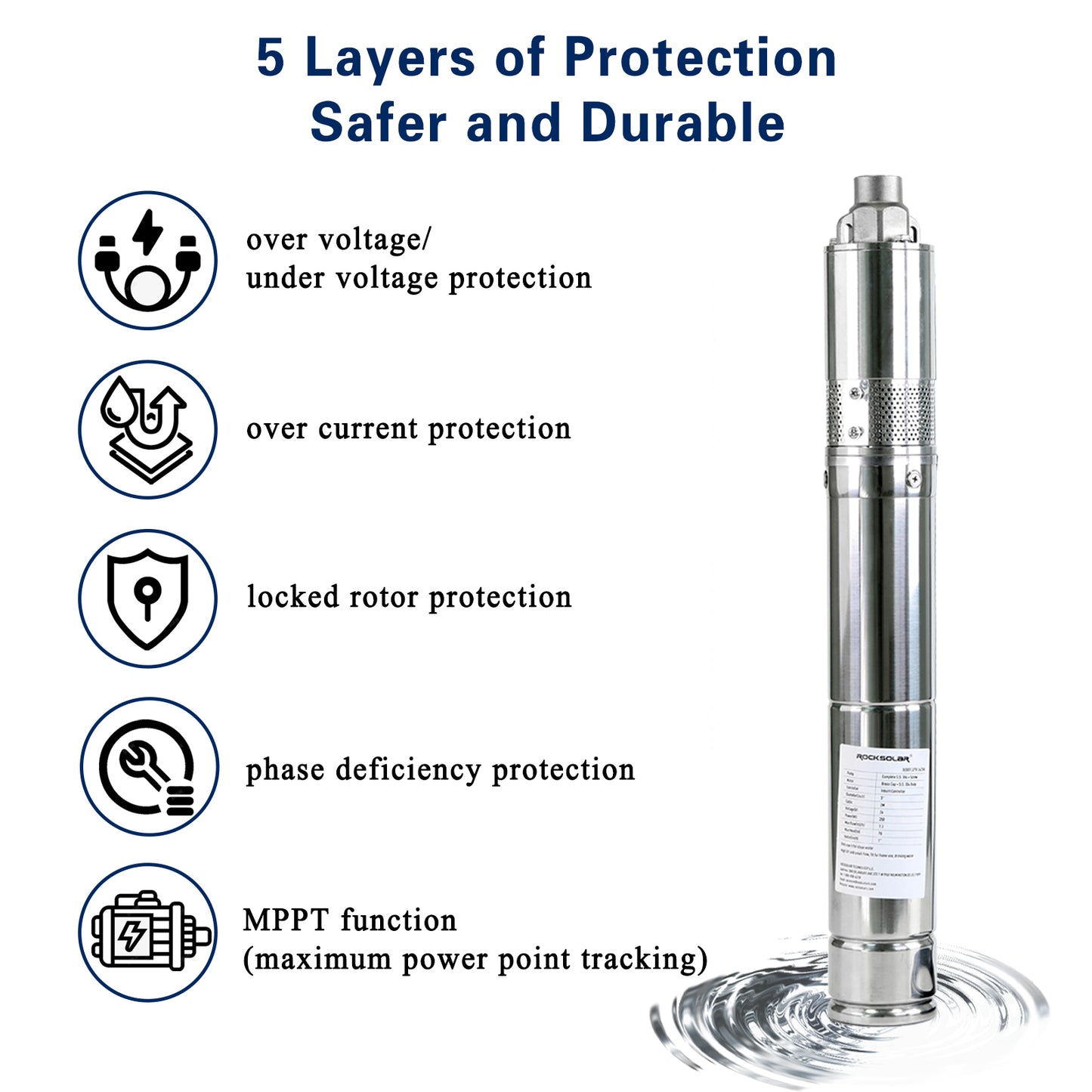

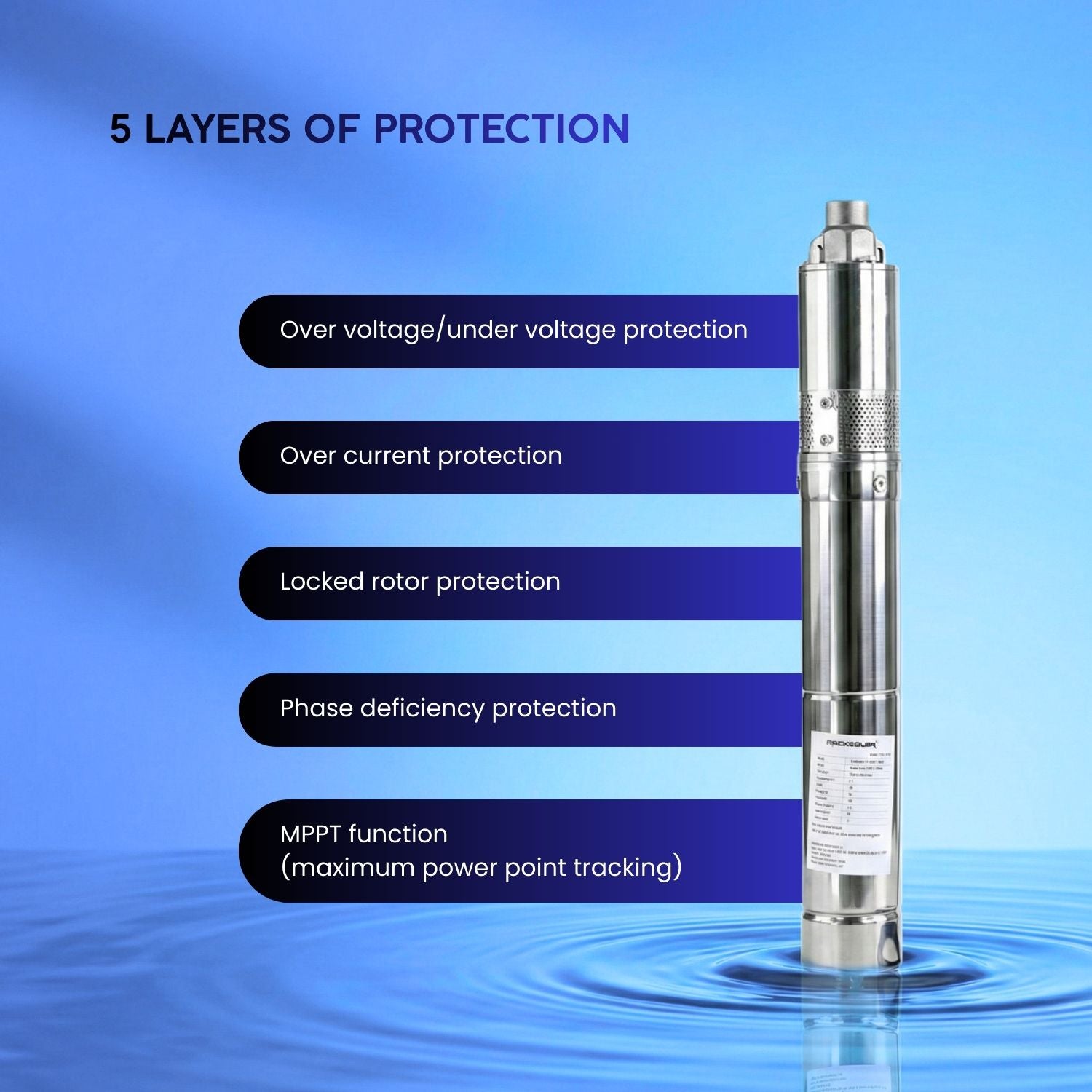

- Dry-run auto protection — shuts off if water supply is interrupted
- Proven for livestock watering — customer-confirmed capacity for 40+ head of cattle, likely 100+
Warranty: 5 years

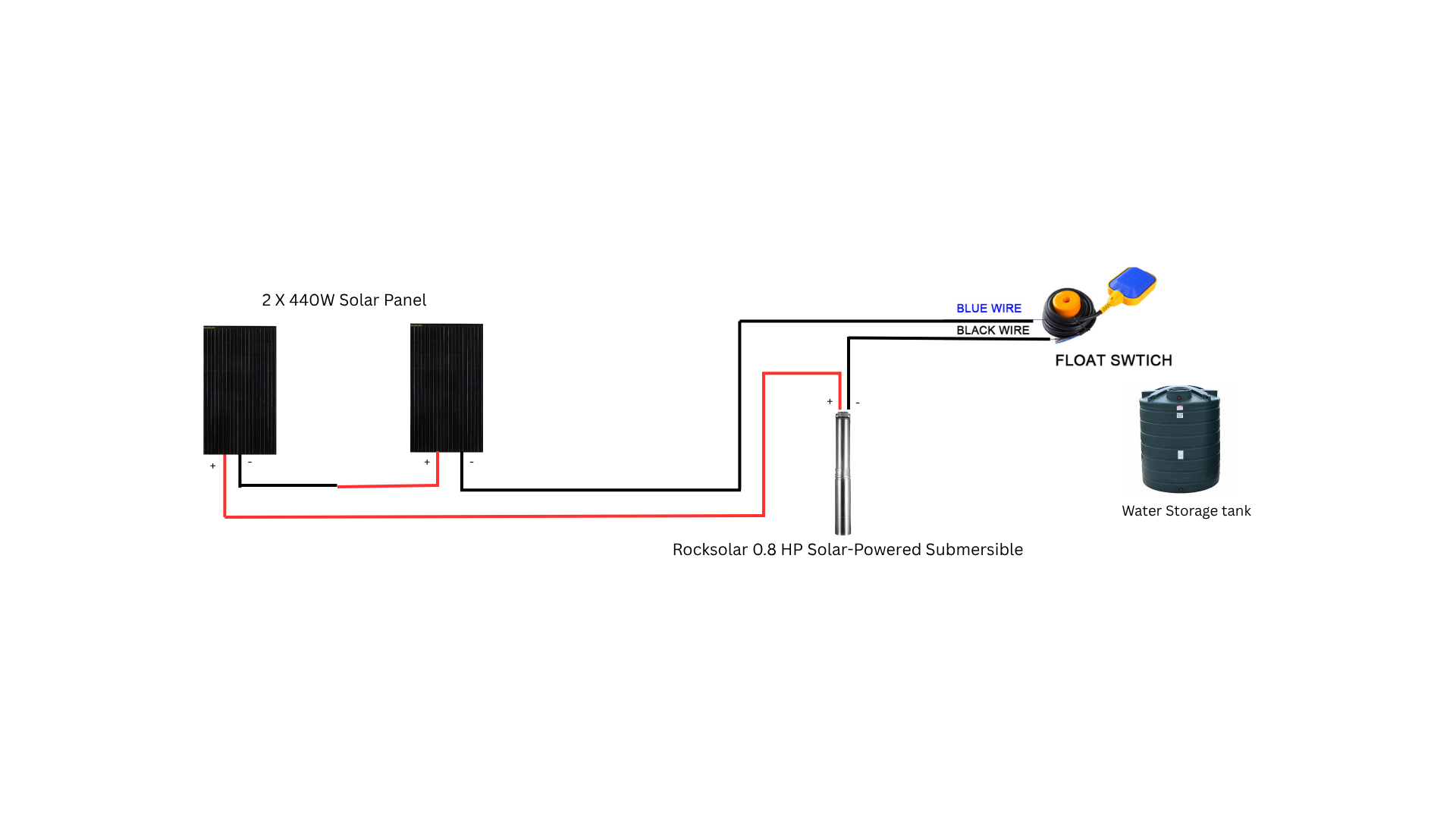

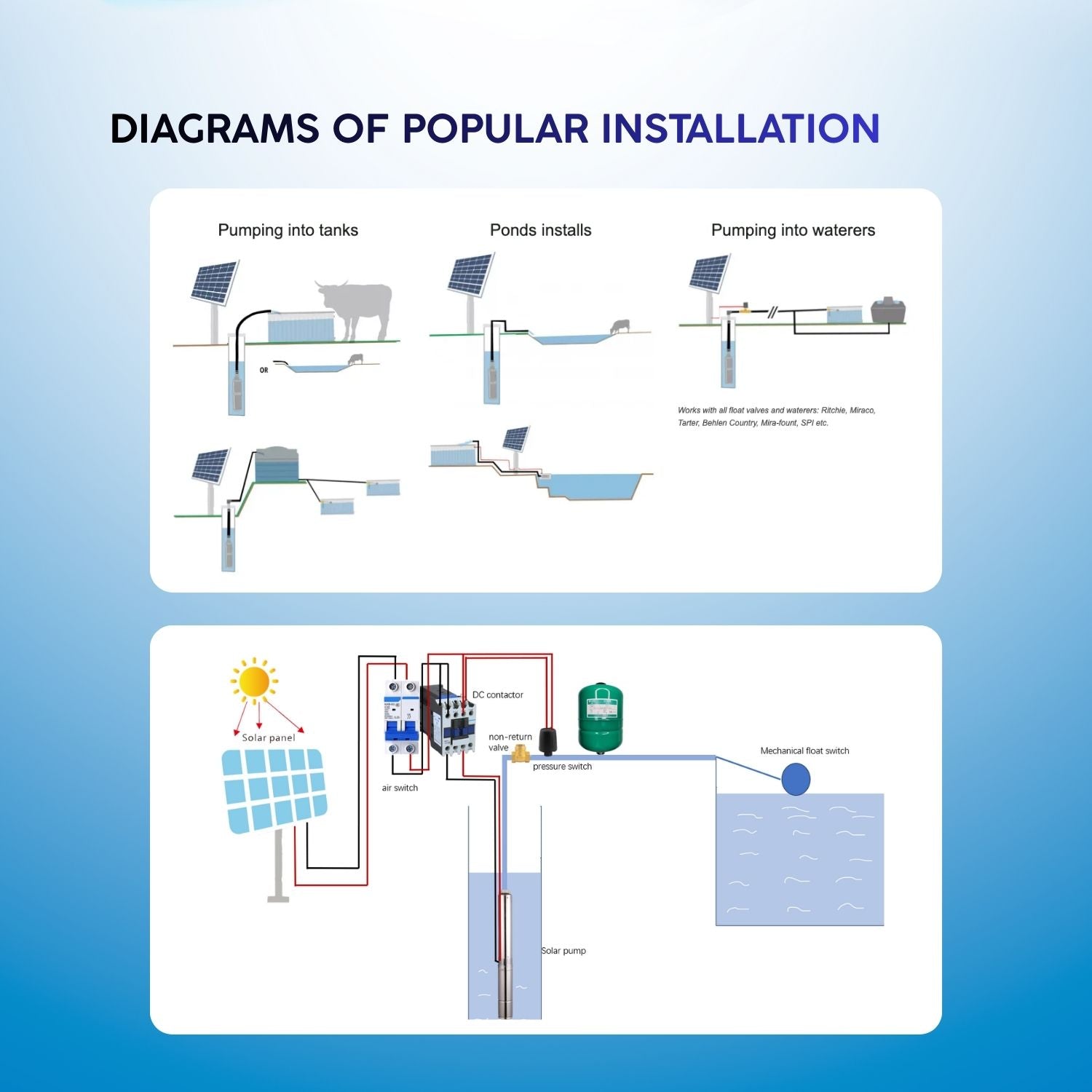

How the System Works
The ROCKSOLAR Solar Powered Water Pump System converts solar energy into a reliable water supply for livestock watering, irrigation, and remote agricultural applications.
The operating sequence is as follows:
- Solar panels convert sunlight into direct current (DC) electricity.
- The solar pump controller continuously monitors the available solar power and adjusts the voltage and current to maximize energy harvest from the solar array.
- The controller supplies optimized DC power to the brushless submersible pump, ensuring efficient operation under varying sunlight conditions.
- The pump draws water from the well, pond, cistern, or other approved water source and delivers it through the discharge pipeline.

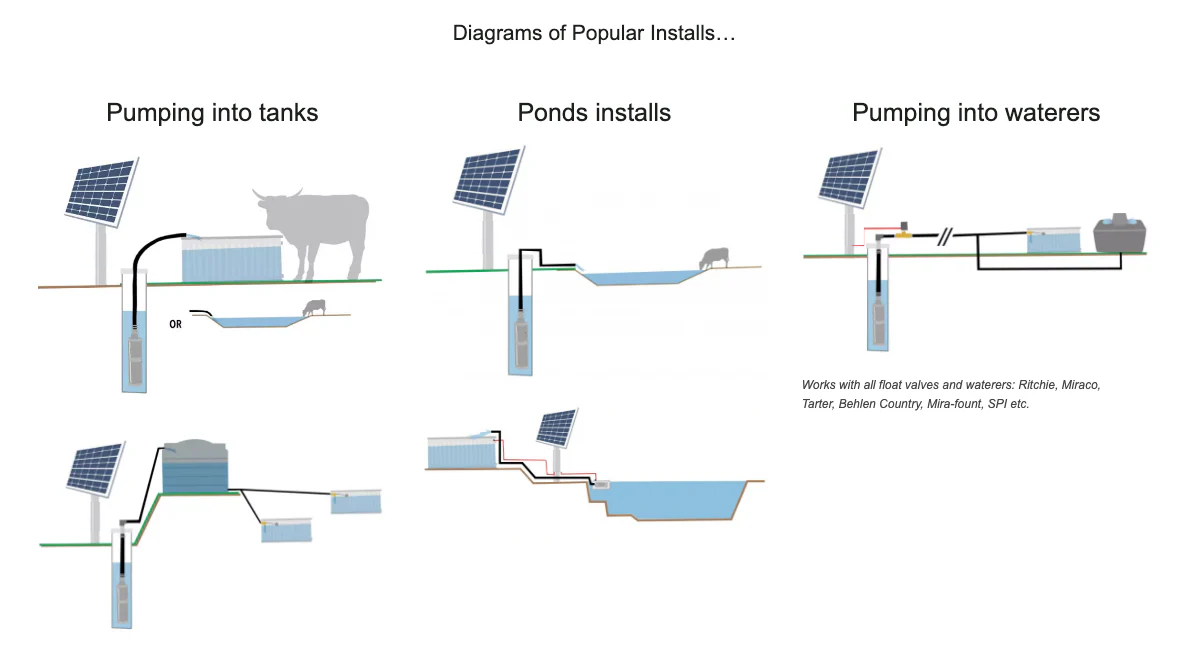

- Depending on the application:
- Livestock Watering: Water is pumped into a storage tank or watering trough. When an optional float switch is installed, the controller automatically stops the pump once the tank reaches the preset water level and restarts pumping when the water level drops.
- Agricultural Irrigation: Water is supplied to irrigation systems such as drip irrigation, sprinkler systems, soaker hoses, or storage reservoirs for crop, orchard, greenhouse, vineyard, pasture, and garden irrigation. Flow can be controlled using irrigation valves, timers, or storage tanks based on the specific irrigation design.
- During periods of insufficient sunlight, such as early morning, late evening, or heavy cloud cover, the controller automatically reduces pump speed or stops the pump to protect the system and optimize energy use.
- When adequate sunlight returns, the controller automatically restarts the pump without requiring manual intervention.
This intelligent, fully automatic operation minimizes maintenance while providing a dependable and sustainable water supply for livestock, irrigation, and other off-grid agricultural applications.
