Rocksolar 1.34HP Solar DC Brushless Submersible Pump
In stock
Couldn't load pickup availability
Description
Description

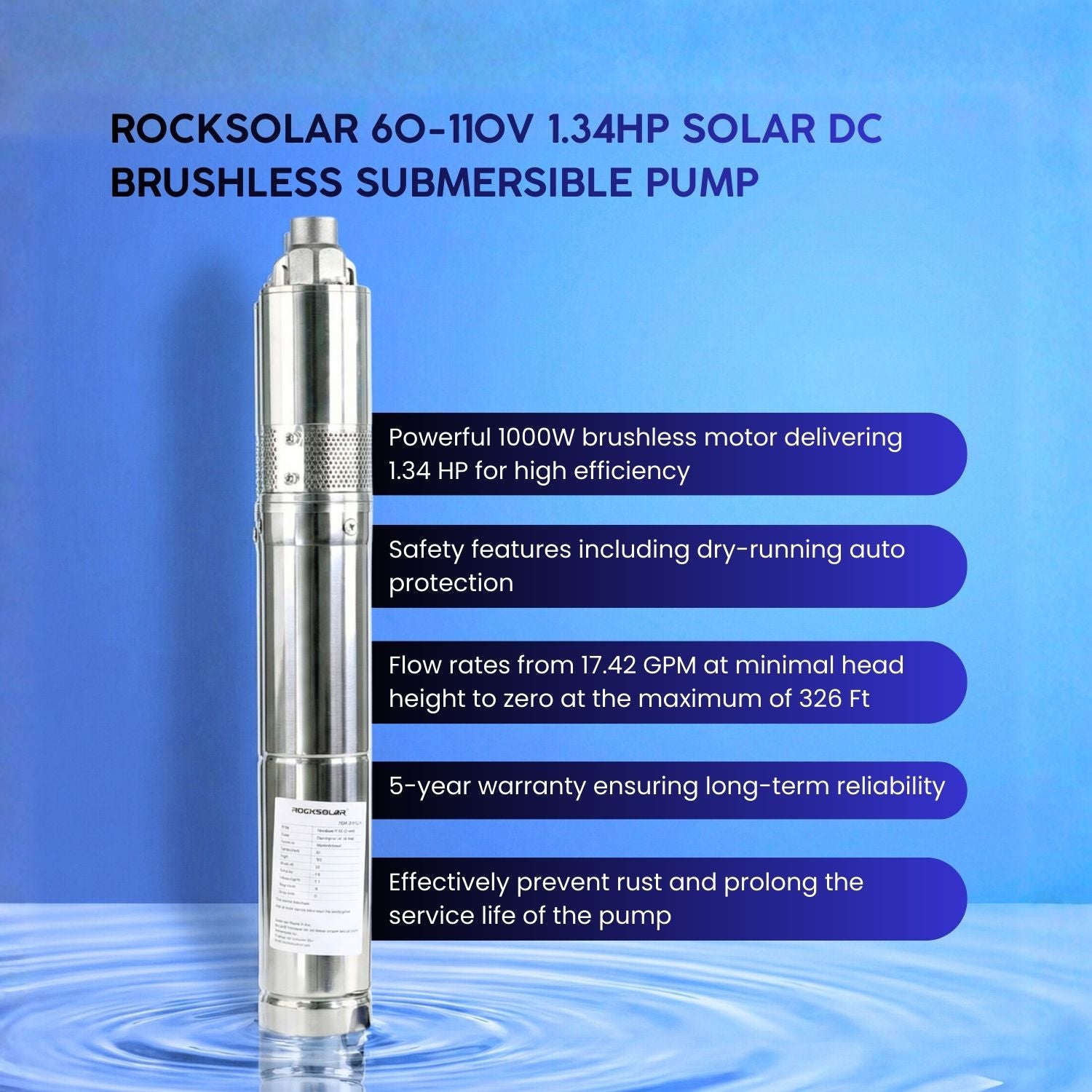

ROCKSOLAR 1.34HP Solar DC Brushless Submersible Pump (Pump Only)

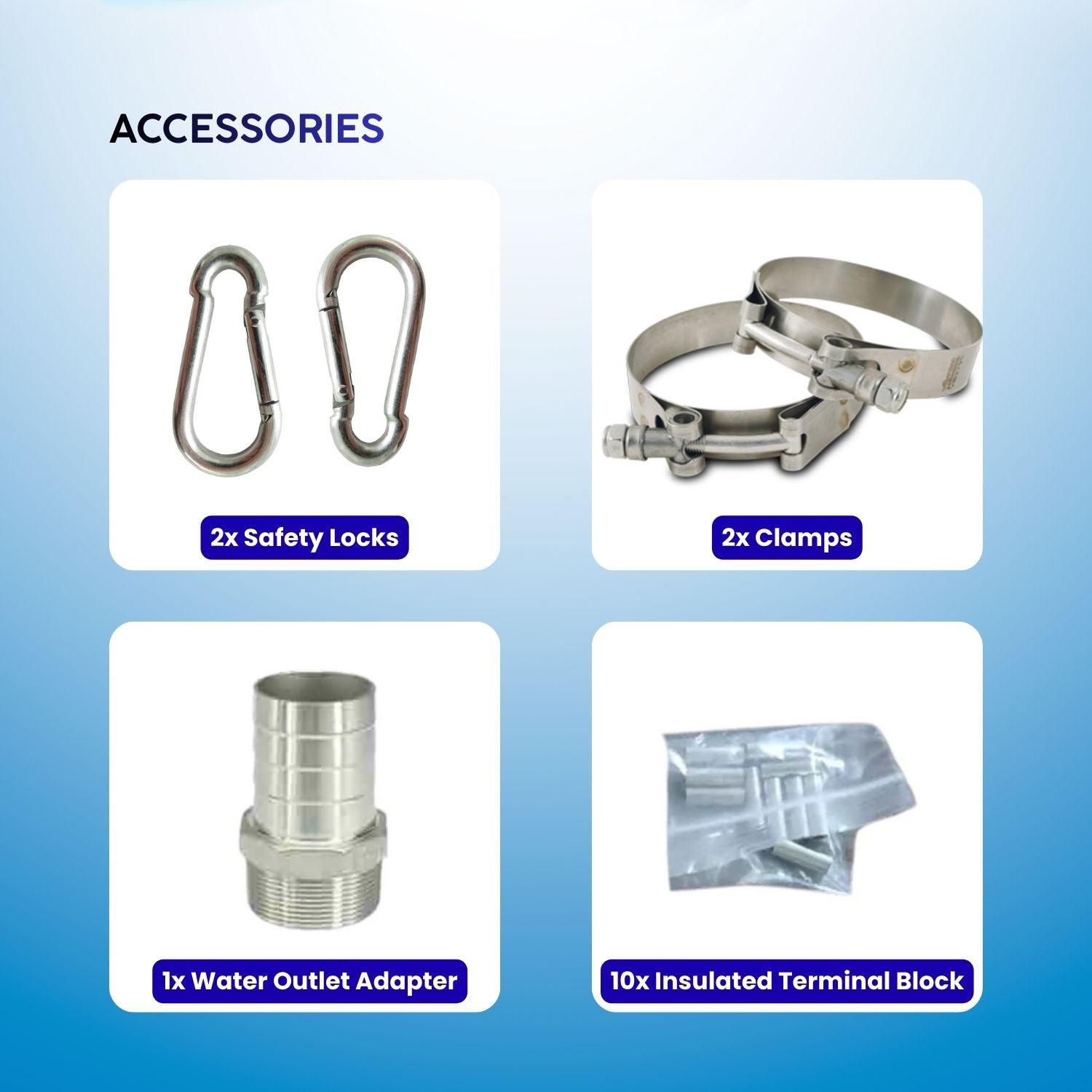

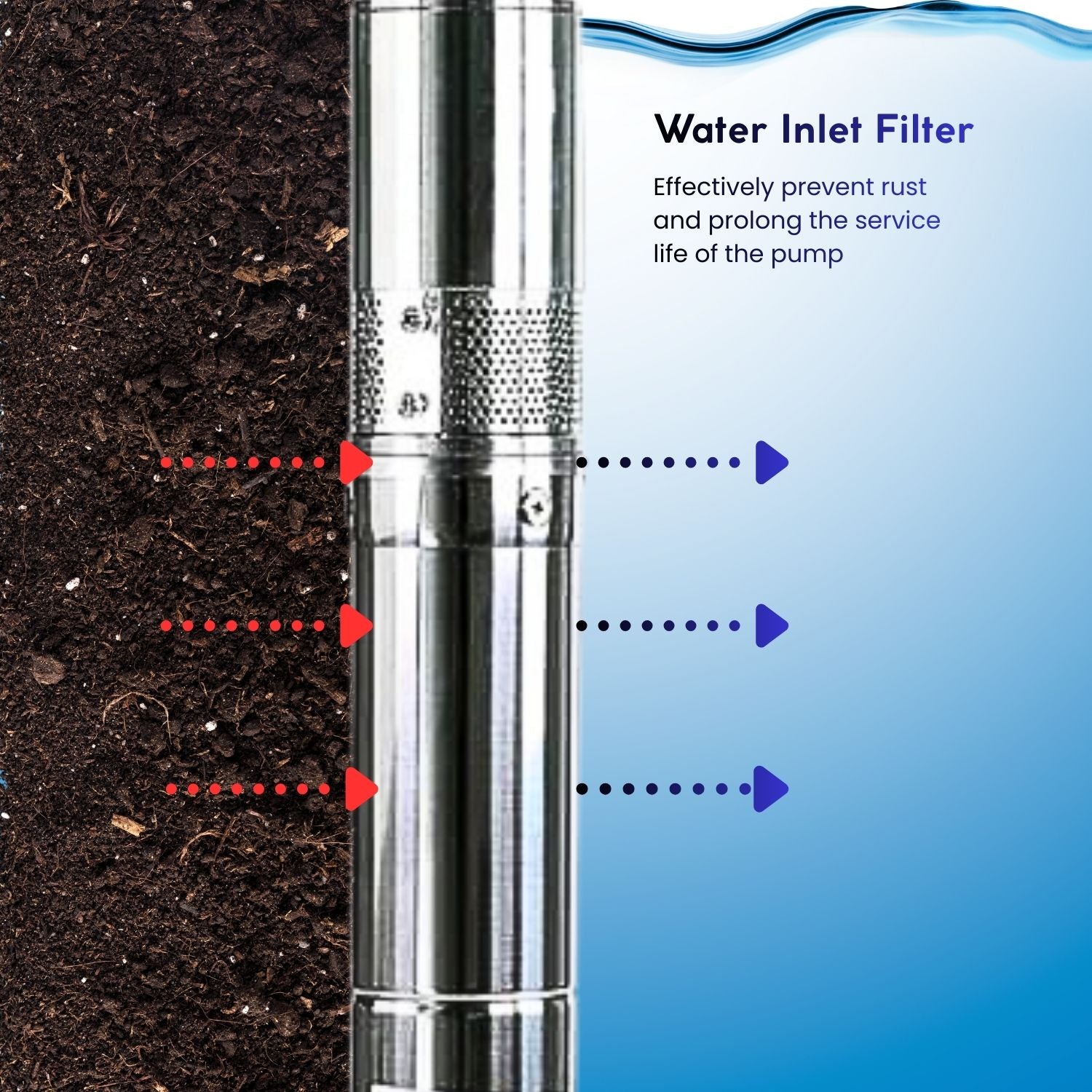

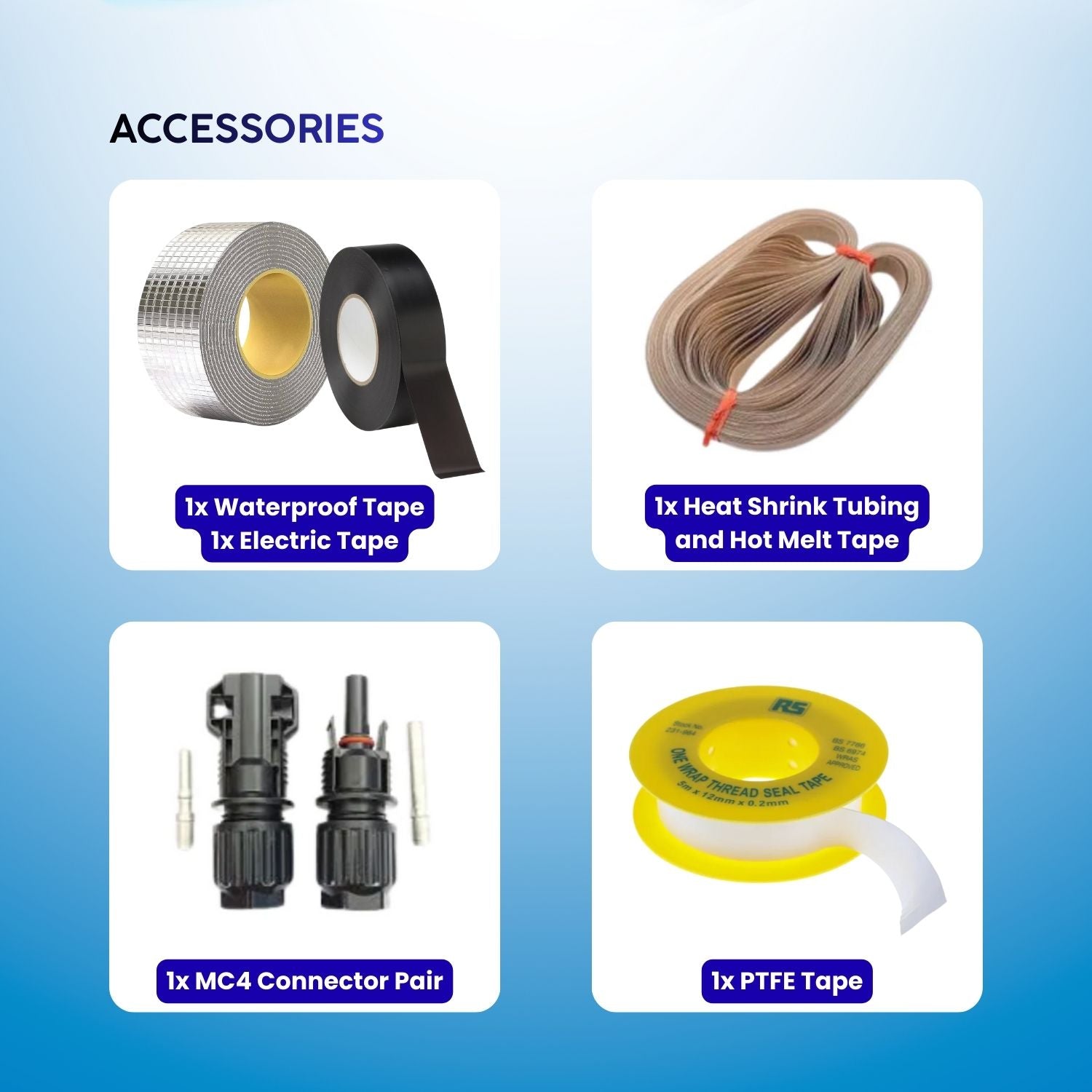

What's included: Pump + built-in controller, solar panel connectors, water intake mesh filter, mounting brackets, installation tools, user manual, warranty card — panels not included
Key specs — all models:

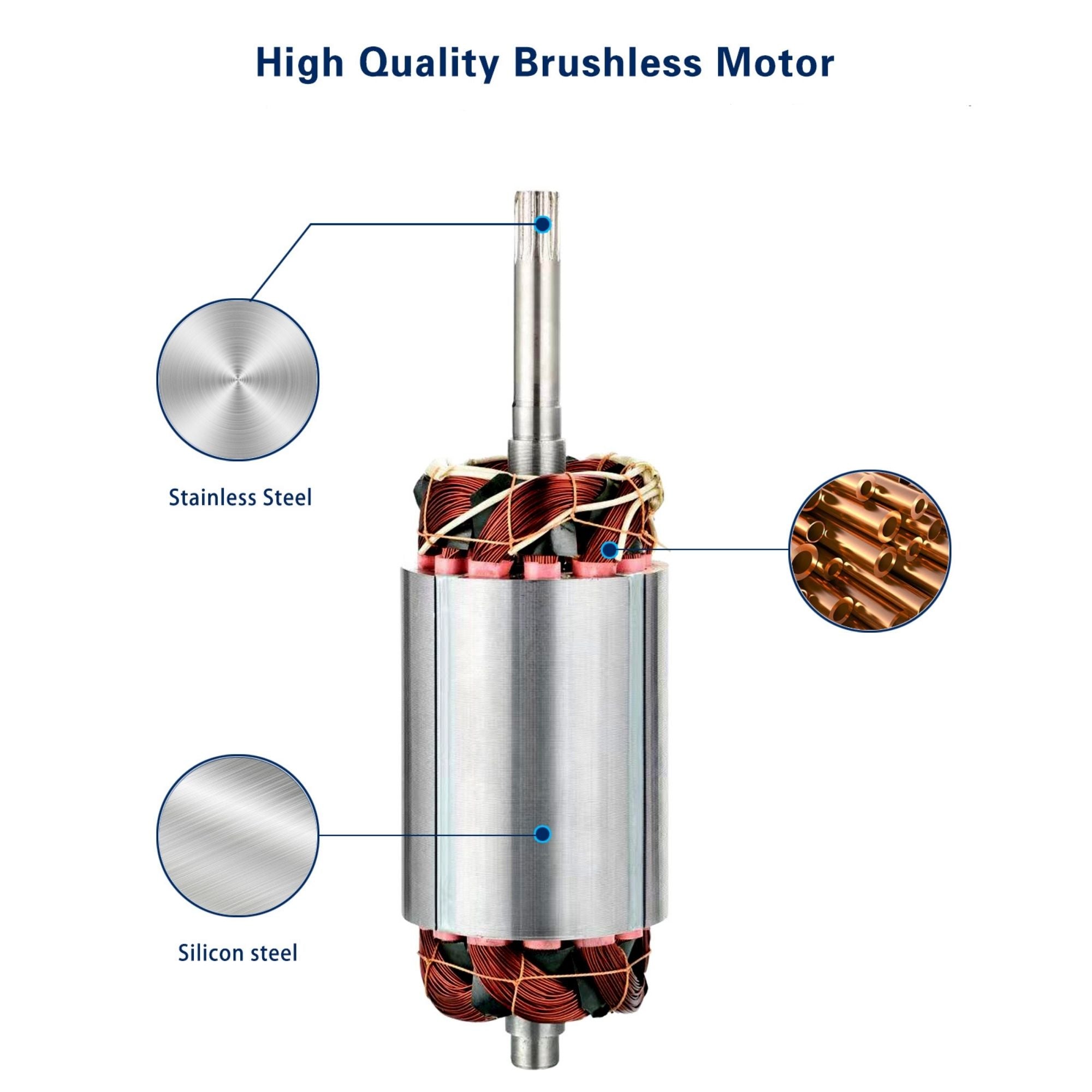

- Motor: 1.34HP DC brushless | Water-cooled | Permanent magnetic | Built-in controller
- Input: 60–150V DC (description says 60–110V; customer review confirms 60–150V — confirm correct range)
- Material: SS304 stainless steel | Pump type: impeller (centrifugal)
- Solar: 1,200W+ recommended | Battery compatible
Three models — choose by flow vs. depth priority:

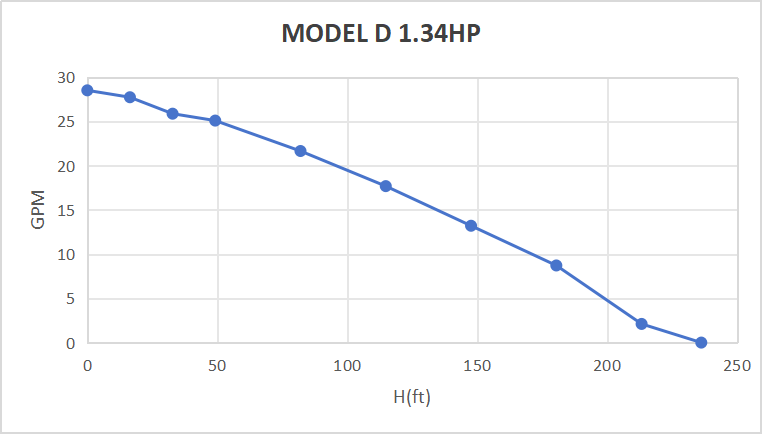

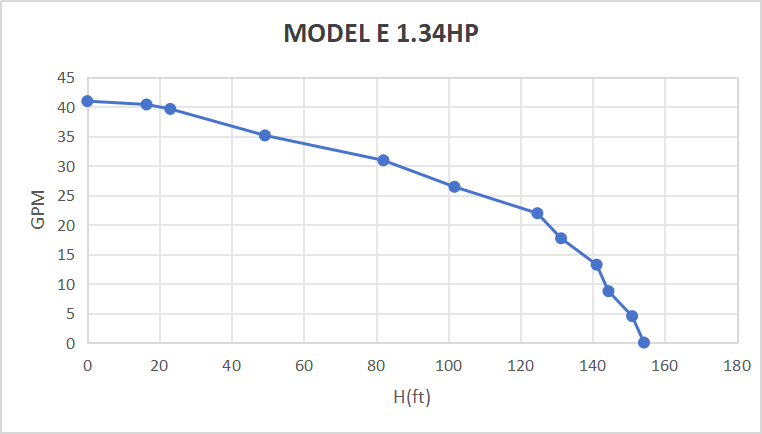

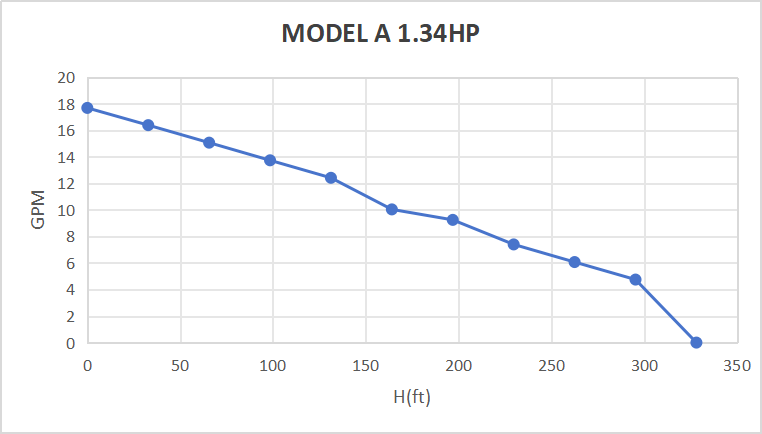

| Model A (3SPN1-12P) | Model D (4SPN3-5P) | Model E (4SPN4-3P) | |
|---|---|---|---|
| Max flow | 17.42 GPM | 28.08 GPM | 40.3 GPM |
| Max head | 326 ft | 234.72 ft | 153.22 ft |
| Max pressure | 145 PSI | 101.6 PSI | 66.34 PSI |

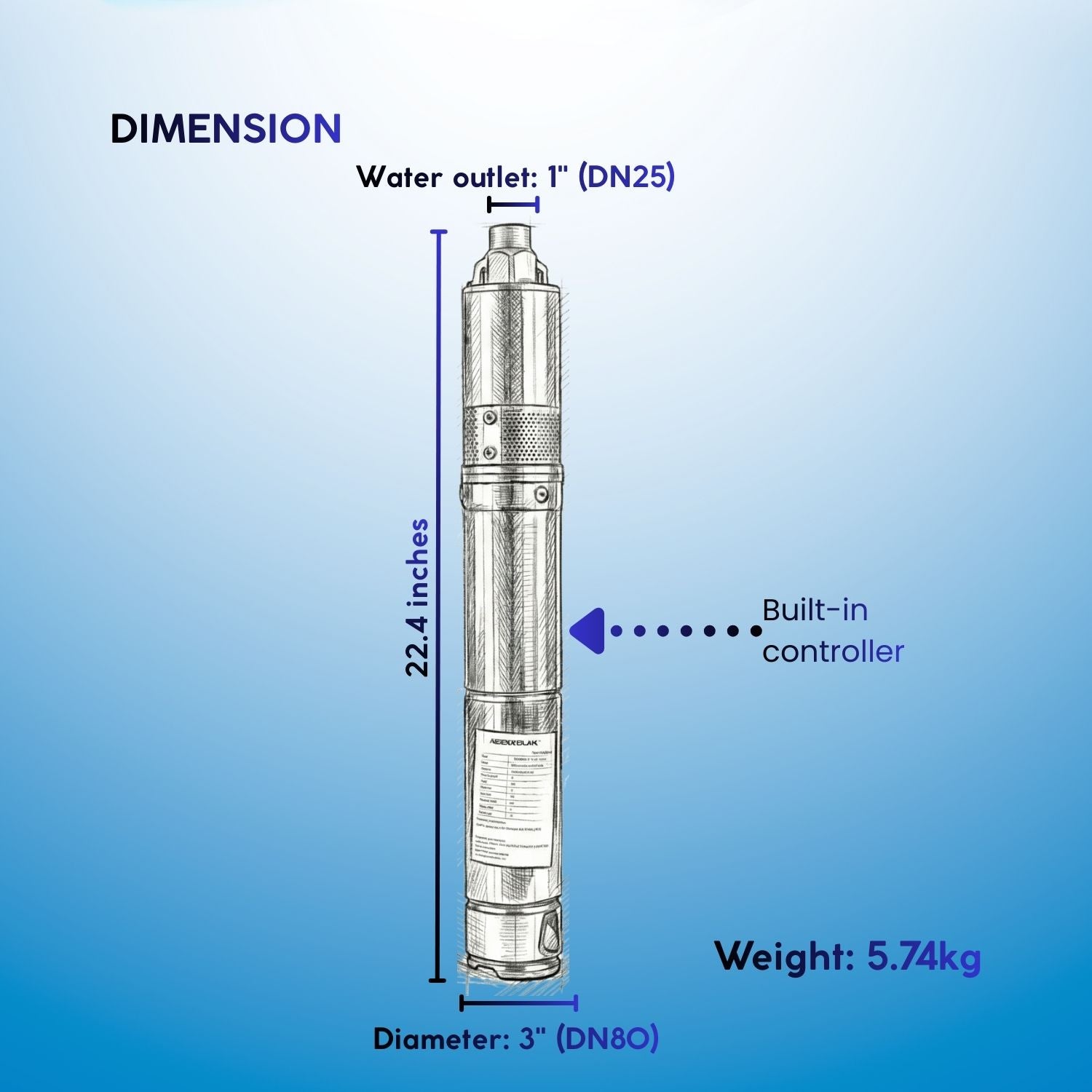

| Pump body | 3" | 4" | 4" |
| Outlet | 1.5" | 2" | 2" |
Built for: Deep residential wells, off-grid homesteads, livestock watering, agricultural irrigation, remote farms and cabins, high-pressure household water supply
Key features:
- Model A reaches 326 ft — the deepest head rating in the brushless submersible lineup, suitable for very deep wells
- Built-in controller — no separate controller needed; cleaner, simpler installation
- Whisper-quiet water-cooled motor — customer-confirmed nearly silent operation, even near living areas

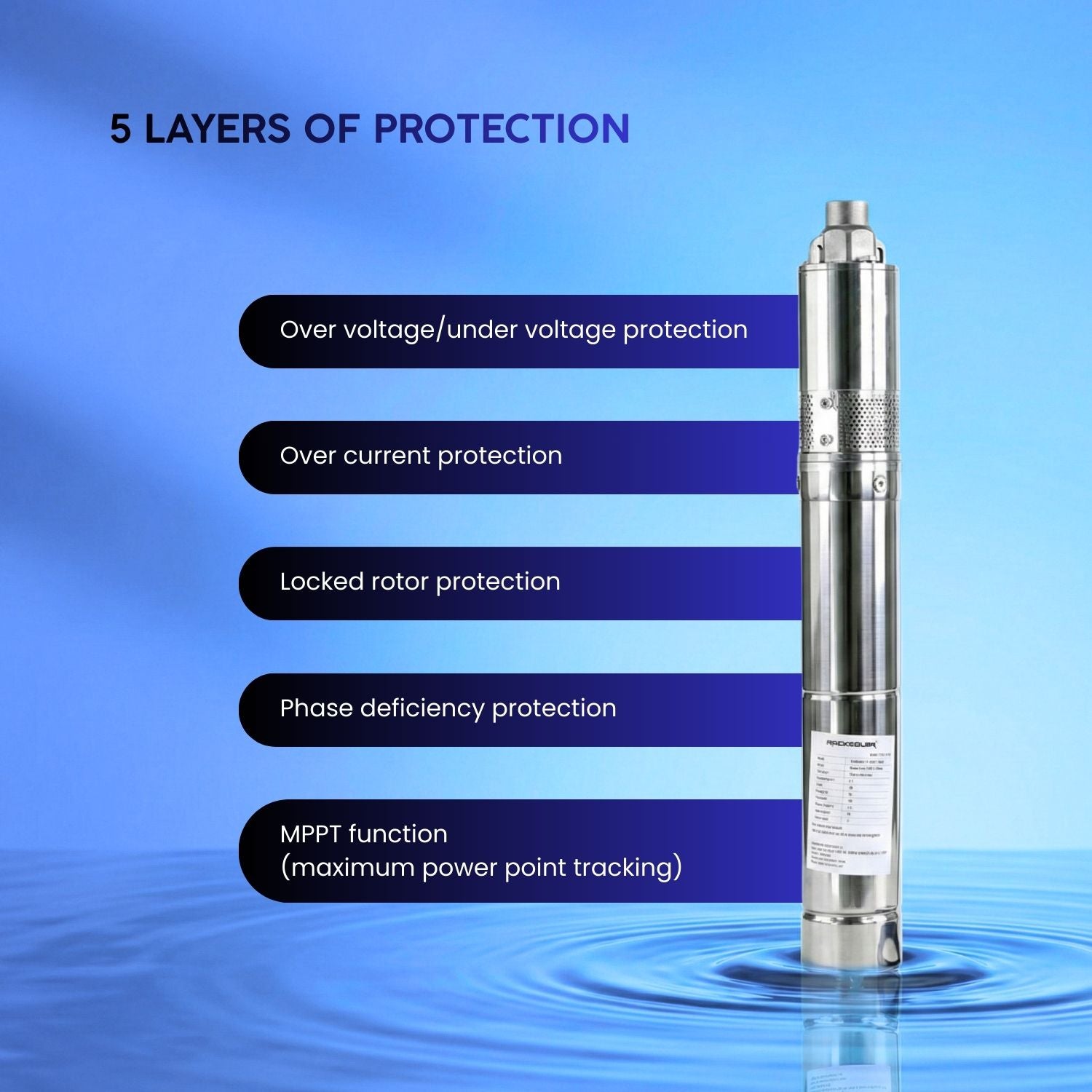

- Dry-run auto protection — automatically shuts off if well level drops, protecting the motor; restarts when water returns
- Maintains consistent house pressure — customers confirm reliable household water supply at 250+ ft depth

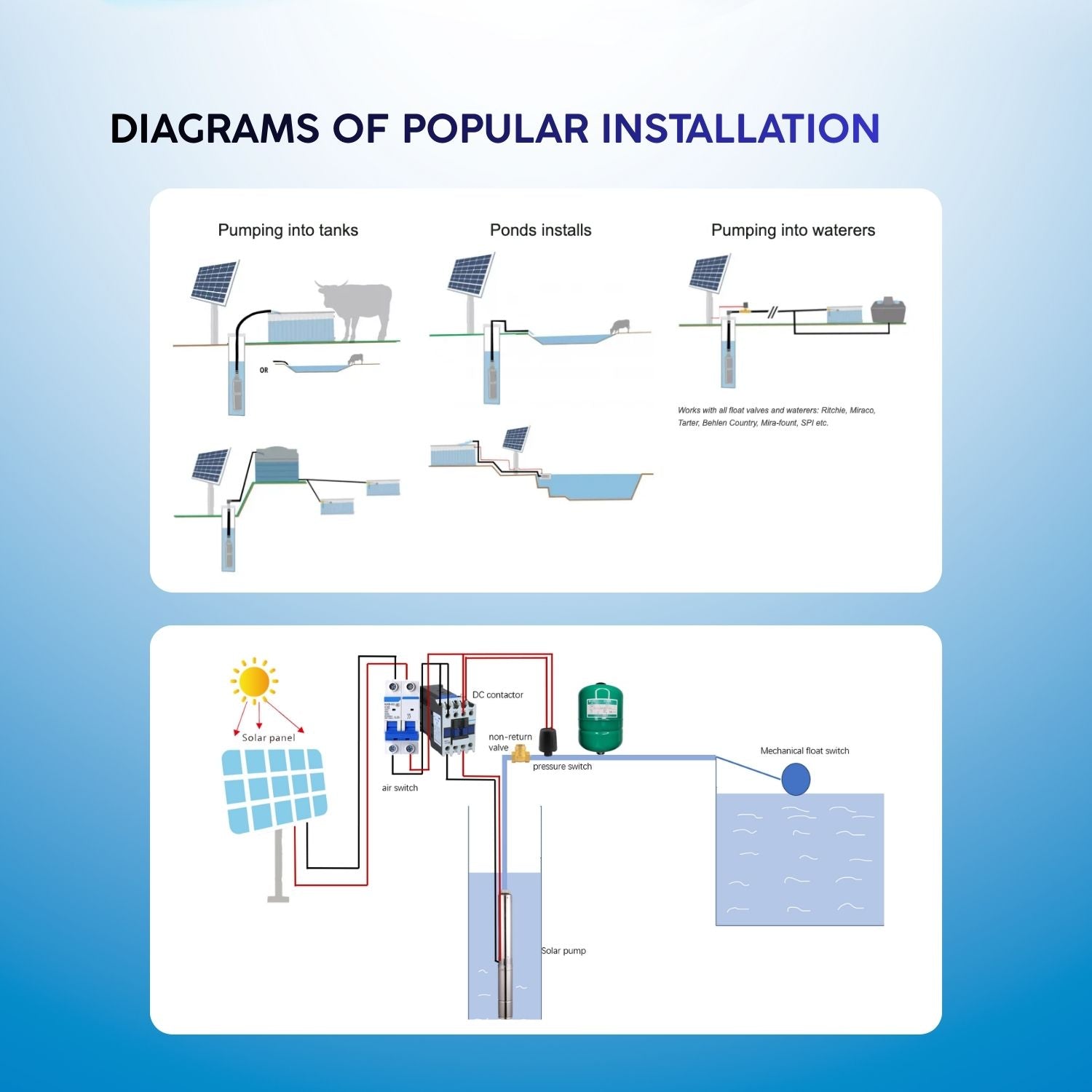

- Float switch / pressure switch compatible — automates fill and shutoff
- Maintenance-free sealed design
Warranty: 5 years
