Rocksolar 1.34HP Solar-Powered Submersible Pump Kit

ROCKSOLAR 1.34HP Solar-Powered Submersible Pump Kit

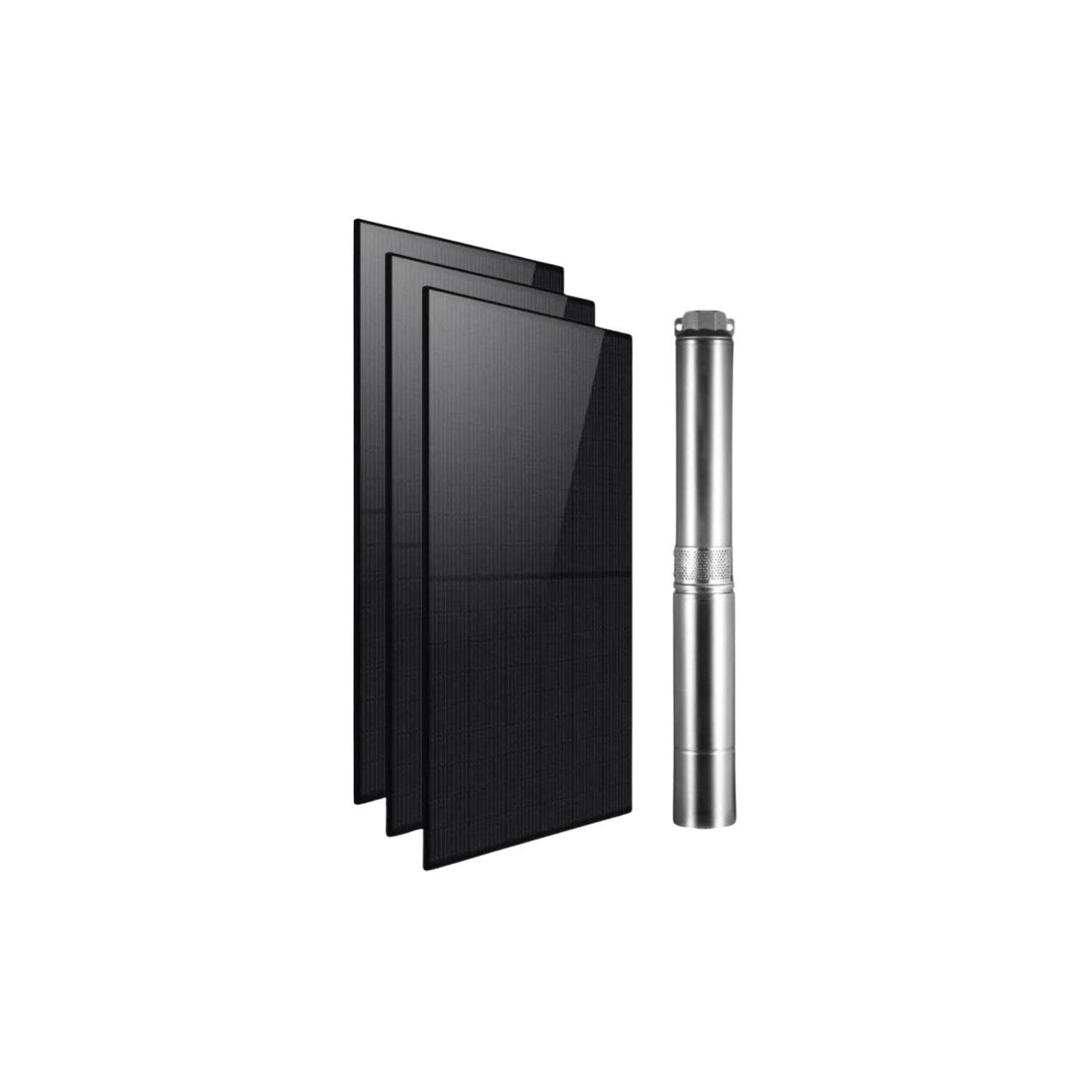

What's included:

• 1 × 1.34HP 60–150V DC brushless submersible pump + built-in controller
• 3 × 450 W rigid monocrystalline bifacial solar panels (1,350 W array)
• 10 ft 10 AWG PV cable
• 1 × 2 String Water proof PV Combiner Box with 32A 500V Circuit Breaker and surge protector
• 3 × Z-bracket solar panel mounting sets (optional)
• Ground or roof mount rack (optional)
• User manuals + warranty card

Key specs — all models:

• Motor: 1.34HP DC brushless | Water-cooled | Permanent magnetic | Built-in controller
• Input: 60–150V DC | Solar: 3 × 450 W bifacial panels included (1,350 W)
• Material: SS304 stainless steel | Pump type: impeller (centrifugal)
• Works in cloudy conditions | Battery-addable for extended operation

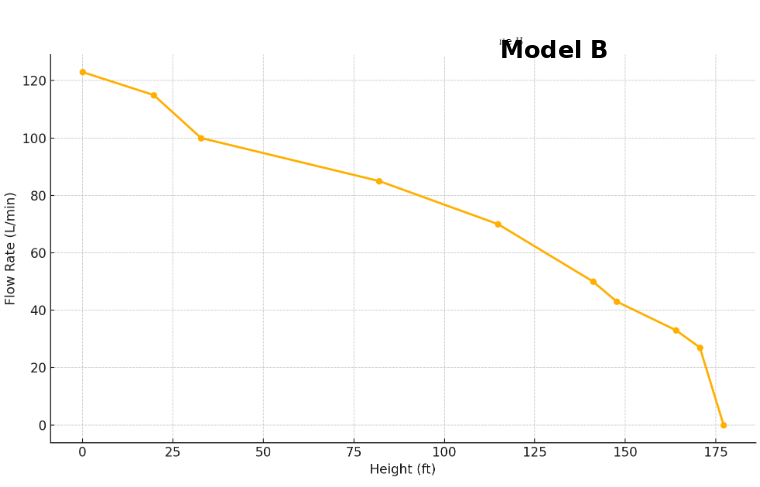

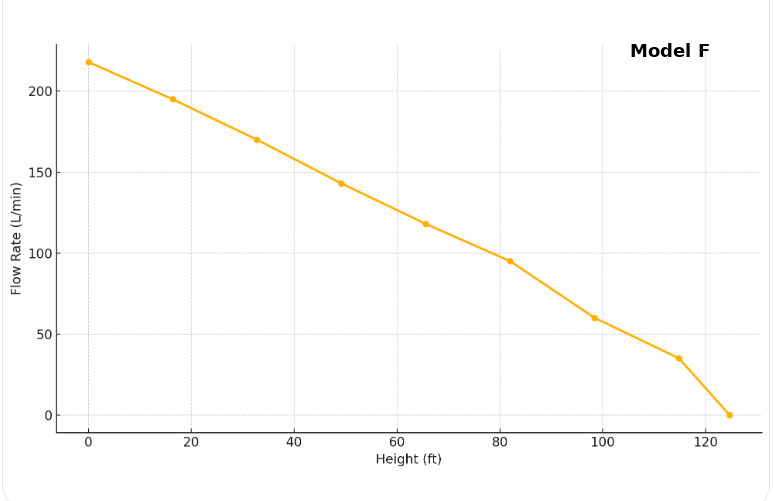

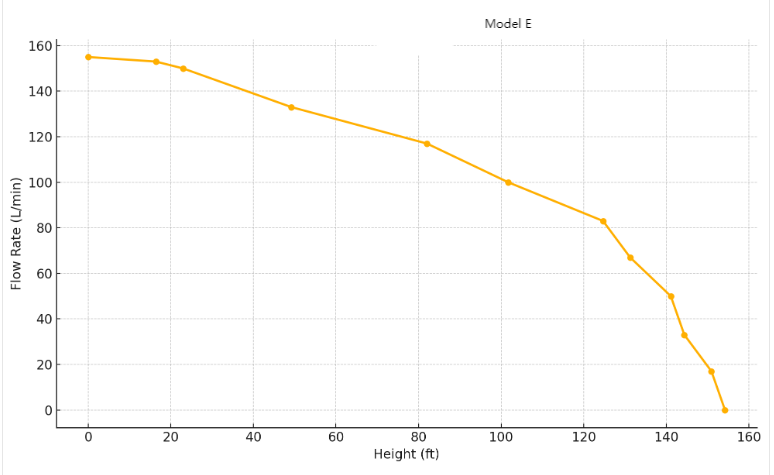

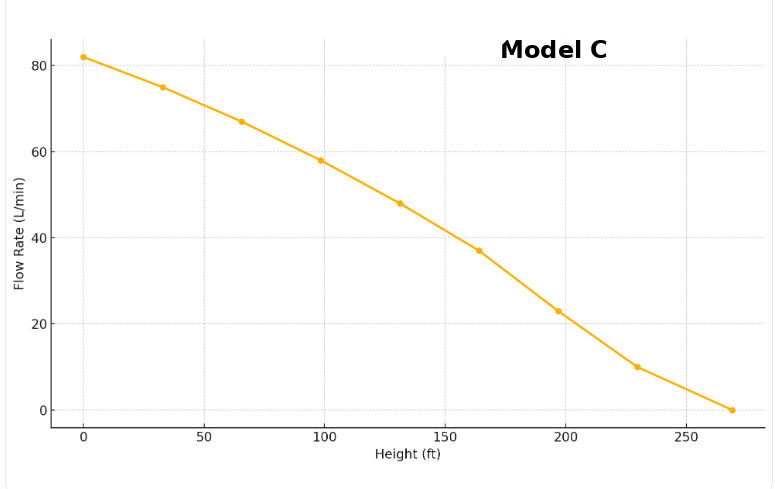

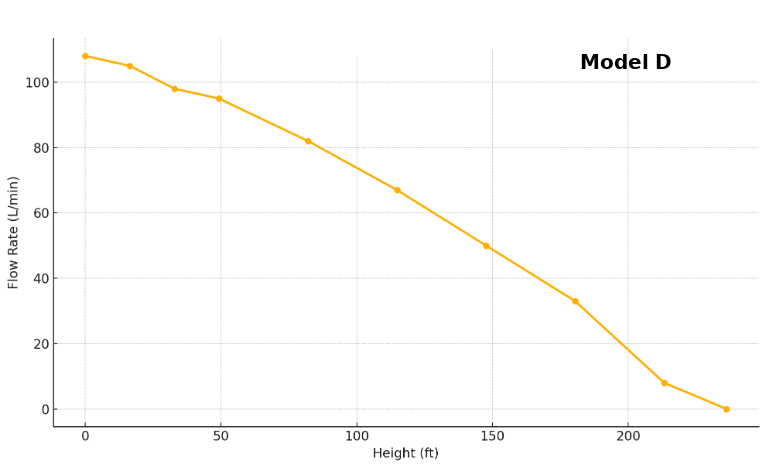

Three kit models — choose by flow vs. depth priority:

Built for: Deep residential wells, off-grid homesteads and cottages, livestock watering, farm and garden irrigation, remote properties without grid power

Key features:

• 1,350 W solar array included — three 450 W bifacial panels, matched to the pump's 1,200W+ requirement

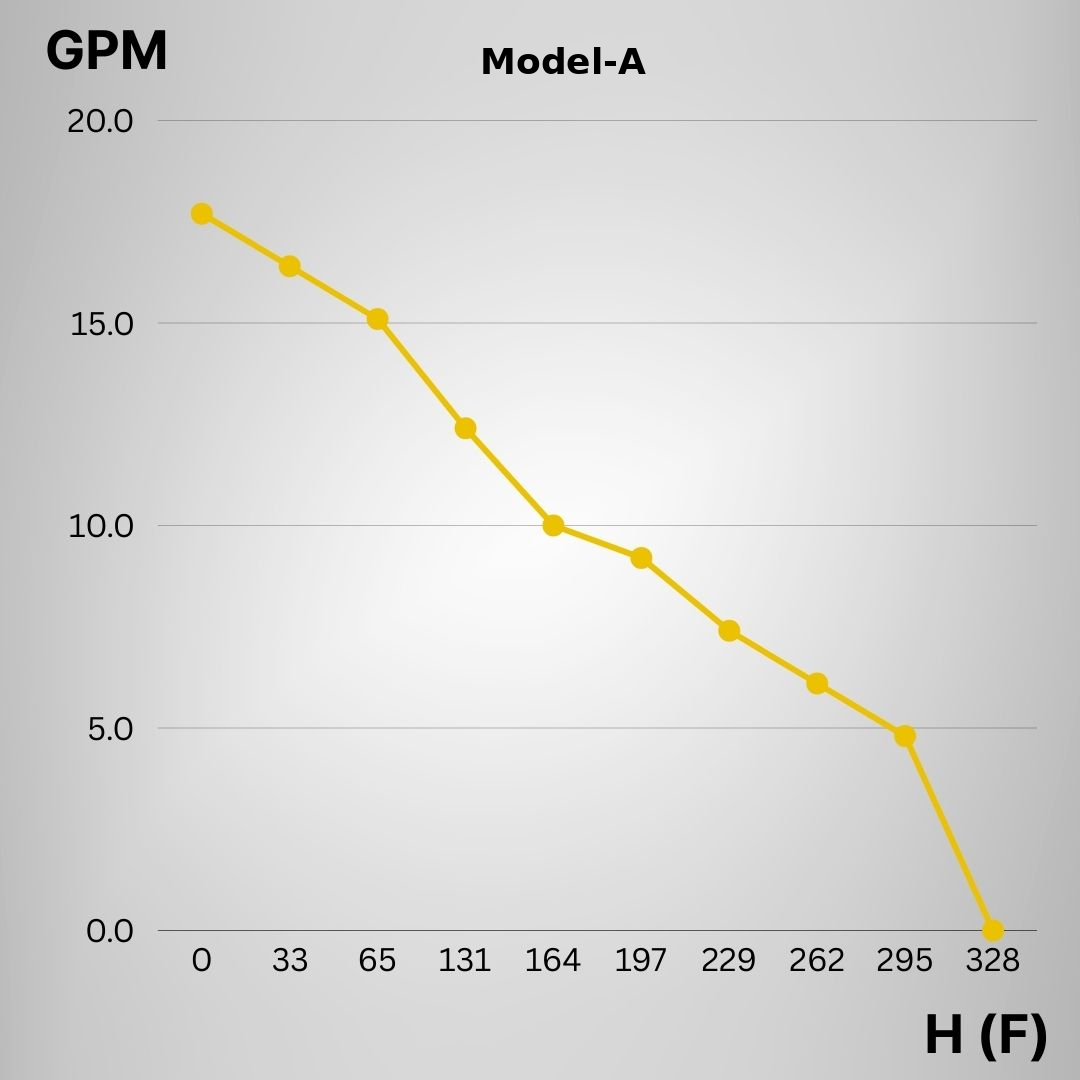

• Deepest head in the kit lineup — Model A reaches 326 ft, suitable for very deep Canadian wells
• Built-in controller — no separate controller needed; simpler installation
• Works in cloudy conditions — runs directly from solar without battery backup (customer-confirmed)
• Battery-addable — extend operation beyond daylight hours
• Quiet operation — customer-confirmed low noise even for cottage and residential installations
• Float switch / pressure switch compatible — automates fill and shutoff
• Dry-run auto protection — shuts off if well level drops, protecting the motor

Warranty: 5 years

How the System Works

The ROCKSOLAR Solar Powered Water Pump System converts solar energy into a reliable water supply for livestock watering, irrigation, and remote agricultural applications.

The operating sequence is as follows:

1. Solar panels convert sunlight into direct current (DC) electricity.
2. The solar pump controller continuously monitors the available solar power and adjusts the voltage and current to maximize energy harvest from the solar array.
3. The controller supplies optimized DC power to the brushless submersible pump, ensuring efficient operation under varying sunlight conditions.
4. The pump draws water from the well, pond, cistern, or other approved water source and delivers it through the discharge pipeline.
5. Depending on the application:
   • Livestock Watering: Water is pumped into a storage tank or watering trough. When an optional float switch is installed, the controller automatically stops the pump once the tank reaches the preset water level and restarts pumping when the water level drops.
   • Agricultural Irrigation: Water is supplied to irrigation systems such as drip irrigation, sprinkler systems, soaker hoses, or storage reservoirs for crop, orchard, greenhouse, vineyard, pasture, and garden irrigation. Flow can be controlled using irrigation valves, timers, or storage tanks based on the specific irrigation design.
6. During periods of insufficient sunlight, such as early morning, late evening, or heavy cloud cover, the controller automatically reduces pump speed or stops the pump to protect the system and optimize energy use.
7. When adequate sunlight returns, the controller automatically restarts the pump without requiring manual intervention.

This intelligent, fully automatic operation minimizes maintenance while providing a dependable and sustainable water supply for livestock, irrigation, and other off-grid agricultural applications.
