Rocksolar 4.0HP Solar-Powered Submersible Pump Kit
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Description
Description
ROCKSOLAR 4.0HP Solar-Powered Submersible Pump Kit

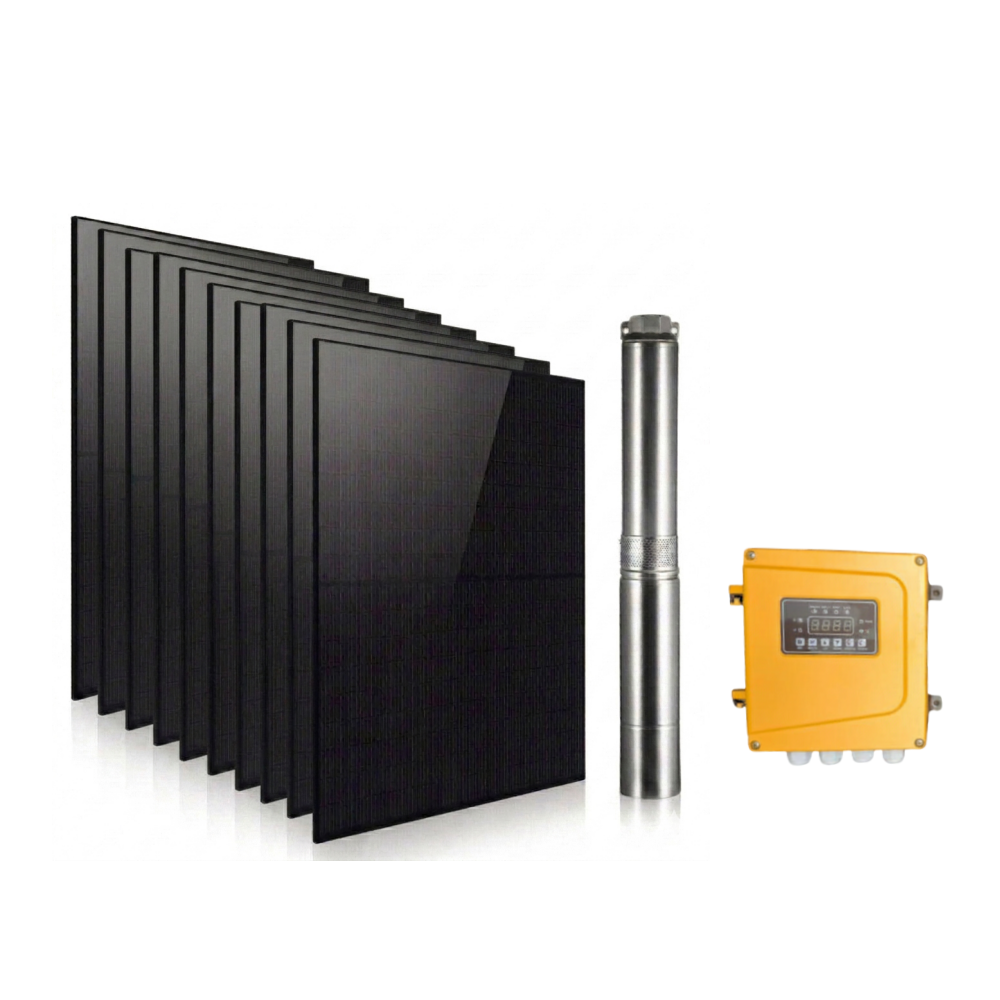

What's included:

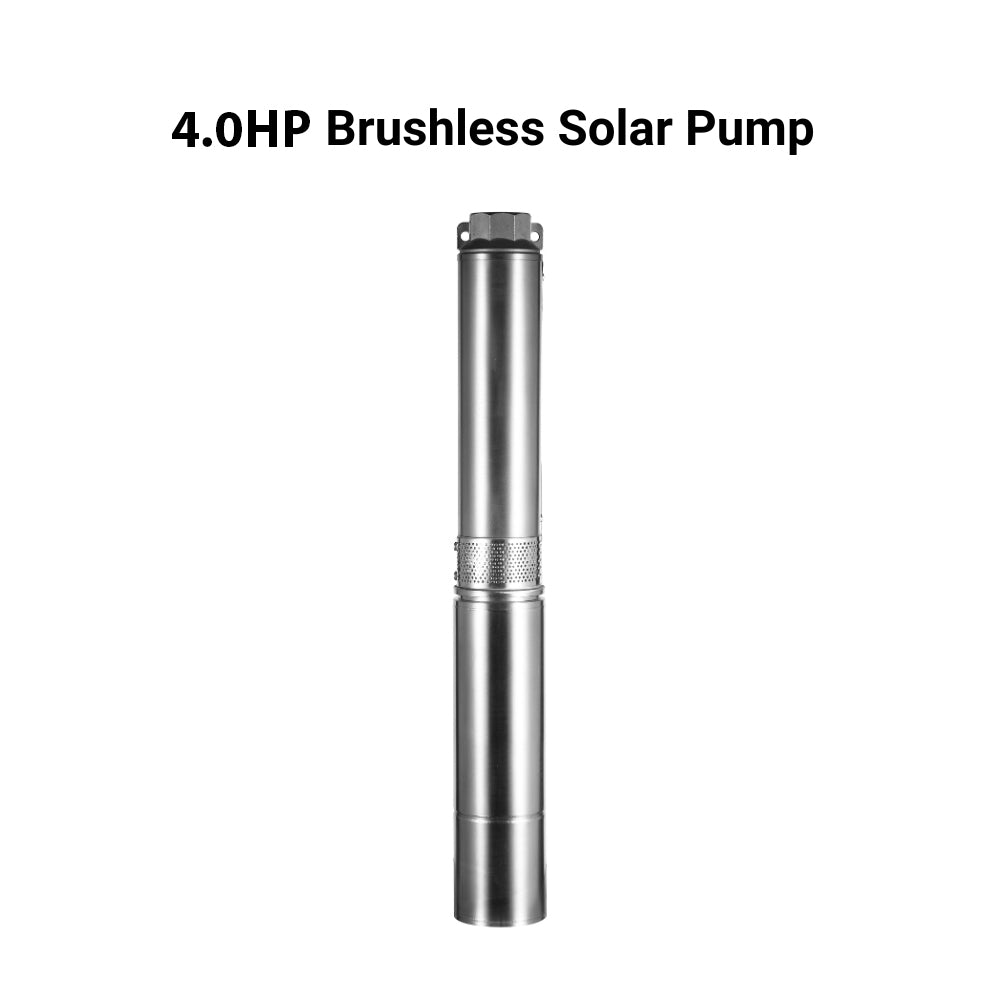

- 1 × 4.0HP 60–450V DC brushless submersible pump + built-in controller
- 10 × 450W bifacial solar panels (4,500W array)
- 10 ft 10 AWG MC4 extension cable (1 pair red + black)
- 1 × 2 String Water proof PV Combiner Box with 32A 500V Circuit Breaker and surge protector
- User manual
Key specs — all models:

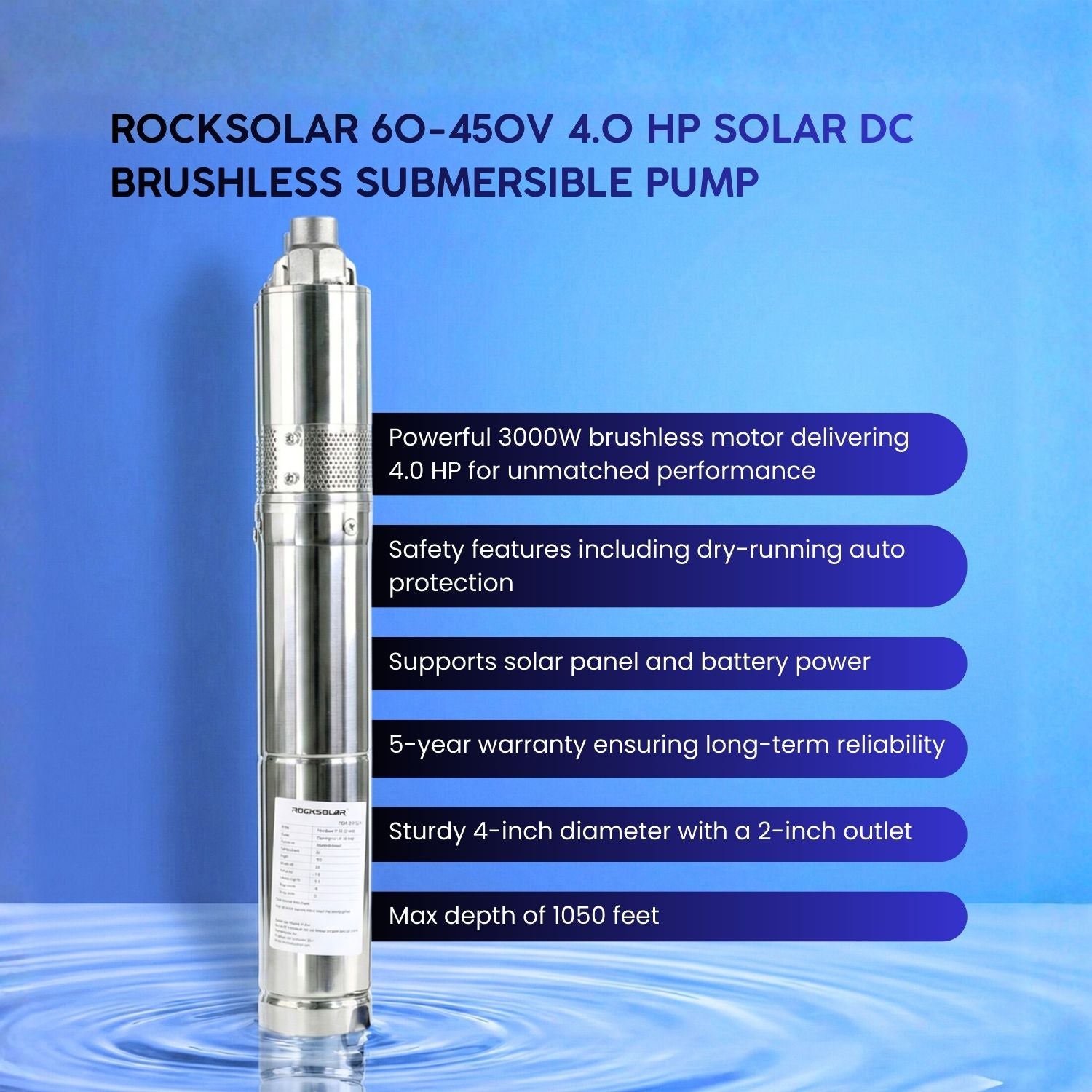

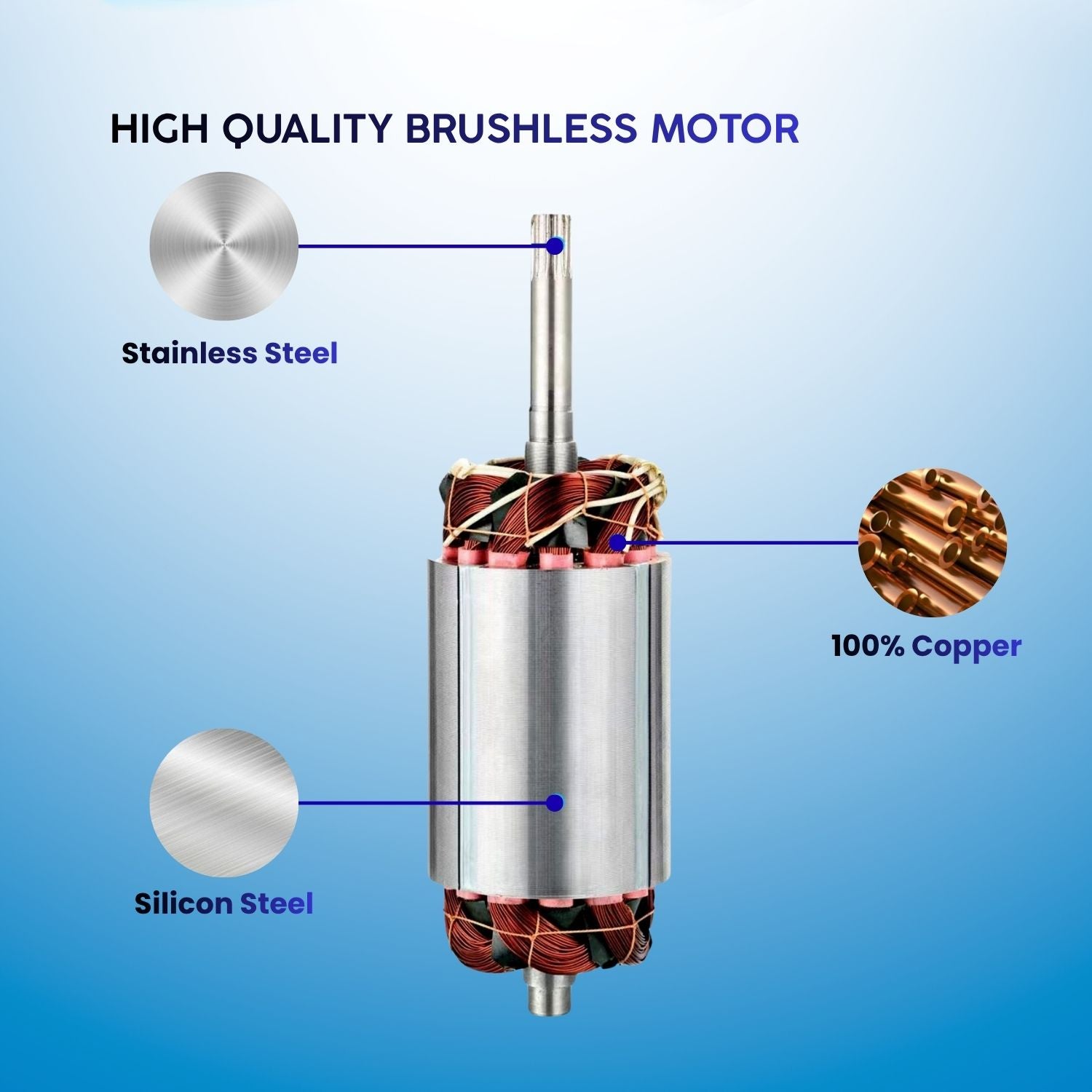

- Motor: 4.0HP DC brushless | Water-cooled | Permanent magnetic | Built-in controller
- Input: 60–450V DC | Solar: 10 × 450W bifacial panels included (4,500W)
- Material: SS304 stainless steel | Pump body: 4" | Outlet: 2" (all models)
- Works in cloudy conditions
Four kit models — choose by flow vs. depth priority:

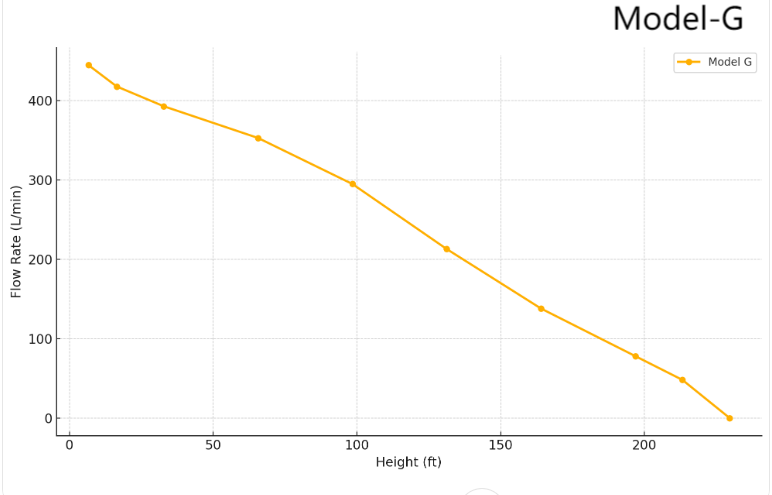

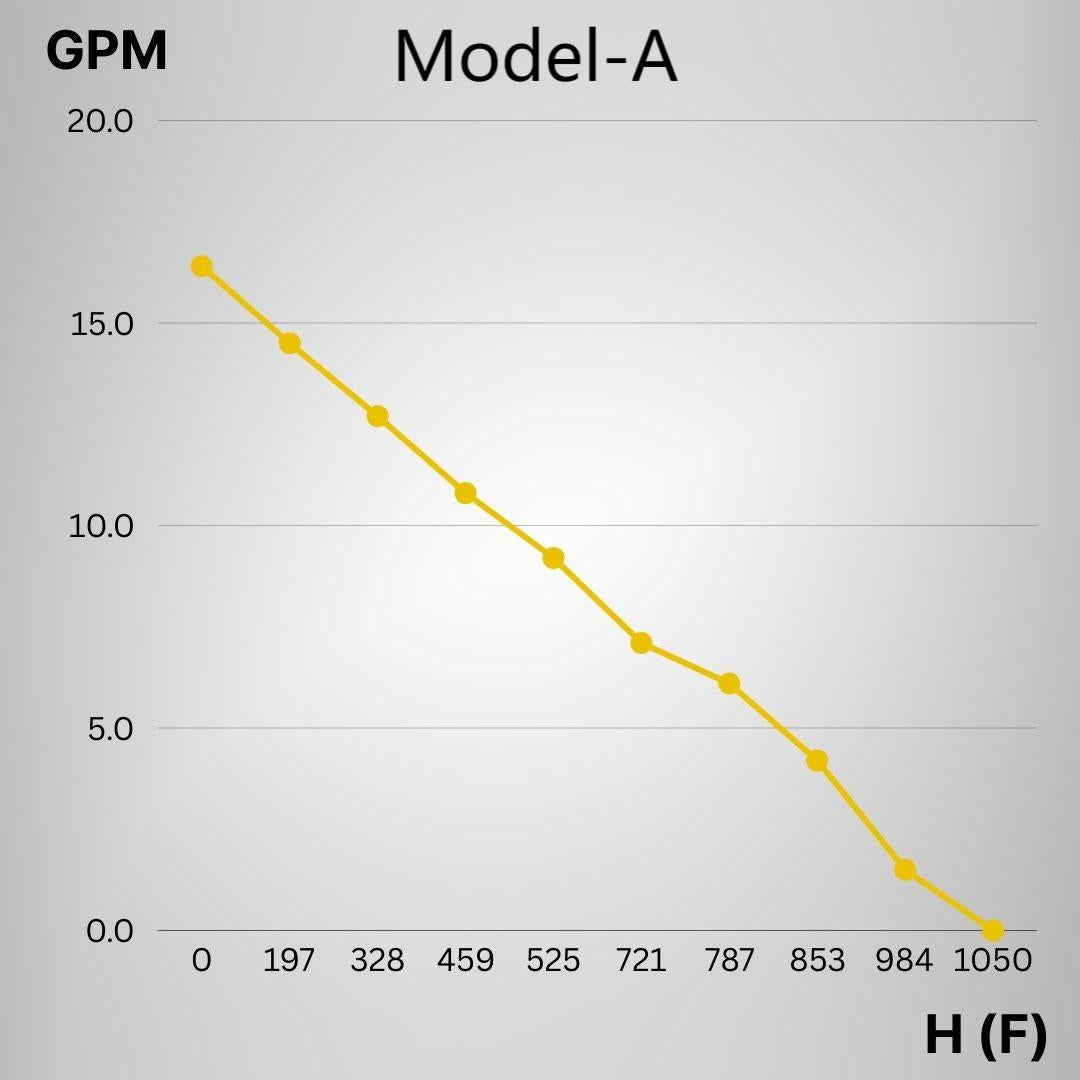

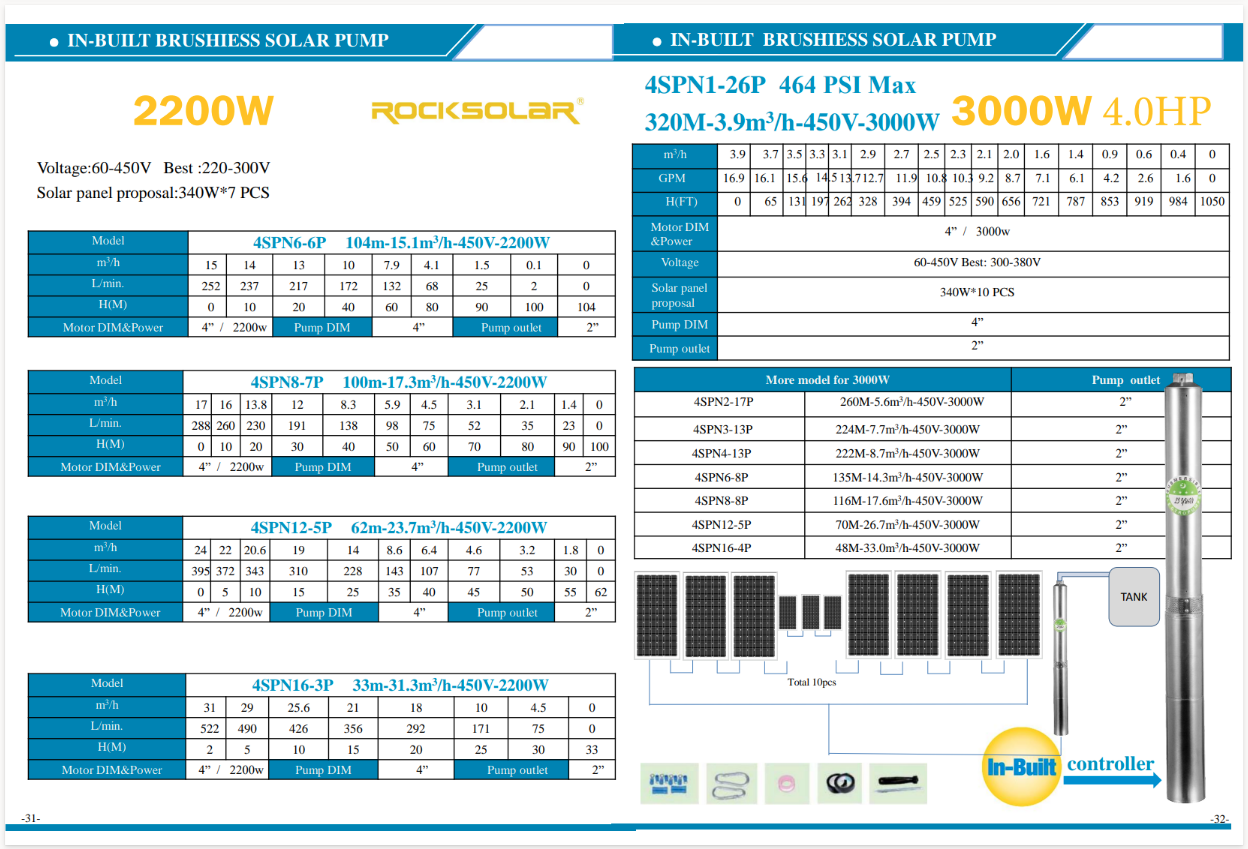

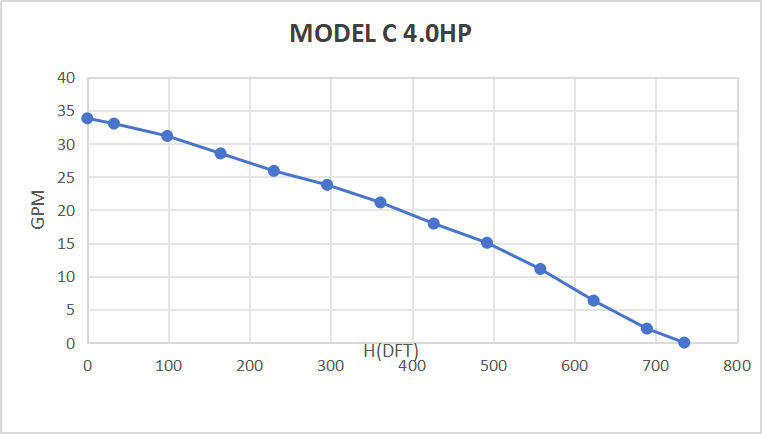

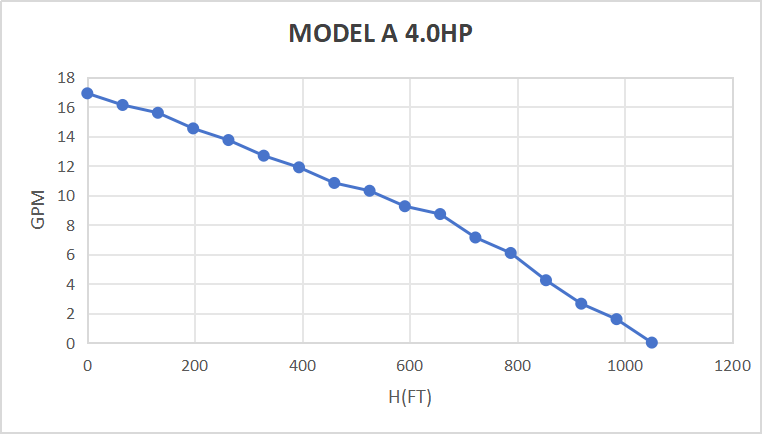

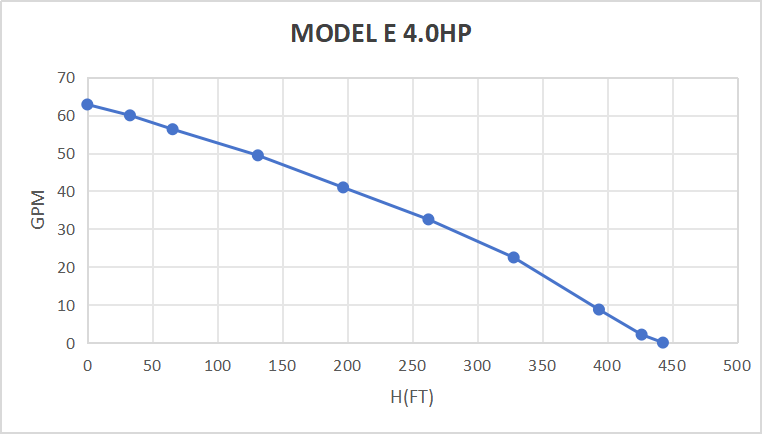

| Model A (4SPW1-26P) | Model C (4SPW3-13P) | Model E (4SPW6-8P) | Model G (4SPW12-5P) | |
|---|---|---|---|---|
| Max flow | 16.9 GPM | 33.90 GPM | 62.96 GPM | 117.56 GPM |
| Max head | 1,050 ft | 734.91 ft | 442.91 ft | 229.66 ft |
| Max pressure | 464 PSI | 318 PSI | 192 PSI | 99.5 PSI |
| Pump body | 4" | 4" | 4" | 4" |
| Outlet | 2" | 2" | 2" | 2" |
Built for: Extremely deep commercial and municipal wells, large-scale agricultural and commercial irrigation, remote industrial applications, greenhouse and large farm water supply, properties with wells exceeding 500 ft
Key features:
- 4,400W solar array included — ten 440W bifacial panels, precisely matched to the pump's 4,400W+ requirement

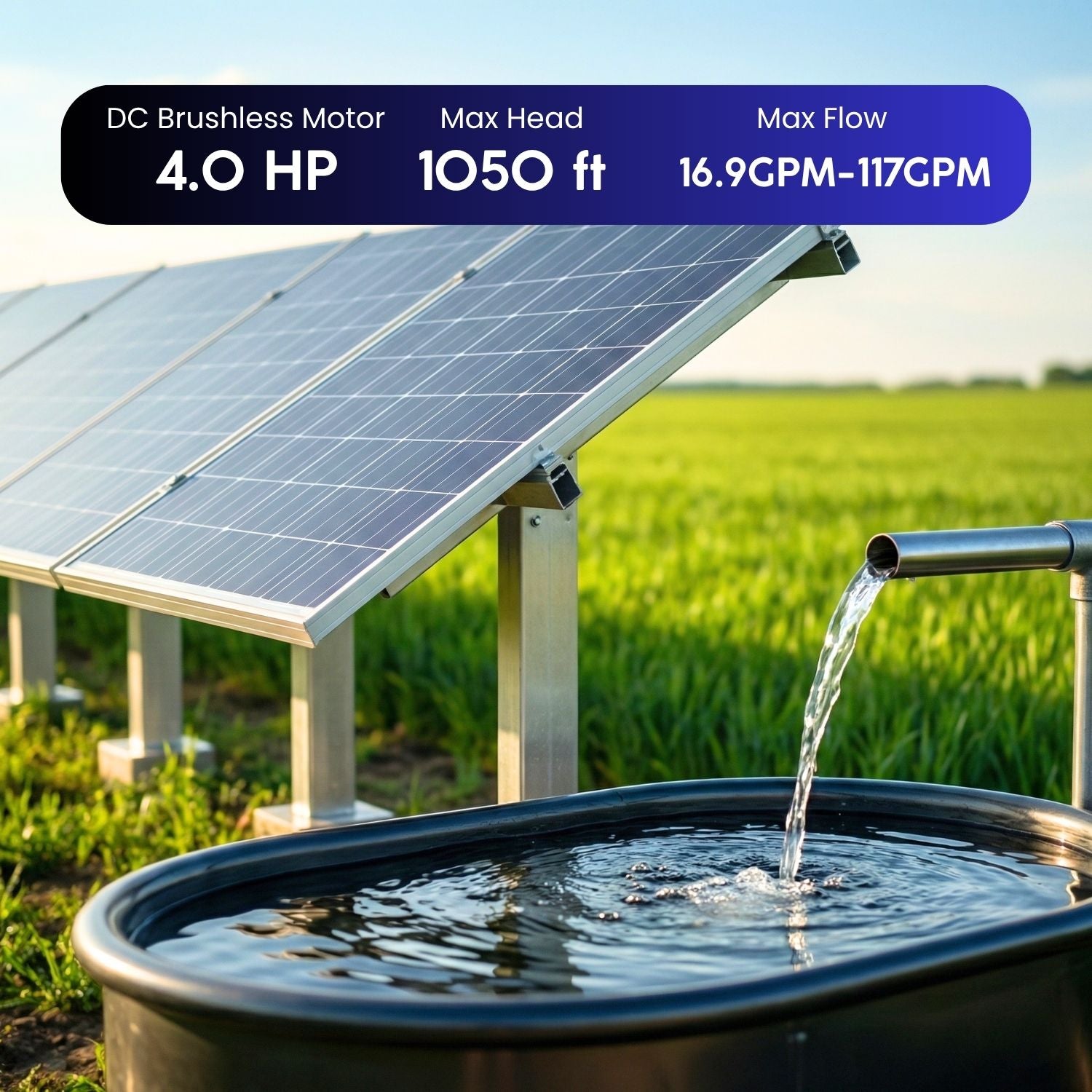

- Model A reaches 1,050 ft — the deepest head of any pump on the ROCKSOLAR site
- Model G delivers 117.56 GPM — the highest flow of any pump ROCKSOLAR offers
- Works in cloudy conditions — customers confirm consistent performance even in overcast weather
- Proven for continuous heavy use — customers confirm reliable operation 6 days/week for greenhouse, livestock, and large irrigation
- Built-in controller — customers confirm straightforward setup despite the scale

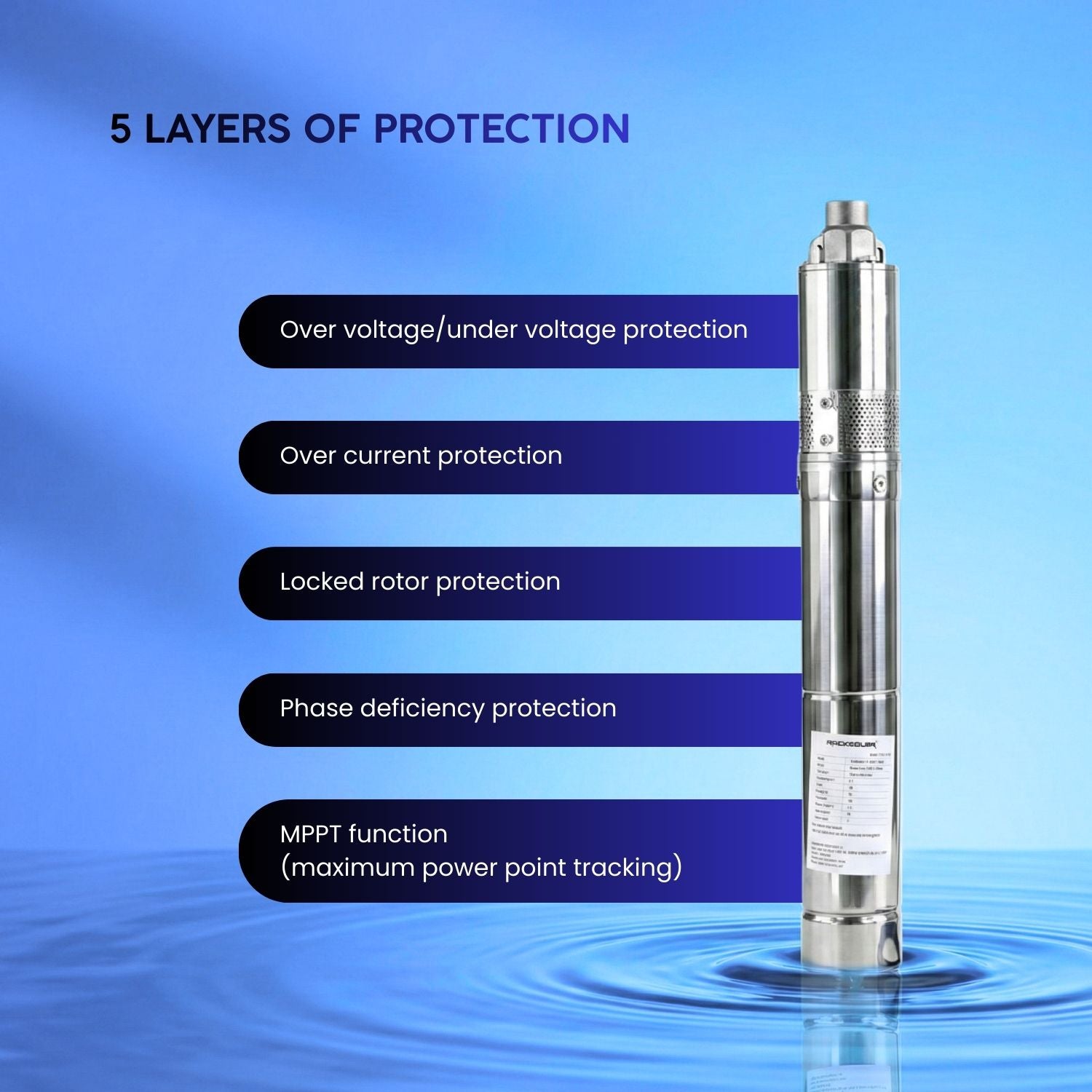

- Dry-run auto protection — shuts off if well level drops
- Float switch / pressure switch compatible
Warranty: 5 years

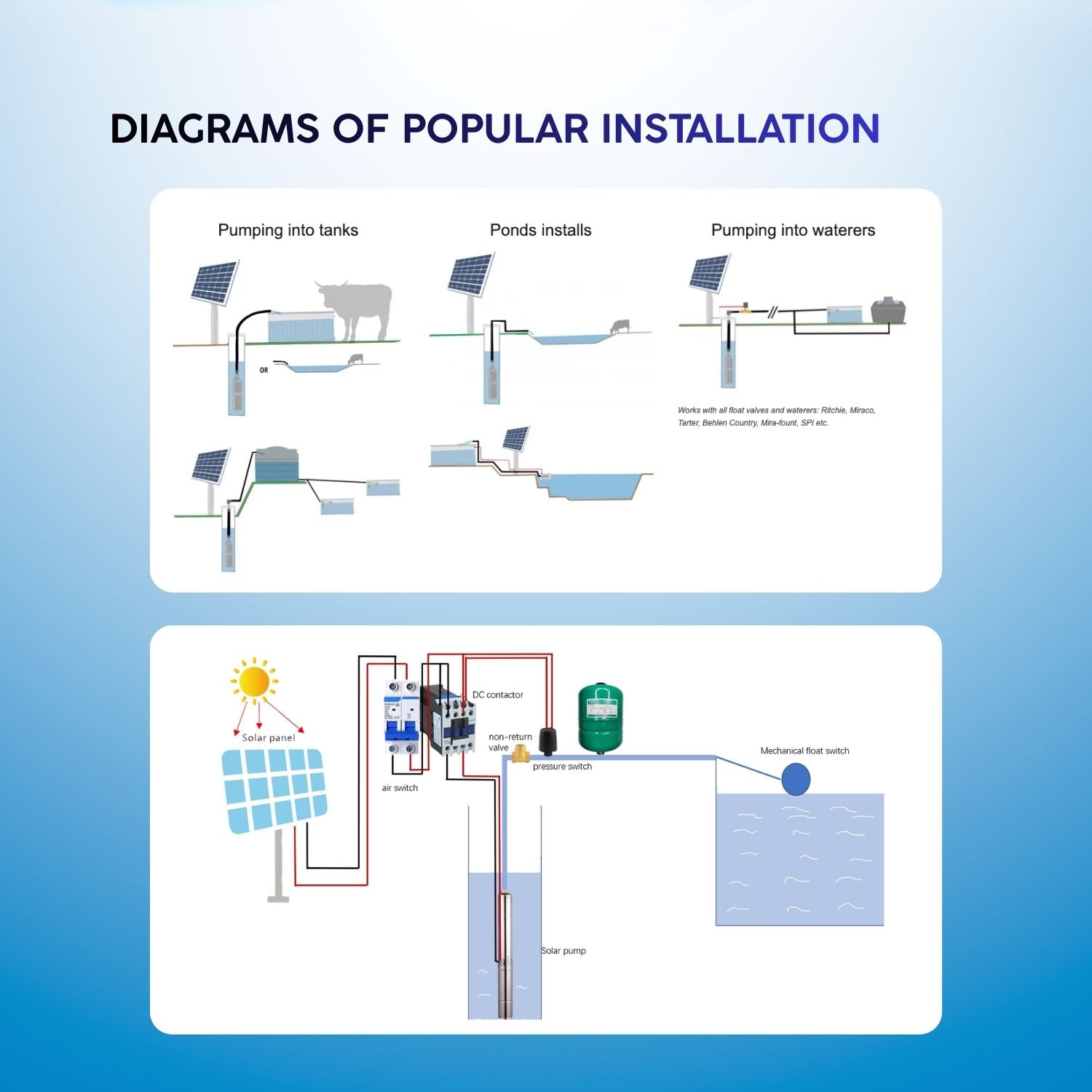

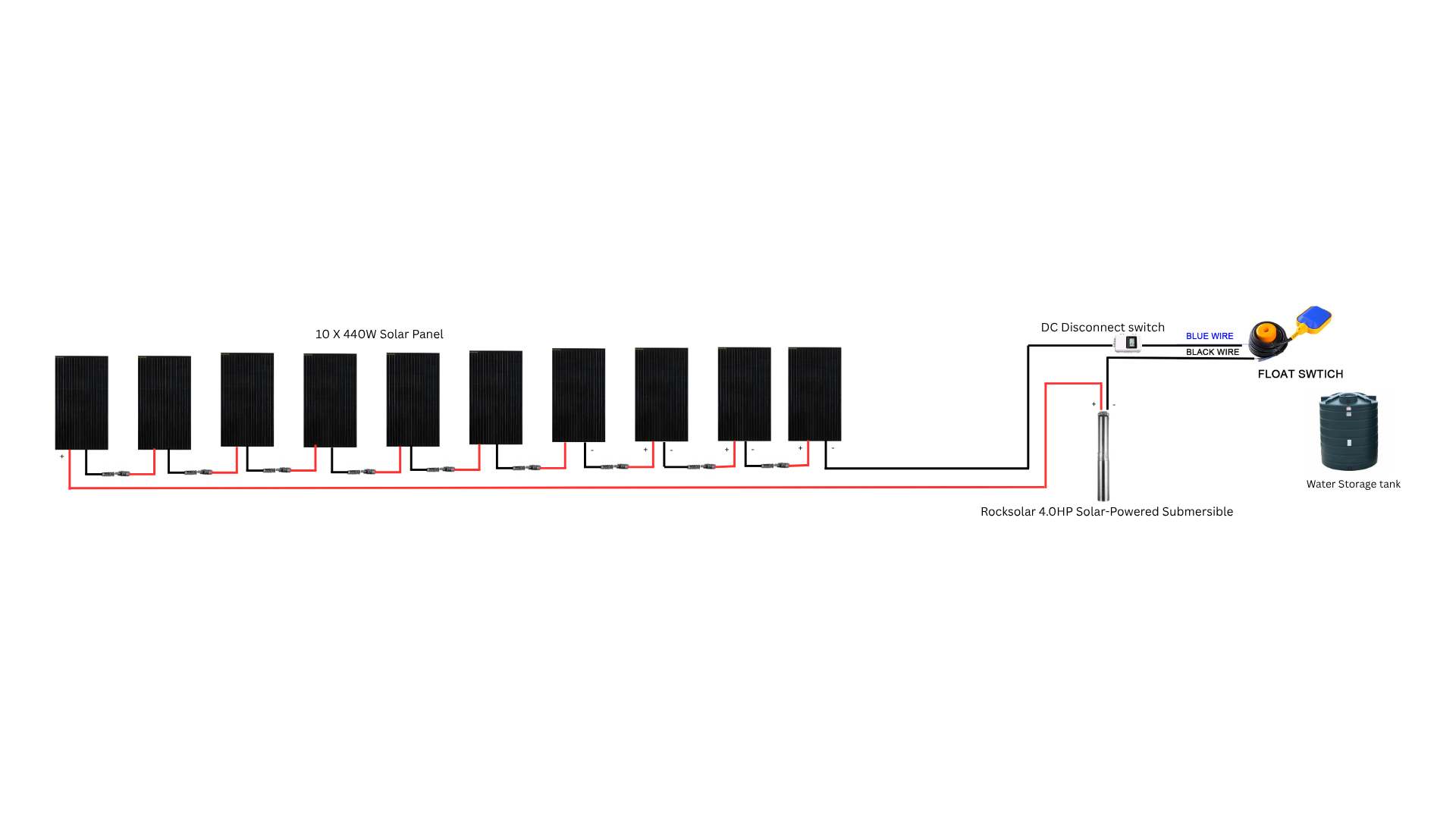

How the System Works
The ROCKSOLAR Solar Powered Water Pump System converts solar energy into a reliable water supply for livestock watering, irrigation, and remote agricultural applications.
The operating sequence is as follows:
- Solar panels convert sunlight into direct current (DC) electricity.
- The solar pump controller continuously monitors the available solar power and adjusts the voltage and current to maximize energy harvest from the solar array.
- The controller supplies optimized DC power to the brushless submersible pump, ensuring efficient operation under varying sunlight conditions.
- The pump draws water from the well, pond, cistern, or other approved water source and delivers it through the discharge pipeline.
- Depending on the application:
- Livestock Watering: Water is pumped into a storage tank or watering trough. When an optional float switch is installed, the controller automatically stops the pump once the tank reaches the preset water level and restarts pumping when the water level drops.
- Agricultural Irrigation: Water is supplied to irrigation systems such as drip irrigation, sprinkler systems, soaker hoses, or storage reservoirs for crop, orchard, greenhouse, vineyard, pasture, and garden irrigation. Flow can be controlled using irrigation valves, timers, or storage tanks based on the specific irrigation design.
- During periods of insufficient sunlight, such as early morning, late evening, or heavy cloud cover, the controller automatically reduces pump speed or stops the pump to protect the system and optimize energy use.
- When adequate sunlight returns, the controller automatically restarts the pump without requiring manual intervention.
This intelligent, fully automatic operation minimizes maintenance while providing a dependable and sustainable water supply for livestock, irrigation, and other off-grid agricultural applications.
