The ROCKSOLAR 500W 24V Off-Grid Solar Water Pump System stands as a pioneering solution for remote and independent water supply needs. Expertly crafted for off-grid applications, this robust system includes a 24V 50Ah Deep Cycle LiFePO4 Battery with a high-tech BMS, 1 X 400W Rigid Monocrystalline Solar Panel,and a precise 20A MPPT Solar controller, ensuring smooth and consistent water pumping. It’s equipped with a high-performance 24V 1/3 HP Brushless Solar DC Submersible Well Pump, designed for seamless solar operation, delivering a maximum flow of 1.3m³/h with a 70m head. Perfectly tailored for use in varied environments, this system guarantees reliability with its durable stainless steel construction and an inbuilt pump controller for hassle-free operation. The battery and solar panel come with an 10-year warranty, showcasing ROCKSOLAR's commitment to long-lasting service. Whether it's for agricultural irrigation, livestock watering, or rural home use, the ROCKSOLAR 500W solar powered pump system offers a self-sufficient water supply, making it an indispensable asset for off-grid living in Canada.

Product Features

ROCKSOLAR 24V 50Ah Deep Cycle LiFePO4 Battery with BMS System:

24V 50Ah capacity
Service life: 3500+ cycle life and 100% discharge rate for ultra-long service life
Consistent power: Flat voltage curve ensures steady power output, with no dramatic drop in output like SLA batteries
Deep Cycle LiFePO4 Battery Technology
Patented Smart Battery Management System
Lightweight: Only 13 pounds for easy portability and installation
Ideal for harsh environments: Patented BMS offers protection from temperature, short circuits, over-discharge, over current, and overcharge, as well as battery cell balancing.

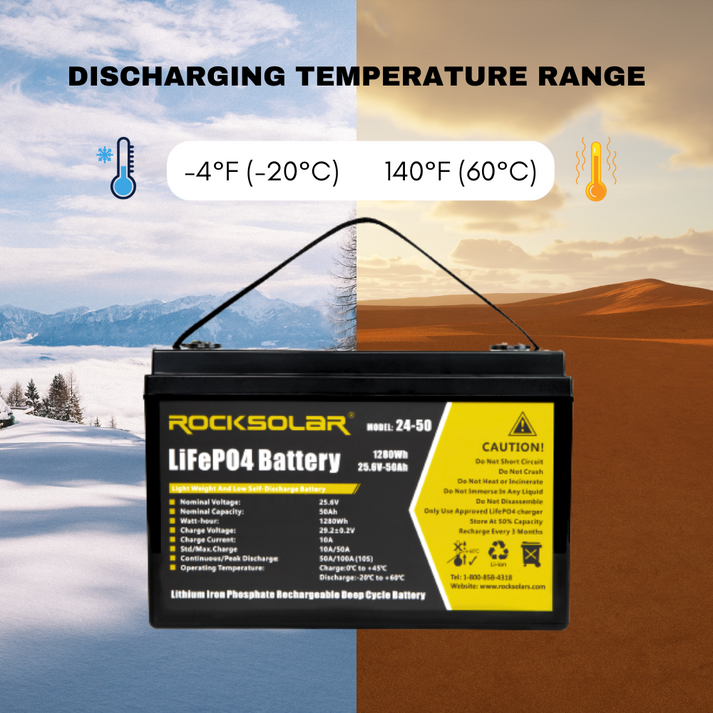

Operating temperature range of charging: 0C∽45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.
Warranty: 10-year warranty and 10+ year service life

400W Rigid Monocrystalline Solar Panel - Waterproof with Corrosion-Resistant Aluminum Alloy Frame:

400W output
Rigid Monocrystalline Solar Panel
Waterproof and Corrosion-Resistant Aluminum Alloy Frame
High-Efficiency Solar Cell with 22% Conversion Efficiency

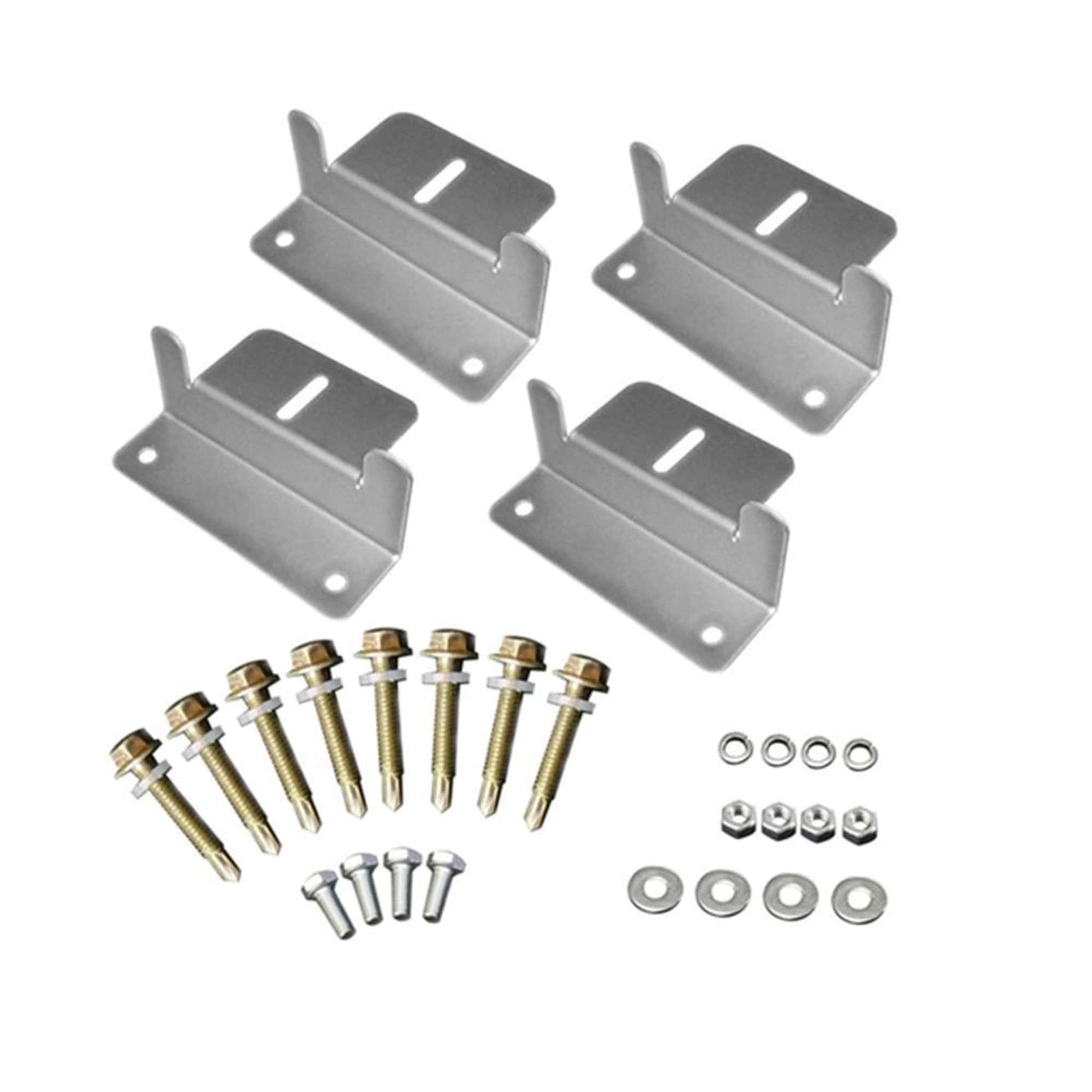

Pre-drilled holes for easy mounting and securing to any surface

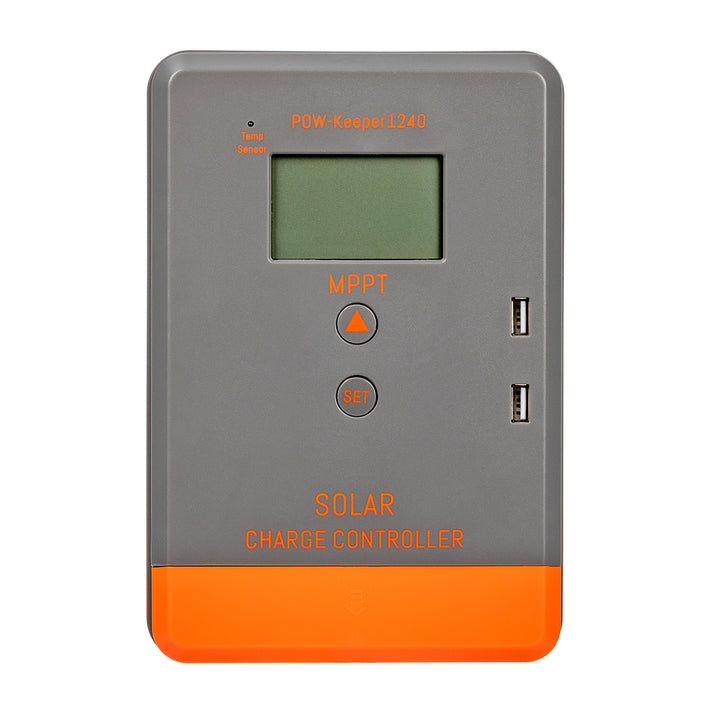

ROCKSOLAR 20A MPPT Solar Charge Controller:

20A MPPT Solar Charge Controller
Compatible with Lithium and Lead Acid batteries
The maximum open voltage of 75Vdc and MPP tracking efficiency of 99.5%
3-stage charge algorithm and 12/24V nominal system voltage
Rated charging current of 20A and battery voltage range of 8-32V
High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
Operating temperature range of -20°C to 55°C
IP30 rated for protection

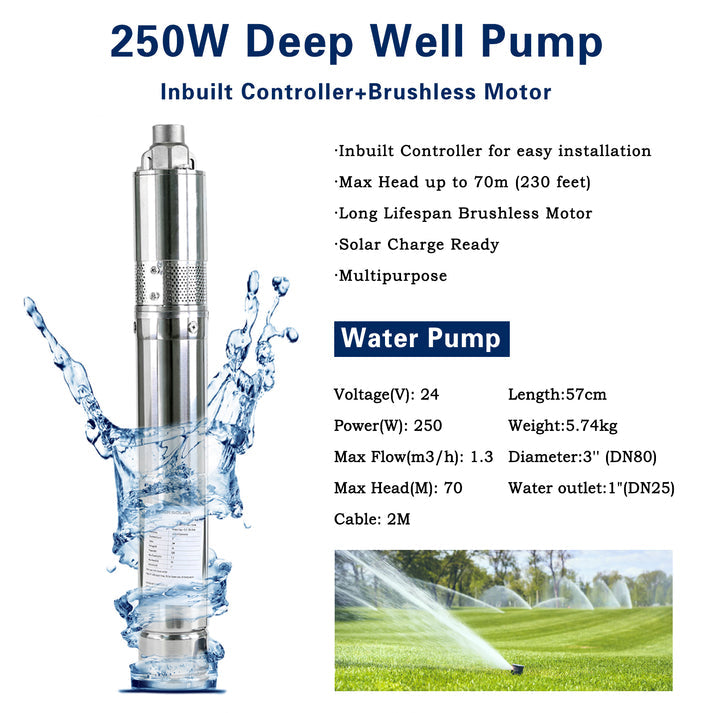

ROCKSOLAR 24V 1/3 HP Brushless Solar DC Submersible Well Pump:

High-Performance Brushless Motor: Reliable and efficient operation, designed specifically for solar water pumping technology.
Durable Construction: The pump features complete stainless steel (S.S. 304) construction, with a motor brass cap and S.S. 304 body for long-lasting use.
Inbuilt Controller: The pump comes with an inbuilt controller for ease of operation.
Powerful: The 250W power provides a maximum flow rate of 1.3m3/h and a maximum head of 70m.
User-friendly: Easy to install and operate with minimal maintenance requirements. Quiet operation and low vibration for an unobtrusive addition to your solar setup.
Adequate Cable Length: Comes with a 2M cable for flexible installation.
Optimized for Solar: Works seamlessly with ROCKSOLAR solar panels and systems.
Outlet: The pump features a 1" outlet for easy connection to your water supply system.

500W Pure Sine Wave Inverter

Powerful Output: 500W continuous, 1000W peak.
High Efficiency: Up to 91% maximum.
Full Protection: Against shorts, overloads, and temperature extremes.
Wide Use: Ideal for RVs, trucks, camping, and emergencies.
Lightweight: Only 0.94 kg for portability.
Silent Fan: Smart cooling without noise.
USB Port: Convenient 2.1A charging.
Stable Power: Pure Sine Wave for smooth operation.
12-Month Warranty: For reliability and trust.
Versatile Compatibility: Suits various devices and appliances.

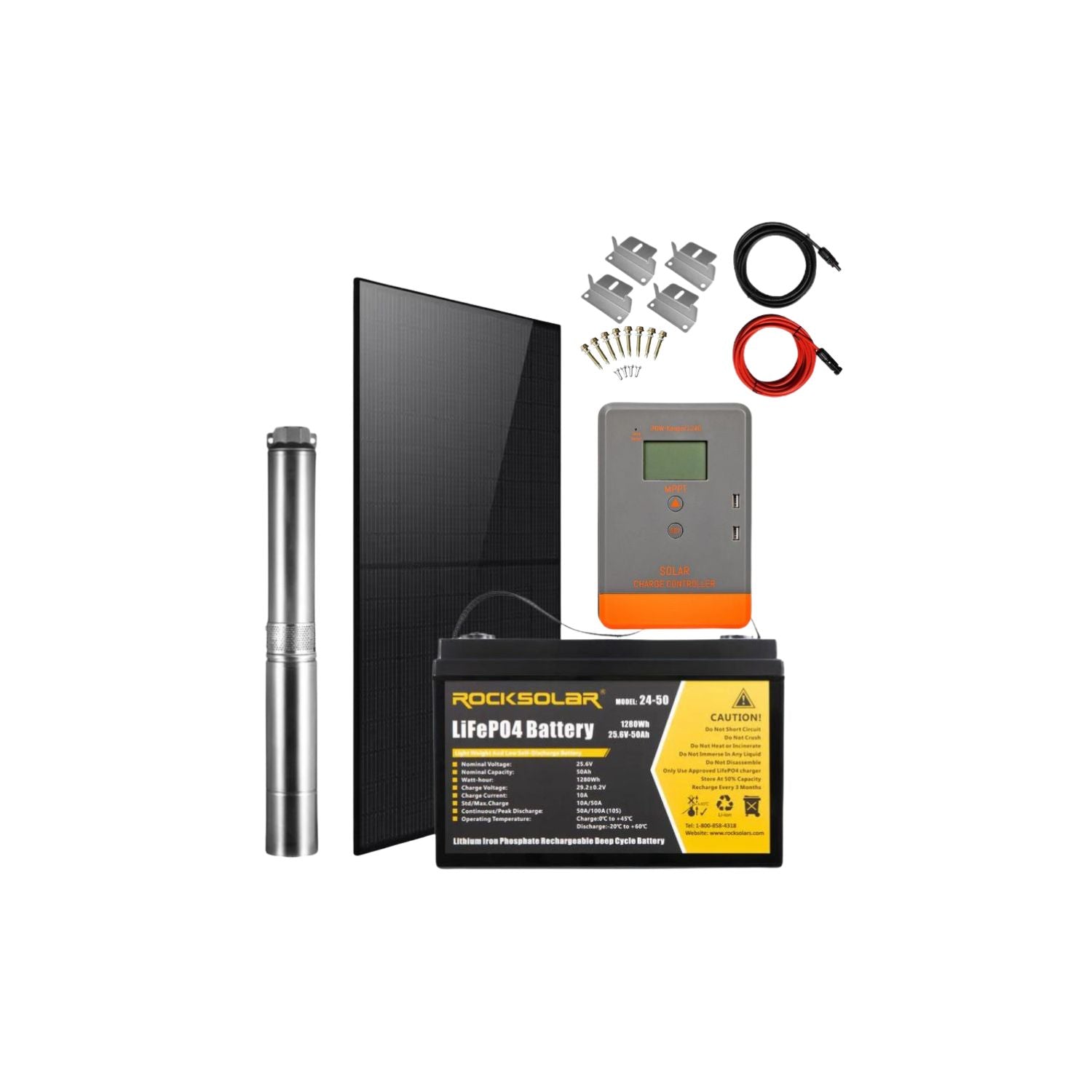

1 x 24V 50Ah Deep Cycle LiFePO4 Battery
1 x 24V Brushless Solar DC Submersible Well Pump
1 x 400W Rigid Monocrystalline Solar Panel
1 x 20A MPPT Solar Charge Controller
1x 500W Inverter
1 x User Manual

Technical Specifications

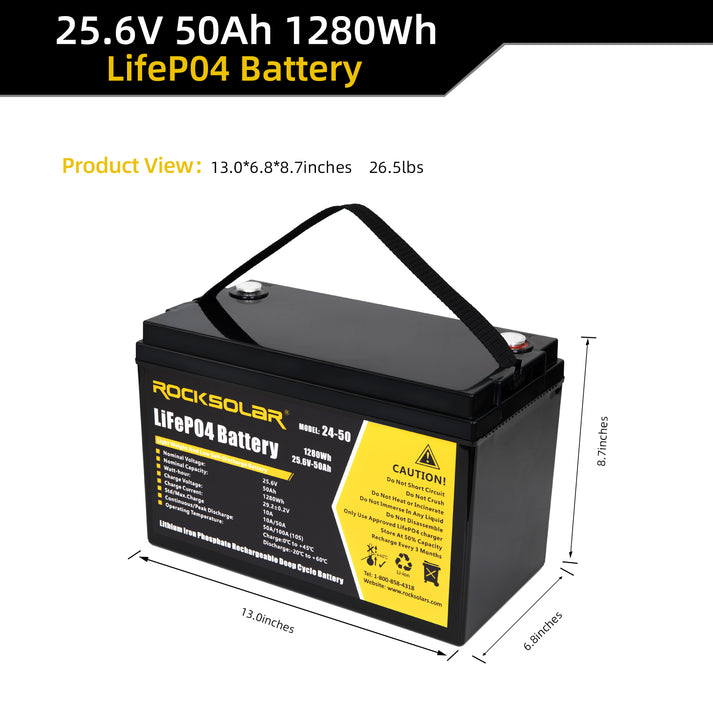

24V 50Ah Deep Cycle LiFePO4 Battery	Details
Product Dimensions	14.99 x 6.6 x 9.4 cm
Battery Type	Lithium Ion battery
Special Features	Deep cycle
Working Temperature	-20C -60C
Voltage	24 Volts (DC)
Item Weight	‎13 kg
Warranty	11 Years

400W Panel Specification	Details
Panel Type	Monocrystalline
Power Output	400W-420W
System Voltage	1000V
Cell Efficiency	20.7%
Frame Material	Anodized Aluminum
Dimensions	1722mm x 1134mm x 30mm
Weight	22 kg
Operating Temperature	-40°C to +85°C
Waterproof Rating	IP68
Front Glass	Anti-reflective tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Service Life	25 years
Warranty	10 years

20A MPPT Solar Charge Controller	Details
Max Open Voltage of PV Module	75Vdc
MPP Tracking Efficiency	99.50%
Light Control Voltage	5V
Charge Algorithm	3 Stage
Battery Type	Lithium and Lead Acid Battery
Nominal System Voltage	12/24V
Rated Charging Current	20A
Battery Voltage Range	8~32V
High Voltage Disconnection	16V (24V x 2)
Duration for absorption charging	2 hours
Charge Loop Voltage Drop	≤0.29V
Self-consumption	≤ 9.2mA 12V; ≤ 11.7mA 24V
Equalized Charging Voltage	AGM: 14.6V; GEL: No; FLd: 14.8V
Absorption Charging voltage	AGM: 14.4V; GEL: 14.2; FLd: 14.6V
Floating Charging voltage	AGM/ GEL/ FLd: 13.8V
Low Voltage re-connection (LVR)	AGM/ GEL/ FLd: 12.6V
Low Voltage Disconnection (LVD)	AGM/ GEL/ FLd: 10.8V
Operating Temperature Range	-20℃~55℃ (To run at full rated current continuously)
LCD Temperature Range	-20℃~70℃
Humidity Range	≤95% No condensation
Protection Class	IP30
Dimension	12317848
Installation Hole	108*120 ∅5
Warranty	1 Year

500W Inverter Specification	Details
Model	RSINV500-001
Output	Rated Power: 500W AC Voltage: 120V Frequency: 60HZ Resistive Load Continuous Output Power: 500W Inductive Load Continuous Output Power: 450W Capacitive Load Continuous Output Power: 150±30W，PF：0.6 Waveform: Pure Sine Wave Waveform Distortion (THD): ≤5%
Input	Battery Voltage: 12Vdc Voltage Range: 10～15.5Vdc DC Current: 52.1A No Load Loss: ≤0.8A Shutdown Mode Static Current: 15mA Maximum Efficiency: 91% Battery Type: All 12V batteries
Output Protection	Over Temperature, Output Short Circuit, Overload USB Output: 5V, 2.1A
Environmental Conditions	Operating Temperature: 0～40℃ Operating Humidity: 10～90%RH Storage Temperature/Humidity: -30℃～70℃, 10～95%RH
Physical Characteristics	Weight: Net Weight: 0.94Kg Size: 250.611856mm (LWH)

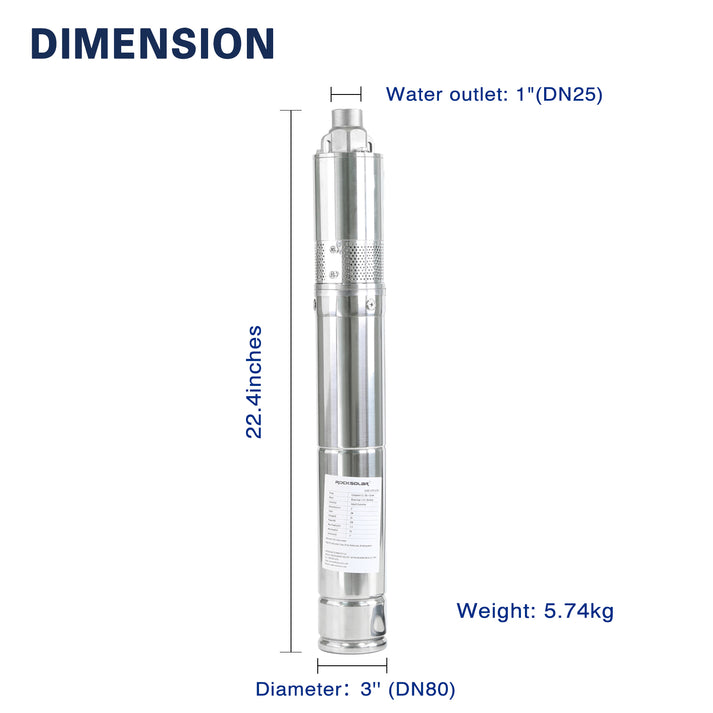

24V Brushless Solar DC Submersible Well Pump	Details
Product	Rocksolar 24V Brushless Solar DC Submersible Well Pump
Pump Model	Complete S.S. 304 + Screw
Motor	Brass Cap + S.S. 304 Body
Controller	Inbuilt Controller
Diameter(inch)	3''
Voltage(V)	24
Cable	2M
Power(W)	250
Max Flow(m3/h)	1.3
Max Head(m)	70
Outlet(inch)	1"
Warranty	5 Year

This system includes a 24V 50Ah Deep Cycle LiFePO4 Battery with BMS, a 400W Rigid Monocrystalline Solar Panel, a 20A MPPT Solar Charge Controller, a 500W Pure Sine Wave Inverter, and a 24V 1/3 HP Brushless Solar DC Submersible Well Pump.

The LiFePO4 Battery and Solar Panel come with an 10-year warranty, and the remaining components are covered by a 1-year warranty.

Yes, the system is designed for continuous operation, suitable for applications such as water pumping in remote locations.

Yes, the system can be expanded with additional components for increased power demands.

The system operates effectively in a wide range of temperatures, but performance can vary based on environmental conditions.

Installation guides are provided, and our support team is available for further assistance.

It's generally suitable for various locations, but checking local solar conditions is advisable for optimal setup.

It's crafted for moderate to high-demand water pumping tasks, but specifics should be compared with the device's capacity.

Minimal maintenance is required, with regular checks and cleaning to ensure performance.

Yes, customer support is available for any issues or questions regarding the system.

The submersible well pump requires a 24V DC power source, which can be provided by the included components.

The pump delivers a max flow rate of 1.3m3/h, suitable for various water supply applications.

It should not be used in dirty or corrosive water to prevent damage and wear.

The pump is low maintenance but should be kept submerged and checked if not used for long periods.

Yes, there's a 5-year warranty, covering manufacturing defects but not damage from misuse or improper operation.
