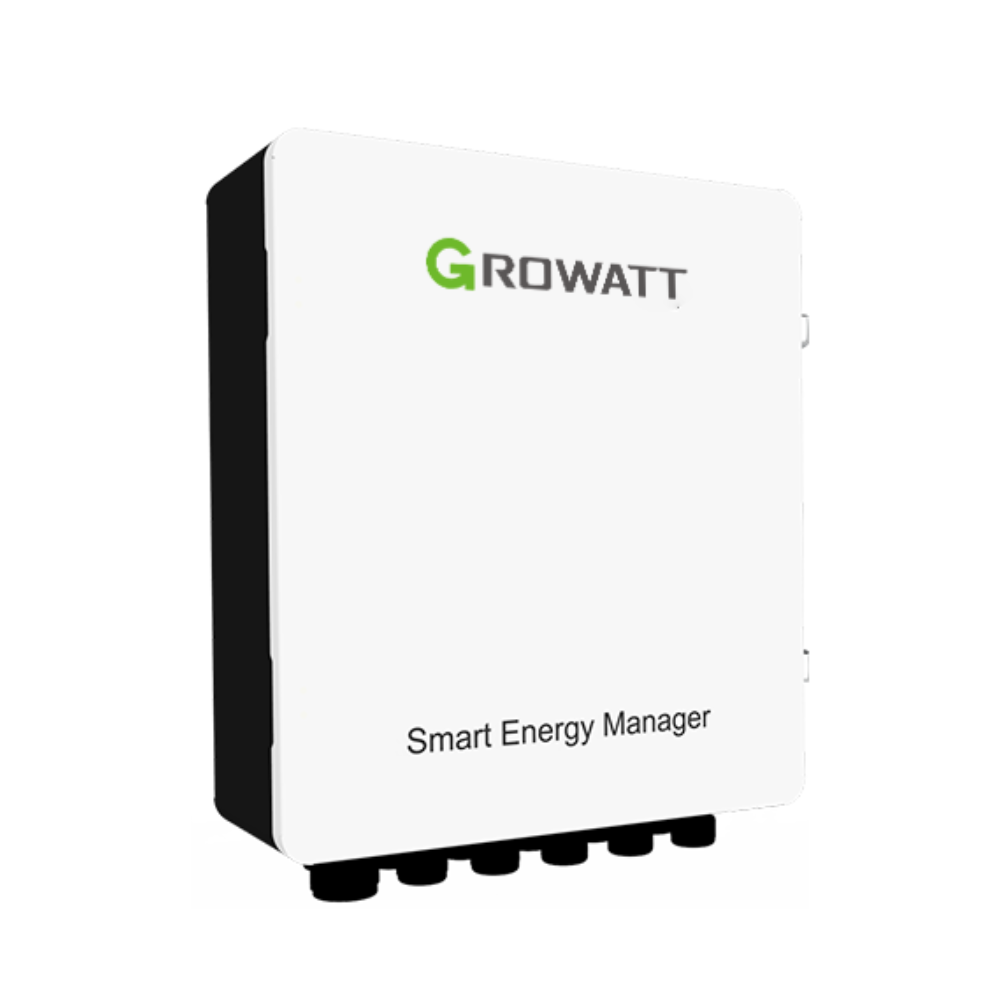

600kW Smart Energy Manager ShineSEM-X-RM

600kW Smart Energy Manager ShineSEM-X-RM

$6,599.99 CAD
$8,599.99 CAD $6,599.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • 600KW Capability: Engineered for managing extensive commercial and industrial energy systems, enhancing efficiency and control.
  • Comprehensive Connectivity: Equipped with RS485 and Ethernet for essential communications, plus optional PLC and Ring Network Switch for superior network integration.
  • Exceptional Durability: With its IP66 (NEMA 4X) rating, it guarantees consistent operation across a broad temperature range from -22°F to +149°F (-30°C to +65°C) and at elevations up to 4000m (13123ft).
  • Precision Energy Management: Features the capability to detect up to 2000A, offering accurate energy monitoring and optimization for large-scale operations.
  • Indoor Installation Design: Optimized for indoor use, maintaining peak performance within a humidity range of 5%-95% non-condensing, suitable for various indoor environments.
Shipping

Free
Local Shipping

Warranty

1-year Hassle Free
Warranty

Support

Lifetime Customer
Support
View full details
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Introducing the 600kW Smart Energy Manager ShineSEM-X-RM

The 600kW Smart Energy Manager ShineSEM-X-RM from ROCKSOLAR Canada revolutionizes energy management for medium to large-scale commercial and industrial applications. This powerhouse device is engineered to optimize energy consumption, streamline operations, and enhance sustainability efforts in demanding environments.

Key Features:

  • Substantial Energy Management: Specially designed for systems requiring up to 600kW, making it an ideal choice for extensive energy projects.
  • Superior Connectivity: Offers RS485 and Ethernet for reliable communication, with additional PLC and Ring Network Switch options for extensive network integration and management.
  • Durable and Reliable: Encased in an IP66 (NEMA 4X) rated housing, it guarantees operation in extreme temperatures from -22°F to +149°F (-30°C to +65°C) and is suitable for use at altitudes up to 4000m (13123ft).
  • Enhanced Energy Monitoring: Features advanced metering with a broad input voltage range and high current detection capabilities for accurate and efficient energy management.

Technical Specifications:

  • Designed for Indoor Installation: Its compact and robust design allows for easy integration into existing infrastructures, with optimal performance in a wide humidity range.
  • Lightweight and Easy to Install: Weighing in at a manageable 13.5kg (29.7lbs), it ensures a straightforward installation process.

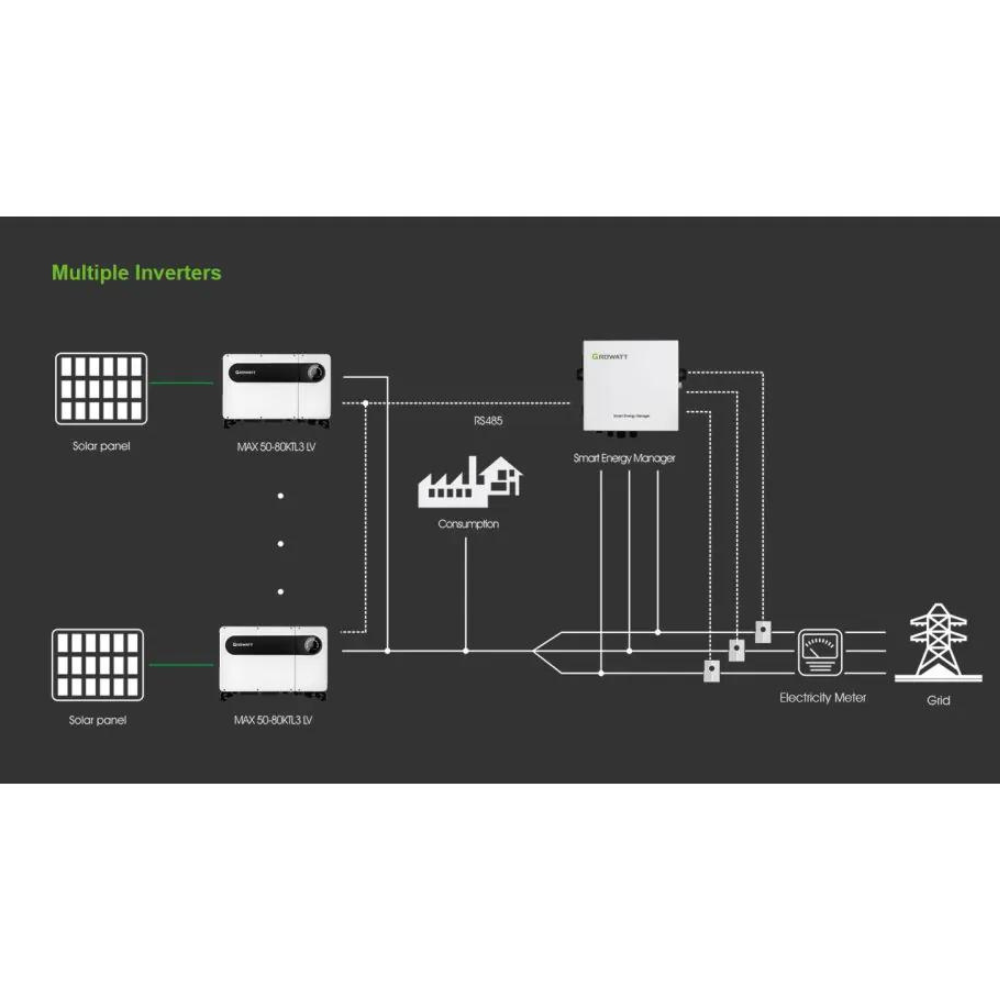

  • Comprehensive System Support: Capable of managing multiple inverters simultaneously, it enhances the scalability and flexibility of energy management systems.

With its powerful capabilities and advanced features, the 600kW Smart Energy Manager ShineSEM-X-RM sets new standards for efficiency and reliability in energy management, providing an essential solution for businesses looking to optimize their energy systems.

    • 1x 600kW Smart Energy Manager ShineSEM-X-RM: The primary unit designed to streamline and optimize energy management for large commercial and industrial setups.
    • 1x User Manual: Comprehensive instructions and guidelines for installation, operation, and maintenance, ensuring smooth integration and optimal use of the energy manager.
    • 1x Communication Interface Accessories: Includes all necessary cables and connectors for RS485 and Ethernet communications, with optional components for PLC functionality and network switching capabilities.
    • 1x Mounting Kit: Complete set of brackets and hardware for secure and compliant mounting of the energy manager within the facility.
    • 1x Warranty Documentation: Detailed warranty information providing coverage specifics, terms, and conditions to protect your investment in energy management technology.

Technical Specifications


Specification Details
System Capacity 600KW
Communication Options RS485, Ethernet, Optional PLC, Optional Ring Network Switch
Protection Rating IP66 (NEMA 4X)
Operating Temperature Range -22°F to +149°F (-30°C to +65°C)
Max Operating Altitude 4000m (13123ft)
Humidity Range 5%-95% non-condensing
Input Voltage Range 187V-594V
Nominal Input Voltage 208V/220V/400V/480V/540V
Max Current Detection Up to 2000A for the CT detection side
Dimensions 398 x 450 x 158 mm
Weight 13.5 kg
Installation Environment Indoor


It is designed to efficiently manage energy systems up to 600KW, suitable for medium to large commercial and industrial applications.

The unit comes equipped with RS485 and Ethernet for core communication needs, with optional PLC and Ring Network Switch for enhanced system integration.

With an IP66 (NEMA 4X) rating, it operates reliably across a wide temperature range from -22°F to +149°F (-30°C to +65°C), even at altitudes up to 4000m (13123ft), ensuring robust performance under various environmental conditions.

It features advanced current detection capabilities up to 2000A for the CT detection side, providing accurate energy management and monitoring.

Yes, designed for indoor use, it maintains optimal functionality within a relative humidity range of 5%-95% non-condensing, fitting various indoor settings.


Download Product Manual (PDF)
