ROCKSOLAR 800W 12V Solar Wind Turbine Kit (600W Wind + 200W Solar)

ROCKSOLAR 800W 12V Solar Wind Turbine Kit (600W Wind + 200W Solar)

Regular price $2,266.00 USD
Regular price $3,474.00 USD Sale price $2,266.00 USD
Sale Sold out
Shipping calculated at checkout.
  • Complete Kit: Wind and solar power in one package - turbine, panel, inverter, controller.
  • Large Battery: 12V 100Ah LiFePO4 with BMS for safety.
  • Efficient Solar: 200W Monocrystalline Panel at 22% efficiency.
  • 1000W Inverter: Reliable pure sine wave output.
  • Advanced Controller: 40A Wind Solar Hybrid Streetlight Controller for best charging and efficiency.
  • Durable & Safe: Waterproof panels, BMS for protection.
  • Wide Application: Ideal for cottages and homes.
  • Extended Warranty: 10 years for battery and panels.
  • Easy Installation: Comes with Z-Brackets and MC4 connectors.
  • Scalable System: Ready for future expansion.
  • All-Weather Battery: Operates -20°C to 60°C, Controller -20°C to 55°C.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support

View full details
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Introducing the ROCKSOLAR 800W 12V Solar Wind Turbine Kit, a dynamic and versatile solution for sustainable energy generation. This hybrid kit combines the power of wind and solar to deliver up to 800W of energy, making it perfect for off-grid applications, remote areas, or as a reliable backup power source. Key components of this innovative system include a 600W Wind Turbine Generator and a 200W Monocrystalline Solar Panel, seamlessly integrated through a 40A Wind Solar Hybrid Streetlight Controller. The kit also comes with a 20ft 8AWG Extension Cable with MC4 connectors and a 40ft 8AWG Wind Turbine Extension Cable, providing flexibility and ease in setup. A sturdy Z Mounting Bracket and a 10ft M8 Battery Connection Cable are included to ensure secure installation and efficient power transfer. Additionally, the kit also features a 1000W 12V-110V Pure Sine Wave Inverter and a 100Ah 12V LiFePO4 Lithium Battery, enhancing its functionality and efficiency. This 800W 12V Solar Wind Turbine Kit from ROCKSOLAR is designed for those seeking a reliable, eco-friendly, and efficient power solution. Its versatility makes it ideal for a variety of uses, from powering a small cabin to serving as an emergency power supply.

Product Features

ROCKSOLAR 600W Wind Turbine Generator

  • Model: SR-W06; Rated Power: 600W, Max Power: 660W.
  • Dual Voltage: 12/24V adaptable for diverse setups.
  • Start-up Wind Speed: Just 2.5m/s, efficient in low wind.
  • Optimal Performance at 13m/s Rated Wind Speed.
  • Working Range: 2.5~25m/S, resilient in varied conditions.
  • Survival Wind Speed: Withstands up to 40m/S.
  • Lightweight Design: 10Kg net weight, easy to install.
  • Wind Wheel Diameter: 1.6m for optimal energy capture.
  • Blades: 3 or 5 Nylon fiber blades, durable and strong.
  • Generator: Three-phase permanent magnet for consistency.
  • Control: Electromagnetic/yaw system, auto-adjusting.
  • Temperature Range: Operates from -40°C~80°C.
  • Tower Type: Compatible with Guyed towers.
  • Eco-friendly: Ideal for renewable energy generation.
  • Suitable for Off-Grid and Backup Power.

ROCKSOLAR Black Diamond 200W 12V Rigid Monocrystalline Solar Panel:

  • Type: High-efficiency Monocrystalline panel.
  • Power Output: 200W for robust energy generation.
  • System Voltage: 12V, suitable for various installations.
  • Cell Efficiency: 20-22%, ensuring optimal performance.
  • Frame: Durable Aluminum construction.
  • Size: Compact at 1480mm x 670mm.
  • Weight: Approximately 25-30 lbs, easy to handle.
  • Temperature Range: Operates from -40°C to +85°C.
  • Waterproof: IP65 rating, resilient in all weathers.
  • Glass: Low-iron tempered glass for high light transmittance.
  • Diodes: Integrated Bypass Diodes to reduce power drop.
  • Connectors: Standard MC4, universally compatible.
  • Cable: Varies by brand (approx. 3-6 ft).
  • Installation: Pre-drilled mounting holes for easy setup.
  • Longevity: Designed for over 25 years of service life.
  • Warranty: 10-year product assurance.

ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System:

  • 12V 100AH capacity
  • Over 3500 cycle life with 100% discharge rate for ultra-long service life
  • Consistent power: Flat voltage curve ensures steady power output, with no dramatic drop like SLA batteries
  • LiFePO4 Battery Technology for reliable deep cycling
  • Smart Battery Management System for safety and longevity
  • Lightweight: Only 27 pounds for easy portability and installation
  • Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.
  • Operating temperature range for charging: 0C∽45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.
  • Warranty: 11-year warranty and 10+ year service life

Wind Solar Hybrid Streetlight Controller Features:

  • Off-grid Efficiency: Tailored for wind and solar energy harnessing.
  • MPPT Charging: Maximizes wind power conversion.
  • PWM Dump Load & Solar Disconnect: Smart energy management.
  • Dual Power Supply: Battery and solar integration.
  • Customizable LCD Display: Real-time energy data and settings.
  • Multiple Outputs: Three DC mode options.
  • Circuit Protection: Dust, moisture, and static resistant coating.
  • Safety Features: Comprehensive electrical protections.
  • Lightning Protection Option: For high-risk areas (extra cost).
  • Installation & Maintenance: Professional install advised; easy upkeep.
  • Versatile Battery Compatibility: Adjustable for various types.
  • Diverse Operation Modes: Light and time-controlled settings.
  • Compatible with Varied Power Ratings: Suits multiple wind and solar setups.
  • Aluminum Cooling: Efficient heat dissipation.
  • Wide Temperature Tolerance: Operates in extreme climates.
  • Compact & Lightweight: 2.35kg, 167x145.5x61.8mm.

ROCKSOLAR 1000W 12V Pure Sine Wave Inverter:

  • Model: RSINV1000-001; 1000W rated power for high efficiency.
  • Adjustable AC Voltage: 120Vac (100/110/120Vac).
  • Frequency: 60Hz, alterable to 50Hz/60Hz.
  • Pure Sine Wave output, Waveform Distortion ≤5%.
  • Input: 12Vdc Battery Voltage, 9~17Vdc range.
  • High efficiency: 90% at full load.
  • Protections: High Temperature, Short Circuit, Overload, Overvoltage, Low Voltage.
  • Dual USB Output: 5V, 2.1A for charging devices.
  • Operating environment: -20~40℃, 10~90%RH.
  • Lightweight: Net weight 2.82 kg, dimensions 357.6*171.9*78mm.
  • Ideal for RVs, camping, backup power.

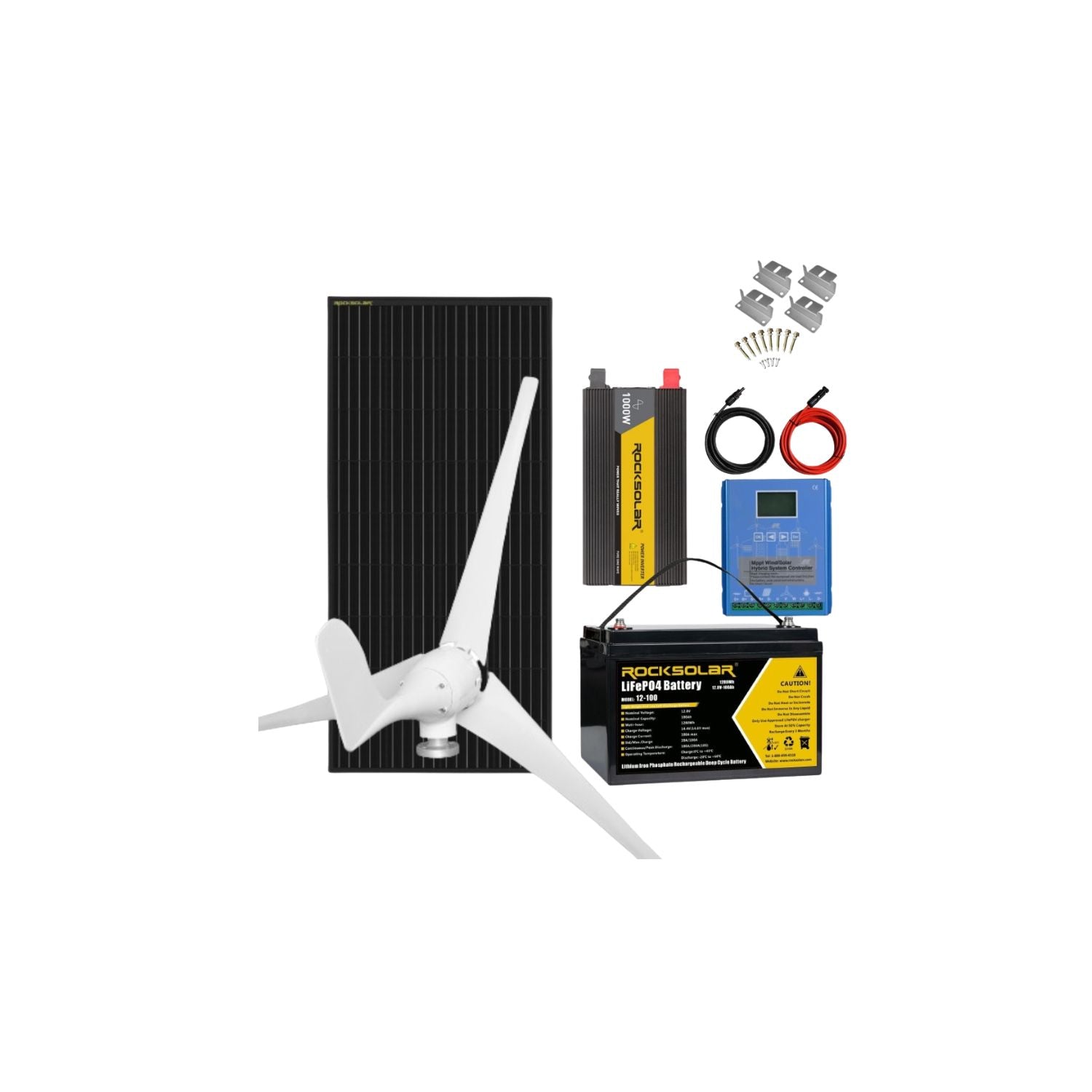

  • 1 x 600W Wind Turbine Generator
  • 1 x 12V 100Ah Deep Cycle LiFePO4 Battery
  • 1 x 200W 12V Rigid Monocrystalline Solar Panel
  • 1 x 1000W Pure Sine Wave Power Inverter
  • 1 x 40A Wind Solar Hybrid Streetlight Controller

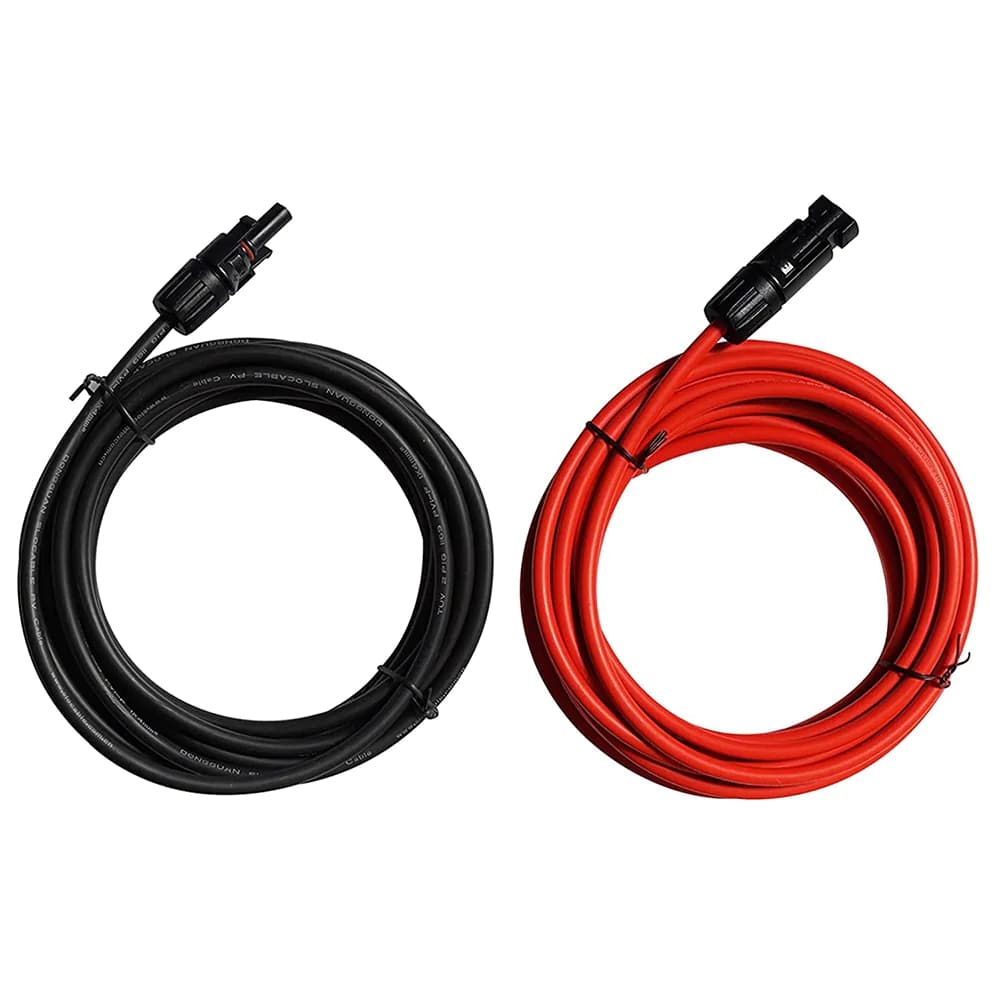

  • 1 x 20 Ft 8AWG Extension Cables With MC4 Connectors One Pair Red+Black
  • 1 x Z-Bracket Mount System
  • 1 x 1x 10ft M8 Battery Connection Cable
  • 1 x User Manual

Technical Specifications

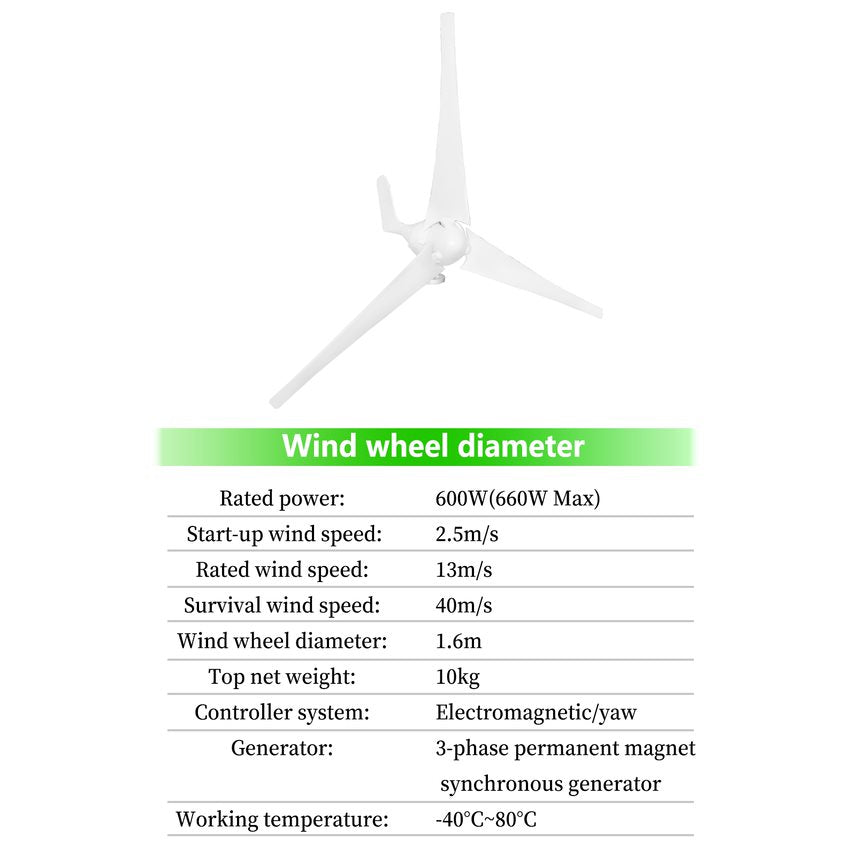

600W 12V/24V Wind Turbine Generator Details
Model Name SR-W06
Rated Power 600W
Maximum Power 660W
Rated Voltage 12/24V
Start-up Wind Speed 2.5m/s
Rated Wind Speed 13m/s
Working Speed 2.5~25m/S
Survival Wind Speed 40m/S
Top Net Weight 10Kg

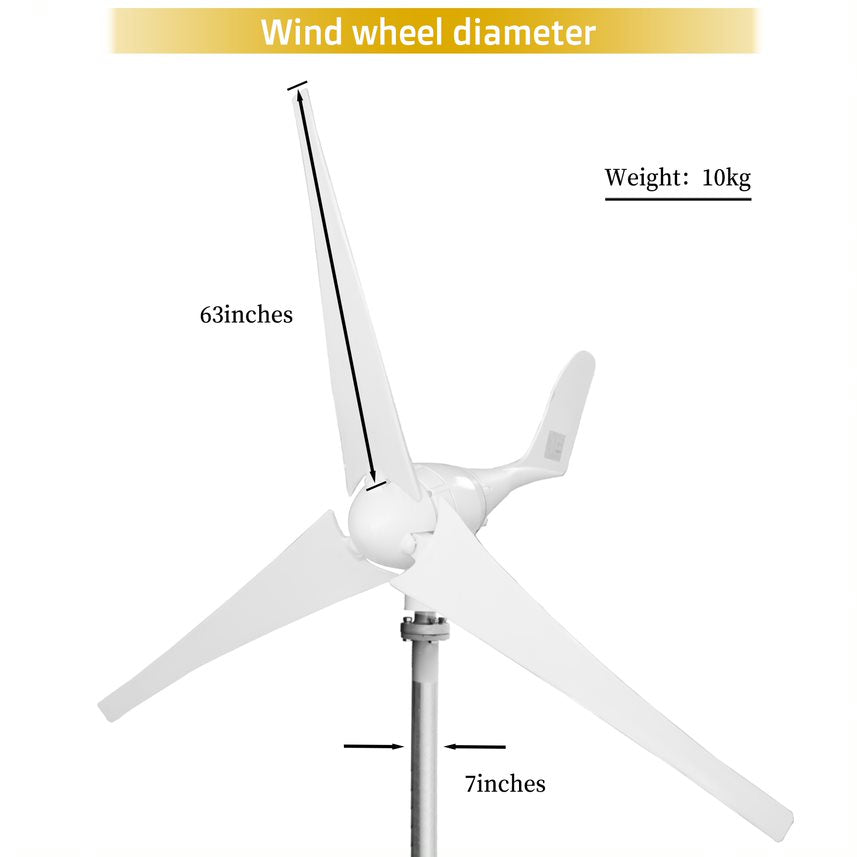

Wind Wheel Diameter 1.6m
Number of Blades 3 / 5
Blade Material Nylon fiber
Generator Three-phase permanent magnet synchronous generator
Controller System Electromagnetic/yaw
Regulating Way/Speed Way Automatic wind angle adjustment
Working Temperature -40°C~80°C
Tower Type Guyed tower

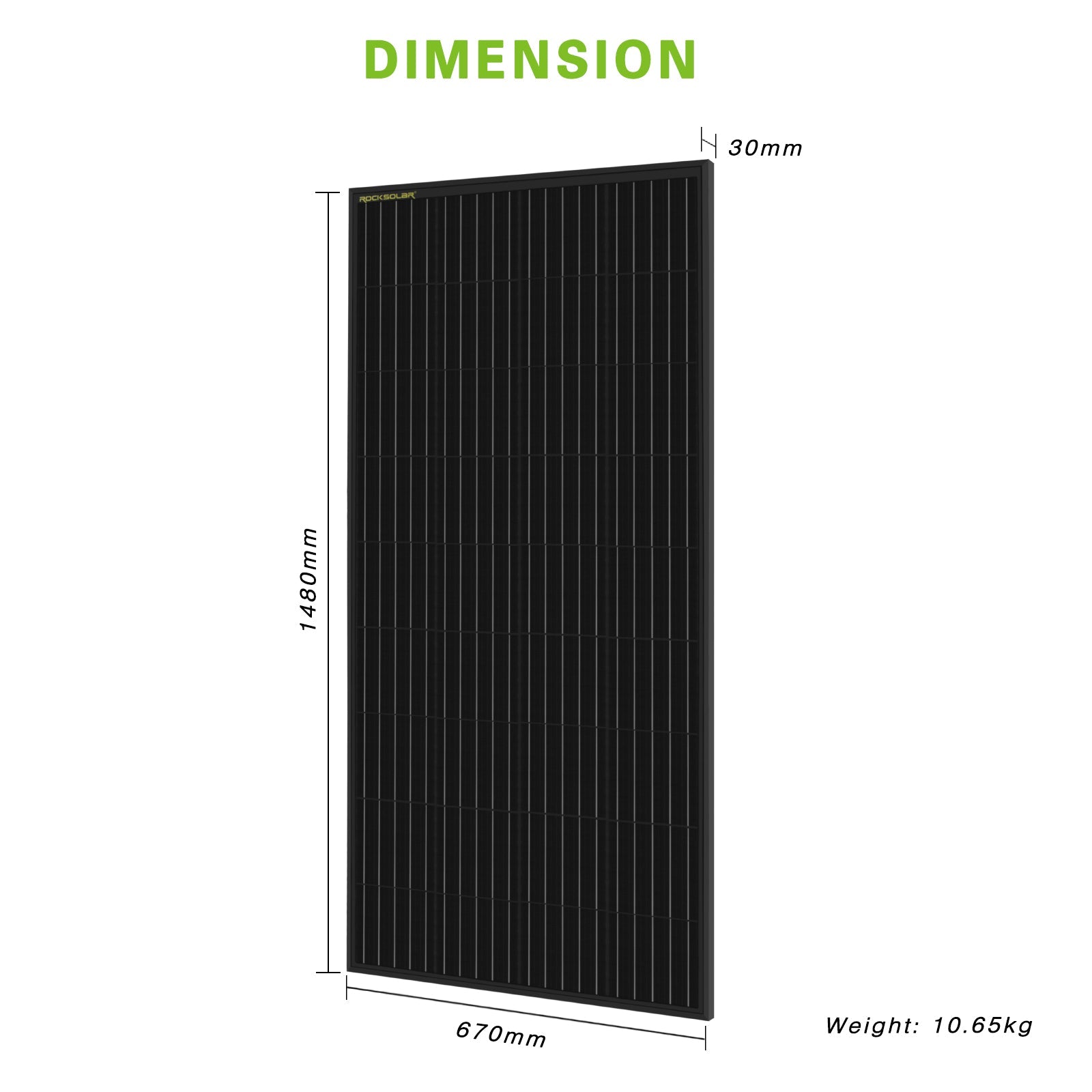

200W 12V Rigid Monocrystalline Solar Panel Details
Panel Type Monocrystalline
Power Output 200W
System Voltage 12V
Cell Efficiency 20-22%
Frame Material Aluminum
Dimensions 1480mm x 670mm
Weight Approx. 25-30 lbs
Operating Temperature -40°C to +85°C
Waterproof Rating IP65
Front Glass High light transmittance, low-iron tempered glass
Bypass Diodes Integrated
Connectors MC4
Cable Length Varies (approx. 3-6 ft)
Mounting Hole Locations Pre-drilled
Service Life 25 years or more
Warranty 10 years

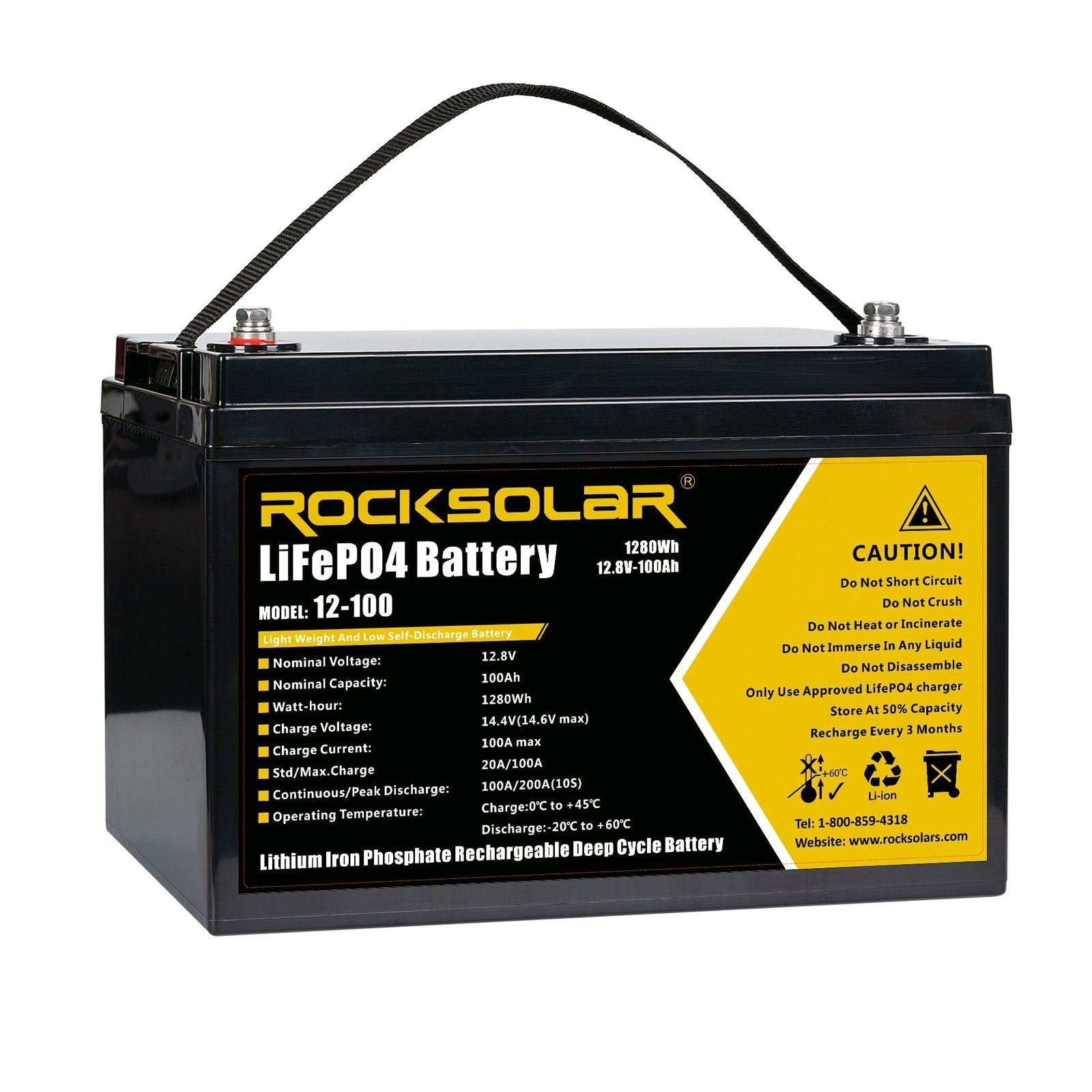

12V 100 Ah Deep Cycle LiFePO4 Battery Details
Battery Type LiFePO4 (Lithium Iron Phosphate)
Capacity 100Ah
Voltage 12V
Life Cycles 3,500 cycles
Dimensions 12.99" x 6.81" x 8.66"
Weight 27 Lb
Operating Temperature (Discharge) -20°C∽60°C
Operating Temperature (Charge) 0°C∽45°C
Terminal Type
Maximum Continuous Discharge 100A
Recommended Charge Voltage 14.6±0.2V
Built-in BMS Yes (With multiple safety features)
Certifications UN38 and IEC62133
Warranty 11 years

Wind Solar Hybrid Streetlight Controller Details
Rated System Voltage 12V, 24V, 12/24V Auto
Rated Wind Power 100W-600W
Rated PV Power 100W-600W
Max Input Voltage Wind ≤80V; Solar ≤55V
No-load Current (DC) ≤0.05A
Control Mode Wind Generator MPPT Boost Charge, PWM Dump Load
Display Content LCD Display, Voltage, Battery Power %, Current, Load Mode, etc.
Protection Type Various, including Solar Reversed Charging, Over Voltage/Current
Cooling Mode Aluminium Profiles for Heat Dissipation
Working Temperature -25℃~+80℃
Relative Humidity 0~90%, Non-condensing
Net Weight / Gross Weight 2.35kg / 2.85kg
Controller Size / Pack Size 167mm x 145.5mm x 61.8mm / 360mm x 250mm x 120mm

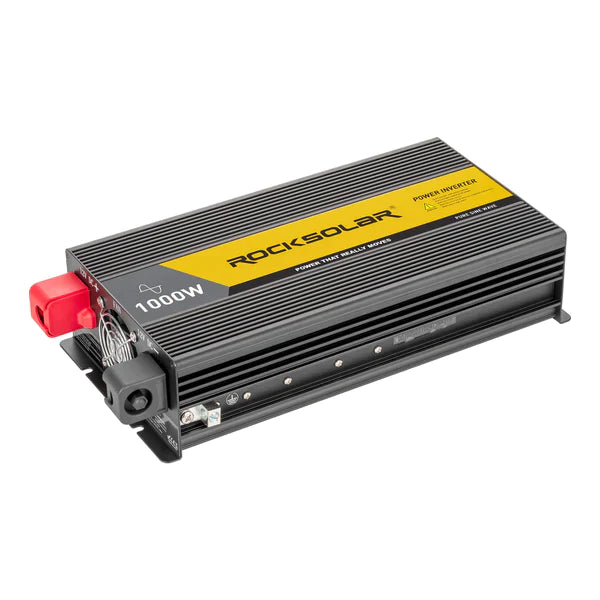

1000W Pure Sine Wave Power Inverter Details
Rated power 1000W
AC Voltage 120V
Frequency 60HZ
Resistive Load Continuous Output Power 1000W
Inductive Load Continuous Output Power 1000W The pump can start normally (beyond which protection may be possible without damaging the inverter)
Capacitive Load Continuous Output Power 420±20W,PF:0.6 Tri-color energy saving lamp, beyond may be protected, but will not cause damage to the inverter)
Waveform Pure Sine Wave
Waveform Distortion(THD) ≤5%
Voltage range 9~17Vdc; 18V~32V
Battery Voltage 12Vdc; 24Vdc
DC Current 98A(Load 1000W when entering 12Vdc; 47.9A(Load 1000W when entering 24Vdc)
No Load Loss 0.8A; 0.7A
Shutdown mode static current 1mA
Maximum efficiency 90%
Battery type All 12V batteries
Insurance slice 40A*2
Battery Low Voltage Alarm 9.5/10/10.5/11/11.5/12/12.5V,Buzzer alarm, LED display E06
Battery Low Voltage Alarm Recovery 11Vdc
Battery Low Voltage Protection 10Vdc Peak buzzer alarm, bright red and green lights
Battery Low Voltage Protection Recovery Recovery voltage within 30S:11/11.5/12/12.5/13/13.5/14V
Battery High Voltage Protection 17V,LED display shows E02, automatic shutdown after 30S
Battery High Voltage Protection Recovery Recovery voltage within 30S:16.5V
Over Temperature Buzzer alarm, LED display shows E04, turn off the inverted output, lower temperature automatically restore the inverted output
Output Short Circuit Buzzer alarm, LED display shows E03, turn off invert output and lock, turn off automatically after 30S
Overload Over 1600W 300ms locked after shutting off output (below 1600W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
Overload Over 1600W 300ms locked after shutting off output (below 1600W overload 30S locked after shutting off output), buzzer alarm, LED display shows E05, automatic shutdown after 30S
USB Output Voltage 5V
USB Output Current 2.1A
Working Temperature -20~40℃
Operating humidity 10~90%RH
Storage temperature, humidity -30℃~70℃,10~95%RH
Weight Net weight:2.82 kg
Size 357.6*171.9*78 mm(L*W*H)
Warranty 1 Year


The ROCKSOLAR 600W Wind Turbine Generator has a rated power of 600W and a maximum power of 660W, making it suitable for various energy generation needs.

The ROCKSOLAR Black Diamond 200W 12V Rigid Monocrystalline Solar Panel has a compact size of 1480mm x 670mm, making it easy to handle and install.

The ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery offers a capacity of 100Ah, providing reliable and consistent power for your energy needs.

The ROCKSOLAR 40A Wind Solar Hybrid Streetlight Controller is suitable for both Lithium and Lead Acid batteries, offering versatility in your energy setup.

The ROCKSOLAR 1000W 12V Pure Sine Wave Inverter has a rated power of 1000 watts, making it suitable for powering various devices and appliances.

Yes, the ROCKSOLAR 800W 12V Solar Wind Turbine Kit is designed for both indoor and outdoor use, making it ideal for outdoor applications such as camping and RVs.
