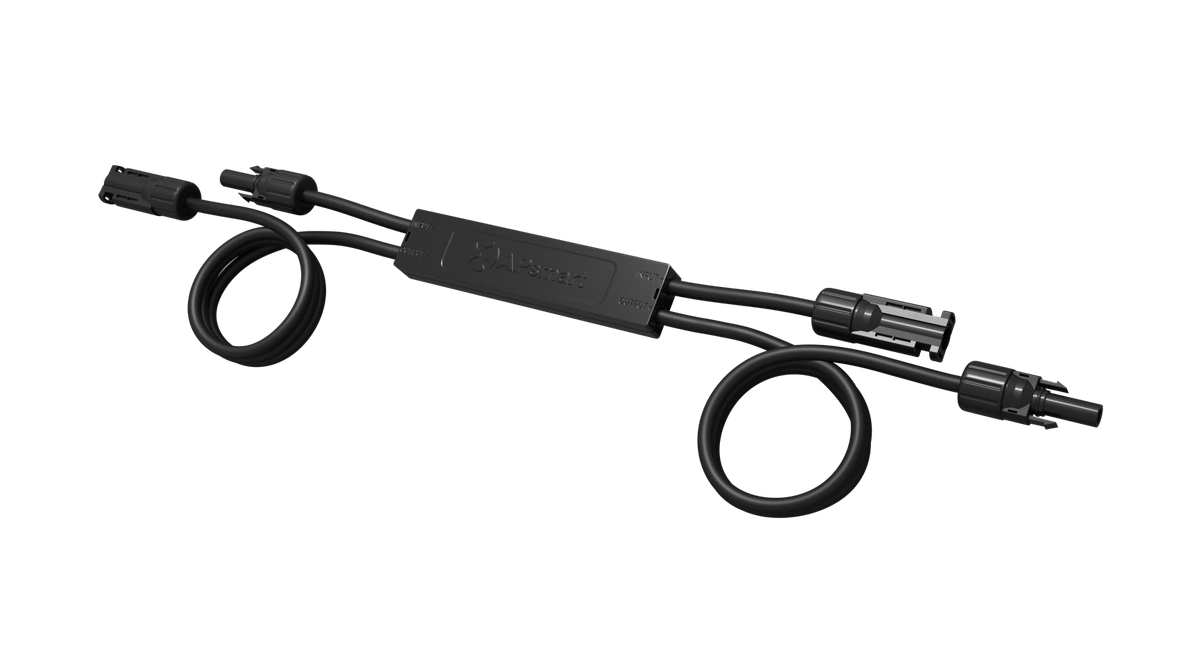

APsmart RSD-S-PLC Rapid Shutdown Device, 20A, MC4
Available in stock (300)
Couldn't load pickup availability
Description
Description
The APsmart RSD-S-PLC is a module-level rapid shutdown device for solar PV arrays. It maintains normal operation while receiving a power-line communication (PLC) heartbeat from a compatible APsmart Transmitter-PLC and initiates rapid shutdown when that signal is lost.
Key features
- SunSpec rapid shutdown signaling; designed to support NEC 690.12 rapid shutdown requirements (2017, 2020, and 2023 editions).
- 20 A maximum continuous input current and 25 A maximum short-circuit current.
- 10.5-80 V DC input and output operating range.
- MC4 input connectors, mounting brackets, and NEMA Type 6P / IP68 enclosure.
Specifications
| Model / ordering code | RSD-S-PLC / 435101 |
|---|---|
| Maximum system voltage | 1500 V UL / 1000 V TUV (ordering configuration) |
| Maximum series fuse rating | 30 A |
| Operating ambient temperature | -40°F to 185°F (-40°C to 85°C) |
| Dimensions, excluding cables and connectors | 5.5 × 1.3 × 0.7 in. (140 × 32 × 18 mm) |
| Cable lengths | Input: 250 mm (9.8 in.); output: 1200 mm (47.2 in.) |
| Cable size | 12 AWG |
| Communication | PLC |
System requirement: A compatible APsmart Transmitter-PLC or inverter with an integrated SunSpec-certified rapid shutdown transmitter is required for operation. Transmitter and inverter are separate equipment.
Review the manufacturer datasheet and installation manual for system design, compatibility, and installation requirements. Installation should be performed by qualified personnel in accordance with applicable electrical codes.
