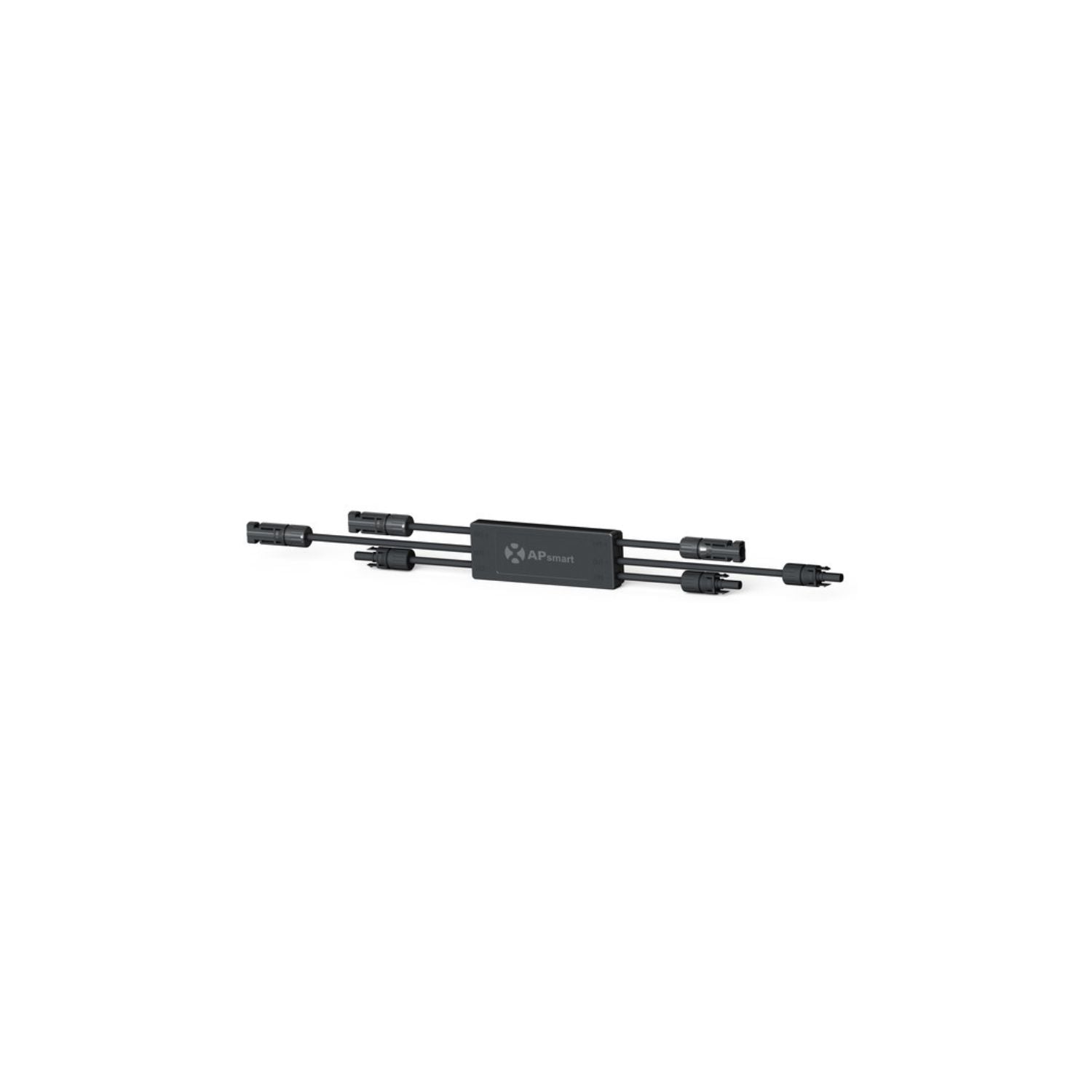

APsmart RSD-S Rapid Shutdown Device (Model 415002) Dual Inputs

APsmart RSD-S Rapid Shutdown Device (Model 415002) Dual Inputs

$89.99 CAD
$109.99 CAD $89.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • 1500V UL/TÜV SunSpec PLC rapid shutdown device
  • Compatible with SMA, Fronius GEN24 & select Yaskawa inverters
  • Factory-installed original MC4 connectors
  • Compact design with short cables for easy installation
  • IP68-rated for harsh outdoor environments
  • Includes mounting brackets
  • 25-year product & performance warranty

Bulk Order Inquiry

Interested in ordering in bulk? We offer competitive pricing and flexible terms for large orders.

Request a Bulk Quote
View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

The APsmart RSD-S Rapid Shutdown Device (Model 415002) is a SunSpec PLC rapid shutdown solution designed for modern high-voltage PV systems. Built to support 1500V UL/TÜV applications, it helps meet rapid shutdown requirements by shutting down when the PLC signal is not present. With IP68 protection, original MC4 connectors, and a compact form factor, it’s ideal for clean, installer-friendly rooftop and commercial builds.

Product Features

  • SunSpec PLC Rapid Shutdown: Reliable PLC-based rapid shutdown operation.
  • 1500V UL/TÜV Rated: Built for high-voltage PV system designs.
  • Original MC4 Connectors: Factory-supplied MC4 connectors for fast compatibility.
  • IP68 Outdoor Protection: Sealed enclosure for harsh outdoor environments.
  • Compact Cable Set: 0.25m input / 1.2m output cable lengths for neat installs.
  • Wide Inverter Compatibility: Works with SMA, Fronius GEN24, select Yaskawa/Solectria PVI and other SunSpec-certified compatible inverters.
  • Long Warranty: 25-year manufacturer and performance warranty.

Suitable for:

  • Residential solar rooftops
  • Commercial PV installations
  • Projects requiring SunSpec PLC rapid shutdown compatibility
  • Installations using SMA, Fronius GEN24, and certified SunSpec protocol inverters



  • 1x APsmart RSD-S Rapid Shutdown Device: Model 415002.
  • Original MC4 Connectors: Supplied with MC4 connectors.
  • Integrated Cables: 0.25m input cable and 1.2m output cable.
  • Mounting Brackets: Included for secure installation.

Technical Specifications


Specification Details
Brand APsmart
Product Rapid Shutdown Device (RSD-S)
Model APSM-RSD-S-415002-V2
Manufacturer Part Number 415002
Communication PLC (SunSpec protocol)
Maximum System Voltage 1500V (UL/TÜV)
Connector Type MC4 (original)
Input Cable Length 0.25 m
Output Cable Length 1.2 m
Ingress Protection IP68
Mounting Mounting brackets included
Inverter Compatibility SMA, Fronius GEN24, select Yaskawa/Solectria PVI, and other certified SunSpec protocol inverters
Manufacturer Warranty 25 Years
Performance Warranty 25 Years
Shipping Weight 1 lb
Shipping Dimensions 5.51 × 1.25 × 0.7 in
Case Quantity 25


The RSD-S (415002) is compatible with SMA, Fronius GEN24, select Yaskawa/Solectria PVI, and other certified SunSpec protocol inverters.

The device supports high-voltage PV designs up to 1500V (UL/TÜV rated).

Yes. It is supplied with original MC4 connectors and includes mounting brackets for installation.

Input cable length is 0.25m and output cable length is 1.2m.

Yes. The enclosure is IP68 rated for harsh outdoor environments.

APsmart provides a 25-year manufacturer warranty and a 25-year performance warranty.
