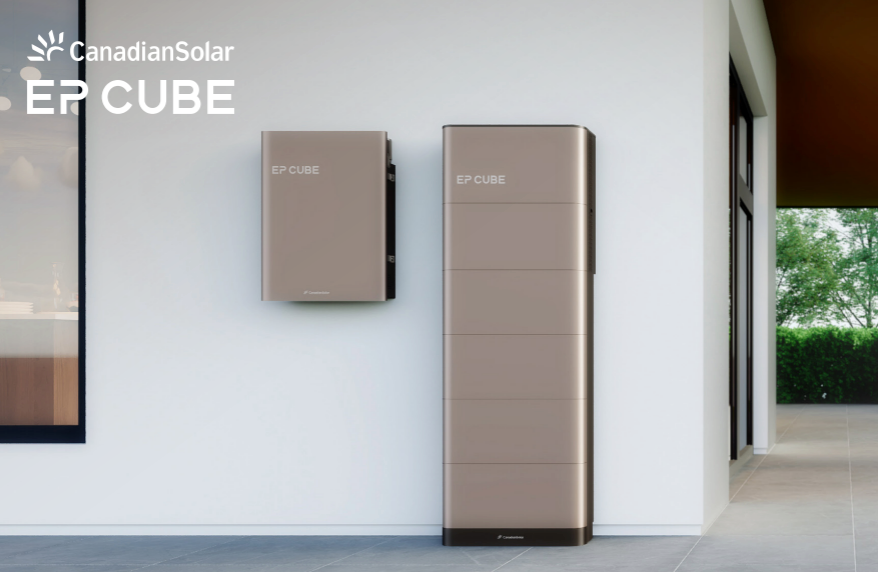

Canadian Solar EP Cube 2.0 Residential Energy Storage System

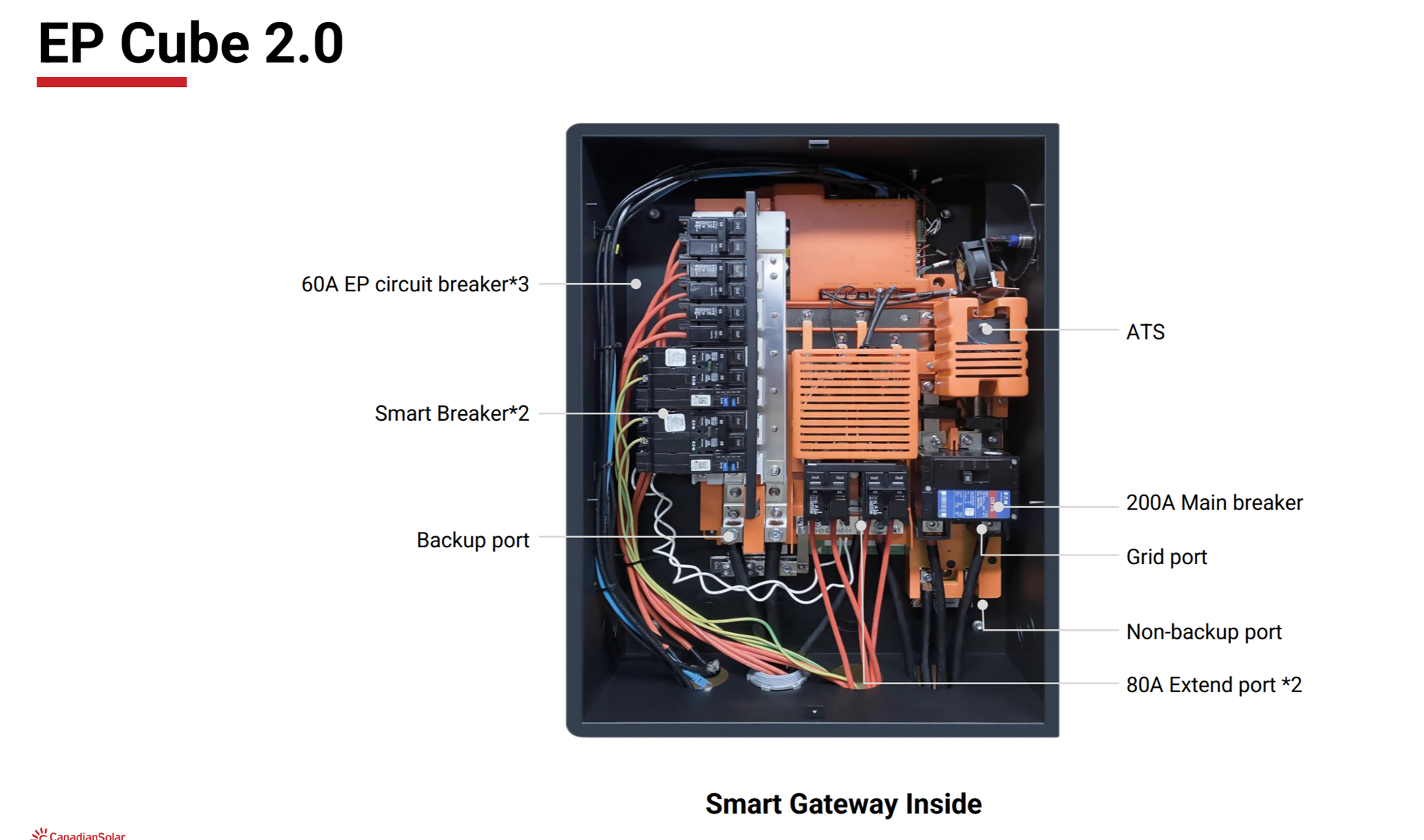

What it does: An award-winning all-in-one home energy storage system — hybrid inverter + Smart Gateway + modular LFP battery, handling solar storage, backup power, EV charging, and smart load control from a single platform.

Key specs:

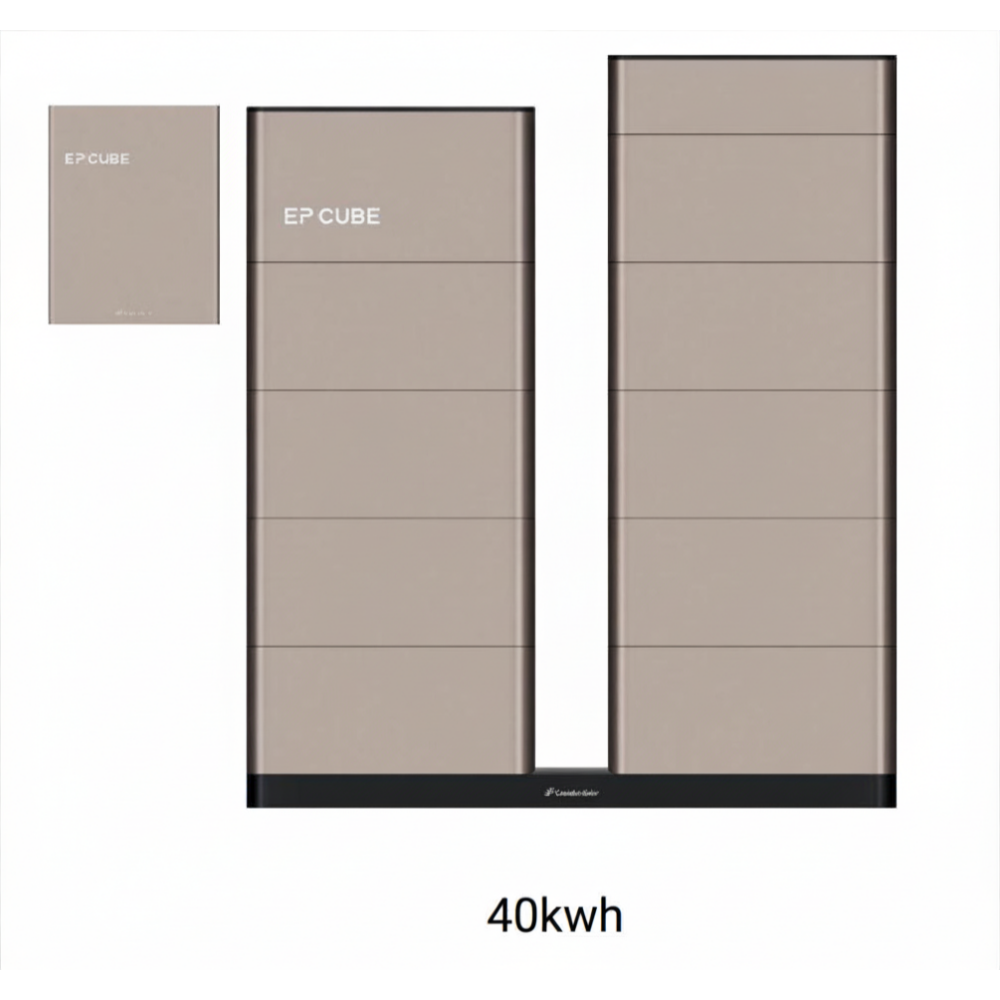

• Storage: 5–40kWh per unit | Up to 120kWh multi-unit
• Max AC output: 11.5kW continuous (240V) / 9.9kW (208V)
• Solar input: up to 24kW DC | 6 MPPTs | 60–550V DC range
• EV charging: up to 2 × 40A Level 2 chargers
• Weight per battery module: 95 lbs (43 kg)
• Noise: <30 dB(A) at night
• Operating range: -10°C to 50°C | IP67 rated | Salt-spray tested (coastal to 300m)
• Enclosure: NEMA 4X | Floor or wall mount | Up to 9,843 ft elevation

Built for: Residential solar storage, home backup power, EV charging, coastal properties, new or retrofit solar systems

Key features:

• Seamless automatic backup — no interruption when grid drops, black-start capable

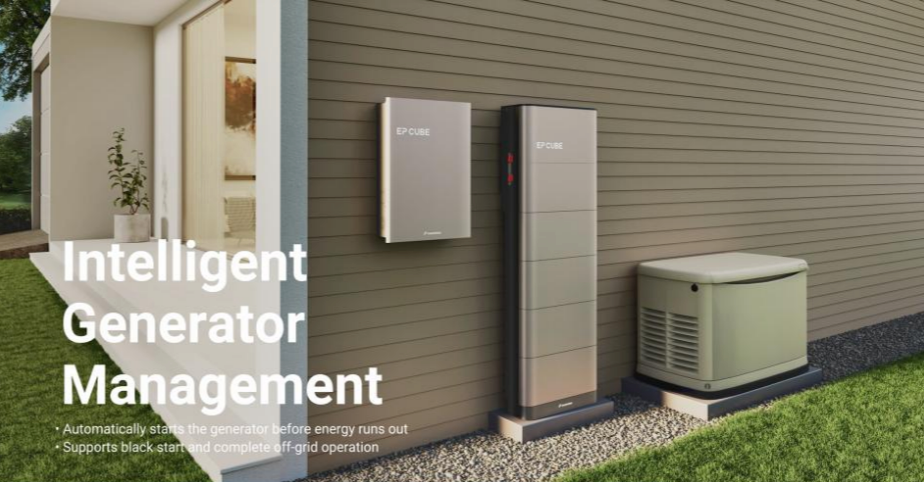

• Intelligent generator integration — auto-starts generator before battery runs out
• VPP ready — participate in Virtual Power Plant programs to earn income from stored energy
• Smart-breaker load scheduling — schedule heavy loads by time or battery charge level

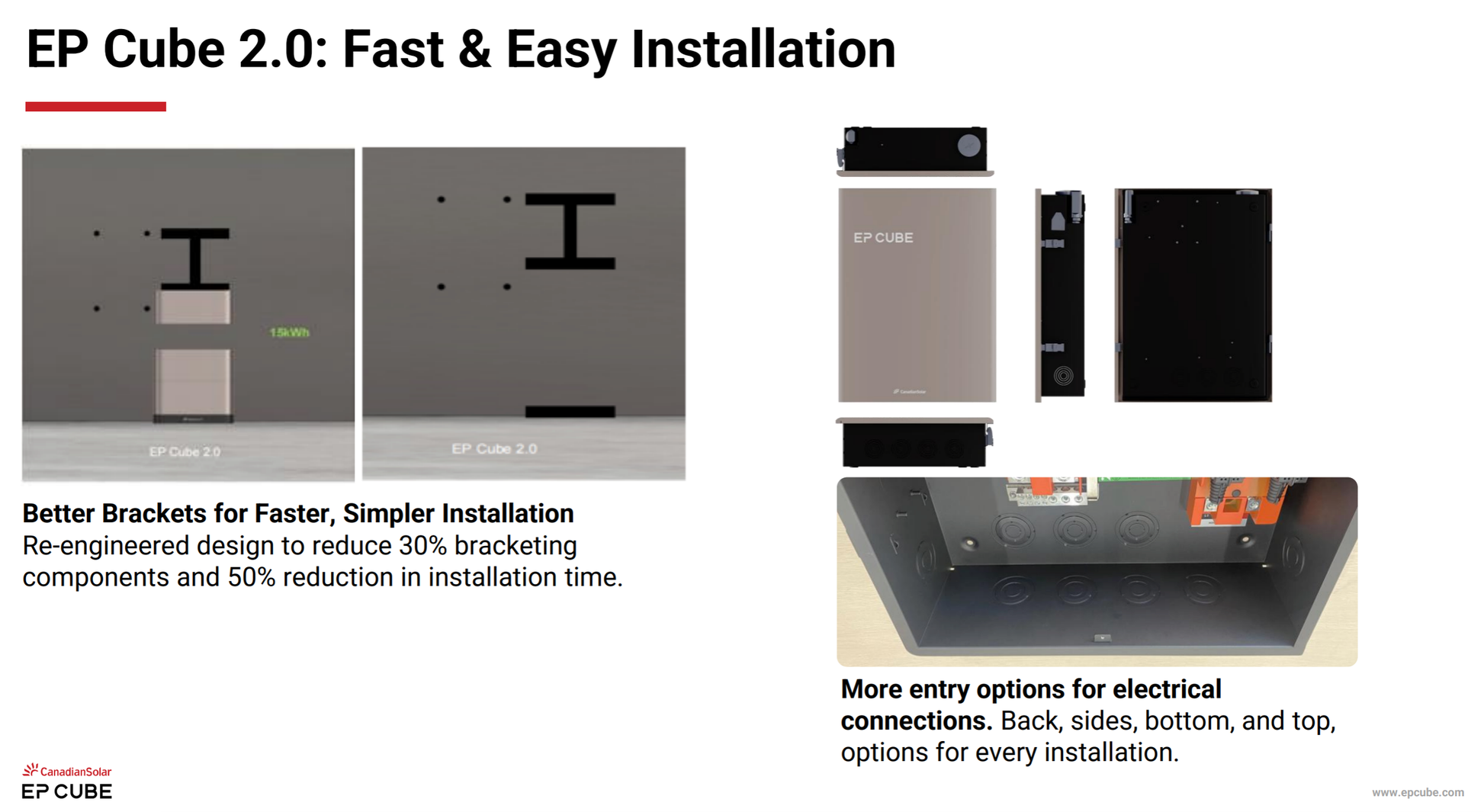

• Modular plug-and-play design — 50% faster install, add capacity later without replacing the system
• Remote monitoring via EP Cube app (iOS/Android) over Wi-Fi, Ethernet, or Cellular
• OTA firmware updates — stays current without service visits

Certifications: UL 9540/9540A, UN 38.3, integrated arc-fault protection

Warranty: 10 years system + Smart Gateway | Battery retains >80% capacity for 10 years or 6,000 cycles
