Growatt 10kW Hybrid Inverter

Growatt 10kW Hybrid Inverter

Regular price $5,999.99 CAD
Regular price $7,999.99 CAD Sale price $5,999.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • 1.5 DC/AC Ratio: Efficient energy conversion with 3 MPPTs.
  • 200A Charge/Discharge: High current capability for robust energy management.
  • 120V/240V Split AC Output: Versatile output options for diverse electrical setups.
  • Fast UPS Transition: UPS function with a quick 10ms switch to backup power.
  • Flexible Applications: Suitable for DC-coupled, AC-coupled, and AC-retrofit setups.
  • Type II Surge Protection: Ensures system safety on both DC and AC sides.
  • Diesel Generator Compatible: Can charge from a diesel generator for extended power options.
  • Dual Phase Support: Works with both single phase and split phase applications.
  • Lightweight Design: Weighs only 110lbs, making it easy to handle and install.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support

View full details



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews

The Growatt 10kW Hybrid Inverter, model SPH 10000TL-HU-US(B), offers an advanced solution for both residential and commercial solar energy systems. This versatile inverter integrates seamlessly with DC-coupled, AC-coupled, and AC-retrofit applications, providing a comprehensive energy management solution.

Key Features:

  • Hybrid Functionality: Compatible with various solar setups, including new installations and retrofits, enhancing its adaptability to different energy needs.
  • Three MPPTs: Equipped with three Maximum Power Point Trackers, the inverter maximizes solar harvest from multiple panel arrays, ensuring optimal energy yield.
  • High Capacity: Supports a maximum DC input of 15,000W and delivers an AC output power of 10,000W, suitable for larger homes or commercial buildings.
  • UPS Feature: Includes an uninterruptible power supply (UPS) functionality with a quick 10ms transition, providing continuous power during outages.
  • Parallel Capability: Can be paralleled with up to six units to create a robust 220V or 208V three-phase system, ideal for scaling as energy demands grow.
  • Surge Protection: Features Type II surge protection for both DC and AC inputs, safeguarding the system against voltage spikes.
  • Battery Compatibility: Supports a wide range of battery types, including lithium and lead-acid, with a charging and discharging current of up to 200A.
  • Efficiency and Reliability: Offers peak efficiency of 97.5% and an MPPT efficiency of over 99.5%, with smart cooling technology to maintain performance in diverse environments.
  • Safety Features: Equipped with comprehensive protection mechanisms such as AFCI, ground fault monitoring, anti-islanding, and more, ensuring safe operation under all conditions.

This inverter is designed to meet the needs of the most demanding energy systems, providing reliable power, efficient operation, and flexibility in installation and use. Whether for residential use or commercial applications, the Growatt 10kW Hybrid Inverter is an excellent choice for those seeking a powerful and adaptable solar energy solution.

  • 1x Growatt 10kW Hybrid Inverter
  • 1x User Manual
  • 1x Warranty Card

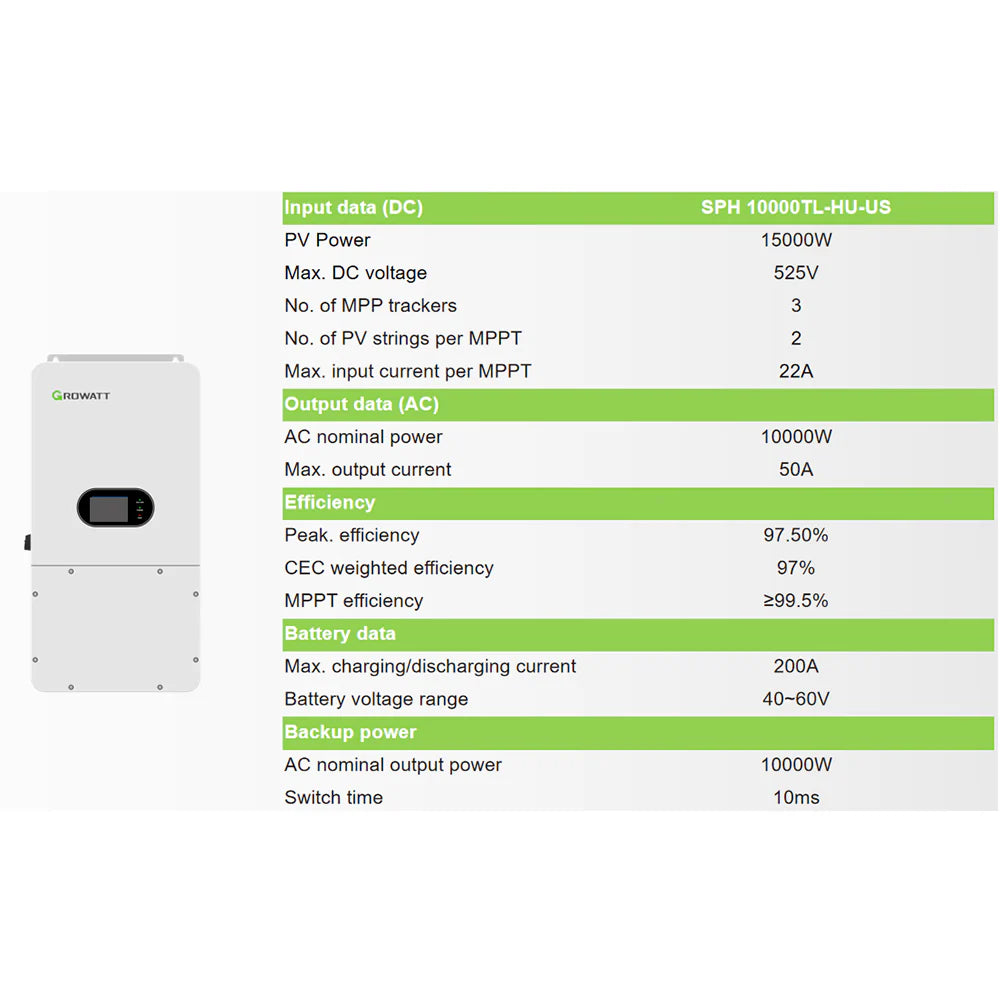

Technical Specifications


Specification Details
Maximum DC Input 15,000W
MPPT Voltage Range 150V - 450V / 370V
Number of MPPTs 3
Maximum Charging and Discharging Current 200A
Continuous Charging and Discharging Power 10,000W
Battery Voltage Range 40V - 60V
AC Output Power Rated Power: 10,000W
Max. Apparent Power: 10,000VA
Nominal AC Voltage: 120V/208V, 120V/240V Split
Efficiency Peak: 97.5%
MPPT Efficiency: ≥99.5%
Cooling Smart cooling
Communication Interfaces RS485/CAN/USB; Optional: WIFI/4G cellular
Protection Devices Type II Surge Protection (DC and AC sides), AFCI, Anti-islanding, Ground fault monitoring, Grid monitoring, Residual-current monitoring unit
Physical Dimensions (W / H / D): 440/855/256mm
Weight: 48.84kg
Operating Environment Temperature: -25°C to +60°C with derating above 45°C
Noise Emission: ≤ 30 dB(A)
Warranty 10 Years
Compliance IEEE1547, CA RULE21, RULE14(HECO), UL1741, UL1741SA/SB, CSA C22.2, PREPA, UL1699B, UL1741 CRD, FCC Part15 Class B, Sunspec
