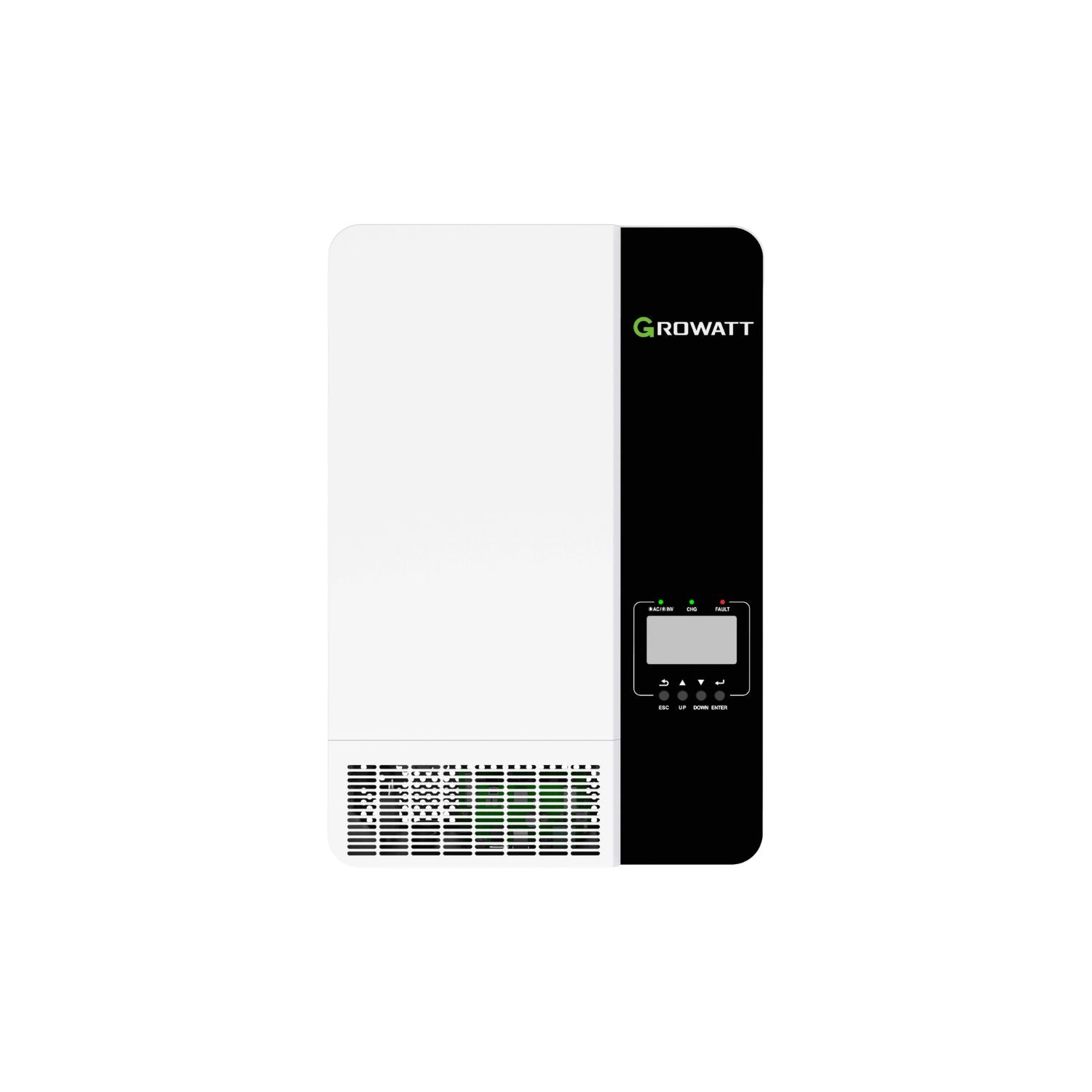

Growatt SPF 3500TL LVM-US 3.5kW 48V Off-Grid Solar Inverter
Available in stock (135)
Couldn't load pickup availability
Description
Description

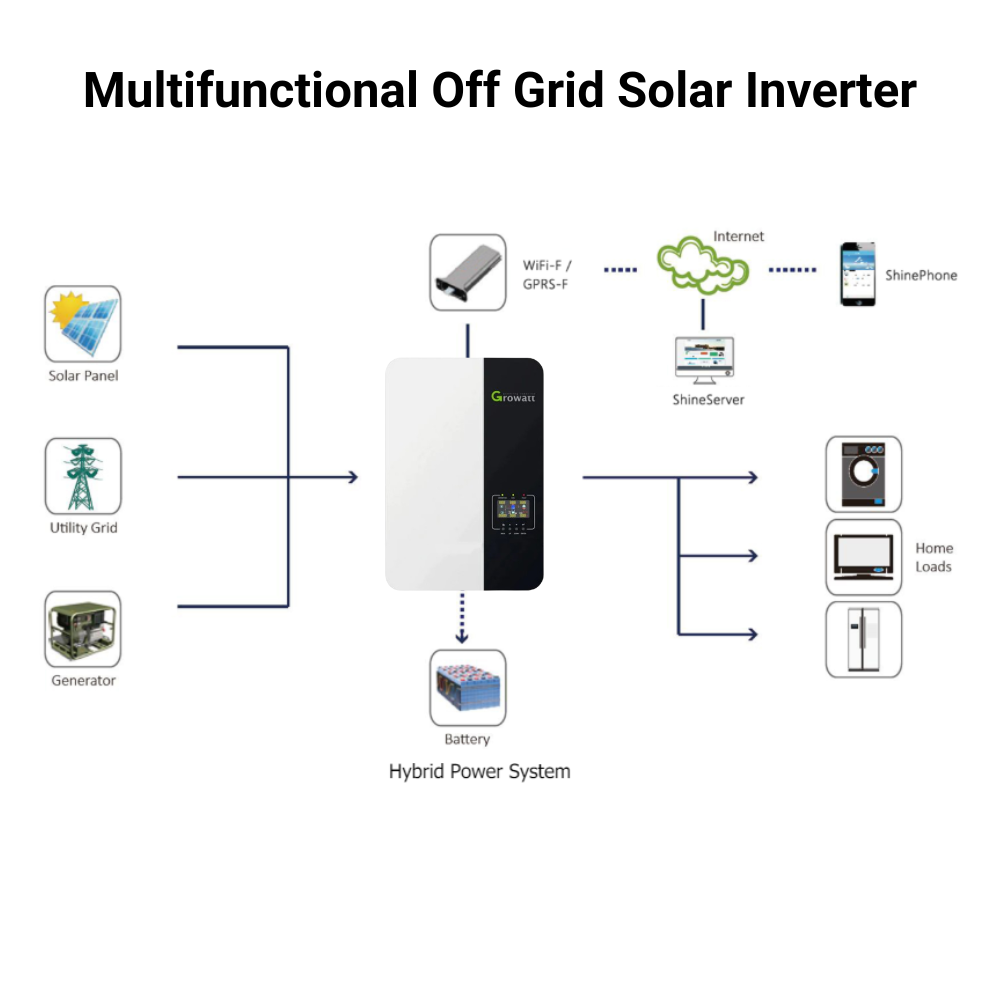

The Growatt SPF 3500TL LVM-US is a 3.5kW off-grid solar inverter and charger with pure sine wave output, a built-in MPPT solar charge controller and a 48V battery connection. Designed for 120V off-grid power systems, it combines solar charging, battery power and an AC input for utility or generator support in one unit.
Why choose the Growatt SPF 3.5kW inverter?
- 3,500W continuous output: Provides 3,500VA / 3,500W of rated power with a 7,000VA surge rating.
- Built-in solar charging: One MPPT tracker supports a maximum 4,500W PV array and up to 80A of solar charging current.
- 48V battery support: Compatible with lithium or lead-acid battery systems when configured for the battery manufacturer's requirements.
- Utility or generator input: A 120V AC input and 40A AC charger provide another charging source when available.
- Configurable energy priorities: Choose grid or solar input priority and schedule charging and discharging. The datasheet also supports combined PV and grid supply to the load when solar production is insufficient.
- Expandable system: Supports up to six inverters in parallel. Six 3.5kW units provide up to 21kW of total rated capacity in a correctly configured system.
- Remote monitoring options: Optional WiFi/GPRS accessories support remote system monitoring.
SPF 3500TL LVM-US technical specifications
| Specification | 3.5kW model |
|---|---|
| Rated output power | 3,500VA / 3,500W |
| Surge power | 7,000VA |
| Battery voltage / type | 48V DC / lithium or lead-acid |
| AC output regulation in battery mode | 100V / 110V / 120V AC at 50 / 60Hz |
| Output waveform | Pure sine wave |
| Peak efficiency | 90% |
| Transfer time | 10ms typical; 20ms maximum |
| Maximum PV array power | 4,500W |
| MPPT operating voltage range | 120-225V DC |
| Maximum PV open-circuit voltage | 280V DC |
| MPPT trackers / strings per tracker | 1 / 1 |
| Maximum solar charge current | 80A |
| AC charging current | 40A |
| AC input voltage / frequency | 120V AC / 50 or 60Hz, auto-sensing |
| Selectable AC input voltage range | 95-140V AC for personal computers; 65-140V AC for home appliances |
| Parallel capability | Up to 6 units; up to 21kW with six 3.5kW inverters |
| Enclosure protection | IP20 / NEMA Type 1 |
| Operating temperature | 0 to +50 degrees C |
| Storage temperature | -15 to +60 degrees C |
| Relative humidity | 5-95%, non-condensing |
| Dimensions (W x H x D) | 330 x 485 x 135mm |
| Net weight | 12kg (26.5lb) |
| Standard listed in datasheet | UL 1741 |
| Manufacturer warranty | 2 years |

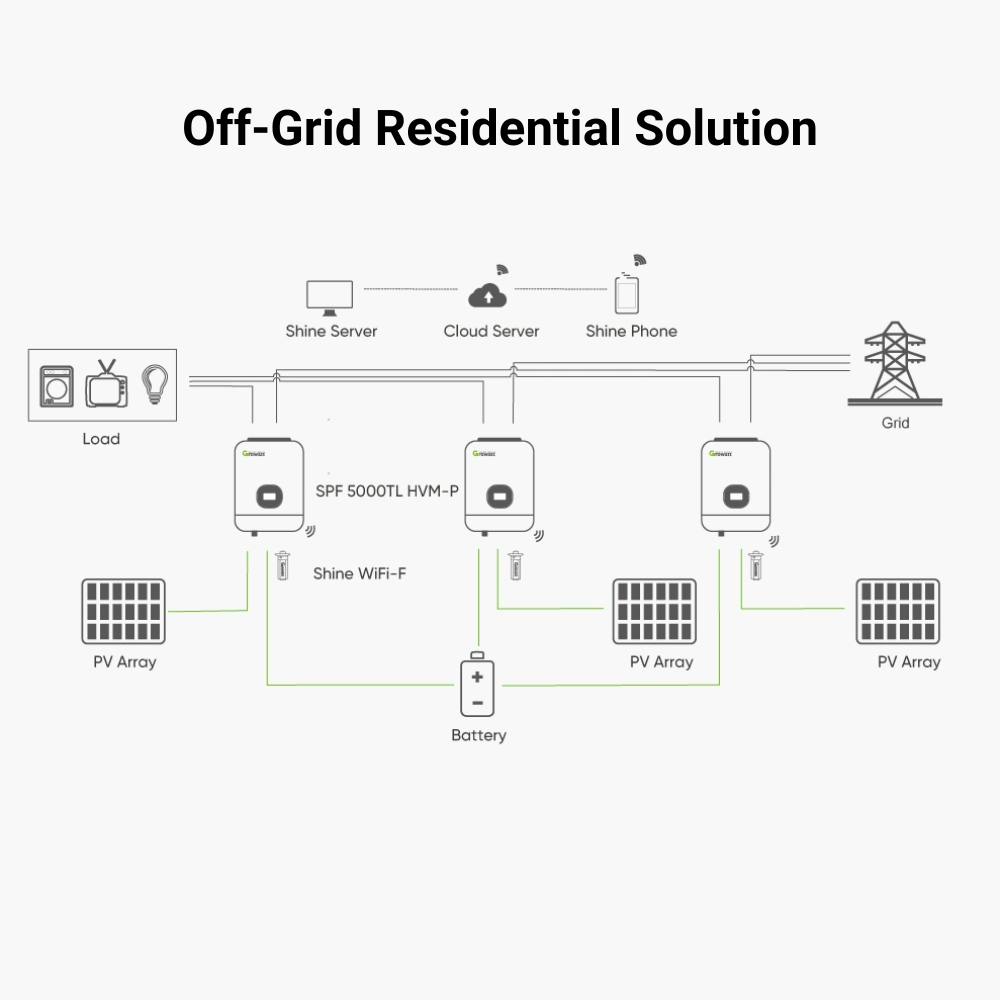

Off-grid power for cabins, cottages and workshops
Build a solar power system for 120V loads with a matched PV array and compatible 48V battery storage. Select loads by their combined running power and startup requirements, and keep the installation within the inverter's continuous and surge ratings. A generator or utility AC source can provide additional support through the AC input.

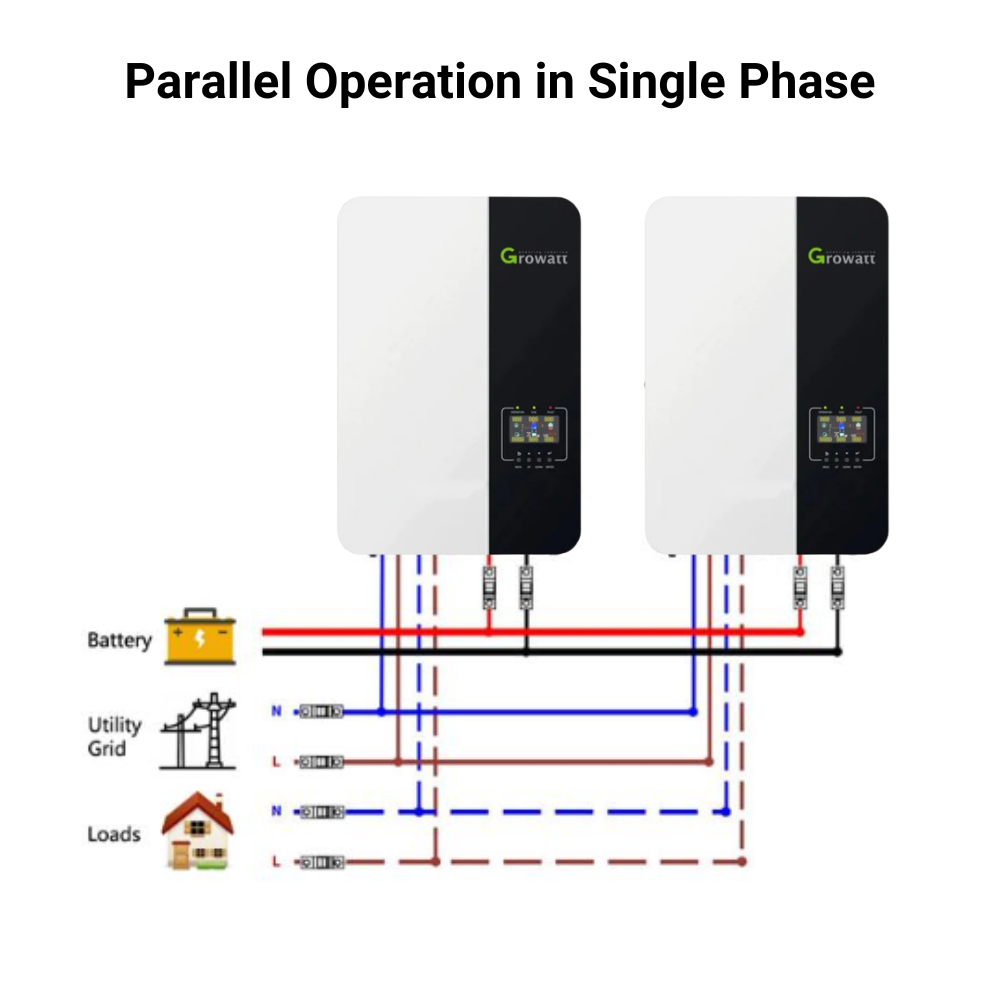

Installation and parallel expansion
The IP20 / NEMA Type 1 enclosure is intended for a dry indoor installation. Plan for the specified 0 to +50 degrees C operating range when choosing a location, particularly in an unheated Canadian cottage or outbuilding.
A single inverter provides 120V-class output. The datasheet illustrates a split-phase parallel application using multiple units; a 120/240V system requires a compatible multi-inverter configuration and the appropriate parallel equipment. Confirm the design and required accessories before ordering.
Frequently asked questions
Can the SPF 3500TL LVM-US operate without a battery?
Yes. Growatt's datasheet states that the inverter can work with or without a battery. Battery-free operation must follow the supported configuration and depends on the available power sources; it does not provide stored energy for use when those sources are unavailable.
Can I connect a generator?
Yes. The datasheet supports a generator connection through the 120V AC input. Confirm generator voltage, frequency and capacity against the inverter and charging requirements.
Does one inverter provide 240V output?
No. One unit provides 100V / 110V / 120V AC output in battery mode. Split-phase applications require multiple compatible inverters configured according to Growatt's installation instructions.
How many solar panels can I connect?
The inverter supports a maximum 4,500W PV array, a 120-225V DC MPPT operating range and a maximum 280V DC open-circuit voltage. Have the array strings checked against these limits, including open-circuit voltage in cold weather.
Is remote monitoring included?
Yes.
Need help sizing an off-grid system? Contact ROCKSOLAR to confirm battery, generator and parallel-operation requirements, or compare Growatt solar inverters.
