Introducing the Growatt Partial Home Backup Power System, an all-in-one solution for seamless energy storage and management. This system is designed for both off-grid and grid-tie applications, ensuring that your home remains powered and efficient, regardless of grid status. The kit includes the Growatt hybrid inverter, a high-capacity APX Battery, and the ATS-XH-US automatic transfer switch, providing a comprehensive energy storage solution.

Ideal for households with daily electricity consumption. This system is particularly beneficial for homes with high-power loads such as electric vehicles and swimming pools. It maximizes self-consumption of solar energy, significantly reduces electricity bills, and ensures energy independence during power outages.

System Key Features:

Energy Independence: Generate and store your own renewable energy to reduce reliance on the grid.
Self-Consumption Optimization: Store excess solar energy during the day and use it during peak evening hours to lower electricity bills.
Off-Grid Capability: Automatically switch to off-grid mode during power outages, ensuring continuous power supply.
Flexible Energy Management: Supports multiple energy management modes including self-consumption, zero export, TOU, and off-grid.
High Efficiency: The Growatt inverter boasts up to 98.4% efficiency with 3 MPP trackers.
Easy Monitoring: Built-in 4G/WiFi communication for real-time monitoring via mobile app or web portal.

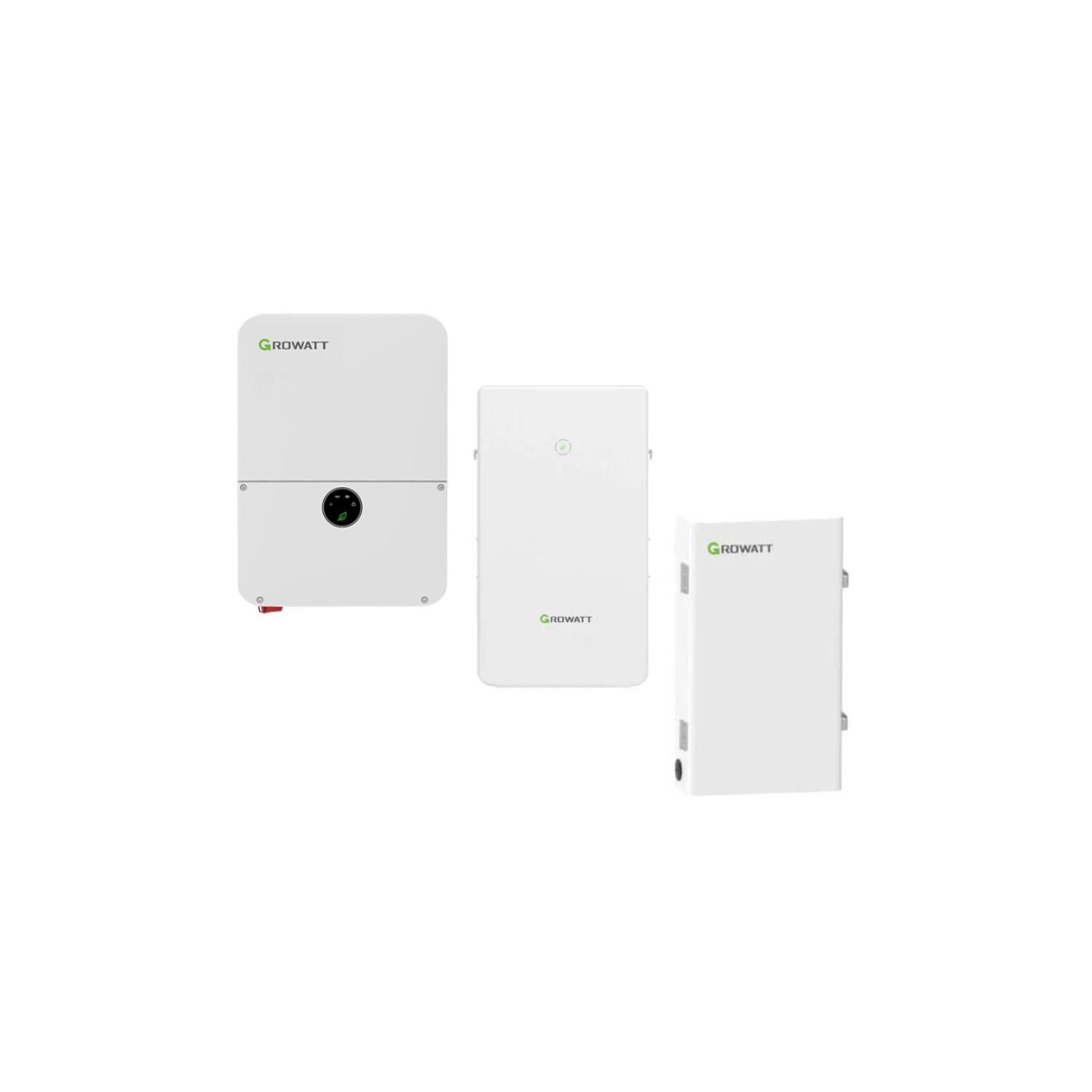

Growatt 3.8kW Partial Home Backup Power System Includes:

1 x Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie | Battery Storage Solar Inverter
1 x Growatt APX 5kWh pre-assembled high voltage battery with BMS
1 x Growatt ATS-XH-US 5kW transfer switch and US split-phase transformer for 120V/240V output
1 x ATS-XH-US 5kW Backup Box

Growatt 3.8kW MIN 3000TL-XH-US Grid-Tie | Battery Storage Solar Inverter

DC/AC Compatibility: Supports both coupling types for flexibility.
Backup & Dark Start: Ensures power continuity and reliability.
Energy Modes: Offers Self-consumption, Zero Export, TOU, Off-grid.
Battery Flexibility: Compatible with multiple battery brands for storage options.
97% Efficiency: Maximizes conversion of solar energy.
Smart Monitoring: Optional communication for easy system control.
Safety Features: Includes RSD and AFCI for system protection.
Compact: Easy installation with sleek design.
10-Year Warranty: Standard with extension options available.
Compliance: Meets key standards for safety and compatibility.

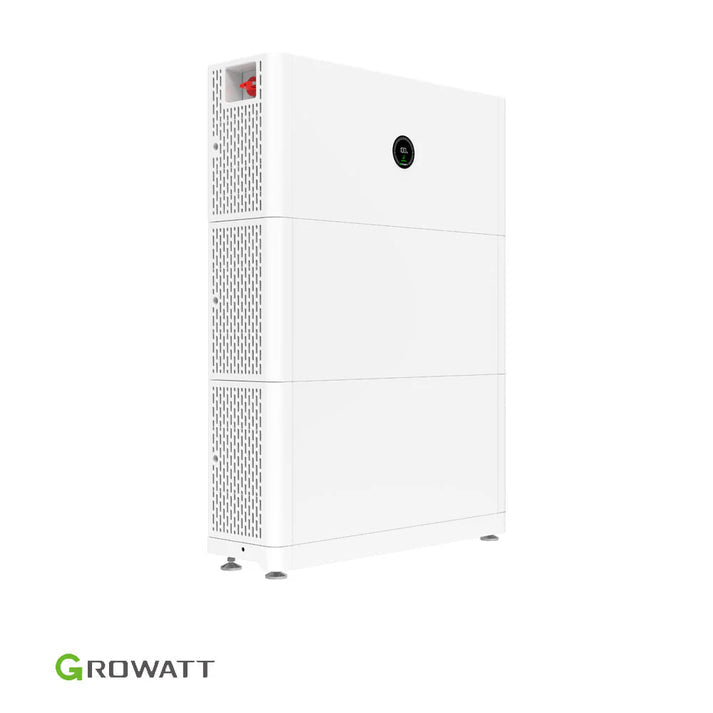

Growatt APX 5kWh High Voltage Battery:

5kWh Capacity: Compact, efficient energy storage.
LFP Safety: Cobalt-free, environmentally friendly.
Flexible Install: Wall or floor options for any space.
IP66 Rated: Ready for all weather conditions.
Smart BMS: Optimal performance, extended life.
Efficient Cooling: Maintains peak operation.
High Voltage: Superior power efficiency.
10-Year Warranty: Guaranteed support and reliability.C.
Versatile Integration: Fits on-grid and off-grid setups.

Growatt ATS-XH-US 5kW Backup Box:

Partial home load backup capability
Built-in split-phase transformer for 120V/240V output
Seamless operation during power outages

With the Growatt Hybrid Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.

Technical Specifications

Growatt 3.8kW MIN 3800TL-XH-US Grid-Tie \| Battery Storage Solar Inverter	Details
Manufacturer	Growatt
Model	MIN 3800TL-XH US (WIFI/LAN+TIGO)
Rated Power Output [W]	3800
Length [mm (in)]	569 mm (22.41 in)
Width [mm (in)]	400 mm (15.75 in)
Depth [mm (in)]	170.5 mm (6.98 in)
Weight [kg (lb)]	17.4 kg (38.36 lb)
Wormanship Warranty Period [Years]	10
Inverter Type	Hybrid inverter
Maximum/Peak Efficiency [%]	98
CEC weighted efficiency @ 240V [%]	97
Transformer / Transformerless	Transformerless
DC Power Rating [W]	7600
Nom. DC Voltage [V]	360
Max. Input Power [W]	7600
Max. Input Voltage [V]	600
Min. DC voltage / start voltage [V]	50
Number of DC String Inputs (Inlets)	4
Number of MPP Trackers	2
Max. Input Power per MPPT [W]	3800
Max. Input Voltage per MPPT [V]	600
Max. Input Current per MPPT [A]	16.9
Voltage Lower Limit for MPP Range [V]	50
Voltage Upper Limit for MPP Range [V]	550
DC Disconnection Type	Integrated
Reverse-Polarity Protection	Yes
Ground-Fault Isolation Detection	Yes
AC Power Rating [W]	3800
Nominal AC Power [W]	3800
Max. AC Power [W]	3800
AC voltage range [V]	208V: 183-229V / 240V: 211-264V
AC grid frequency [Hz]	60
Max. output current [A]	16
Nominal AC Voltage [V]	208/240
Maximum AC Voltage Range [V]	264
Nominal AC Frequency [Hz], range [Hz-Hz]	60
AC Connection Type	L1/L2/N/PE
AC Current Distortion [THD%]	<3%
AC Input Wire Gauge Range [AWG]	6 AWG - 8 AWG
Sleep (Night) Consumption [W]	<5W
NEMA Enclosure Rating	NEMA4X (IP65)
Cooling Method	Natural Convection
Ambient Temperature Range [°C(°F)]	-25°C to +60°C (-13°F to +140°F)
Operating Humidity [%]	0~95%
Operating Altitude [ft/m]	9843ft (3000m)
Display	OLED
Communication	RS485 included, WiFi/4G Optional
Basic Warranty [Years]	10
Warranty Extension Options [Years]	15,20
Compliances	IEEE1547, CA Rule21, Rule14 (HECO Compliant), FCC Part15 Class B, UL1741, UL1741SA,CSA C22.2, UL1699B, UL1741 CRD
AC grid range [Hz]	45-65
Max. recommended PV power (@ module STC)	7600

Growatt APX 5kWh 330V-450V Battery Module	Details
Module	APX 5.0P-B1
Nominal Capacity/Energy	100Ah/5kWh
Rated Usable Capacity/Energy	100Ah/4.5kWh
Rated Voltage	385V
Operating Voltage	330-450V
Rated Current (25℃)	7.6A
Maximum Current (25℃)	12.5A
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Operating Temperature Range	-10~50℃
Storage Conditions	-20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH
Cooling	Natural cooling
Dimensions (W/D/H)	690/185/295mm±2mm
Weight	50±1kg
Model (Power Module)	APX 55027-P0
B+/B- Voltage Range	330V-450V
BAT+/BAT- Voltage Range	380-550V
Temperature Range	-10~50℃
IP Rating	IP66
Warranty	10 years
Communication Method	CAN2.0
Certification & Licensing	IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3
Environment Requirements	RoHS

Growatt ATS-XH-US 5kW Backup Box	Details
Backup Capability	Partial home load backup
Output	120V/240V
Max Output Power	5kW
Dimensions	15.75 x 22.41 x 6.98 inches (400 x 569 x 170.5 mm)
Weight	32.3 lbs (14.65 kg)
Warranty	10 Years

Growatt 6kW Partial Home Backup Power System Includes:

1 x Growatt MIN 6000TL-XH-US 6 kW Split-phase hybrid inverter with rapid shutdown solution (Tigo), 4G/WiFi integrated
1 x Growatt APX 5kWh pre-assembled high voltage battery with BMS
1 x Growatt ATS-XH-US 5kW transfer switch and US split-phase transformer for 120V/240V output
1 x ATS-XH-US 5kW Backup Box

Growatt 6.0kW MIN 6000TL-XH-US Grid-Tie | Battery Storage Solar Inverter

98.4% Efficiency: Peak energy conversion.
Hybrid Use: For grid-tie, off-grid, and battery storage.
3 MPPTs: Maximizes solar input.
Flexible Energy Modes: Includes TOU and Zero Export.
Wide Battery Support: Compatible with Growatt and LG batteries.
WiFi Monitoring: Easy system tracking.
Safety Features: RSD and AFCI included.
Standards Compliant: Meets major regulatory standards.
Indoor/Outdoor Installation: Versatile placement.
10-Year Warranty: Long-term reliability.

Growatt APX 5kWh High Voltage Battery:

5kWh Capacity: Ample storage for diverse energy demands.
Safe & Stable: Cobalt-free LiFePO4 technology.
Expandable: Easy scalability for growing needs.
5kW Continuous Power: With 8kW peak capability.
Weatherproof: IP66 rated protection.
Intelligent BMS: Enhances battery efficiency and life.
Wide Temp Range: Functional from -10°C to 50°C.
10-Year Warranty: Assured quality and support.
Versatile Integration: Fits on-grid and off-grid setups.

Growatt ATS-XH-US 5kW Backup Box:

Partial home load backup capability
Built-in split-phase transformer for 120V/240V output
Seamless operation during power outages

With the Growatt Hybrid Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.

Technical Specifications

Growatt 6kW MIN 6000TL-XH-US Grid-Tie \| Battery Storage Solar Inverter	Details
Manufacturer	Growatt
Type	Grid-Tied/ Battery Storage
AC Power	6.0kW
Max PV Input Power	12 kW
MPP Trackers	3
MPPT Voltage Range	50~550V
Max Efficiency	98.4%
Compatible Battery	Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery
Warranty	10 years
Communications	CAN2.0, RS485, SUNSPEC / APP, Website
Certificate	UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540
PV INPUT - Max Input Voltage	600V
PV INPUT - Full load Voltage Range	210~500V
PV INPUT - Max Input Current per MPTT	13.5A
PV INPUT - Max Short-circuit Current per MPTT	16.9A
Battery Connection - Battery Voltage Range	360~550V
Battery Connection - Rated Battery Voltage	400V
Battery Connection - I/O DC Current	14.3A
Battery Connection - I/O DC Power	5.0kW
AC OUTPUT (GRID) - Nominal Power	6.0kW
AC OUTPUT (GRID) - Max Output Current	25A
AC OUTPUT (GRID) - Nominal AC Voltage	208/240V
GENERAL DATA - Dimensions(WHD)	15.7522.46.98 inch (400569170.5mm)
GENERAL DATA - Weight	32.3lbs (14.65kg)
Installation	Indoor, Outdoor, Wall-mounted
Monitoring Module	WiFi+ LAN, 4G(Optional)

Growatt APX 5kWh 330V-450V Battery Module	Details
Module	APX 5.0P-B1
Nominal Capacity/Energy	100Ah/5kWh
Rated Usable Capacity/Energy	100Ah/4.5kWh
Rated Voltage	385V
Operating Voltage	330-450V
Rated Current (25℃)	7.6A
Maximum Current (25℃)	12.5A
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Operating Temperature Range	-10~50℃
Storage Conditions	-20℃~50℃/7 days; -20℃~40℃/6 months; 5%-95%RH
Cooling	Natural cooling
Dimensions (W/D/H)	690/185/295mm±2mm
Weight	50±1kg
Model (Power Module)	APX 55027-P0
B+/B- Voltage Range	330V-450V
BAT+/BAT- Voltage Range	380-550V
Temperature Range	-10~50℃
IP Rating	IP66
Warranty	10 years
Communication Method	CAN2.0
Certification & Licensing	IEC62040/IEC62619/IEC62477/CE/UKCA/UN38.3
Environment Requirements	RoHS

Growatt ATS-XH-US 5kW Backup Box	Details
Backup Capability	Partial home load backup
Output	120V/240V
Max Output Power	5kW
Dimensions	15.75 x 22.41 x 6.98 inches (400 x 569 x 170.5 mm)
Weight	32.3 lbs (14.65 kg)
Warranty	10 Years

Growatt 6kW Partial Home Backup Power System With Double Battery Includes:

1 x Growatt MIN 6000TL-XH-US 6 kW Split-phase hybrid inverter with rapid shutdown solution (Tigo), 4G/WiFi integrated
2 x Growatt APX 5kWh pre-assembled high voltage battery with BMS
1 x Growatt ATS-XH-US 11.4kW transfer switch and US split-phase transformer for 120V/240V output
1 x ATS-XH-US 5kW Backup Box

Growatt 6.0kW MIN 6000TL-XH-US Grid-Tie | Battery Storage Solar Inverter

98.4% Efficiency: Peak energy conversion.
Hybrid Use: For grid-tie, off-grid, and battery storage.
3 MPPTs: Maximizes solar input.
Flexible Energy Modes: Includes TOU and Zero Export.
Wide Battery Support: Compatible with Growatt and LG batteries.
WiFi Monitoring: Easy system tracking.
Safety Features: RSD and AFCI included.
Standards Compliant: Meets major regulatory standards.
Indoor/Outdoor Installation: Versatile placement.
10-Year Warranty: Long-term reliability.

Growatt APX 10kWh High Voltage Battery:

10kWh Capacity: Ample storage for diverse energy demands.
Safe & Stable: Cobalt-free LiFePO4 technology.
Expandable: Easy scalability for growing needs.
5kW Continuous Power: With 8kW peak capability.
Weatherproof: IP66 rated protection.
Intelligent BMS: Enhances battery efficiency and life.
Wide Temp Range: Functional from -10°C to 50°C.
10-Year Warranty: Assured quality and support.
Versatile Integration: Fits on-grid and off-grid setups.

Growatt ATS-XH-US 5kW Backup Box:

Partial home load backup capability
Built-in split-phase transformer for 120V/240V output
Seamless operation during power outages

With the Growatt Hybrid Home Energy Storage System, achieve energy independence, reduce electricity bills, and ensure a reliable power supply for your home. Experience the efficiency and reliability of modern solar technology and battery storage in one comprehensive package.

Technical Specifications

Growatt 6kW MIN 6000TL-XH-US Grid-Tie \| Battery Storage Solar Inverter	Details
Manufacturer	Growatt
Type	Grid-Tied/ Battery Storage
AC Power	6.0kW
Max PV Input Power	12 kW
MPP Trackers	3
MPPT Voltage Range	50~550V
Max Efficiency	98.4%
Compatible Battery	Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery
Warranty	10 years
Communications	CAN2.0, RS485, SUNSPEC / APP, Website
Certificate	UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540
PV INPUT - Max Input Voltage	600V
PV INPUT - Full load Voltage Range	210~500V
PV INPUT - Max Input Current per MPTT	13.5A
PV INPUT - Max Short-circuit Current per MPTT	16.9A
Battery Connection - Battery Voltage Range	360~550V
Battery Connection - Rated Battery Voltage	400V
Battery Connection - I/O DC Current	14.3A
Battery Connection - I/O DC Power	5.0kW
AC OUTPUT (GRID) - Nominal Power	6.0kW
AC OUTPUT (GRID) - Max Output Current	25A
AC OUTPUT (GRID) - Nominal AC Voltage	208/240V
GENERAL DATA - Dimensions(WHD)	15.7522.46.98 inch (400569170.5mm)
GENERAL DATA - Weight	32.3lbs (14.65kg)
Installation	Indoor, Outdoor, Wall-mounted
Monitoring Module	WiFi+ LAN, 4G(Optional)

Growatt APX 10.0P-S0-US 10kWh Battery Module	Details

Model	APX 10.0P-S0-US
Power Module	APX 98020-P1
Battery Module	APX 5.0P-B1
Battery Module Capacity	5kWh
Number of Battery Modules	2
Total Energy Capacity	10kWh
Max. Output Power For Each Battery	5kW
Peak Output Power For Each Battery	8kW for 60s
Dimensions (W/D/H)	690/185/955mm
Weight	118kg
Nominal Voltage (Three-phase System)	650V
Battery Voltage Range (Three-phase System)	600V~980V
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Protection Class	IP66
Installation	Wall-mounting or Floor Installation
Operating Temperature	-10°C~50°C
Allowed Humidity	5%~95%
Cooling	Natural Convection
Altitude	<4000m
Warranty	10 Years
Communication	CAN/RS485
Certification & Licensing	IEC62040, IEC62619, IEC62477, CE, UKCA, UN38.3
Environment Requirements	RoHS Compliant

Growatt ATS-XH-US 11.4kW Backup Box	Details
Backup Capability	Partial home load backup
Output	120V/240V
Max Output Power	11.4kW
Dimensions	15.75 x 22.41 x 6.98 inches (400 x 569 x 170.5 mm)
Weight	32.3 lbs (14.65 kg)
Warranty	10 Years

Download 11.4kW Grid-Tie Inverter Manual (PDF)

Download 11.4kW Grid-Tie Inverter Quick Guide (PDF)

Download APX LiFePO4 Battery Manual (PDF)

Download 200A Automatic Transfer Switch Manual (PDF)
