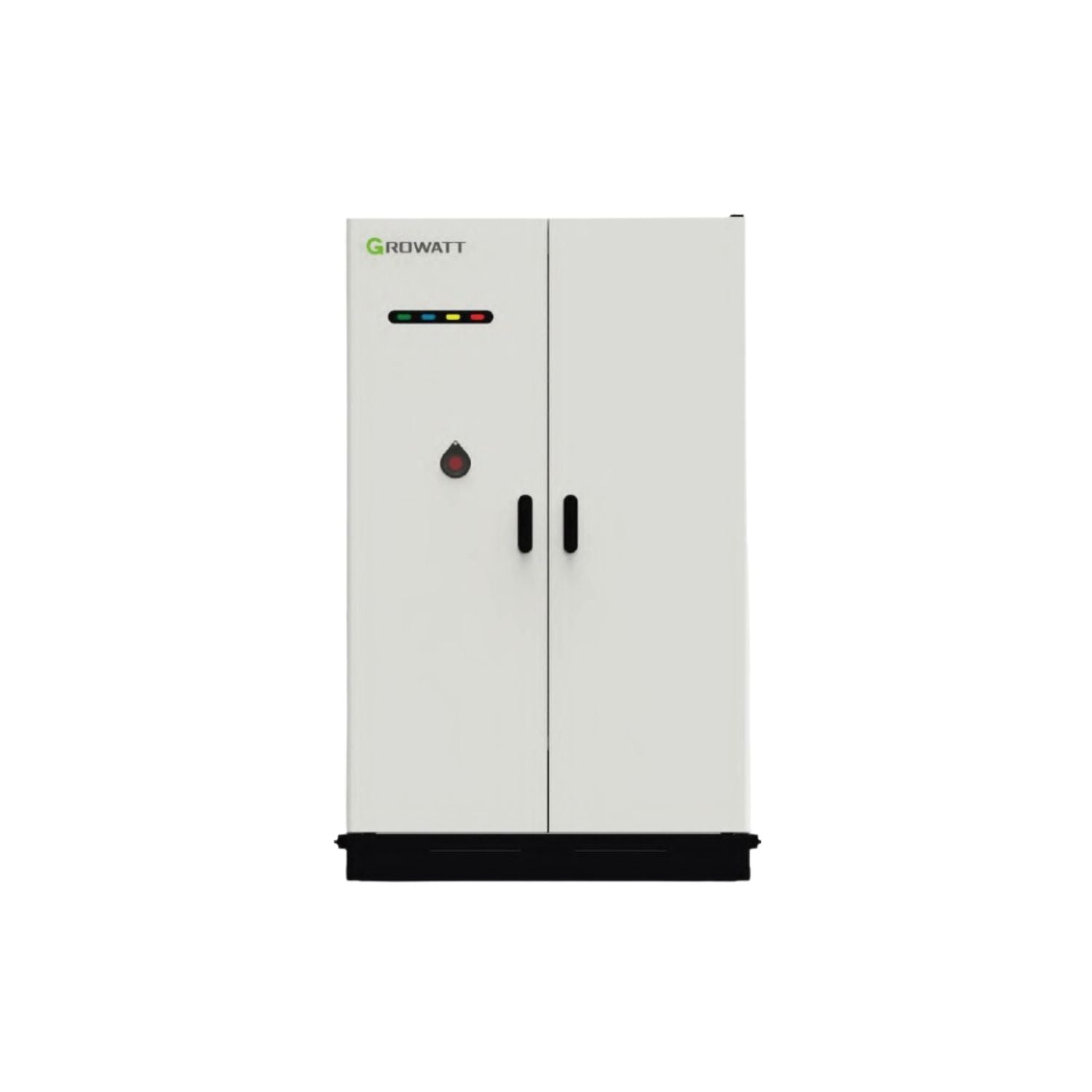

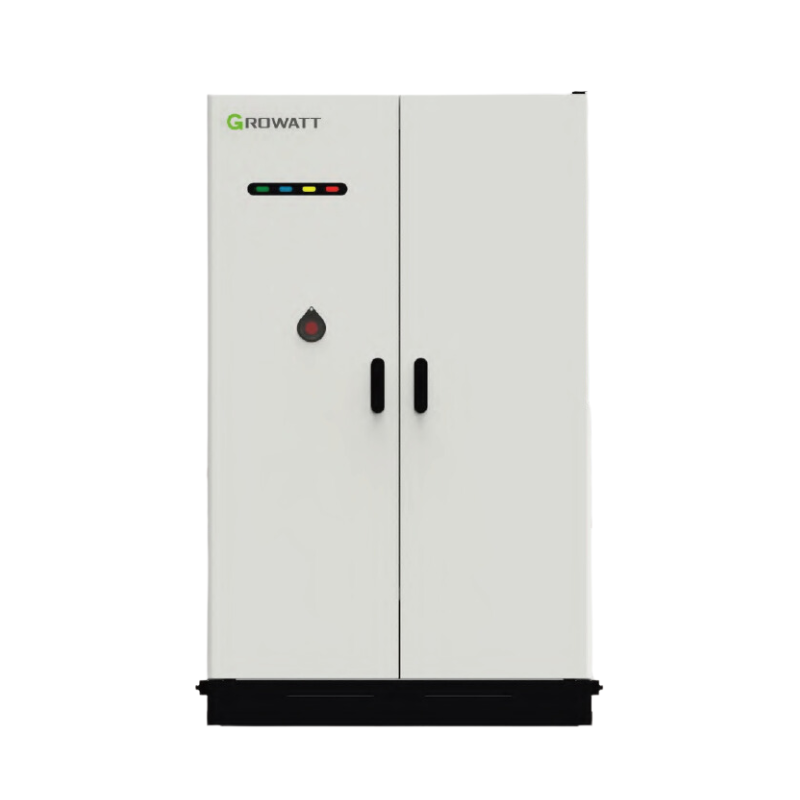

Growatt SYN 360-680U-US

Growatt SYN 360-680U-US

$3,689.99 CAD
$4,999.99 CAD $3,689.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • High Power Output: Ranges from 150kW to 300kW for industrial and commercial applications.
  • Versatile Input Options: Supports grid power and diesel generator (DG) input.
  • Wide Voltage Range: Operates at 480V with a frequency range of 45-65Hz.
  • Fast Switchover: Less than 20ms switchover time between grid and off-grid.
  • Advanced Safety Features: Includes overload, overvoltage, and short-circuit protection.
  • Generator Integration: Seamless generator access for backup power.
  • Efficient Cooling: Natural convection cooling ensures reliable performance.
  • Inverter Compatibility: Works with inverters like the WIT 28-55KTL3-HU/AU-US L2.
Type
Shipping

Free
Local Shipping

Warranty

2-years Hassle Free
Warranty

Support

Lifetime Customer
Support


View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Growatt SYN 360-680U-US for Industrial and Commercial Power Supply

The Growatt SYN 360-680U-US is a cutting-edge power system solution tailored for industrial and commercial use. With four models to choose from, this product delivers efficient and reliable power management for a variety of demanding applications.

  • High Capacity Power Output: Offering models with outputs ranging from 150kW to 450kW, the SYN series provides adaptable power solutions for large-scale operations.
  • Versatile Input Options: Designed to handle both grid power and diesel generator (DG) input, ensuring uninterrupted power supply even during outages.
  • AC Nominal Power: With a robust capacity of up to 300kVA, the SYN 360-680U-US can easily manage significant power loads for diverse applications.
  • Wide Voltage Range: Engineered to operate across a broad voltage range, delivering stable and reliable performance in various operational environments.
  • Integrated Safety Features: Includes advanced protection systems such as overload, overvoltage, and short-circuit protection, ensuring safety during heavy-duty use.
  • Quick Switch Time: Seamless on/off-grid transition with a switch time of less than 20ms, maintaining power consistency even during changes in input sources.
  • Durability & Efficiency: Built to withstand long-term industrial use, providing cost-effective, reliable performance in high-demand situations.

The Growatt SYN 360-680U-US series is the perfect solution for industrial and commercial facilities requiring scalable, efficient, and dependable power systems. Whether it’s powering manufacturing plants, large data centers, or commercial complexes, this product ensures smooth and reliable operation in any scenario.

  • Integrated 200A Circuit Breaker: Eliminates the need for external breakers, simplifying installation.
  • Smart Meter: Provides precise energy monitoring with 1% accuracy for import/export measurements.
  • Split-Phase Transformer: Integrated within the system to support 120V/240V split-phase output.
  • Generator Access: Allows for generator connection, enhancing backup power options.
  • Remote Control Features: Includes capabilities for remote wake-up and intelligent switching.
  • Standard Compliance Documentation: Ensures all components meet safety and emissions standards.

Technical Specifications


Specification SYN 450U-US SYN 540U-US SYN 680U-US SYN 360U-US
AC Nominal Power 160kW 300kW 245kW 300kW
Max. AC Apparent Power 160kVA 330kVA 245kVA 300kVA
Nominal AC Voltage 208V/220V 480V 480V 480V
AC Voltage Range ±15%~±10% ±15%~±10% ±15%~±10% ±15%~±10%
AC Frequency (Nominal) 50/60Hz 50/60Hz 50/60Hz 50/60Hz
AC Grid Frequency Range 45-65Hz 45-65Hz 45-65Hz 45-65Hz
Max. Input Current 444.1A @208V 541.3A @480V 680.8A @208V 360.8A @480V
On/Off-Grid Switch Time <20ms <20ms <20ms <20ms
AC Grid Connection Type 3P3W+PE/3P4W+PE 3P3W+PE/3P4W+PE 3P3W+PE/3P4W+PE 3P3W+PE/3P4W+PE
AC Nominal Power (DG) 80kW 150kW 165kW 150kW
Max. AC Apparent Power (DG) 88kVA 165kVA 181.5kVA 165kVA
Max. Input Current (DG) 244.3A @208V 397A @480V 503.8A @208V 198.5A @480V
Compatible Inverter WIT 28-55KTL3-HU/AU-US L2 WIT 50-100K-HU/AU-US WIT 28-55KTL3-HU/AU-US L2 WIT 28-55KTL3-HU/AU-US L2
No. of Inverter Inputs 3 3 3 3
AC Nominal Power (Inverter) 28kW*3 50kW*3 55kW*3 50kW*3
Nominal AC Voltage (Inverter) 208V/220V 480V 208V/220V 208V/220V


The maximum input current for the Growatt SYN 360-680U-US is 360.8A at 480V, depending on the specific model within the series.

The nominal power output ranges from 150kW to 300kW, providing flexible power solutions for industrial and commercial applications.

The nominal AC voltage is 480V with an AC frequency of 50/60Hz, and it supports a frequency range of 45-65Hz, ensuring compatibility across a wide range of power systems.

The switchover time for grid disconnection is less than 20ms, ensuring a seamless transition between on and off-grid modes.

Yes, the SYN 360-680U-US supports integration with diesel generators (DG), making it an ideal solution for power redundancy and backup.

The system includes advanced safety features such as overload, overvoltage, and short-circuit protection, ensuring safe operation in demanding environments.

The Growatt SYN 360-680U-US is compatible with inverters such as the WIT 28-55KTL3-HU/AU-US L2, allowing for smooth integration in different setups.

The system features efficient thermal management, ensuring reliable operation even under high loads, maintaining optimal performance through natural convection cooling.


Download Product Manual (PDF)
