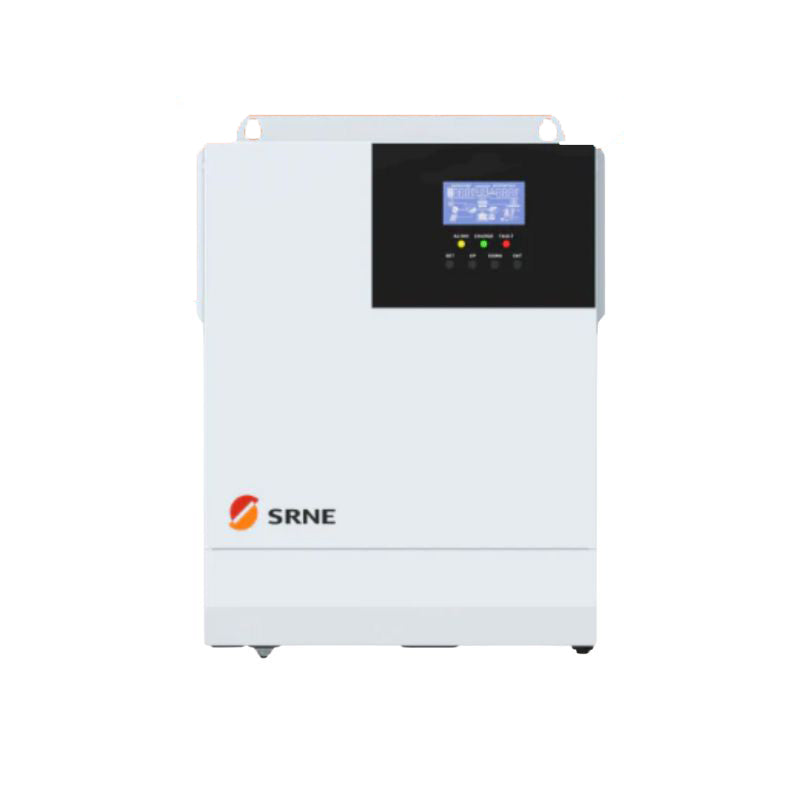

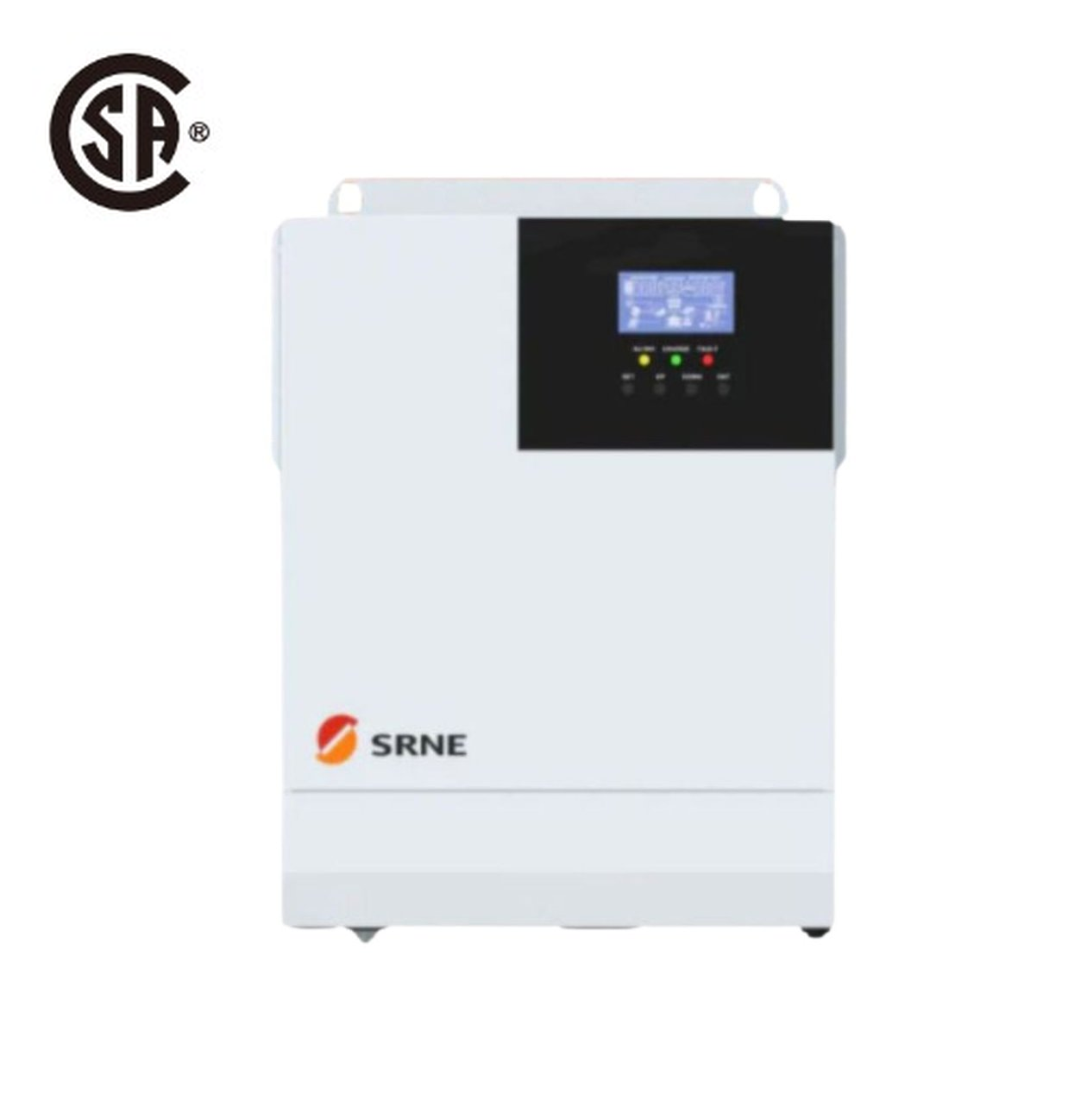

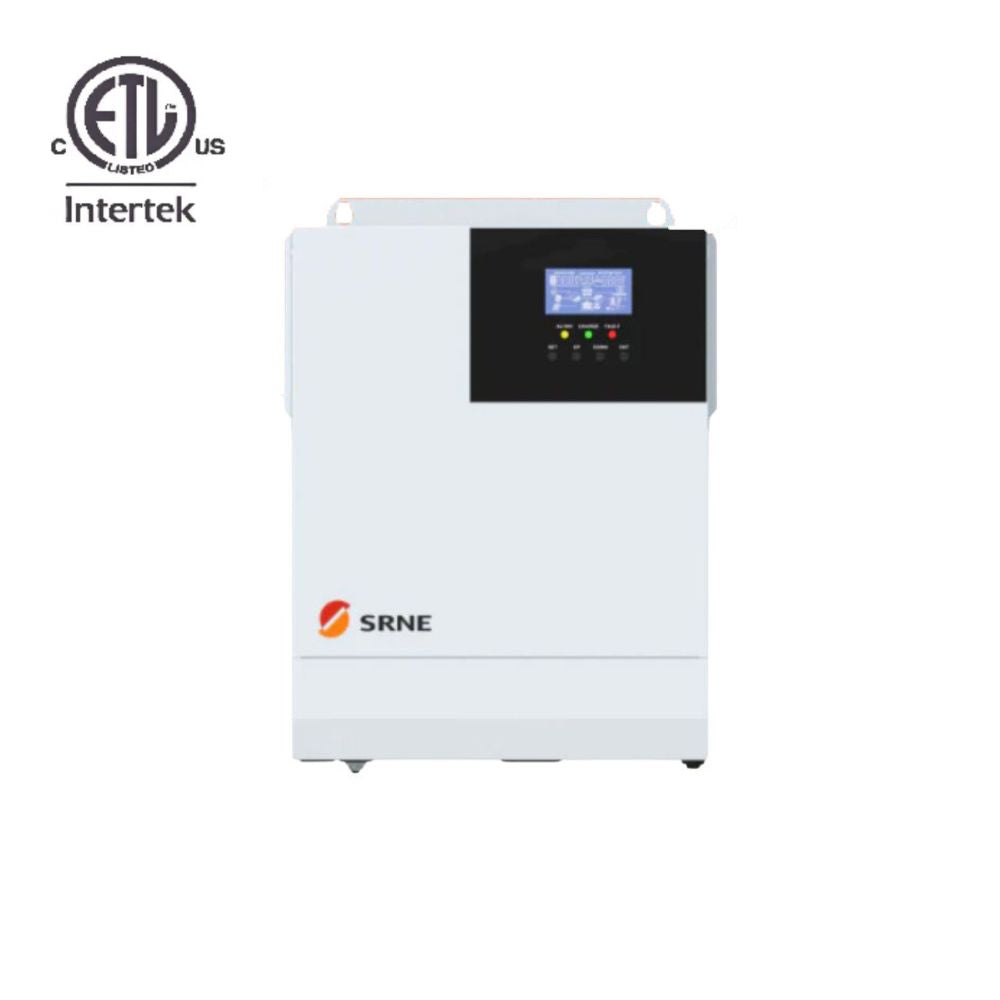

24V 3kW Single-Phase off-grid Solar Storage Inverter

Inverter Output

• Rated Output Power: 3,000W
• Max. Peak Power: 6,000VA
• Output Voltage: 120Vac (Single-Phase)
• Load Motor Capacity: 2HP
• Frequency: 50/60Hz
• Waveform: Pure sine wave
• Switch Time: 10ms (typical)

Battery

• Type: Lead-acid / Lithium-ion / User-defined
• Rated Voltage: 24V
• Voltage Range: 20Vdc–33Vdc
• Max. Solar Charging: 60A
• Max. Grid/Generator Charging: 40A
• Max. Hybrid Charging: 100A

Solar Input

• MPPTs: 1
• Max. PV Power: 1,600W
• Max. Input Current: 60A
• Open Circuit Voltage: 108Vdc
• MPPT Range: 30–90Vdc

Grid / Generator Input

• Voltage Range: 90–140Vac
• Frequency Range: 50/60Hz
• Bypass Overload Current: 40A

Efficiency

• MPPT Tracking: 99.9%
• Max Efficiency: 92%

General Data

• Dimensions: 378×280×103mm
• Weight: 6.8kg
• Protection: IP20 (Indoor use)
• Temp Range: -15°C to 55°C
• Humidity: 0–100%
• Cooling: Fan cooled
• Warranty: 5 years
• Communication: RS485, CAN, USB, Dry Contact
• External Module: Wi-Fi / GPRS (Optional)
• Topology: Transformerless

Certifications

RoHs, ENG1000, IEC 62109, cETL UL17418, CSA C22.2, PSE
