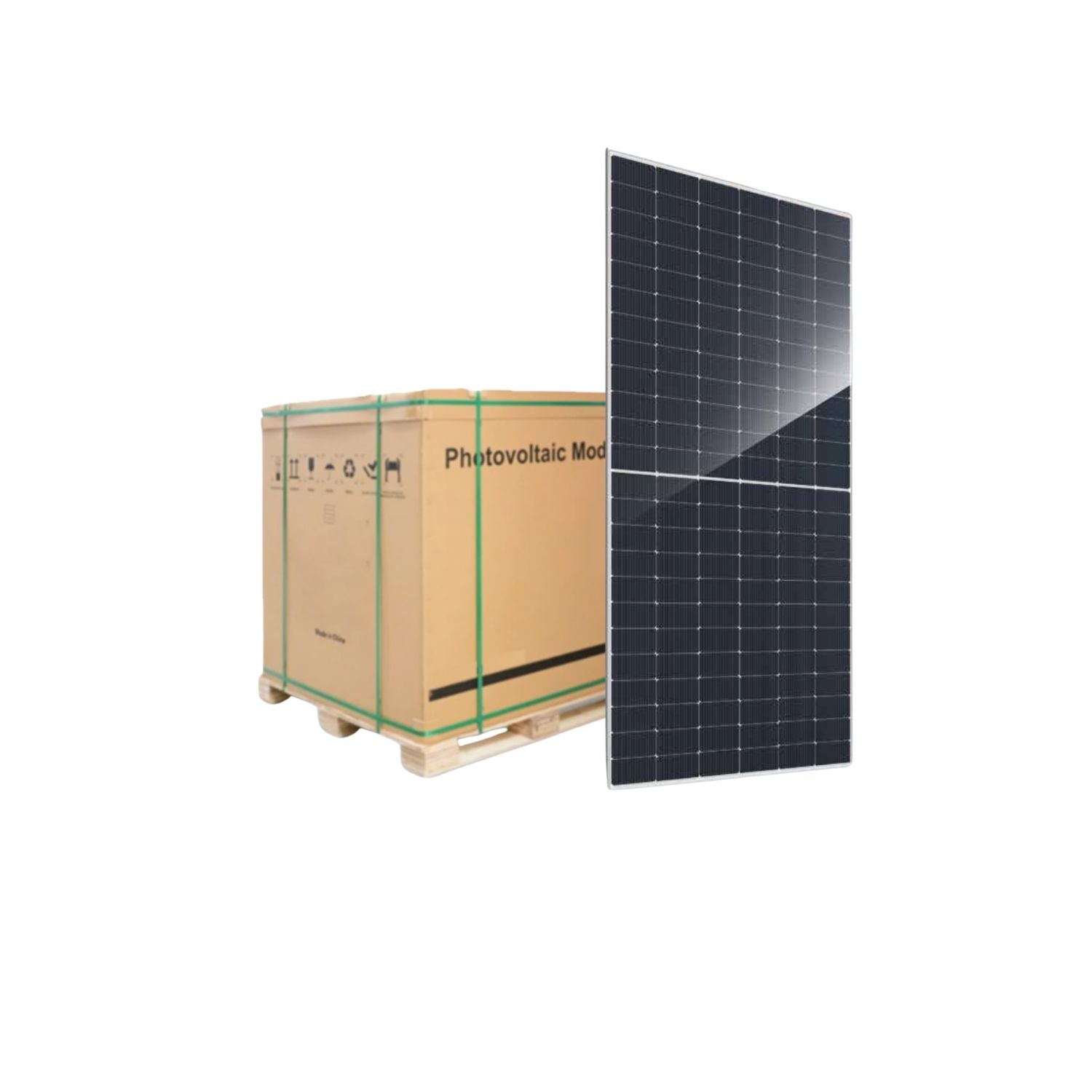

JA Solar JAM60D41 LB 500W N-Type Double Glass Bifacial Module(36pcs/Pallet)

JA Solar JAM60D41 LB 500W N-Type Double Glass Bifacial Module(36pcs/Pallet)

$5,499.99 CAD
$9,999.99 CAD $5,499.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • 500W high-power output
    Delivers strong and reliable energy generation for commercial and utility-scale solar installations.
  • N-type double-glass bifacial technology
    Utilizes advanced n-type Bycium+ cells for higher efficiency, lower degradation, and improved lifetime energy yield.
  • Up to 22.6% module efficiency
    Maximizes power production in limited installation space while maintaining excellent performance.
  • Bifacial energy generation
    Enables additional rear-side power generation with a bifaciality factor of 80% ±10%, depending on site conditions.
  • Low temperature coefficient (Pmax −0.29%/°C)
    Ensures stable power output and improved performance in high-temperature environments.
  • High mechanical strength
    Designed to withstand harsh conditions with ratings of 5400 Pa front snow load and 2400 Pa back wind load.
  • Dual-glass construction
    Enhances durability, safety, and long-term resistance to moisture and environmental stress.
  • 1500V system compatibility
    Supports modern high-voltage PV system designs, reducing balance-of-system costs.
  • Certified to global standards
    Complies with IEC and UL safety and performance certifications for international project use.
  • Long-term warranty protection
    Backed by a 12-year product warranty and a 30-year linear power output warranty.

Bulk Order Inquiry

Interested in ordering in bulk? We offer competitive pricing and flexible terms for large orders.

Request a Bulk Quote
View full details

  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

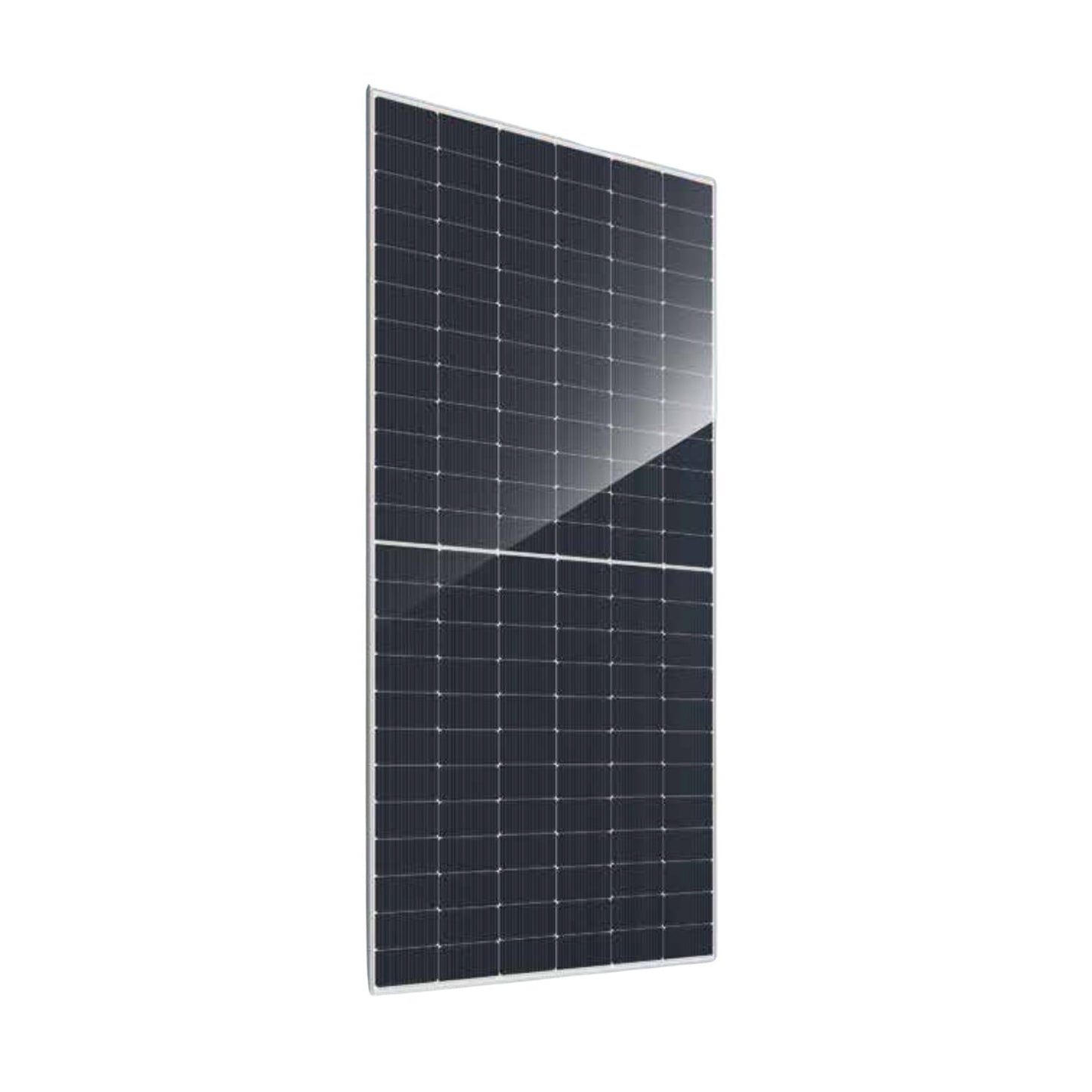

The JA Solar JAM60D41-500/LB is a premium 500W n-type double-glass bifacial solar module engineered for commercial and utility-scale PV projects. Built with JA Solar’s n-Bycium+ cell technology and half-cell architecture, it delivers strong performance, improved low-irradiance response, and long-term reliability.

Designed for demanding environments, this module supports 1500V DC systems, features robust mechanical loading (5400 Pa front / 2400 Pa back), and provides excellent temperature behavior with low power temperature coefficient.

Product Highlights

  • 500W rated output (STC)
  • n-type double-glass bifacial module (DeepBlue 4.0 Pro)
  • Module efficiency: 22.6%
  • Low degradation: 1% first year, then 0.4% annually (linear warranty)
  • High mechanical strength: 5400 Pa front / 2400 Pa back
  • Low temperature coefficient: Pmax −0.29%/°C
  • 12-year product warranty
  • 30-year linear power output warranty
  • 1× JA Solar JAM60D41-500/LB Module: 500W bifacial double-glass solar panel.
  • Integrated Junction Box: IP68 rated with 3 bypass diodes.
  • Factory-attached Cables & Connectors: QC 4.10-351 / MC4-EVO2 compatible.
  • Documentation: Manufacturer datasheet and installation guidance.

Technical Specifications – JAM60D41-500/LB (500W)


Specification Details
Manufacturer JA Solar
Model JAM60D41-500/LB
Module Type Black Module, n-type Double Glass Bifacial
Cell Mono
No. of Cells 120 (6×20)
Rated Power (Pmax) 500 W
Module Efficiency 22.6%
Power Tolerance 0 ~ +3%
Open Circuit Voltage (Voc) 43.85 V
Maximum Power Voltage (Vmp) 37.19 V
Short Circuit Current (Isc) 14.42 A
Maximum Power Current (Imp) 13.45 A
Maximum System Voltage 1500 V DC
Maximum Series Fuse Rating 30 A
Operating Temperature -40°C to +85°C
Temperature Coefficient (Isc) +0.045% / °C
Temperature Coefficient (Voc) -0.25% / °C
Temperature Coefficient (Pmax) -0.29% / °C
NOCT 45 ± 2°C
Bifaciality 80% ±10%
Safety Class Class II
Fire Performance UL Type 29 / Class C
Maximum Static Load (Front) 5400 Pa (112 lb/ft²)
Maximum Static Load (Back) 2400 Pa (50 lb/ft²)
Dimensions (L × W × H) 1953 × 1134 × 30 mm
Weight 27.3 kg
Front / Back Glass 2.0 mm / 2.0 mm
Cable Cross Section Size 4 mm² (IEC), 12 AWG (UL)
Connector QC 4.10-351 / MC4-EVO2
Cable Length (Including Connector) Portrait: 300 mm (+) / 400 mm (−)
Landscape: 1200 mm (+) / 1200 mm (−)
Packaging Configuration 36 pcs/pallet, 864 pcs/40HQ container
Warranty 12-Year Product Warranty / 30-Year Linear Power Output Warranty

Yes. The JAM60D41-500/LB is a bifacial double-glass module designed to generate additional energy from the rear side depending on site conditions.

The module supports up to 1500V DC maximum system voltage.

Rated for 5400 Pa front static load and 2400 Pa back static load.

Includes a 12-year product warranty and a 30-year linear power output warranty.
