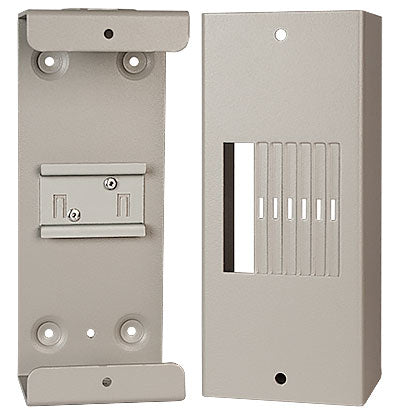

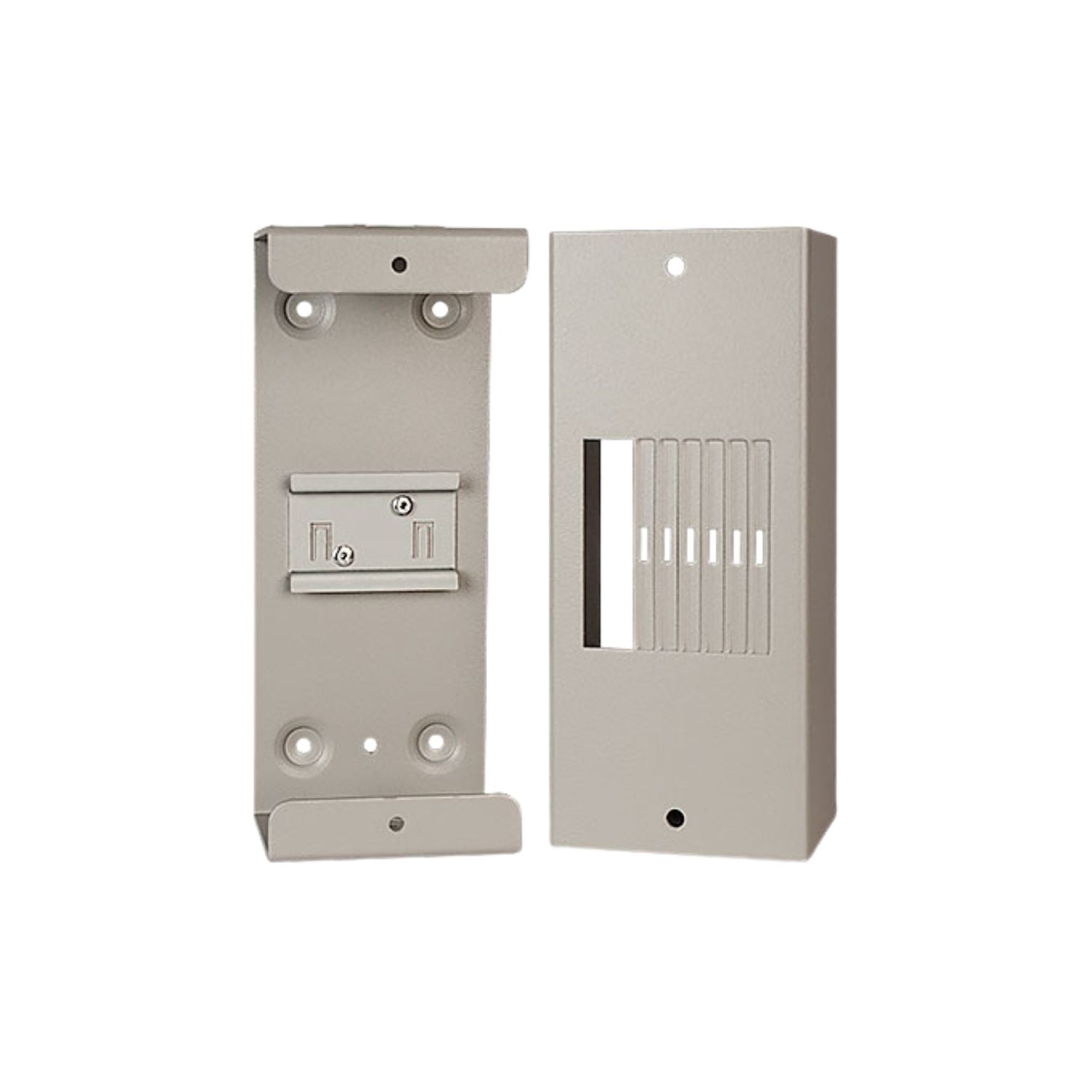

MidNite Solar - MNBABYBOX Baby Box Enclosure DC breaker box
MidNite Solar - MNBABYBOX Baby Box Enclosure DC breaker box
Available in stock (36)
- Description
- Warranty
- Specifications
- Datasheet
- Reviews

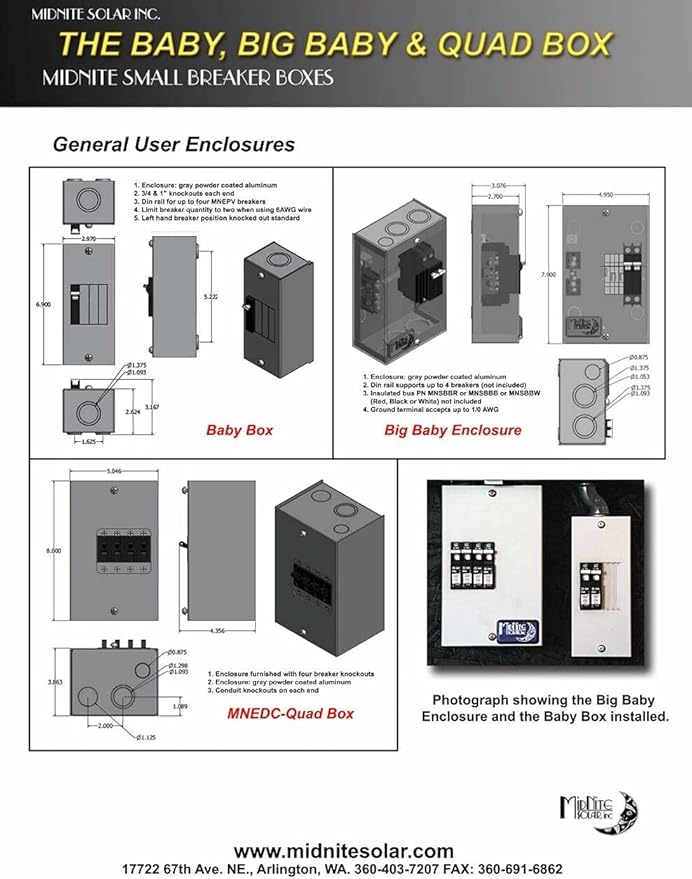

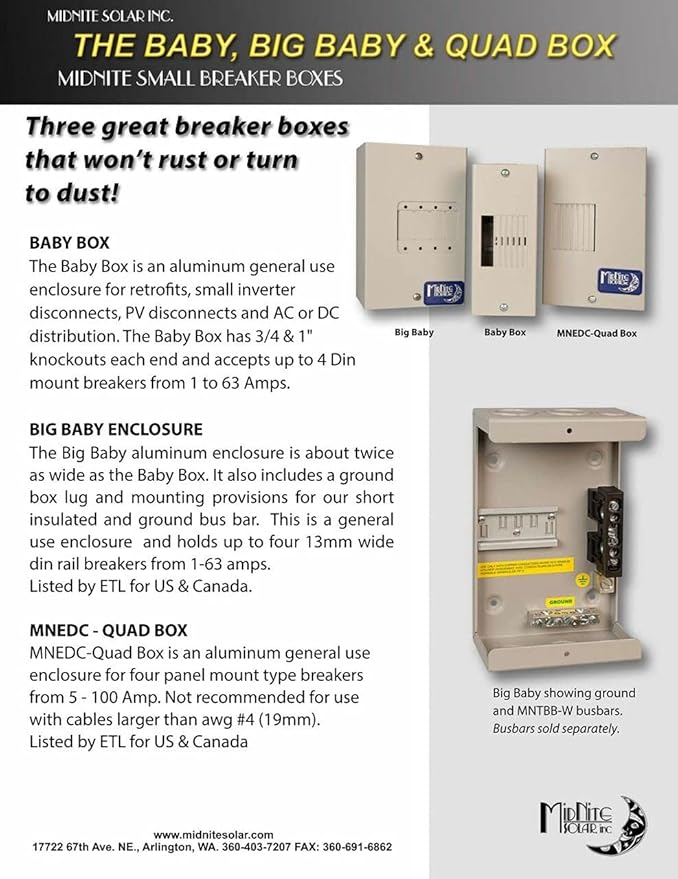

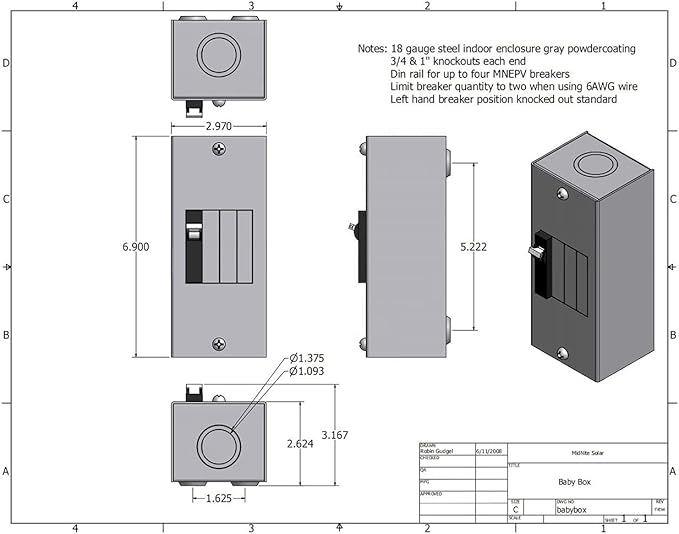

The original Baby box has been a huge success in filling an industry need. We have created an enclosure called the Big Baby to over come the Baby Box smallness allowing for a ETL listed 4 position din rail box. This box is about twice as wide as the baby box giving you more wiring room. It also includes a ground box lug and mounting provisions for our short insulated bus bar as well as a ground bus bar. A dimensioned drawing is under documents on our website.
FEATURES:
- Environmental Rating - Type 1 (Indoor)
- Big Baby's DIN rail accepts up to 4 breakers (not included)
- Quad accepts up to 4 panel mount breakers (not included)
- Breakers: 1-63A
- Max. Wire - breakers 6 AWG
- Max. AC Voltage - 277VAC
- Max. DC Voltage - 300VDC
- Listed by ETL for US & Canada
Warranty - 5 yrs
| Product Specifications | Details |
|---|---|
| Brand | MidNite Solar |
| Material | Aluminum |
| Item Weight | 13.12 ounces |
| Connector Type | Din |
| AC Adapter Current | 1 Amps |
| UPC | 102309800456 |
| Product Dimensions | 7.75 x 3.25 x 3.25 inches |
| Manufacturer | Midnite Solar |
| ASIN | B007IAIW7S |
| Item model number | MNBABYBOX |
