MidNite Solar MNBCB 1000/50 1000A Battery Combiner Box with 50mV Shunt
Available in stock (20)
Couldn't load pickup availability
Description
Description

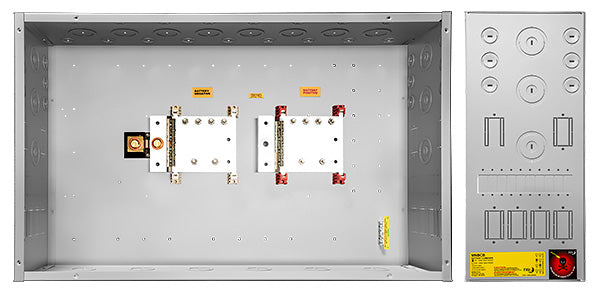

The MidNite Solar MNBCB 1000/50 battery combiner box brings multiple battery-string connections into one organized indoor enclosure. Rated at 1000A and up to 300V DC, it includes positive and negative busbars with 3/8-inch studs and a 1000A/50mV shunt for use with compatible current-monitoring equipment.
The powder-coated Type 1 enclosure provides mounting locations for up to 12 optional MNEDC battery breakers. Its included shunt is drilled to accept the MidNite Solar WhizBang Jr. accessory, providing a mounting provision for compatible battery current monitoring.
Key Features
- 1000A capacity: Positive and negative busbars support high-current battery connections.
- 50mV shunt included: Supplied with a 1000A/50mV shunt and 1/2-inch bolt for the customer connection.
- Optional breaker support: Mounting locations for up to 12 MNEDC battery breakers.
- Indoor installation: Powder-coated Type 1 enclosure.
- Monitoring provision: Shunt drilled to accept WhizBang Jr.
- Made in the USA: Backed by a 5-year manufacturer warranty.
Technical Specifications
| Model | MNBCB 1000/50 |
|---|---|
| Current rating | 1000A |
| Maximum DC voltage | 300V DC |
| Included shunt | 1000A/50mV |
| Busbars | 1000A positive and negative busbars |
| Busbar studs | 3/8 inch |
| Shunt customer connection | 1/2-inch bolt |
| Monitoring provision | Shunt drilled to accept WhizBang Jr. |
| Enclosure | Powder-coated, Type 1 indoor |
| Breaker provisions | Locations for up to 12 optional MNEDC battery breakers |
| Maximum wire size | 4/0 AWG |
| Dimensions | 35-1/2 × 22 × 9-3/4 inches |
| Warranty | 5 years |
| Country of manufacture | USA |
Included and Optional Components
Includes the combiner enclosure, positive and negative busbars, and 1000A/50mV shunt. Circuit breakers and the WhizBang Jr. monitoring accessory are sold separately. Select breakers with voltage and current ratings appropriate to the installation.
