MidNite Solar MNBCB 500/50 500A DC Battery Combiner Box
Available in stock (19)
Couldn't load pickup availability
Description
Description

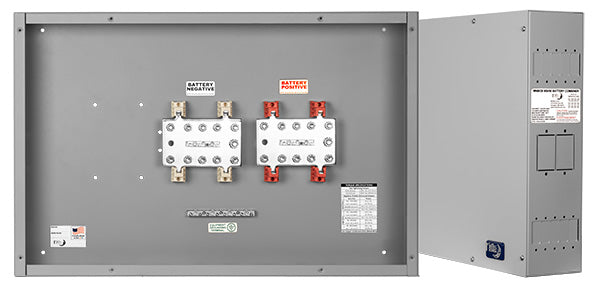

The MidNite Solar MNBCB 500/50 is a 500A battery combiner box with 500A positive and negative busbars and 3/8-inch connection studs. It provides a central connection point for battery cables in indoor battery systems, with a maximum DC voltage of 150V DC.
The enclosure is made from powder-coated aluminum with stainless steel hardware and has a Type 1 indoor environmental rating. The MNBCB 500/50 is ETL Listed to UL 1741 for use in the United States and Canada and carries a 5-year manufacturer warranty.
Key Features
- 500A positive and negative busbars with 3/8-inch studs.
- Cables can be double lugged. The copper busbars can be drilled for additional mounting locations; MidNite recommends 3/8-inch stainless steel bolts when drilling holes for additional ring terminals.
- 24 combination 3/4-inch and 1-inch knockouts, plus 8 combination 1-1/2-inch and 2-inch knockouts.
- Mounting provisions for optional large and small MNEDC circuit breakers.
- Made in the USA.
Technical Specifications
| Model | MNBCB 500/50 |
|---|---|
| Amperage rating | 500A |
| Maximum DC voltage | 150V DC |
| Maximum AC voltage listed in brochure | 277V AC |
| Busbars | 500A positive and negative copper busbars |
| Output stud size | 3/8 inch |
| Enclosure material | Powder-coated aluminum with stainless steel hardware |
| Enclosure rating | Type 1 (indoor) |
| 3/4-inch and 1-inch combination knockouts | 24 |
| 1-1/2-inch and 2-inch combination knockouts | 8 |
| Large breaker locations | 4 locations for optional MNEDC-125 (1-inch wide) and MNEDC-175–250 (1-1/2-inch wide) breakers |
| Small breaker locations | 20 locations for optional MNEDC 1–100A breakers |
| Certification | ETL Listed to UL 1741 for use in the United States and Canada |
| Warranty | 5 years |
| Country of manufacture | USA |
Included and Optional Components
Includes the combiner enclosure and 500A positive and negative busbars. Circuit breakers are optional. Select breakers with voltage and current ratings appropriate to the installation.
Product Documentation
Download the MidNite Solar MNBCB Series Brochure, Rev B (PDF)
