Rocksolar 1000W Solar-Powered Submersible Pump Kit

Rocksolar 1000W Solar-Powered Submersible Pump Kit

Regular price $2,149.99 CAD
Regular price $2,999.99 CAD Sale price $2,149.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • Complete Kit: Includes pump, five solar panels, mounting brackets, and cables.
  • High Efficiency: 1000W brushless motor with 0.8 HP.
  • Voltage Flexibility: Best performance at 90-110V.
  • Powerful Output: Max flow rate of 4.0 m³/h, depth up to 328 feet.
  • Durable Construction: 3-inch diameter, 1.5-inch outlet.
  • Safety Features: Dry-running auto protection.
  • Easy Installation: Pre-drilled mounting holes on panels.
  • Solar Compatibility: Supports five 200W panels.
  • Environmental Benefit: Reduces carbon footprint.
  • Versatile Application: Ideal for gardening and irrigation.
  • Reliable Performance: Operates under various conditions.
Shipping

Free
Local Shipping

Warranty

10-year Hassle Free
Warranty

Support

Lifetime Customer
Support

View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

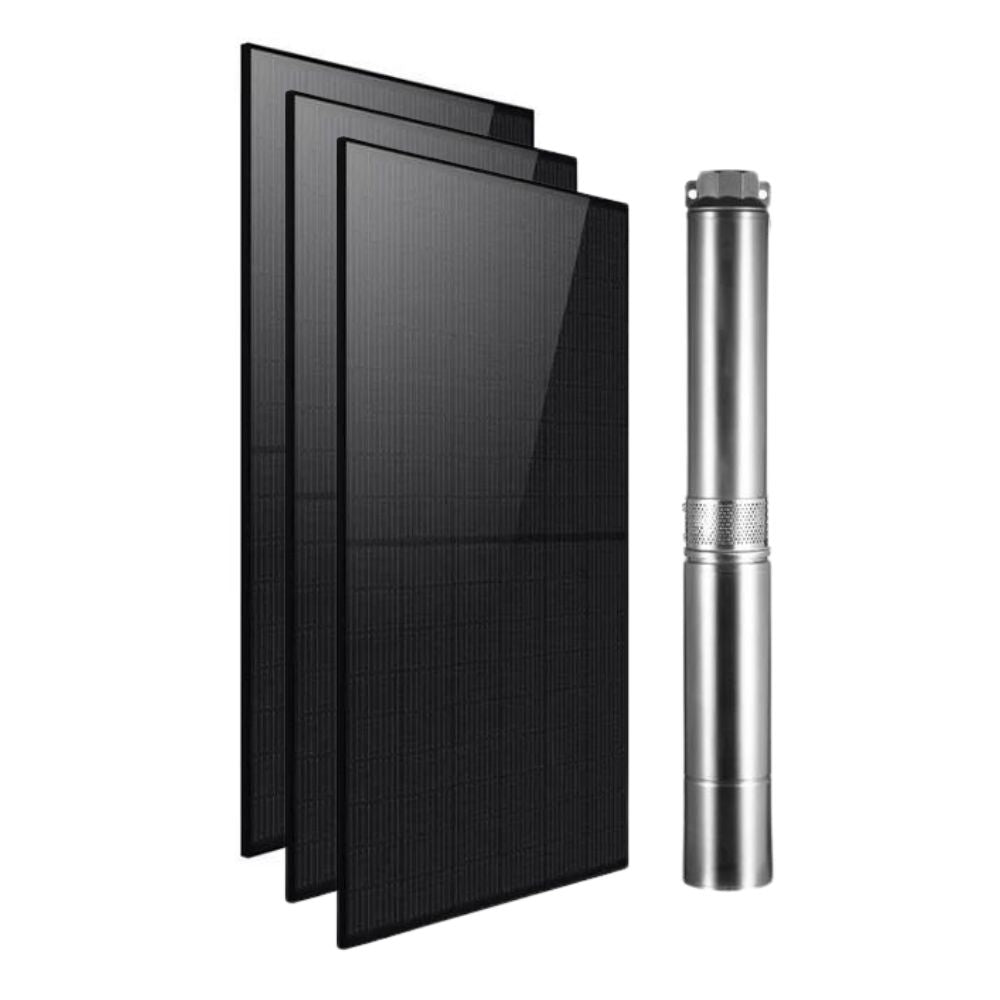

Introducing the Rocksolar 1000W Solar-Powered Submersible Pump Kit, a powerful and efficient solution for your solar-powered water pumping needs. This advanced system combines the robust Rocksolar 60-150V 1.34HP Solar DC Brushless submersible Pump with Built-in Controller and the high-performance 1000W Solar Panel Set (5x 200W), providing optimal and eco-friendly water pumping.

Designed for seamless integration, this system ensures efficient water management for a variety of applications, from home gardening to agricultural irrigation. It's an ideal setup for those looking to harness solar energy for reliable and sustainable water pumping.

Product Features

Rocksolar 60-150V 1.34HP Solar DC Brushless submersible Pump:

  • Powerful 1000W brushless motor delivering 1.34 HP for superior performance
  • Voltage flexibility: operates best at 60-110V
  • Max flow rate of 4.0 m³/h at minimum head
  • Sturdy 3-inch diameter with a 1.5-inch outlet
  • Safety features including dry-running auto protection
  • Supports solar panel and battery power
  • Maximum pressure of 145 PSI and max depth of 289 feet
  • 5-year warranty ensuring long-term reliability

ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel (x5):

  • High-efficiency monocrystalline cells for superior performance
  • 200W power output per panel with a total array power of 1000W
  • Durable aluminum frame and anti-reflective glass for weather resistance
  • Easy installation with pre-drilled mounting holes
  • Bypass diodes to minimize shading impact on performance
  • Over 25 years of service life with a 10-year manufacturer warranty
  • Eco-friendly power generation to reduce carbon footprint

With the Rocksolar 1000W Solar-Powered Submersible Pump Kit, experience superior water management and energy independence. Achieve efficient and reliable water pumping while harnessing the power of the sun, making it an ideal choice for environmentally conscious users.

  • 1 x Rocksolar 60-150V 1.34HPSolar DC Brushless submersible Pump with Built in Controller
  • 5 x ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panels
  • 1 x Set of Mounting Brackets for Solar Panels
  • 1 x Set of Cables for Solar Panel to Pump Connection
  • 1 x User Manual for the Submersible Pump
  • 1 x User Manual for the Solar Panels
  • 1 x Warranty Card for the Complete System

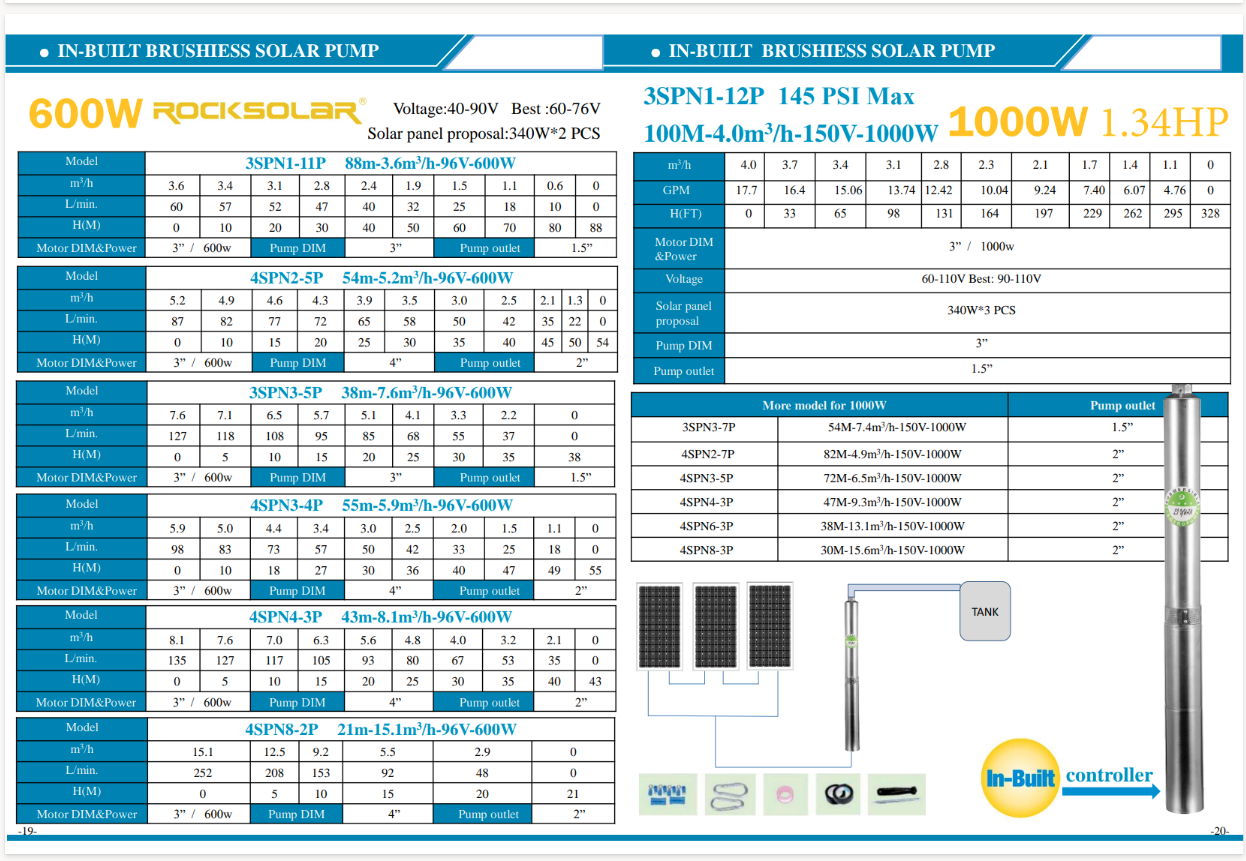

Technical Specifications


Specification Details
Model Rocksolar 1000W Brushless Solar Pump with In-Built Controller
Power and Motor 1000W, 1.34 HP
Voltage Range 60-110V, Best at 90-110V
Solar Panel Compatibility Can be paired with three 340W solar panels
Max Flow Rate 4.0 m³/h at 0 meters head
Max Head 100 meters
Pump Diameter 3 inches
Pump Outlet 1.5 inches

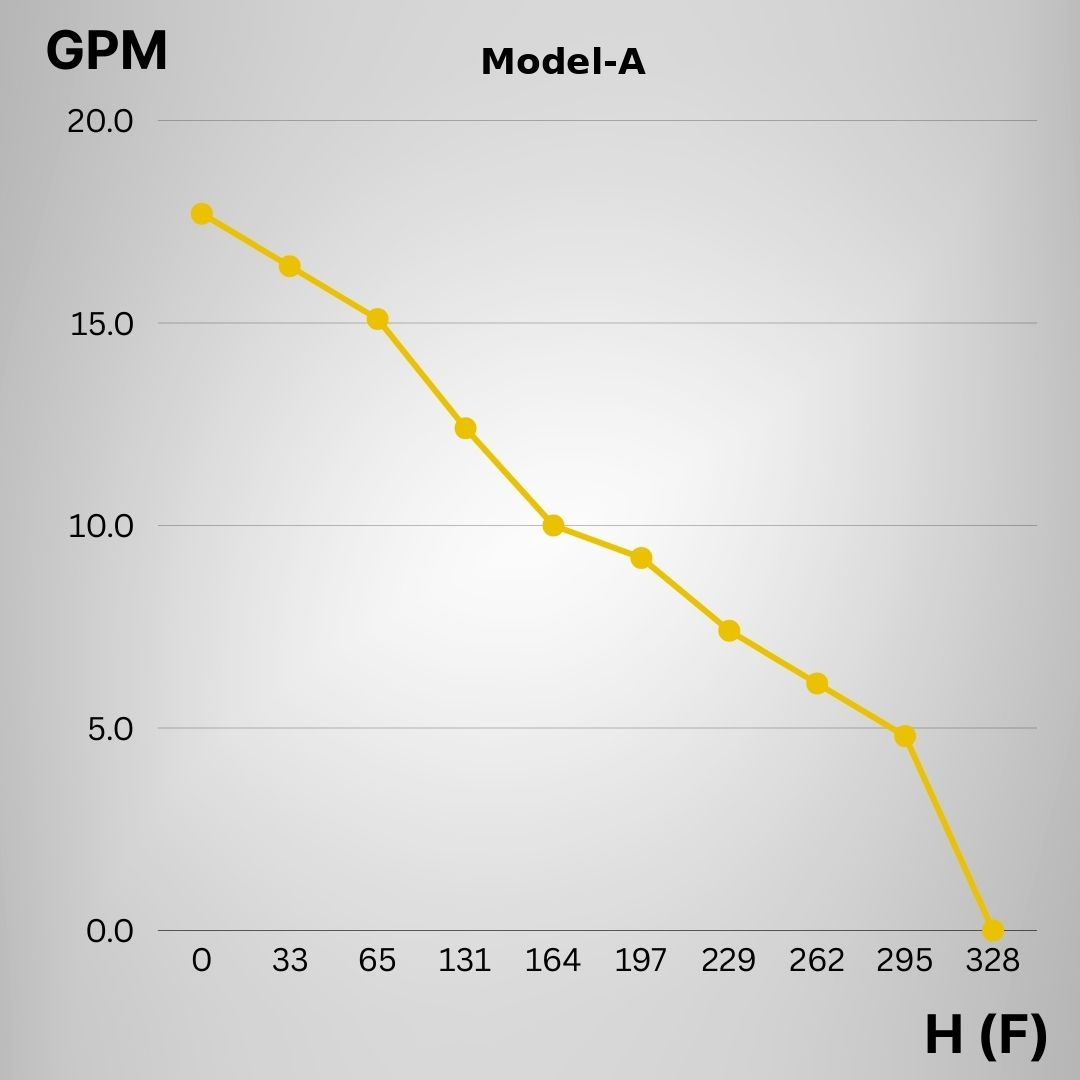

GPM 17.7,16.4,15.06,13.74,12.42,10.04,9.24,7.40,6.07,4.76,0
Height(F) 0,33,65,98,131,164,197,229,262,295,328

ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel Specification Details
Panel Type Monocrystalline
Power Output 200W
System Voltage 12V
Cell Efficiency 20-22%
Frame Material Aluminum
Dimensions  1480mm x 670mm
Weight approx. 25-30 lbs
Operating Temperature -40°C to +85°C
Waterproof Rating IP65
Front Glass High light transmittance, low-iron tempered glass
Bypass Diodes Integrated
Connectors MC4
Cable Length Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations Pre-drilled
Service Life 25 years or more
Warranty 10 years


The kit includes a Rocksolar 60-110V 1.34HP Solar DC Brushless Submersible Pump with Built-in Controller, 5 ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panels, a set of mounting brackets for the solar panels, and all necessary cables and manuals for installation.

The Rocksolar submersible pump can reach a maximum depth of 328 feet and has a maximum flow rate of 4.0 m³/h at minimum head.

Yes, the kit is designed for straightforward installation with all necessary components and clear instructions provided. Technical support is available if needed.

The pump requires minimal maintenance, primarily ensuring the solar panels are clean and connections remain secure. The system's components are designed for durability and long-term performance.

Yes, the pump is compatible with other solar panels, but it performs best with a setup of five 200W panels.

The pump comes with a 5-year warranty, and the solar panels have a 10-year manufacturer warranty.

Absolutely, this pump is ideal for off-grid applications, providing reliable water management powered by solar energy.

The system includes features for performance monitoring, ensuring you can keep track of its efficiency and operation.

The pump includes dry-running auto protection and other advanced safety features to ensure safe and reliable operation.

Yes, the pump can be powered by both solar panels and batteries, ensuring reliable operation even during cloudy days or low sunlight conditions.
