ROCKSOLAR 14.6V/10A LiFePO4 Battery Charger

ROCKSOLAR 14.6V/10A LiFePO4 Battery Charger

$99.99 CAD
$169.99 CAD $99.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • Optimized Charging: Specifically designed for 14.6V LiFePO4 batteries, ensuring a perfect charge every time.
  • Universal Compatibility: Accepts input voltages from 100~240Vac, making it suitable for worldwide use.
  • Accurate Output: Delivers a precise 14.6Vdc at 10A for rapid and reliable battery charging.
  • Wide Operating Range: Functions effectively in temperatures from -10 to +45℃.
  • High Humidity Performance: Operates efficiently in environments with 5% to 95% relative humidity, non-condensing.
  • Enhanced Protection: Includes safety features like reverse polarity, short circuit, overvoltage, and overcurrent protection for safe charging.
  • Efficient Cooling: Utilizes a natural air cooling method to ensure longevity and maintain performance.
  • Adaptable to High Altitudes: Capable of operating up to 2000 meters, ideal for various geographical locations.
  • Clear Charging Indicators: Features green LED for power on, red LED for charging, and green LED when fully charged.
  • Flexible Application: Perfect for charging all types of 12V LiFePO4 batteries across multiple settings.
Shipping

Free
Local Shipping

Warranty

1-year Hassle Free
Warranty

Support

Lifetime Customer
Support
View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

Compact and Efficient Charging: Introducing the ROCKSOLAR 14.6V/10A LiFePO4 Battery Charger, delivering efficient charging with a solid output power. Ideal for charging 12V LiFePO4 batteries with precision and speed.

Universal Input Voltage: Engineered to accommodate a broad input voltage range from 100~240Vac, this charger is adaptable for global use across different power systems.

Accurate Output Control: Provides a consistent output voltage of 14.6Vdc with an output current of 10A, ensuring accurate and reliable charging. Voltage accuracy is maintained at ±0.2V for optimal battery care.

Robust Performance in Various Climates: Designed to function reliably across a wide temperature range of -10 to +45℃ and can withstand storage temperatures from -40 to 70℃. Its performance is uncompromised in relative humidity levels from 5% to 95%, non-condensing.

Passive Cooling System: Features a natural air cooling method to prolong the charger's lifespan while maintaining efficiency without the need for mechanical cooling.

Optimized Electrical Efficiency: With an input voltage flexibility of 90~264 Vac, a maximum input current of 5A, and an impressive power factor correction of ≥0.95, it operates with an efficiency of ≥90% at full load, minimizing energy waste.

Comprehensive Safety Mechanisms: The charger is equipped with advanced safety features, including reverse polarity protection, output short circuit protection, and overvoltage and overcurrent protections, ensuring the safety of both the charger and the batteries.

Clear Charging Indicators: Charging status is easily monitored through LED indicators; a green LED for power on, red LED for charging, and green LED signals when the battery is fully charged.

User-Friendly and Reliable: The ROCKSOLAR 14.6V/10A LiFePO4 Battery Charger stands out as a dependable, easy-to-use charging solution, perfect for a wide array of applications.

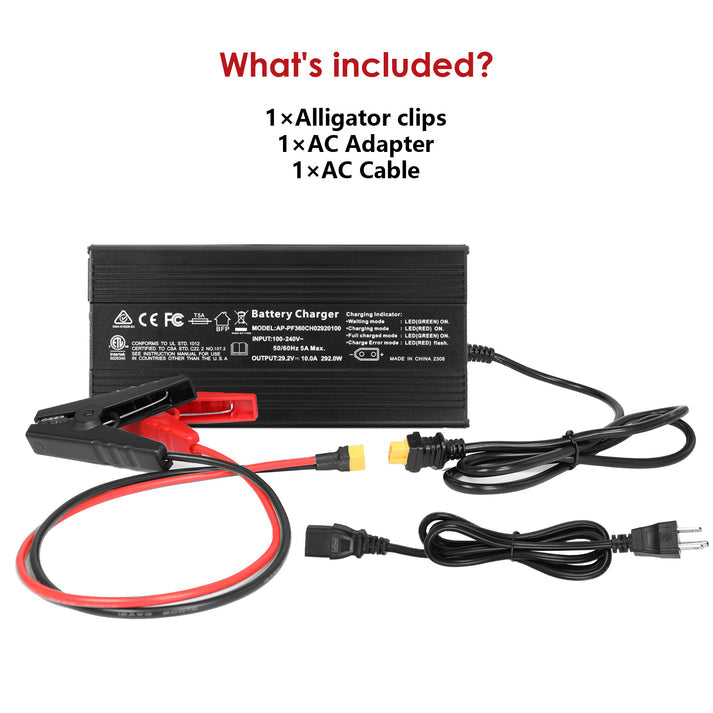

  • 1x Alligator Clips
  • 1x AC Adapter
  • 1x AC Cable

Technical Specifications


Specification Details
Output Power 146W
Rated Input Voltage 100~240Vac
Output Voltage 14.6Vdc
Output Current 10A
Stable Voltage Accuracy ±0.2V
Operating Temperature -10～+45℃, Typical value 25℃ (Full load)
Storage Temperature -40～70℃, Typical value 25℃
Relative Humidity 5%－95%, Non-condensing
Elevation ≤2000 m (Normal operation)
Cooling Method Natural Air
Input Voltage Range 90~264 Vac
Input Inrush Current ≤55 A (Vin=230Vac @ full load, 25℃)
Input Current Max 2.5 A (Vin=100Vac @ Full load)
AC Input Voltage Frequency 47—63 Hz
Power Factor Correction ≥0.95 (Input 100~240Vac @ Full load)
Output Efficiency ≥90% (Input 230Vac @ Full load)
Ripple & Noise ≤100 mVp-p
Reverse Polarity Protection Yes
Output Short Circuit Protection Yes
Output Overvoltage Protection Yes
Output Overcurrent Protection Yes
Charging Indication Status Power on: Green LED
Charging: Red LED
Battery full: Green LED


The ROCKSOLAR 14.6V/10A LiFePO4 Battery Charger delivers a precise output power for efficiently charging 12V LiFePO4 batteries, ensuring quick and reliable charging.

Yes, this charger is designed to operate effectively in a broad temperature range from -10 to +45℃, providing flexibility for use in various environmental settings.

Absolutely, the ROCKSOLAR Charger maintains its efficiency in relative humidity levels from 5% to 95%, non-condensing, ensuring its durability and performance in different humidity conditions.

This charger includes advanced safety mechanisms such as reverse polarity protection, output short circuit protection, and overvoltage and overcurrent protection, safeguarding both the charger and the batteries during the charging process.

The charger is highly efficient, with an output efficiency rate of ≥90%, making it an energy-efficient option for charging your LiFePO4 batteries.

Yes, the charger is capable of operating at altitudes up to 2000 meters, making it versatile for use in a wide range of geographical locations.

The charger features easy-to-read LED indicators for charging status: a green LED for power on, a red LED during charging, and a green LED when the battery is fully charged, providing clear feedback throughout the charging cycle.

Download Product Manual (PDF)
