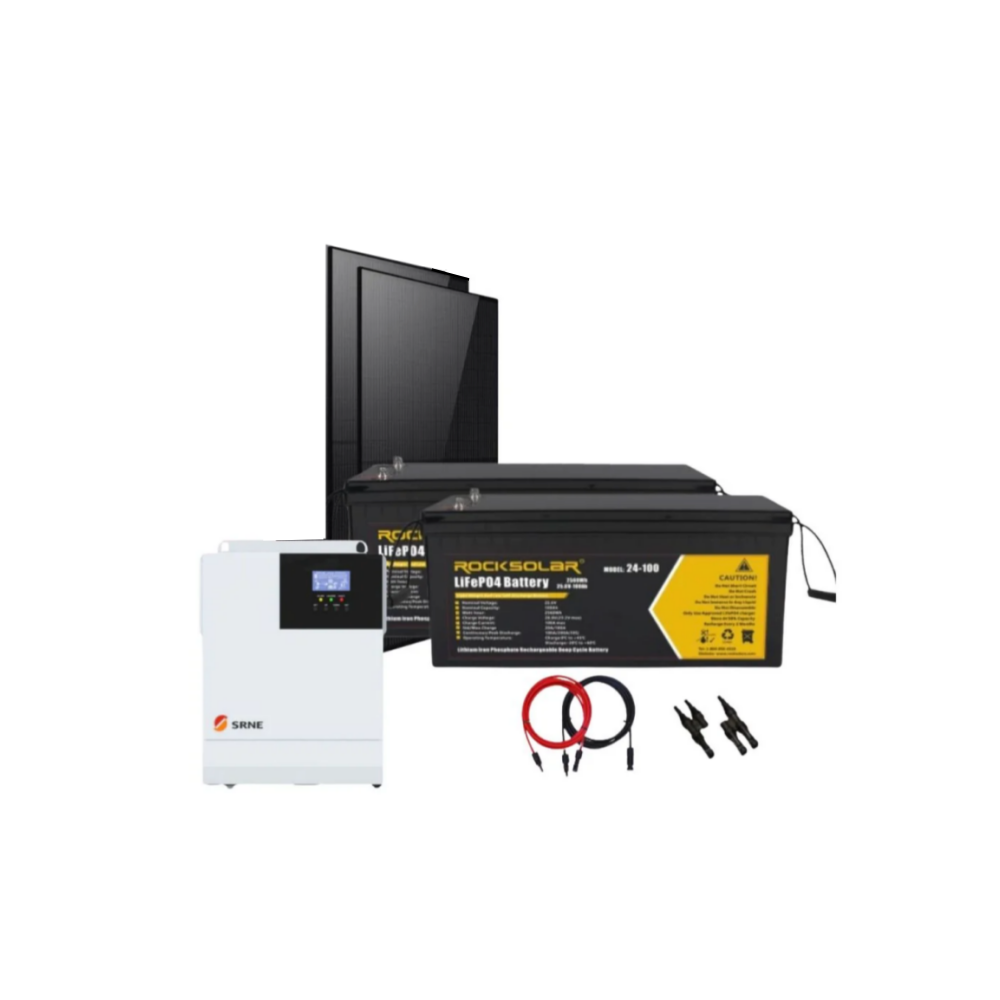

ROCKSOLAR 3000W 24V Off-Grid Solar System

ROCKSOLAR 3000W 24V Off-Grid Solar System

Get extra 10% discount. Use code OFFGRID10 at checkout.
$4,899.99 CAD
$6,699.99 CAD $4,899.99 CAD
Sale Sold out
Shipping calculated at checkout.

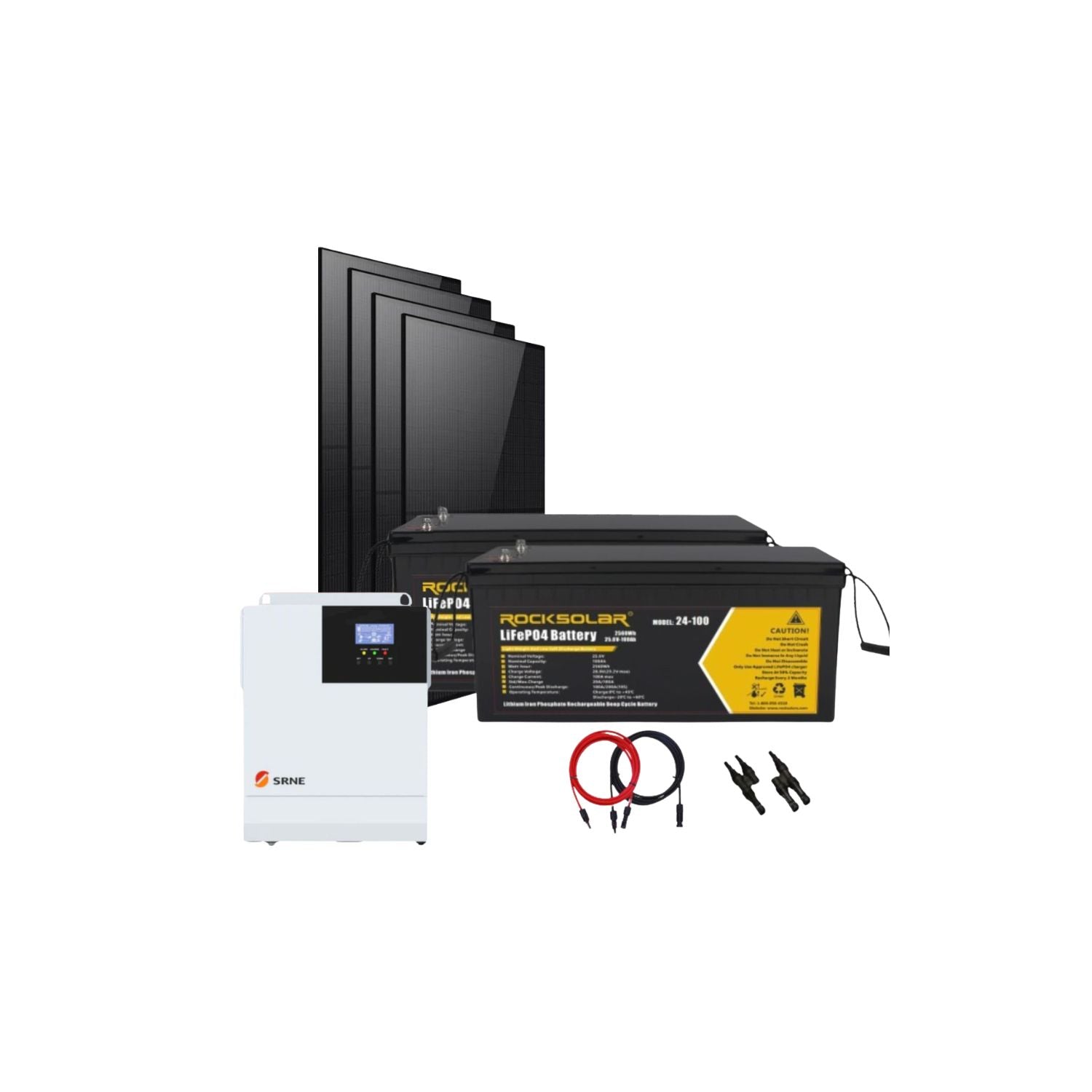

  • Advanced Power System: Includes 2x 24V 100AH batteries, 3x 400W panels, 60A controller, 3000W inverter.
  • High-Capacity Batteries: 24V 100Ah LiFePO4 each, 3500+ cycles.
  • High-Efficiency Panels: Three 400W, 21% efficient, sturdy build.
  • 3000W Inverter: Pure Sine Wave, efficient AC conversion.
  • 60A MPPT Controller: Superior 99.5% efficiency, flexible battery compatibility.
  • Durable Panels: Waterproof, corrosion-resistant aluminum frame.
  • Reliable Batteries: Advanced BMS for safe, long-lasting use.
  • Widely Applicable: Ideal for diverse off-grid needs.
  • Extended Warranties: 10-year guarantee on batteries and panels.
  • User-Friendly Installation: Pre-drilled holes, straightforward setup.
  • Future-Ready: Easy upgrades for growing power needs.
  • Broad Operating Range: Battery -20°C to 60°C, Controller -20°C to 55°C.
Shipping

Free
Local Shipping

Warranty

10-years Hassle Free
Warranty

Support

Lifetime Customer
Support


View full details



  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

The ROCKSOLAR 3000W 24V Off-Grid Solar System offers the most comprehensive power solution yet for Canadian cottage owners. It boasts reliability and high efficiency, providing off-grid power at your convenience. The system consists of 2x 24V 100AH LiFePO4 Batteries, 3x 400W Rigid Solar Panels, a 60A MPPT Solar Charge Controller, and a potent 24V 3000W Pure Sine Wave Inverter. It is designed to power a wide array of appliances including a mini fridge, freezer, LCD TV, wifi router, coffee machine, microwave, lighting, stereo, laptop, and phone chargers, ensuring a 24/7 off-grid power supply for all your cottage needs. The ROCKSOLAR 3000W 24V Off-Grid Solar System comes with a future-focused design that allows easy upgrades for increased power needs, providing free upgrade services and exchangeable key components. ROCKSOLAR guarantees the value retention of all components, making sure your investment is worthwhile. The batteries and solar panels come with a reassuring 10-year warranty, while the other components carry a 1-year warranty. Embrace a worry-free off-grid life with the ROCKSOLAR 3000W 24V Off-Grid Solar System.

Product Features

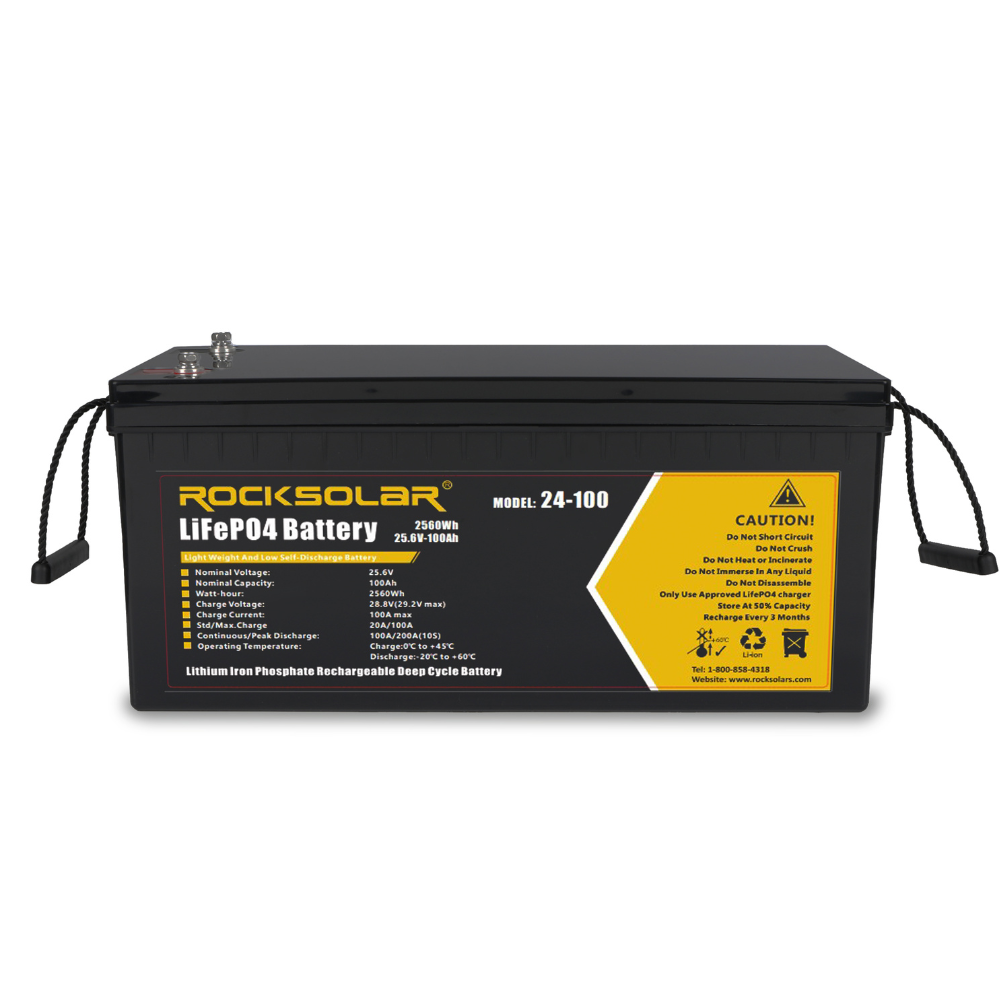

ROCKSOLAR 24V 100Ah Deep Cycle LiFePO4 Battery with BMS System:

  • 24V 100AH capacity (each)
  • 3500+ cycle life with 100% discharge rate for ultra-long service life
  • Steady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteries
  • Utilizes advanced LiFePO4 Battery Technology for dependable deep cycling
  • Smart Battery Management System for safety and longevity
  • Lightweight: Only 55 pounds for easy portability and installation
  • Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.
  • Operating temperature range for charging: 0C∽45C, discharging: -20~-60.
  • BMS auto-shuts off the battery outside the working temperature.
  • Warranty: 11-year warranty and 10+ year service life

ROCKSOLAR 1200W 12V Rigid Monocrystalline Solar Panel:

  • 400W 12V output (each)
  • Rigid Monocrystalline Solar Panel
  • Waterproof and Corrosion-Resistant Aluminum Alloy Frame
  • High-Efficiency Solar Cell with 22% Conversion Efficiency
  • Pre-drilled holes for easy mounting and securing to any surface

ROCKSOLAR 60A MPPT Solar Charge Controller:

  • 60A MPPT Solar Charge Controller
  • Compatible with Lithium and Lead Acid batteries
  • Maximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%
  • 3-stage charge algorithm and 12/24V nominal system voltage
  • Rated charging current of 60A and battery voltage range of 8-32V
  • High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
  • Operating temperature range of -20°C to 55°C
  • IP30 rated for protection

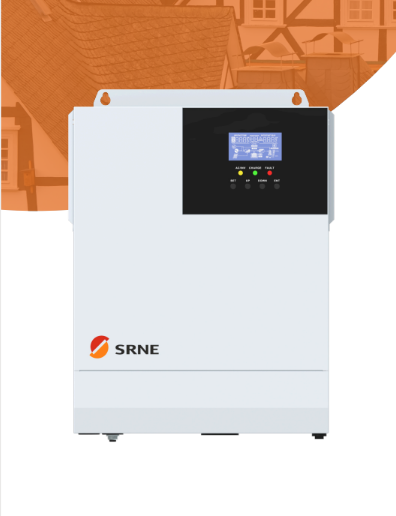

ROCKSOLAR 24V 3000W Pure Sine Wave Power Inverter:

  • 3000W Pure Sine Wave Power Inverter
  • DC 24V to 110V AC Conversion
  • Temperature Range: The inverter has a working temperature range of -20～40℃ and operating humidity range of 10～90%RH, making it suitable for use in a variety of environments.
  • 2.1A USB Charging Port
  • Ideal for RVs, Camping, Off-grid power solutions, and more.
  • Lightweight and Compact Design: With a net weight of just 5.01kg and a size of 420.4208.9110mm (LWH), the inverter is easy to transport and store.

    • 2 x 24V 100Ah Deep Cycle LiFePO4 Battery
    • 3 x 400W 12V Rigid Monocrystalline Solar Panel
    • 1 x 24V 3000W Pure Sine Wave Power Inverter
    • 1 x 60A MPPT Solar Charge Controller

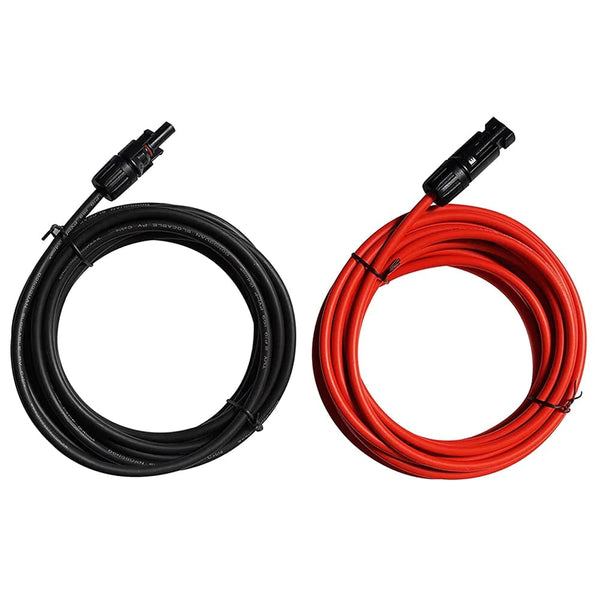

    • 1 x 10 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black
    • 3 x Z-Bracket Mount System (Set of 4)
    • 1x 3 to 1 Branch Connectors for Solar Panels MMF+FFM Pair
    • 1 x User Manual

    Technical Specifications


    24V 100Ah Deep Cycle LiFePO4 Battery with BMS System Details
    Nominal capacity 100Ah
    Mix. capacity 195Ah
    Nominal energy 2560Wh
    Combination structure of battery 4S
    Nominal voltage 12.8V
    End of discharge voltage 10.8V
    Standard charge voltage 14.6±0.2V
    Float charge voltage 13.8V
    Standard charge current 40A
    Recommended charge current ≤100A
    Allowed Max. charge current 100A
    Standard discharge current 40A
    Recommended discharge current ≤100A
    Allowed Max. discharge current 100A
    Peak discharge current 200A,10Sec
    Internal Resistance ≤20mΩ
    Weight Approx. 25kg
    Ex-factory capacity Approx.50% SOC
    Operation temperature Discharge: -20°C~60°C; Charge: 0°C~45°C
    Storage environment

    ≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH

    400W Panel Specification Details
    Panel Type Monocrystalline
    Power Output 400W-420W
    System Voltage 1000V
    Cell Efficiency 20.7%
    Frame Material Anodized Aluminum

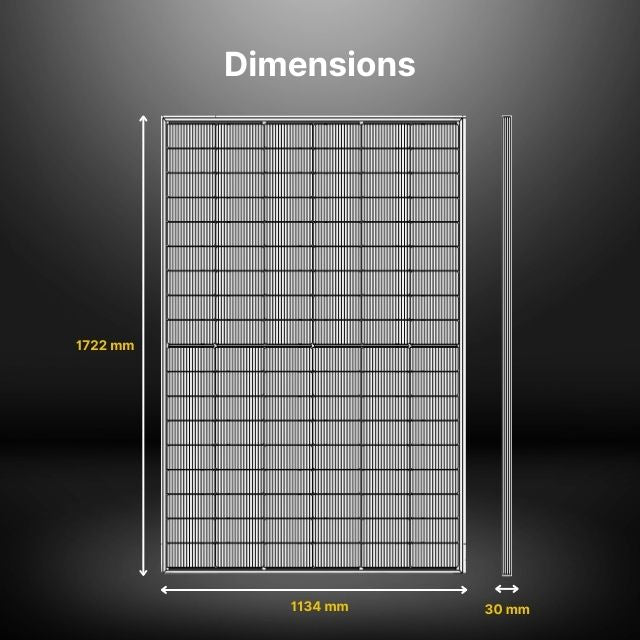

    Dimensions 1722mm x 1134mm x 30mm
    Weight 22 kg
    Operating Temperature -40°C to +85°C
    Waterproof Rating IP68
    Front Glass Anti-reflective tempered glass
    Bypass Diodes Integrated
    Connectors MC4
    Service Life 25 years
    Warranty 10 years

    60A MPPT Solar Charge Controller
    		 Details
    Model POW-M60-PRO
    PV Input Max Open Voltage of PV Module: 100Vdc
    MPP Tracking Efficiency 99.50%
    Light Control Voltage 5V
    Charge Mode Charge Algorithm: 3 Stage
    Battery Type Lithium and Lead Acid Battery
    Low Voltage Disconnection (LVD) AGM/ GEL/ FLd: 10.8V
    Environmental Operating Temperature Range: -20℃~55℃ (To run at full rated current continuously)
    LCD Temperature Range -20℃~70℃
    Humidity Range ≤95% No condensation
    General Specification Protection Class: IP30
    Dimension 123*178*48
    Installation Hole 108*120 ∅5

    24V 3000W Pure Sine Wave Power Inverter
    		 Details
    Model RSINV3000-001
    Output Rated power: 3000W
    AC Voltage 120Vac(100/110/120Vac Set through menu)
    Frequency 60Hz (50Hz/60Hz Set through menu)
    Resistive Load Continuous Output Power 1200W, 2000W
    Operating humidity 10～90%RH
    Storage temperature, humidity -30℃～70℃,10～95%RH
    Weight Net weight:5.01Kg Gross weight:
    Size 420.4*208.9*110mm (L*W*H)
    Packing mm(L*W*H)


    The ROCKSOLAR 3000W 24V Off-Grid Solar System includes 2x 24V 100AH LiFePO4 Batteries, 3x 400W Rigid Solar Panels, a 60A MPPT Solar Charge Controller, and a 24V 3000W Pure Sine Wave Inverter.

    The system is capable of powering a wide range of appliances including a mini fridge, freezer, LCD TV, wifi router, coffee machine, microwave, lighting, stereo, laptop, and phone chargers.

    Yes, the system is designed to be easily upgraded for increased power needs in the future. With free upgrade services and exchangeable key components, you can expand your energy independence with confidence.

    The system comes with a 10-year warranty on the batteries and solar panels and a 1-year warranty on other components.

    The power generation of the system largely depends on sunlight availability and other environmental factors. However, with its 3x 400W Rigid Solar Panels, it's designed to offer a significant amount of power for your off-grid needs.


    Download LiFePO4 Battery Manual (PDF)
    Download Rigid Solar Panel Manual (PDF)
    Download Pure Sinewave Inverter Manual (PDF)
    Download Solar Charge Controller Manual (PDF)
