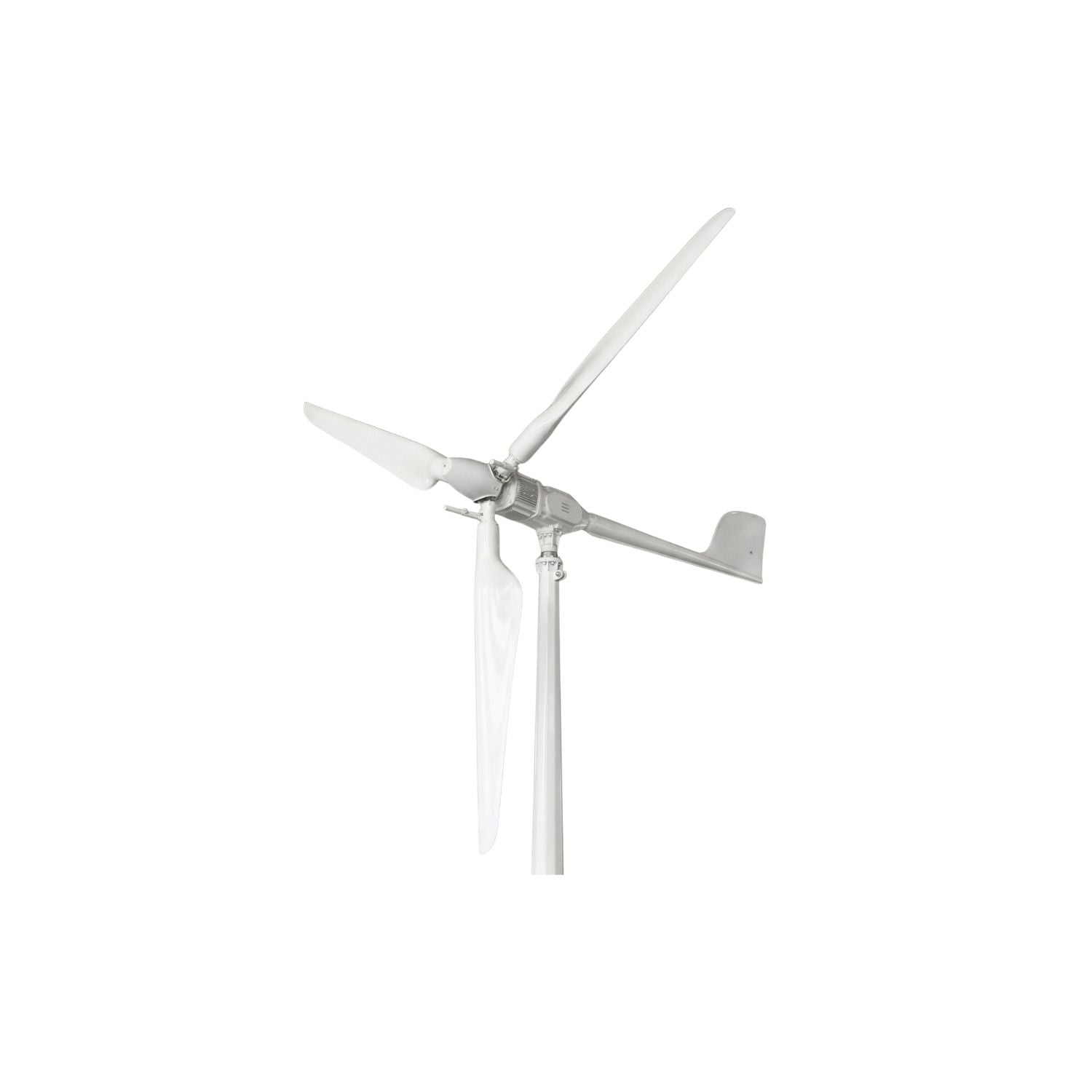

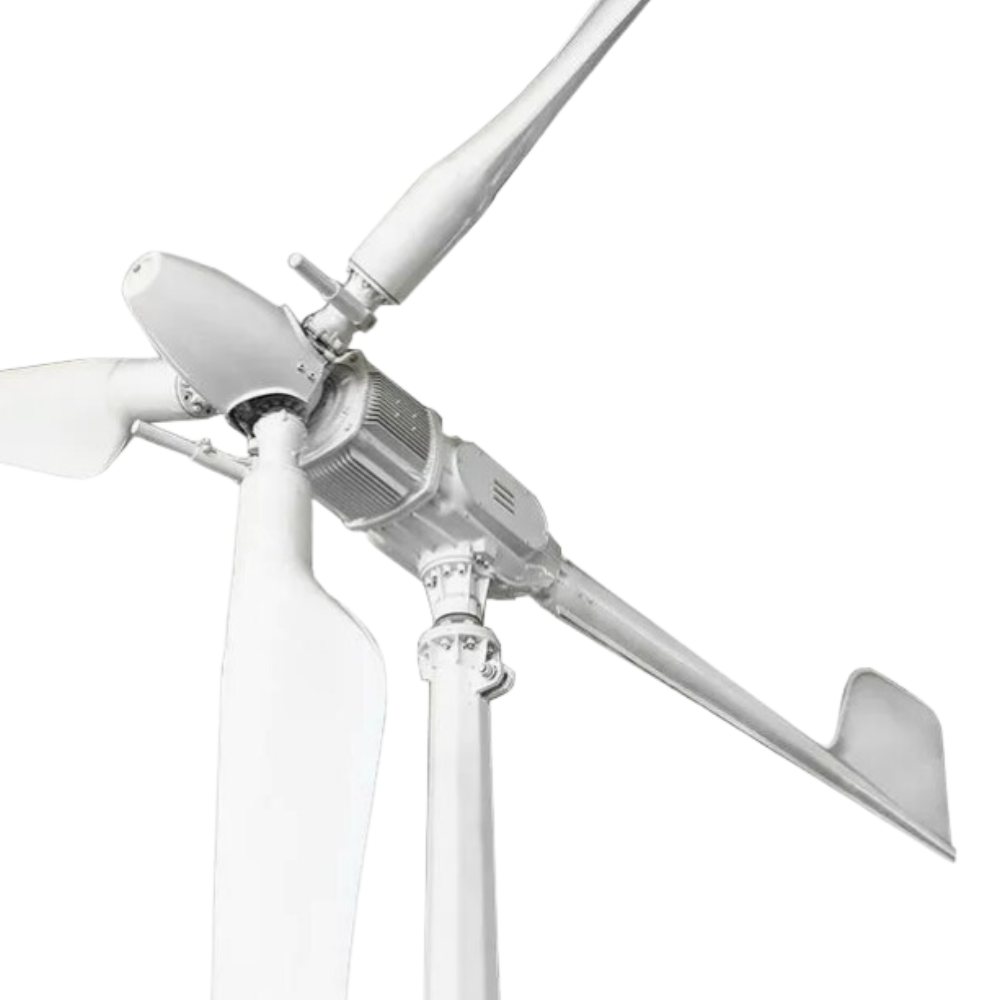

Rocksolar 5KW Pitch Control Wind Turbine

High Power Output: 5KW rated, 6KW maximum.

Low Start Wind Speed: Starts generating power at just 2.5m/s.

Advanced Safety Features: Includes pitch brake and active yaw with electromagnetic braking.

Durable Design: IP54 protection grade suitable for diverse environmental conditions.

Generator Type: Three-phase permanent AC magnet generator.

Adaptable Speed Range: Works efficiently from 3 to 30m/s wind speeds.

High Wind Resistance: Can withstand wind speeds up to 60m/s.

Blade Specifications: Made from FRP, totaling 3 pieces.

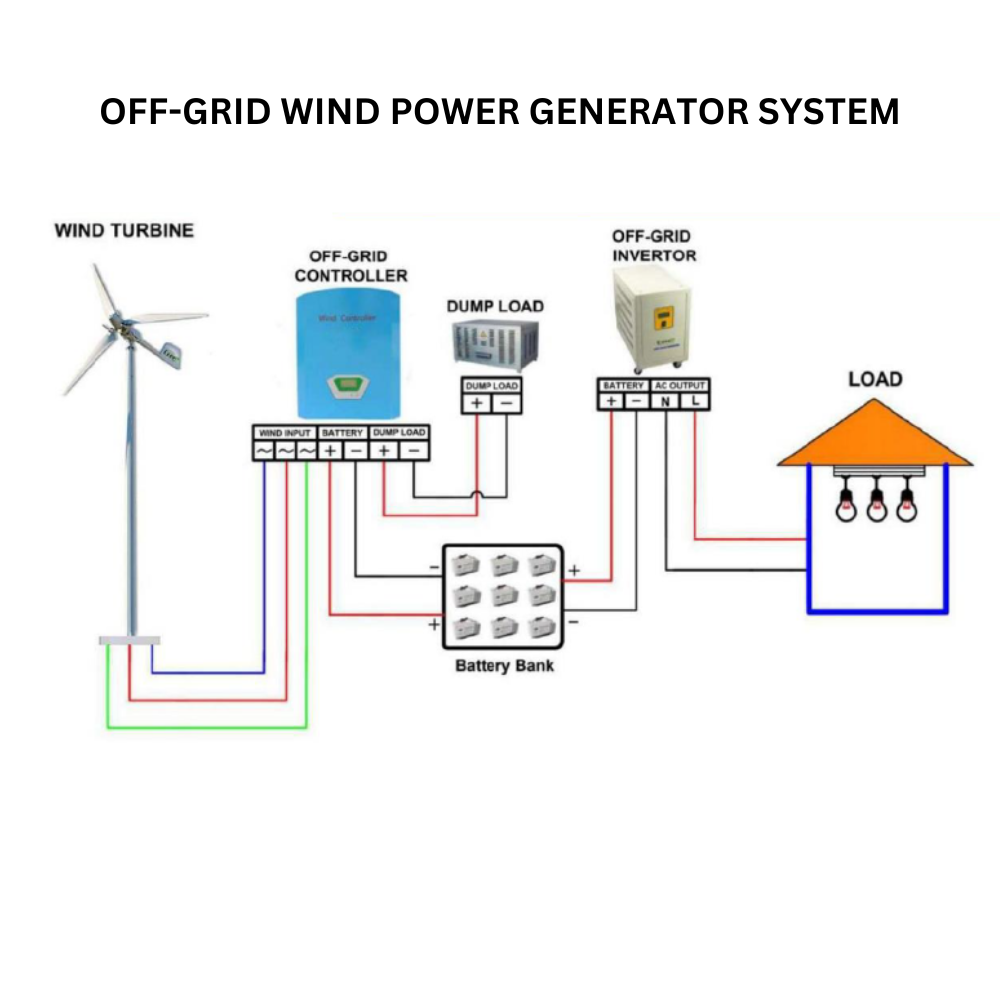

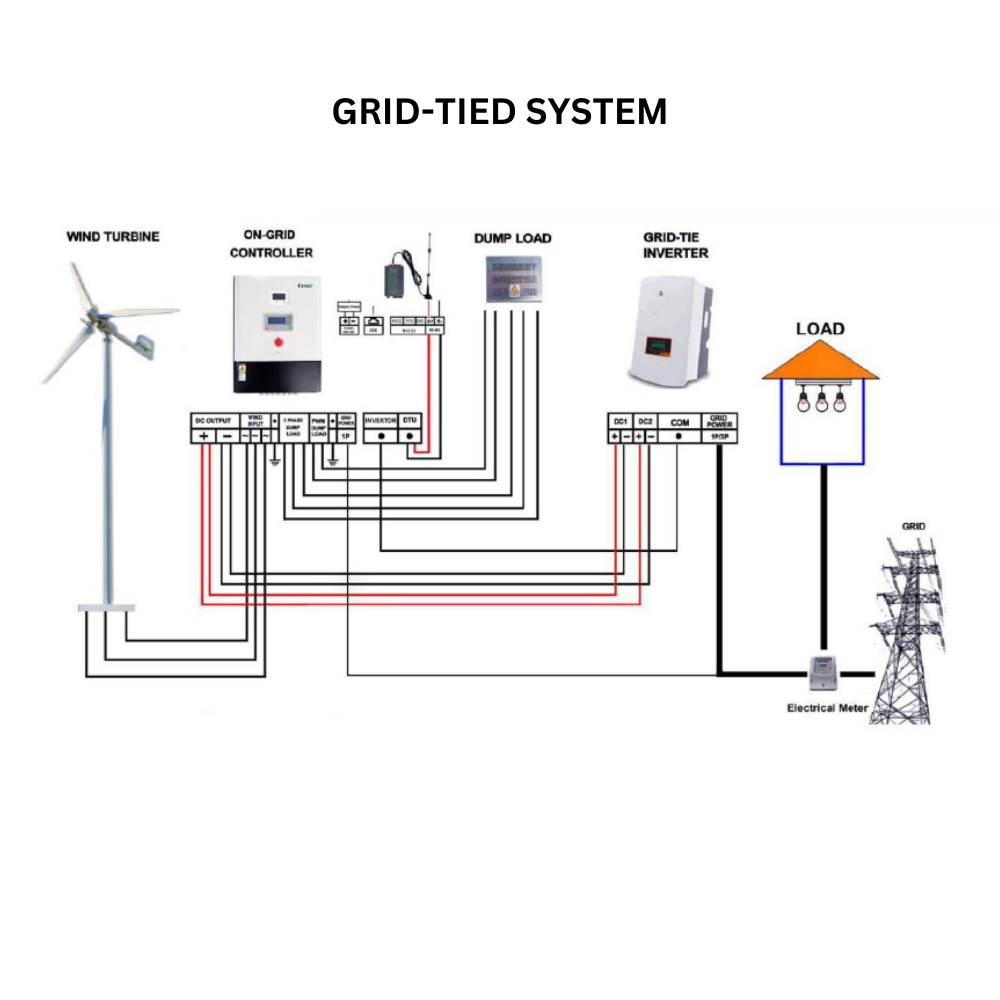

Operational Flexibility: Suitable for both on-grid and off-grid applications.

Variable Pitch Technology: Optimizes efficiency and stability in power generation.

Tower Height: 8, 12, 15 meters, hot dip galvanized for corrosion resistance.

Temperature Tolerance: Operates between -20 to +50°C.

International Certifications: UL and IEC61400 series compliance.

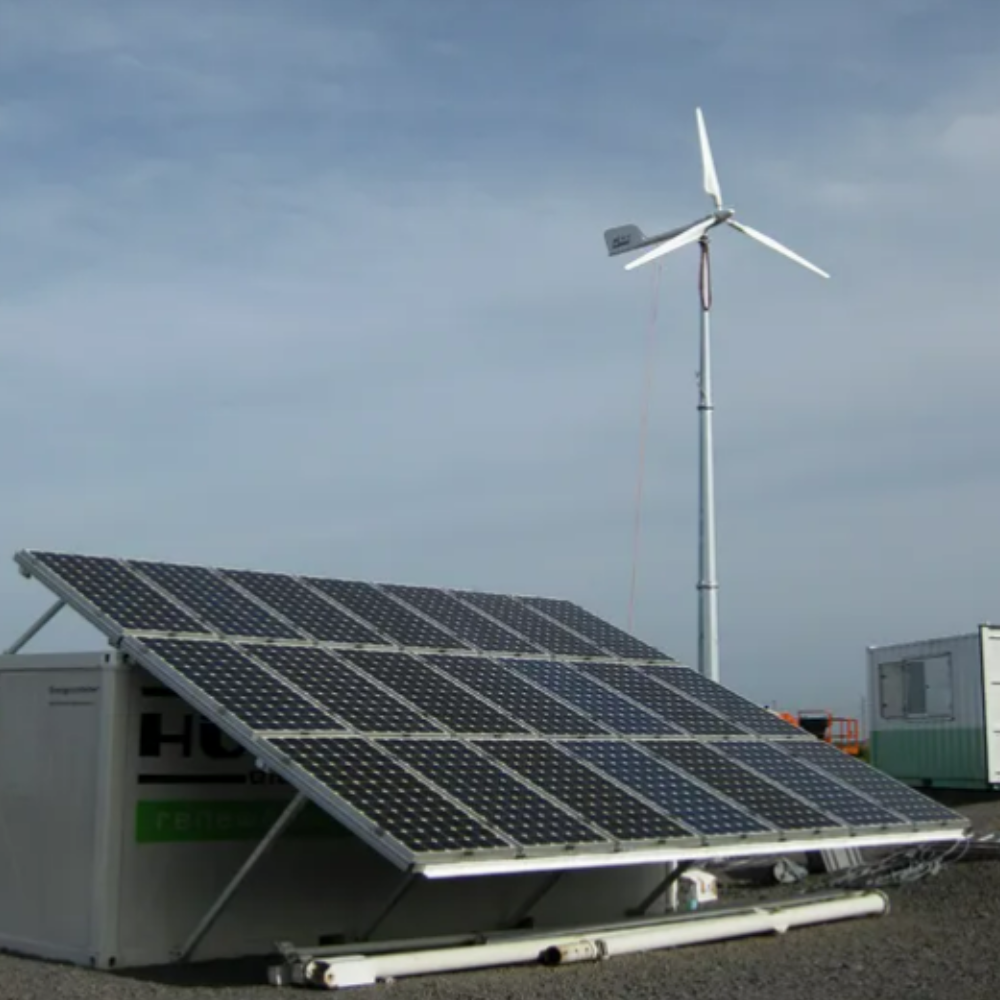

Utility Scale Application: Ideal for telecom, oil & gas, residential, and island power scenarios.
