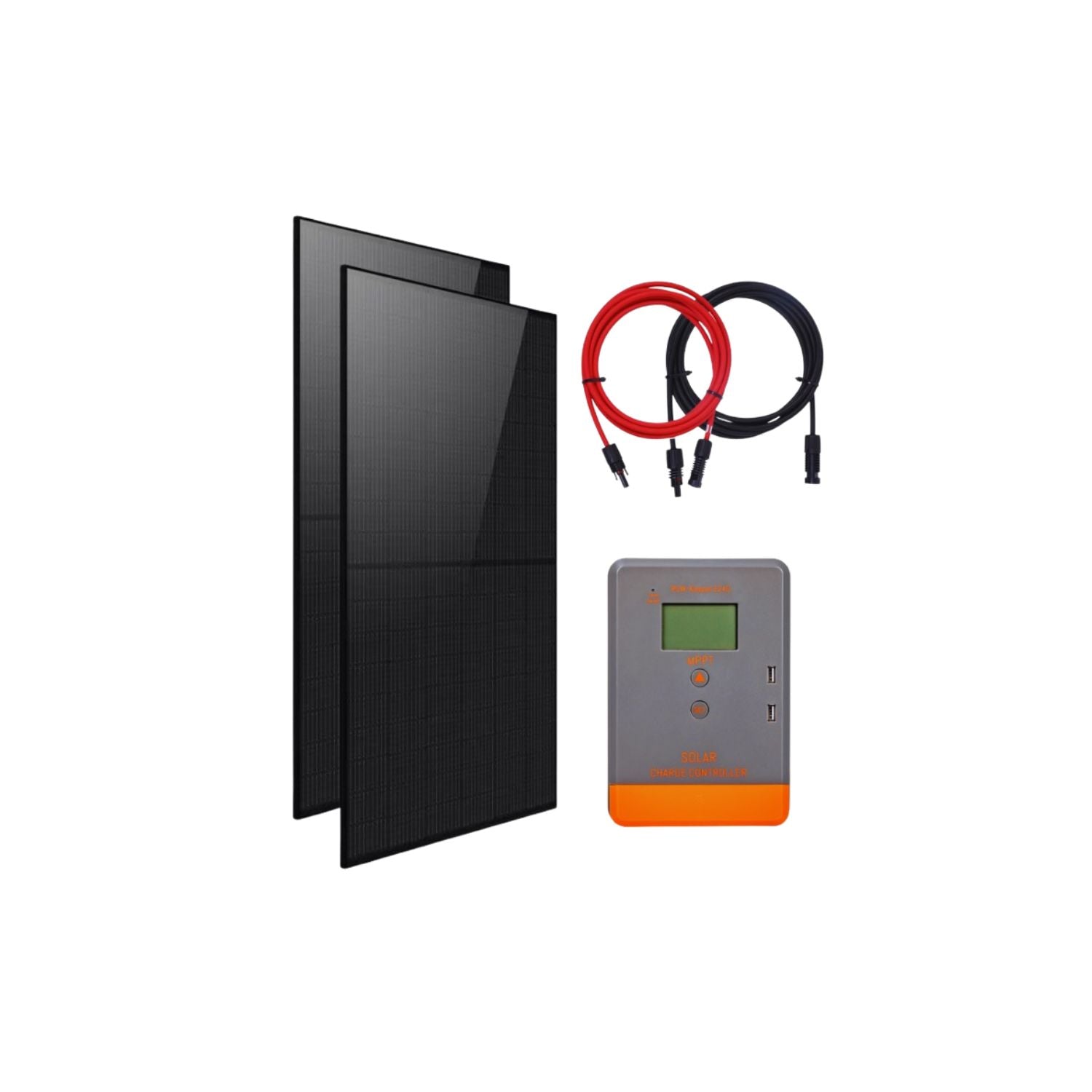

ROCKSOLAR 800W 12V/24V Rigid Solar Panel Kit with 60 MPPT Charge Controller
ROCKSOLAR 800W 12V/24V Rigid Solar Panel Kit with 60 MPPT Charge Controller
400W Monocrystalline Solar Panels (x2) Features:
- High Capacity: 800W total power from two 400W panels.
- Quality Material: Durable Monocrystalline Silicon.
- Weather Resistant: IP65 rated.
- Compact Design: Easy installation.
- 10-Year Warranty: Long-term reliability.
60A MPPT Solar Charge Controller Features:
- Efficient: 60A MPPT for optimal performance.
- Compatible: Suits various systems and batteries.
- Simple Setup: User-friendly.
- Safe: Built-in protections.
- 1-Year Warranty: Guaranteed support.
Free
Local Shipping
10-year Hassle Free
Warranty
Lifetime Customer
Support
Couldn't load pickup availability
- Description
- Includes
- Specifications
- FAQ
- Downloads
- Reviews
ROCKSOLAR 800W 12V/24V Rigid Solar Panel Kit with 60A MPPT Charge Controller
Experience unparalleled solar efficiency with the ROCKSOLAR 800W Rigid Solar Panel Kit (2X400W). Engineered for both off-grid and on-grid systems, this robust kit is perfect for homes, RVs, cabins, and marine applications, promising reliability and high performance in diverse settings.

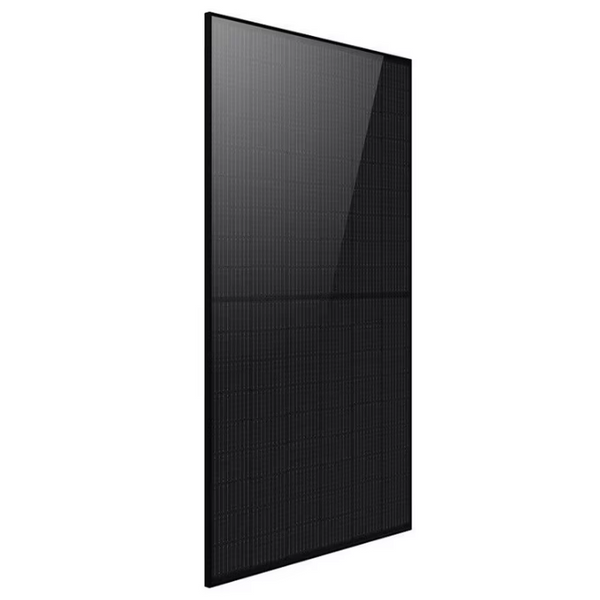

Features of the 800W 12V/24V Rigid Solar Panels
- Peak Performance: Utilizes two 400W monocrystalline panels for higher energy yield and conversion efficiency.
- Durably Built: Each panel is crafted to withstand challenging environments and weather conditions.
- Flexible Use: Suitable for various applications, from residential to commercial and mobile systems.
- Sustainable Solution: Reduces environmental impact with clean, renewable energy.
- Over 25 Year Service Life guaranteed and 10 Year Manufacturer Warranty.
The ROCKSOLAR 800W Solar Panels combine powerful output and steadfast resilience, making them an ideal solution for achieving energy autonomy and promoting green living.

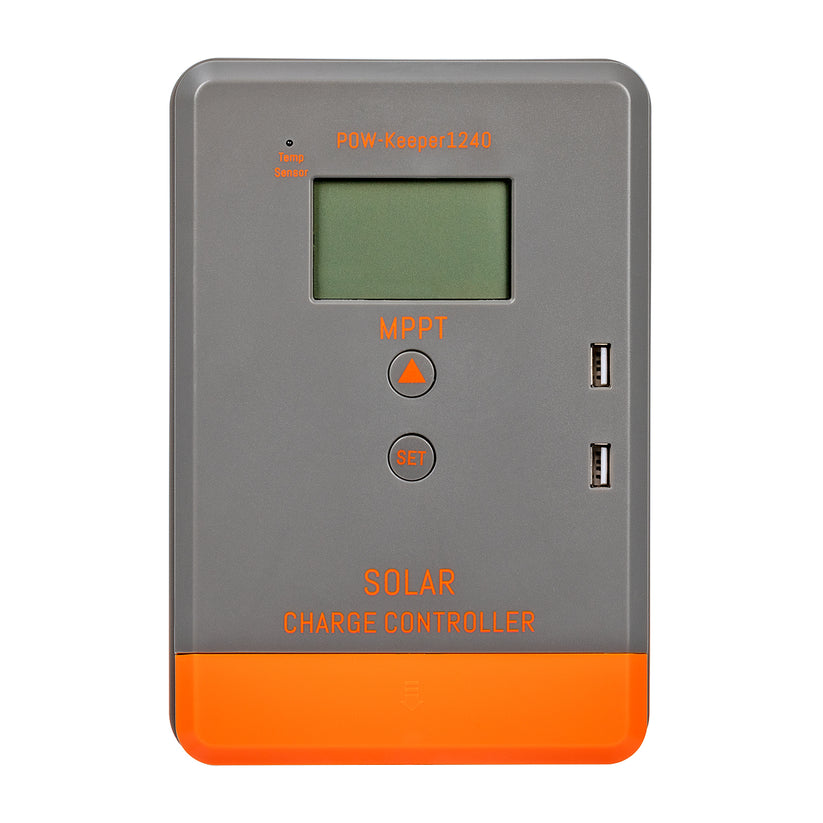

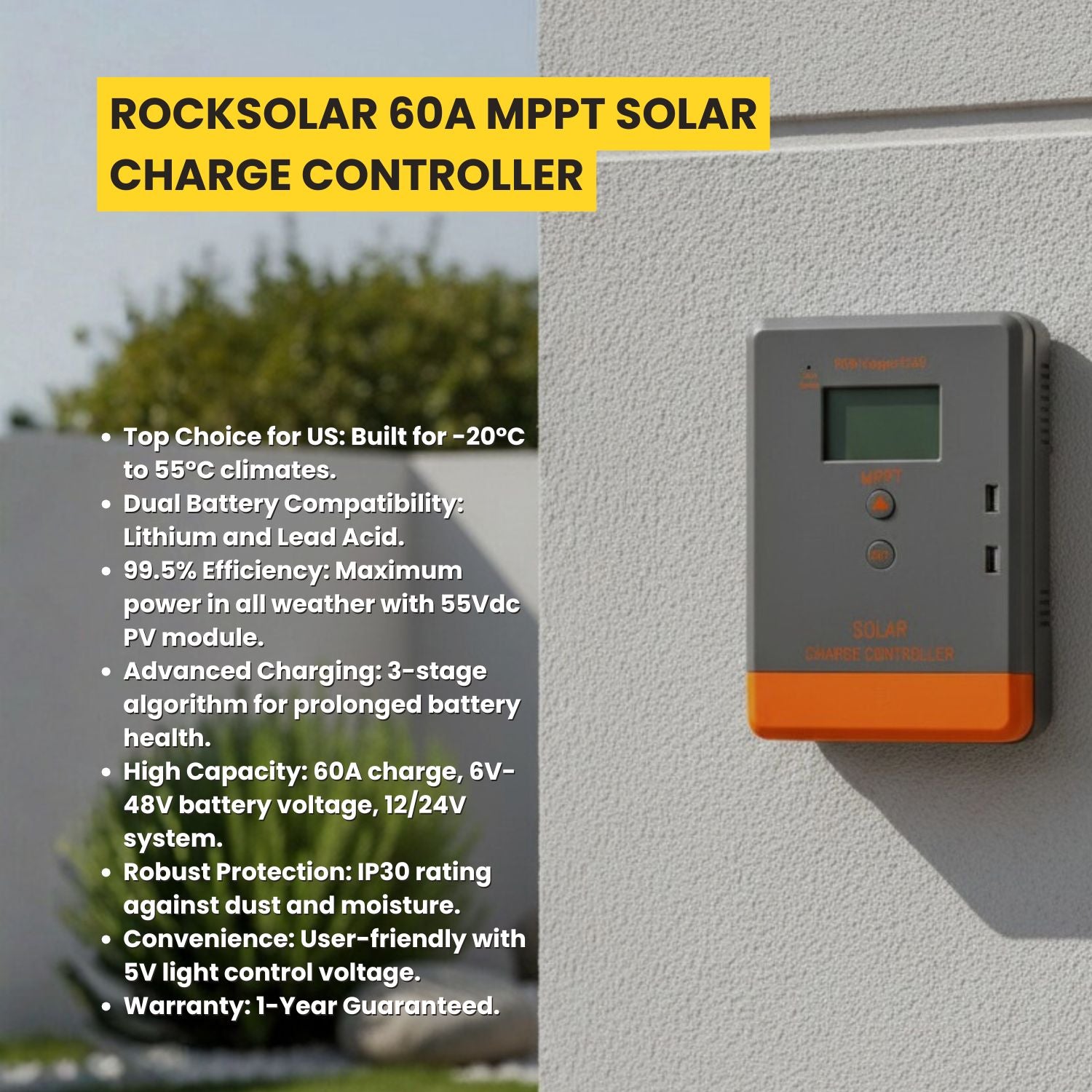

60A MPPT Solar Charge Controller Benefits
- Enhanced Energy Harvesting: Advanced MPPT technology maximizes solar panel efficiency and energy collection.
- Broad Battery Support: Compatible with Lithium and Lead Acid batteries; suitable for both 12V and 24V systems.

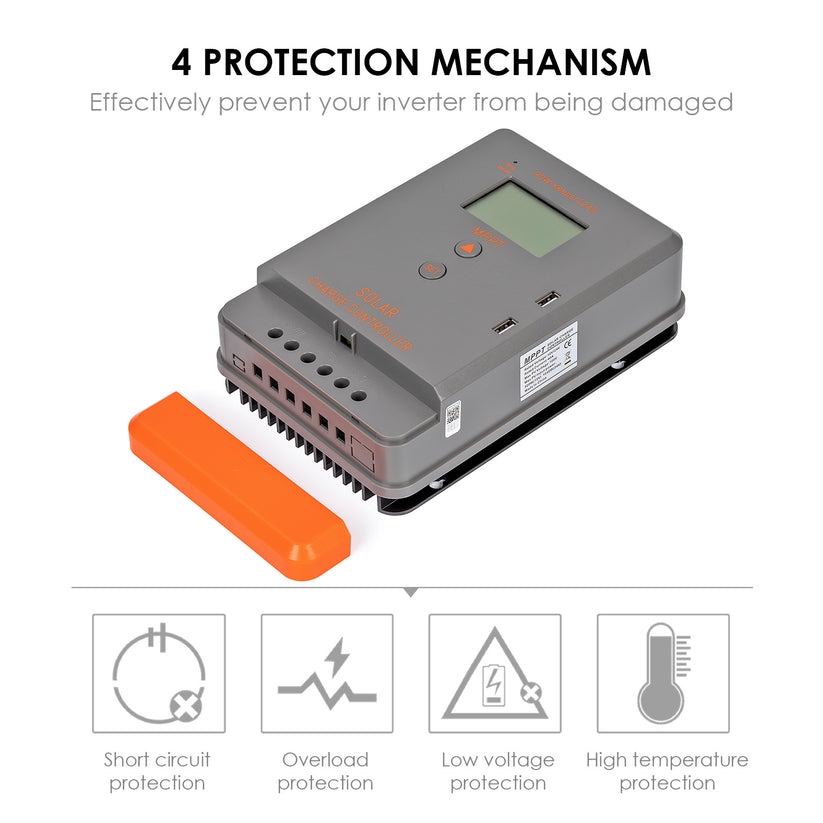

- Comprehensive Protection: Safeguards against overcharging, short circuits, and reverse polarity, enhancing system safety.

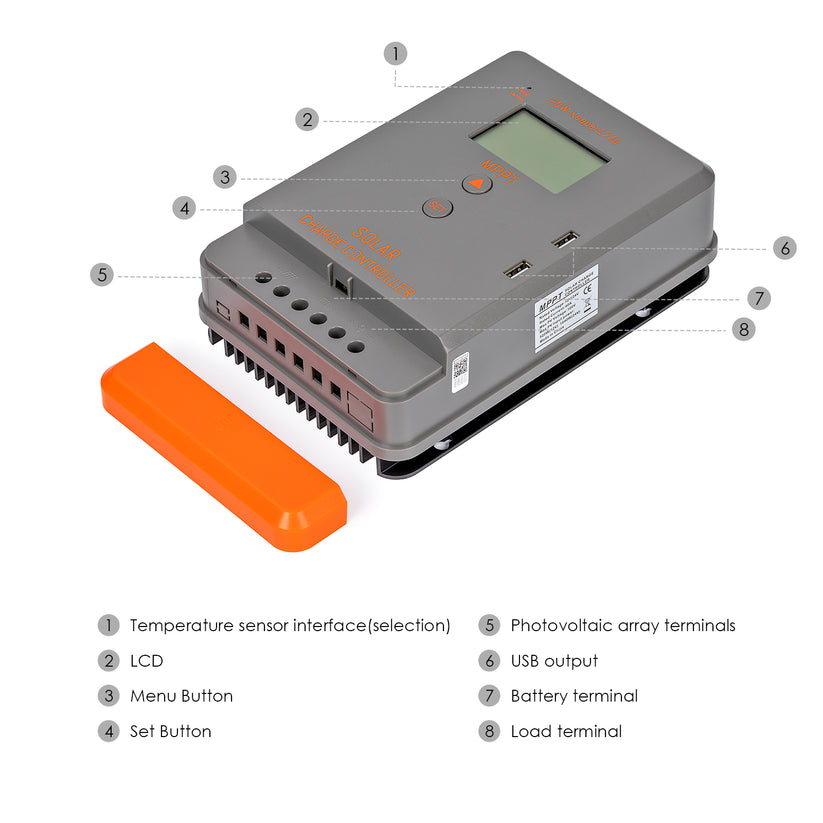

- User-Friendly Interface: Simplifies monitoring and control, offering an intuitive and responsive user experience.
The 60A MPPT Charge Controller elevates your solar system's effectiveness, ensuring optimal power utilization and prolonging battery health.
Dimensions and Specifications
800W 12V/24V Rigid Solar Panels: Two panels each with the dimensions of 1722mm x 1134mm x 30mm

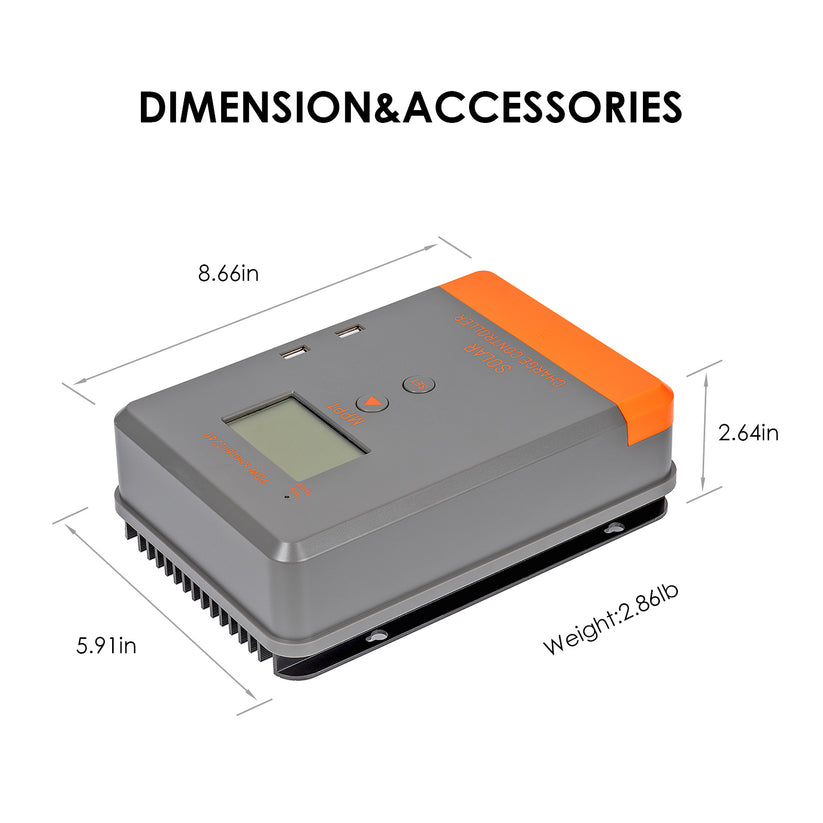

60A MPPT Solar Charge Controller: Size: 123 x 178 x 48 mm
By integrating the ROCKSOLAR 800W Solar Panels with the 60A MPPT Charge Controller, you harness a dynamic and efficient solar power solution, ready to meet the increasing energy demands of contemporary life, while contributing to a cleaner, greener planet.
- ROCKSOLAR 800W 12V Rigid Monocrystalline Solar Panel
- 2 x 400W 12V Monocrystalline Rigid Solar Panel
- 2 x MC4 Connectors
- 1 x User Manual for the Rigid Solar Panel
- ROCKSOLAR 60A MPPT Solar Charge Controller
- 1 x ROCKSOLAR 60A MPPT Solar Charge Controller
- 1 x User Manual for the Charge Controller
- Accessories

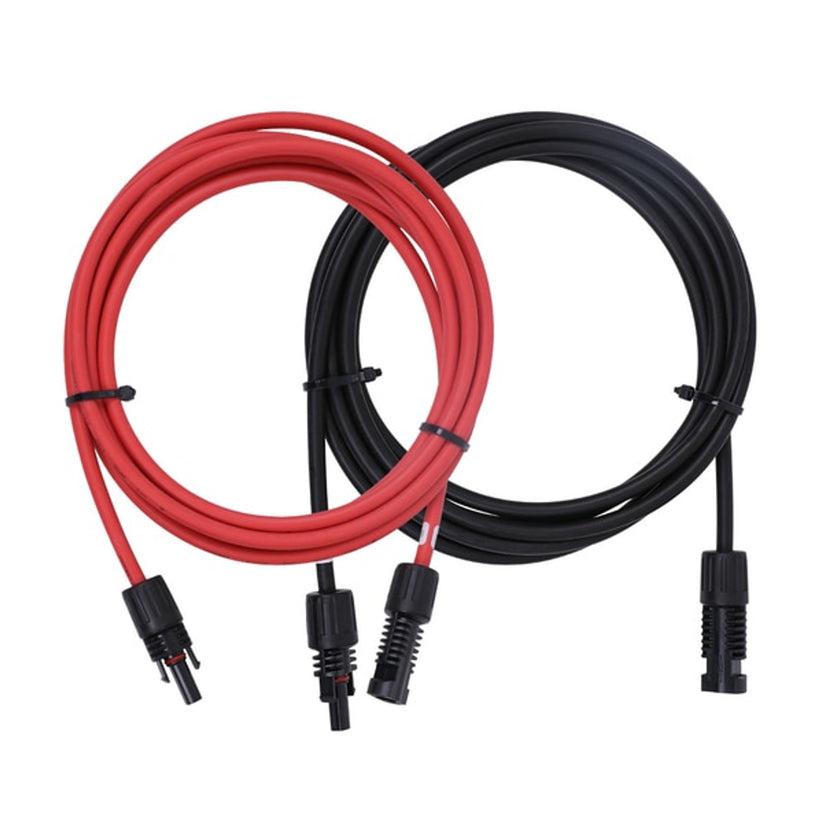

- 1 x 10-feet 10 AWG solar extension cable with MC4 connectors
- 1 x Y Branch Connectors MMF+FFM Pair
- 2 x Z-Bracket Mount System
Technical Specifications
| 400W Panel Specification | Details |
|---|---|
| Panel Type | Monocrystalline |
| Power Output | 400W-420W |
| System Voltage | 1000V |
| Cell Efficiency | 20.7% |
| Frame Material | Anodized Aluminum |
| Dimensions | 1722mm x 1134mm x 30mm |
| Weight | 22 kg |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP68 |
| Front Glass | Anti-reflective tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Service Life | 25 years |
| Warranty | 10 years |
| 60A MPPT Solar Charge Controller Specification | Details |
|---|---|
| Model | POW-M60-PRO |
| PV Input | Max Open Voltage of PV Module: 100Vdc |
| MPP Tracking Efficiency | 99.50% |
| Max PV Power | 800W for 12V system, 1600W for 24V system |
| Charge Mode | Charge Algorithm: 3 Stage (Bulk, Absorption, Float) |
| Battery Type | Lithium and Lead Acid Battery |
| Nominal System Voltage | 12/24V |
| Rated Charging Current | 60A |
| Battery Voltage Range | 8~32V |
| High Voltage Disconnection | 16V (24V x 2) |
| Duration for Absorption Charging | 2 hours |
| Charge Loop Voltage Drop | ≤0.29V |
| Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
| Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
| Absorption Charging Voltage | AGM: 14.4V; GEL: 14.2V; FLd: 14.6V |
| Floating Charging Voltage | AGM/ GEL/ FLd: 13.8V |
| Low Voltage Re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
| Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
| Operating Temperature Range | -20℃~55℃ (To run at full rated current continuously) |
| LCD Temperature Range | -20℃~70℃ |
| Humidity Range | ≤95% No condensation |
| Protection Class | IP30 |
| Dimension | 123 x 178 x 48 mm |
| Installation Hole | 108 x 120 mm ∅5 |
The 800W kit includes two 400W monocrystalline solar panels, a 60A MPPT solar charge controller, necessary cables, connectors, and mounting equipment for a full solar setup.
Yes, the 60A MPPT controller in the 800W kit is designed to be compatible with various battery types including lithium, AGM, gel, and flooded lead-acid batteries, allowing for versatile energy storage solutions.
The 60A MPPT controller in the 800W kit maximizes the efficiency of solar energy conversion, ensuring optimal power generation and improved battery charging performance compared to traditional controllers.
This kit is engineered to endure a variety of environmental conditions, including extreme temperatures, ensuring consistent performance and reliability.
Installation space will depend on individual panel dimensions but expect to need approximately double the space required for the 400W kit, ensuring clear, unobstructed exposure to sunlight.
The 60A MPPT controller aids in maintaining battery health by providing efficient, regulated charging, which helps prolong battery life.
Absolutely, the 800W kit is an excellent choice for off-grid installations like remote homes, RVs, or marine applications, offering a robust and reliable power source.
Regular cleaning of the solar panels and checks on the mounting system and electrical connections are advised to ensure optimal functioning and longevity.
The solar panels in the 800W kit typically have a lifespan exceeding 25 years, with the MPPT controller and other components also designed for long-term use, though they may have shorter life expectancies depending on usage.
Using the 800W Solar Panel Kit helps in reducing reliance on fossil fuels and contributes to a lower carbon footprint, aligning with sustainable energy usage practices.
Care should be taken to secure all electrical connections and mount panels firmly. Adherence to the safety guidelines in the manual is crucial, and professional installation is recommended if you are not experienced with solar setups.
While solar panel efficiency may decrease in overcast conditions, the 800W kit's MPPT controller works to optimize available light, ensuring effective charging and power management even during less sunny days.
