ROCKSOLAR Cottage Life Series IV Off Grid Solar System

ROCKSOLAR Cottage Life Series IV Off Grid Solar System

$3,506.00 USD
$4,997.00 USD $3,506.00 USD
Sale Sold out
Shipping calculated at checkout.

Unparalleled Power Generation

  • Experience impressive power with six 150W monocrystalline solar panels
  • Generates between 3600-4500 Wh of electricity per day, depending on sunlight availability

Outstanding Efficiency

  • Built-in bypass diodes diminish power drops due to shading, ensuring consistent power generation
  • Performs optimally even under low-light conditions
Read more
Shipping

Free
Local Shipping

Warranty

10-years Hassle Free
Warranty

Support

Lifetime Customer
Support
View full details
  • Description
  • Includes
  • Specifications
  • FAQ
  • Downloads
  • Reviews

The ROCKSOLAR Cottage Life Series IV Off-Grid Solar System offers the most comprehensive power solution yet for Canadian cottage owners. It boasts reliability and high efficiency, providing off-grid power at your convenience. The system consists of 2x 12V 200AH LiFePO4 Batteries, 6x 150W Rigid Solar Panels, a 60A MPPT Solar Charge Controller, and a potent 3000W Pure Sine Wave Inverter. It is designed to power a wide array of appliances including a mini fridge, freezer, LCD TV, wifi router, coffee machine, microwave, lighting, stereo, laptop, and phone chargers, ensuring a 24/7 off-grid power supply for all your cottage needs. The ROCKSOLAR Cottage Life Series IV comes with a future-focused design that allows easy upgrades for increased power needs, providing free upgrade services and exchangeable key components. ROCKSOLAR guarantees the value retention of all components, making sure your investment is worthwhile. The batteries and solar panels come with a reassuring 10-year warranty, while the other components carry a 1-year warranty. Embrace a worry-free cottage life with the ROCKSOLAR Cottage Life Series IV Off-Grid Solar System.

Product Features

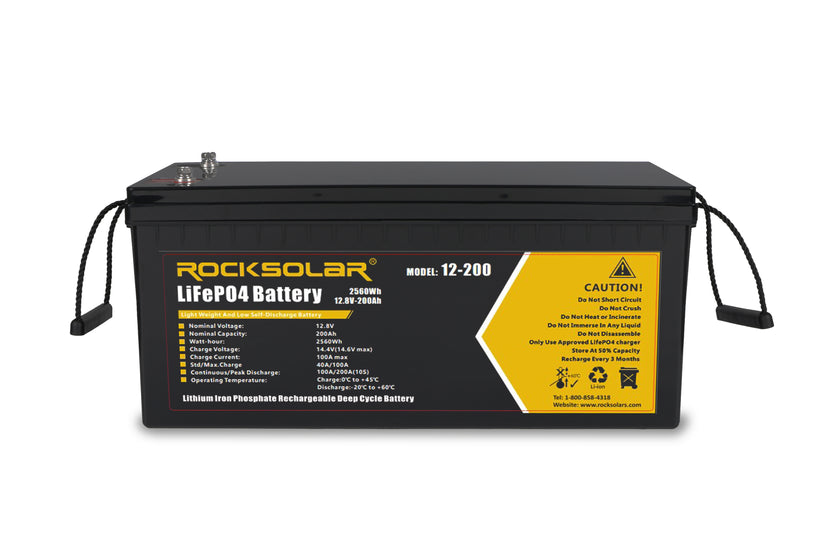

ROCKSOLAR 12V 200Ah Deep Cycle LiFePO4 Battery with BMS System:

  • 12V 200AH capacity
  • 3500+ cycle life with 100% discharge rate for ultra-long service life
  • Steady power: Flat voltage curve for consistent power output, no significant drop like traditional SLA batteries
  • Utilizes advanced LiFePO4 Battery Technology for dependable deep cycling
  • Smart Battery Management System for safety and longevity
  • Lightweight: Only 55 pounds for easy portability and installation
  • Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.
  • Operating temperature range for charging: 0C∽45C, discharging: -20~-60.
  • BMS auto-shuts off the battery outside the working temperature.
  • Warranty: 11-year warranty and 10+ year service life

    • ROCKSOLAR 150W 12V Rigid Monocrystalline Solar Panel:

  • 150W 12V output
  • Rigid Monocrystalline Solar Panel
  • Waterproof and Corrosion-Resistant Aluminum Alloy Frame

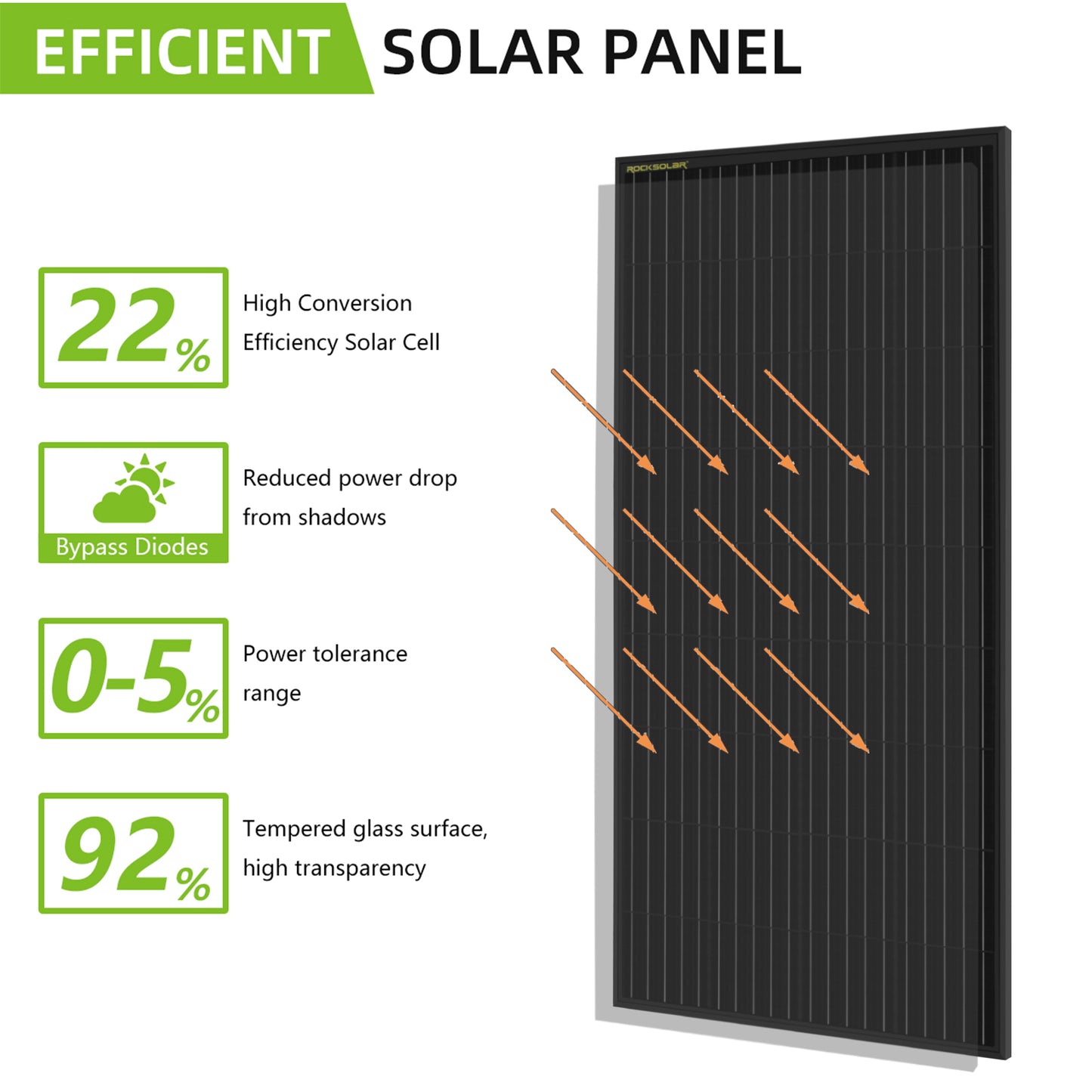

  • High-Efficiency Solar Cell with 22% Conversion Efficiency
  • Pre-drilled holes for easy mounting and securing to any surface

    • ROCKSOLAR 60A MPPT Solar Charge Controller:

  • 60A MPPT Solar Charge Controller
  • Compatible with Lithium and Lead Acid batteries
  • Maximum open voltage of 100Vdc and MPP tracking efficiency of 99.5%
  • 3-stage charge algorithm and 12/24V nominal system voltage
  • Rated charging current of 60A and battery voltage range of 8-32V
  • High voltage disconnection of 16V (24V x 2) and low voltage disconnection of 10.8V
  • Operating temperature range of -20°C to 55°C
  • IP30 rated for protection

    • ROCKSOLAR 3000W Pure Sine Wave Power Inverter:

  • 3000W Pure Sine Wave Power Inverter
  • DC 24V to 110V AC Conversion
  • Temperature Range: The inverter has a working temperature range of -20～40℃ and operating humidity range of 10～90%RH, making it suitable for use in a variety of environments.
  • 2.1A USB Charging Port
  • Ideal for RVs, Camping, Off-grid power solutions, and more.
  • Lightweight and Compact Design: With a net weight of just 5.01kg and a size of 420.4208.9110mm (LWH), the inverter is easy to transport and store.

      • Cottage Life Series IV Off Grid Solar System Includes

      2x

      12V 200Ah Deep Cycle LiFePO4 Battery

      6x

      150W 12V Rigid Monocrystalline Solar Panel

      1x

      3000W Pure Sine Wave Power Inverter

      1x

      60A MPPT Solar Charge Controller

      1x

      20 Ft 10AWG Extension Cables With MC4 Connectors One Pair Red+Black

      6x

      Z-Bracket Mount System (Set of 4)

      5x

      Y Branch Connectors for Solar Panels MMF+FFM Pair


      Technical Specifications

      12V 200Ah Deep Cycle LiFePO4 Battery with BMS System Details
      Nominal capacity 200Ah
      Mix. capacity 195Ah
      Nominal energy 2560Wh
      Combination structure of battery 4S
      Nominal voltage 12.8V
      End of discharge voltage 10.8V
      Standard charge voltage 14.6±0.2V
      Float charge voltage 13.8V
      Standard charge current 40A
      Recommended charge current ≤100A
      Allowed Max. charge current 100A
      Standard discharge current 40A
      Recommended discharge current ≤100A
      Allowed Max. discharge current 100A
      Peak discharge current 200A,10Sec
      Internal Resistance ≤20mΩ
      Weight Approx. 25kg
      Ex-factory capacity Approx.50% SOC
      Operation temperature Discharge: -20°C~60°C; Charge: 0°C~45°C
      Storage environment

      ≤1Month:-20~+60°C、5~75%RH; ≤6Month: -10~+45°C、5~75%RH; Recommend environment: 15~+35°C、5~75%RH

      150W 12V Rigid Monocrystalline Solar Panel Details
      Rated Power 150W
      Type Mono-crystalline silicon
      System Voltage 12V
      Cell Efficiency 20-22%
      Frame Material Aluminum
      Dimensions 1120*670*30 mm
      Weight approx. 8.30kg
      Operating Temperature -20~70 °C

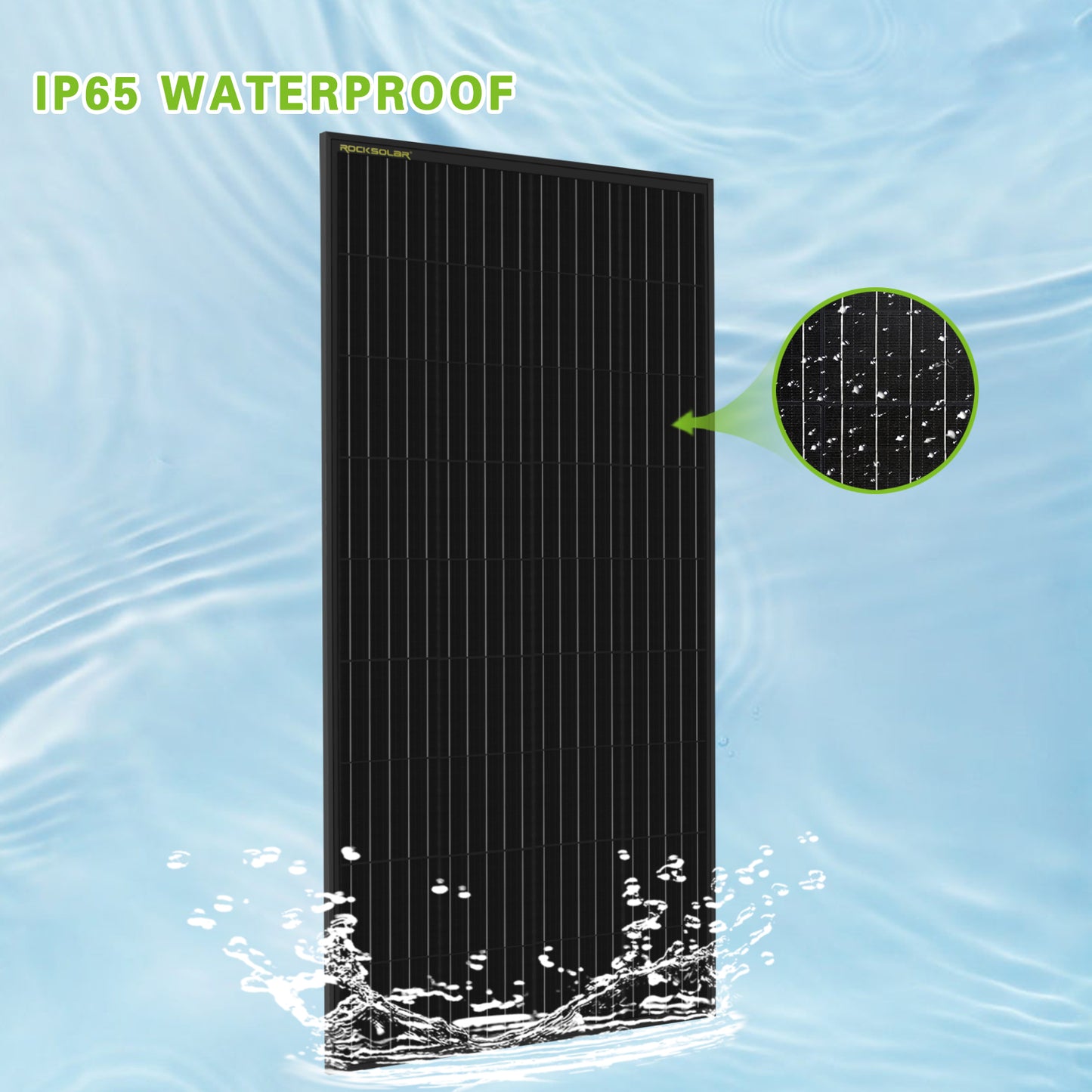

      Waterproof Rating IP65
      Front Glass High light transmittance, low-iron tempered glass
      Bypass Diodes Integrated
      Connectors MC4
      Cable Length Varies depending on the brand (approx. 3-6 ft)
      Mounting Hole Locations Pre-drilled
      Service Life 25 years or more
      Warranty 10 Year

      60A MPPT Solar Charge Controller
      		 Details
      Model POW-M60-PRO
      PV Input Max Open Voltage of PV Module: 100Vdc
      MPP Tracking Efficiency 99.50%
      Light Control Voltage 5V
      Charge Mode Charge Algorithm: 3 Stage
      Battery Type Lithium and Lead Acid Battery
      Low Voltage Disconnection (LVD) AGM/ GEL/ FLd: 10.8V
      Environmental Operating Temperature Range: -20℃~55℃ (To run at full rated current continuously)
      LCD Temperature Range -20℃~70℃
      Humidity Range ≤95% No condensation
      General Specification Protection Class: IP30
      Dimension 123*178*48
      Installation Hole 108*120 ∅5

      3000W Pure Sine Wave Power Inverter
      		 Details
      Model RSINV3000-001
      Output Rated power: 3000W
      AC Voltage 120Vac(100/110/120Vac Set through menu)
      Frequency 60Hz (50Hz/60Hz Set through menu)
      Resistive Load Continuous Output Power 1800W, 3000W
      Operating humidity 10～90%RH
      Storage temperature, humidity -30℃～70℃,10～95%RH
      Weight Net weight:5.01Kg Gross weight:
      Size 420.4*208.9*110mm (L*W*H)
      Packing mm(L*W*H)


      The Cottage Life Series IV kit includes 2x 12V 200AH LiFePO4 Batteries, 6x 150W Rigid Solar Panels, a 60A MPPT Solar Charge Controller, and a 3000W Pure Sine Wave Inverter.

      The system is capable of powering a wide range of appliances including a mini fridge, freezer, LCD TV, wifi router, coffee machine, microwave, lighting, stereo, laptop, and phone chargers.

      Yes, the system is designed to be easily upgraded for increased power needs in the future. With free upgrade services and exchangeable key components, you can expand your energy independence with confidence.

      The system comes with a 10-year warranty on the batteries and solar panels and a 1-year warranty on other components.

      The power generation of the system largely depends on sunlight availability and other environmental factors. However, with its 6x 150W Rigid Solar Panels, it's designed to offer a significant amount of power for your off-grid needs.


      Download Product Manual (PDF)

      Customer Reviews

      Based on 20 reviews
      80%
      (16)
      20%
      (4)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      D
      David G.
      Energy Independence Achieved!

      We installed this at our cabin and it's been a lifesaver. The power is more than adequate and installation was a breeze. I appreciated the quick shipping too!

      T
      Thomas W.
      Incredible Product

      The Rocksolar system is amazing! It was delivered in no time and the installation was a breeze. Definitely worth the price.

      P
      Peter J.
      Peace of Mind

      Thanks to Rocksolar, we don't have to worry about power outages anymore. The price is right and it shipped super quickly. Highly recommend!

      J
      Jessica D.
      Perfect for Off-Grid Living

      This solar system is perfect for our off-grid life. Shipping was fast and setup was easy. The price is right for such a high-quality product.

      S
      Sarah P.
      A Game Changer!

      I received my ROCKSOLAR Cottage Life Series IV within a week of ordering. The package was secure and everything arrived intact. Easy to install and works flawlessly! The price is totally worth it for the utility and ease of mind it brings.
