Fonrich Smart PV Monitor and Gateway

Fonrich Smart PV Monitor and Gateway

$359.99 CAD
$559.99 CAD $359.99 CAD
Sale Sold out
Shipping calculated at checkout.
  • RS485 Connection: Connects up to 4 Smart PV PLC Transceivers.
  • Bluetooth BLE: For local setting with mobile APP.
  • WIFI and RJ45 Ethernet: For cloud connecting.
  • Local Display: Up to 2496 PV modules.
View full details



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews

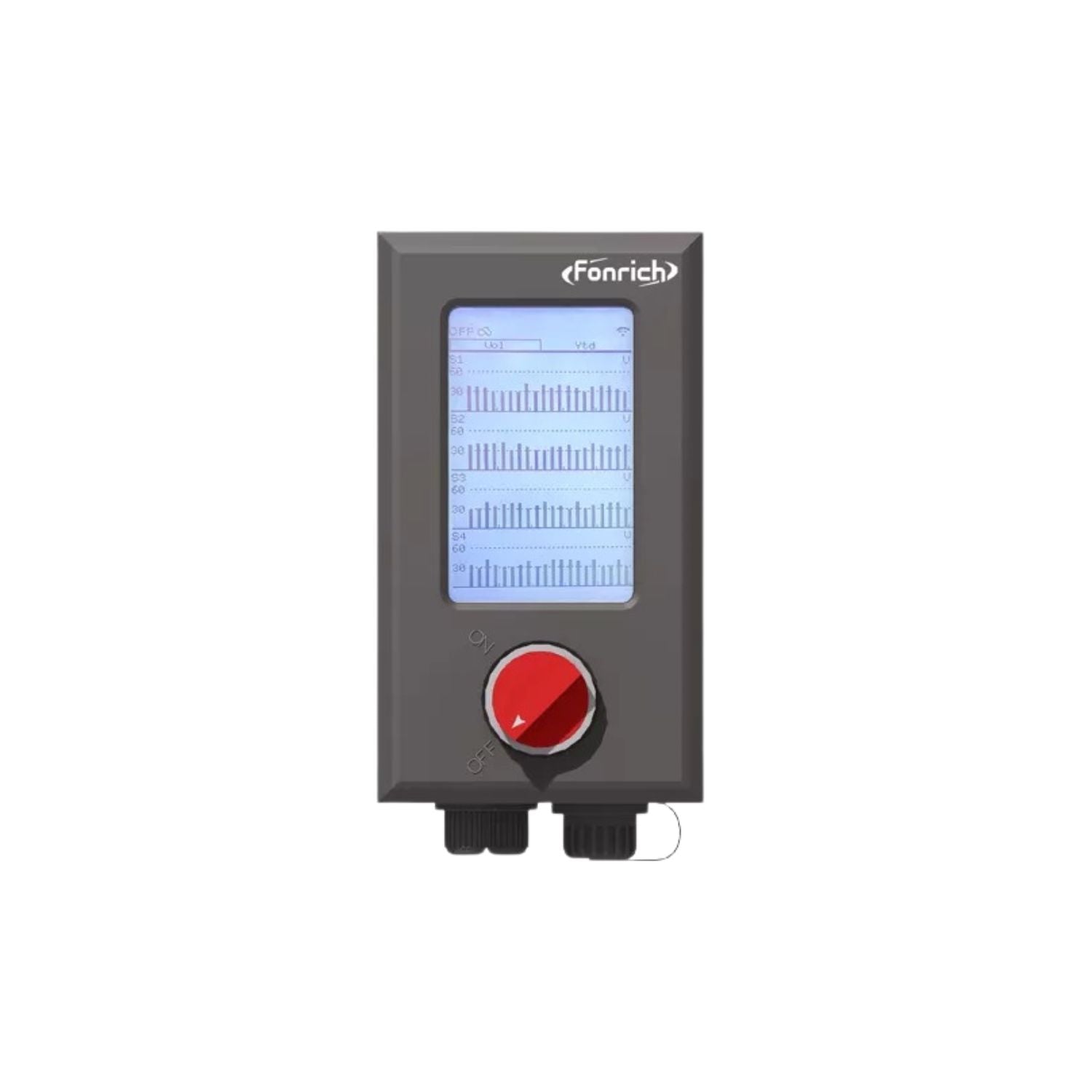

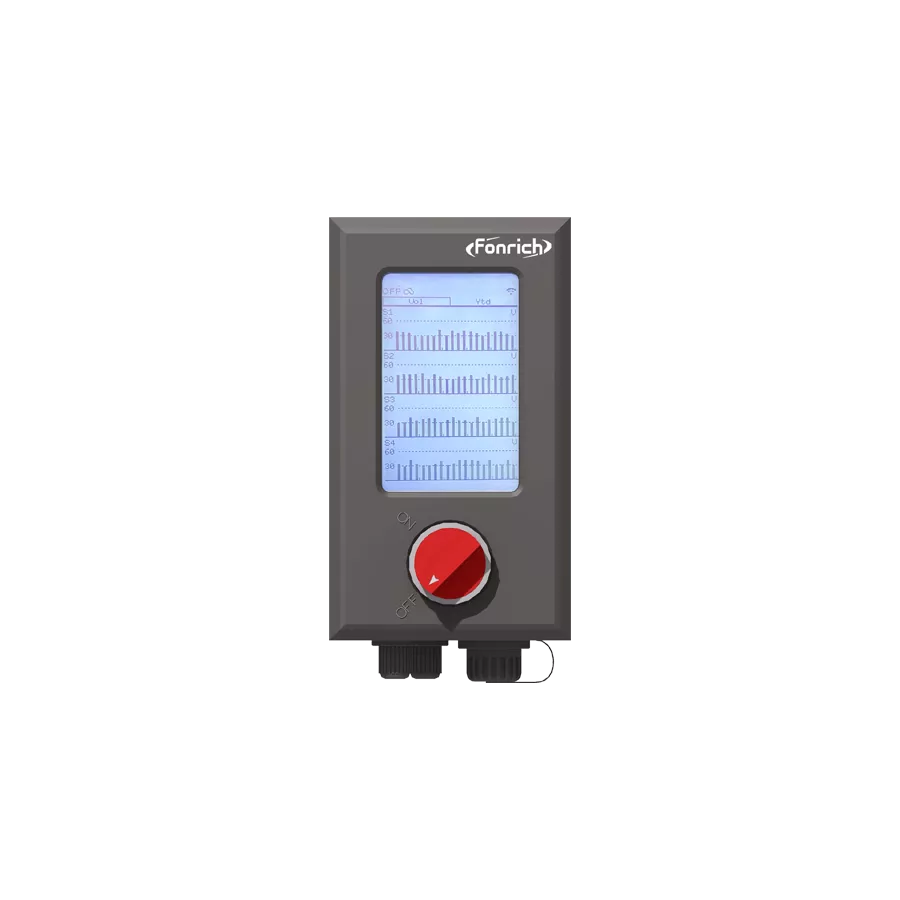

The Smart PV Monitor and Gateway connects to transceiver modules via RS485, provides real-time PV voltage data, and sends information to a cloud platform for remote monitoring via the Fonrich SafeSolar app or web interface.

Product Features

  • RS485 connects up to 4 Smart PV PLC Transceivers
  • WIFl and RJ45 Ethernet for cloud connecting
  • Local display max 2496 PV modules

  • Bluetooth BLE for local setting with mobile APP

  • 1 x Smart PV Monitor and Gateway

Technical Specifications


Item Specification Unit Comment
Range of power supply voltage 100 ~ 260 Vac -
Max power consumption 15 W -
Aux power output voltage 24 Vdc -
Max aux power output ≤18W W -
Operating ambient temperature range -30 ~ 70 °C -
Relative humidity range 0 ~ 90 % -
Ingress protection IP42 - -
Safety compliance CE LVD Directive 2014/35/EU
CE EMC Directive 2014/30/EU		 - -
Cloud Fonrich SafeSalor - customize
IoT protocol MQTT 3.1 - -



Download Datasheet (PDF)
Download User Manual (PDF)
