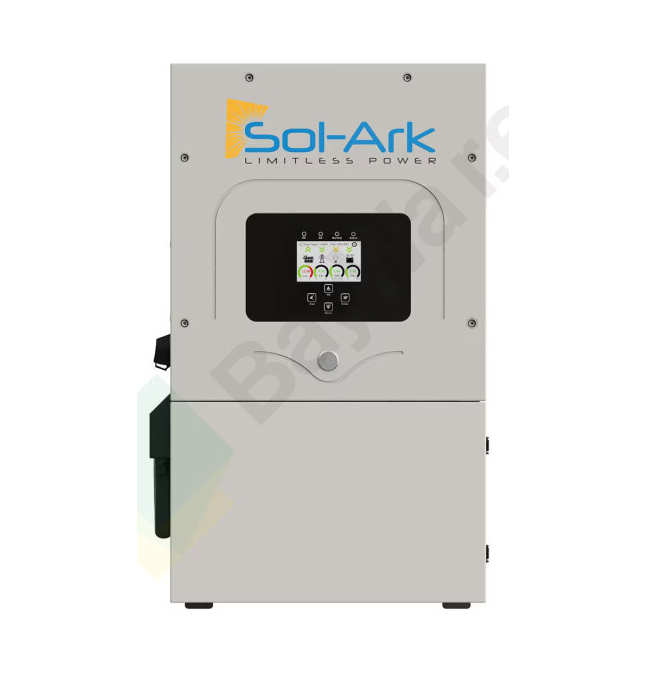

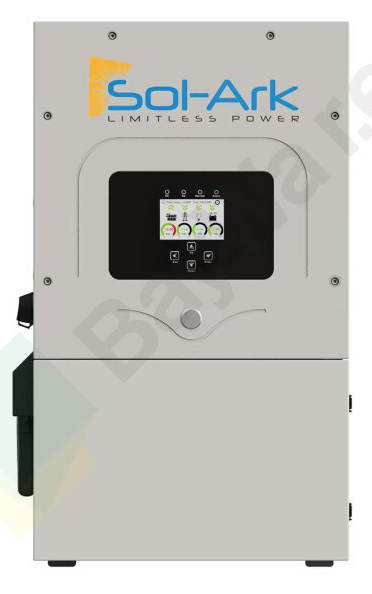

Sol-Ark 15K-2P-N Hybrid Inverter | 12kW Continuous, 120/240V | Off-Grid & Grid-Tie | UL/CSA Listed
Available in stock (102)
Couldn't load pickup availability
Description
Description
The Sol-Ark 15K-2P-N is an all-in-one hybrid inverter for whole-home backup, solar + battery storage, and fully off-grid properties. One unit manages your solar panels, batteries, the grid and a generator, so your home keeps running through outages.
Why customers choose the Sol-Ark 15K
- 5 ms transfer time: switches to backup fast enough that computers don't reset during an outage
- 200A grid pass-through: installs between the grid and your main panel for whole-home backup
- Up to 19.5kW of solar across 3 MPPT trackers, so panels on different roof faces are optimized independently
- Grid-tie, hybrid or off-grid: one inverter, three operating modes. Start grid-tied and add batteries later.
- Generator input for winter backup when solar is low
- Scales up: parallel up to 12 units for larger homes, farms and commercial sites
- UL and CSA listed for installation in Canada
- 10-year manufacturer warranty
Specifications
| Model | Sol-Ark 15K-2P-N |
| Continuous AC output | 12,000W |
| AC output voltage | 120/240V split-phase, 60Hz |
| Max PV input | 19.5kW |
| MPPT trackers | 3 (26A max per tracker) |
| MPPT voltage range | 125–425V DC |
| Battery | 48V nominal (43–63V). Lithium with closed-loop communication (CANbus/RS485) or lead-acid. |
| Max battery charge current | 275A |
| Grid pass-through | 200A |
| Transfer time | 5 ms |
| Efficiency | 96.5% CEC |
| Parallel capability | Up to 12 units |
| Monitoring | Built-in Wi-Fi + LAN, remote monitoring from your phone |
| Certifications | UL and CSA listed |
| Warranty | 10 years (LCD screen and fans: 5 years) |
What's in the box: Inverter, PV disconnect, AC disconnect, Wi-Fi/LAN hardware, battery temperature sensor, manuals.
Built for
- Whole-home backup power
- Residential solar + battery storage
- Farms, workshops, cottages and rural or off-grid properties
- Light commercial facilities
Not sure what you need? We'll help you size it.
Send us your home size, roof space and what you want to back up, and our team in Waterloo, Ontario will recommend a complete Sol-Ark system with panels, batteries and accessories. Contact us for a system recommendation →
FAQ
Will it power my whole house?
The 15K delivers 12,000W continuous at 120/240V, enough for most homes. Its 200A pass-through lets it sit in front of your main panel. For larger homes or heavy loads, multiple units can run in parallel.
Which batteries does it work with?
Any 48V lithium battery with closed-loop communication on Sol-Ark's approved list, or lead-acid. Please contact us before ordering a battery and we'll confirm it's compatible.
Can I start without batteries?
Yes. It can run grid-tied without batteries, and you can add batteries later for backup.
How many solar panels can I connect?
Up to 19.5kW of solar across 3 MPPT trackers. Panel count depends on panel wattage and string voltage, and we can help you design the strings.
Does it need an electrician?
Yes. The Sol-Ark connects to your home's electrical panel and must be installed by a licensed electrician and inspected by your provincial electrical authority (for example, ESA in Ontario).
Does it work with a generator?
Yes. It has a dedicated generator input, which is useful for long winter outages when solar output is low.
What does the warranty cover?
Sol-Ark provides a 10-year limited warranty against defects in materials and workmanship, with 5 years on the LCD screen and fans.
