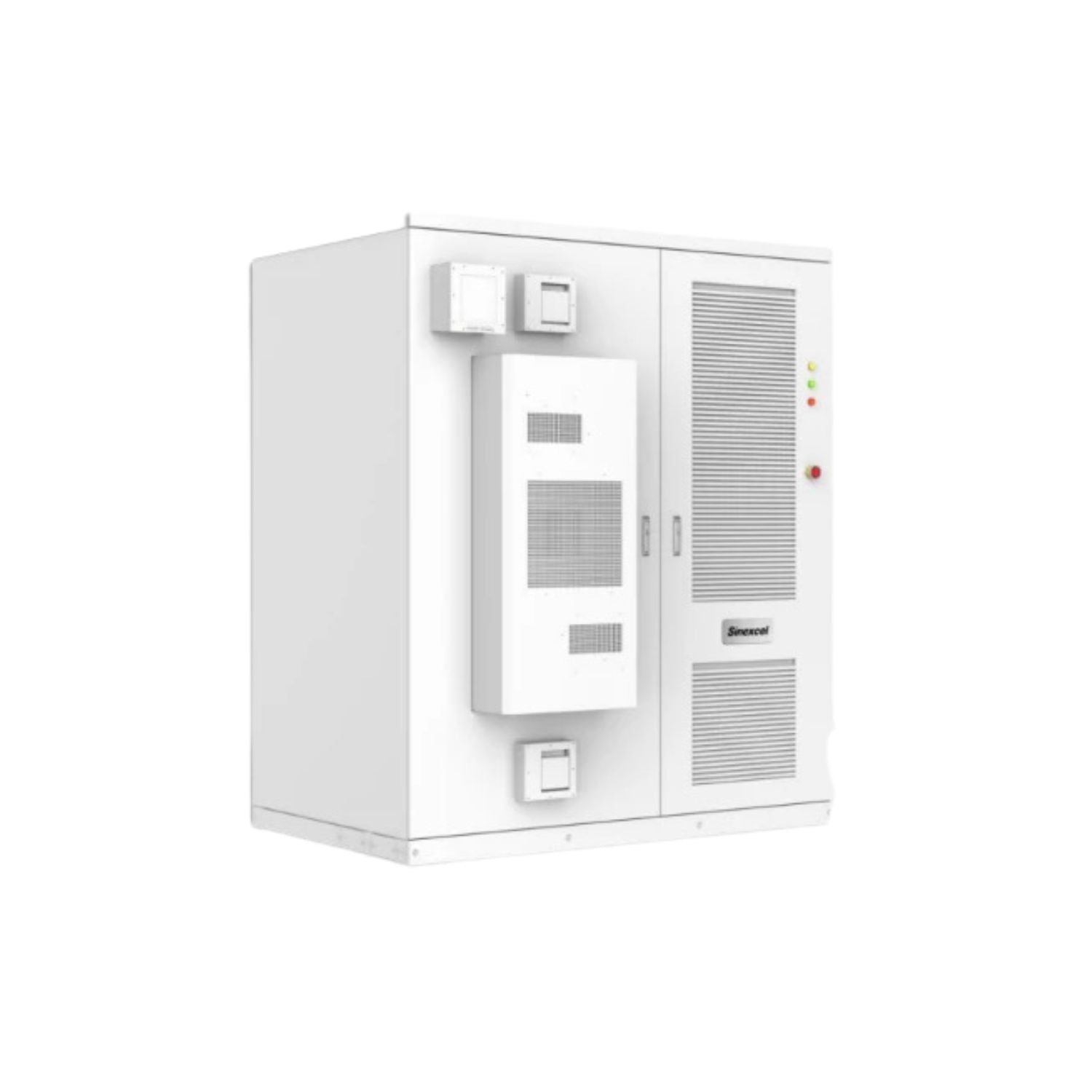

SS-90K-NA/EX Outdoor Cabinet BESS

SS-90K-NA/EX Outdoor Cabinet BESS

$149,999.99 CAD
$199,999.99 CAD $149,999.99 CAD
Sale Sold out
Shipping calculated at checkout.

SES-90K-NA/EX System Specifications

DC Side Specifications

  • Rated DC Power: 30kW×n (n=1,2,3)
  • Maximum DC Power: 33kW×n (n=1,2,3)
  • Charging/Discharging Voltage Range: 200V–750V (350V–750V @ full load)
  • Max Charging/Discharging Current: 90A×n (n=1,2,3)
  • Max Copper Busbar Ampacity (Battery Side): 180A @50°C

PV Side Specifications

  • Maximum Input Voltage: 830V
  • Start-up Voltage: 250V
  • MPPT Voltage Range: 200–750V (430–750V @ full load)
  • PV Input Power: 45kW ×n (n=1,2,3); 3 branches ×15kW each

AC Side Specifications

  • Rated Output Power: 30kVA×n (n=1,2,3)
  • Maximum Apparent Power: 33kVA×n (n=1,2,3)
  • Grid-tied AC Voltage: 400V(±15%) 3P4W+PE / 480V(±15%) 3P4W+PE
  • Off-grid AC Voltage: 400V(±20%) / 480V(±5%) 3P4W+PE
  • AC Frequency: 50Hz/60Hz (±2.5Hz)
  • THDi: <3%

General Specifications

  • Dimensions (W×D×H): 2100×1300×2450mm
  • With AC unit: 2100×1540×2465mm
  • Cooling: Forced air for electronics + 5kW AC for battery
  • Enclosure: NEMA 3R / IP54
  • Weight: 1800kg (without battery)
  • Altitude: 3000m (derating above 2000m)
  • Operating Temp: –20°C to 55°C (derating over 45°C)
  • Humidity: 0–95% (non-condensing)
Shipping

Free
Local Shipping

Warranty

30-year Hassle Free
Warranty

Support

Lifetime Customer
Support
View full details



  • Description
  • Includes
  • Specifications
  • Datasheet
  • User Manual
  • Reviews
  • All-in-one Design: Highly integrated, compact energy storage system for optimized deployment.
  • Modular Design: Offers multiple optional parts for tailored configurations.
  • Flexible Installation: Easy-to-install, compatible with various battery chemistries (LFP/Sodium-ion).
  • Enclosure Protection: NEMA 3R / IP54 rated cabinet ensures reliable performance in outdoor environments.
  • Parallel Ready: Back-to-back installation supported for increased scalability.
  • Grid Compatibility: Supports both Grid-tied and Off-grid operations.
  • Voltage Options: Operates with 208V / 400V / 480Vac, 3P4W output.
  • Optional Enhancements: Includes optional PV input and backup modules.
  • Global Certifications: Compliant with global grid and safety standards.
